H61MHV2

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

Prepare a dry and stable working environment with sufficient

lighting.

Always disconnect the computer from power outlet before

operation.

Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded

appliance, or use grounded wrist strap to remove the static

charge.

Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the

edge, do not try to bend or flex the board.

Do not leave any unfastened small parts inside the case after

installation. Loose parts will cause short circuits which may

damage the equipment.

Keep the computer from dangerous area, such as heat

source, humid air and water.

The operating temperatures of the computer should be 0 to

45 degrees Celsius.

To avoid injury, be careful of:

Sharp pins on headers and connectors

Rough edges and sharp corners on the chassis

Damage to wires that could cause a short circuit

1.2 PACKAGE CHECKLIST

Serial ATA Cable x2

Rear I/O Panel for ATX Case x1

Quick Installation Guide x1

Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was

sold. For more information about the standard package in your region, please contact your

dealer or sales representative.

Motherboard Manual

1.3 MOTHERBOARD FEATURES

SPEC

CPU

Socket 1155

Intel Core i7 / i5 / i3 / Pentium / Celeron

processor

Supports Execute Disable Bit / Enhanced Intel

SpeedStep® / Intel Architecture-64 / Extended

Memory 64 Technology / Virtualization Technology /

Hyper Threading

Chipset Intel H61

Super I/O

IT8772E

Provides the most commonly used legacy

Super I/O functionality

Low Pin Count Interface

Environment Control initiatives

Hardware Monitor Controller

Fan Speed Controller

ITE's "Smart Guardian" function

Main

Memory

DDR3 DIMM Slots x 2

Max Memory Capacity 16GB

Each DIMM supports 512MB/

1GB/2GB/4GB/8GB DDR3

Dual Channel Mode DDR3 memory module

Supports DDR3 1066 / 1333

Supports DDR3 1600 (depending on CPU)

Registered DIMM and ECC DIMM is not supported

SATA 2 Integrated Serial ATA Controller Data transfer rates up to 3.0 Gb/s

SATA Version 2.0 specification compliant

LAN RTL8111H 10 / 100 / 1000Mb/s auto negotiation

Sound

Codec ALC662 5.1 channels audio out , High Definition Audio

Slots

PCI-E Gen3x16 slot x1

(depending on CPU)

Supports PCI-E Gen2/3 x16 expansion card

PCI-E Gen2 x1 slot x1 Supports PCI-E Gen2 x1 expansion card

On Board

Connectors

SATA2 Connector x4 Each connector supports 1 SATA2 device

Front Panel Connector x1 Supports front panel facilities

Chassis Speaker Connector x1 Supports chassis speaker

Front Audio Connector x1 Supports front panel audio function

CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)

System Fan Header x1 System Fan Power supply

Clear CMOS Header x1 Restore CMOS data to factory default

USB2.0 Connector x2 Each connector supports 2 front panel USB2.0 ports

Serial Port Connector x1 Connects to RS-232 Port

Power Connector (24pin) x1 Connects to Power supply

Power Connector (4pin) x1 Connects to Power supply

Rear Panel

I/O

PS/2 Keyboard/ Mouse x1

VGA Port x1

HDMI Port x1

LAN port x1

USB2.0 Port x4

Audio Jack x3

Connects to PS/2 Keyboard & Mouse

Connect to D-SUB monitor

Connect to HDMI monitor

Connect to RJ-45 Ethernet cable

Connect to USB2.0 devices

Provide Audio-In/Out and Mic. Connection

Board Size 170 (W) x 191 (L) mm

OS Support Windows XP / Vista / 7 / 8 / 8.1 / 10 Biostar reserves the right to add or remove support

for any OS with or without notice

H61MHV2

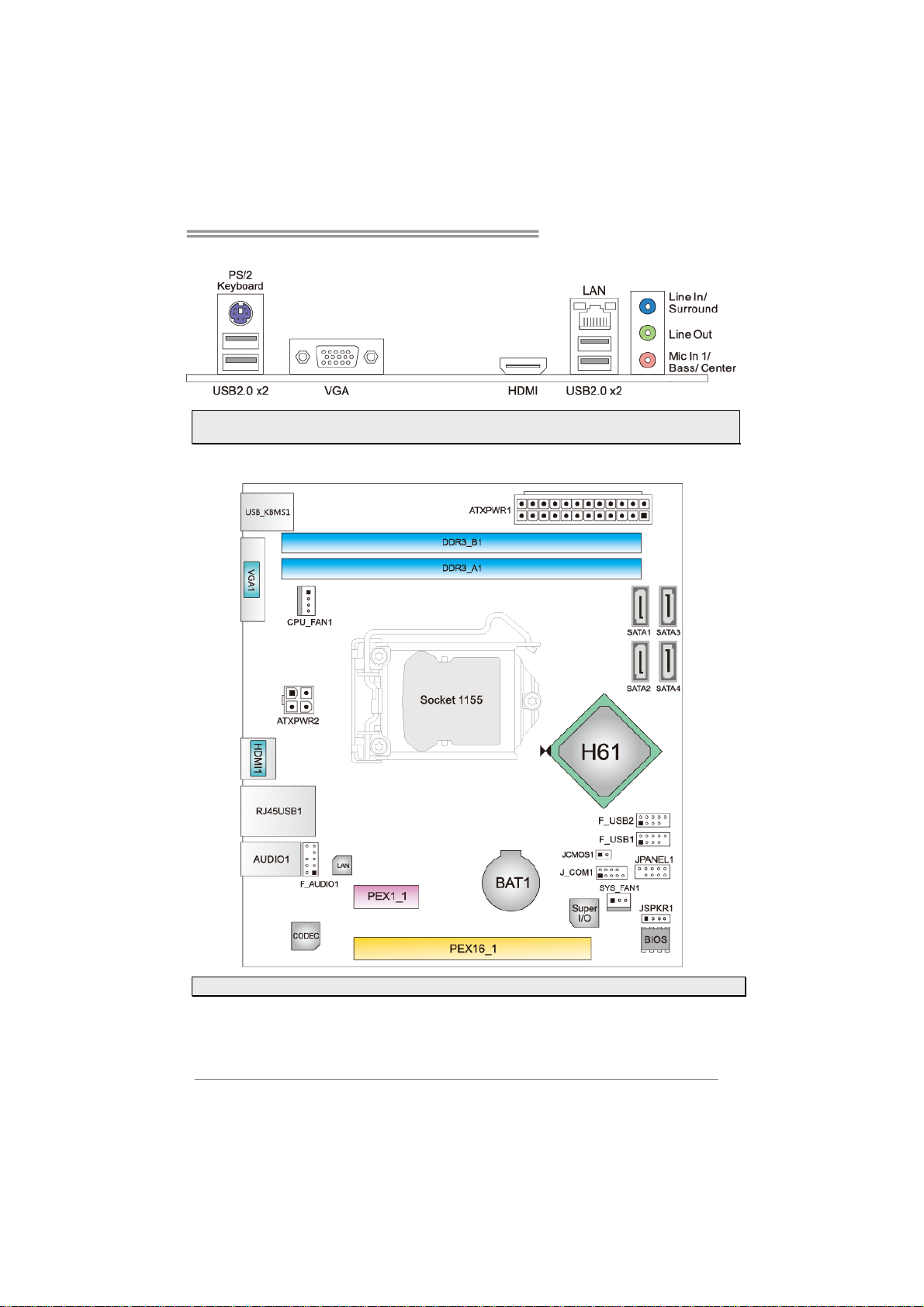

1.4 REAR PANEL CONNECTORS

Note1: VGA Output requires an Intel Core family processor with Intel Graphics Technology.

Note2: VGA Maximum resolution: 2048 x 1536 @75Hz

1.5 MOTHERBOARD LAYOUT

Note1: ■represents the 1st pin.

Motherboard Manual

CHAPTER 2: HARDWARE INSTALLATION

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

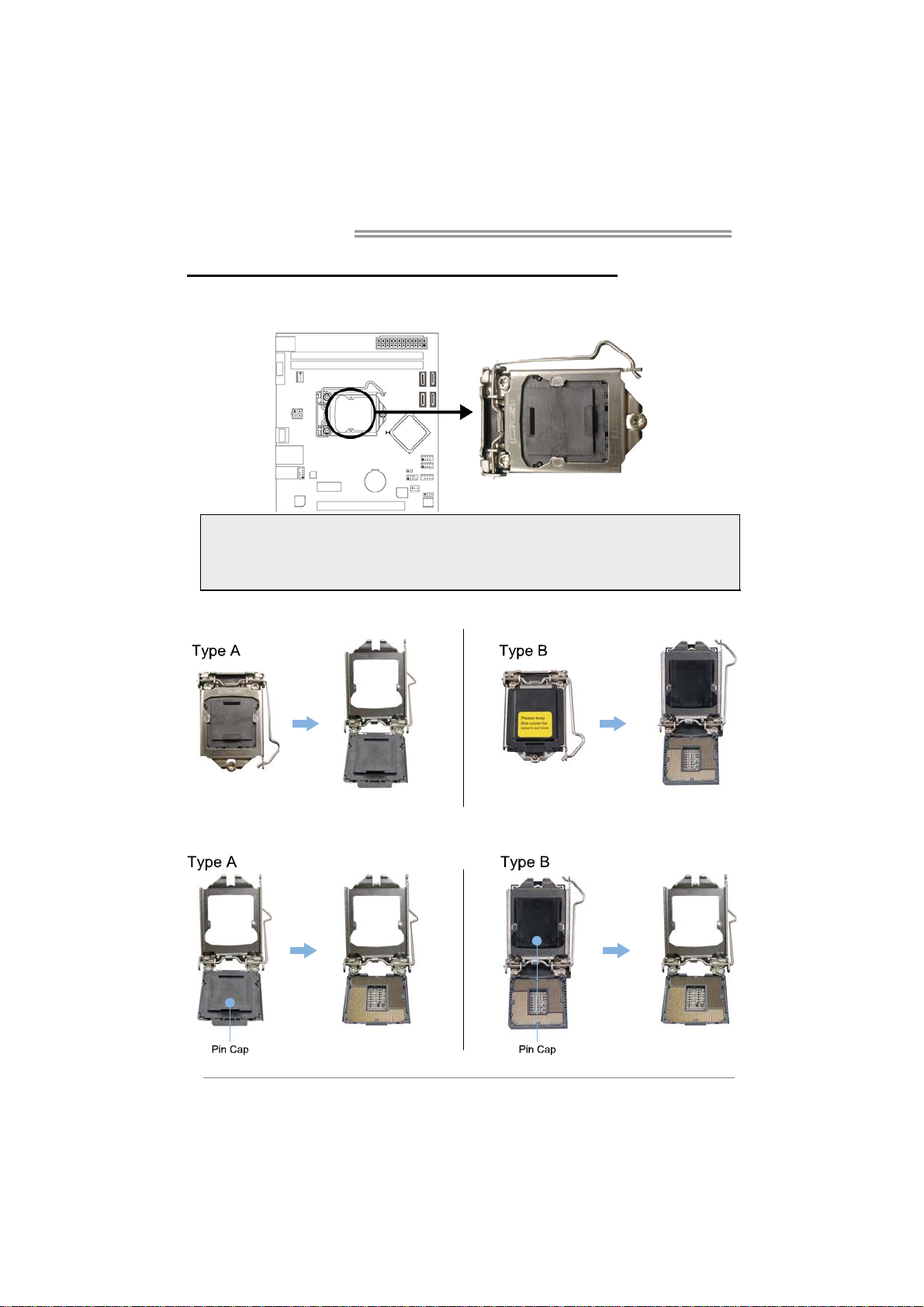

Step 1: Locate the CPU socket on the motherboard

Note1: Remove Pin Cap before installation, and make good preservation for future use. When

the CPU is removed, cover the Pin Cap on the empty socket to ensure pin legs won’t be

damaged.

Note2: The motherboard might equip with two different types of pin cap. Please refer below

instruction to remove the pin cap.

Step 2: Pull the socket locking lever out from the socket and then raise the lever

up.

Step 3: Remove the Pin Cap.

H61MHV2

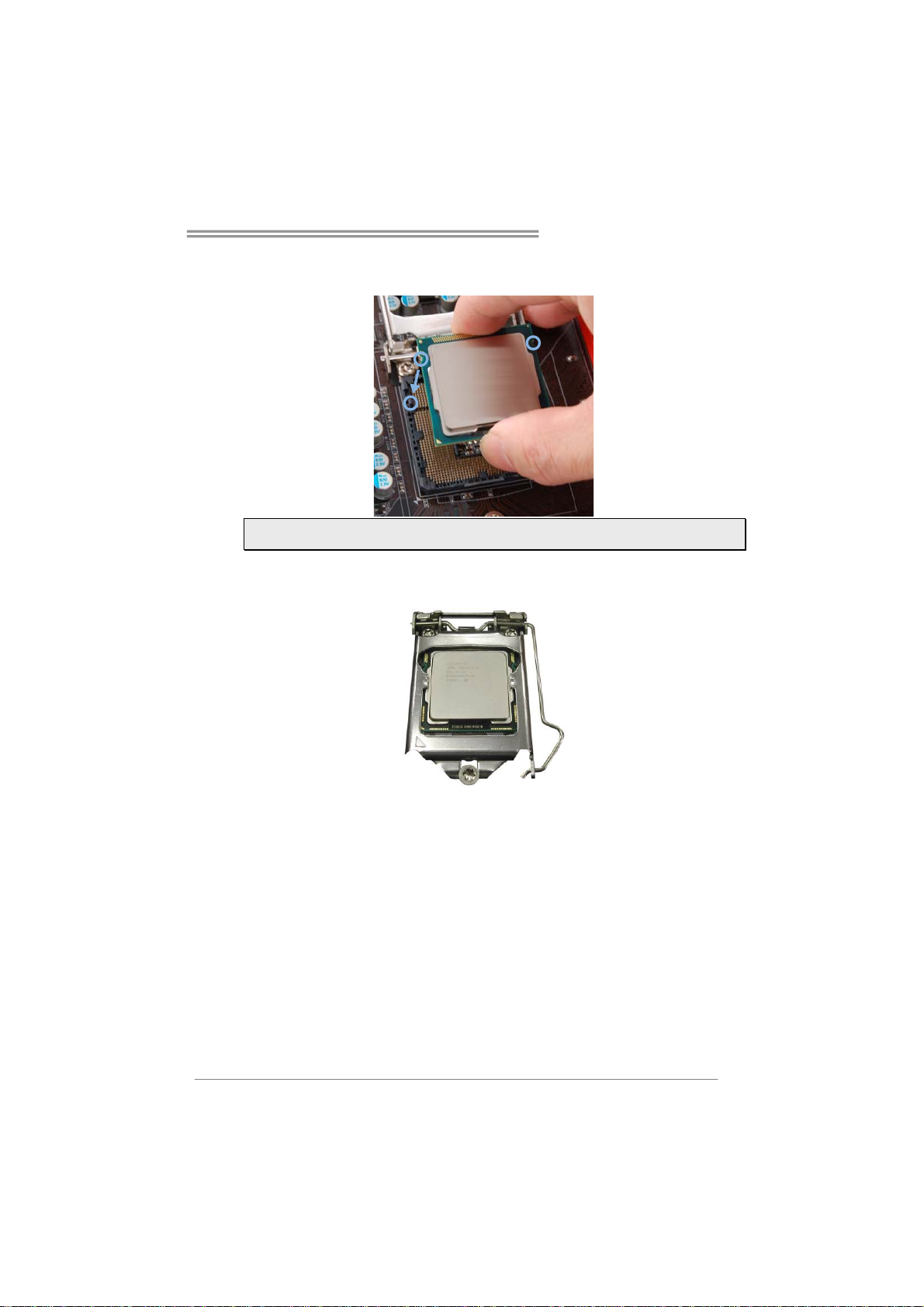

Step 4: Hold processor with your thumb and index fingers, oriented as shown.

Align the notches with the socket. Lower the processor straight down

without tilting or sliding the processor in the socket.

Note: The CPU fits only in one correct orientation. Do not force the CPU into the socket

to prevent damaging the CPU.

Step 5: Hold the CPU down firmly, and then lower the lever to locked position to

complete the installation.

Motherboard Manual

2.2 INSTALL A HEATSINK

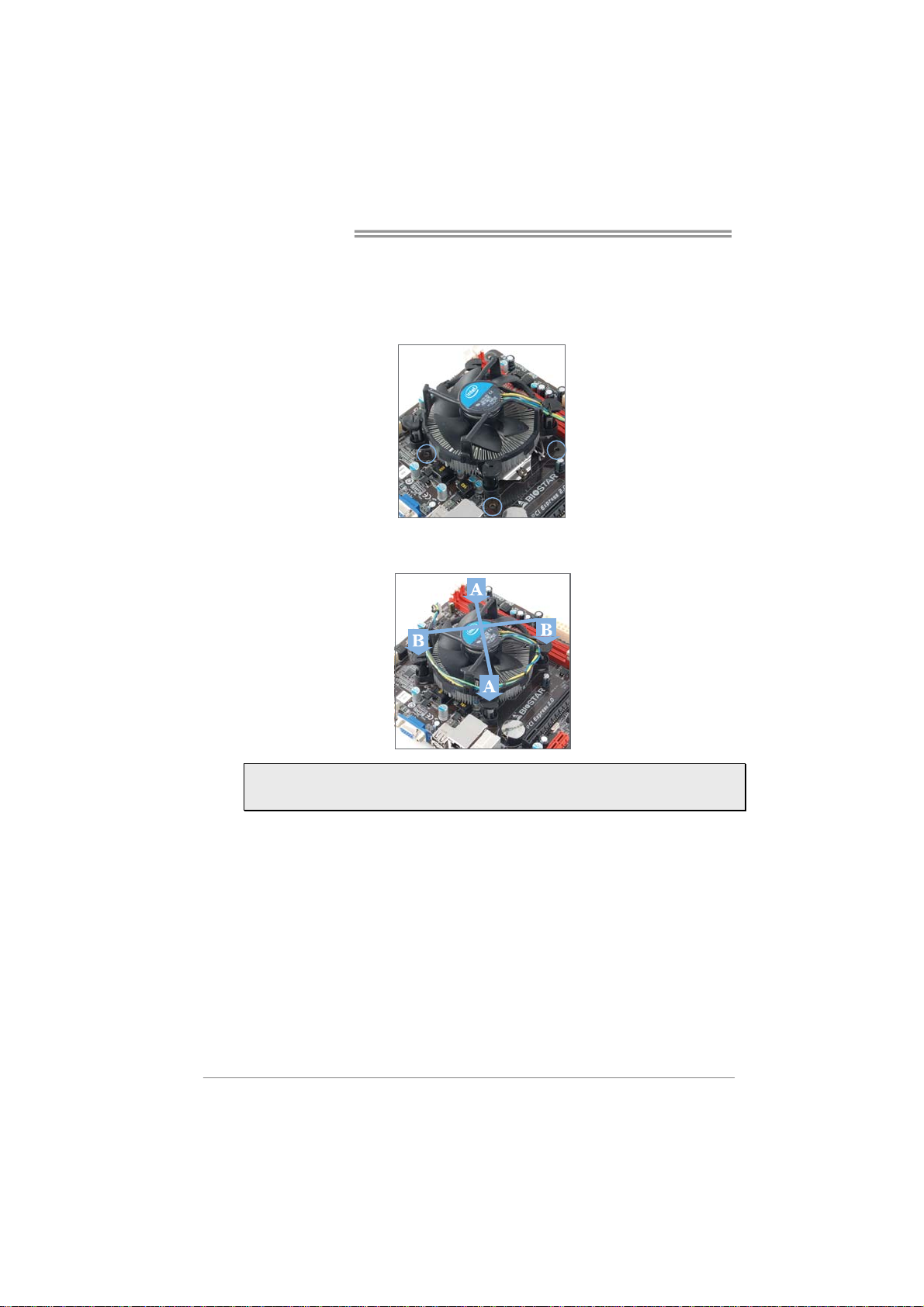

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure

that the four fasteners match the motherboard holes. Orient the assembly

and make the fan cable is closest to the CPU fan connector.

Step 2: Press down two fasteners at one time in a diagonal sequence to secure

the CPU fan assembly in place. Ensure that all four fasteners are secured.

Note1: Do not forget to connect the CPU fan connector.

Note2: For proper installation, please kindly refer to the installation manual of your CPU

heatsink.

H61MHV2

2.3 FAN HEADERS

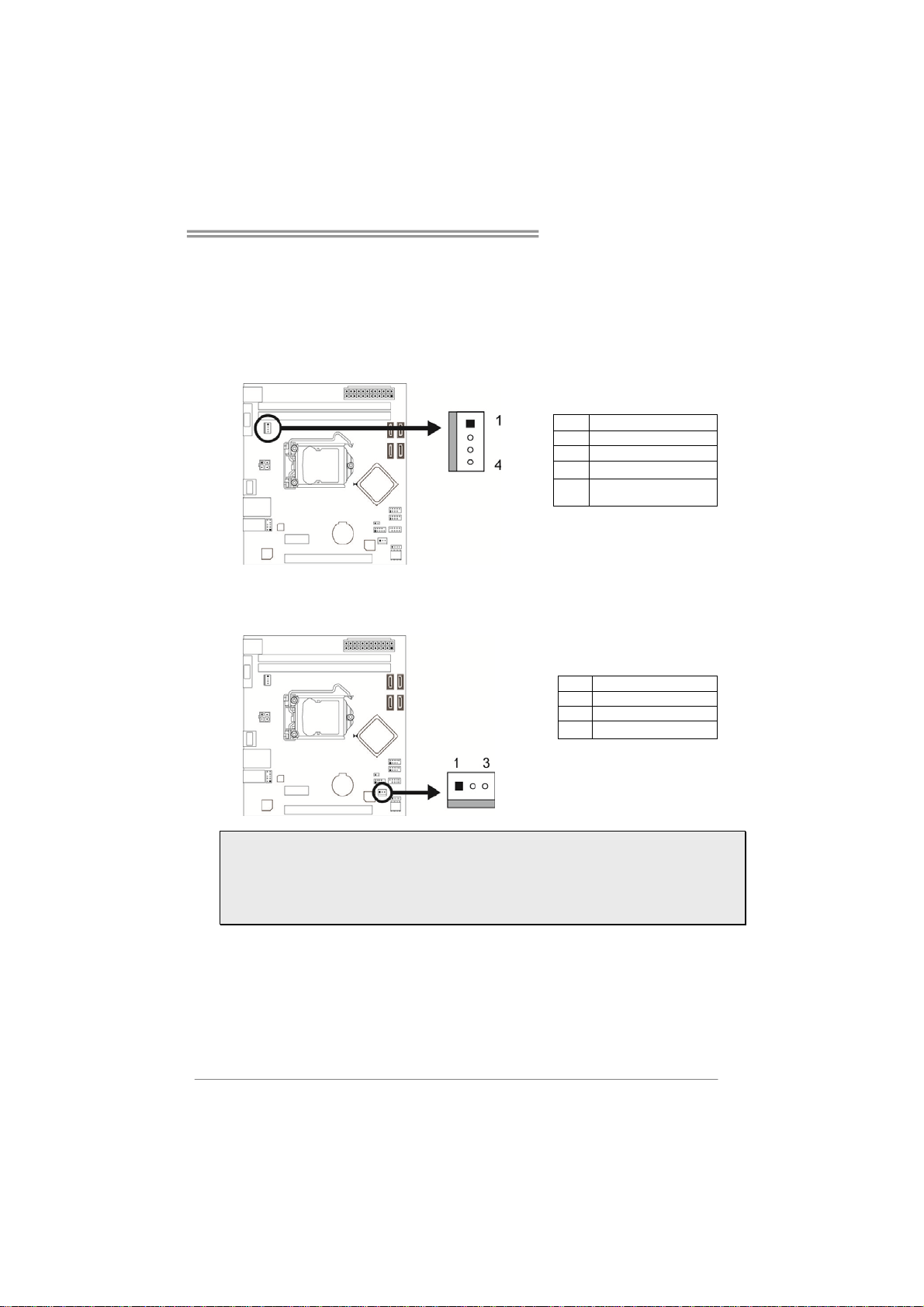

These fan headers support cooling-fans built in the computer. The fan cable and

connector may be different according to the fan manufacturer. Connect the fan

cable to the connector while matching the black wire to pin#1.

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4 Smart Fan Control

(By Fan)

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note: CPU_FAN1 support 4-pin and 3-pin head connectors. When connecting with wires

onto connectors, please note that the red wire is the positive and should be connected to

pin#2, and the black wire is Ground and should be connected to GND.

SYS_FAN3 support 3-pin head connectors. When connecting with wires onto connectors,

please note that the red wire is the positive and should be connected to pin#2, and the black

wire is Ground and should be connected to GND.

Motherboard Manual

2.4 INSTALLING SYSTEM MEMORY

A. Memory Modules

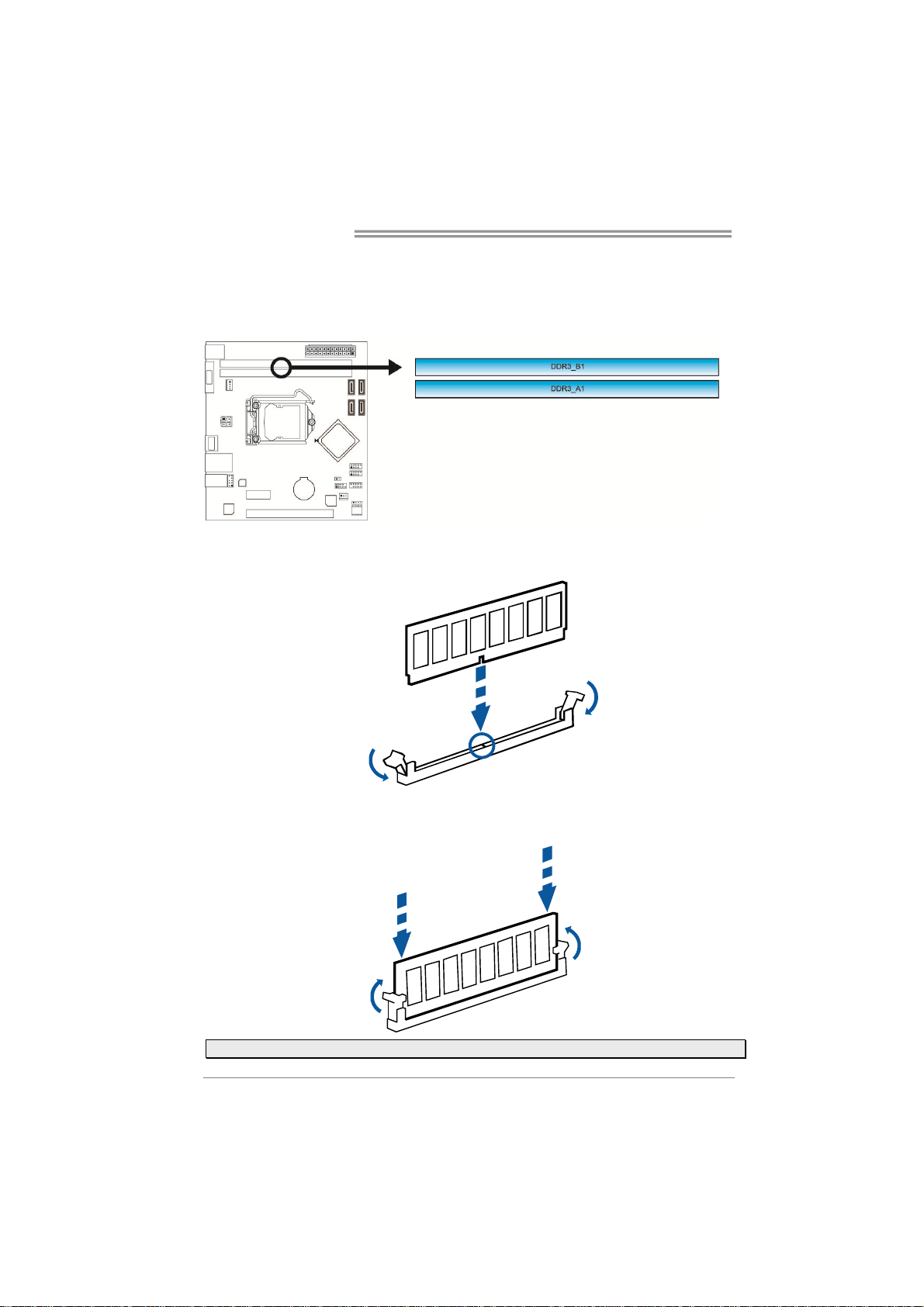

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM

on the slot such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining chip snap

back in place and the DIMM is properly seated.

Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Indice

Altri manuali Biostar Scheda madre

Biostar

Biostar TZ590-BTC DUO Manuale utente

Biostar

Biostar 945GC MICRO 775 Guida utente

Biostar

Biostar P4 TDQ Guida utente

Biostar

Biostar M7VIW Istruzioni per l'uso e l'installazione

Biostar

Biostar B350ET2 Manuale utente

Biostar

Biostar BIPV10-IA Guida utente

Biostar

Biostar B250GT6 Manuale utente

Biostar

Biostar TZ77A Manuale utente

Biostar

Biostar B550MH 3.0 Manuale utente

Biostar

Biostar TA970XE Guida utente

Biostar

Biostar A520MH Manuale utente

Biostar

Biostar GF7025-M2 TE - BIOS SETUP Guida utente

Biostar

Biostar Hi-Fi Z87W 3D Manuale utente

Biostar

Biostar Hi-Fi A88S2 Manuale utente

Biostar

Biostar A880GB - BIOS Guida utente

Biostar

Biostar GF7050V-M7 Manuale utente

Biostar

Biostar P4M890-M7 FE - QUICK Manuale utente

Biostar

Biostar TA785G3 HD - BIOS Manuale utente

Biostar

Biostar P4M80-M7 Manuale utente

Biostar

Biostar H61MLC2 Manuale utente

Biostar

Biostar TA870 PLUS - SETUP 2 Guida utente

Biostar

Biostar 945GC-M7 TE Guida utente

Biostar

Biostar TFORCE 550 Manuale utente

Biostar

Biostar M7TDE Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
