M7VIT Features

 Use VIA VT8377 (KT400)/ VT8235 Chipset, Winbond W83697HF.

 Contains on board I/O facilities, which include two serial ports, a parallel

port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB ports, a

game port.

 Supports Single Socket-A for an AMD Athlon/ Duron Family processor,

running at 200/266/333 MHz Front Side Bus frequency.

 The AMD Athlon/ Duron system bus supports the 200/266/333 MHz

high-speed, split-transaction AMD Athlon/ Duron system bus interface.

 Supports Ultra DMA 33/66/100/133 Bus Master Modes, PIO Mode 4,

Master Mode, and high performance hard disk drives.

 Supports USB2.0 6 ports High Speed Device, 2 ports in Rear Panel and 4

ports in Front Panel.

 The VT8377 (KT400) system controller is designed to support

200/266/333/400 MHz DDR SDRAM DIMMs.

 Support a maximun memory size up to 3GB.

 Supports one CNR Slot (Type B only), one AGP 4X/ 8X Slot, and five 32-bit

PCI Bus slots.

 Complies with PC ATX form factor specifications.

 Supports popular operating systems such as Windows NT, Windows 98SE,

Windows 2000, Windows ME, Windows XP and LINUX.

 CPU over temperature protection.

 Intel® AC’97 2.2 compatible. High S/N ratio meets PC 99 requirements.

 Line-in phonejack and Mic-in jack share with rear Audio out for 6 channels

Audio.

 6-Channel Hardware Audio or Codec. (Change Line-In to Back-Audio Out

and Mic-In to Bass/ Center Out by Audio Utility.) (Optional)

iip

iio

 Support Front Audio pin head functions.

 CMI 8738 Hardware Audio Features (Optional):

＊ 6CH DAC for AC3® 5.1CH purpose.

＊ HRTF-based 3D positional audio, supporting DirectSound™ 3D and

A3D™ interface.

＊ Supports 4.1/5.1 speakers, C3DX positional audio in 4/ 6 CH speaker

mode.

＊ MPU-401 port.

＊ Built-in ZV port.

Package contents

 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1

 Flash Memory Writer for BIOS update X 1

 USB Cable X 2 (Optional)

 Rear I/O Panel for ATX Case X 1 (Optional)

iip

iio

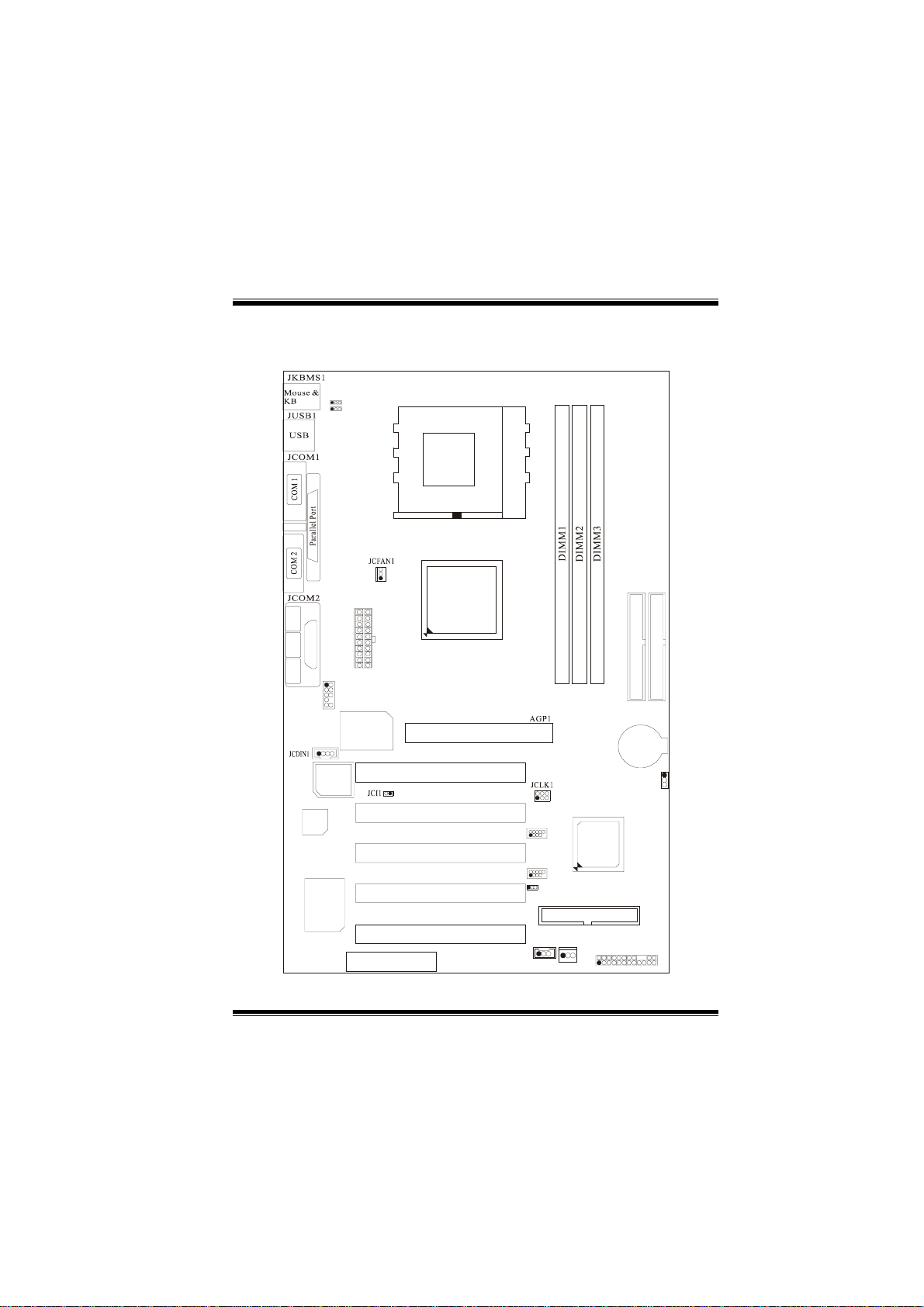

Layout of M7VIT

CPU

Socket A

VT8377

(KT400)

VT8235

JATXPWR1

JKBV1

JUSBV1

AGP SLOT

PCI1

PCI2

PCI SLOT

PCI3

PCI4

PCI5

PCI SLOT

CNR1

JWOL1

CNR SLOT

JAUDIO1

Codec

JPANEL1

JSFAN1

223

JUSB2

BAT1

JCMOS1

JUSBV2

JGAME1

GAME Port

SP-OUTMIC-IN LINE-IN

JUSB3

IDE1IDE2

FDD1

BIOS

Hardware

Audio

Winbond

I/O

664

iip

iio

CPU Installation

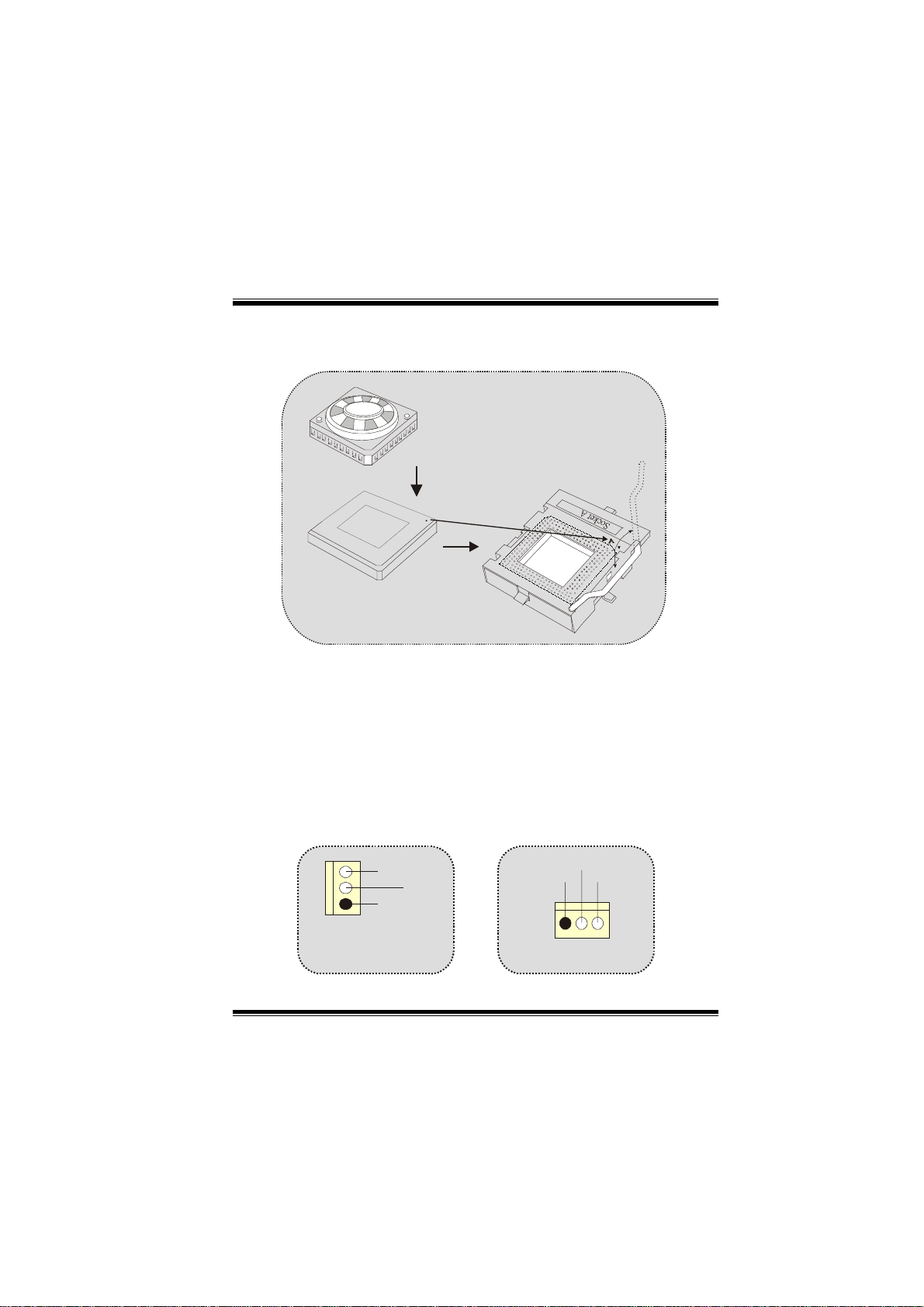

1. Pull the lever sideways away from the socket then raise the lever up

to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in

the CPU. Match Pin A with the white dot/cut edge then insert the

CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it

and put the fan’s power port into the JCFAN1, then to complete the

installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1

JCFAN1

1Ground

12V

Sense

JSFAN1

Ground12V

Sense

CPU

iip

iio

DDR DIMM Modules: DIMM1-2-3

DRAM Access Time: 2.5V Unbuffered/ Registered DDR 1600/ 2100/

2700/ 3200 Type required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

Only support 4 bank for DDR PC3200 (2pcs Double-Side or 3

pcs Single-Side).

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DIMM 1 64MB

128MB/256MB/512MB/1GB

DIMM 2 64MB/128MB/256MB/512MB/1GB

DIMM3 64MB/128MB/256MB/512MB/1GB

Max is

3GB

* The list shown above for DRAM configuration is only for reference.

 If use FSB333MHz CPU, the Memory support only

DDR333 (PC2700).

List of the status of DDR 400 already passed

Clock Vender Serial No. (Chip) Module

Size MEMTEST

1 DDR400 KINGMAX KDL684T4AA-50 256M Pass

2 DDR400 SAMSUNG K4H560838D-TCC4 256M Pass

3 DDR400 TwinMOS TMD7608F8E50B 256M Pass

4 DDR400 Winbond W942508BH-5 256M Pass

5 DDR400 Winbond W942508BH-5 512M Pass

iip

iio

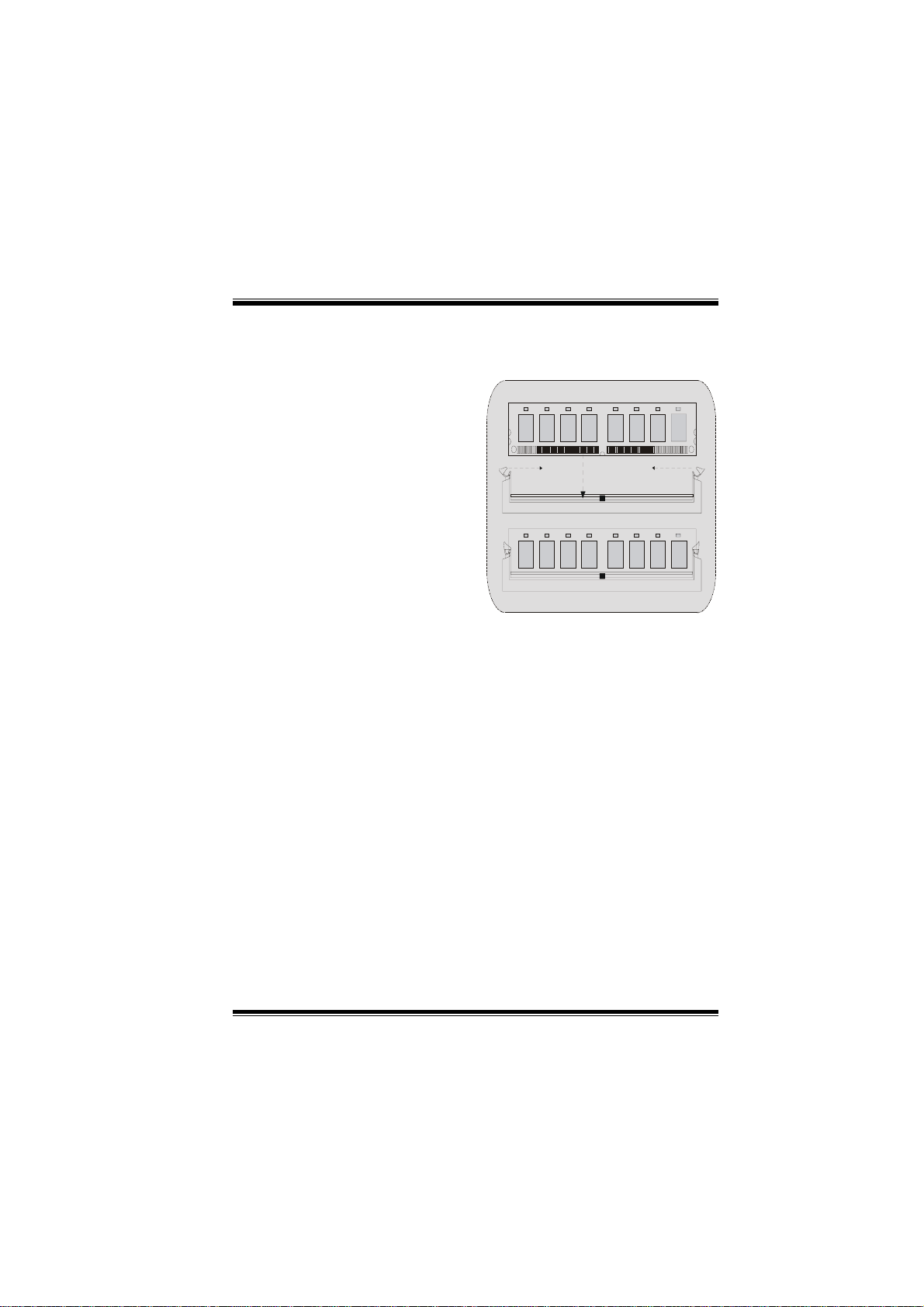

How to install a DIMM Module

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules

in place.

iip

iio

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133

functionality. It has two HDD connectors IDE1 (primary), IDE2

(secondary) and IDE3.

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

Accelerated Graphics Port Slot: AGP1 (only support AGP

power 1.5V)

Your monitor will attach directly to that video card. This motherboard

supports video cards for PCI slots, but it is also equipped with an

Accelerated Graphics Port (AGP). An AGP card will take advantage of

AGP technology for improved video efficiency and performance,

especially with 3D graphics.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it

defines a hardware scalable riser card interface, which supports audio,

network and modem only.

Peripheral Component Interconnect Slots: PCI1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards, which has, supplanted the older ISA bus standard in

most ports. This PCI slot is designated as 32 bits.

iip

iio

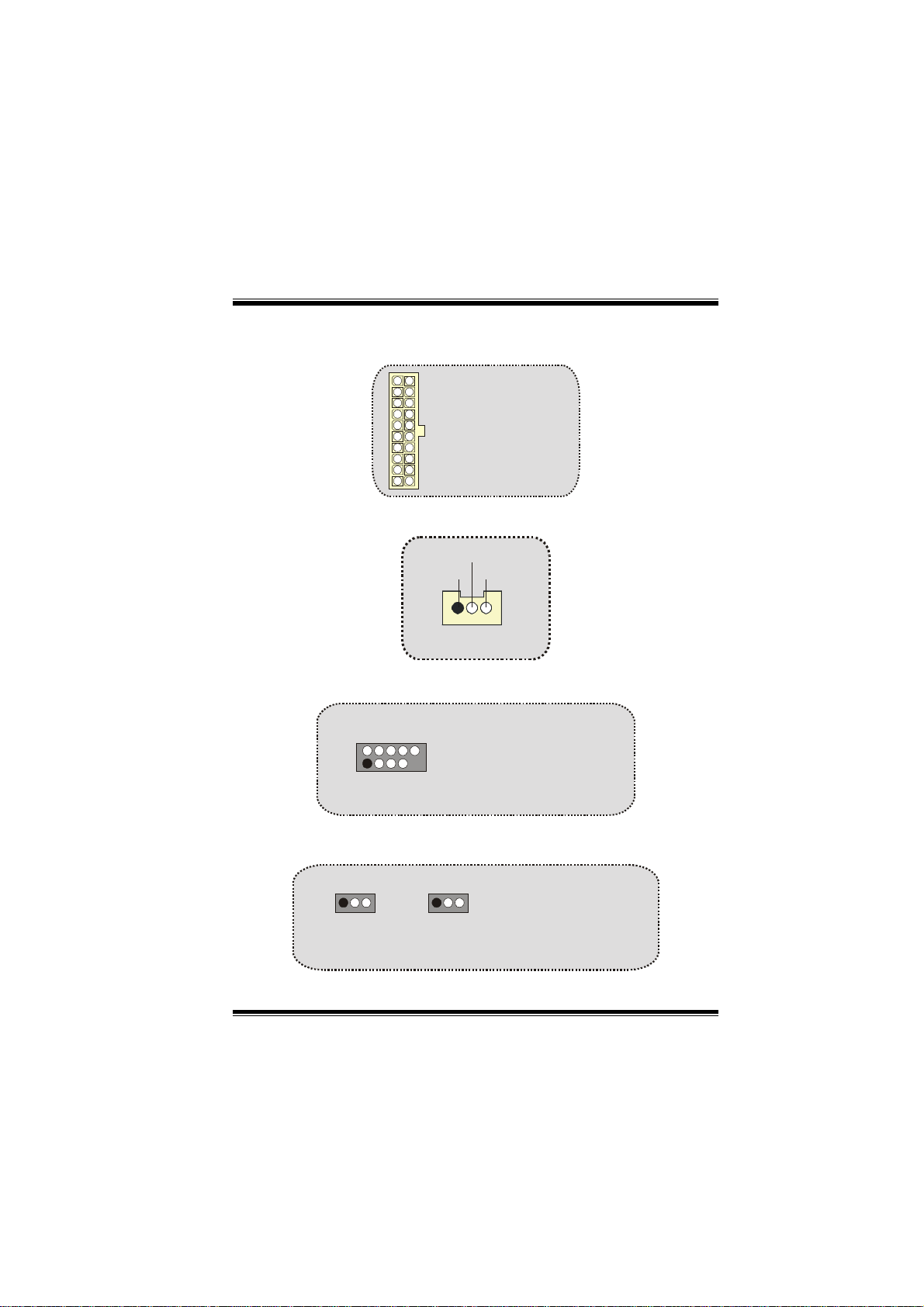

Power Connectors: JATXPWR1

Wake On LAN Header: JWOL1

Front USB Header: JUSB2/3

5V/ 5VSB Selection for USB/KB: JUSBV1/2/ JKBV1

JATXPWR1

(ATX Main Power Conn.)

JATXPWR1

(ATX Power Conn.)

JUSB2/3

Pin1,2 ==> +5V

Pin3,4 ==> Data(-)

Pin5,6 ==> Data(+)

Pin7,8 ==> Ground

Pin9 ==> KEY

Pin10 ==> NA

JWOL1

5V_SB Wake up

Ground

JKBV1

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JUSBV1/2
