N3150MP/N3050MP

CHAPTER 1: INTRODUCTION

1.1 Before You Start

Thank you for choosing our product. Before you start installing the

motherboard, please make sure you follow the instructions below:

Prepare a dry and stable working environment with sufficient

lighting.

Always disconnect the computer from power outlet before

operation.

Before you take the motherboard out from anti-static bag,

ground yourself properly by touching any safely grounded

appliance, or use grounded wrist strap to remove the static

charge.

Avoid touching the components on motherboard or the rear

side of the board unless necessary. Hold the board on the

edge, do not try to bend or flex the board.

Do not leave any unfastened small parts inside the case after

installation. Loose parts will cause short circuits which may

damage the equipment.

Keep the computer from dangerous area, such as heat

source, humid air and water.

The operating temperatures of the computer should be 0 to

45 degrees Celsius.

To avoid injury, be careful of:

Sharp pins on headers and connectors

Rough edges and sharp corners on the chassis

Damage to wires that could cause a short circuit

1.2 Package Checklist

Serial ATA Cable x2

Rear I/O Panel for ATX Case x1

Installation Guide x1

Fully Setup Driver DVD x1

Note: The package contents may be different due to the sales region or models in which it was

sold. For more information about the standard package in your region, please contact your dealer

or sales representative.

Motherboard Manual

1.3 Motherboard Specifications

Specifications

CPU Support N3150MP: Intel® Celeron® N3150 processor

N3050MP: Intel® Celeron® N3050 processor

Memory

Supports Dual Channel DDR3L 1600(1.35V/1.5V)

2x DDR3L DIMM Memory Slot, Max. Supports up to 8 GB Memory

Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3L module

* Please refer to www.biostar.com.tw for Memory support list.

Storage 2x SATA 6Gb/s Connector

Supports AHCI Mode

LAN Realtek RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Audio Codec ALC662, 5.1 Channels, High Definition Audio

USB 6x USB 2.0 port (2 on rear I/Os and 4 via internal header)

4x USB 3.0 port (2 on rear I/Os and 2 via internal header)

Expansion Slots 1x PCIe 2.0 x16 Slot (x1 speed)

2x PCI x1 Slot

Rear I/Os

1x PS/2 Mouse

1x PS/2 Keyboard

1x VGA Port

1x Printer Port

1x Serial Port

1x LAN port

2x USB 3.0 Port

2x USB 2.0 Port

3x Audio Jack

Internal I/Os

2x SATA 6.0Gb/s Connector

1x 24-Pin Power Connector

2x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1x USB 3.0 Header (each header supports 2 USB 3.0 ports)

2x System Fan Connector

1x Front Panel Header

1x Front Audio Header

1x Clear CMOS Header

1x Serial Port Header

Form Factor microATX Form Factor, 226 mm x 195 mm

OS Support

Windows 7 (64bit)/ 8.1 (64bit)

Biostar reserves the right to add or remove support for any OS with or without

notice.

N3150MP/N3050MP

1.4 Rear Panel Connectors

Note 1: Since the audio chip supports High Definition Audio Specification, the function of

each audio jack can be defined by software. The input / output function of each audio jack

listed above represents the default setting. However, when connecting external microphone

to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.

Note 2: Maximum resolution:

VGA: 1920 x 1200 @60Hz

1.5 Central Processing Unit (CPU)

The motherboard is equipped with an onboard Intel procrssor and a CPU cooler.

Model Name: Onboard CPU:

N3150MP Intel® Celeron® N3150 processor (Quad Core, 2M Cache, up to 2.08 GHz)

N3050MP Intel® Celeron® N3050 processor (Dual Core, 2M Cache, up to 2.16 GHz)

Motherboard Manual

1.6 Motherboard Layout

Note: ■represents the 1st pin.

N3150MP/N3050MP

CHAPTER 2: HARDWARE INSTALLATION

2.1 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and

connector may be different according to the fan manufacturer. Connect the fan

cable to the connector while matching the black wire to pin#1.

SYS_FAN1/SOC_FAN1: Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note: When connecting with wires onto connectors, please note that the red wire is the positive

and should be connected to pin#2, and the black wire is Ground and should be connected to

GND.

2.2 Install System Memory

A. DDR3L DIMM Module (1.35V/1.5V)

Motherboard Manual

Step 1: Align a DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

Step 2: Insert the DIMM firmly into the slot until the retaining chip snap back in place

and the DIMM is properly seated.

Note1: The DIMM must be installed to DIMMA1(DDR3_A1) slot first.

Note2: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

B. Memory Capacity

DIMM Socket Location DDR3L Module Total Memory Size

DIMMA1 512MB/1GB/2GB/4GB/8GB Max is 8GB

DIMMB1 512MB/1GB/2GB/4GB/8GB

C. Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DIMMA1 DIMMB1

Disabled O X

Enabled O O

(O means memory installed, X means memory not installed.)

Note: When installing more than one memory module, we recommend to use the same brand and

capacity memory on this motherboard.

N3150MP/N3050MP

2.3 Expansion Slots

PEX16_1: PCI-Express x16 Slot (Gen2 x1 speed)

-PCI-Express 2.0 compliant.

-Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

PCI1/PCI2: Peripheral Component Interconnect Slots

-The PCI slots support cards used in PCs include: LAN cards, sound cards,

modems, TV tuner cards and other cards that comply PCI standard.

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the

expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the

computer.

3. Place a card in the expansion slot and press down on the card until it is

completely seated in the slot.

4. Secure the card’s metal bracket to the chassis back panel with a screw.

5. Replace your computer's chassis cover.

6. Power on the computer, if necessary, change BIOS settings for the

expansion card.

7. Install related driver for the expansion card.

Motherboard Manual

2.4 Jumper Setting

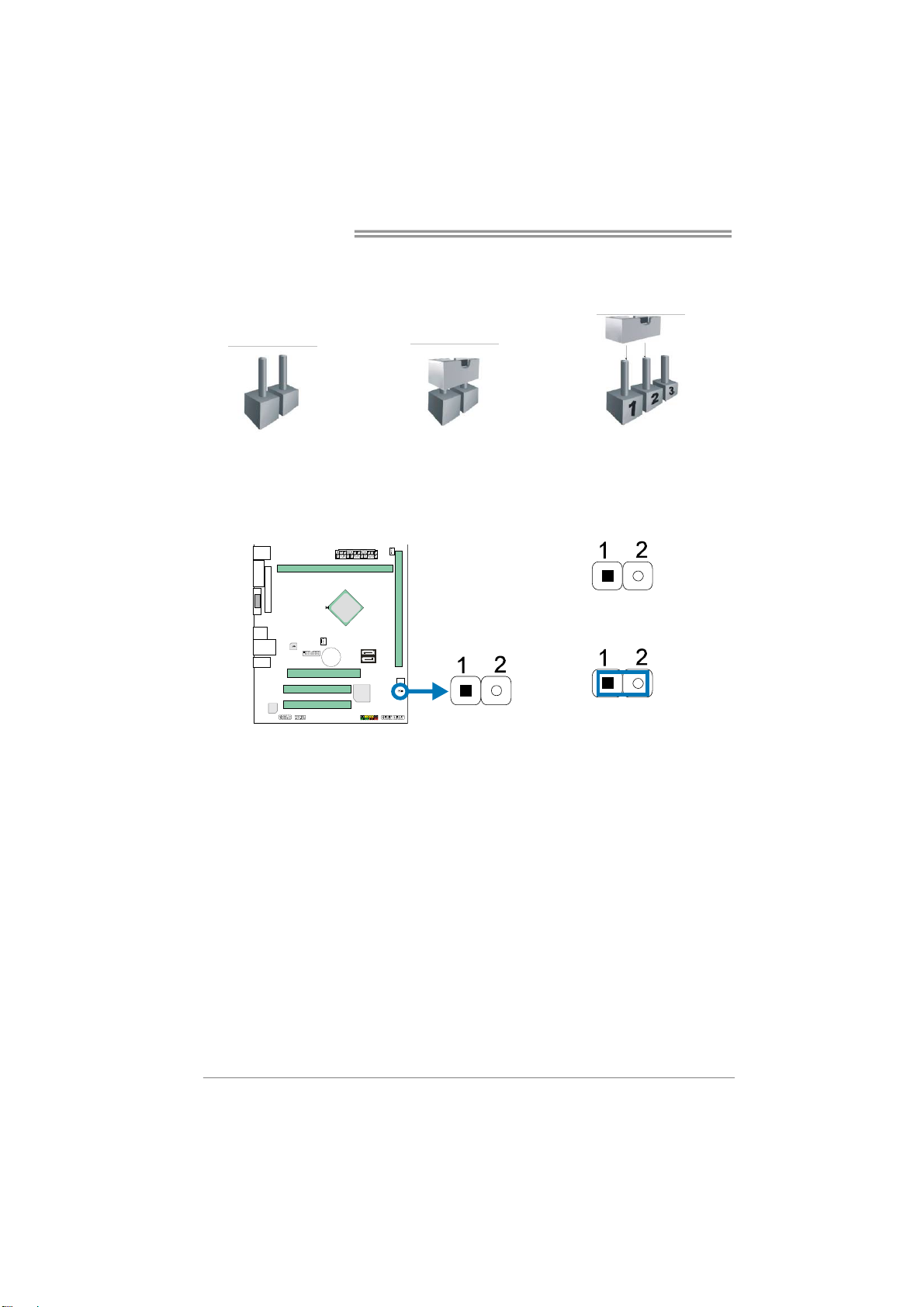

The illustration shows how to set up jumpers. When the jumper cap is placed on

pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin1-2 closed

JCMOS1: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data.

Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Open:

Normal Operation (default).

Pin 1-2 Close:

Clear CMOS data.

※Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 1-2 close”, you can use a metal object like a

screwdriver to touch the two pins.

3. Wait for five seconds.

4. After clearing the CMOS values, be sure the jumper is “Pin 1-2 open”.

5. Power on the AC.

6. Load Optimal Defaults and save settings in CMOS.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Biostar Scheda madre

Biostar

Biostar M6VCH Manuale utente

Biostar

Biostar IJ40C-IBS Manuale utente

Biostar

Biostar M7VIT Bravo Guida utente

Biostar

Biostar M7 VIQ Manuale utente

Biostar

Biostar P4 VTG Manuale utente

Biostar

Biostar A320MH PRO Manuale utente

Biostar

Biostar NF325-A9 Manuale utente

Biostar

Biostar N68S3PLUS - BIOS Manuale utente

Biostar

Biostar TA790GXB A2 PLUS - BIOS Manuale utente

Biostar

Biostar G31-M4 Manuale utente

Biostar

Biostar P4M890-M7 TE Guida utente

Biostar

Biostar NF520-A2 TE - BIOS SETUP Manuale utente

Biostar

Biostar TH55 HD - BIOS Manuale utente

Biostar

Biostar M7VIW Istruzioni per l'uso e l'installazione

Biostar

Biostar 945GC-M7 TE Guida utente

Biostar

Biostar TA990FXE Guida utente

Biostar

Biostar P4 SFA Istruzioni per l'uso e l'installazione

Biostar

Biostar M6TZE Manuale utente

Biostar

Biostar Hi-Fi A70U3 Guida utente

Biostar

Biostar TP61A Guida utente

Biostar

Biostar M6VCT Manuale utente

Biostar

Biostar J4105TH Manuale utente

Biostar

Biostar BIPV10-IA Guida utente

Biostar

Biostar BI94GS-IAC Guida utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
