Biostar P4SDP Manuale utente

FCC Statement and Copyright

This equipment has been tested and found to comply with the limits of a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. There is no guarantee that interference will not occur in a

particular installation.

The vendor makes no representations or warranties with respect to the

contents here of and specially disclaims any implied warranties of

merchantability or fitness for any purpose. Further the vendor reserves the

right to revise this publication and to make changes to the contents here of

without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole is not allowed without

first obtaining the vendor’s approval in writing.

The content of this user’s is subject to be changed without notice and we

will not be responsible for any mistakes found in this user’s manual. All the

brand and product names are trademarks of their respective companies.

ENGLISH..................................................................................................... 1

P4SDP Features.................................................................................................................1

Package contents..............................................................................................................2

Layout of P4SDP................................................................................................................2

CPU Installation.................................................................................................................3

DDR DIMM Modules: DDR1-2 ...........................................................................................4

Jumpers, Headers, Connectors & Slots.......................................................................... 5

ESPAÑOL ................................................................................................. 10

Características del P4SDP..............................................................................................10

Contenido del Paquete.................................................................................................... 11

Disposición del P4SDP ................................................................................................... 11

Instalación de la CPU......................................................................................................12

Módulos DDR DIMM: DDR1-2......................................................................................... 13

Conectores, Cabezales, Puentes y Ranuras.................................................................14

TROUBLE SHOOTING............................................................................. 19

SOLUCIÓN DE PROBLEMAS ................................................................. 20

iip

iio

English

P4SDP Features

 Use Sis 645DX/ Sis 962 Chipset, ITE IT8705, LAN Chip- VT6103

(optional).

 Contains on board I/O facilities, which include two serial ports, a parallel

port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB ports, a

LAN port (optional) and a game port.

 Supports the Intel Pentium® 4 processor (Socket-478).

 Supports Ultra 133/100/66/33, BMIDE and PIO modes.

 Supports USB2.0, 6 ports, High Speed Device, 2 ports in rear panel and 4

ports in front panel.

 Supports up to 2 DDR 200/266/333 MHz (without ECC) devices, running at

533 MHz Front Side Bus frequency.

 Supports a maximun memory size up to 2 GB.

 Supports one CNR Slot (Type B only), one AGP Slot, and five 32-bit PCI

Bus slots.

 Complies with PC ATX form factor specifications.

 Supports popular operating systems such as Windows 98, Windows 2000,

Windows ME, Windows XP, LINUX and SCO UNIX.

 Intel®AC’97 2.2 compatible.

 High S/N ratio meets PC 99 requirements.

 6CH DAC, applicable for leading motherboard chipsets.

 Line-in phonejack share with rear out.

 Supports front audio pin head functions.

 Supports 3 ports of IEEE 1394 function.

iip

iio

Package contents

 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1

 Flash Memory Writer for BIOS update X 1

 USB Cable X 2 (Optional)

 Rear I/O Panel for ATX Case X 1 (Optional)

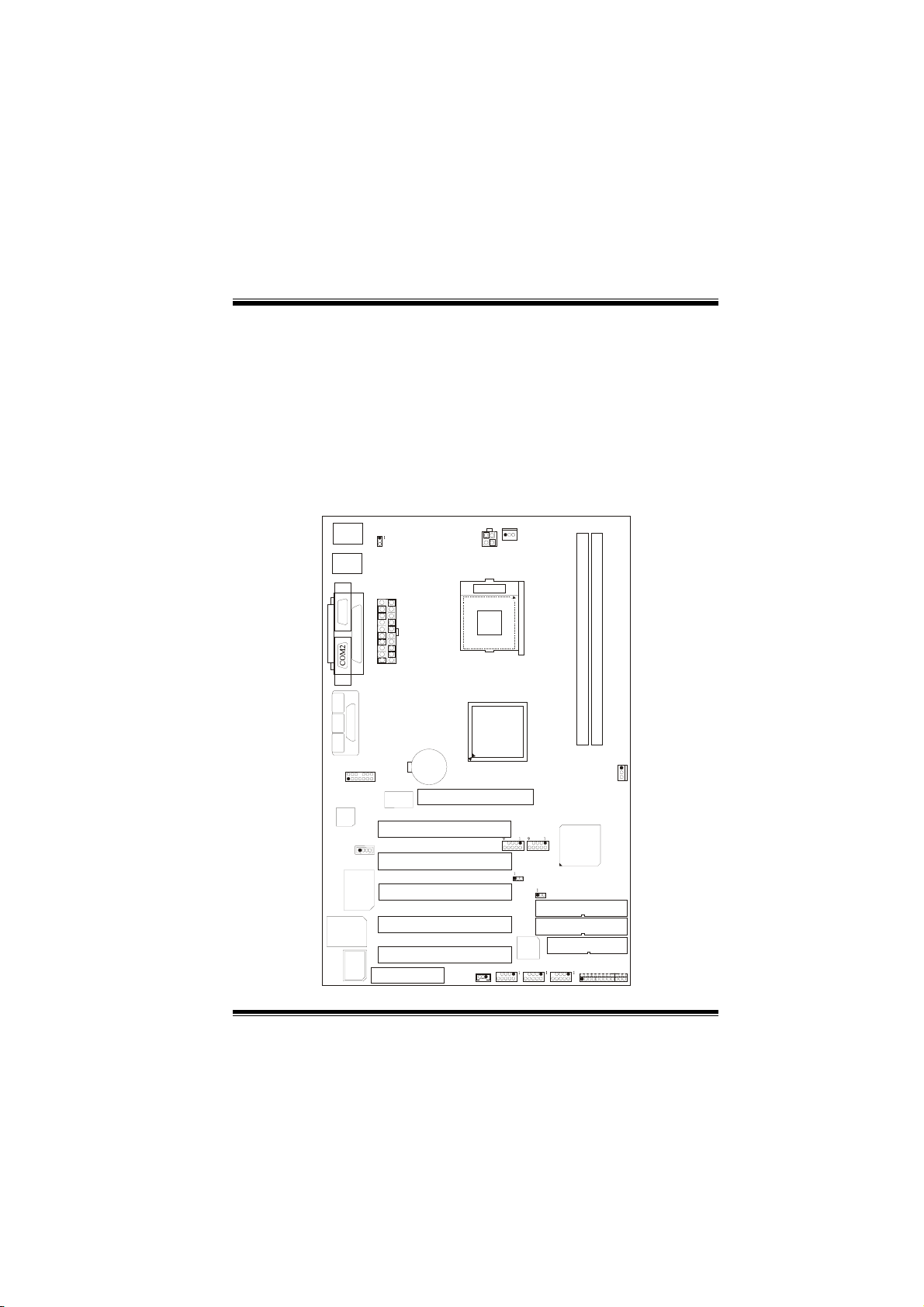

Layout of P4SDP

DDR 1

DDR 2

SIS 645DX

Socket 478

JAUDIO1

K/B

Mouse

JKBMS1

PCI3

CNR1

BAT1

JCFAN1

JUSB1

AGP1

JCDIN1

JGAME1

GAME Port

SP-OUTLINE-INMIC-IN

JATXPWR2

PCI1

PCI2

PCI4

Codec

H/W

AUDIO

Chip

(optional)

JUSBV2

IDE1 JCMOS1

SIS 962

PRIMARY IDE CONN.

JSFAN1

PCI5

JPANEL1

FDD1

JWOL1

SECONDARY IDE CONN.

FLOPPY DISK CONN.

IDE2

JUSB2

BIOS

JUSBLAN1

JPRNT1

JCOM1

JCOM2

COM1

Parallel Port

JATXPWR1

ITE I/O

J1394A2

J1394A1

J1394A3

1394A

Chip

10 210

JUSBV1

LAN Chip

iip

iio

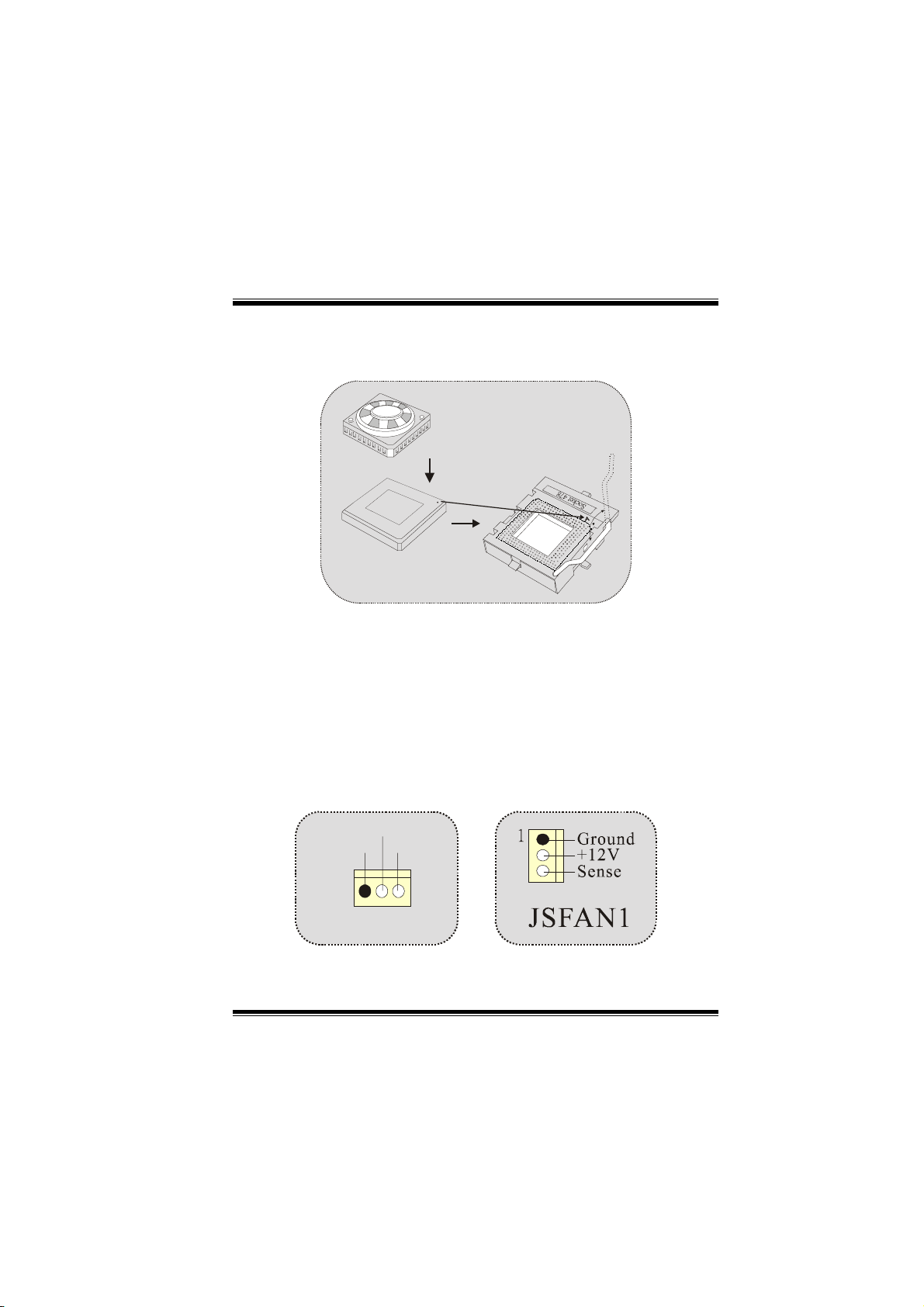

CPU Installation

1. Pull the lever sideways away from the socket then raise the lever up

to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in

the CPU. Match Pin A with the white dot/cut edge then insert the

CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it

and put the fan’s power port into the JCFAN1, then to complete the

installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1

CPU

JCFAN1

Ground

12V

Sense

iip

iio

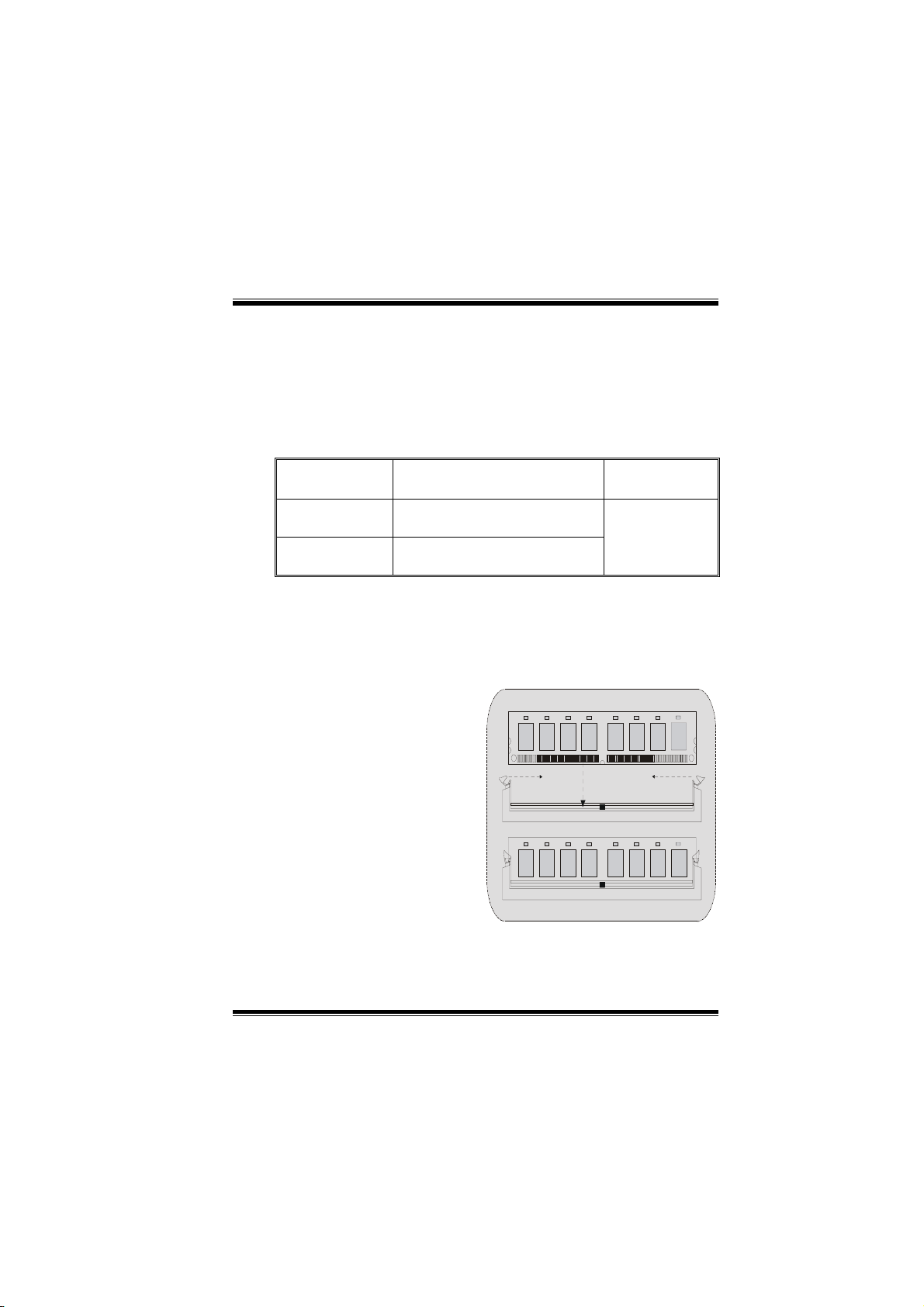

DDR DIMM Modules: DDR1-2

DRAM Access Time: 2.5V Unbuffered DDR 200/266/333 MHz Type

required.

DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184

pin)

DIMM Socket

Location DDR Module Total Memory

Size (MB)

DDR 1 64MB/128MB/256MB/512MB/1GB

DDR 2 64MB/128MB/256MB/512MB/1GB

Max is

2GB

* The list shown above for DRAM configuration is only for reference.

How to install a DIMM Module

1. The DIMM socket has a

“ Plastic Safety Tab”, and the

DIMM memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only

fit into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules

in place.

iip

iio

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that

provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100/ 133

functionality. It has two HDD connectors IDE1 (primary) and IDE2

(secondary).

The IDE connectors can connect a master and a slave drive, so you can

connect up to four hard disk drives. The first hard drive should always be

connected to IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This

connector supports the provided floppy drive ribbon cables.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it

defines a hardware scalable riser card interface, which supports audio,

network and modem only.

Peripheral Component Interconnect Slots: PCI1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for

Peripheral Component Interconnect, and it is a bus standard for

expansion cards, which has, supplanted the older ISA bus standard in

most ports. This PCI slot is designated as 32 bits.

AGP (Accelerated Graphics Port) Slot: AGP1

Your monitor will attach directly to that video card. This motherboard

supports video cards for PCI slots, but it is also equipped with an

Accelerated Graphics Port. An AGP card will take advantage of AGP

technology for improved video efficiency and performance, especially

with 3D graphics.

iip

iio

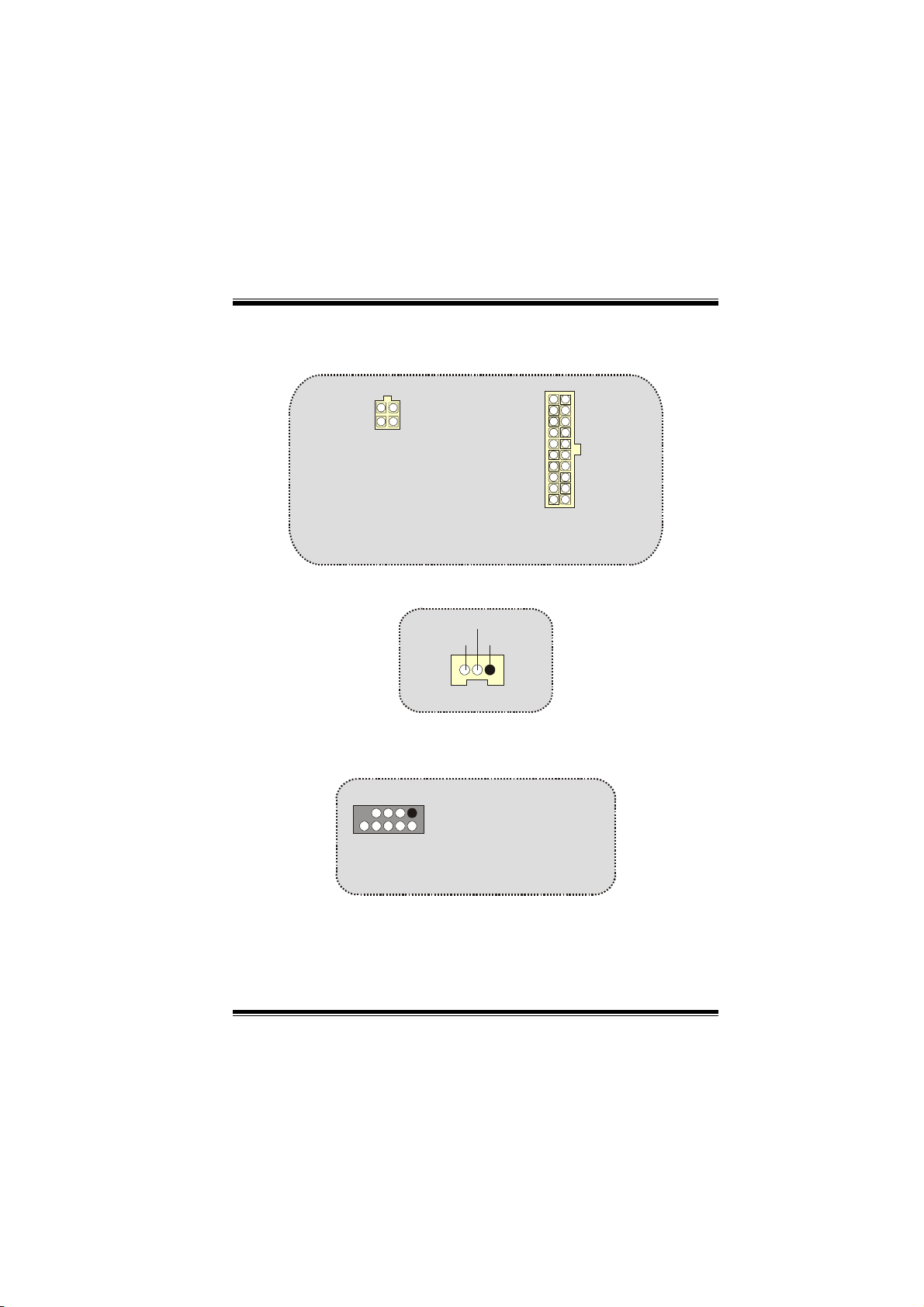

Power Connectors: JATXPWR1/ JATXPWR2

Wake On LAN Header: WOL1

Front USB Header: JUSB1/ JUSB2

JATXPWR1

(ATX Main Power Connector)

JATXPWR2

(ATX 12V Power Connector)

WOL1

5V_SBWake up

Ground

JUSB1/2

1Pin1,2 ==> +5V

Pin3,4 ==> Data(-)

Pin5,6 ==> Data(+)

Pin7,8 ==> Ground

Pin9 ==> KEY

Pin10 ==> NA

iip

iio

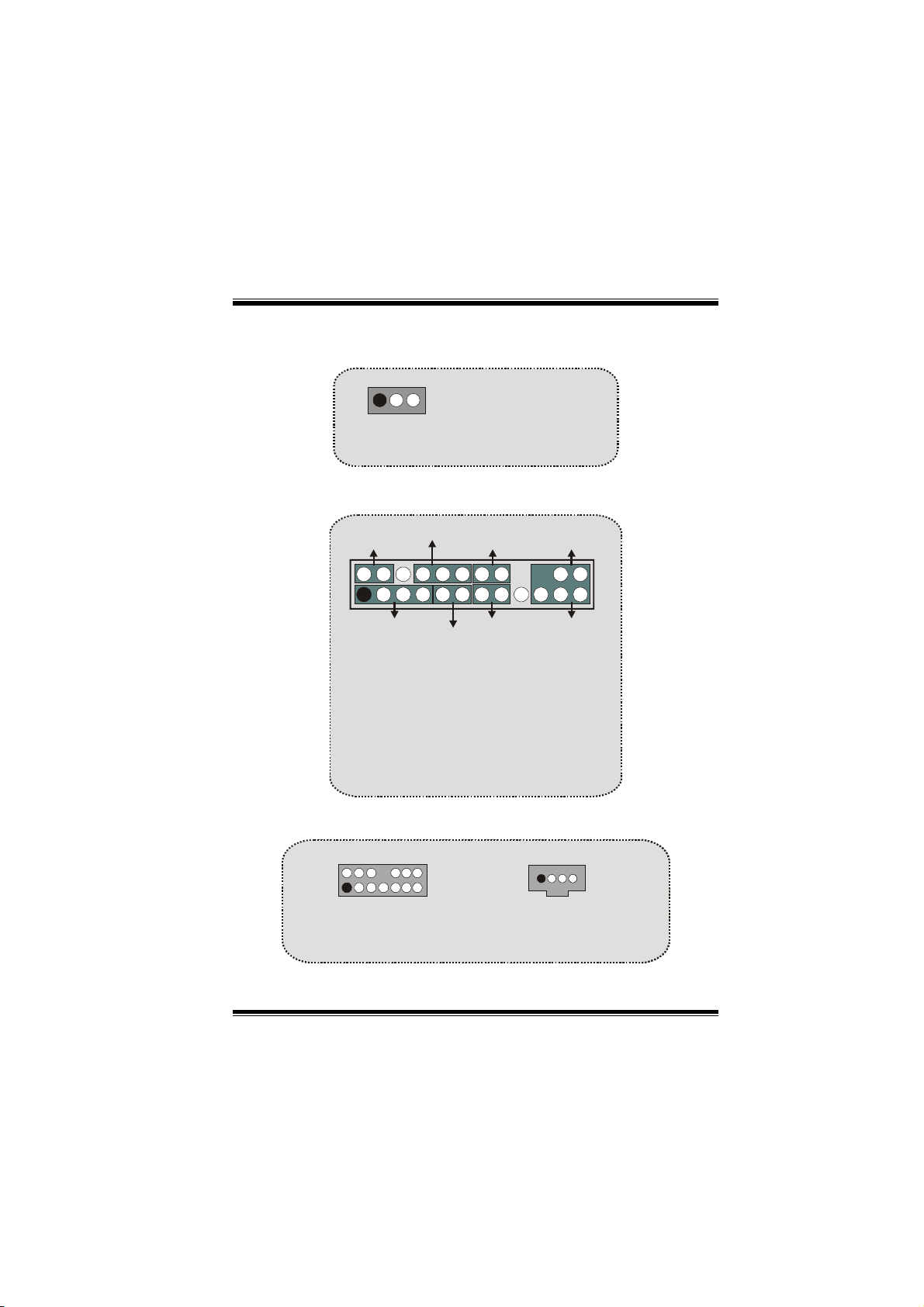

5V/ 5VSB Selection for USB: JUSBV1/ 2

Front Panel Connector: JPANEL1

Audio Subsystem: JAUDIO1/ JCDIN1

SPK

PWR_LED

HLED

SLP

RST

224

123

IRON/OFF

SPK ==> Speaker Conn.

HLED ==> Hard Driver LED

RST ==> Reset Button

IR ==> Infrared Conn.

SLP ==> Sleep Button

PWR_LED ==> Power LED

ON/ OFF ==> Power-on Button

(+) (-)

(+) (-)(+)

JUSBV1/ 2

Pin 1-2 on ==> 5V

Pin 2-3 on ==> 5V_SB

JAUDIO1

(Front Audio Header)

JCDIN1

(CD-ROM Audio-In Header)

JAUDIO1

(Front Audio Header)

JCDIN1

(CD-ROM Audio-In Header)

iip

iio

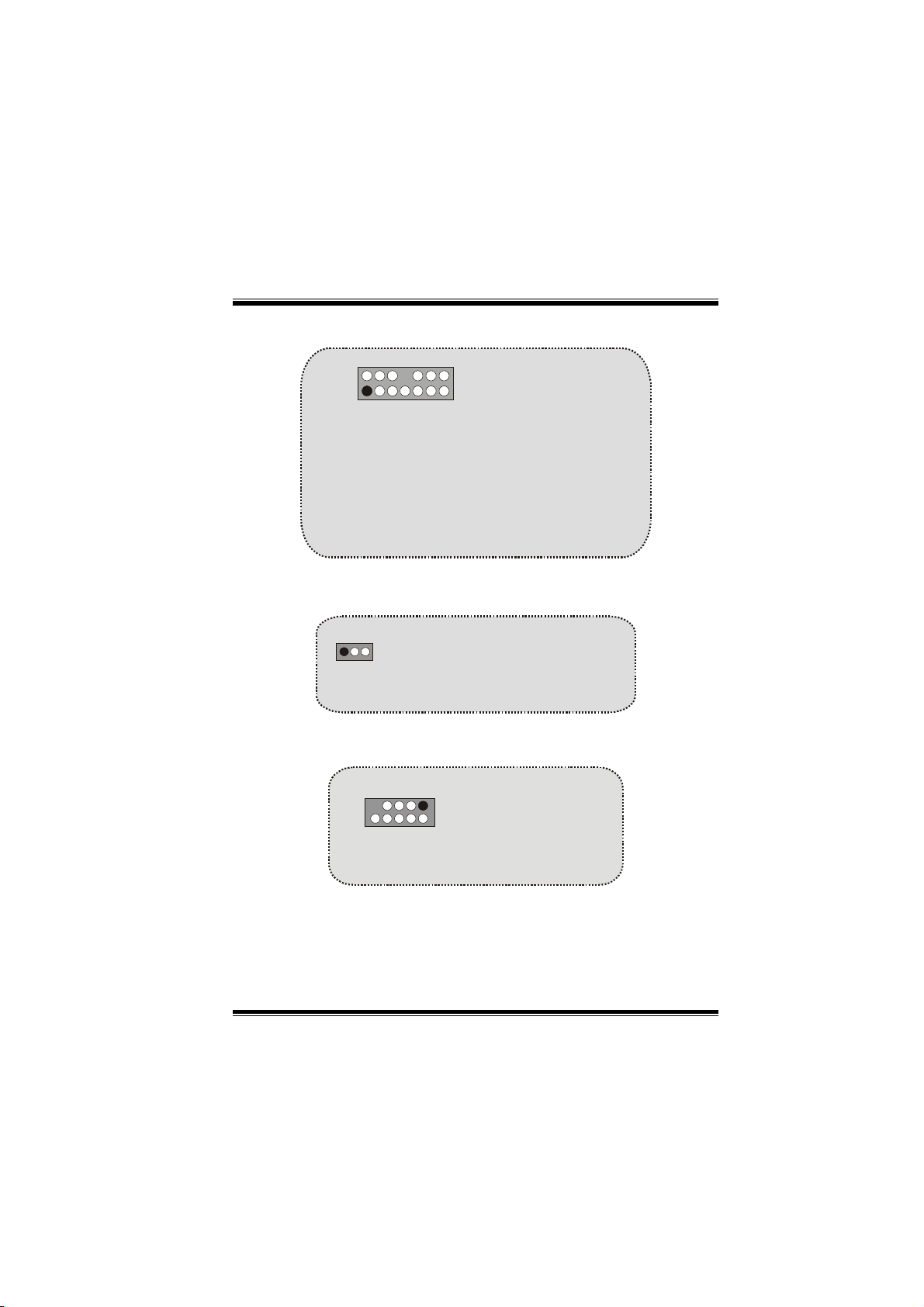

Clear CMOS Jumper: JCMOS1

Front 1394A Header: J1394A1/ J1394A2/ J1394A3

JCMOS1

Pin 1-2 on ==> Normal Operation

(default)

Pin 2-3 on ==> Clear CMOS Data

Pin1 ==> Mic In Pin2 ==> Ground

Pin3 ==> Mic Power Pin4 ==> Audio Power

Pin5 ==> RT Line Out Pin6 ==> RT Line Out

Pin7 ==> Reserved Pin8 ==> KEY

Pin9 ==> LFT Line Out Pin10 ==> LFT Line Out

Pin11==> RT Line In Pin12 ==> RT Line In

Pin13 ==> LFT Line In Pin14 ==> LFT Line In

JAUDIO1

213

J1394A1/A2/A3

1Pin1,2 ==> A+/A-

Pin3,4 ==> Ground

Pin5,6 ==> B+/ B-

Pin7,8 ==> +12V

Pin9 ==> KEY

Pin10 ==> GND
