TP45E XE BIOS Manual

BIOS Setup.................................................................................................1

1Main Menu...............................................................................................3

2Advanced Menu.......................................................................................8

3PCIPnP Menu........................................................................................18

4Boot Menu..............................................................................................21

5Chipset Menu.........................................................................................24

6O.N.EMenu...........................................................................................28

7Exit Menu...............................................................................................38

TP45E XE BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power of CMOS

RAM is supplied by abattery so that it retains theSetup information when the power

is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage of the booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in BIOS

Setup.

Plugand Play Support

ThisAMI BIOS supports thePlug and Play Version 1.0A specification.

EPA Green PC Support

ThisAMI BIOS supports Version 1.03 ofthe EPA Green PC specification.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in theACPI specification, developed by

Microsoft, Intel andToshiba.

TP45E XE BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interconnect) local bus speci fication.

DRAM Support

DDR2 SDRAM (Double Data Rate II Synchronous DRAM) is supported.

Supported CPUs

ThisAMI BIOS supports the Intel CPU.

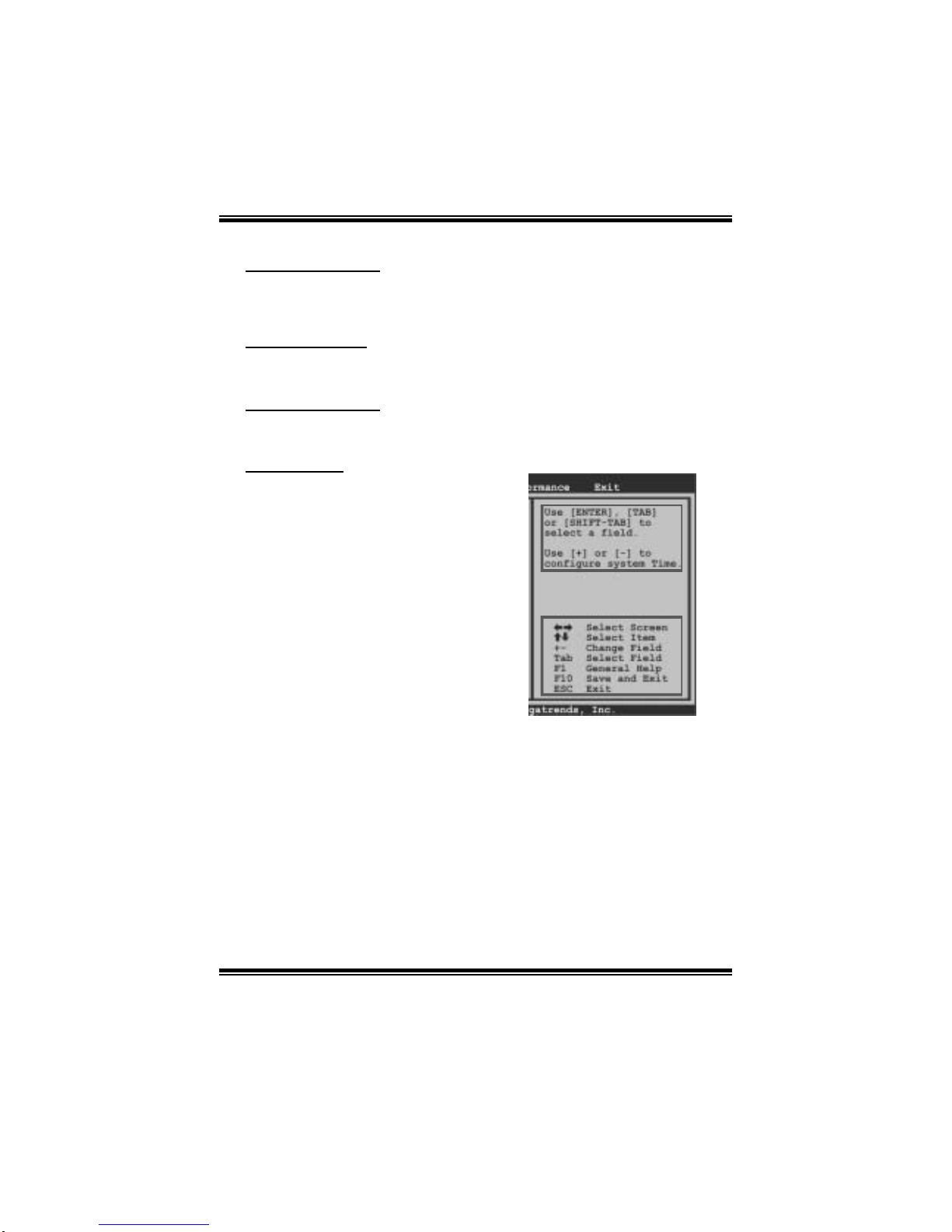

Using Setup

When starting up the computer, press

<Del> during the Power-On Self-Test

(POST) to enter theBIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use these keys to select item and change

the settings.

Notice

zThe default BIOS settings applyfor most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system performance, the BIOS firmware is being continuously updated.

The BIOS information described in this manual isfor yourreferenceonly. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content ofthis manual is subject to be changed without notice. We will not be

responsible for any mistakes found in this user’s manual and any system damage that

may be caused by wrong-settings.

General Help

Navigation Keys

TP45E XE BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview of the basic system information.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

System Memory

[ :00:00]

System Date [Tue 01/01/2008]

Floppy A

> IDE/SATA Configuration

Version :01.01.01

Build Date:01/01/08

Size :

System Time 00

Exit

AMI BIOS

Shows systeminformation including BIOS version, built date, etc.

System Memory

Shows systemmemory size, VGA shard memory will be excluded..

System Time

Set the systeminternal clock.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

Floppy A

Select the typeof floppy disk drive installed in yoursystem.

Options: 360K, 5 1/4 in / 1.2M, 5 1/4 in / 720K, 3 1/2 in/ 1.44M,3 1/2 in /

2.88M, 3 1/2 in / Disabled

TP45E XE BIOS Manual

IDE/SATA Configuration

The BIOS will automatically detect the presence of IDE/SATA devices. There is a

sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter

the sub-menu ofdetailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

IDE/SATA Confuguration

> SATA 1 Device

> SATA 2 Device

> SATA 3 Device

> SATA 4 Device

> SATA 5 Device

> SATA 6 Device

> Primary IDE Master

> Primary IDE Slave

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

Con figure SATA#1 as [IDE]

Max Ports on SATA#1 [6 Ports]

SATA#2 Configuration [Enhanced]

SATA#1 Configuration [Compatible]

> AHCI Configuration

Options

Disabled

Compatible

Enhanced

SATA#1 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Compatible(Default)/ Disabled / Enhanced

Configure SATA#1 as

Thisitem allows you to choosetheSATA operation mode.

Options: IDE (Default) / AHCI

Max Ports onSATA#1

Thisitem appears only when SATA mode is set toAHCI/RAID.

Options: 6 Ports (Default) / 4 Ports

SATA#2 Configuration

Thisitem allows you to control theonboard SATAcontroller.

Options: Enhanced (Default) / Disabled

TP45E XE BIOS Manual

AHCI Configuration

BIOS SETUP U TILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Settings

AHCI CD\DVD Boot Time out [35]

> AHCI Port0

> AHCI Port1

> AHCI Port2

> AHCI Port3

> AHCI Port4

> AHCI Port5

AHCI BIOS Support [Enabled]

Enables for supporting

AHCI BIOS Support

ThisBIOS feature controls the AHCI function ofthe SATA controller.

Options: Enabled (Default) / Diabled

AHCICD/DVDBoot Time Out

ThisBIOS feature allows you to set the AHCICD/DVD boot time out.

Options: 35 (Default)/ 0 / 5 /10 / 15 /20 / 25 / 30

AHCI Port0/Port1/Port2/Port3/Port4/Port5

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

AHCI Port0

S.M.A.R.T. [Enabled]

Device :

SATA Port0 [Auto]

Select the type

of device connected

to the system.

TP45E XE BIOS Manual

Device

This areashows the detected connected device.

SATA Port0/1/2/3/4/5

This item allows you to select the connected device type.

Options: Auto (Default)

S.M.A.R.T.

This item allows you to control thedevice S.M.A.R.T function.

Options: Enabled (Default) / Disabled

SATA1/2/3/4/5/6 Device; Primary IDE Master/Slave

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

SATA 1 Device

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective devices, and these

information and values are shown below to the name ofthesub-menu.

Type

Select the typeofthe IDE/SATAdrive.

Options: Auto (Default) / CD/DVD / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

TP45E XE BIOS Manual

PIOMode

Select the PIO mode.

Options: Auto (Default) / 0 / 1/ 2 / 3 /4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / SWDMA0 ~ 2 / MWDMA0 ~ 2 / UDMA0 ~ 5

S.M.A.R.T

Set the Smart Monitoring, Analysis, and ReportingTechnology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable device write protection. Thiswill be effective only if the device

is accessed through BIOS.

Options: Disabled (Default) / Enabled

IDE Detect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default)/ 30 / 25/ 20 / 15 / 10 / 5 / 0

TP45E XE BIOS Manual

2Advanced Menu

The Advanced Menu allows you to configure thesettings ofCPU, Super I/O, Power

Management, and othersystem devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system tomalfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset O.N.E

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to m alfunction.

> USB Configuration

> Config Onboard PCI/PCI-E Dev ices

> SuperIO Configuration

> Hardware Health Configuration

> Smart Fan Configuration

> PM/ACPI Configuration

> CPU Configuration

Exit

CPU Configuration

Thisitem shows theCPU information that theBIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

This should be enabled

in order to enable or

disable the “Enhanced

Halt State”.

Configure advanced CPU setting s

Module Version:3F.09

Manufacturer:Intel

Frequency :

FSB Speed :

Cache L1 :

Cache L2 :

Ratio Status:

Ratio Actual Value:

Intel(R) C-STATE Tech [Enabled]

C1E Support [Enabled]

Hardware Prefetcher [Enabled]

Max CPUID Value Limit [Disabled]

CPU TM function

Execute-Disable Bit Capability[Disabled]

Core Multi-Processing [Enabled]

[Enabled]

TP45E XE BIOS Manual

C1E Support

C1E is “Enhanced Halt State” function, this function helps to save power and

decrease heat by lowering CPU frequencywhile the processor is not working.

Options: Enabled (Default) / Disabled

Max CPUID Value Limit

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines thekind ofbasic information CPUID can provide the operating system.

Options: Disabled (Default) / Enabled

CPUTM Function

The CPU TM Function is to throttle the clock speed ofhigher speed Prescott's to

help keep them cool.

Options: Disabled (Default) / Enabled

Execute-Disable Bit Capability

Thisitem allows you to configure the Execute Disabled Bit function, whichprotects

yoursystem from buffer overflow attacks.

Options: Disabled (Default) / Enabled

Core Multi-Processing

Thisitem allows multi-processing function for multi-core processors.

Options: Enabled (Default) / Disabled

Intel(R) C-STATE Tech

This item allows you to control the C-State power management functions of the

processor.

Options: Enabled (Default) / Disabled

Altri manuali per TP45EXE

Indice

Altri manuali Biostar Scheda madre

Biostar

Biostar K8T890-A9 Manuale utente

Biostar

Biostar M6TLD Manuale utente

Biostar

Biostar P4 TDG Istruzioni per l'uso e l'installazione

Biostar

Biostar TP43E HP - BIOS Manuale utente

Biostar

Biostar I915P-A7 Manuale utente

Biostar

Biostar M6VCA Manuale utente

Biostar

Biostar M6TWC Manuale utente

Biostar

Biostar MCP6P-M2 Guida utente

Biostar

Biostar P4 TDP Guida utente

Biostar

Biostar TP55 - BIOS Guida utente

Biostar

Biostar Z490GTA EVO Manuale utente

Biostar

Biostar P4TDH Guida utente

Biostar

Biostar M7VIGD Manuale utente

Biostar

Biostar G41D3 Guida utente

Biostar

Biostar TA785GE - SETUP Guida utente

Biostar

Biostar G41D3 Manuale

Biostar

Biostar A55MLC Manuale utente

Biostar

Biostar MCP6PB M2 PLUS - BIOS Guida utente

Biostar

Biostar GF7100P-M7S Guida utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Biostar

Biostar M7 VKH Manuale utente

Biostar

Biostar K8M800 MICRO AM2 Guida utente

Biostar

Biostar TFORSCE4 U AM2 Guida utente

Biostar

Biostar A85W 3D Guida utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
