Press and hold the button for three seconds in

order to switch the device's status.

Bitspower CPU Block Summit M Pro

with OLED (12th Gen Intel CPU)

instruction manual

Digital RGB PIN on 1motherboard or 2other equipment.

motherboard DRGB Multi Function Controller

(Not included)

BPTA-DRGBMFC

INTEL LGA 775

INTEL LGA 115X

INTEL LGA 1366

INTEL LGA 2011

INTEL LGA 2011-V3

INTEL LGA 2066

INTEL LGA 775

INTEL LGA 115X

INTEL LGA 1366

INTEL LGA 2011

INTEL LGA 2011-V3

INTEL LGA 2066

OUT IN

240 S

TEM P

80. 6

240 S

122

192

TEM P

Water Temperature Line Graph

Input Voltage : DC 5V~12V

Temperature : 0~99° C(32~210.2° F)

operate current : <20ma

DRGB LED

INTE 1700

INTEL LGA 2066

1700

[ 2 ]

Installation 1

Follow the right sequence to install.

Use an appropriate amount of thermal paste.

SCM3FL20

1mm Spacer

CPU Block

SCM4M3

Spring

[ 3 ]

Installation 2

Follow the right sequence to install.

The thumb screw cannot be locked too tightly, the spring

is slightly pressed and the gap is kept as shown below.

The thumb screw cannot be rotated to the end. When the

spring screws too tight, the SCM3F6 screw will be driven

and will be taken away from the motherboard, which will

cause the water block and CPU not to be closed well.

Thumb Screw

Spring

1mm Spacer

Back Pad

3M Paste Pad

Metal Backplane

M3x32mm Screw

CPU Block

SCM3F6 Screw

[ 4 ]

AMD SOCKET AM4

AMD SOCKET AM3 / AM3+

AMD SOCKET AM2 / AM2+

AMD SOCKET FM1 / FM2+

AMD SOCKET 939 / 754 / 940

AMD SOCKET AM4

AMD SOCKET AM3 / AM3+

AMD SOCKET AM2 / AM2+

AMD SOCKET FM1 / FM2+

AM4 OUTIN

Installation 1

Follow the right sequence to install.

The thumb screw cannot be locked too tightly, the spring

is slightly pressed and the gap is kept as shown below.

The thumb screw cannot be rotated to the end. When the

spring screws too tight, the SCM3F6 screw will be driven

and will be taken away from the motherboard, which will

cause the water block and CPU not to be closed well.

Thumb Screw

Spring

1mm Spacer

Back Pad

3M Paste Pad

Metal Backplane

M3x32mm Screw

CPU Block

CPU Block PLATE(AM4)

SCM3F6 Screw

[ 5 ]

Installation 2

Follow the right sequence to install.

Thumb Screw

1mm Spacer

CPU Block

SC6-32M3 Screw

Motherboard

Original backplane

Spring

[ 6 ]

For 1200/1700 Motherboard

Accessories

1 2

Washer

Screw

Backplate

75MM

1.5MM

78MM

Adjusting Nut

Backplate Bolt

4 PCS

1 PC 5 PCS

4 PCS

BP-MKCPUM-1217

Assembly steps

step 1

[ 7 ]

step 3

step 2

Thumb Screw

Spring

CPU Block

1200/1700 Intel Motherboards

(Not included)

Notice

Before filling in the water, please make sure all the components are

installed correctly. To prevent any leakage which may damage the PC

components, please perform a 24-hour leaking test with only the pump

connected to the power supply.

Bitspower reserves the right to change the product design and

interpretations. These are subject to change without notice. Product

colors and accessories are based on the actual product.

When using leak tester on water cooling loop, in order to avoid product

damage due to excessive pressure, the input pressure should not exceed

0.5kg/cm2 (Bar). If the product is damaged due to

excessive pressure, it will be borne by the customer. Forbidden to use the

leak teser when there is water in the loop or the pump is runing.

Bitspower requires to use of distilled or pure water or Bitspower Pellucid

Coolant as the water-cooling liquid. Also, the consumer can add Bitspower

Dye to Pellucid Coolant for the color requirement. But please do not add

any biocide by yourself. If the consumer chooses different water-cooling

liquids, the resulting impurities may cause peeling o󽗈 the coating on some

of the hardware, water channels blockage by built-up residue, improper

operation of the water pump, water tank tube breakage, and O-rings

deformation or loss sealing leading to leakage. Any issues related to the

use of inappropriate water-cooling liquid will be the responsibility of the

consumer.

[ 8 ]

記得上角要放對應的 LOGO!

[ 9 ]

記得上角要放對應的 LOGO!

INTEL LGA 775

INTEL LGA 115X

INTEL LGA 1366

INTEL LGA 2011

INTEL LGA 2011-V3

INTEL LGA 2066

INTEL LGA 775

INTEL LGA 115X

INTEL LGA 1366

INTEL LGA 2011

INTEL LGA 2011-V3

INTEL LGA 2066

出進

水溫折線圖

輸入電壓：DC 5V~12V

顯示溫度：0~99° C(32~210.2° F)

工作電流：<20ma

使用說明書

輕觸此按鍵，輕觸此按鍵 3 秒，進入模式切換狀態

240 S

TEM P

80. 6

240 S

122

192

TEM P

DRGB LED

請接 1主版或 2 其他設備的 DRGB 插槽

DRGB 控制器 ( 不包括 )

BPTA-DRGBMFC

主版

Bitspower CPU Block Summit M Pro

with OLED (12th Gen Intel CPU) V1

INTE 1700

INTEL LGA 2066

1700

[ 10 ]

核心需塗導熱膏

手轉螺絲

1 毫米墊片

冷頭

孔位固定螺絲

彈簧

請按照正確的順序安裝

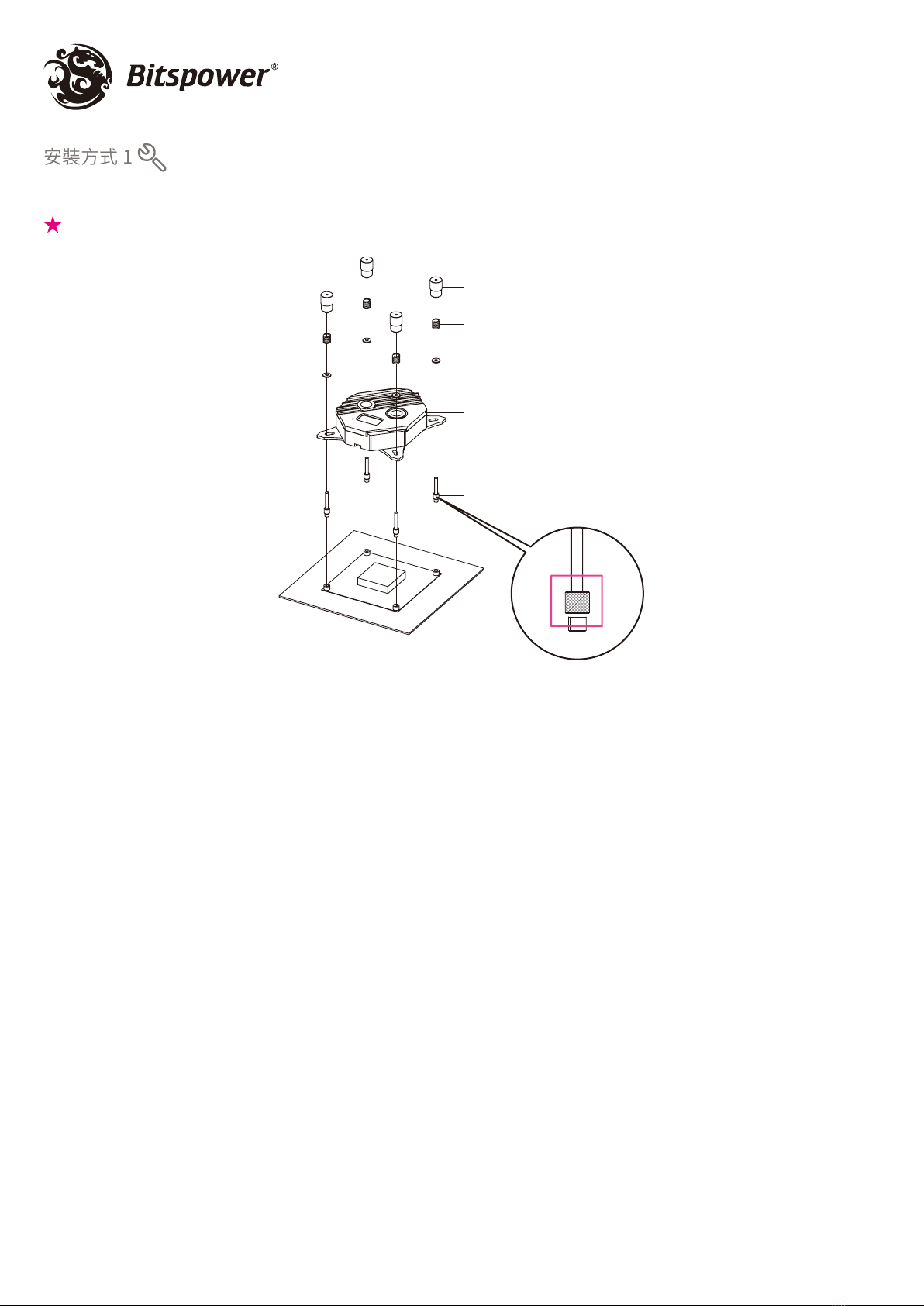

安裝方式 1
