BIXOLON SRP-350 PlusA Manuale utente

User’s Manual

SRP-350/352III

Thermal Printer

Rev. 1.00

http://www.bixolon.com

Rev. 1.00

- 2 -

SRP-350/352III

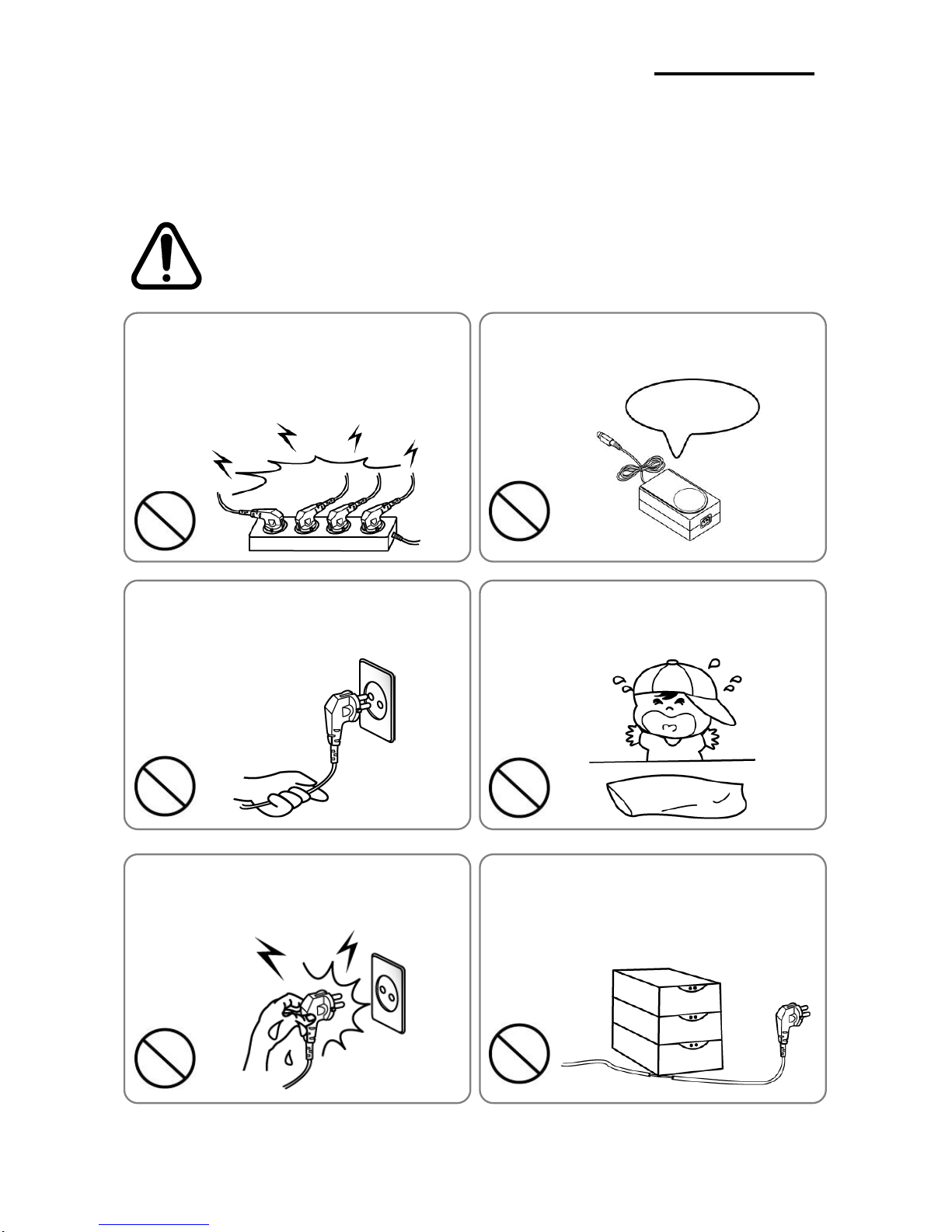

■Safety Precautions

In using the present appliance, please keep the following safety regulations in order to

prevent any hazard or material damage.

WARNING

Violating following instructions can cause serious injury or death.

Do not bend the cable by force or leave it under any

heavy object.

•A damaged cable can cause a fire.

Do not plug in or unplug with your hands wet.

•You can be electrocuted.

Keep the plastic bag out of children’s reach.

•If not, a child may put the bag on his head.

Do not pull the cable to unplug.

•This can damage the cable, which is the origin of a fire or a

breakdown of the printer.

You must use only the supplied adapter.

•It is dangerous to use other adapters.

Do not plug several products in one multi-outlet.

•This can provoke over-heating and a fire.

•If the plug is wet or dirty, dry or wipe it before usage.

•If the plug does not fit perfectly with the outlet, do not plug in.

•Be sure to use only standardized multi-outlets.

PROHIBITED

ONLY SUPPLIED ADAPTER

PROHIBITED

Rev. 1.00

- 3 -

SRP-350/352III

CAUTION

Violating following instructions can cause slight wound or damage the appliance.

Do not use the printer when it is out of order. This

can cause a fire or an electrocution.

•Switch off and unplug the printer before calling your dealer.

Do not let water or other foreign objects in the

printer.

•If this happened, switch off and unplug the printer before

calling your dealer.

Use only approved accessories and do not try to

disassemble, repair or remodel it for yourself.

•Call your dealer when you need these services.

•Do not touch the blade of auto cutter.

Install the printer on the stable surface.

•If the printer falls down, it can be broken and you can hurt

yourself.

Keep the desiccant out of children’s reach.

•If not, they may eat it.

If you observe a strange smoke, odor or noise from

the printer, unplug it before taking following

measures.

•Switch off the printer and unplug the set from the mains.

•After the disappearance of the smoke, call your dealer to

repair it.

TO UNPLUG

PROHIBITED

DISASSEMBLING

PROHIBITED

TO UNPLUG

PRINTER

DEALER

PRINTER

Rev. 1.00

- 4 -

SRP-350/352III

■Warning - U.S.A

This equipment has been tested and found to comply with the limits for a ClassA digital

device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

■Notice - Canada

This Apparatus complies with class “A” limits for radio interference as specified in the

Canadian department of communications radio interference regulations.

Get appareil est conforme aux normes class “A” d’interference radio tel que specifier par

ministre canadien des communications dans les reglements d’interference radio.

■Caution

Some semiconductor devices are easily damaged by static electricity. You should turn the

printer “OFF”, before you connect or remove the cables on the rear side, in order to guard

the printer against the static electricity. If the printer is damaged by the static electricity,

you should turn the printer “OFF”.

■Waste Electrical and Electric Equipment (WEEE)

This marking shown on the product or its literature, indicates that is should not

be disposed with other household wastes at the end of its working life, To

prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material resources. Household

users should contact either the retailer where they purchased this product, or

their local government office, for details of where and how they can take this item for

environmentally safe recycling. Business users should contact their supplier and check the

terms and conditions of the purchase contract. This product should not be mixed with other

commercial wastes for disposal.

■Label Material

* Control Label: PC

* Other Labels: PET

Rev. 1.00

- 5 -

SRP-350/352III

■ Introduction

SRP-350/352III Series Printers are designed for use with electronic instruments such as

system ECR (Electronic Cash Register), POS (Point Of Sales), computer peripheral

equipment, etc.

The main features of the printer are as follows:

1. Print at a max. speed of 250mm/s

2. Low noise thermal printing

3. USB (embedded), serial, parallel, and Ethernet ports supported

4. Data buffer embedded (allowing receiving of print data even during printing)

5. Control of external devices such as cash drawer by peripheral units drive circuit

6. Bar code printing

7. Different print densities (through switches)

Please be sure to read the instructions in this manual carefully before using your new

printer.

※Please use reliable original supplies!

We do not guarantee the quality and AS for any damage to the printer by using fake

supplies (or recycled ones).

We at Bixolon Co., Ltd. constantly strive to improve product functions and quality. To do

this, the specifications of our product and the contents of the manual may change without

prior notice.

Rev. 1.00

- 6 -

SRP-350/352III

■ Table of Contents

1. Setting up Printer.........................................................................................................7

1-1 Unpacking.................................................................................................................7

1-2 Connecting the Cables .............................................................................................8

1-2-1 USB Cable....................................................................................................8

1-2-2 Serial Cable(RS-232C).................................................................................8

1-2-3 Parallel Cable(IEEE1284)...........................................................................10

1-2-4 Ethernet Cable............................................................................................11

1-3 Connecting Drawer.................................................................................................12

1-4 Setting Dip Switches...............................................................................................13

1-4-1 Serial Interface ...........................................................................................13

1-4-2 Parallel & USB & Ethernet Interface...........................................................13

1-5 Installing & Replacing Paper...................................................................................15

1-6 Removing Paper Jam.............................................................................................17

1-7 Adjusting Location of Paper Near-end Sensor........................................................18

1-8 Using Printer Functions ..........................................................................................18

1-9 Connecting a Computer..........................................................................................19

1-10 Connecting Power Supply ....................................................................................19

2. Self-Test......................................................................................................................20

3. Hexadecimal Dumping ..............................................................................................21

4. Specifications ............................................................................................................22

5. Appendix ....................................................................................................................23

5-1 Cleaning Printer......................................................................................................23

5-2 Use of Wall Mount ..................................................................................................23

Rev. 1.00

- 7 -

SRP-350/352III

1. Setting up Printer

1-1 Unpacking

Your printer box should include these items. If any items are damaged or missing, please

contact your dealer for assistance.

SRP-350/352III Cable Cover CD

Paper Roll Installation Guide AC/DC Adaptor Power Cord

Rev. 1.00

- 8 -

SRP-350/352III

1-2 Connecting the Cables

You can connect the host computer to the printer by using the interface cable fit for the

specifications of the printer and the host computer (POS/ECR). You must use the drawer

fit for the specifications of the printer.

※Caution

Before connecting any of the cables, make sure that both the printer and the host are

turned off.

1-2-1 USB Cable

No.

Signal Name

Designation (Color)

Function

Shell

Shield

Drain Cable

Frame Ground

VBUS

RED

Host Power

D-

WHITE

Data Line (D-)

D+

GREEN

Data Line (D+)

GND

BLACK

Signal Ground

1-2-2 Serial Cable(RS-232C)

1-2-2-1 Single Interface

Cash Drawer

Connector

Power Connector

Serial Cable Connector

Cash Drawer

Connector

Power Connector

USB Connector

Rev. 1.00

- 9 -

SRP-350/352III

1-2-2-2 Dual Interface

Pin No.

Signal Name

Direction

Function

Main

Frame GND

Frame Ground

TXD

Output

Data Transmission

RXD

Input

Data Reception

DSR

Input

This signal shows whether the host computer can

receive data (hardware flow control).

1) MARK (Logic 1): The host computer can receive

data.

2) SPACE (Logic 2): The host computer cannot

receive data.

3) After checking the signal in the printer, it

transmits data to the host.

4) When XON/XOFF flow control is selected, the

printer does not confirm this signal.

Signal GND

Signal Ground

DTR

Output

This signal shows whether the printer works or not

(hardware flow control).

1) MARK (Logic 1): Printer is working.

2) SPACE (Logic 2): Printer is not working.

3) After checking the signal in the printer, it

transmits data to the host.

4) When XON/XOFF flow control is selected, the

printer does not confirm this signal.

Shield

Frame GND

Frame Ground

Cash Drawer

Connector

Power

Connector

Serial Cable Connector

USB

Connector

Rev. 1.00

- 10 -

SRP-350/352III

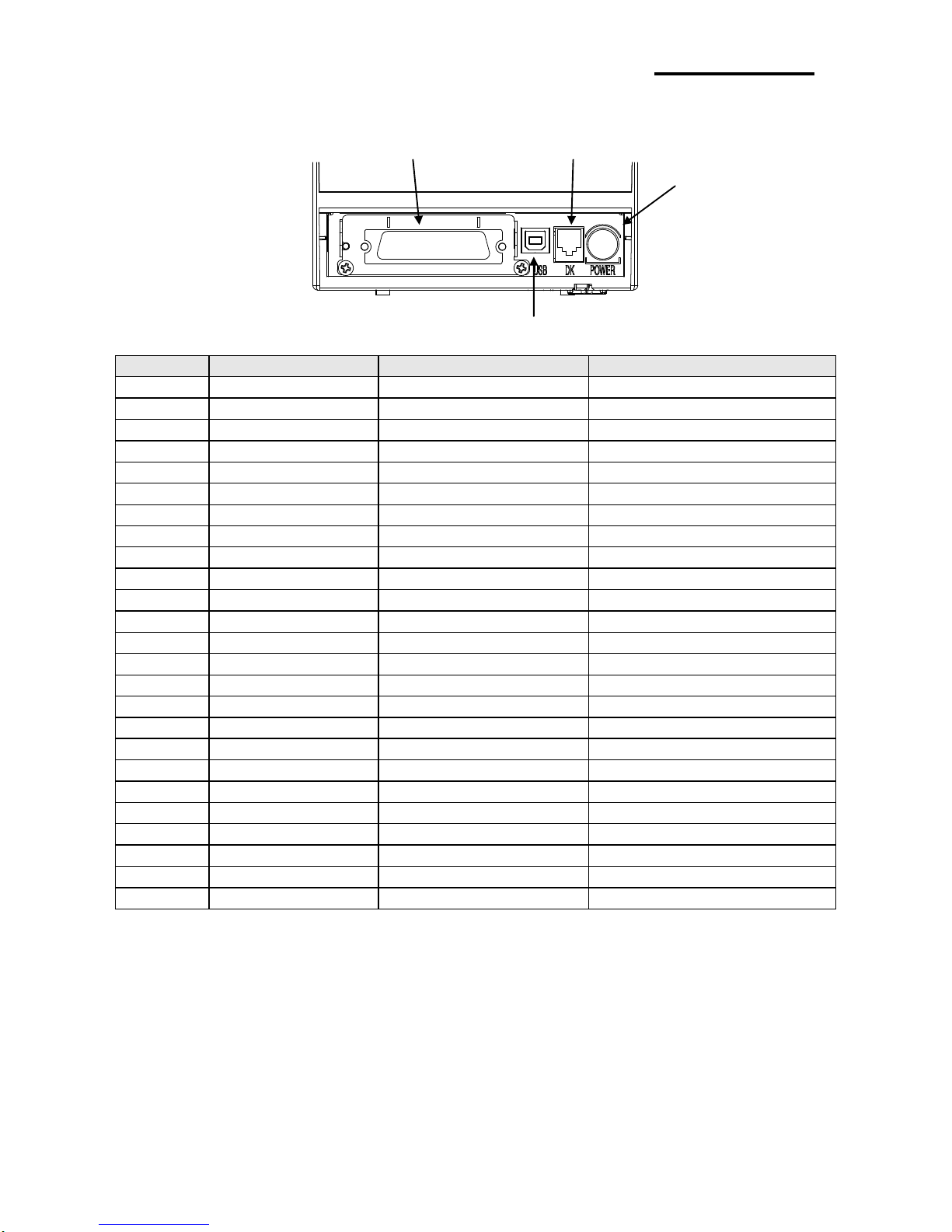

1-2-3 Parallel Cable(IEEE1284)

Pin No.

Source

Compatibility Mode

Nibble Mode

Host

nStrobe

HostClk

Host/Printer

Data 0 (LSB)

Host/Printer

Data 1

Host/Printer

Data 2

Host/Printer

Data 3

Host/Printer

Data 4

Host/Printer

Data 5

Host/Printer

Data 6

Host/Printer

Data 7 (MSB)

Printer

Nack

PtrClk

Printer

Busy

PtrBusy /Data3,7

Printer

Perror

AckDataReq/Data2,6

Printer

Select

Xflag/Data1,5

Host

nAutoFd

HostBusy

GND

Printer

Logic-H

19~30

GND

Host

nInit

Printer

nFault

nDataAvail/Data0,4

GND

Printer

DK_Status

Printer

+5V

Host

nSelectIn

1284-Active

Cash Drawer

Connector

Power

Connector

Parallel Cable Connector

USB Connector

Altri manuali per SRP-350 PlusA

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali BIXOLON Stampante

BIXOLON

BIXOLON SRP-F310 Istruzioni per l'installazione

BIXOLON

BIXOLON SRP-275II Manuale utente

BIXOLON

BIXOLON SRP-500 Istruzioni per l'installazione

BIXOLON

BIXOLON SPP-R200 Manuale di istruzioni

BIXOLON

BIXOLON SRP-275II Manuale utente

BIXOLON

BIXOLON STP-131 Manuale utente

BIXOLON

BIXOLON BGT-100P Manuale utente

BIXOLON

BIXOLON SRP-350II Manuale utente

BIXOLON

BIXOLON SRP-QE302 Manuale di istruzioni

BIXOLON

BIXOLON SPP-C200 Istruzioni per l'installazione

BIXOLON

BIXOLON SRP-370 - Two-color Direct Thermal Printer Manuale utente

BIXOLON

BIXOLON SPP-R310PLUS Manuale utente

BIXOLON

BIXOLON STP-103III Manuale utente

BIXOLON

BIXOLON Bixolon SRP-270 Istruzioni per il montaggio

BIXOLON

BIXOLON SPP-R400 Manuale utente

BIXOLON

BIXOLON SRP-350PG - SRP 350 B/W Direct Thermal... Manuale utente

BIXOLON

BIXOLON SRP-S200 Manuale di installazione e funzionamento

BIXOLON

BIXOLON SRP-350plus Manuale di installazione e funzionamento

BIXOLON

BIXOLON SRP-E300 Manuale di istruzioni

BIXOLON

BIXOLON SRP-380 Manuale di installazione e funzionamento

BIXOLON

BIXOLON SRP-382II Manuale di installazione e funzionamento

BIXOLON

BIXOLON BK5-31 Manuale utente

BIXOLON

BIXOLON SPP-R300 Manuale di installazione e funzionamento

BIXOLON

BIXOLON SRP-350 PlusA Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
