4-SLICE TOASTER OVEN

HORNO TOSTADOR DE 4 REBANADAS

Customer Care Line:

USA 1-800-231-9786

Accessories/Parts (USA)

1-800-738-0245

For online customer service

and to register your product, go to

www.prodprotect.com/applica

Servicio para el cliente:

Mexico 01-800 714-2503

Accesorios/Partes (EE.UU)

1-800-738-0245

Please Read and Save this Use and Care Book

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed, including the following:

❍ Read all instructions before using.

❍ Do not touch hot surfaces. Use handles or knobs.

❍ To protect against electrical shock do not immerse cord, plugs or appliance

in water or other liquid.

❍ Close supervision is necessary when any appliance is used by or near

children.

❍ Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts and before cleaning.

❍ Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions or has been damaged in any manner. Return

appliance to the nearest authorized service facility for examination, repair

or adjustment. Or, call the appropriate toll-free number on the cover of this

manual.

❍ The use of accessory attachments not recommended by the appliance

manufacturer may cause injuries.

❍ Do not use outdoors.

❍ Do not let cord hang over edge of table or counter, or touch hot surfaces.

❍ Do not place on or near a hot gas or electric burner, or in a heated oven.

❍ Extreme caution must be used when moving an appliance containing hot oil

or other hot liquids.

❍ Always attach plug to appliance first, then plug cord into the wall outlet.

To disconnect, turn any control to OFF, then remove plug from wall outlet.

❍ Do not use appliance for other than intended use.

❍ Use extreme caution when removing tray or disposing of hot grease.

❍ Do not clean with metal scouring pads. Pieces can break off the pad and

touch electrical parts, creating a risk of electric shock.

❍ Oversized foods or metal utensils must not be inserted in a toaster oven, as

they may create a fire or risk of electric shock.

❍ A fire may occur if the toaster oven is covered or touching flammable

material including curtains, draperies, walls and the like, when in operation.

❍ Extreme caution should be exercised when using containers constructed of

other than metal or glass.

ENGLISH

❍ Do not store any material, other than manufacturer's recommended

accessories, in this oven when not in use.

❍ Do not place any of the following materials in the oven: paper, cardboard,

plastic, and the like.

❍ Do not cover crumb tray or any part of this oven with metal foil. This will

cause overheating of the oven.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

GROUNDED PLUG

As a safety feature, this product is equipped with a grounded plug, which will only

fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper

connection of the grounding conductor may result in the risk of electric shock.

Consult a qualified electrician if you are in doubt as to whether the outlet is properly

grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent

removal of the outer cover. To reduce the risk of fire or electric shock, do not

attempt to remove the outer cover. There are no user-serviceable parts inside.

Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be

provided to reduce the risk resulting from becoming entangled in or tripping

over a longer cord.

b) Longer detachable power-supply cords or extension cords are available and

may be used if care is exercised in their use.

c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or

extension cord should be at least as great as the electrical rating of the

appliance,

2) If the appliance is of the grounded type, the extension cord should be a

grounding-type 3-wire cord, and

3) The longer cord should be arranged so that it will not drape over

the countertop or tabletop where it can be pulled on by children or

tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified

personnel; in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

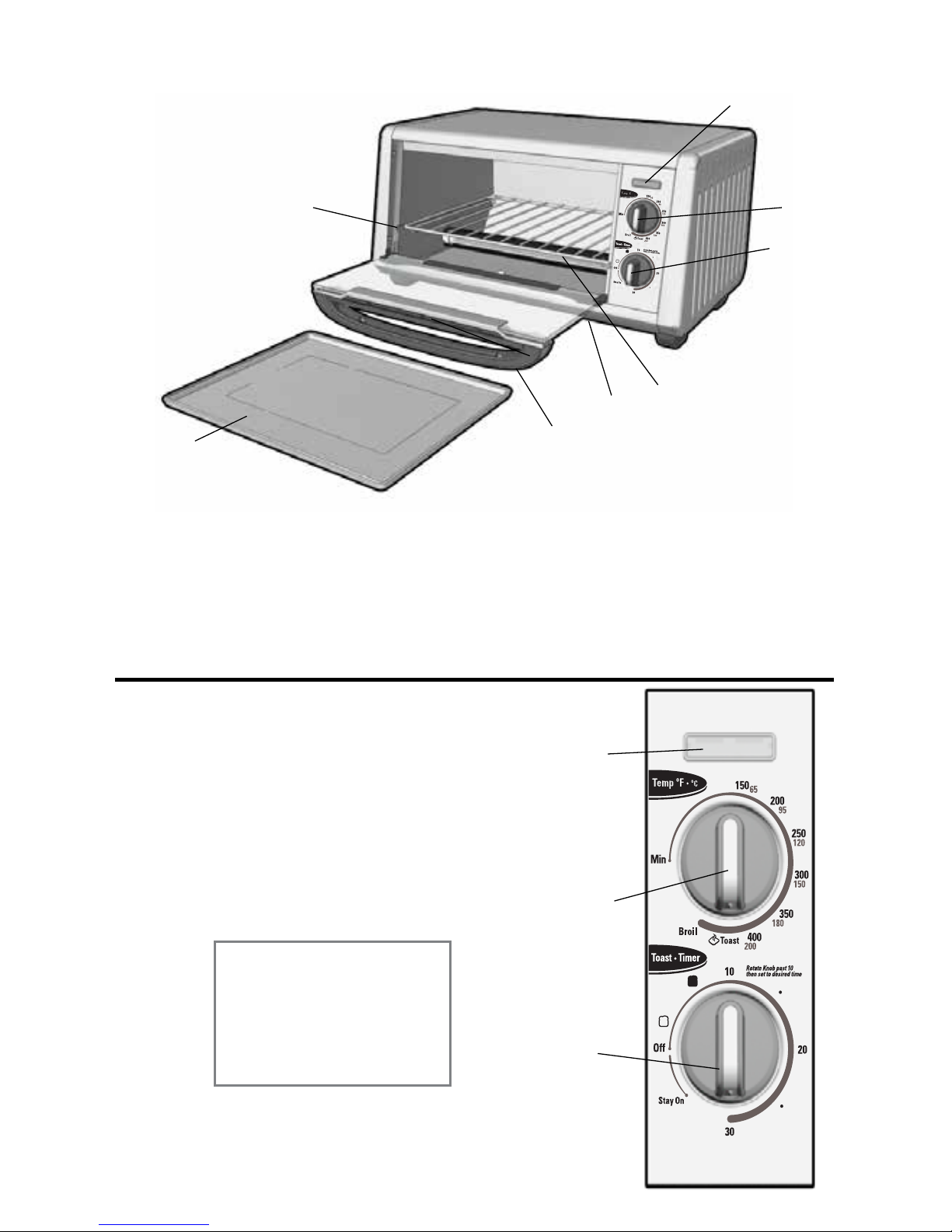

1. Power ON indicator light

† 2. Temperature selector knob

(part# TO1430S-01)

† 3. Toast • Timer selector knob

(part#TO1430S-02)

† 4. Slide rack (part# TO1430S-03)

† 5. Swing-down crumb tray

6. Door handle

† 7. Bake pan/drip tray

(part# TO1430S-04)

8. Rack slot

Note: † indicates consumer replaceable/

removable parts

CONTROL PANEL

1. Power ON indicator light

2. Temperature selector knob

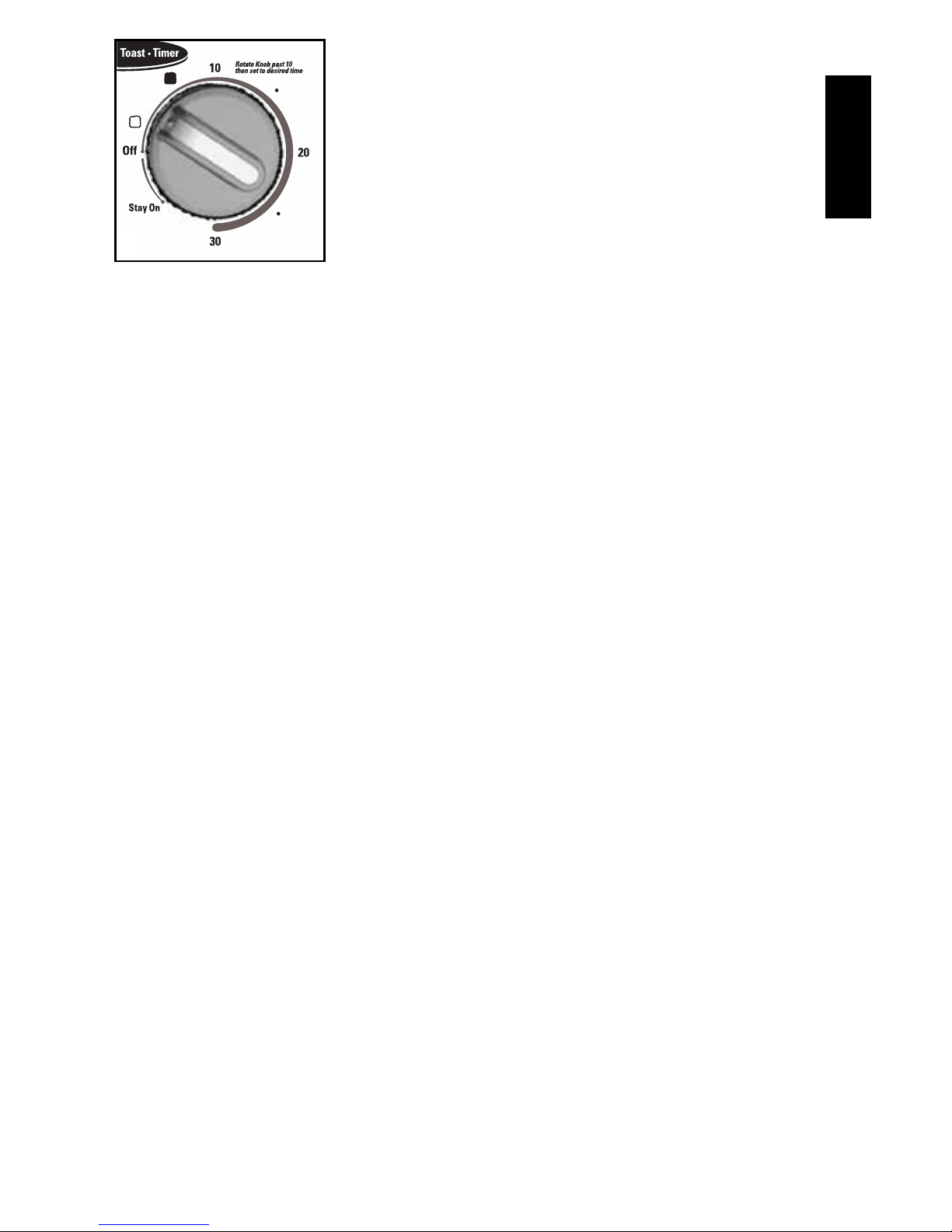

3. Toast • Timer selector knob with Stay On setting

Important:

When making toast or

using the Timer function,

always turn the dial past

10 and then turn back or

forward to desired setting.





















How to Use

This product is for household use only.

GETTING STARTED

• Remove all packing material and any stickers.

• Please go to www.prodprotect.com/applica to register your warranty.

• Wash all removable parts as instructed in CARE AND CLEANING section of this

manual.

• Wipe outside of appliance with a damp cloth; dry thoroughly.

• Select a location where this unit is to be used allowing enough space for back of the

unit and the wall to allow heat to flow without damage to cabinets and walls.

• Insert slide rack completely into the oven before closing the door.

• Remove tie from cord and unwind.

• Plug unit into electrical outlet. The power ON indicator light comes on and will

remain lit during the entire cooking time.

Important: This oven gets hot. When in use, always use

oven mitts or potholders when touching any outer or inner

surface of the oven (A).

Note: During first few minutes of use you may notice smoke

and a slight odor. This is normal and should cause no

concern.

HELPFUL TIPS ABOUT YOUR OVEN

• When the oven is turned on the power ON light will come on and remain lit until

the oven is turned off manually or automatically if the timer has been used.

• When selecting baking time for a particular product or

recipe, include preheat time.

• This oven has a 30-minute timer. If baking something

that will take longer than 30 minutes, we suggest you

use the Stay On feature (B).

• Metal, ovenproof glass and ceramic bake ware without

lids can be used in the oven. If foods require covering,

use aluminum foil.

• Be sure the top of the container or food being baked or

broiled is at least 1½ inches away from the upper heating

elements.

ENGLISH

CAUTION

THIS OVEN GETS HOT.

WHEN IN USE, ALWAYS USE OVEN

MITTS OR POT HOLDERS WHEN

TOUCHING ANY OUTER OR INNER

SURFACE OF THE OVEN.

• Turn temperature selector knob to Min and the Toast • Timer selector knob to Off

before inserting or removing plug from electrical outlet.

• Do not put any container directly on the lower heating element.

• To obtain the best performance from this toaster oven:

o Do not overfill the oven.

o To avoid heat loss do not open the door too frequently

o When using foil to cover a food, tuck the edges of the foil against the sides of the

baking dish or pan.

OVERVIEW OF THE FUNCTIONS

Important: This oven gets hot. When in use, always use oven mitts or potholders when

touching any outer or inner surface of the oven.

BAKING

Note: For best results, preheat oven for 8 to 10 minutes at desired baking temperature

before baking food.

1. Open the oven door.

2. Insert the slide rack.

3. Turn temperature selector knob to desired temperature from 150ºF to 400ºF.

4. Turn Toast • Timer selector knob past 10 and then turn back or forward to desired

baking time, including preheat time.

Note: Select Stay On to bake longer than 30 minutes or to control cooking time yourself.

Be sure to use a kitchen timer.

Important: You must set the timer or select Stay On for the oven to function.

5. The blue ON indicator light comes on and will remain lit during the entire baking time.

6. The heating elements will cycle on and off to maintain even heat distribution.

7. Once oven has preheated, open oven door and insert food. Close oven door.

Note: You can bake 3 ways:

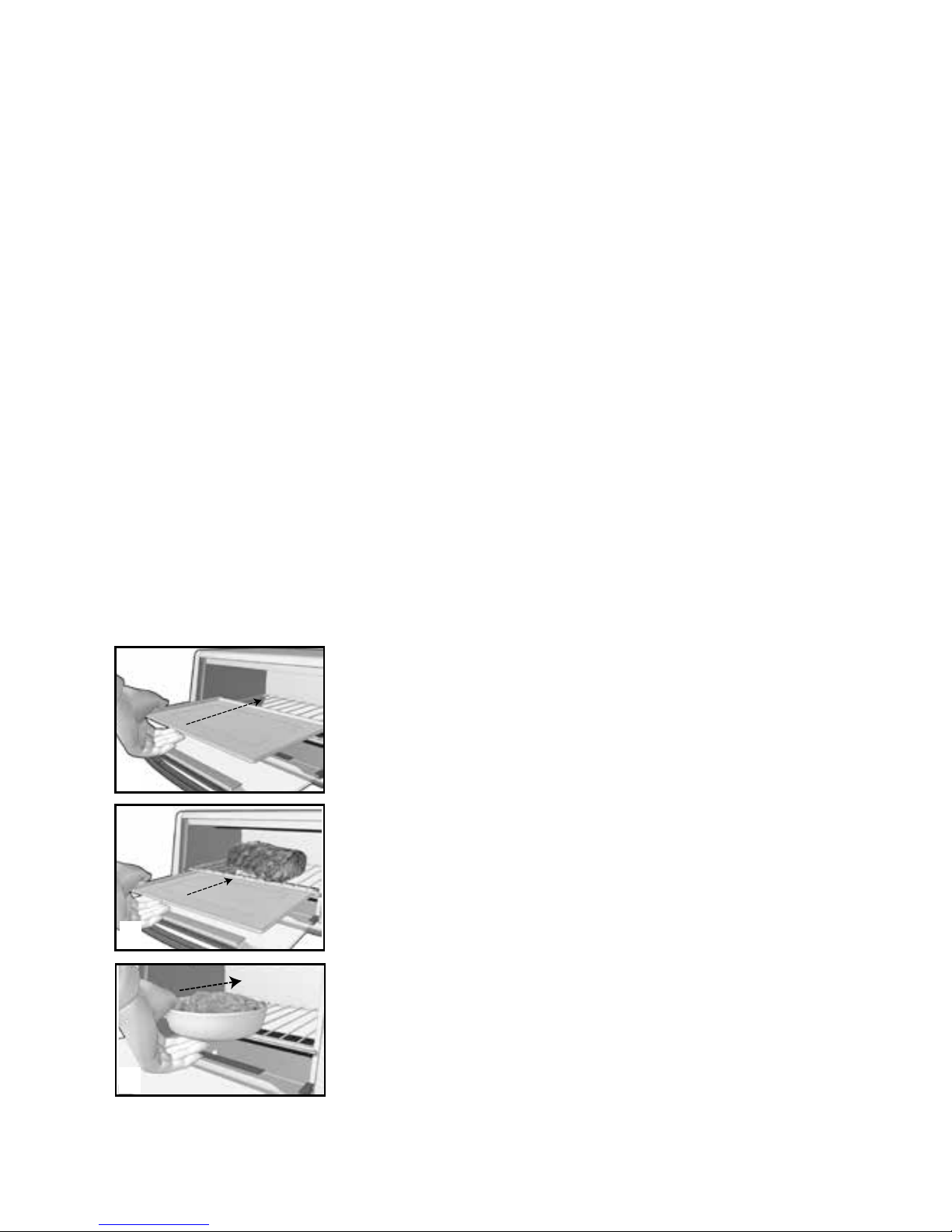

• Use the bake pan/drip tray placed on the oven rack (C).

• Place the bake pan/drip tray under the oven rack and place

the food directly on the rack (D).

Note: Be sure food does not extend past the outer limits of the

bake pan/drip tray to prevent grease dripping onto the heating

elements.

• Use a metal, glass or ceramic baking dish placed on the

rack. (Be sure food or baking dish does not come within

1½ inches of the top heating elements.) (E)

8. The first time you use the oven, bake following the

manufacturers’ or recipe directions and check for doneness

at minimum suggested cooking time.

ENGLISH

9. If using the oven timer, there will be an audible signal once the baking cycle is

complete. The oven turns Off and the light goes out.

10. If not using the oven timer, turn the Toast • Timer Off once cooking cycle is

complete.

11. Open the oven door. Using oven mitts or pot holders, slide the rack out to remove

the cooked food.

Important: This oven gets hot. When in use, always use oven mitts or potholders

when touching any outer or inner surface of the oven.

12. Unplug appliance when not in use.

BAKING GUIDE

FOOD AMOUNT TEMP./TIME PROCEDURE

Boneless chicken

breast

1 to 2 pieces to

fit pan

400ºF / 30 to 40

minutes

Chicken should

meat thermometer.

Boneless chicken

tenders

1 to 6 pieces to

fit pan

375ºF / 15 to 25

minutes.

Chicken should

meat thermometer.

Steak, pork or

lamb chops and

ham

1 to 2 to fit pan 350ºF to desired

doneness.

Arrange in single

layer on rack over

bake pan. Check with

meat thermometer

for doneness.

Fish fillets or

steaks

1 to 2 to fit pan 400ºF for about

12 minutes.

Test for doneness;

fish will flake easily.

Cookies about 6 Follow recipe

or package

directions.

Bake on bake pan

in single layer until

fully baked and lightly

browned.

Biscuits and

dinner rolls

4 to 5 to fit pan Follow recipe

or package

directions.

Bake on bake pan

in single layer until

fully baked and lightly

browned.

White or sweet

potatoes

1 to 4 to fit pan 400ºF / 50 to

60 minutes.

Consider using

a kitchen timer.

Pierce with fork and

bake until tender.

Frozen snack

foods

Single layer in

bake pan

Follow package

directions.

Turn halfway through

baking period, check

at minimum baking

time

Frozen pizza Up to 9-inch pizza Follow package

directions.

Turn halfway through

baking period, check

at minimum baking

time.

BROILING

1. Turn temperature selector to Broil.

2. Turn time selector past 10 and then turn back or forward to desired broiling time

including 5-minute preheat time. (Select Stay On to control cooking time yourself. Be

sure to use a kitchen timer.)

3. If you need to insert bake pan/drip tray, slide it under the oven rack and place the food

directly on the rack.

Important: Be sure food does not extend past the outer limits of the bake pan/drip tray

to prevent grease dripping onto the heating elements.

Also be sure the top of the food is at least 1½-inches from the top heating element.

4. Broil food according to recipe or package directions and check for doneness at

minimum suggested broiling time.

5. If using the oven timer, there will be an audible signal once the broiling cycle is

complete. The oven turns Off and the light goes out.

6. If not using the oven timer, turn the Toast • Timer to Off once broiling cycle is

complete.

7. Open the oven door. Using oven mitts or pot holders, slide the rack out along with the

bake/broil pan to remove the cooked food.

Important: This oven gets hot. When in use, always use oven mitts or potholders when

touching any outer or inner surface of the oven.

8. Unplug appliance when not in use.

BROILING TIPS

• Preheat the broiler for 8 to 10 minutes for improved performance.

• Placing food on slide rack allows the drippings to flow into the bake pan/drip tray and

reduce the fat in the foods being broiled. It also helps to eliminate or prevent smoking

from the broiler.

• For best results, thaw frozen meat, poultry and fish before broiling.

• Trim excess fat from meat and score edges to prevent curling.

• If desired, brush foods to be broiled with sauce or oil and season as desired before

broiling.

• Fish fillets and steaks are delicate and should be broiled directly on bake pan/drip tray.

• There is no need to turn fish fillets during broiling. Carefully turn thick fish steaks

midway through broiling cycle.

• If food being broiled needs to be turned, remove from oven about halfway through

broiling, turn food over, season if desired, and return to oven to finish cooking.

TOASTING

Note: It is not necessary to preheat the oven for toasting.

1. Turn temperature selector knob to Toast.

2. Open oven door and place desired pieces of bread or bagel to be toasted directly on

slide rack and close the door.

3. Turn Toast • Timer selector knob past 10 and then turn back to desired toast shade.

ENGLISH

Note: You must set the Toast • Timer selector knob as

desired for the oven to begin toasting (F).

4. For best results on first toasting cycle set the Toast •

Timer selector knob to medium which will be midway

between light and dark setting, then re-adjust for next

cycle to lighter or darker to suit your preference.

5. The power ON indicator light comes on and remains on

until toasting cycle is complete.

6. When toast cycle is complete, there will be an audible

signal. The oven and the power ON indicator will go off.

7. Open the oven door. Using oven mitts or pot holders, slide the rack out to remove

the toast.

Important: This oven gets hot. When in use, always use oven mitts or potholders

when touching any outer or inner surface of the oven.

8. Unplug appliance when not in use.

TOAST TIPS

• You must turn the Toast • Timer selector knob to Off to discontinue toasting.

• When repeating the toast cycle immediately, it is suggested that the Toast • Timer

selector knob be set to a slightly lighter setting.

KEEP WARM

1. Turn temperature selector knob to 150ºF to 200ºF.

2. Turn Toast • Timer selector knob past 10 and then turn back or forward to desired

warming time, including preheat time. (Select Stay On to control cooking time

yourself. Be sure to use a kitchen timer.)

Note: This feature is designed to keep already cooked foods warm after they have

been cooked. This function should be used for short periods of time; to prevent food

from drying out cover with foil.

3. When cycle is complete, there will be an audible signal. The oven and the power ON

indicator light will go off.

4. If not using the oven timer, turn the Toast • Timer selector knob to Off once cycle is

complete.

5. Unplug appliance when not in use.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service

personnel.

CLEANING YOUR OVEN

Important: Before cleaning any part, be sure the oven is off, unplugged, and cool.

Always dry parts thoroughly before using oven after cleaning.

1. Clean the glass door with a sponge, soft cloth or nylon pad and sudsy water. Do not

use a spray glass cleaner.

2. To remove the slide rack, open the door, pull the rack forward and out. Wash the slide

rack in sudsy water or in a dishwasher. To remove stubborn spots, use a polyester or

nylon pad.

3. Wash the bake pan in sudsy water. To minimize scratching, use a polyester or nylon

pad.

CRUMB TRAY

1. Tilt oven back, grasp the knob and pull down crumb tray.

2. Dispose of crumbs and wipe tray with a dampened cloth, or wash in sudsy warm water.

3. Be sure to dry thoroughly before pushing the tray back into the oven.

EXTERIOR SURFACES

Important: The oven gets hot. Be sure the oven has cooled completely before cleaning.

Wipe the top and exterior walls with a damp cloth or sponge. dry thoroughly.

ADDITIONAL TIPS FOR CLEANING THE INTERIOR OF YOUR OVEN

• Heat oven to 200°F; turn oven off. Place shallow glass bowl containing ½ cup ammonia

on rack. Close oven door and let stand overnight. Next day, open oven, remove bowl

and wipe interior of oven with moist paper towels.

• To refresh air inside oven, lay strips of orange or lemon peel on rack. Heat oven to

350°F and bake for 30 minutes. Turn oven off and let stand until oven is completely

cool. Remove peel.

Note: We strongly recommend that the bake pan/drip tray be washed by hand with

warm sudsy water, as opposed to washing in the dishwasher. Washing this piece in the

dishwasher will cause it to discolor, but will not affect its functionality.

Indice

Lingue:

Altri manuali Black & Decker Forno

Black & Decker

Black & Decker TRO18 Manuale utente

Black & Decker

Black & Decker TOD1775G Manuale utente

Black & Decker

Black & Decker TRO480BS Istruzioni per l'installazione

Black & Decker

Black & Decker Toast-R-Oven Classic TRO390 Series Istruzioni per l'installazione

Black & Decker

Black & Decker Toast-R-Oven TRO700W Istruzioni per l'installazione

Black & Decker

Black & Decker TO1313SBD Manuale utente

Black & Decker

Black & Decker Toast-R-Oven Classic TRO964 Istruzioni per l'installazione

Black & Decker

Black & Decker TO1787S Manuale utente

Black & Decker

Black & Decker TRO4075B Manuale utente

Black & Decker

Black & Decker TO1303SB Manuale utente

Black & Decker

Black & Decker Toast-R-Oven TRO620 Istruzioni per l'installazione

Black & Decker

Black & Decker TO3210SSD Manuale utente

Black & Decker

Black & Decker Toast-R-Oven TRO390B Istruzioni per l'installazione

Black & Decker

Black & Decker TO1322SBD Manuale di istruzioni

Black & Decker

Black & Decker Toast-R-Oven TRO700B Istruzioni per l'installazione

Black & Decker

Black & Decker TRO31 Manuale utente

Black & Decker

Black & Decker CTO6120 Istruzioni per l'installazione

Black & Decker

Black & Decker TO1160C Manuale utente

Black & Decker

Black & Decker CTO9500 Series Istruzioni per l'installazione

Black & Decker

Black & Decker TOD5035SS Manuale utente

Black & Decker

Black & Decker TO1322SBD Manuale utente

Black & Decker

Black & Decker TO1747SSG Manuale utente

Black & Decker

Black & Decker Toast-R-Oven Classic TRO964 Istruzioni per l'installazione

Black & Decker

Black & Decker TO1950SBD Istruzioni per l'installazione

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Smeg

Smeg DOSPA38X Manuale di installazione e funzionamento

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Frigidaire

Frigidaire FNGE90JGR Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente
