Black & Decker Spacemaker Optima T1000 Istruzioni per l'installazione

Horizontal Toaster Optima

Spacemaker

STOP

START

Spacemaker*Optima™

Horizontal Toaster

SAVE THIS USE AND CARE BOOK

1-800-231-9786

QUESTIONS? Please call us TOLL FREE

MODEL T1000

*Trademark of General Electric Company, U.S.A.

When using electrical appliances, basic safety precautions should

always be followed, including the following:

READ ALL INSTRUCTIONS.

■Do not touch hot surfaces. Use handles or knobs.

■Do not operate any electric or gas heating appliance beneath this

unit. Do not place on or near a hot gas or electric burner or in a

heated oven.

■Do not install the horizontal toaster over a sink or basin or any

electrical or gas heating appliance.

■To protect against electrical shock, do not immerse cord, plug, or

any part of horizontal toaster in water or other liquid.

■Close supervision is necessary when any appliance is used by or

near children.

■Unplug from outlet when not in use and before cleaning. Allow to

cool before putting on or taking off parts, and before cleaning the

horizontal toaster.

■Do not open crumb tray while horizontal toaster is in operation.

■Do not operate any horizontal toaster with a damaged cord or plug

or after it has been damaged in any manner. Return horizontal

toaster to the nearest authorized service facility for examination,

repair, or adjustment.

■The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

■Do not use outdoors.

■Do not let the cord hang over the edge of table or counter, or

touch hot surfaces.

■Plug the cord into the wall outlet. To disconnect, turn all controls

“OFF”, then remove the plug from the wall outlet. Do not yank on

the cord.

■Do not use the horizontal toaster for other than intended use.

■Oversized foods or utensils must not be inserted in the toaster, as

they may create a fire or risk of electric shock.

IMPORTANT SAFEGUARDS

Horizontal Toaster Optima

Spacemaker

STOP

START

■A fire may occur if the horizontal toaster is covered or touching

flammable material, including curtains, draperies, walls, and the

like, when in operation. Do not store any item on top of the

horizontal toaster when in operation.

■Do not clean with metal scouring pads. Pieces can break off the

pad and touch electrical parts, creating a risk of electric shock.

■Do not leave unattended while toasting.

■Do not operate in the presence of explosive and/or flammable

fumes.

■This product is intended for household use only and not for

commercial or industrial use.

SAVE THESE INSTRUCTIONS

11. Glass Door

12. Metal Lip (partially hidden)

13. Door Handle

14. Pull-Down Crumb Tray

(Under Unit)

15. Toasting Rack

16. Power On Light

17. Electronic Toast Control

Knob with Pastry Setting

18. Start Button

19. Stop Button

(Cancels Toasting)

10. Vents

11. 4 Plastic Washers

12. 4 Screws

13. 2 Mounting Brackets

14. Mounting Template

15. 2 Spacer Bars

16. 4 Nuts

17. 1 Cord Hook

These items are located

in the packing materials.

Check thoroughly before

discarding.

6789

17 16

SAFETY NOTE: Overtoasting of thinly sliced

breads, reduced fat diet breads, and packaged

greasy toaster foods could cause them to catch on

fire. Toast thin, diet light, or greasy slices only in

lower settings of the Toast Color Control; for

packaged toaster foods, follow toasting instructions

provided by their manufacturers.

POLARIZED PLUG This horizontal toaster has a polarized plug —one

blade is wider than the other. To reduce the risk of

electric shock, this plug will fit into a polarized

outlet only one way. If the plug does not fit fully into

the outlet, reverse it. If it still does not fit, contact a

qualified electrician. Do not attempt to defeat this

safety feature by modifying the plug in any way.

CHOOSING A Your Spacemaker* OptimaTM Horizontal Toaster is

MOUNTING designed to be mounted under a cabinet. DO NOT

LOCATION ATTEMPT TO OPERATE UNLESS THE UNIT IS

PROPERLY INSTALLED. It can be mounted to

wood or metal cabinets. When choosing a

mounting location:

■Keep in mind that it fits your normal work

pattern - especially the use of counter top

appliances and the possible addition of other

under-the cabinet appliances.

■Hold the Toaster in various locations while you

consider the most convenient location for

mounting in your kitchen.

■Do not install the Toaster over another cooking

or heating appliance or behind, under, or in front

of under-cabinet lighting appliances.

How to Use

*Trademark of General Electric Company, U.S.A.

■Do not install the Toaster directly in front of an

electrical outlet, but be sure it is mounted within

reach of an electrical outlet.

■The Toaster is designed to be mounted directly

next to any other Spacemaker* OptimaTM product,

with a clearance of at least 1”between the two

products. If it is not mounted next to any other

Spacemaker* OptimaTM product, maintain at least

a 5”clearance on all sides including the back.

NOTE: If you have Flush Bottom cabinets—a flat

level surface where the cabinet doors come to the

bottom of the cabinet front—(See Illustration 1A

page 6) please take note that the Metal Lip of the

Toaster should not be placed anywhere under the

hinge area of two cabinet doors.

If you are mounting the Horizontal Toaster directly

next to another Spacemaker* OptimaTM product

that is already mounted:

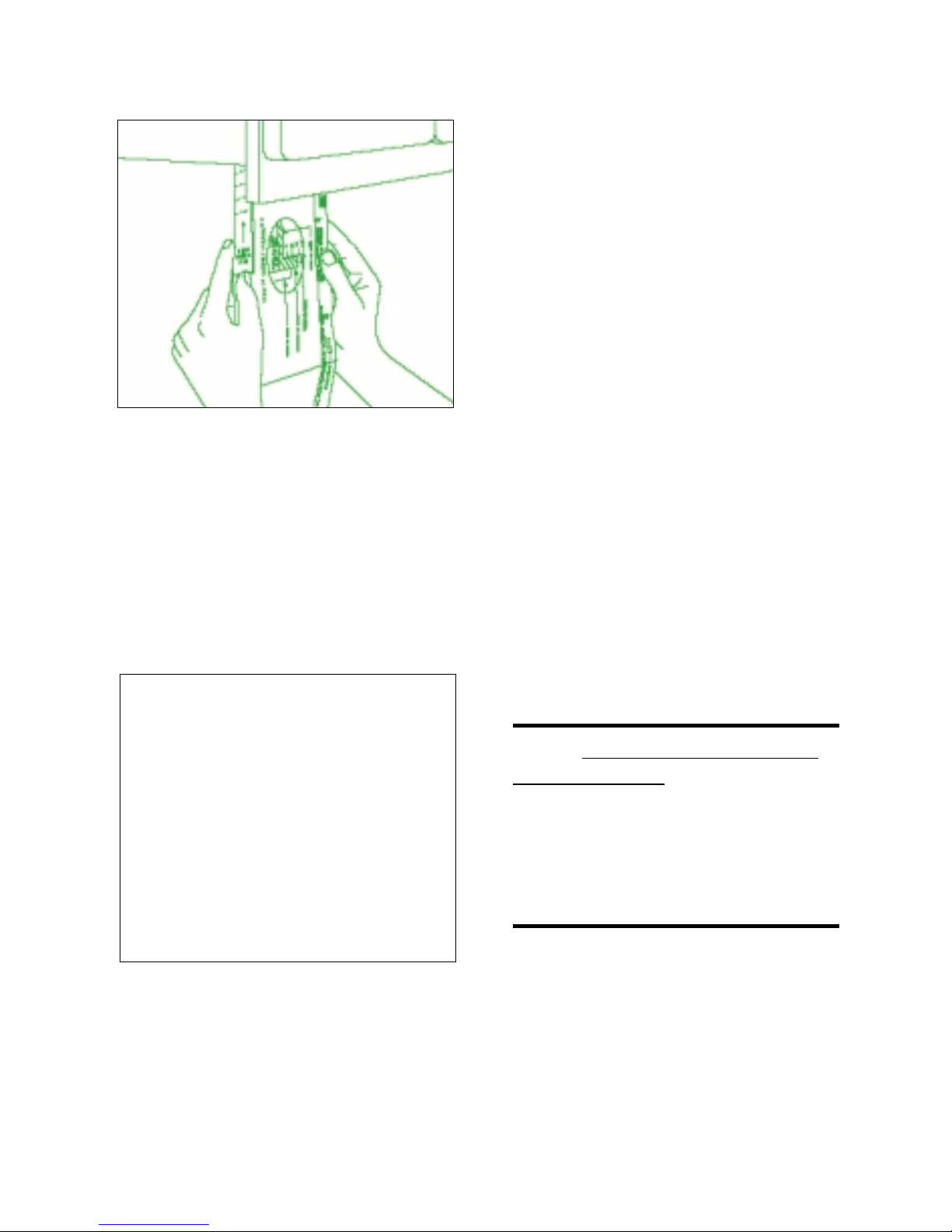

1. Place the Mounting Template along the side of

the already-mounted Spacemaker* OptimaTM pro-

duct that your Horizontal Toaster will hang next to.

2. Using the Mounting Template edge as a guide,

draw a line on the underside of the cabinet.

(Figure A) This will be the line to use to mark the

edge of the Horizontal Toaster’s location.

NOTE: To help determine

mounting location, see page 24

for the lengths of all the

Spacemaker* OptimaTM products.

Figure A *Trademark of General Electric Company, U.S.A.

INSTALLING YOUR HORIZONTAL

TOASTER

Tools you will need for

installation:

•Drill and 1/4”drill bit

•Phillips screwdriver

•Hammer/Nail to start a drill hole

•Adhesive tape

•Eye Protection Goggles

•Newspaper to cover

counter tops (optional)

First, determine if your cabinet has

a flush bottom or overhang bottom.

(See Illustration 1A & 1B). If your

cabinet has a flush bottom —flat,

level surface —follow the

mounting instructions below. If

your cabinet has an overhang —a

lip extending below the bottom of

the cabinet shelf —turn to page 9

for mounting instructions.

MOUNTING INSTRUCTIONS

FOR CABINET WITH FLUSH

BOTTOM

1. Empty your cabinet of its

contents before starting to drill.

Clean the underside of the

cabinet to remove any grease or

other residue.

2. With the doors of the cabinet

open, place the front of the

Mounting Template even with the

front of the cabinet. (Figure B)

Tape securely in place.

3. Mark the four drill holes

through the Template onto the

cabinet bottom with a pencil and

Overhang Bottom-1B

Flush bottom-1A

Figure B

remove the Mounting Template.

(Figure C)

4. Cover the counter top to catch

drilled wood chips.

CAUTION: Suitable eye

protection is recommended to

prevent injury from shavings

while using a drill.

5. Make a small starter hole by

hammering a nail or using a

smaller drill bit. Holding the drill

straight and vertical at the hole

marks, center and drill up

through the bottom of the

cabinet. (Figure D)

6. Insert a plastic washer on

each screw with the flat side of

the washer resting on the

cabinet bottom. Drop each screw

with the washer in place through

a drilled hole from inside the

cabinet. Repeat the procedure

with remaining screws and

washers. Thread a nut onto each

screw so that approximately 1/4”

of the screw is exposed beyond

the nut. (Figure E)

7. Slide the Mounting Bracket

above the nuts through the

U-shaped openings on the

Bracket. The Bracket will then be

resting on the nuts. (Figure F)

(See page 8).

Figure D

Figure E

Figure C

8. Press the Bracket inward

and forward toward the front

of the cabinet until it stops.

Tighten the screw/nut assem-

bly with a screwdriver until

the Bracket just touches the

bottom of the cabinet. (Figure

G) The Bracket should move

freely front to rear in the slot

to fine tune the fit of the

Toaster to the cabinet front.

Repeat Steps 7 and 8 for the

other Bracket.

9. Hold the Toaster in front of

you and push it forward into

the slots on the Mounting

Brackets until it locks into

place. The Metal Lip on the

top of the Toaster must rest

against the cabinet front. (See

Figure H) The front of the

Toaster will extend 11⁄2" beyond

the front of the cabinet.

10. Drape the Cord toward an

electrical outlet and use the

Cord Hook to hold it out of the

way. Peel the paper off the

adhesive back of the Cord

Hook. Place the Cord Hook at

the back edge of the cabinet

(on or next to the wall) over

the outlet to be used.

NOTE:

For safety, NEVER USE

TACKS THROUGH OR AGAINST

THE CORD TO HOLD IT.

Figure H

Figure G

Figure F

MOUNTING INSTRUCTIONS FOR

CABINET WITH OVERHANG

If your cabinet has an overhang —

a lip extending below the bottom of

the cabinet shelf —follow these

simple mounting instructions.

1. Empty your cabinet of its contents

before starting to drill. Clean the

underside of the cabinet to remove

any grease or other residue.

2. To determine whether you need

to use Spacer Bars to mount your

Horizontal Toaster, use the

Cabinet Overhang Ruler on your

Mounting Template and measure

the cabinet overhang (See

Illustration 2). If the overhang

measures 1/4”, 3/4”,1-1/4”, or 1-

3/4”inches, you will need Spacer

Bars. Instructions for using

Spacer Bars are on page 12.

NOTE: If The Mounting Location

Has A Partition: The Mounting

Template must be cut and a piece

removed to allow for this partition.

(Figure I) Measure and cut very

carefully. Save any pieces of the

Mounting Template you remove.

3. Fold down the grey strip on the

Mounting Template at the dotted

line.

4. With the doors of the cabinet

open, position the Mounting

Template under the cabinet so

Figure I

Illustration 2

the folded grey strip is against

the back of the cabinet overhang.

Tape the Mounting Template

securely in place. Check to be

sure the Mounting Template is

located where you plan to mount

the toaster.

NOTE: If the cabinet has an

overhang that extends more than

2 inches below the cabinet

bottom, a wooden shim (a piece

of wood that fits between the

Cabinet and the Bracket) will be

necessary. Cut a block of wood

that is: 16 1/4”x 5 1/2”. Make sure

the wood is at least as thick as

the amount of the overhang that

exceeds 2 inches. Locate and

drill holes on the shim for the

screws to pass through. (Longer

screws may be needed. See

Note after Step # 7.)

5. Mark the four drill holes

through the Template onto the

cabinet bottom with a pencil and

remove the Mounting Template.

(Figure J)

Cover the counter top to catch

drilled wood chips.

CAUTION: Suitable eye

protection is recommended to

prevent injury from shavings

while using a drill.

Figure J

Indice

Altri manuali Black & Decker Tostapane

Black & Decker

Black & Decker BD2T200 Manuale utente

Black & Decker

Black & Decker BXTO1960E Manuale utente

Black & Decker

Black & Decker TR1478BD Manuale utente

Black & Decker

Black & Decker LET82 Manuale utente

Black & Decker

Black & Decker T2000-T2150 Istruzioni per l'installazione

Black & Decker

Black & Decker Bistro T110B Series Istruzioni per l'installazione

Black & Decker

Black & Decker LongSlot T2750 Istruzioni per l'installazione

Black & Decker

Black & Decker T450 Manuale utente

Black & Decker

Black & Decker T2200-T2450 Istruzioni per l'installazione

Black & Decker

Black & Decker Bistro T100 Series Istruzioni per l'installazione

Black & Decker

Black & Decker T2560 Istruzioni per l'installazione

Black & Decker

Black & Decker T270 Istruzioni per l'installazione

Black & Decker

Black & Decker TR0025B Manuale utente

Black & Decker

Black & Decker Classic Chrome T1029 Istruzioni per l'installazione

Black & Decker

Black & Decker T2400 Series Manuale utente

Black & Decker

Black & Decker T2707S Istruzioni per l'installazione

Black & Decker

Black & Decker ET202 Manuale utente

Black & Decker

Black & Decker T123BC Series Istruzioni per l'installazione

Black & Decker

Black & Decker T700 Manuale utente

Black & Decker

Black & Decker MGD110 Manuale utente

Black & Decker

Black & Decker Distinctions T1900BDC Istruzioni per l'installazione

Black & Decker

Black & Decker TROSOS1500C Istruzioni per l'installazione

Black & Decker

Black & Decker T3500 Istruzioni per l'installazione

Black & Decker

Black & Decker TR1256B Istruzioni per l'installazione

Manuali Tostapane popolari di altre marche

Taurus

Taurus ARCTIC 960648 Manuale utente

Redfox

Redfox TO 920 G Manuale utente

Moulinex

Moulinex LS340D11 Manuale utente

Amica

Amica TD 3021 Manuale utente

Electrolux

Electrolux EAT978 Manuale utente

SEVERIN

SEVERIN SA 9275 Manuale utente

Breville

Breville the Big One BTS100 Manuale utente

Sunbeam

Sunbeam TA2540 Manuale utente

ARENDO

ARENDO 305716 Manuale utente

Life

Life Crispy AT-001 Manuale utente

Beko

Beko TAM 6201 I Manuale utente

Zephir

Zephir ZHC485 Manuale utente

H.Koenig

H.Koenig TOS9 Manuale utente

ZIEGELMULLER

ZIEGELMULLER Ritter ET 10 Guida del prodotto

HURAKAN

HURAKAN HKN-TOP3 Manuale utente

Philips

Philips HD2565 Manuale utente

Bosch

Bosch DesignLine Plus TAT4P44 GB Series Manuale utente

Panasonic

Panasonic NT-ZP1-V Manuale utente
