Black Box ACS2001A-R3 Manuale utente

724-746-5500 | blackbox.com724-746-5500 | blackbox.com 724-746-5500 | blackbox.com

Page 5 Page 6

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc. Any other trademarks mentioned in this manual

are acknowledged to be the property of the trademark owners.

BL A C K B O X®

Extends the video signal

of a DVI-D device up to

164 feet (50 meters) over

CATx cable.

CATx DVI-D Extender with EDID

ACS2001A-R3

Black Box Tech

Support: FREE! Live.

24 / 7. Tech support

the way it should be.

Great tech support is just 30 seconds

away at 724-746-5500 or blackbox.com.

Order toll-free in the U.S.:

Call 877-877-BBOX

(outside U.S. call 1-724-746-5500)

FREE technical support

24 hours a day, 7 days a week:

Call 724-746-5500 or

fax 724-746-0746

Mailing address:

Black Box Corporation

1000 Park Drive

Lawrence, PA 15055-1018

Web site: www.blackbox.com

E-mail: info@blackbox.com

Customer

Support

Information

BL A C K B O X®

CATx DVI-D Extender with EDID

ACS2001A-R3, rev. 2

ACS2001A-R3

1. Specifications

Cable Distance (Maximum) — 98.4 ft. (30 m)

at 1920 x 1200 at 60 Hz;

164 ft. (50 m) at 1280 X 1024 at 60 Hz

Connectors — Input: Local unit: (1) DVI F;

Remote unit: (1) RJ-45;

Output: Local unit: (1) RJ-45;

Remote unit: (1) DVI F

Power — (2) DC 5-V 1-A adapters (included)

Size — 1.5”H x 2”W x 2.6”D (3.8 x 5.2 x 6.7 cm)

Weight — 0.3 lb. (0.1 kg)

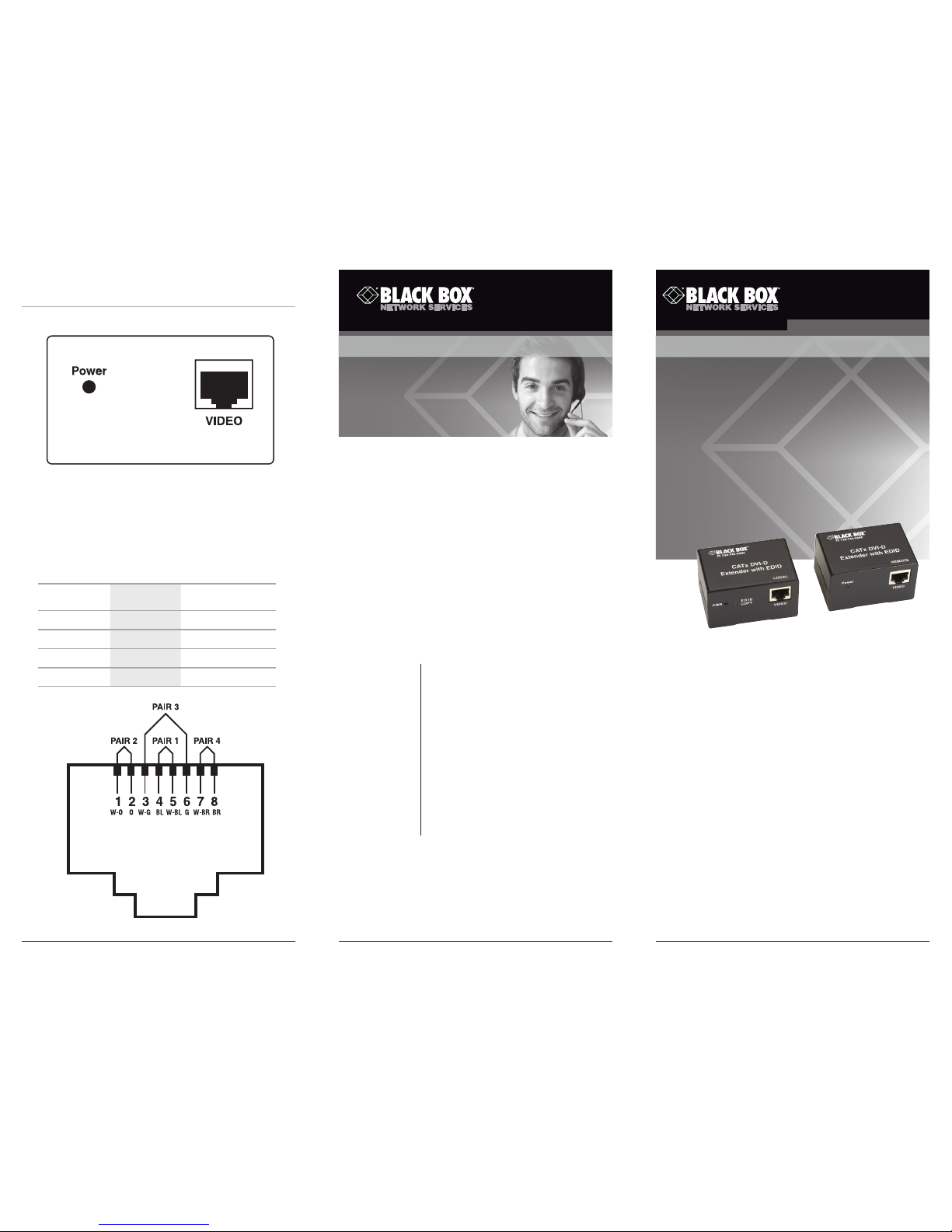

Figure 5. Remote unit rear view:

Power LED, CAT5 port.

4. Wiring Information and Coding

Table 2. RJ-45 pinning and color coding.

Conductor

Identification

RJ-45 Pin

Assignment

Color Code for

Conductor

Pair 1 5/4 White-Blue/Blue

Pair 2 1/2 White-Orange/Orange

Pair 3 3/6 White-Green/Green

Pair 4 7/8 White-Brown/Brown

Figure 6. Jack positions.

724-746-5500 | blackbox.com724-746-5500 | blackbox.com 724-746-5500 | blackbox.com

CATx DVI-D Extender with EDID CATx DVI-D Extender with EDIDCATx DVI-D Extender with EDID

Page 3Page 2 Page 4

2. Overview

The CATx DVI-D Extender with EDID extends the video

signal of a DVI-D device up to 50 meters over CATx

cable. In addition, the local unit reads and remembers

your monitor’s EDID. Simply push the “EDID COPY”

button.

This DVI extender is perfect for data centers, help desks,

and test bench facilities.

3. Installation

1. Turn off the PC and monitor.

2. Plug one 5-V power supply into the local unit and one

into the remote unit.

3. Turn on the monitor and connect it to the “DVI in”

port on the local unit using a DVI cable.

4. Push the EDID COPY button. The EDID read/write is

complete after the LED flashes three times.

5. Remove the monitor cable from the local unit and

connect it to the “DVI out” port on the remote unit.

6. Connect the local unit to the DVI source.

7. Connect the CATx cable between the local unit’s

CATx port and the remote unit’s CATx port.

8. Turn on the PC.

ACS2001A-R3 ACS2001A-R3ACS2001A-R3

Figure 1. DVI-D connector pinning.

Table 1. Input/output signals.

Pin # Signal Pin # Signal

1TMDS Data 2- 16 Hot Plug Detect

2RMDS Data 2+ 17 TMDS Data 0-

3TMDS Data 2/4 Shield 18 TMDS Data 0+

4TMDS Data 4- 19 TMDS Data 0/5 Shield

5TMDS Data 4+ 20 TMDS Data 5-

6 DDC Clock 21 TMDS Data 5+

7DDC Data 22 TMDS Clock Shield

8Analog Vertical Sync 23 TMDS Clock+

9TMDS Data 1- 24 TMDS Clock-

10 TMDS Data 1+ — —

11 TMDS Data 1/3 C1 Analog Red

12 TMDS Data 3- C2 Analog Green

13 TMDS Data 3+ C3 Analog Blue

14 +5 V Power C4 Analog Horizontal Sync

15 Ground C5 Analog Ground

PIN 17 PIN 24

PIN 8

PIN 1

C5 C4

C1 C2

Figure 2. Local unit front view:

DVI In port, power jack.

Figure 3. Local unit rear view:

Power LED, EDID COPY button,

CAT5 port.

Figure 4. Remote unit front view:

DVI Out port, power jack.
