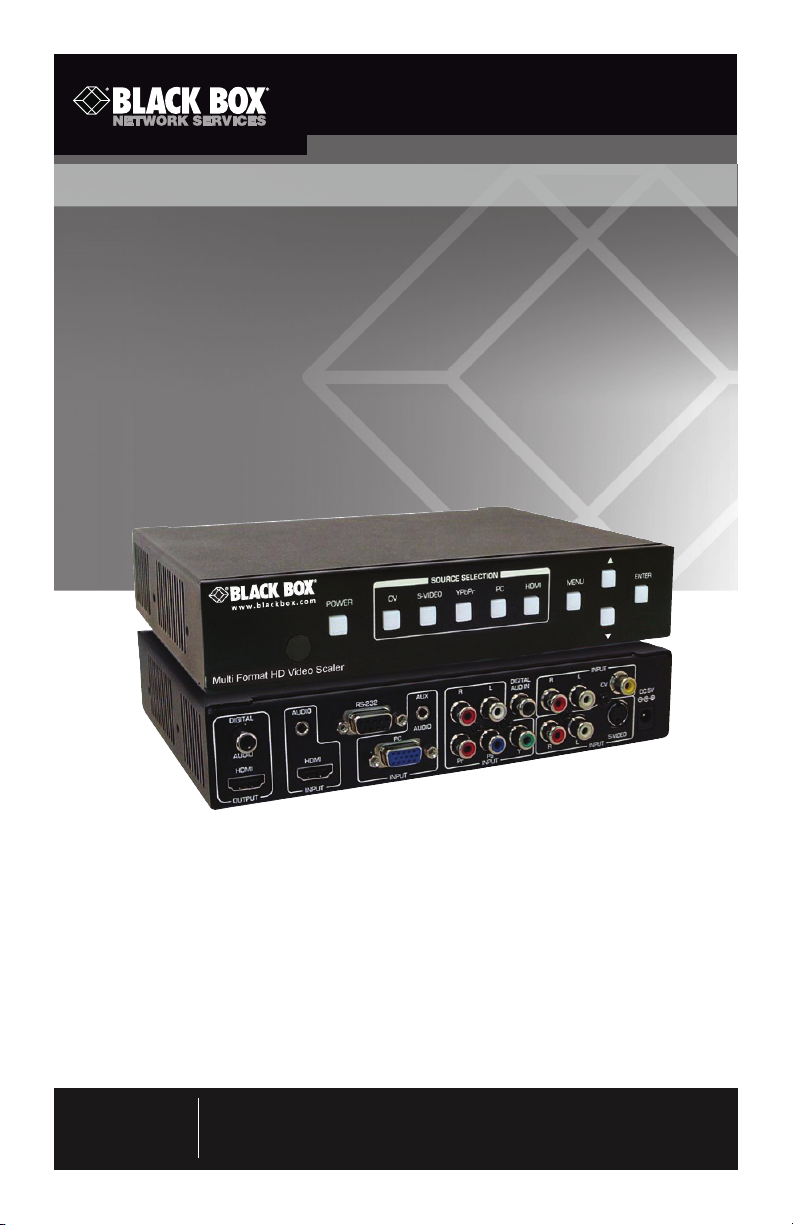

Black Box AVSWSC-MULTI-HDMI Manuale utente

BL A C K B O X®

Accepts various input formats and resolutions

and scales to a specific output format

and resolution.

Has five different types of video inputs.

Scaled digital output can be switched to any of the inputs.

Multi-Input Digital Scaler with Audio

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: [email protected]

Customer

Support

Information

May 2010

AVSWSC-MULTI-HDMI

Page 2 724-746-5500 | blackbox.com

Multi-Input Digital Scaler with Audio

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart J of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Page 3

724-746-5500 | blackbox.com

NOM Statement

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de

que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que

sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización

del equipo no sea eliminada.

Page 4 724-746-5500 | blackbox.com

Multi-Input Digital Scaler with Audio

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 5

724-746-5500 | blackbox.com

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be

the property of the trademark owners.

Page 6 724-746-5500 | blackbox.com

Multi-Input Digital Scaler with Audio

Contents

Chapter Page

1. Specifications ............................................................................................7

2. Overview...................................................................................................9

2.1 Introduction .....................................................................................9

2.2 Features ...........................................................................................9

2.3 What’s Included.............................................................................10

2.4 Hardware Description ....................................................................10

2.4.1 ..Front Panel ..........................................................................10

2.4.2 . . Back Panel...........................................................................11

3. Installation ............................................................................................13

3.1 Connecting the Video Inputs.........................................................13

3.2 Conecting the Scaled Output ........................................................13

3.3 Other Connections ........................................................................13

4. Configuration and Operation..................................................................14

4.1 Front Panel.....................................................................................14

4.2 OSD Menu for VGA Input Signal ..................................................14

4.3 OSD Menu for CV, SV, YPbPr, and HDMI Input Signals .................16

4.4 Infrared Remote Control (IR Remote).............................................18

4.5 Front-Panel Lockout .......................................................................20

5. Serial Control ..........................................................................................21

5.1 Read Commands ..........................................................................21

5.2 Key Commands .............................................................................23

5.3 Set Commands ..............................................................................24

6. Troubleshooting.........................................................................................28

6.1 Resetting the Scaler to Factory Defaults.........................................28

6.2 Calling Black Box............................................................................28

6.3 Shipping and Packaging.................................................................28

Page 7

724-746-5500 | blackbox.com

Chapter 1: Specifications

1. Specifications

Table 1-1. Supported Input Formats.

Resolution DVI/HDMI VGA (PC) YPbPr

480i/576i √√√

480p/576p √√√

720p@(60/50) √√√

1080i@(60/50) √√√

1080p@(60/50) √√√

VGA@(60/72/75/85) √√

SVGA@(56/60/72/75/85) √√

XGA@(60/70/75/85) √√

SXGA@(60/75/85) √√

UXGA@60 √√

WXGA@60(1280 x 800) √√

WXGA+(1440 x 900) √√

SXGA+(1400 x 1050) √√

WSXGA@60(1680 x 1050) √√

WUXGA@60(1920 x 1200) √√

Table 1-2. Available Output Formats.

Resolution DVI/HDMI

480i/576i √

480p/576p √

720p@(60/50) √

1080i@(60/50) √

1080p@(60/50) √

VGA@60 √

SVGA@60 √

Page 8 724-746-5500 | blackbox.com

Multi-Input Digital Scaler with Audio

Table 1-2 (Continued). Available Output Formats.

Resolution DVI/HDMI

XGA@60 √

SXGA@60 √

UXGA@60 √

WXGA@60(1280 x 800) √

WXGA+(1440 x 900) √

SXGA+(1400 x 1050 √

WSXGA@60(1680 x 1050) √

WUXGA@60(1920 x 1200) √

Power Input: 90–264 VAC, 50–60 Hz, 7 watts maximum

Size: 1.7"H x 8.3"W x 5.6"D (4.3 x 21.1 x 14.2 cm)

Weight: 2 lb. (0.9 kg)

Page 9

724-746-5500 | blackbox.com

Chapter 2: Overview

2. Overview

2.1 Introduction

The Multi-Input Digital Scaler with Audio is a multiple format switching video

scaler. It has five different types of video inputs and a scaled digital output that

can be switched to any of the inputs. The scaler accepts various input formats and

resolutions and scales to a specific output format and resolution.

Inputs include: HDMI (up to 1080i/p), PC (from VGA [640 x 480] to WUXGA

[1920 x 1200]), Component Video (SD and HD from 480p to 1080i/p), S-Video

(NTSC or PAL), and Composite Video (NTSC or PAL).

You can specify the output format and resolution as either PC (VGA [640 x 480]

to WUXGA [1920 x 1200]) or Component Video (YPbPr from 480i/p to 1080i/p).

You can control the scaler in many ways, including front-panel lighted push

buttons (with on-screen display menus), using the included IR remote control, or

via an RS-232 serial interface. The controls include input switching, setting the

output resolution, picture adjustment (color, brightness, contrast, and sharpness),

aspect ratio (standard, 16:9, or 4:3), digital noise reduction, 3-D comb filter On/

Off, and many other advanced features.

Use the scaler in boardrooms, classrooms, digital signage, and high-end home

theater applications. You can set its output for any LCD projector, PC LCD

monitor, plasma, or HDTV displays.

2.2 Features

• Complies with HDMI 1.2, HDCP 1.1, and DVI 1.0 standards.

• Includes five different inputs: HDMI, PC, YPbPr, S-Video, and Composite.

• Provides YPbPr HDTV outputs of 480i/p, 576i/p, 720p, 1080i, 1080p and up to

WUXGA (1920 x 1200) PC resolutions.

• Converts digital and analog audio signals into digital format for output on HDMI

combined with the video or separate coaxial S/PDIF.

• RS-232 interface allows control from an external device.

• OSD (on-screen display).

• Horizontal mirroring (X-axis flip).

• Easy-to-use IR remote control.

• EDID Support.

Page 10 724-746-5500 | blackbox.com

Multi-Input Digital Scaler with Audio

• Reverse 3:2/2:2 pulldown provides clear and crisp de-interlacing of video

originating from 24-fps film, such as DVD movies.

• Digital noise reduction.

• Brightness, color, contrast, sharpness and tint adjustment.

• Adaptive 3-D comb filter (3-D motion and 3-D de-interlacing) for Composite

input ensures jitter-free picture.

• Compatible with NTSC and PAL video input.

2.3 What’s Included

Your package should contain the following items. If anything is missing or dam-

aged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.

com.

• Multi-Input Digital Scaler with Audio

• (1) VGA cable

• (1) 3 RCA to 3 RCA (R-G-B) cable

• (1) 3 RCA to 3 RCA (Y-R-W)

• (1) IR remote (includes batteries)

• (1) power supply

• (1) power cord

• This user’s manual

2.4 Hardware Description

2.4.1 Front Panel

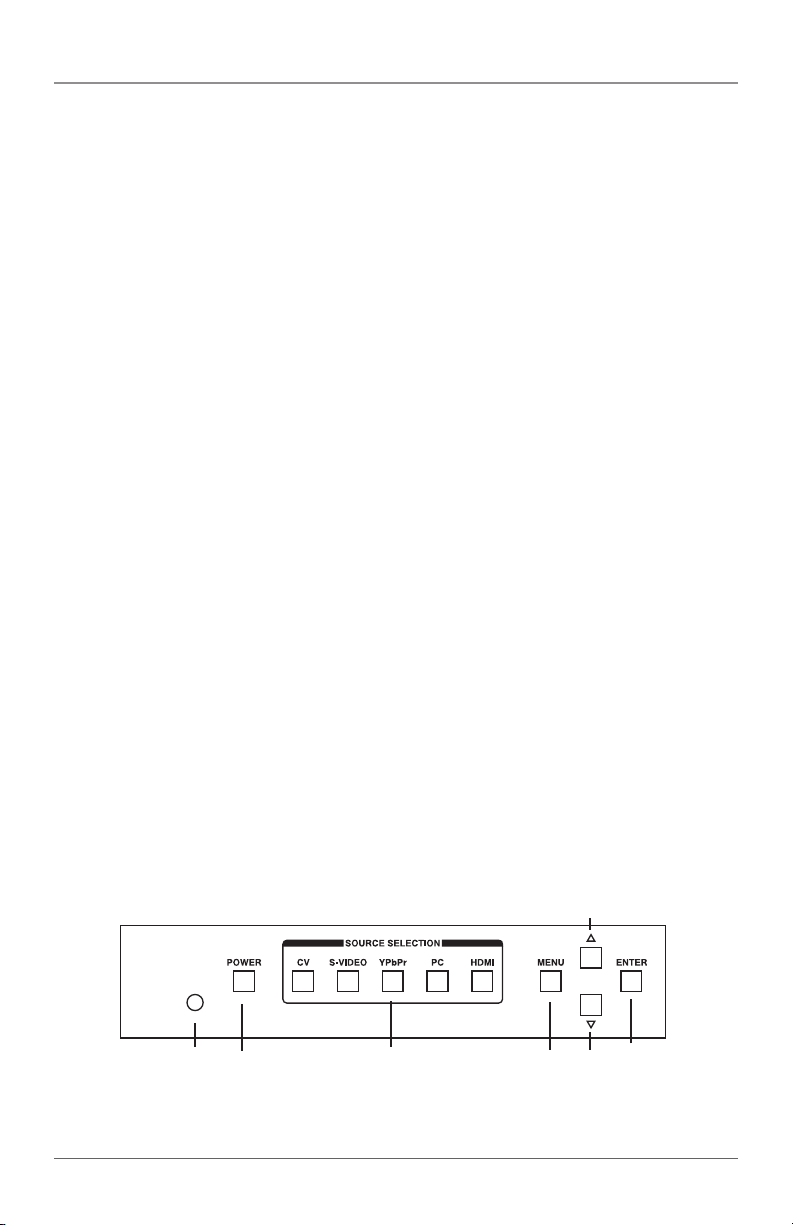

Figure 2-1 shows the Multi-Input Digital Scaler with Audio’s front panel. Table 2-1

describes its components.

Figure 2-1. Front panel.

1 2 3 4 5 6

Indice

Altri manuali Black Box Convertitore multimediale

Black Box

Black Box AC340A Manuale utente

Black Box

Black Box LGC1713A-SX Manuale utente

Black Box

Black Box LHC013A Manuale utente

Black Box

Black Box LMC200 Manuale utente

Black Box

Black Box PI115A-C Manuale utente

Black Box

Black Box LH2001A-ST-R3 Manuale utente

Black Box

Black Box G.703/V.35 Manuale utente

Black Box

Black Box RGBSplit-2 Manuale utente

Black Box

Black Box AVSC-SDI-HDMI Manuale utente

Black Box

Black Box SP385A-R3 Manuale utente

Black Box

Black Box VWP-2040 Manuale utente

Black Box

Black Box PI049A Manuale utente

Black Box

Black Box IC1473A-F Manuale utente

Black Box

Black Box LH1703A-SC-US Manuale utente

Black Box

Black Box LE1605A-ST-US Manuale utente

Black Box

Black Box LHC001A-R4 Manuale utente

Black Box

Black Box 232/CL-E Manuale utente

Black Box

Black Box IC199A-R4 Manuale utente

Black Box

Black Box AC1031A-2 Manuale utente

Black Box

Black Box LGC5151A Manuale utente

Black Box

Black Box ACU315A-R2 Scheda tecnica

Black Box

Black Box LME020A Manuale utente

Black Box

Black Box LE1502A-R3 Manuale utente

Black Box

Black Box PI045A Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
