Black Box LB9213A Manuale utente

Max Express Ethernet Switch

17 Ports 10/100Base-TX/FX

Base Unit: LB9217A-R2

Modules:

LB9213A, LB9214A, LB9215A

LB9216A, LB9218A, LB9219A

LB9220C-ST, LB9220C-SC

Order toll-free in the U.S. 24 hours, 7AM Monday to Midnight Friday: 877-877-BBOX FREE

technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: http://www.blackbox.com· E-mail: info@blackbox.com

CUSTOMER

SUPPORT

INFORMATION

October 2003

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules

FEDERAL COMMUNICATIONS COMMISSION AND

CANADIAN DEPARTMENT OF COMMUNICATIONS

RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment generates, uses and can radiate radio frequency energy and if not

installed and used properly, that is, in strict accordance with the manufacturer’s

instructions, may cause interference to radio communication. It has been tested and

found to comply with the limits for a Class A computing device in accordance with the

specifications in Subpart B of Part 15 of FCC rules, which are designed to provide

reasonable protection against such interference when the equipment is operated in a

commercial environment. Operation of this equipment in a residential area is likely to

cause interference, in which case the user at his own expense will be required to take

whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from

digital apparatus set out in the Radio Interference Regulation of the Canadian

Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par le ministère des Communications

du Canada.

Normas Oficiales Mexicanas (NOM)

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el

aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia

futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación

deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la

tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean

recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo

descrito en las instrucciones de operación. Todo otro servicio deberá ser referido a

personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su

uso. La colocación del aparato eléctrico sobre una cama, sofá, alfombra o

superficie similar puede bloquea la ventilación, no se debe colocar en libreros o

gabinetes que impidan el flujo de aire por los orificios de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como

radiadores, registros de calor, estufas u otros aparatos (incluyendo amplificadores)

que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo

descrito en el instructivo de operación, o como se indique en el aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del

equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean

pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo

particular atención a los contactos y receptáculos donde salen del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de

energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado

por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados

sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su desempeño;

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules

Preface

This manual describes how to install and use the 17-Port modular Fast Ethernet

Switch LB9217A. The switch introduced here is a base unit providing 3 expansion

slots, including two slots for 8-port modules and one slot for single-port module.

The 8-port modules allow for 10/100BaseT/TX or 100BaseFX; the single-port

module allows for 100BaseFX. Over a dozen of TX and FX modules or a

combination of TX/FX are available for fitting the switch. Furthermore, the 17-

Port Switch supports port-based VLAN and MAC-based trunking technologies.

To get the most out of this manual, you should have an understanding of

networking concepts such as bridging, IEEE 802.3u 100BaseTX/FX Fast Ethernet,

and local area networks (LANs).

In this manual, you will find:

•Features on the 17-Port Switch: LB9012A-R2

•Illustrative LED functions

•Installation instructions

•Configuration instructions for VLAN & trunking

•Specifications

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules

Table of Contents

PREFACE ...........................................................................................4

TABLE OF CONTENTS........................................................................5

INTRODUCTION .................................................................................6

LB9217A: 17-PORT MODULAR FAST ETHERNET SWITCH ...........................6

PRODUCT FEATURES ............................................................................7

PACKING LIST ....................................................................................8

FRONT PANEL FOR BASE UNIT...............................................................8

MODULES...........................................................................................9

MODULE INSTALLATION .....................................................................10

SWITCH CONFIGURATION .............................................................. 14

SETTING UP CONSOLE PORT CONNECTION ............................................. 14

MAIN MENU .....................................................................................15

PORT SETTINGS................................................................................. 16

PORT-BASED VLAN &SETTINGS ......................................................... 17

MAC-BASED TRUNKING &SETTINGS ...................................................18

INSTALLATION................................................................................20

SELECTING A SITE FOR THE SWITCH.....................................................20

CONNECTING TO POWER ..................................................................... 20

CONNECTING TO YOUR NETWORK ........................................................21

TECHNICAL SPECIFICATIONS ........................................................ 22

PHYSICAL SPECIFICATIONS ........................................................... 23

TROUBLE-SHOOTING GUIDE...........................................................24

NO POWER TO THE SWITCH .................................................................24

NO CONNECTIVITY TO THE DATA TERMINAL EQUIPMENT. .......................25

TRANSMISSION PROBLEMS ..................................................................26

GLOSSARY ....................................................................................... 28

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules

Introduction

LB9217A: 17-Port Modular Fast Ethernet Switch

The 17-Port Switch is a modular switch consisting of three expansion slots: two

for 8-port 10/100BaseTX/FX module, and one for 1-port 100BaseFX module. This

allows the switch to provide up to 17 ports when all the three slots are fit with

modules.

Cost-Effective Migration

The 17-Port Switch is capable of integrating legacy 10Mbps networks with

100Mbps Fast Ethernet networks. In addition, the 17-Port Switch provides an

easy and affordable solution for migrating from copper cabling to fiber

connection when it is equipped with suitable modules to provide both TX and FX

ports.

Flexibility through Modules

Seeing fiber connection become popular while the fiber cabling in small business

environment is still not widespread, the 17-Port Switch is designed to deliver

flexibility through a wide variety of TX and FX modules. Most of the modules

combine TX and FX ports to provide more customization options.

<NOTE> Desired module shall be ordered separately.

Fiber-Connectivity

As a Fast Ethernet switch, the 17-Port Switch is specifically designed to meet the

demanding need for fiber. The switch provides up to 17 ports for 100BaseFX,

multi-mode or single-mode fiber. For multi-mode fiber port, it allows SC, ST,

MT-RJ, VF-45 or LC connector. For single-mode fiber port, it allows SC

connector only. The fiber ports allow maximum segment distance of 75 km when

using single-mode fiber, and therefore, the 17-Port Fiber Switch is an optimum

solution for long distance connection.

Basic Configuration Features

The 17-Port Switch supports port-based Virtual Local Area Networking (VLAN)

and MAC-based trunking technologies. Such advanced features bring network

administrators a powerful yet easy-to-use tool to reduce unnecessary traffic,

efficiently segment the network, and enhance network security.

Standards Compliant

The 17-Port Switch fully complies with IEEE802.3 10BaseT as well as

IEEE802.3u 100BaseTX/FX standards.

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules

Product Features

♦Base unit with three expansion slots

♦Auto-negotiation for speed and duplexity on TX ports

♦True non-blocking architecture

♦Full wire-speed forwarding rate

♦Store-and-forward mechanism

♦Back-pressure and IEEE 802.3x compliant flow control

♦Supports 8K MAC addresses

♦Supports 4M bits buffer memory

♦Front panel reset button

♦Front panel port status LEDs

♦Standard 19" rack-mount size, one-unit-height

Modules:

♦Allows two 8-port expansion modules: each of up to eight ports for

10/100BaseTX or 100BaseFX

♦Supports auto-MDIX on TX ports of 8-port expansion module

♦Allows one single-port expansion module: one port for 100BaseFX

Connectors:

♦Choices of SC, ST, MT-RJ, VF-45, or LC connectors for 100BaseFX multi-

mode fiber module

♦SC connector allowed for 100BaseFX single-mode fiber module

Basic Configuration Support:

♦Supports port-based VLAN & MAC-based Trunking

♦Programmable re-configuration for fixed speed and duplexity

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules

Packing List

When you unpack this product package, you will find the items listed below.

Please inspect the contents, and report any apparent damage or missing items

immediately to our authorized reseller.

yThe 17-Port Switch

yUser’s Manual

yAC power cord

yRS232 cable

yRack Mount Ears with screws

Front Panel for Base Unit

The front panel of the 17-port Switch consists of three expansion slots to house

two 8-port modules and one single-port module.

An array of LED indicators on each module provides you with instant feedback on

the status of the switch.

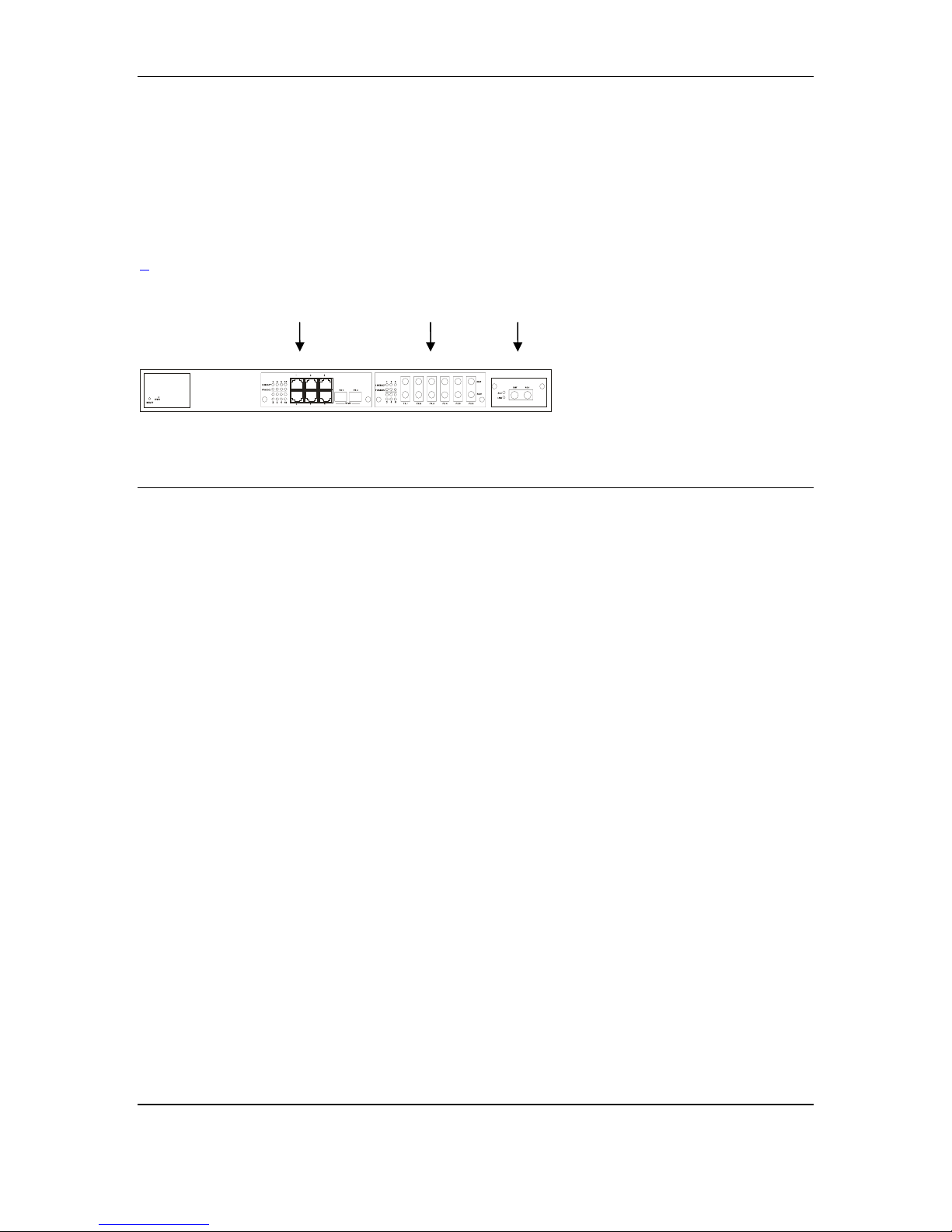

Figure 1: Front View of 17-Port Modular Switch

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules

Modules

There are total 8 different modules available to choose that fit best with your

network environment needs. Please see the table below for detailed information.

Module Name 10/100RJ45 copper multi-mode fiber

LB9213A 8 0

LB9214A 0 8 (ST)

LB9215A 0 8 (SC)

LB9216A 6 2 (ST)

LB9218A 6 2 (SC)

LB9219A 4 4 (SC)

LB9220C-ST 0 1(ST)

LB9220C-SC 0 1 (SC)

Max Express Ethernet Switch LB9217A-R2 & Applicable Modules

Module Installation

There are two sets of different modules available for LB9217A-R2, the base unit

for Max Express Ethernet Switch. Modules LB9213A~LB9219A are equipped

with 8 ports TX/FX while LB9220C-ST & LB9220C-SC are designed with one

fiber port to meet different needs in your network environment. Please see page

9for detailed information.

A B C

Figure 2: Position A & B are designed for 8-port module, position C is for

single port module only

Step by Step Installation for 8-port Module:

LB9213A, LB9214A, LB9215A, LB9216A, LB9218A, LB9219A

1. Remove the module from the static-free container.

2. Unscrew the cover plate(s) from base unit on position A and or B.

3. Remove the plate and keep it for future use if modules need to be removed

later on.

4. With the power off, slide the module(s) into the desired slot, following the

internal plastic guide rails.

5. Once it is slid in fully, snap in the module to make a proper connection

and fasten the screws.

<NOTE> Before you start with any installation, ensure that the power is off.

The module is not hot swappable.

Altri manuali per LB9213A

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Black Box Router di rete

Black Box

Black Box LEH1208A Manuale utente

Black Box

Black Box LB9007A-SC-R3 Manuale utente

Black Box

Black Box LB9213A Manuale utente

Black Box

Black Box 7000 T1/E1 Manuale utente

Black Box

Black Box LT2060A Manuale utente

Black Box

Black Box LBU2090 Manuale utente

Black Box

Black Box LEH808 Series Manuale utente

Black Box

Black Box LR1530A-EU-R3 Manuale di istruzioni

Black Box

Black Box LR5100A-T Manuale utente

Black Box

Black Box WRT4002A Manuale utente

Black Box

Black Box LRB500A Manuale utente

Black Box

Black Box LGB2003A Manuale utente

Black Box

Black Box LR0003A Manuale utente

Black Box

Black Box LB9901A Manuale utente

Black Box

Black Box LB611A Manuale utente

Black Box

Black Box LR5000A Manuale utente

Black Box

Black Box Firetunnel 30 LRE1030E Manuale utente

Black Box

Black Box LR9501A Manuale utente

Black Box

Black Box LB5000A Guida rapida

Black Box

Black Box WS100A Manuale utente

Black Box

Black Box LR1531A-R2 Manuale utente

Black Box

Black Box Nortel Secure 1001 Manuale utente

Black Box

Black Box LBS3041AE Manuale utente

Black Box

Black Box InvisaPC DTX1000-T Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
