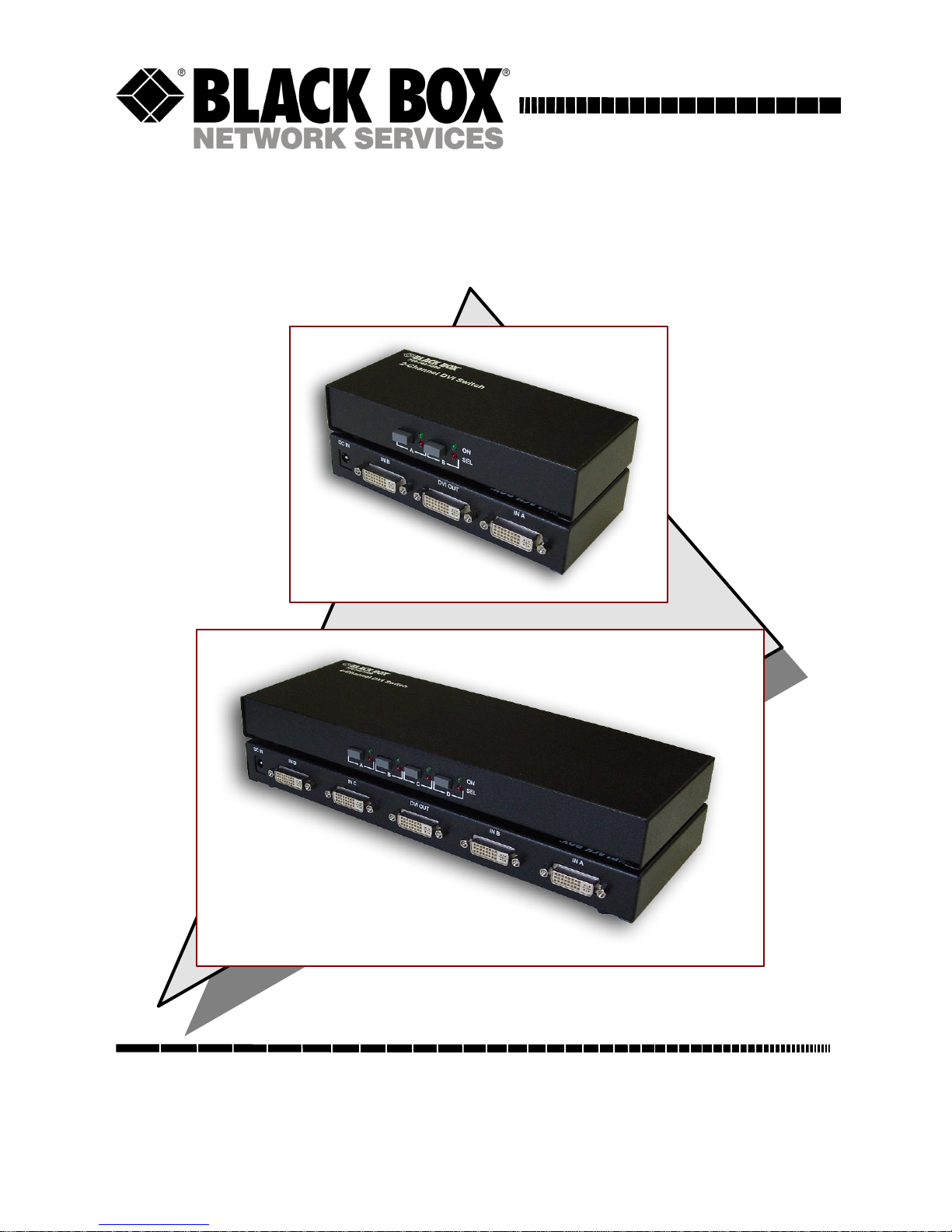

Black Box AC1032A-2 Manuale utente

2 & 4-Port DVI Switch

March 2005

AC1032A-2

AC1032A-4

4-Channel

Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX

FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

CUSTOMER

SUPPORT

INFORMATION

AC1032A-2

2-Channel

DVI Switch

TRADEMARKS USED IN THIS MANUAL

BLACK BOX and its logo are registered trademarks of Black Box

Corporation.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

IBM is a registered trademark of International Business Machines

Corporation.

SGI is a registered trademark of Silicon Graphics, Inc.

Sun and Sun Microsystems are registered trademarks of Sun Microsystems,

Inc. in the United States and other countries.

Any other trademarks mentioned in this manual are acknowledged to be

the property of the trademark owners.

Model AC1032A-2 and AC1032-4

FEDERAL COMMUNICATIONS COMMISSION

AND CANADIAN DEPARTMENT OF COMMUNICATIONS

RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio frequency energy

and if not installed and used properly, that is, in strict accordance with

the manufacturer’s instructions, may cause interference to radio

communication. It has been tested and found to comply with the limits

for a Class A computing device in accordance with the specifications in

Subpart B of Part 15 of FCC rules, which are designed to provide

reasonable protection against such interference when the equipment is

operated in a commercial environment. Operation of this equipment in

a residential area is likely to cause interference, in which case the user

at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

the equipment.

This digital apparatus does not exceed the Class A limits for radio

noise emission from digital apparatus set out in the Radio Interference

Regulation of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de la classe

A prescrites dans le Règlement sur le brouillage radioélectrique publié

par le ministère des Communications du Canada.

EUROPEAN UNION DECLARATION OF CONFORMITY

This product complies with the requirements of the European EMC

directive 89/336/EEC

DVI Switch

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas

antes de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como

sea recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico

más allá a lo descrito en las instrucciones de operación. Todo otro

servicio deberá ser referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama,

sofá, alfombra o superficie similar puede bloquea la ventilación, no se

debe colocar en libreros o gabinetes que impidan el flujo de aire por los

orificios de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de

calor como radiadores, registros de calor, estufas u otros aparatos

(incluyendo amplificadores) que producen calor.

Model AC1032A-2 and AC1032-4

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo

del tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no

sea usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato;

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño;o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

DVI Switch

Contents

1. Introduction ...............................................................................page 6

1.1 General ................................................................................page 6

1.2 Features ...............................................................................page 6

2. Installation .................................................................................page 7

3. Operation...................................................................................page 8

4. Troubleshooting.........................................................................page 9

4.1 Problem Solving FAQ..........................................................page 9

4.2 Calling Black Box..............................................................page 10

4.3 Shipping & Packaging........................................................page 10

5. Specifications...........................................................................page 11

Model AC1032A-2 and AC1032-4

1. Introduction

1.1 General

The Black Box Model AC1032A-2 and Model AC1032-4 DVI

Switches allow routing of multiple DVI equipped devices (such as

PC’s) to a single DVI display (such as plasma or LCD screen). The

switchers support single-link, DVI-I (integrated Analog and/or Digital)

video signals at resolutions of up to 1280x1024. The DVI Switches

feature front panel switches and indicators for easy operation, plus they

have intelligence to switch to active video input when an input is

unplugged or there is no video present.

1.2 Features

•Clear & sharp image at resolution up to 1280x1024 (including

1080i).

•Supports both digital and analog DVI signals (DVI-I),

allowing you to connect or switch between a DVI equipped PC

and a VGA equipped one (In this case HD15 to DVI cable will

be necessary, and your DVI monitor should be able to support

DVI-I signal)

•Hot pluggable

•Auto skips over the powered off input (no video) and/or

unplugged cable

•Supports the DDC2 standard for all input ports

•Includes Universal (110-220 Vac) Power supply

DVI Switch

2. Installation

1. Your package includes the Switcher box, a power supply and this

Manual. You need to purchase input cables for connection to your

video sources. Black Box sells high quality DVI cables and

adapters at various lengths.

2. Make sure the PCs , the switch, and the monitor are all turned off

3. Plug the monitor's cable into the DVI OUT port of the Switch

4. Plug male-to-male extension cables from PCs DVI ports to the

Switch

(A note about cables:ADVI-I cable has the analog pins

surrounding the ground blade. Since the Switch is DVI-I, its

connectors have all the sockets, and since most PCs have DVI-I

output connectors with all the pin sockets,you can use either a

DVI-D or a DVI-I cable to connect to your video source. However,

a DVI-D cable does not bring in the analog signals to the switch

and hence you will not be able to use an analog monitor on the

output.Furthermore, it does not make any difference if the cable is

Single or Dual Link. The Switch is Single-Link and you can

physically plug either a Dual or a Single Link cable into it)

Figure 1.

Example of DVI Cable Figure 2.

Example of DVI-to-VGA Adapter

Figure 3.

Basic DVI Connector Types

Model AC1032A-2 and AC1032-4

5. Plug the supplied power adapter to the unit

6. Turn on the monitor first. All red LEDs will flash back and forth

(telling you that the unit is searching for video on the inputs).

7. Turn on the PCs. The green LEDs turn on (telling you that the unit

sees a connection and valid signal on the inputs).

3. Operation

The LED’s indicate which input is selected and which inputs are

present. Simply press the switch next to the LEDs on any of the inputs

that have their green LEDs lit to select that input.

Note that you cannot select an input that is not preset or has no video

(the switch will not allow you). Furthermore, if you select an input that

has video and later that input is disconnected (or the Pc to which it was

plugged in is turned off), then the unit will select the next valid input.

Figure 4.

Setup Block Diagram

DVI Switch

4. Troubleshooting

4.1 Problem Solving FAQ

1. What are the Cable Length Limitations?

The switcher cannot be used as an extender. Therefore it is best to

plug the output of the switch directly to the display device and use

input cables that are 5 meters (16 ft) maximum. In other words, try

to keep the total length of cablesfrom the video source to the box

and from the box to the monitor should not exceed 16 feet. At

longer distances you may experience video degradation. If you

cannot use shorter cables, try to turn the refresh rate and/or

resolution of the video signal lower.

2. What about HDCP (High-bandwidth Digital Content

Protection) in home entertainment systems?

The switcher is designed to primarily work with PC’s with DVI outputs.

If you want to use it in a Home-Theatre setup with DVI connections, it

may or may not work. The switchersdo not provide compatibility with

HDCP encoded video sources. For example if you have a DVD player

with DVI output, depending on the brand, or the DVD, it could enforce

HDCP content protection. If HDCP is not enforced, then the switcher

will function well, however if HDCP is enforced, then at best the DVD

player will output at 480p mode, and at worst it will not output any

video on its DVI output instead a message will be displayed to use

another output!.

Altri manuali per AC1032A-2

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Black Box Interruttore

Black Box

Black Box LB9006A-SC-R2 Manuale utente

Black Box

Black Box ServSelect III KV21008A Istruzioni di installazione e manutenzione

Black Box

Black Box SW177A Manuale utente

Black Box

Black Box ServView 17S KVT128AE-UK-8-R2 Manuale utente

Black Box

Black Box ServSwitch SW2007A-USB Manuale utente

Black Box

Black Box SWL930A-R2 Manuale utente

Black Box

Black Box LGB1126A Manuale utente

Black Box

Black Box KV6202A Manuale utente

Black Box

Black Box LB016A Manuale utente

Black Box

Black Box ServSelect III KV21008A Manuale utente

Black Box

Black Box ServSwitch KV780A Manuale utente

Black Box

Black Box LGB1108A Manuale utente

Black Box

Black Box ServSwitch DT Pro II KV7020A Manuale utente

Black Box

Black Box LPB1305A Manuale utente

Black Box

Black Box SERVSWITCH SW725A-R4 Manuale utente

Black Box

Black Box ACR1012A-T Manuale utente

Black Box

Black Box ServSwitch DTX5000 Manuale utente

Black Box

Black Box ServSwitch ACU5501A-R4 Manuale utente

Black Box

Black Box LB8418A Manuale utente

Black Box

Black Box IC445A Manuale utente

Black Box

Black Box SW421A-R2 Manuale utente

Black Box

Black Box ServSwitch DTX5000-R Manuale utente

Black Box

Black Box ACX4000 Manuale utente

Black Box

Black Box IC160A Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
