Welcome

Introduction

Thank you for choosing the ServSwitch Wizard SRX

extenders which provide a very effective way to put

distance between your computer and its peripherals.

The compact casings and ease of use of the Wizard

SRX modules belie the ingenuity of their operation.

Using our proprietary transmission techniques we

are able to reliably transfer more signals than ever

before along a single length of Category 5, 5e or

6 twisted pair cabling. What this means for you is

that your video, audio, USB keyboard, USB mouse

and two other USB channels are all readily and

reliably available at up to 50 metres away.

Using the Wizard SRX extenders does not mean

that you need to compromise on functionality in

any way. Our highly efﬁcient transmission methods

mean that high video resolutions of up to 1920

x 1440 are supported together with CD quality

digital sound that produces no crackles - even

in the quietest interludes. The USB connections

are seamless and thanks to our unique ‘Bi-tripos’

circuitry, four full speed USB 2.0 devices can

be used simultaneously with full support for

disconnect/re-connect at any time without causing

errors.

The Wizard SRX extenders have been designed

to be quick to install and totally transparent in

operation. All connectors are industry standard and

the video sharpness adjustments are made using a

simple rotary dial.

Where two screens are required, a dual VGA variant

provides double video channels in addition to full

support for an RS232 serial device. So whether you

are extending your workplace or creating a cost-

effective distributed audio visual system, the Wizard

SRX extenders provide the power and ﬂexibility to

create the right solution.

*Secondary video, RS232 serial and a second link cable are available only with the Wizard SRX Dual VGA variant

AUDIO

VIDEO 2

VIDEO 1

RS232 SERIAL

USB

Up to 50 metres

separation

USB

device

USB

device

Serial

device

CATx link cable(s)

BLACK BOX

SRX

TO REMOTE

LINK

POWER

LOCAL

724-746-5500

OUT

BLACK BOX

SRX

TO LOCAL

LINK

POWER

SHARPNESS

REMOTE

724-746-5500

welcome contents

installation

operation

rter

inormation

BLACK BOX

SRX

TO LOCAL

LINK

POWER

SHARPNESS

REMOTE

724-746-5500

SRX remote

module

Supplied items

BLACK BOX

SRX

TO REMOTE

LINK

POWER

LOCAL

724-746-5500

OUT

SRX local

module

Power adapter and

country- speciﬁc

power lead (for

remote module)

BLACK BOX

SRX

TO REMOTE

LINK

POWER

LOCAL

724-746-5500

A B

OUT

SRX Dual VGA

local module

BLACK BOX

SRX

TO LOCAL

LINK

POWER

SHARPNESS

REMOTE

724-746-5500

SRX Dual VGA

remote module

USB (A to B

type) lead

Audio lead

(3.5mm jacks)

Video lead

(15 way, male to male)

RS232 serial lead

(9 way male to female)

CD-ROM

Video lead

(15 way, male to male)

Wizard SRX dual VGA variant extender modules The Dual VGA variant package includes all of the above ancillary items plus:

Self adhesive

feet

Wizard SRX standard extender modules

Rack mount

plate for SRX

standard

module

(useable

for the

local or

remote

modules)

Rack mount plate

for SRX dual VGA

module (useable

for the local or

remote modules)

welcome contents

installation

operation

rter

inormation

Optional items

Power adapter and country- speciﬁc

power lead for local module (if USB

powering not possible)

Rack mount chassis

welcome contents

installation

operation

rter

inormation

Installation

Connections

Installation of the SRX modules is straightforward with minimal conﬁguration

requirements in most cases.

• Connections at the local module

• Connections at the remote module

Important

Do not attach a USB hub to the SRX remote, nor plug the SRX local module into

another USB hub. To do so will reduce the maximum cable length over which the

system will extend USB; also, some USB hubs may not provide enough power to

operate the local unit.

Do not use USB cables that are longer than 3 metres to connect the local module

to the computer or to connect the remote module to the USB peripherals.

Mounting

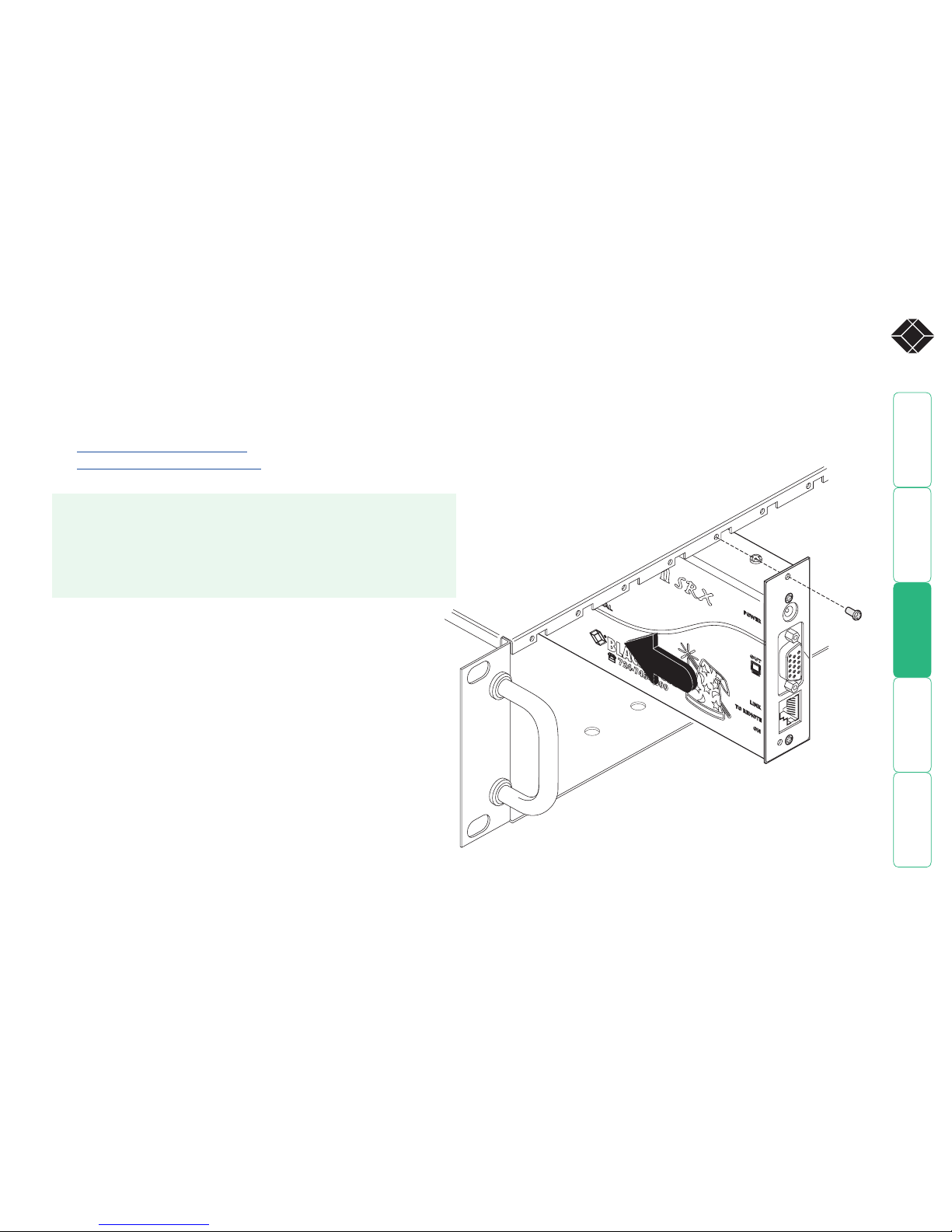

The SRX modules offer two main mounting methods:

• Supplied four self-adhesive rubber feet

• Rack mount brackets - see below

welcome contents

installation

operation

rter

inormation

BLACK BOX

LOCAL

OUT

To speaker

output port

To USB port

To primary video

output port

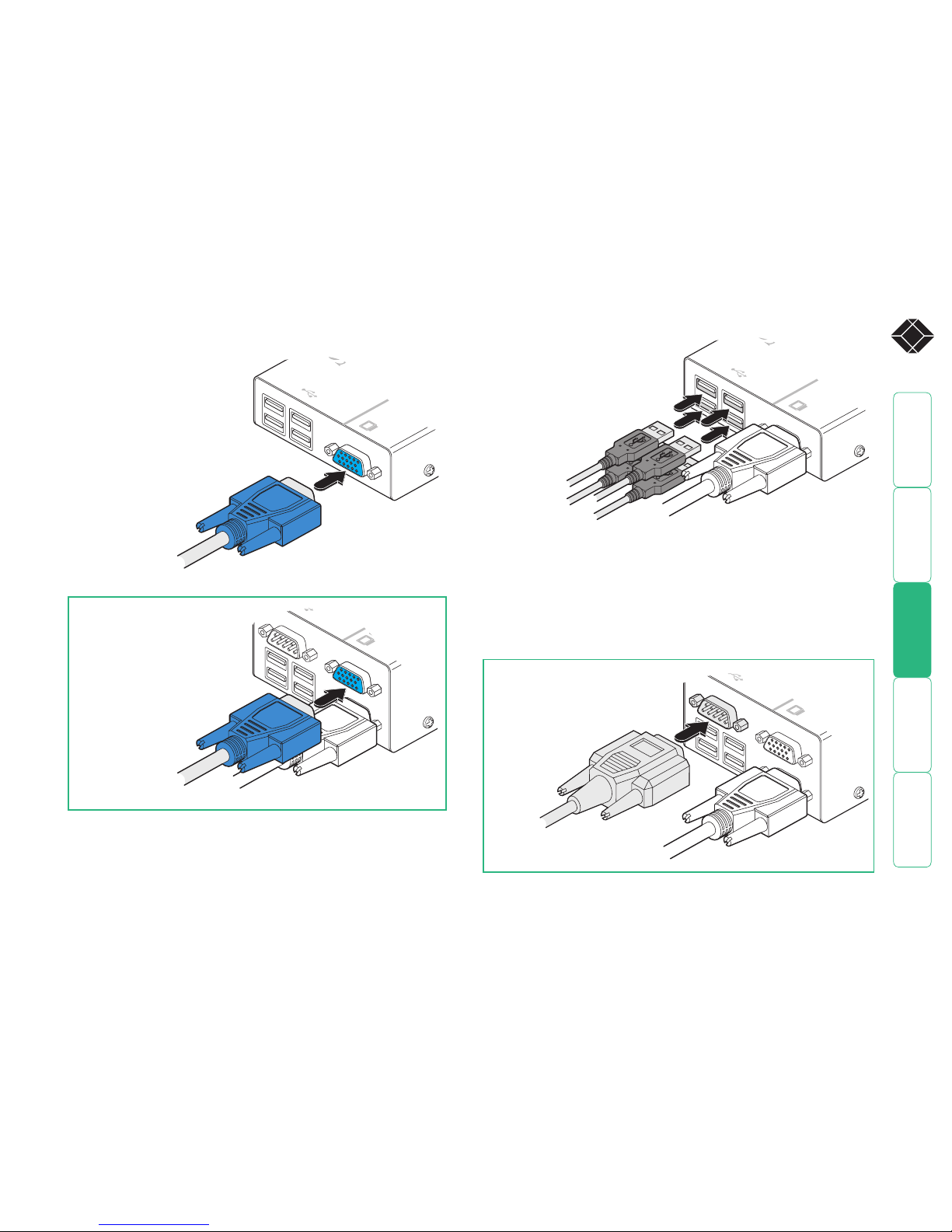

Connections at the local module

1 Where possible ensure that power is disconnected from the computer

system to be connected.

4 Optionally connect a local video

monitor to the video out feed-

through connector on the local

module.

3Optionally connect local speakers

to the audio output connector

on the local module.

BLACK BOX

LOCAL

OUT

To local

speakers

SRX

TO REMOTE

LINK

POWER

6 5500

OUT

To local

monitor

2 Attach the video, USB (see the

Important note on page 5) and

(optionally) audio connections

from the computer system to

the relevant sockets on the

local module.

[Dual VGA variant only]

Optionally attach a second

video input from the computer

system to the upper video in

socket on the local module.

Note: The dual VGA

variant has its primary

video, USB and audio

connectors arranged

in a similar manner to

the single unit (shown

above).

LOCAL

A B

OUT

To secondary video

output port

SRX

TO REMOTE

LINK

POWER

OUT

To secondary

local monitor

[Dual VGA variant only]

Optionally attach a second

video monitor to the upper

video out socket on the

local module.

Note: Do not use a USB cable that is longer than 3 metres to connect the local

module to the computer system.

welcome contents

installation

operation

rter

inormation

Local module power

In the majority of installations, the local module will derive all of its power

successfully from the USB link with the computer system. However, if insufﬁcient

voltage is available from the computer system, the green indicator

adjacent to the link connector will ﬂash. If this occurs (or if you do

not intend to use the USB connection with the computer) you will

need to purchase and use a power supply identical to the one used

for the remote module from your Black Box stockist.

1 If external power input is necessary, attach the output

SRX

TO REMOTE

LINK

POWER

6 5500

OUT

Link to remote

module

6 [Dual VGA variant only]

Optionally attach a serial

connection lead to the female

connector on the local module

and attach the other end to

a vacant serial port on your

computer.

5 Attach the connector of the

category 5, 5e or 6 link cable (up

to 50 metres in length) to the

‘TO REMOTE’ socket on the local

module (labelled ‘LINK 1’ on dual

VGA variants).

SRX

TO REMOTE

LINK

POWER

OUT

[Dual VGA variant only] Attach

the connector of a second

category 5, 5e or 6 link cable

(up to 50 metres in length) to

the ‘LINK 2’ socket on the local

module.

Secondary link to

remote module

LOCAL

A B

OUT

SRX

TO REMOTE

LINK

POWER

5500

OUT

LINK

O REMOTE

To computer

serial port

To optional

power supply

Low power

indicator

connector of the optional power

supply to the ‘POWER’ socket of

the local module.

2 Attach the IEC power lead to the

power supply body and insert the

mains plug of the lead to a

nearby power outlet.

Note: If a power adapter is

plugged into the module but

not switched on, it will prevent

the unit from deriving power

from the USB connection.

welcome contents

installation

operation

rter

inormation

Connections at the remote module

1 Place the remote module adjacent to the user location. 3 Attach the leads of up to four

USB devices (two of which are

usually a keyboard and mouse)

to the sockets located adjacent

to the video output connector.

To video

monitor

4 [Dual VGA variant only] Optionally

attach a serial device lead to the

male serial connector on the

remote module.

REMOTE

BLACK BOX

REMOTE

2 Attach the lead from the video

monitor to the video out socket

on the remote module.

[Dual VGA variant only]

Optionally attach the lead from

a second video monitor to the

upper video out socket on the

remote module.

To secondary

video monitor

BLACK BOX

REMOTE

To USB devices,

e.g. keyboard,

mouse, etc.

To RS232

serial device

See the Important note on page 5

[MS2 variant only] Note: When connecting four USB devices to the unit,

ensure that their total power requirements do not exceed 1700mA (1.7A).

The USB standard states a maximum allowable current draw of 500mA

(0.5A) per device, although most devices remain well below this limit - USB

keyboards and mice typically require 100mA. Each X50 contains a self-

resetting fuse that will prevent damage by shutting down the unit if the

total power draw becomes excessive.

welcome contents

installation

operation

rter

inormation

5 Optionally attach the lead from

your stereo speakers to the audio

output socket on the remote

module.

SRX

TO LOCAL

LINK

POWER

SHARPNESS

5500

6 Attach the connector of the

category 5, 5e or 6 link cable

(up to 50 metres in length) to

the ‘TO LOCAL’ socket on the

remote module (labelled ‘LINK

1’ on dual VGA variants).

SRX

TO LOCAL

LINK

POWER

SHARPNESS

5500

SRX

TO LOCAL

LINK

POWER

SHARPNESS

[Dual VGA variant only] Attach

the connector of a second

category 5, 5e or 6 link cable (up

to 50 metres in length) to the

‘LINK 2’ socket on the remote

module.

7 Attach the output connector

of the power supply to the

‘POWER’ socket of the remote

module.

To speakers

Link to remote

module

Secondary

link to

remote

module

SRX

TO LOCAL

LINK

POWER

SHARPNESS

5500

To power

supply

8 Attach the IEC power lead to the power supply body and insert the mains

plug of the lead to a nearby power outlet.

To mains

outlet

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Black Box Interruttore

Black Box

Black Box SERVSWITCH Series Manuale utente

Black Box

Black Box ServSwitch DT Series Manuale utente

Black Box

Black Box KVIP1016A Manuale utente

Black Box

Black Box AlertWerks EME102A-R3 Manuale utente

Black Box

Black Box KV9404A Manuale utente

Black Box

Black Box LIG1014A Manuale utente

Black Box

Black Box ServSwitch Octet KV1701 Manuale utente

Black Box

Black Box AC505A-2A Manuale utente

Black Box

Black Box LE2425A Manuale utente

Black Box

Black Box SW1020A Manuale utente

Black Box

Black Box EMS1G24F Manuale

Black Box

Black Box 40418 Manuale utente

Black Box

Black Box IC650A Manuale utente

Black Box

Black Box Remote Management Switch SW555A Manuale utente

Black Box

Black Box LBH100A-PD-ST-24 Manuale utente

Black Box

Black Box LPB2910A Manuale utente

Black Box

Black Box LGB5000 Series Manuale utente

Black Box

Black Box LB9007A-SC-R Manuale utente

Black Box

Black Box LGB6026A Manuale utente

Black Box

Black Box ACX1004 Manuale utente

Black Box

Black Box ServSwitch Multi KV150A-R2 Manuale utente

Black Box

Black Box LBH100A-SC Manuale utente

Black Box

Black Box SW035A Manuale utente

Black Box

Black Box ServSwitch DTX5000-R Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
