Black Box LPB1305A Manuale utente

BL A C K B O X®

Provides four PoE+ ports and one uplink port.

Each port can use a power supply up to 30 W, and the total PoE budget

is 62 W.

5-Port PoE+ Gigabit Ethernet Switch User’s Manual

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

March 2009

codes codes

BL A C K B O X®

LPB1305A

Page 2 724-746-5500 | blackbox.com

Trademarks Used in this Manual/Disclaimer

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be

the property of the trademark owners.

Disclaimer

Black Box Network Services shall not be liable for damages of any kind, including,

but not limited to, punitive, consequential or cost of cover damages, resulting

from any errors in the product information or specifications set forth in this

document and Black Box Network Services may revise this document at any time

without notice.

Page 3

724-746-5500 | blackbox.com

FCC and IC RFI Statements/NOM Statement

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

Page 4 724-746-5500 | blackbox.com

NOM Statement

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio— El usuario no debe intentar dar servicio al equipo eléctrico más allá

lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo

del tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

Page 5

724-746-5500 | blackbox.com

NOM Statement

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 6 724-746-5500 | blackbox.com

Table of Contents

1. Specifications......................................................................................... 7

2. Overview ............................................................................................... 8

2.1 Introduction ................................................................................ 8

2.2 What’s Included .......................................................................... 8

2.3 Hardware Description.................................................................. 8

3. Installation............................................................................................10

4. Operation .............................................................................................11

Page 7

724-746-5500 | blackbox.com

Chapter 1: Specifications

1. Specifications

Approvals FCC, CE

Buffer Memory 104K bits

Filtering/

Forwarding

Rates

1000 Mbps port: 1,488,000 pps;

100 Mbps port: 148,800 pps;

10 Mbps port: 14,880 pps

MAC Address 1 K

Power over

Ethernet

Supports up to 30 W for each PoE port;

PoE power budget: 62 W;

PD classification identify;

PoE overcurrent protection,

PoE circuit sorting protection,

PoE power on RJ-45 pins 3, 6 for power +, pins 1, 2 for power -

Standards IEEE 802.3: 10BASE-T;

IEEE 802.3u: 100BASE-TX;

IEEE 802.3ab:1000BASE-TX;

IEEE 802.3at/af: Power Over Ethernet

Transmission

Media

10BASE-T CAT3, 4, 5 UTP/STP;

100BASE-TX CAT 5 UTP/STP;

1000BASE-TX: CAT5e/6/7 UTP/STP

Transmission

Method

Store and Forward

Connectors (4) RJ-45 PoE+ ports;

(1) RJ-45 uplink port;

Power connector

Indicators (10) LEDs:

(1) Power,

(1) Uplink,

(4) LAN port,

(4) PoE port

Environment Temperature: Operating: 32 to 122° F (0 to 50° C);

Humidity: 10 to 90% relative, noncondensing

Power 100–240 VAC, 50/60 Hz internal power module

Dimensions 1.5"H x 4.5"W x 7.1"D (3.7 x 11.3 x 18 cm)

Weight 1.8 lb. (0.8 kg)

Page 8 724-746-5500 | blackbox.com

Chapter 2: Overview

2. Overview

2.1 Introduction

The 5-Port PoE+ Gigabit Ethernet Switch (LPB1305A) has four PoE+ ports and one uplink

port. With PoE+, each port can use a power supply up to 30 W, and the total PoE budget

is 62 W.

2.2 What’s Included

Your package should include the following items. If anything is missing or damaged,

contact Black Box Technical Support at 724-746-5500 or info@blackbox.com.

• (1) PoE+ Switch

• (1) power cord

• A printed Quick Start Guide

NOTE: To download the user manual (the document you are reading now), go to

ftp://ftp.blackbox.com/manuals/L/LPB1305A_USER_rev1.pdf or visit the

Black Box Web site (www.blackbox.com) and enter LPB1305A in the

search bar.

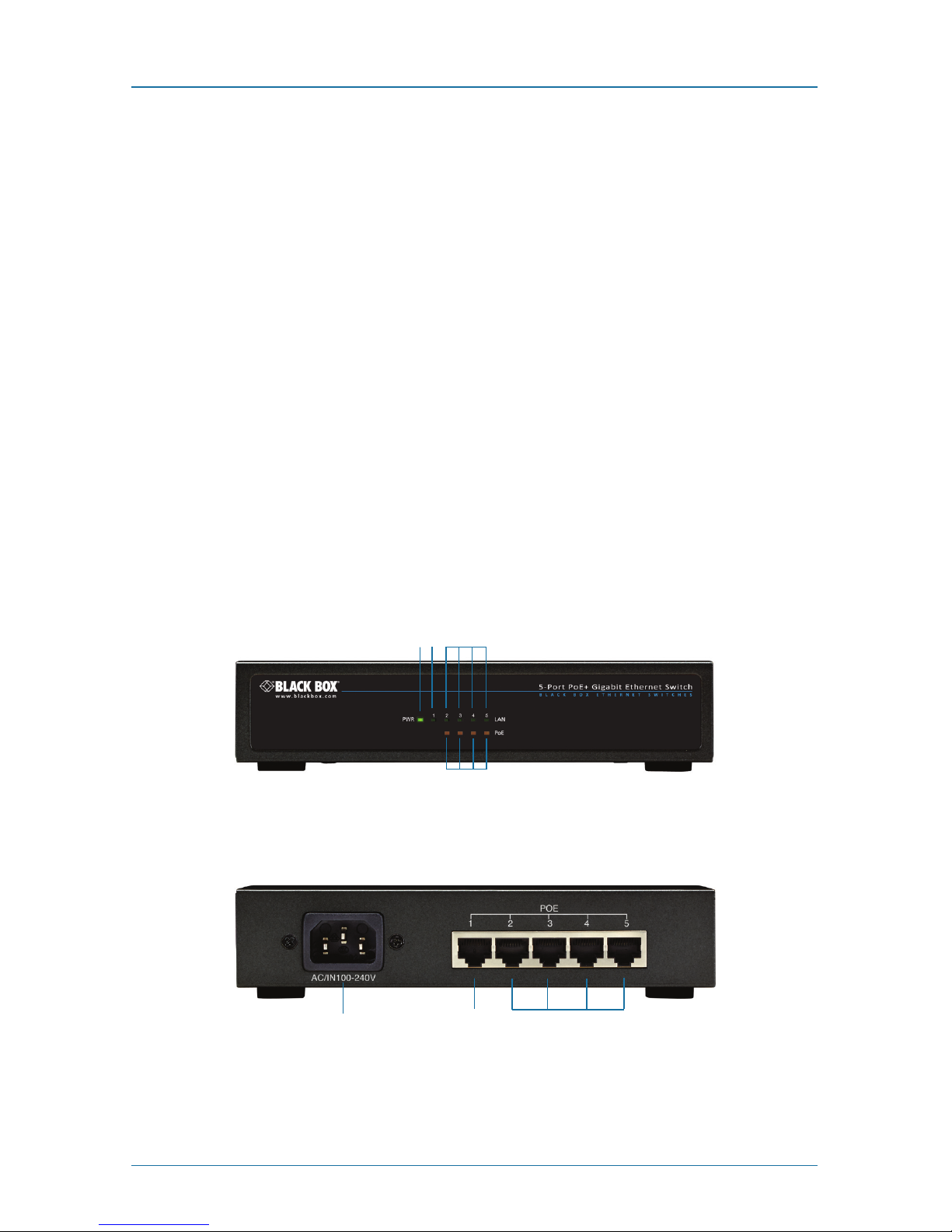

2.3 Hardware Description

1 2 3

Figure 2-1. Front panel.

5 6 7

Figure 2-2. Back panel.

Page 9

724-746-5500 | blackbox.com

Chapter 2: Overview

Table 2-1. PoE+ switch components.

Number in

Figure 2-1

or 2-2

Component Description

1(1) Power LED Lights green when power is on and normal.

2(1) LAN LED Lights green/orange on when the 10/100/1000

Ethernet uplink port is connected.

3(4)

10/100/1000

LEDs

Flashes orange when the port is transferring data

at 1000 Mbps.

Flashes green when the port is transferring data at

100 Mbps.

Off when the port is transferring data at 10 Mbps.

4(4) PoE+

LEDs

Lights orange when the Power over Ethernet (PoE)

function on port x(where x=1–4) is active.

Off when PoE on the port 1–4 is disabled.

5 (1) 3-prong

connector

Links to 110–240 VAC power cord.

6(1) RJ-45

connector

Link Port 1: Connects to a network via CAT5e/6/7

cable.

7(4) RJ-45

connectors

Ports 2–5: Link to Powered Devices (PD) for Power

over Ethernet (PoE).

Page 10 724-746-5500 | blackbox.com

Chapter 3: Installation

3. Installation

STEP 1: Connect the AC power cord to the PoE+ switch, and the Power LED will

light.

STEP 2: Link Port 1 on the PoE+ switch to a network connection via CAT5e/6/7

cable.

STEP 3: Attach the four PoE+ ports on up to four Powered Devices (PDs) to the

four PoE+ ports on the PoE+ switch.

Figure 3-1 shows an application diagram.

5-Port PoE+ Gigabit

Ethernet Switch

(LPB1305A)

PC Gigabit Ethernet

PoE splitter

Up to 328 feet (100 m)

of CAT5e/6/7 cable

Up to 328 feet (100 m)

of CAT5e/6/7 cable

Gigabit Ethernet

Access Point

Gigabit Ethernet

Access Point

Up to 328 feet (100 m)

of CAT5e/6/7 cable

Up to 328 feet (100 m)

of CAT5e/6/7 cable

PoE

Gigabit Ethernet

Access Point

Figure 3-1. Typical installation.

Indice

Altri manuali Black Box Interruttore

Black Box

Black Box Peripheral Sharer 2 to 1 Manuale utente

Black Box

Black Box LB9019A-R3 Manuale utente

Black Box

Black Box LH8000A-M Manuale utente

Black Box

Black Box FX155A Manuale utente

Black Box

Black Box SC120A-R2 Manuale utente

Black Box

Black Box ServSwitch ACU5501A-R4 Manuale utente

Black Box

Black Box SW595A Manuale utente

Black Box

Black Box LineShare 1 x 4 Manuale utente

Black Box

Black Box SERVSWITCH SW725A-R4 Manuale utente

Black Box

Black Box LBH120A-H SERIES Manuale utente

Black Box

Black Box SERVSWITCH SW721A-R4 Manuale utente

Black Box

Black Box SW215A Manuale utente

Black Box

Black Box SW214A Manuale utente

Black Box

Black Box USB Single-Port Hub IC266A Manuale utente

Black Box

Black Box LT0007A-4U Manuale utente

Black Box

Black Box SW590A-R2 Manuale utente

Black Box

Black Box LBH100A-SC Manuale utente

Black Box

Black Box SW1007A Manuale utente

Black Box

Black Box AVS-HDMI2-8X8 Manuale utente

Black Box

Black Box SW540A-R3 Manuale utente

Black Box

Black Box SERVSWITCH Series Manuale utente

Black Box

Black Box LGB1108A Manuale utente

Black Box

Black Box DCX3000 Manuale utente

Black Box

Black Box ServSelect III KV21008A Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
