Black Box ServSwitch Duo IP ACR6208A Manuale utente

BLACK BOX

IPC

724-746-5500

Computer User User Activity

1 2

Power

LOC REM VNC 100 LNK PWR

BLACK BOX

724-746-5500

® ® ®

Wizard IP

ServSwitch™ Duo IP

USER GUIDE



NETWORK SERVICES

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

CUSTOMER

SUPPORT

INFORMATION

JANUARY 2006

ACR6208A

ACR6216A

 







Remote

Users

Local

User

Power switch

IP network/

Internet

BLACK BOX

IPC

724-746-5500

Computer User User Activity

1 2

Power

LOCREM VNC 100 LNKPWR

BLACK BOX BLACKBOX

724-746-5500

® ® ®

Wizard IP

ServSwitch Duo IPC

Wizard IP

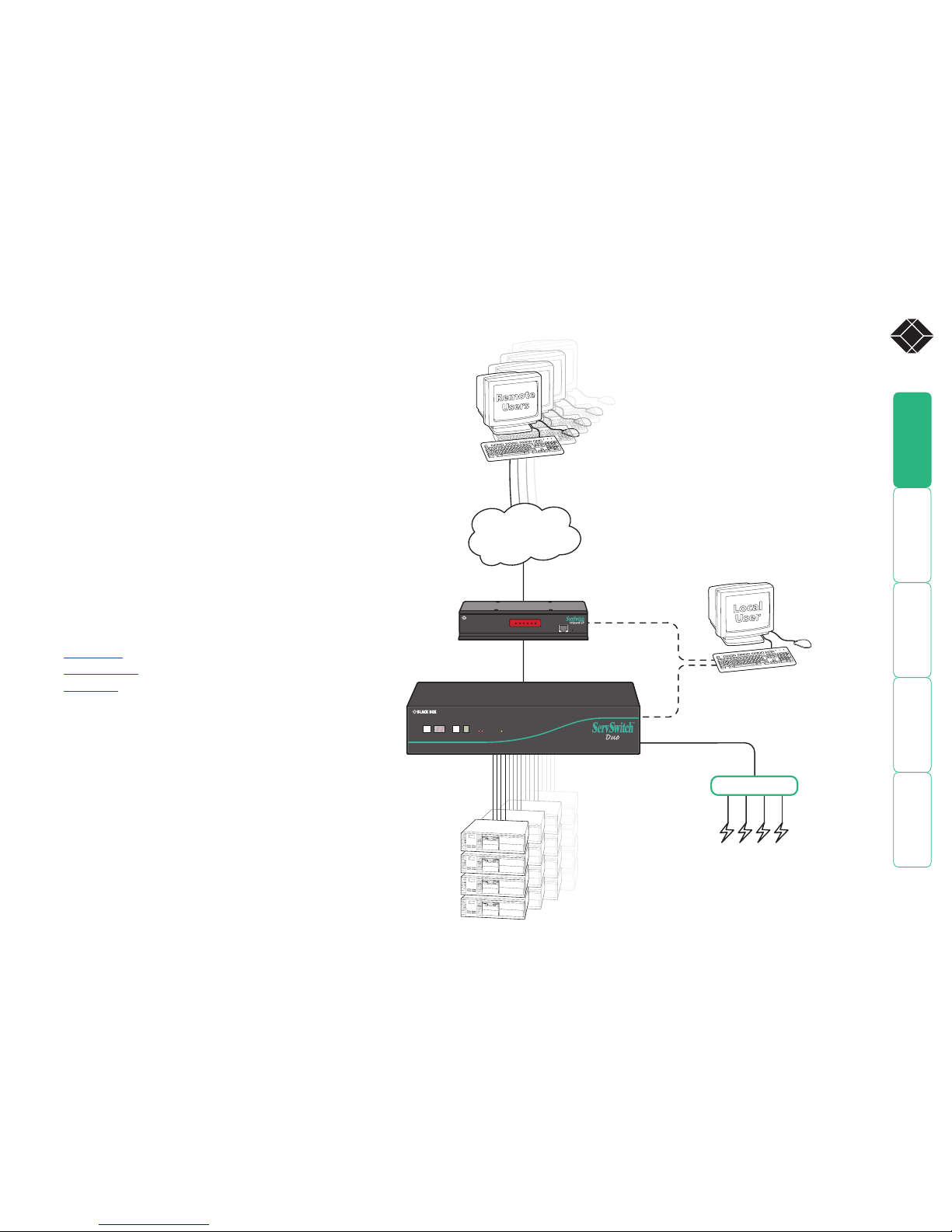

Control of many hosts

On its own, the ServSwitch Duo

IPC provides access to either eight

(model ACR6208A) or sixteen (model

ACR6216A) host systems. However,

when linked to other KVM switches

(ServSwitch Duo IPC or otherwise) the

user(s) can easily control up to 128

separate host systems.

Optional power control

One or more optional power switches can be

attached to either unit. These control the supply

to the host system(s) and allow the remote user to

hard reset any system that has suffered a failure.

Remote control

The Wizard IP allows direct connection to

an Ethernet-based local network and from

there onto the wider Internet, as required.

The robust Wizard IP security system will also

allow direct connection to the Internet.

Local control

Both the Wizard IP and

ServSwitch Duo IPC provide

ports to allow local user

control, when required.

Welcome

Introduction

This guide is intended as a brief overview to using

the Wizard IP and the ServSwitch Duo IPC products

together. Both of these products are supplied with

their own dedicated guides and this overview

provides clickable links to those guides (when their

les are stored in the same folder of your system).

The Wizard IP and ServSwitch Duo IPC are both

powerful and popular products in their own rights.

However, when they are combined, the resulting

system is even greater than the sum of its parts.

Together these products equip you with full control

of multiple host computers from literally anywhere,

all via a basic internet connection.

This overview guide contains three main sections:

Installation

Conguration

Operation

 







COM1

MODEM

COM2

POWER

CONTROL

INDOOR USE ONL

KVM CONSOLE

COMPUTER / KVM SWITCH

Installation

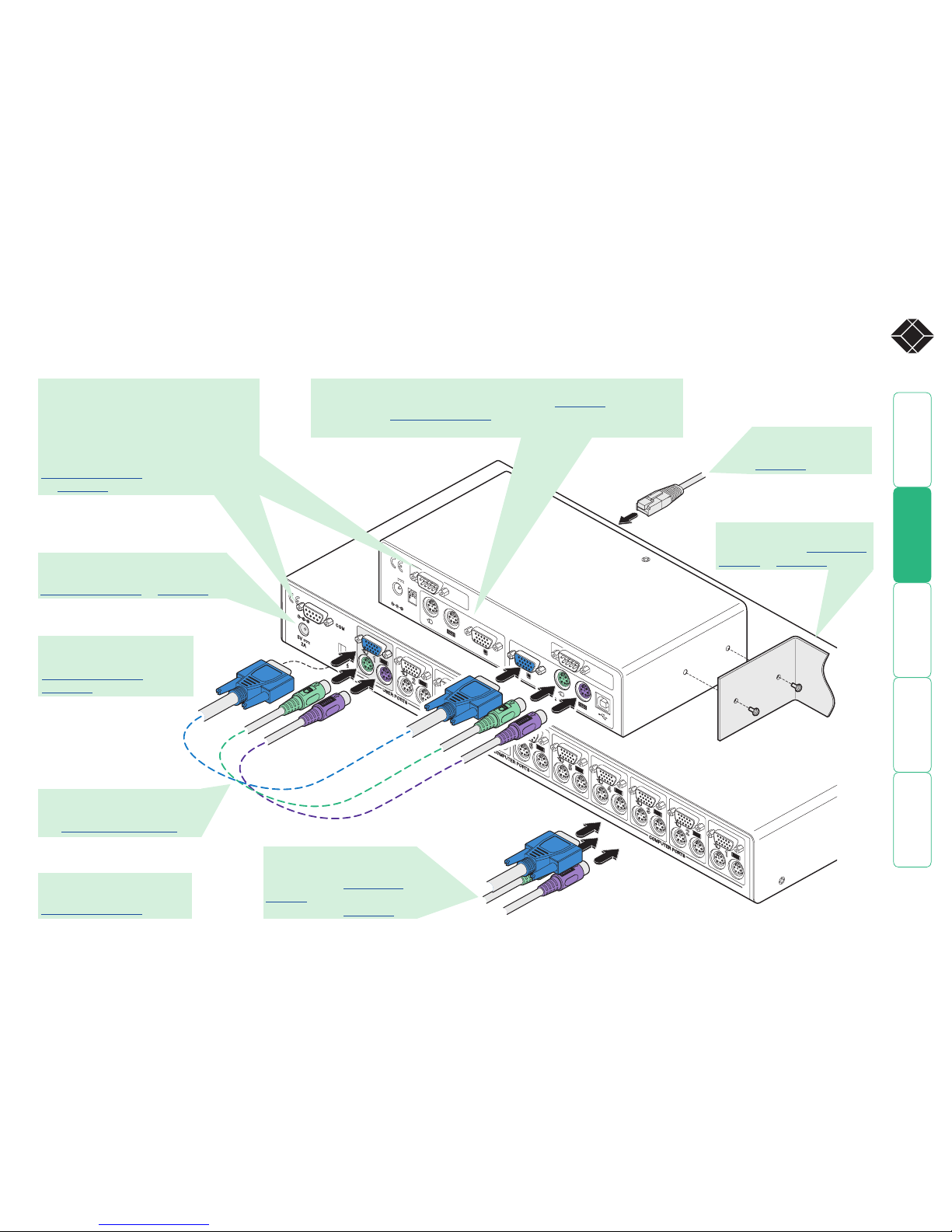

Connections

Wizard IP and ServSwitch

Duo IPC main link

See Wizard IP connections.

Rack mount attachments

See Mounting for ServSwitch

Duo IPC or Wizard IP.

Network connection

See IP network port for

Wizard IP.

Host computer connections

See Computer port

connections for ServSwitch

Duo IPC or Host computer or

KVM switch for Wizard IP.

Power supply connections

See Power supply connections for

ServSwitch Duo IPC or Wizard IP.

Connections to optional power switches

The power switches can be connected to

either unit, although if two Wizard IP devices

are used, it is advantageous to connect them

to the ServSwitch Duo IPC.

See Power switching connections for

ServSwitch Duo IPC or Power control port

for Wizard IP.

Local user connections

See Local keyboard, video monitor and mouse for Wizard IP or User port

connections for ServSwitch Duo IPC. Note: You are recommended to

connect your local monitor, keyboard and mouse to the Wizard IP.

Items supplied and required

See What’s in the box for

ServSwitch Duo IPC or

Wizard IP.

Cascade connections

See Cascade connections for

ServSwitch Duo IPC.

 







Part 2 – Remote conguration

This must be made using a remote connection (network or dial-up modem/ISDN).

It allows ne tuning of the Part 1-local conguration items, plus the creation of

multiple user accounts and declaration of all host computers.

Conguration

You can congure the Wizard IP and ServSwitch Duo IPC devices in any order,

however, when your local monitor, keyboard and mouse are connected to the

Wizard IP, it is that device that you will see rst. In such cases, start with the

Wizard IP.

SERVSWITCH DUO IPC

Configuration Menu

Functions

Routing status

User Preferences

Global Preferences

Setup Options

Edit Computer List

Edit User List

Edit Autoscan List

Enter-Select

F1-More menus

Esc-Quit

Firmware Version 2.08

SERVSWITCH DUO IPC

Computer Port

Computer 1 01

Computer 2 02

Computer 3 03

Computer 4 04

Computer 5 05

Computer 6 06

Computer 7 07

Computer 8 08

User port 1 Status

ADMIN SHARED USE

F1-More menus F3-Find

Esc-Quit F4-Logout

Wizard IP

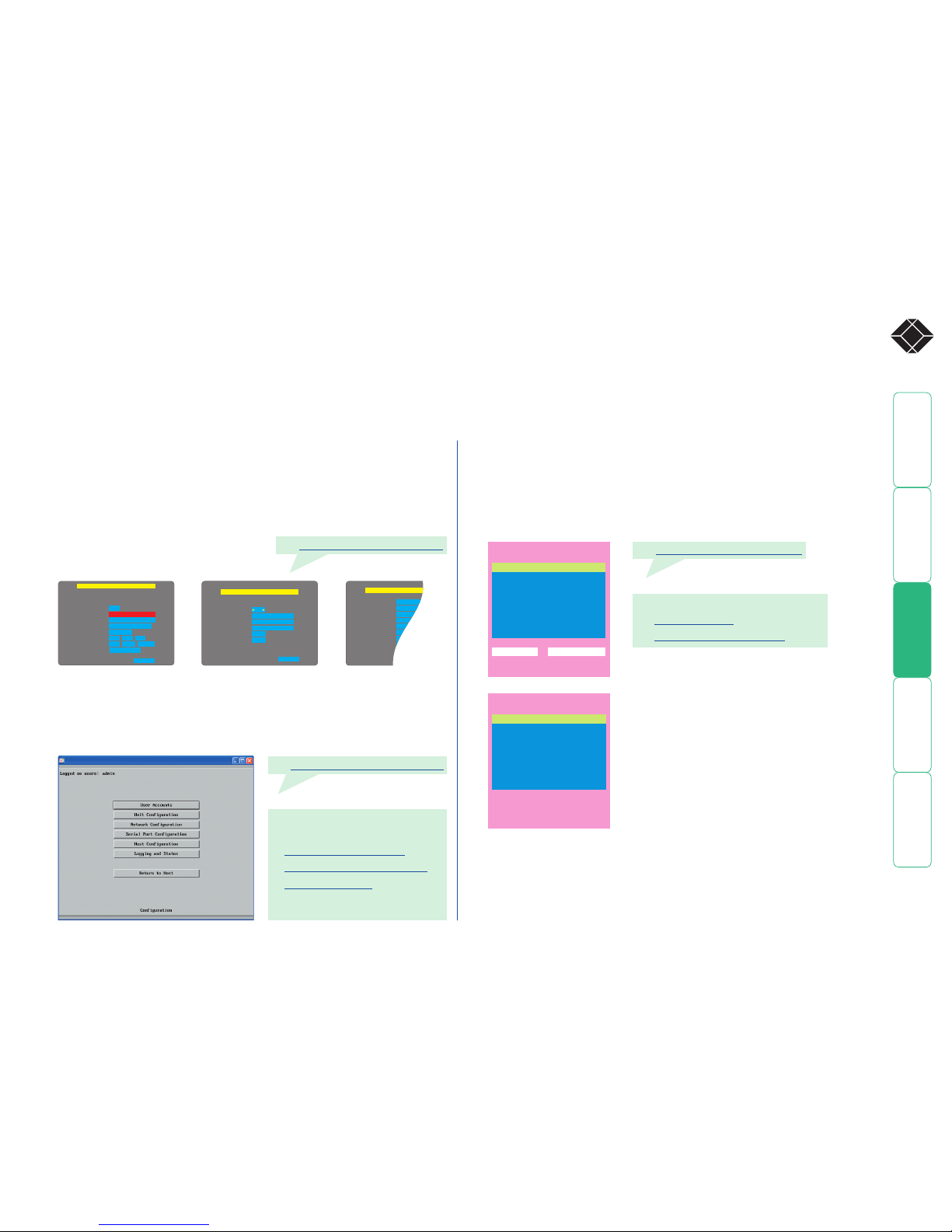

Wizard IP has a two-part initial conguration:

Part 1 – Local conguration

This must be carried out using the locally connected keyboard and monitor.

It prompts you to set up key basic details, network essentials, modem/ISDN

parameters and security key creation.

Wizard IP Unit Config

Hot Keys Ctrl+Alt

Screensaver

Time

Encryption

Date

10 mins

Prefer Off

Apr

2004

: :

Unit Name

Admin Passwd

Firmware Version BB2

Keybd Layout

Hardware Rev 1

Screen 1 of 5

Wizard IP Network Config

Net Mask 255.255.255.0

192.168.42.154

Gateway

VNC Port

HTTP Port

5900

IP Address

00:0F:58:00:00:04

Use DHCP

MAC Address

Screen 2 of 5

> >

Wizard IP Modem Confi

ATZHS0=1

192.168.3.1

192.168.3.2

115200

Initialize P

Restore Defa

Init String

Baud Rate

Server IP

Client IP

Screen 3 of 5

See Part 1 - Local conguration

See Part 2 - Remote conguration

ServSwitch Duo IPC

The ServSwitch Duo IPC conguration can be carried out from the local

keyboard and monitor, connected to either the Wizard IP or to the ServSwitch

Duo IPC. The advantage of the former is that you can gain access to either

device from the same position. Once the Wizard IP is initially congured, you can

even congure the ServSwitch Duo IPC via a remote link.

See Overall initial conguration

The important aspects to congure are:

• Enable security

• Set admin user password

Important

Individually the Wizard IP and ServSwitch Duo

IPC can both maintain their own separate

records of computers and users. However,

when used together, the ServSwitch Duo IPC

operates strictly as a slave to the Wizard IP. This

means that almost all conguration of users

and computers need only take place on the

Wizard IP. The exception to this is the creation

of a unique password for the ServSwitch Duo

IPC admin user.

You do not need to congure any users

or computers on the ServSwitch Duo IPC

unless, a local user, connected directly to

the ServSwitch Duo IPC, will need to access

computers.

The important aspects to congure

are:

• Security considerations

• Register all host computers

• Register all users and dene

which hosts computers to which

they will have access.

 







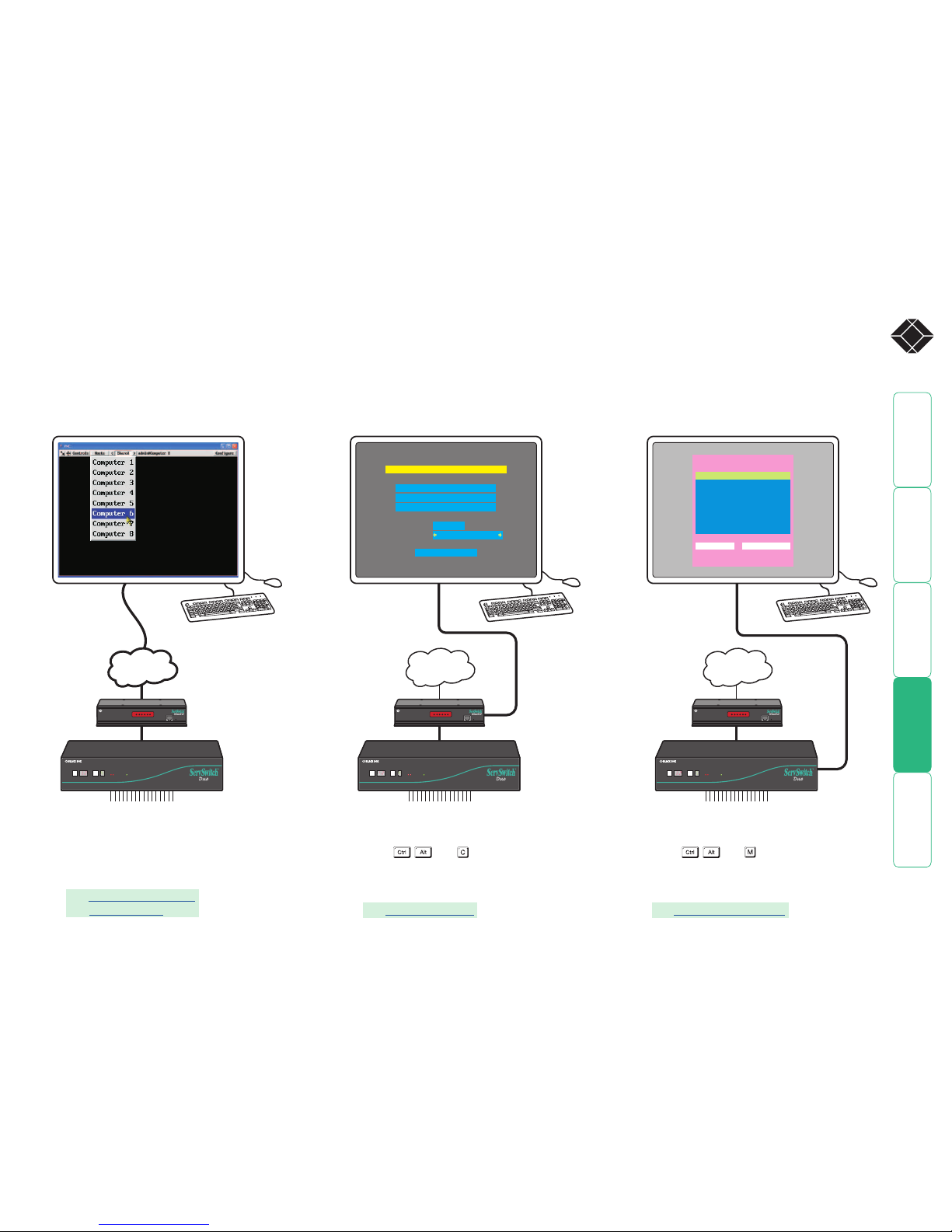

Operation

Switching between computers

There are three ways to switch on-screen between computers, depending on how your console is connected:

Switching using the

Wizard IP control menu

Press and to access.

The Host section lets you select

all registered computers for

which you have access rights.

See Local connection

Switching using the

Wizard IP Hosts list

The Hosts list lets you select all

registered computers for which

you have access rights.

See Remote connections

and Host selection

Switching using the

ServSwitch Duo IPC menu

Press and to access. The

on screen display menu lets you select

computers for which you have access

rights. The front panel can also be used.

See Selecting a computer

IP network/

Internet

IP network/

Internet

IP network/

Internet

ServSwitch Wizard IP Control

Shared

Email server

Access Mode

Host

Restore Mouse Functions

Return To Host

Configuration

Logoff

LOCREMVNC 100 LNKPWR

BLACK BOX

BLACKBOX

724-746-5500

® ® ®

Wizard IP

LOCREMVNC 100 LNKPWR

BLACK BOX

BLACKBOX

724-746-5500

® ® ®

Wizard IP

LOCREMVNC 100 LNKPWR

BLACK BOX

BLACKBOX

724-746-5500

® ® ®

Wizard IP

BLACK BOX

IPC

724-746-5500

Computer User User Activity

1 2

Power

BLACK BOX

IPC

724-746-5500

Computer User User Activity

1 2

Power

BLACK BOX

IPC

724-746-5500

Computer User User Activity

1 2

Power

SERVSWITCH DUO IPC

Computer Port

Computer 1 01

Computer 2 02

Computer 3 03

Computer 4 04

Computer 5 05

Computer 6 06

Computer 7 07

Computer 8 08

User port 1 Status

ADMIN SHARED USE

F1-More menus F3-Find

Esc-Quit F4-Logout

Local console

connected

directly to the

Wizard IP

Local console

connected

directly to the

ServSwitch

Duo IPC

Remote console

linked by network

to the Wizard IP
