1H.264 Megapixel Indoor/Outdoor Dome IP Camera
Table of Contents
SECTION1 Features...........................................................................2
SECTION2 InstallationandSetup...............................................................3
2.1 What’sinthebox ....................................................................3
2.2 Toolsyouneed.......................................................................3
2.3 Mountthecamera ...................................................................3
2.4 Connections.........................................................................5

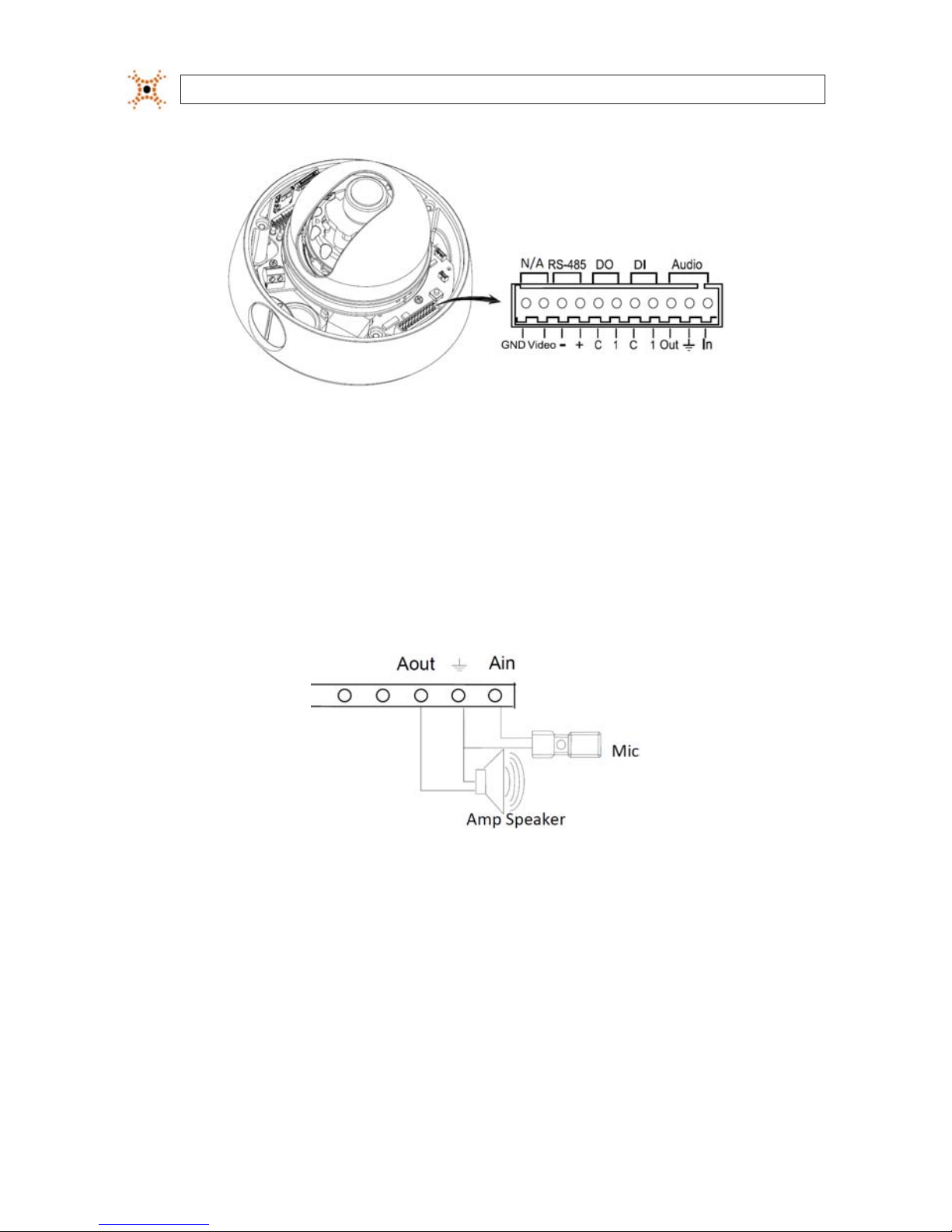

2.4.1 Audioin/outconnections.........................................................6
2.4.2 Sensorin(DI)connection.........................................................7
2.4.3 Alarmout(DO)connection........................................................8
2.4.4 RS-485 device connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.4.5 LANandpowerconnections.......................................................9
2.5 InstallIPAdminTool.................................................................10
2.6 Congurethecameranetworksettings.................................................10
2.6.1 Conguring cameras on networks with DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.6.2 Conguring cameras on networks without DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2.7 SetupthecameraBasicConguration..................................................17
2.8 Aim,focus,andimagequalityadjustment..............................................21
2.8.1 Aim ..........................................................................21
2.8.2 Focus.........................................................................21
2.8.3 Image quality adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
2.9 Speaker/microphonesetup...........................................................22
2.10 Cleaning...........................................................................24
SECTION3 Specications .....................................................................25
APPENDIXA Troubleshooting...................................................................28
A.1 Rebootcamera.....................................................................28
A.2 Set camera to factory default network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
A.3 CheckingyourFirmware .............................................................29
A.4 Support ...........................................................................29
APPENDIXB Dimensions .......................................................................30
APPENDIXC PoweroverEthernet................................................................32
C.1 PoEcompatibility...................................................................32
C.2 Powerclassication .................................................................32
