BLADEZ Countdown Manuale utente

OWNER’S MANUAL

CAUTION: Exercise of a strenuous nature, as is customarily done on this equipment, should not be

undertaken without first consulting a physician. No specific health claims are made or implied as they

relate to the equipment.

IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s

manual for future reference.

Countdown Bike

BH North America Foothill Ranch, California 92610

TABLE OF CONTENTS

Assembly Instructions…………………........5

Maintenance…………………………............9

Troubleshooting……..………………………10

Exploded View ………....................................11

Parts List ………………….............................12

Safety……………….…...................................1

Warranty……..………………………............13

Hardware Package Contents………..............3

Pre-Assembly……...........................................4

IMPORTANT SAFETY ADVICE

PRECAUTIONS

This bike has been designed and constructed to provide maximum safety. Nevertheless,

certain precautions should be taken when using exercise equipment. Read the whole manual

before assembling and using the bike. The following safety precautions should also be

observed:

1. Keep children or pets away from this equipment at all times. DO NOT leave them

unsupervised in the room where this bike is kept.

2. It can only be used by one person at a time.

3. If you experience dizziness, nausea, chest pains or any other symptom while using this

appliance STOP the exercise. SEEK MEDICAL ATTENTION IMMEDIATELY!

4. Use the unit on a mat placed level, solid surface. Adjust the stabilizer for assure stability.

5. Keep your hands well away from any of the moving parts.

6. Wear clothing suitable for doing exercise. Do not use baggy clothing that might get caught

up in the bike. Always wear running shoes or trainers when using the machine.

7. This appliance must only be used for the purposes described in this manual. DO NOT use

accessories that are not recommended by the manufacturer.

8. Do not place sharp objects near the machine.

9. Disabled people should not use the machine without the assistance of a qualified person or

a doctor.

10.Do warm up stretching exercises before using the equipment.

11. Do not use the bike if it is not working correctly.

KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE

12.The bike’s spinning parts may cause serious injuries if caution is not used.

13.

The exercise bike should only be used after a thorough review of the operation manual

and it’s warning label.

IMPORTANT SAFETY ADVICE

14. A perimeter distance of 3 feet / 1meter is required before operating the unit.

15. User must adjust the seat and handlebars to the user’s height requirement.

16. Do not ride the bike in a standing position.

17. The bike should only be for the home use (Consumer Use Only) - Not meant for

18. Before every use please examine brake pads for signs of wear. Brake pads are

susceptible to damage and should be replaced over time.

19. This bike is not suitable for therapeutic use.

CAUTION: Consult your doctor before beginning an exercise program use bike.

This advice is especially important for those over 35 or suffering from health problems.

Read all of the instructions before using any exercise equipment.

KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE

BH North America Corporation

20155 Ellipse

Foothill Ranch, CA 92610

Phone: (949) 206-0330

Fax: 949 206-0013

Email: [email protected]

Web: www.bhnorthamerica.com

Toll Free: (866) 325-2339

Mon - Fri 8am - 5pm PST

FOR WARRANTY REPAIR

PLEASE DO NOT TAKE

BIKE BACK TO THE RETAIL STORE!

CONTACT BLADEZ FITNESS FIRST

YOUR

commercial use. Functional and visual inspections of this equipment shall be

Please be sure the adjustment knob is locked tightDo not exceed MAX mark.

and seat and handlebars are secure.

performed after assembly is completed.

GENERAL INSTRUCTIONS

Carefully read through the instructions contained in this manual. It provides you with important

information about assembly, safety and use of the machine.

1. This unit has been designed for home use. The weight of the user must not exceed 255 lbs.

(116 kg.)

2. Keep your hands well away from any of the moving parts.

3. Parents and/or those responsible for children should always take their curious nature into

account and how this can often lead to hazardous situations and behavior resulting in

accidents. Under no circumstances should this appliance be used as a toy.

4. The owner is responsible for ensuring that anyone who uses the machine is duly informed

about the necessary precautions.

5. Your unit can only be used by one person at a time.

6. Use suitable clothing and footwear. Make sure all laces/cords are tied correctly.

BH North America Corporation

20155 Ellipse

Foothill Ranch, CA 92610

Phone: (949) 206-0330

Fax: 949 206-0013

Email: [email protected]

Web: www.bhnorthamerica.com

Toll Free: (866) 325-2339

Mon - Fri 8am - 5pm PST

FOR WARRANTY REPAIR

PLEASE DO NOT TAKE

YOUR BIKE BACK TO RETAIL STORE

CONTACT BLADEZ FITNESS FIRST

1 PC 1 PC

HARDWARE PACKAGE / TOOLS

Note: Use the tools only for this exercise bike.

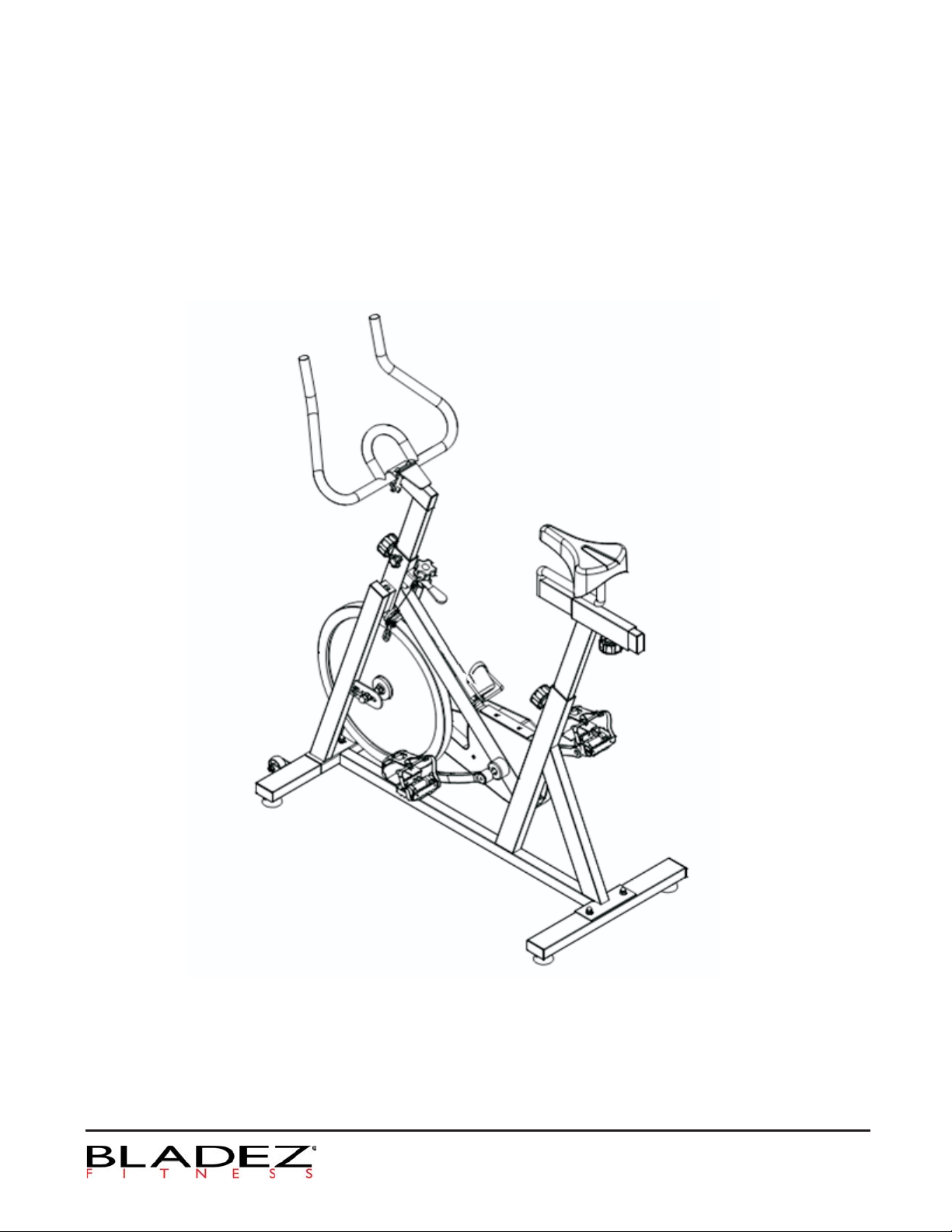

PRE-ASSEMBLY INSTRUCTIONS

ASSEMBLY

If you are missing parts or require information on how to

operate this product please call 1-949-206-0330

ASSEMBLY INSTRUCTIONS

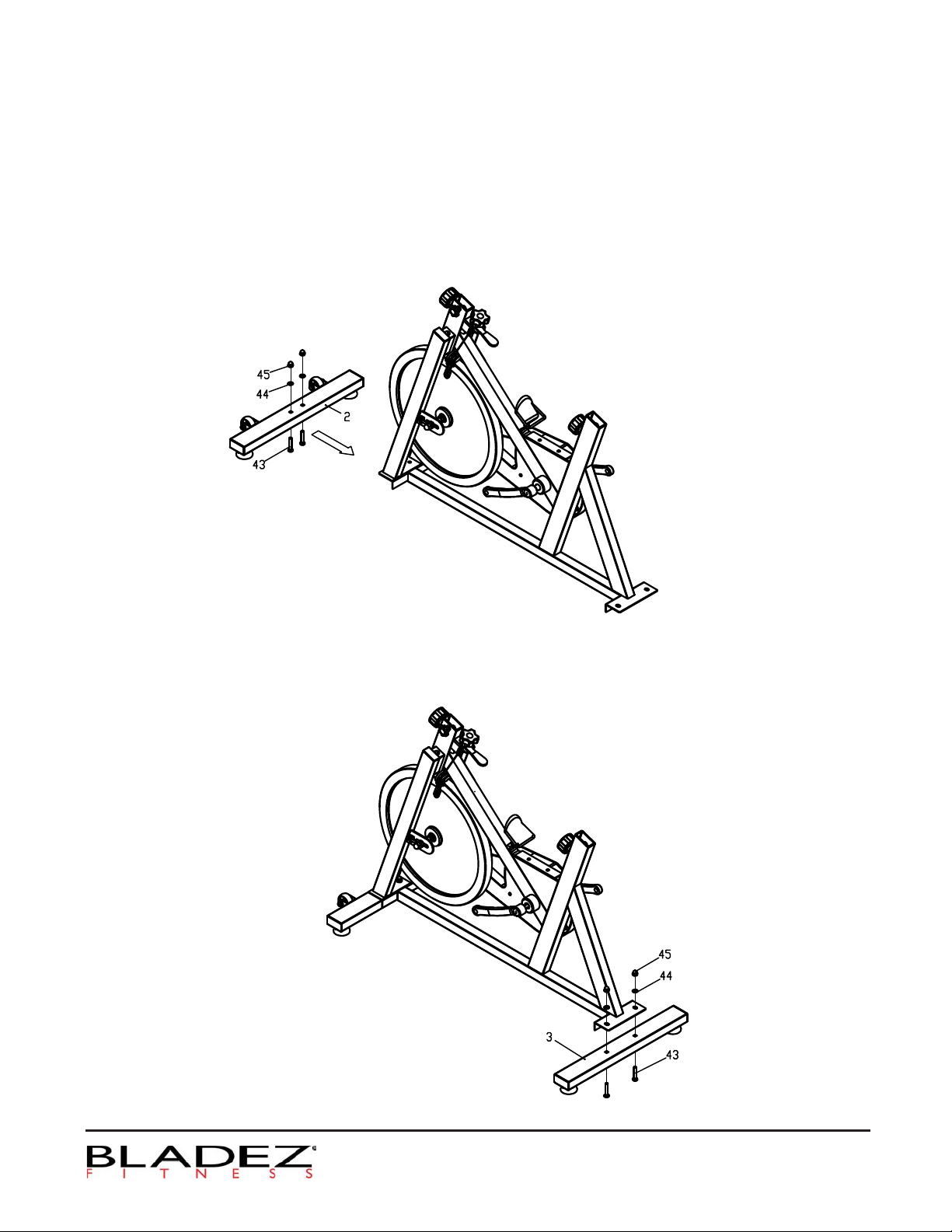

STEP 1

Secure front stabilizer (2) to main frame (1) and attach it with carriage bolts

(43), washers (44), and dome nuts (45).

STEP 2

Secure rear stabilizer (3) to main frame (1) and attach it with carriage bolts

(43), washers (44), and dome nuts (45).

ASSEMBLY INSTRUCTIONS (cont’d)

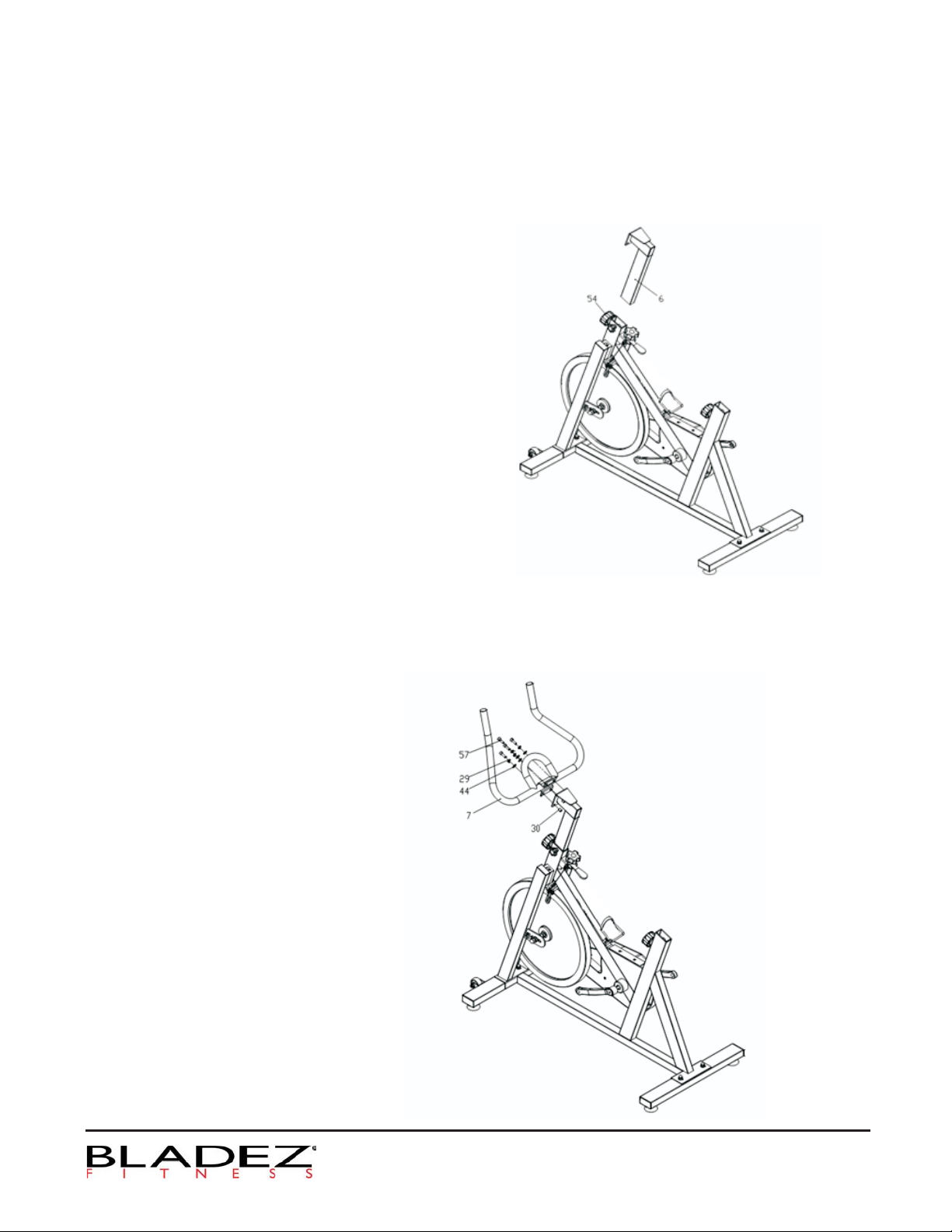

STEP 3.

Slide the handlebar post (6) into the main frame (1) and

tighten the plastic adjustable knob (54) to secure

STEP 4

Attach the handlebar (7) to the main frame (1) and

attach it with bolts (57), washers (29).

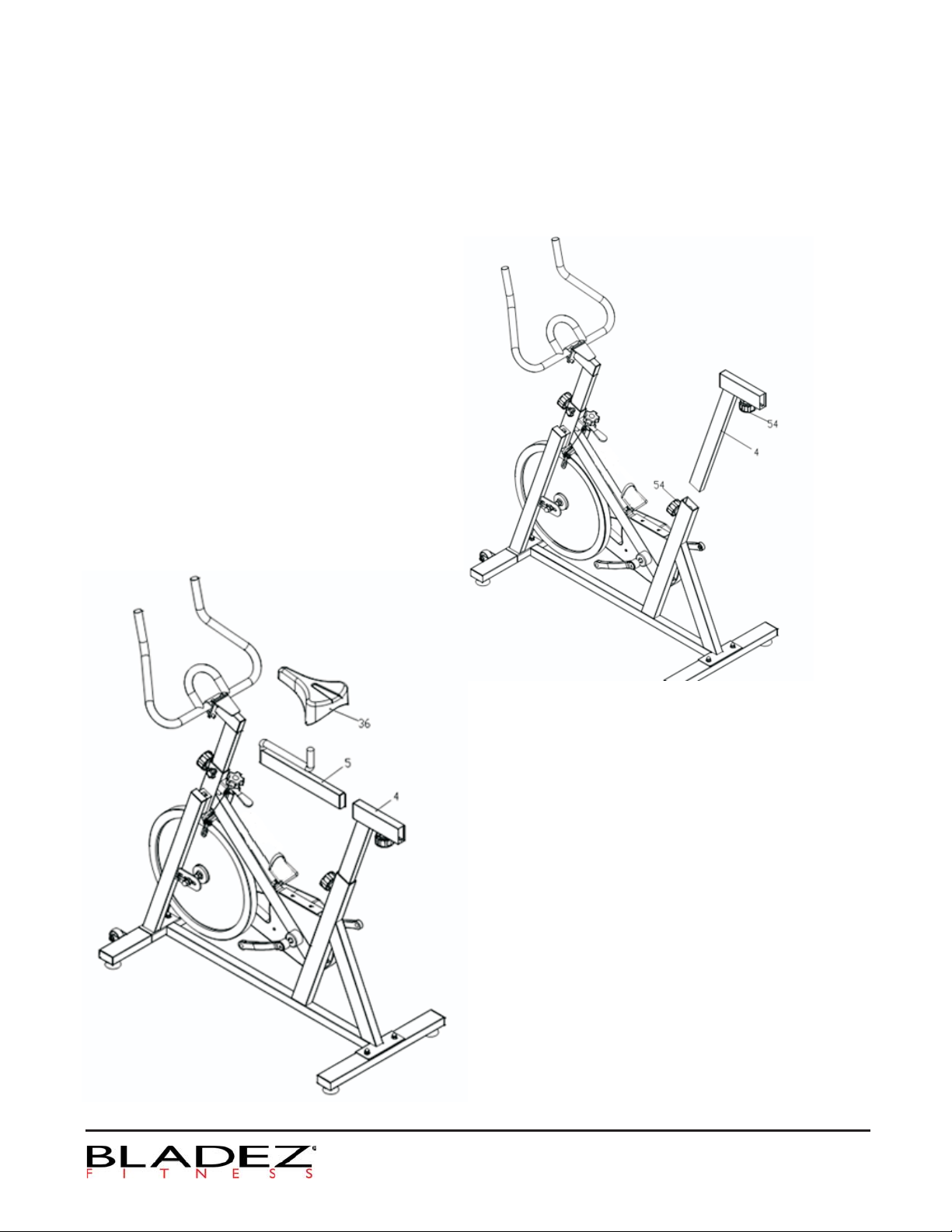

STEP 5.

Slide the seat post (4) into the main frame (1)

and attach it with the plastic adjustable knob

(54).

STEP 6

Securely attach the seat (36) to the seat bar

(5). Slide the seat bar (5) into the seat post (4)

and tighten the plastic adjustable knob (54) to

secure

ASSEMBLY INSTRUCTIONS (cont’d)

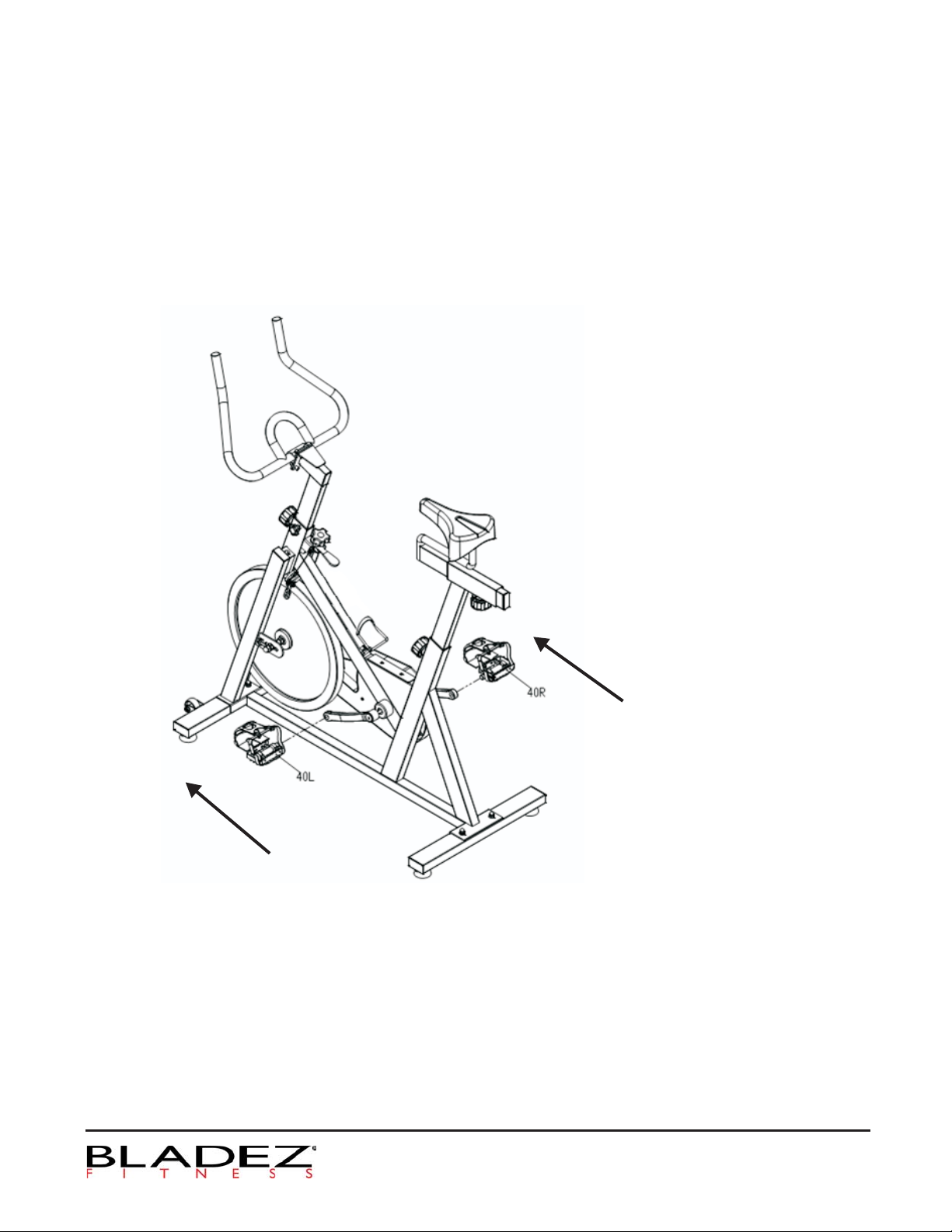

STEP 7.

The right-hand pedal, marked with the letter (R),screws onto the right-hand crank, also

marked with an (R), in a clockwise direction till tight.

The left-hand pedal, marked with the letter (L),screws onto the left-hand crank, also

marked with an (L), in a counter clockwise direction till tight.

Failure to follow the directions can result in damage to either the crank or the pedal threads.

ASSEMBLY INSTRUCTIONS (cont’d)

Tightening

Direction

Tightening

Direction
