BLADEZ BLADEZ T2 BASIC - PARTS Guida all'installazione

ILLUSTRATED PARTS MANUAL

Model Number:

Revised 12-05-06

BLADEZ T2 BASIC

TREADMILL

Bladez Corp. 20155 Ellipse Foothill Ranch, CA 92610 Phone: (949)206-8152 Fax: (949) 206-0013

www.ebladez.com Email: [email protected]

BLADEZ T2 BASIC

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:ﬁ[email protected]

Page 1

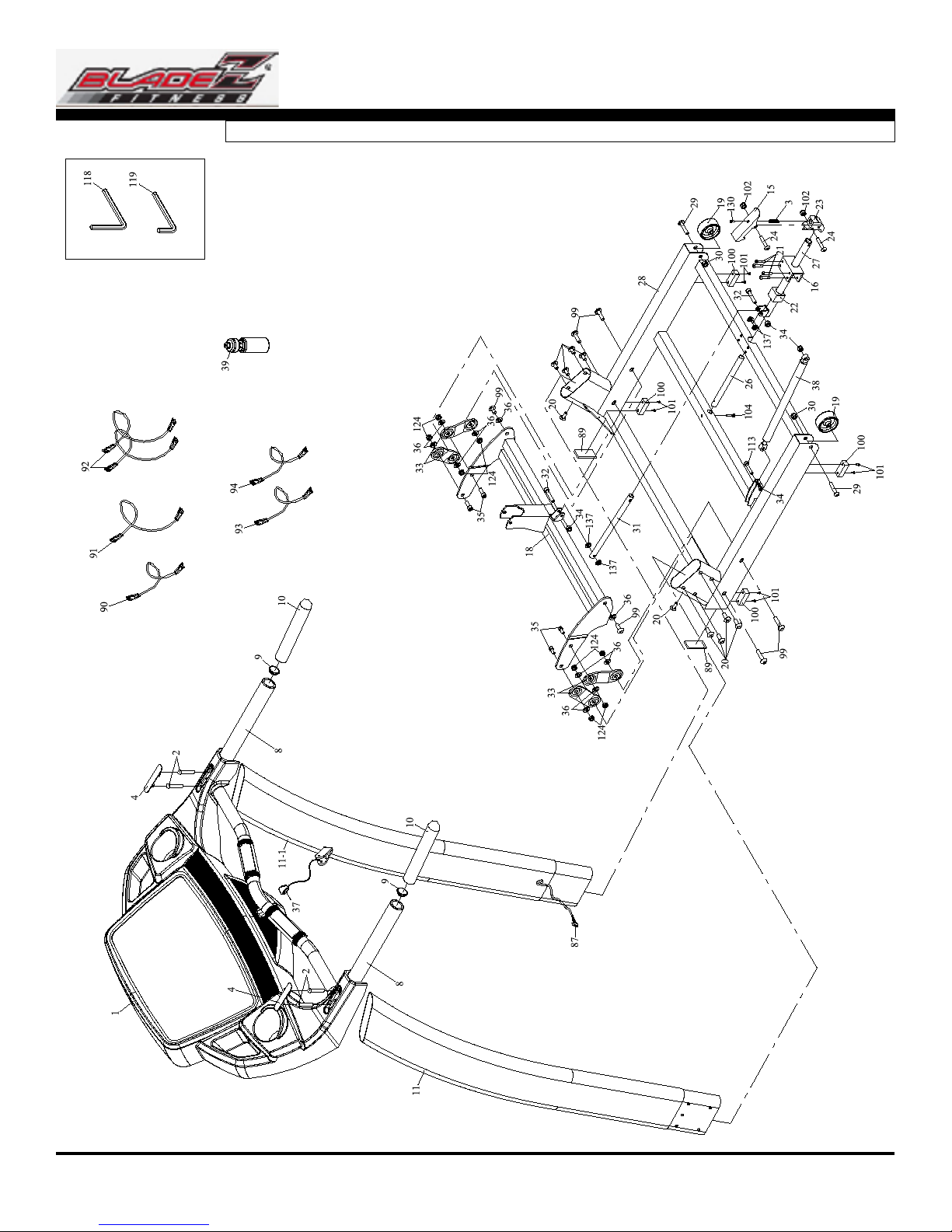

• FIGURE 1

BLADEZ T2 BASIC

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:ﬁ[email protected]

Page 2

• FIGURE 2

ITEM # PART # DESCRIPTION TOTAL QTY

1-1 T2B001 Computer Console 1

1-2 T2B002 Bolt K-299 4

1-3 T2B003 Spring 1

1-4 T2B004 Screw Cover 2

1-8 T2B008 Handle Pipe 2

1-9 T2B009 Curved Pipe Cap 2

1-10 T2B010 PVC Foam Tube 2

1-11 T2B011 Upright Pipe (L) 1

1-11-1 T2B011-1 Upright Pipe (R) 1

1-15 T2B015 Deck 1

1-16 T2B016 Folding xture 1

1-18 T2B018 Lifter weld 1

1-19 T2B019 Roller P-320 2

1-20 T2B020 Bolt M8xP1.25x15 10

1-21 T2B021 Bolt M6xP1.0x45 4

1-22 T2B022 Washer 1

1-23 T2B023 Rail 1

1-24 T2B024 Bolt M5xP0.8x40 2

1-26 T2B026 Bushing axle 1

1-27 T2B027 Bushing 1

1-28 T2B028 Base weld 1

1-29 T2B029 Bolt K-288 4

1-30 T2B030 Nut M10xP1.5 4

1-31 T2B031 Positioning axle 1

1-32 T2B032 Bolt K-416 2

1-33 T2B033 Incline connecting bracket 4

1-34 T2B034 Nut M8xP1.25 12

1-35 T2B035 Bolt K-432 4

1-36 T2B036 Washer K-431 10

1-37 T2B037 Safety Key 1

1-38 T2B038 Cylinder 1

1-39 T2B039 Bottle 1

1-87 T2B087 Controller Cable (Lower) 1

1-89 T2B089 Flat Pipe Cap 2

1-90 T2B090 Cable (yellow, green) 14AWGx130mmx1T1R 1

1-91 T2B091 Cable (white) 14AWGx90mmx2T 1

1-92 T2B092 Cable (black) 14AWGx90mmx2T 2

1-93 T2B093 Cable (white) 14AWGx170mmx2T 1

1-94 T2B094 Cable (black) 14AWGx170mmx2T 1

1-99 T2B099 Bolt K-430 6

1-100 T2B100 Pad 4

1-101 T2B101 Bolt 4x20 8

1-102 T2B102 Nut M5xP0.8 2

BLADEZ T2 BASIC

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:ﬁ[email protected]

Page 3

• FIGURE 3

ITEM # PART # DESCRIPTION TOTAL QTY

1-104 T2B104 Bolt M6xP1.0x25 1

1-113 T2B113 Bolt K-436 1

1-118 T2B118 Wrench 6mm（80mmx80mm（ 1

1-119 T2B119 Wrench 5mm 1

1-124 T2B124 Nut M10xP1.5x8t 10

1-130 T2B130 Bolt M6xP1.0x8 1

1-137 T2B137 Plastic Pad 4

BLADEZ T2 BASIC

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:ﬁ[email protected]

Page 4

•FIGURE 4

BLADEZ T2 BASIC

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:ﬁ[email protected]

Page 5

• FIGURE 5

ITEM # PART # DESCRIPTION TOTAL QTY

2-14 T2B014 Spring Washer M8 6

2-17 T2B017 Bolt 4x16 8

2-29 T2B029 Bolt K-288 4

2-30 T2B030 Nut M10xP1.5 4

2-34 T2B034 Nut M8xP1.25 12

2-40 T2B040 Bolt M5xP0.8x10 6

2-43 T2B043 Motor Cover (lower) 1

2-44 T2B044 Bolt M6xP1.0x10 9

2-45 T2B045 Motor 1

2-46 T2B046 Ribbed Belt 1

2-47 T2B047 Bolt M8xP1.25x20 4

2-48 T2B048 Washer 8x19x3.0t 4

2-49 T2B049 Bolt M8xP1.25x15 2

2-50 T2B050 Motor Mounting Board 1

2-51 T2B051 Incline Motor 1

2-52 T2B052 Bolt K-439 1

2-53 T2B053 U-Shaped Pin 2

2-54 T2B054 R pin 10x2.0 2

2-55 T2B055 Controller 1

2-56 T2B056 Frame 1

2-57 T2B057 Power Socket 1

2-58 T2B058 Power Switch 1

2-59 T2B059 Circuit Breaker 1

2-60 T2B060 Sensor (round) 1

2-63 T2B063 Bolt M6xP1.0x8 4

2-64 T2B064 Bolt M8xP1.25x35 2

2-65 T2B065 Base cover 1

2-66 T2B066 Bolt K-413 1

2-67 T2B067 Rubber absorber 6

2-68 T2B068 Bolt M4xP0.7x10 9

2-69 T2B069 Plastic deck xture 8

2-70 T2B070 Bolt 4x12 23

2-71 T2B071 Bolt M8xP1.25x55 3

2-72 T2B072 Washer 8x12x1.5t 3

2-73 T2B073 Bolt M8xP1.25x45 1

2-74 T2B074 Nut M8xP1.25 2

2-75 T2B075 Rear Adjustment Box (L) 1

2-76 T2B076 Rear Adjustment Box (R) 1

2-77 T2B077 Bolt M4xP0.7x20 2

2-78 T2B078 Upper Cover 1

2-79 T2B079 Front Roller Set 1

2-80 T2B080 Belt 1

2-81 T2B081 Deck 2

BLADEZ T2 BASIC

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:ﬁ[email protected]

Page 6

• FIGURE 6

ITEM # PART # DESCRIPTION TOTAL QTY

2-82 T2B082 Rear Roller Set 1

2-83 T2B083 Bolt M8xP1.25x30 6

2-84 T2B084 Shock-Absorbing Foam 2

2-85 T2B085 Running Board 1

2-86 T2B086 Power Cable 1

2-88 T2B088 Cable Fixity UC-0 2

2-88-1 T2B088-1 Cable Fixity UC-1 2

2-96 T2B096 Washer 6x13x1.0t 4

2-97 T2B097 Roller P-1145 2

2-98 T2B098 Bolt M4xP0.7x16 6

2-103 T2B103 Sensor Fixity 1

2-105 T2B105 Bolt M5xP0.8x8 5

2-114 T2B114 Extension 2

2-136 T2B136 Plastic Washer 2

2-141 T2B141 Sound Insulation Pad 2

BLADEZ T2 BASIC

TREADMILL

PARTS INFORMATION

www.ebladez.com Email:ﬁ[email protected]

Page 7

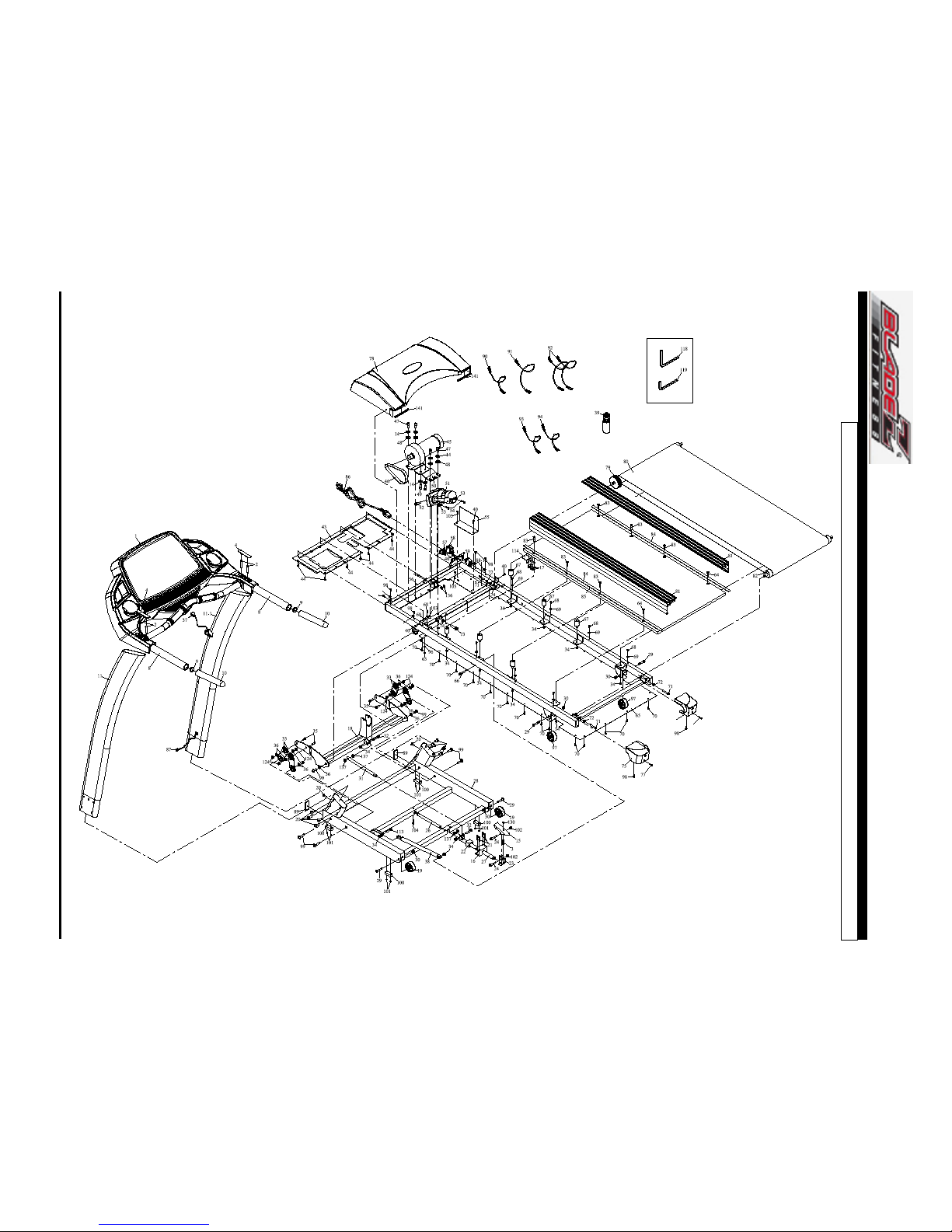

• FIGURE 7

BLADEZ T2 BASIC TREADMILL
