BLADEZ BLADEZ T2 PRO Guida all'installazione
ILLUSTRATED PARTS MANUAL
Model Number:
Revised 12-06-06
BLADEZ T2 PRO
TREADMILL
Bladez Corp. 20155 Ellipse Foothill Ranch, CA 92610 Phone: (949)206-8152 Fax: (949) 206-0013
www.ebladez.com Email: [email protected]
BLADEZ T2 PRO
TREADMILL
PARTS INFORMATION
www.ebladez.com Email:fi[email protected]
Page 2

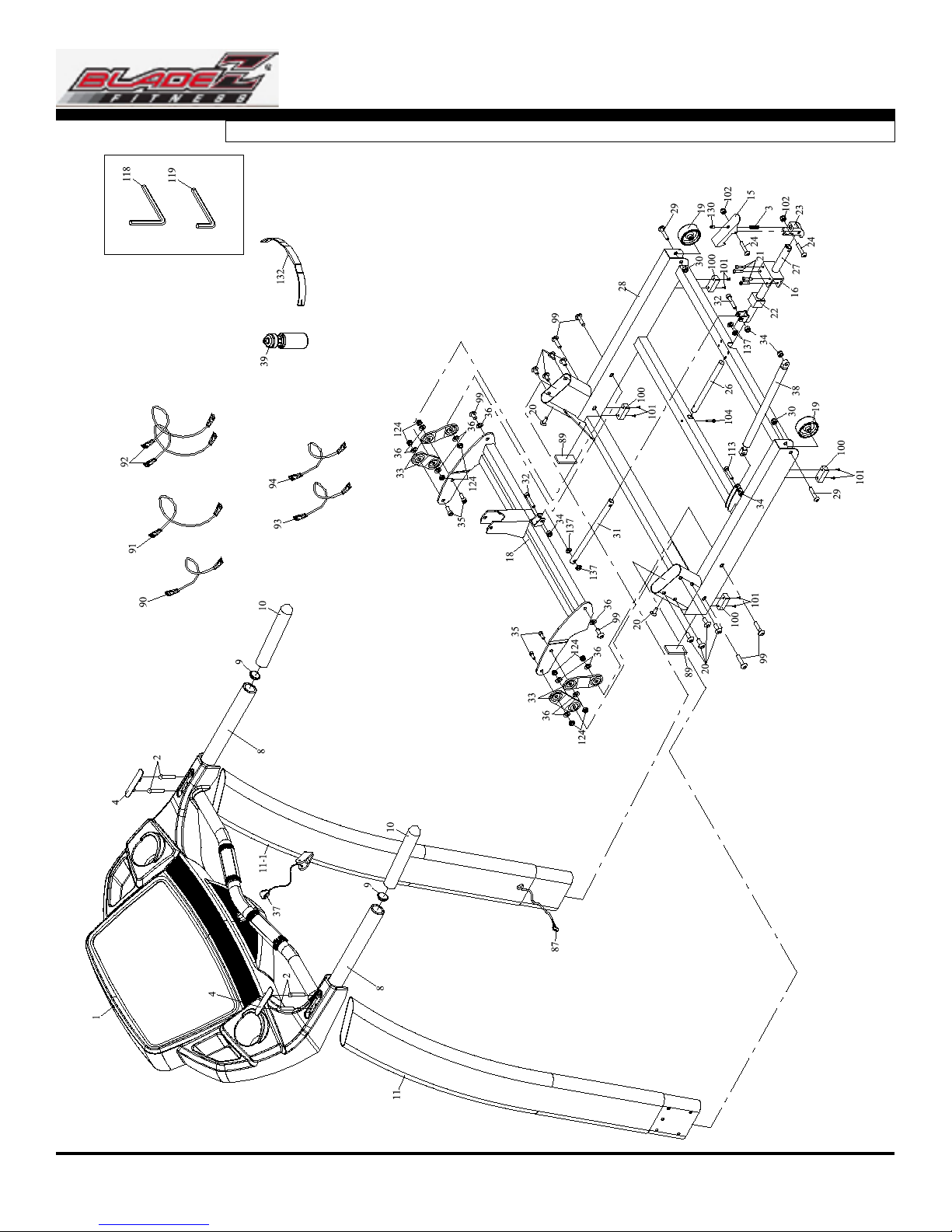

• FIGURE 2
ITEM # PART # DESCRIPTION TOTAL QTY
1-1 T2P001 Computer Console 1
1-2 T2P002 Bolt K-299 4
1-3 T2P003 Spring 1
1-4 T2P004 Screw Cover 2
1-8 T2P008 Handle Pipe 2
1-9 T2P009 Curved Pipe Cap 2
1-10 T2P010 PVC Foam Tube 2
1-11 T2P011 Upright Pipe (L) 1
1-11-1 T2P011-1 Upright Pipe (R) 1
1-15 T2P015 Deck 1
1-16 T2P016 Folding xture 1
1-18 T2P018 Lifter weld 1
1-19 T2P019 Roller P-320 2
1-20 T2P020 Bolt M8xP1.25x15 10
1-21 T2P021 Bolt M6xP1.0x45 4
1-22 T2P022 Washer 1
1-23 T2P023 Rail 1
1-24 T2P024 Bolt M5xP0.8x40 2
1-26 T2P026 Bushing axle 1
1-27 T2P027 Bushing 1
1-28 T2P028 Base weld 1
1-29 T2P029 Bolt K-288 4
1-30 T2P030 Nut M10xP1.5 4
1-31 T2P031 Positioning axle 1
1-32 T2P032 Bolt K-416 2
1-33 T2P033 Incline connecting bracket 4
1-34 T2P034 Nut M8xP1.25 12
1-35 T2P035 Bolt K-432 4
1-36 T2P036 Washer K-431 10
1-37 T2P037 Safety Key 1
1-38 T2P038 Cylinder 1
1-39 T2P039 Bottle 1
1-87 T2P087 Controller Cable (Lower) 1
1-89 T2P089 Flat Pipe Cap 2
1-90 T2P090 Cable (yellow, green) 14AWGx130mmx1T1R 1
1-91 T2P091 Cable (white) 14AWGx90mmx2T 1
1-92 T2P092 Cable (black) 14AWGx90mmx2T 2
1-93 T2P093 Cable (white) 14AWGx170mmx2T 1
1-94 T2P094 Cable (black) 14AWGx170mmx2T 1
1-99 T2P099 Bolt K-430 6
1-100 T2P100 Pad 4
1-101 T2P101 Bolt 4x20 8
1-102 T2P102 Nut M5xP0.8 2
BLADEZ T2 PRO
TREADMILL
PARTS INFORMATION
www.ebladez.com Email:fi[email protected]
Page 3

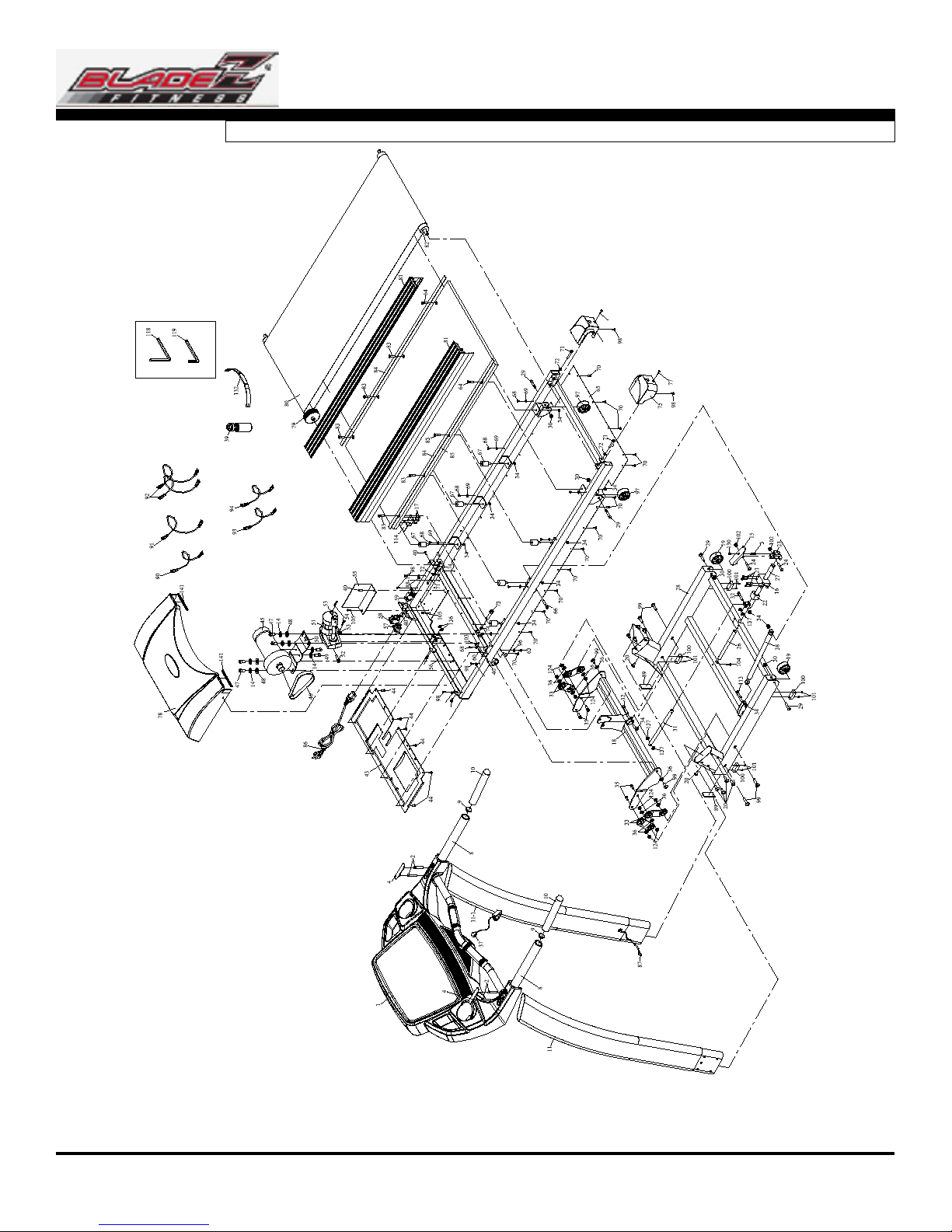

• FIGURE 3
ITEM # PART # DESCRIPTION TOTAL QTY
1-104 T2P104 Bolt M6xP1.0x25 1
1-113 T2P113 Bolt K-436 1
1-118 T2P118 Wrench 6mm（80mmx80mm（ 1
1-119 T2P119 Wrench 5mm 1
1-124 T2P124 Nut M10xP1.5x8t 10
1-130 T2P130 Bolt M6xP1.0x8 1
1-132 T2P132 Chest Belt 1
1-137 T2P137 Plastic Pad 4
BLADEZ T2 PRO
TREADMILL
PARTS INFORMATION
www.ebladez.com Email:fi[email protected]
Page 4

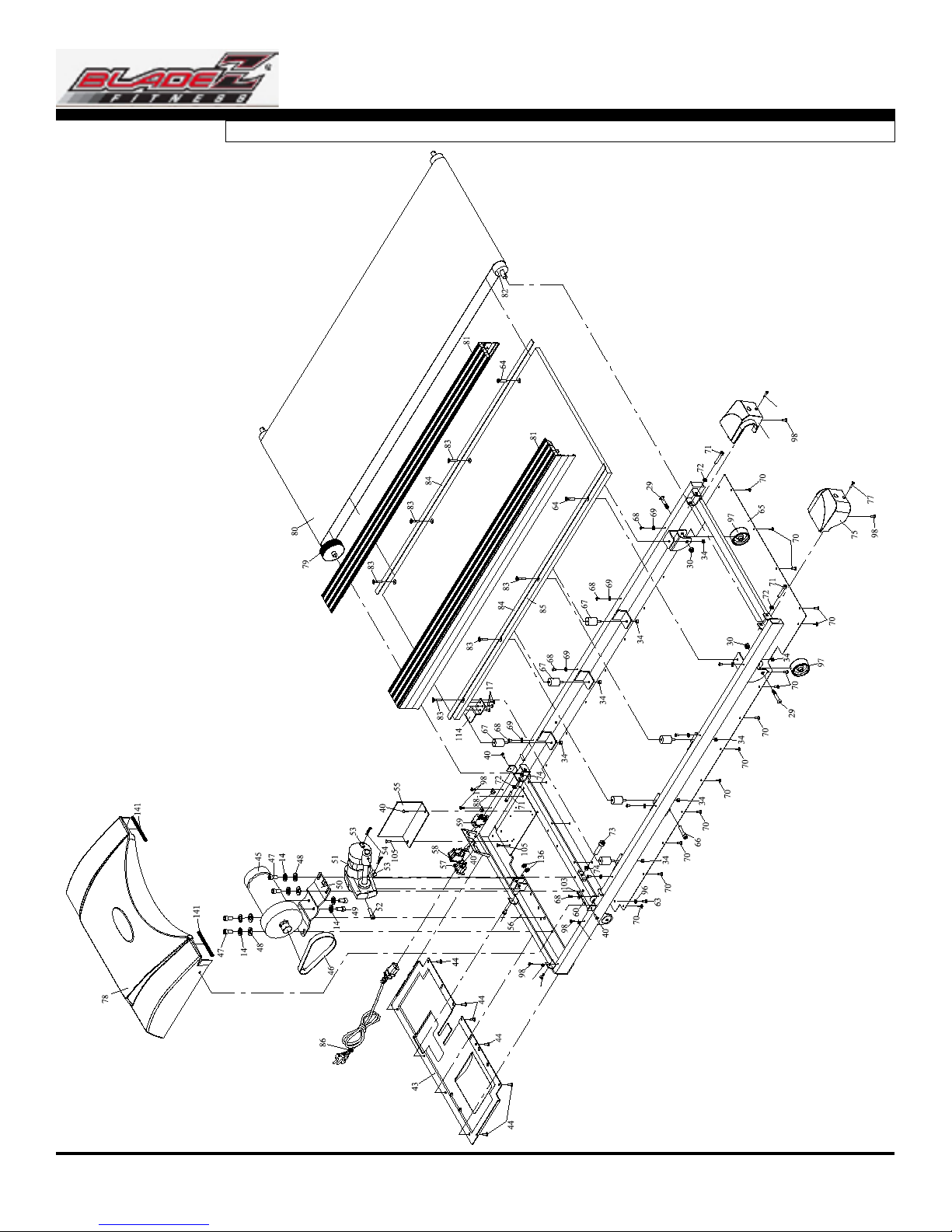

•FIGURE 4
88
40
88
76
77
40
BLADEZ T2 PRO
TREADMILL
PARTS INFORMATION
www.ebladez.com Email:fi[email protected]
Page 5
• FIGURE 5
ITEM # PART # DESCRIPTION TOTAL QTY
2-14 T2P014 Spring Washer M8 6
2-17 T2P017 Bolt 4x16 8
2-29 T2P029 Bolt K-288 4
2-30 T2P030 Nut M10xP1.5 4
2-34 T2P034 Nut M8xP1.25 12
2-40 T2P040 Bolt M5xP0.8x10 6
2-43 T2P043 Motor Cover (lower) 1
2-44 T2P044 Bolt M6xP1.0x10 9
2-45 T2P045 Motor 1
2-46 T2P046 Ribbed Belt 1
2-47 T2P047 Bolt M8xP1.25x20 4
2-48 T2P048 Washer 8x19x3.0t 4
2-49 T2P049 Bolt M8xP1.25x15 2
2-50 T2P050 Motor Mounting Board 1
2-51 T2P051 Incline Motor 1
2-52 T2P052 Bolt K-439 1
2-53 T2P053 U-Shaped Pin 2
2-54 T2P054 R pin 10x2.0 2
2-55 T2P055 Controller 1
2-56 T2P056 Frame 1
2-57 T2P057 Power Socket 1
2-58 T2P058 Power Switch 1
2-59 T2P059 Circuit Breaker 1
2-60 T2P060 Sensor (round) 1
2-63 T2P063 Bolt M6xP1.0x8 4
2-64 T2P064 Bolt M8xP1.25x35 2
2-65 T2P065 Base cover 1
2-66 T2P066 Bolt K-413 1
2-67 T2P067 Rubber absorber 6
2-68 T2P068 Bolt M4xP0.7x10 9
2-69 T2P069 Plastic deck xture 8
2-70 T2P070 Bolt 4x12 23
2-71 T2P071 Bolt M8xP1.25x55 3
2-72 T2P072 Washer 8x12x1.5t 3
2-73 T2P073 Bolt M8xP1.25x45 1
2-74 T2P074 Nut M8xP1.25 2
2-75 T2P075 Rear Adjustment Box (L) 1
2-76 T2P076 Rear Adjustment Box (R) 1
2-77 T2P077 Bolt M4xP0.7x20 2
2-78 T2P078 Upper Cover 1
2-79 T2P079 Front Roller Set 1
2-80 T2P080 Belt 1
2-81 T2P081 Deck 2
BLADEZ T2 PRO
TREADMILL
PARTS INFORMATION
www.ebladez.com Email:fi[email protected]
Page 6
• FIGURE 6
ITEM # PART # DESCRIPTION TOTAL QTY
2-82 T2P082 Rear Roller Set 1
2-83 T2P083 Bolt M8xP1.25x30 6
2-84 T2P084 Shock-Absorbing Foam 2
2-85 T2P085 Running Board 1
2-86 T2P086 Power Cable 1
2-88 T2P088 Cable Fixity UC-0 2
2-88-1 T2P088-1 Cable Fixity UC-1 2
2-96 T2P096 Washer 6x13x1.0t 4
2-97 T2P097 Roller P-1145 2
2-98 T2P098 Bolt M4xP0.7x16 6
2-103 T2P103 Sensor Fixity 1
2-105 T2P105 Bolt M5xP0.8x8 5
2-114 T2P114 Extension 2
2-136 T2P136 Plastic Washer 2
2-141 T2P141 Sound Insulation Pad 2
BLADEZ T2 PRO
TREADMILL
PARTS INFORMATION
www.ebladez.com Email:fi[email protected]
Page 7
• FIGURE 7
20
40
88
40
88
76
77
