Blaupunkt FL 06 Manuale utente

V1.0

User's Guide

Mobile phone FL 06

EN
2

Contents
Safety .......................................................................................... 5
Product specifications................................................................ 6
Keys and device appearance...................................................... 6
Getting Started ........................................................................... 7
1. Installation........................................................................ 7
2. Charging the battery........................................................ 8
3. Maintaining the battery................................................... 8
Power On/Off.............................................................................. 8
Idle screen options..................................................................... 9
Calling.......................................................................................... 9
1. Make a call........................................................................ 9
2. Receive call....................................................................... 9
3. Emergency calls................................................................ 9
4. Available functions during calls....................................... 9
5. ECT*................................................................................ 10
6. Wi-Fi calling*.................................................................. 11
Messaging.................................................................................11
1. Reading new message ...................................................11

EN
3
2. Writing a new message .................................................12
WhatsApp .................................................................................12
Facebook Lite.......................................................................... 13
Phone...................................................................................... 13
Contacts..................................................................................14
Browser...................................................................................14
Calculator................................................................................ 15
Calendar.................................................................................. 15
Camera.................................................................................... 15
Clock........................................................................................ 15
Email .......................................................................................15
File manager...........................................................................16
FM Radio.................................................................................16
Gallery..................................................................................... 16
Music.......................................................................................16
Settings ...................................................................................17
1. Network & Internet .....................................................17
2. Connected devices.......................................................18

EN
4
3. Battery..........................................................................18
4. Display.......................................................................... 18
5. Sound
 ............................................................................ 18
6. Storage .........................................................................19
7. Security & location.......................................................19
8. System ..........................................................................19
Sound recorder.......................................................................19
Videos ..................................................................................... 19
Declaration of Conformity .....................................................20



1. Safety

Please read the safety instructions carefully, as ignoring it may be

dangerous or illegal.

The owner of the device is responsible for the use of this

appliance.

Explosion hazards and restricted areas

Turn off the device in explosion hazardous areas. Sparks in such

places may lead to an explosion or fire that may result in serious

injury or death. Turn off the devicce at gasoline or gas filling

stations, especially near the fuel pumps. Follow the instructions

strictly in locations such as fuel tanks, chemical plants, and

explosive substances.

Road safety

Observe the local laws and regulations regarding smartphone

usage while driving. If you make a phone call while driving,

observe the following rules: Focus on driving to become aware of

traffic conditions; If the device has a hands-free function, use

handsfree. If the traffic situation requires, stop the car before you

pick up the phone.

Interference

Do not switch on the device, where it is prohibited to use a mobile

phone or to interfere with radio waves.

Qualified service

The product can only be repaired by a qualified person.

Charger, battery and other accessories

Only use a battery, charger and other accessories approved by the

manufacturer. Do not connect incompatible products.

The mains power socket used must be close to the charger/holder

and easily accessible, so that it can be used as an 'on/off' facility.

Hearing protection

To avoid hearing loss, do not listen to music or radio for a long

time at high volume.

Water resistance

The appliance is not waterproof, so keep it dry.

Use environment

The device complies with the recommended emission values for

radio waves when kept at a minimum distance of 1.5 cm from the

ear. When carrying the phone in a case, belt clip or holder, make

sure that it does not contain metal and that the phone is slightly

distracted from the body. When using other accessories, it is not

possible to operate in accordance with radio frequency guidelines.

If you do not use a case and do not hold the phone on your ear,

keep it at least 2.5 cm away from your body, especially during data

transfer.

2. Product specifications

The device handles one Micro SIM cards.

Power Supply Features:

•Input: (AC), 100-240V - 50/60Hz – 0.15A

•Output: (DC), 5V – 0.55A – 2.75W

Battery Type and Voltage: Li-ion battery 3.7V - 1600mAh

Network type:

•GSM 900/1800MHz

•WCDMA 900/2100MHz

•LTE B1/B3/B7/B20

SAR values: 0.768W/Kg (Head) – 1.643W/Kg (Body)

Note: Actual operating conditions depend on local conditions,

network environment, and user habits.

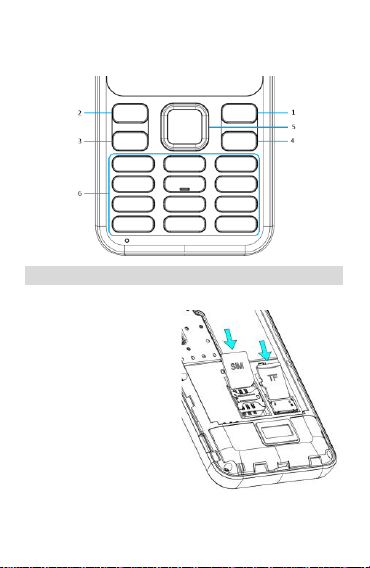

3. Keys and device appearance

1. Right softkey: In Menu mode: to return to the home screen

2. Left softkey: In standby mode: opens the Status/Notification

bar.

3. Call (Dial) button: Dialing and Receiving calls. In Idle mode,

open the Favorites list

4. Call End Button: Press and hold to turn on/off the phone

5. Navigation keys (scroll in the menu): In standby mode: opens

the Menu.

6. Alphanumeric keypad: Press the corresponding keys to enter

numbers when dialing or the characters of the numbers when

writing text.

4. Getting Started

4.1. Installation

1. Open and remove the

phone back protection

cover

2. Insert the SIM into the

device. The golden contacts

on the SIM card face down

and the edges align with the

corresponding edges of the

SIM card.

3. Insert the battery chip

into the protruding metal

point in the battery slot,

insert the battery, and push

the top down until the battery engages in the recess.

4. Put back the back cover.

4.2. Charging the battery

Connect the charger to the appliance and plug the other end into

the socket. If the device is turned on while charging, the battery

icon will move in the right corner of the display. Charging is

completed when the charging indicator on the top right is lit. If

charging is switched off, a charging indicator appears on the

display. When charging is complete, unplug the charger from the

unit.

Note: When the battery voltage is low, awarning message is

displayed on the display. Charge the battery as soon as you can,

to avoid any inconvenience, the device can be switched off during

a telephone conversation. Your device can automatically turn off

when the power level is too low.

4.3. Maintaining the battery

The device has a rechargeable battery. When not using the

charger, disconnect it from the power source. For more than a

week, do not leave the phone charging. Temperature influences

battery capacity. Battery may need to be cooled or warmed up

before charging. If the battery temperature is lower than 0 °C or

higher than 45 °C, do not charge the battery. Use the battery

according to its intended purpose. Do not short-circuit the battery

terminals. Do not use a damaged battery. If you are using an

appliance under extreme temperature conditions, the battery will

not work properly and its life span will be reduced. DO NOT throw

the battery into fire, follow local laws and regulations regarding

the disposal of the spent battery.

5. Power On/Off

1. Press and hold the End / On-Off button to turn the unit on or

off.

2. If you require a PIN code after power on, enter the correct PIN.

If you enter the wrong number, press the „#” key to delete the

number.

3. To turn off the phone, press and hold the power key until a pop-

up message appears, and choose Power off.

6. Idle screen options

When you are in the idle screen, and press the Left softkey, you

can reach a quick menu. Here can be turned on/off the Wi-Fi,

Bluetooth, mobiledata, torch and aeroplane mode. Also in this

menu the incoming notifications can be checked.

7. Calling

7.1. Make a call

When the network service provider name appears on the display,

the phone is ready to make and receive calls.

In Standby mode, press the number keys to enter the number you

want to call, press the right soft key to clear the wrong numbers,

press the Dial key to start the call if the specified number is correct.

To enter an international phone number format, Long press the

[0] key until [+] international call sign appears on the display.

7.2. Receive call

When an incoming call is alerted to your device if your service

provider supports the number display, the display shows the

caller's number or the caller's name (depending on whether you

have saved it in the phone book).

Press the dial key to answer the incoming call.

7.3. Emergency calls

You can immediately make an emergency call without a SIM card.

Different networks can use different emergency numbers, so

please contact your network operator.

7.4. Available functions during calls

Some operations and services are available during an active call.

Many of these depend on network support, please check with

your network service provider for these options. Some functions

can only be used under special conditions.

•

Mute: You can mute your device's microphone when

you need to make a conversation while

you are on the

call so that someone on the other side of the line does

not hear it.

•

Speaker: turning on/off the handsfree mode.

•

Keypad: you can use it, where DTMF (

Dual-tone multi-

frequency signalling)

using is needed.

•Hold Hold an active call or keep it from hold.

•Add call: You can manually enter a phone number to call

it.

•Start recording: making record about the call. If you want

to finish it, please press the Stop recording option.

•Swap: * You can exchange the held and active calls.

•Merge: * Combine calls to a conference call.

•Transfer: * Transfer the call to another number.

•Hangup all: finishing all calls

•Hangup holding: finishing the held call

•Merge*: make a conference call from separate calls

•Manage*: manage the members of the conference call

(separate calls or hang up the selected call)

7.5. ECT*

The Explicit Communication Transfer (ECT) service enables a user

to transfer an ongoing call to a third party so that the other two

parties can communicate with each other.

1. You can transfer a single call by choosing the

Transfer option. After it you can add the number

from the phonebook or input manually. Please

note, it just works when the number is given in

national format. Finally choose the Transfer option.

2. If you have two separate calls at the same time,

(one active and one held), you can transfer them

Indice

Altri manuali Blaupunkt Telefono cellulare

Blaupunkt

Blaupunkt FM 02 Manuale utente

Blaupunkt

Blaupunkt FS 01 Manuale utente

Blaupunkt

Blaupunkt FM 01 Slider Manuale di istruzioni

Blaupunkt

Blaupunkt SL 04 Manuale di istruzioni

Blaupunkt

Blaupunkt SF04 Manuale utente

Blaupunkt

Blaupunkt SF 01 Manuale di istruzioni

Blaupunkt

Blaupunkt SL 01 Manuale utente

Blaupunkt

Blaupunkt SL 01 Manuale di istruzioni

Blaupunkt

Blaupunkt SL plus02 Manuale utente

Blaupunkt

Blaupunkt BS 06 Manuale utente

Blaupunkt

Blaupunkt FM 03 Manuale di istruzioni

Blaupunkt

Blaupunkt TX60 Manuale di istruzioni

Blaupunkt

Blaupunkt FL 04 Manuale di istruzioni

Blaupunkt

Blaupunkt FM03i Manuale utente

Blaupunkt

Blaupunkt SL 04 Manuale utente

Blaupunkt

Blaupunkt SAND Manuale di istruzioni

Blaupunkt

Blaupunkt FS 04 Manuale utente

Blaupunkt

Blaupunkt SL 02 Manuale utente

Blaupunkt

Blaupunkt FL 02 Manuale di istruzioni

Blaupunkt

Blaupunkt BS 02 Manuale di istruzioni

Blaupunkt

Blaupunkt SM 05 Manuale utente

Blaupunkt

Blaupunkt FS 03 Manuale di istruzioni

Blaupunkt

Blaupunkt BP Car Phone 3.0 C Manuale utente

Blaupunkt

Blaupunkt V24 Manuale utente

Manuali Telefono cellulare popolari di altre marche

Zte

Zte BLADE A520 Manuale utente

Nokia

Nokia Lumia 620 Manuale utente

Blackbe;rry

Blackbe;rry KEYone Manuale utente

Bea-fon

Bea-fon X5 Premium Manuale utente

Blackbe;rry

Blackbe;rry 8707 Series Manuale utente

Blackbe;rry

Blackbe;rry Storm Istruzioni operative

LG LM-X420QN Manuale utente

LifeWatch

LifeWatch V Manuale utente

Bea-fon

Bea-fon SILVER LINE SL860 Manuale utente

IKI Mobile

IKI Mobile KF4.5i Manuale utente

Hitech

Hitech HT-850 Manuale utente

Yezz

Yezz Fashion F10 Manuale utente

Point Mobile

Point Mobile PM60 Manuale utente

Blackbe;rry

Blackbe;rry Q10 Manuale utente

Blackbe;rry

Blackbe;rry Bold 9900 Manuale utente

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuale utente

LG LM-K420EMW Manuale utente

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuale utente
