Blizzard Lighting KAYO.MORPH Manuale utente

Blizzard Lighting, LLC

www.blizzardlighting.com

Waukesha, WI USA

Page 2

TABLE OF CONTENTS

Kryo.Morph™ Moving Head 1

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of The Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4

2. Meet The Kryo.Morph™ 5

Main Features 5

Additional Features 5

DMX Quick Reference 5

The Kryo.Morph™ Pin-up Picture 6

3. Setup 7

Fuse Replacement 7

Connecting A Bunch Of Kryo.Morph™s 7

Data/DMX Cables 7

Cable Connectors 8

3-Pin??? 5-Pin??? Huh? 8

Take It To The Next Level: Setting up DMX Control 8

Fixture Linking (Master/Slave Mode) 9

Mounting/Rigging 9

Mounting Points 10

Clamp Mounting 11

Changing The Lamp 12

Lamp Adjustment 13

4. Operating Adjustments 14

The Control Panel 14

Control Panel Menu Structure 15

DMX Channel Values In-Depth 17

Gobo Replacement 23

Troubleshooting 23

5. Appendix 24

A Quick DMX Lesson 24

Keeping Your Kryo.Morph™ As Good As New 25

Returns (Gasp!) 25

Shipping Issues 25

Tech Specs 26

Dimensional Drawings 27

Page 3

1. GETTING STARTED

What’s In The Box?

• 1 x Kryo.Morph™ 10R Beam/Wash/Spot

• A sweet set of mounting brackets

• A groovy power cord

• This lovely user manual

Getting It Out Of The Box

Congratulations on purchasing the Kryo.Morph™, the most far-out moving head in the

galaxy with mind-blowing 3-in-1 beam/spot/wash capabilities! Now that you’ve got your

Kryo.Morph™ (or hopefully, Morphs!) you should carefully unpack the box and check the

contents to ensure that all parts are present and in good condition. If anything looks as if it

has been damaged in transit, notify the shipper immediately and keep the packing material

for inspection. Again, please save the carton and all packing materials. If a xture must

be returned to the factory, it is important that the xture be returned in the original factory

box and packing.

Powering Up!

All xtures must be powered directly off a switched circuit and cannot be run off a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the

xture you receive is suitable for your local power supply. See the label on the xture or

refer to the xture’s specications chart for more information. A xture’s listed current

rating is its average current draw under normal conditions. Check the xture or device

carefully to make sure that if a voltage selection switch exists that it is set to the correct

line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied does

not match the voltage indicated on the voltage selector switch. All xtures must

be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something is wrong, please just visit our website at www.blizzardlighting.com/

support and open a support ticket. We’ll be happy to help, honest.

Blizzard Lighting

N24 W23750 Watertown Rd Suite B

Waukesha, WI 53188 USA

www.blizzardlighting.com

414-395-8365

Disclaimer: The information and specications contained in this document are subject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any

errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the

right to update the existing document or to create a new document to correct any errors

or omissions at any time. You can download the latest version of this document from www.

blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 1/31/2016 J. Thomas 2/8/2016

Page 4

SAFETY INSTRUCTIONS

• This xture falls under protection class I, this xture must be earthed!

• This product is intended for indoor use only.

• Make sure that you are connecting to the proper voltage, and that the line voltage you are

connecting to is not higher than that stated on the decal or rear panel of the xture.

• Avoid direct eye exposure to the light source while it is on.

• To prevent risk of re or shock, do not expose xture to rain or moisture.

• The minimum distance between light output and the illuminated surface must be more

than 10 meters (32.8 FT).

• Do not touch the device’s housing bare hands during its operation (housing becomes hot).

Allow the xture to cool approximately 20 minutes.

• If the xture has been exposed to drastic temperature uctuation (e.g. after transporta-

tion), do not switch it on immediately. The arising condensation water might damage your

device. Leave the device switched off until it has reached room temperature.

• During the initial start-up some smoke or smell may arise. This is a normal process and

does not necessarily mean that the device is defective.

• The lamp has to be replaced when it is damaged or deformed due to the heat. Fast on-off-

cycles (e.g. 10 min. on/10 min. off) will reduce lamp life.

• Always disconnect the xture from AC power before cleaning, removing or installing the

fuses, or any part.

• For replacement use lamps and fuses of same type and rating only.

• Make sure there are no ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least 20in (50cm)

from adjacent surfaces. Be sure that no ventilation slots are blocked.

• ALWAYS secure xture using a safety chain. Use its carrying handles while transporting.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately. NEVER try

to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

Caution! There are no user serviceable parts inside the unit. Do not open the

housing or attempt any repairs yourself. In the unlikely event your unit may

require service, please contact us at www.blizzardlighting.com/support.

Page 5

2. MEET THE KRYO.MORPH™ MOVING HEAD

MAIN FEATURES

• 280W Beam/Wash/Spot 3-in-1 Moving Head

• HRI 280W discharge lamp light source

• Smooth dimmer from 0 - 100%

• Control channels: 13/16/24-channel

• Pan: 540°/tilt: 270°, 8/16-bit

• Color wheel: 13 dichroic lters + white

• Rotating gobo wheel: 9 indexable and replaceable slot-n-lock glass gobos +open

• Static gobo wheel: 10 metal gobos & 4 beam reducers

• 8-facet circular bidirectional prism with speed control

• 6-facet linear bidirectional prism with speed control

• Frost effect: separate, variable

• Strobe effect with variable speed (up to 15 ashes/sec.)

• 8/16-bit motorized zoom and focus

• LCD touch screen + 4-button control menu

• Pan/tilt-lock mechanism

ADDITIONAL FEATURES

• Protocol: USITT DMX-512

• DMX Channels: 13/16/24-channel

• Operating modes: standalone, master/slave, auto, sound active

• Dual quarter-turn “OMEGA” clamp brackets

• PowerCon™ compatible in power connector

• Internal fan cooling system

DMX QUICK REFERENCE - 13/16/24-CHANNEL MODES

Channel Defe 13-channel Small 16-channel Standard 24-channel

1 Color Wheel Pan Pan

2 Shutter/Strobe Tilt Fine Pan

3 Dimmer Pan/Tilt Speed Tilt

4 Gobo 1 (Fixed) Macro Function Fine Tilt

5 Prism Color Wheel Pan/Tilt Speed

6 Prism Rotation Reserved Macro Function

7 Gobo 2 (Rotating) Gobo 1 (Fixed) Color Wheel

8 Frost Gobo 2 (Rotating) Reserved

9 Focus Gobo Rotation Reserved

10 Pan Prism Gobo 1 (Fixed)

11 Fine Pan Prism Rotation Gobo 2 (Rotating)

12 Tilt Frost Gobo Rotation

13 Fine Tilt Zoom Reserved

14 -- Focus Prism

15 -- Shutter/Strobe Prism Rotation

16 -- Dimmer Frost

17 -- -- Zoom

18 -- -- Fine Zoom

19 -- -- Focus

20 -- -- Fine Focus

21 -- -- Reserved

22 -- -- Shutter/Strobe

23 -- -- Dimmer

24 -- -- Reserved

Page 6

Figure 1: The Kryo.Morph™ Pin-Up Picture

HRI 280W

Discharge

Lamp

Control

Buttons

Touchscreen LCD Display

Figure 2: The Rear Connections

Head/Arms

Carry

Handle

Power

Switch

Fuse Holder

5-Pin

DMX

Out

3-Pin

DMX

Out

5-Pin

DMX

3-Pin

DMX

Power

Input

Pan

Lock

Tilt

Lock

*The pan and tilt

lock latches should

be in their locked

positions during

transportation.

Move these

latches to their

unlocked positions

before operating

the xture.

Page 7

3. SETUP

Fuse Replacement

With a phillips head screwdriver, unscrew the fuse holder out of its

housing. Remove the damaged fuse from its holder and replace with

exact same type of fuse. Reattach the fuse holder, and then reconnect

power.

Connecting A Bunch of Kryo.Morph™ Fixtures

You will need a serial data link to run light shows using a DMX-512

controller or to run shows on two or more xtures set to sync in mas-

ter/slave operating mode. The combined number of channels required

by all the xtures on a serial data link determines the number of x-

tures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also, connecting more than 32 xtures on one serial data link without

the use of a DMX optically-isolated splitter may result in deterioration

of the digital DMX signal. The maximum recommended cable-run dis-

tance is 500 meters (1640 ft). The maximum recommended number of

xtures on a serial data link is 32 xtures.

Data/DMX Cabling

To link xtures together you’ll need data cables. You should use data-

grade cables that can carry a high quality signal and are less prone to

electromagnetic interference.

For instance, Belden© 9841 meets the specications for EIA RS-485

applications. Standard microphone cables will “probably” be OK, but

note that they cannot transmit DMX data as reliably over long distanc-

es. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft.

Maximum capacitance between conductor & shield – 55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100 – 140 ohms

Page 8

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR

connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the x-

ture’s chassis ground. Grounding the common can cause a ground

loop, and your xture may perform erratically. Test cables with an

ohm meter to verify correct polarity and to make sure the pins are not

grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3-pin adapter.

They are widely available over the internet and from specialty retailers If you’d like to build your own, the

chart below details a proper cable conversion:

Conductor 3-Pin Female

(Output)

5-Pin Male

(Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMX Data (+) Pin 3 Pin 3

Not Used. No Connection. No Connection.

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the

DMX cable to the female connector (output)

on the controller.

Step 2: Connect the female connector of the

DMX cable to the rst xture’s male connec-

tor (input). Note: It doesn’t matter which

xture address is the rst one connected.

We recommend connecting the xtures in

terms of their proximity to the controller,

rather than connecting the lowest xture

number rst, and so on.

Step 3: Connect other xtures in the chain

from output to input as above. Place a DMX

terminator on the output of the nal xture

to ensure best communication.

Page 9

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3/5-pin connector side of the

DMX cable to the output (female) 3/5-pin connector

of the rst xture.

2. Connect the end of the cable coming from the

rst xture which will have a (female) 3/5-pin con-

nector to the input connector of the next xture

consisting of a (male) 3/5-pin connector. Then, pro-

ceed to connect from the output as stated above to

the input of the following xture and so on.

A quick note: Often,

the setup for Master-

Slave and Standalone

operation requires that

the rst xture in the

chain be initialized for

this purpose via either

settings in the control

panel or DIP-switches.

Secondarily, the xtures

that follow may also re-

quire a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conguration.

Mounting & Rigging

This xture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xture using a suitable “C” or “O” type clamp. The clamp should be

rated to hold at least 10x the xture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting xtures overhead.

Adjust the angle of the xture by loosening both knobs and tilting the

xture. After nding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp

replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

• Never mount in places where the xture will be exposed to rain,

high humidity, extreme temperature changes or restricted ventilation.

Page 10

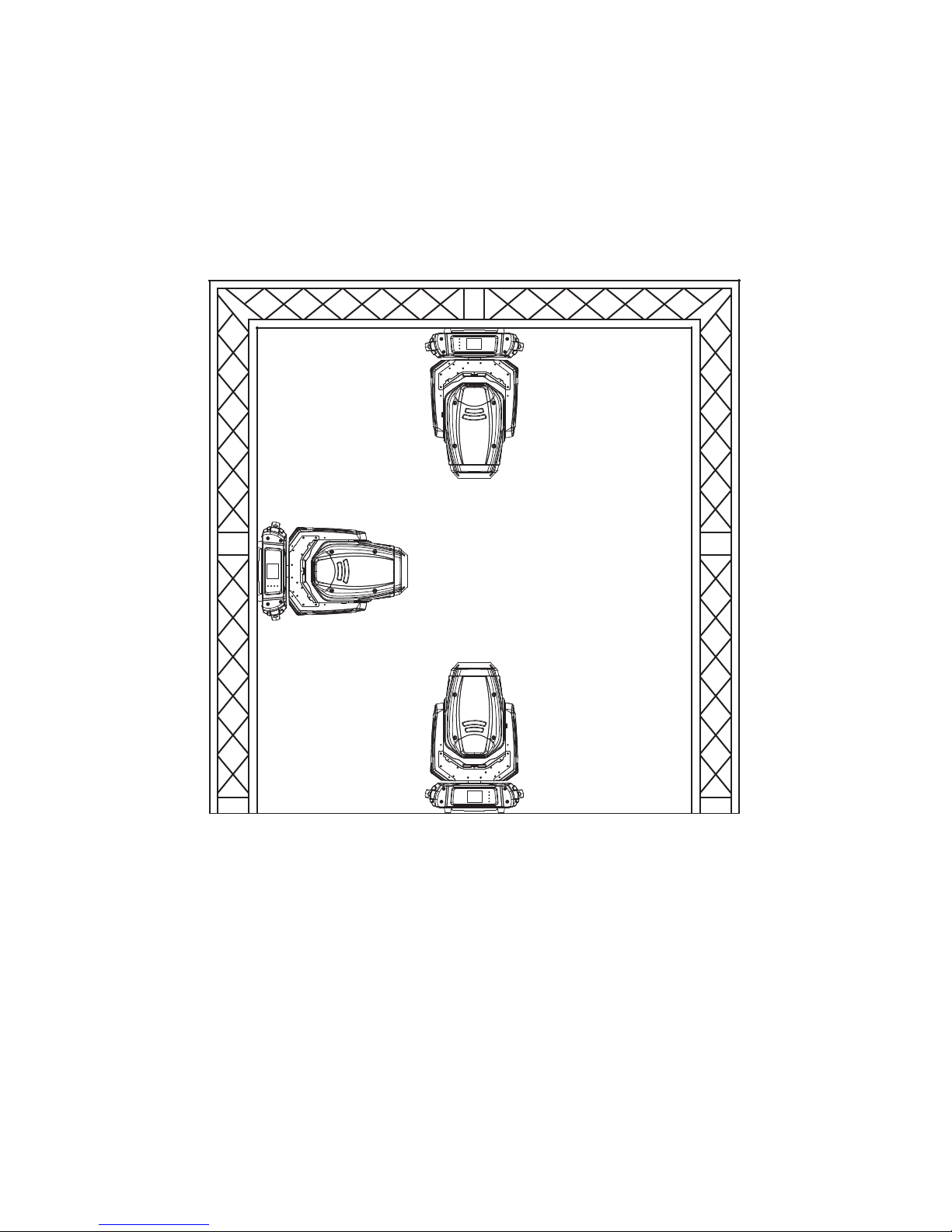

Mounting Points

Overhead mounting requires extensive experience, which includes

calculating working load limits, knowledge of the installation material

being used, and periodic safety inspection of all installation material

and the xture. If you lack these qualications, do not attempt the

installation yourself. Improper installation can result in bodily injury.

Caution!

Please be aware, you should have a qualied electrician performing all

of your electrical connection needs. Better safe than sorry!

Be sure to complete all rigging and installation procedures before

connecting the main power cord to the appropriate wall outlet.

Indice

Altri manuali Blizzard Lighting Attrezzatura di illuminazione

Blizzard Lighting

Blizzard Lighting Flurry EXA Manuale utente

Blizzard Lighting

Blizzard Lighting Pocket Rocket Manuale utente

Blizzard Lighting

Blizzard Lighting Pocket Nebula Manuale utente

Blizzard Lighting

Blizzard Lighting Rocklite RGBAW Manuale utente

Blizzard Lighting

Blizzard Lighting Torrent 90 Beam Manuale utente

Blizzard Lighting

Blizzard Lighting mikrokassette Manuale utente

Blizzard Lighting

Blizzard Lighting COLORSTORM Manuale utente

Blizzard Lighting

Blizzard Lighting Motif Risplendi 150 Manuale utente

Blizzard Lighting

Blizzard Lighting snokontrol Manuale utente

Blizzard Lighting

Blizzard Lighting G-Max 150 Manuale utente

Blizzard Lighting

Blizzard Lighting Stiletto Z7 Manuale utente

Blizzard Lighting

Blizzard Lighting the puck Manuale utente

Blizzard Lighting

Blizzard Lighting ROCKER PANEL RGBAW Manuale utente

Blizzard Lighting

Blizzard Lighting Lo-Pro CSI Manuale utente

Blizzard Lighting

Blizzard Lighting ProPar V12 Manuale utente

Blizzard Lighting

Blizzard Lighting Flurry Spot Manuale utente

Blizzard Lighting

Blizzard Lighting Tournado SKY W-DMX Manuale utente

Blizzard Lighting

Blizzard Lighting ToughStick 5 Manuale utente

Blizzard Lighting

Blizzard Lighting The Puck RGB Unplugged Manuale utente

Blizzard Lighting

Blizzard Lighting Torrent Streak Manuale utente

Blizzard Lighting

Blizzard Lighting Motif Metro Manuale utente

Blizzard Lighting

Blizzard Lighting the puck Manuale utente

Blizzard Lighting

Blizzard Lighting HUSH PAR Infiniwhite 500 Manuale utente

Blizzard Lighting

Blizzard Lighting G-Mix 200 Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
