1. GETTING STARTED

What’s In The Box?

• 1 x Kryo.Mix™ CMY

• An Ever-So-Handy Power Cord

• 1 x Set of Mounting Brackets

• This Lovely User Manual

Getting It Out Of The Box

Congratulations on your purchase of the Kryo.Mix™ CMY! Now that you’ve got your Kryo.

Mix™ CMY (or hopefully more!)

, you should carefully unpack the box and check the con-

tents to ensure that all parts are present and in good condition. If anything looks as if it

has been damaged in transit, notify the shipper immediately and keep the packing mate-

rial for inspection. Again, please save the carton and all packing materials. If a xture

must be returned to the factory, it is important that the xture be returned in the original

factory box and packing.

Powering Up!

All xtures must be powered directly o a switched circuit and cannot be run o a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all xtures have a voltage select switch, so please verify that the

xture you receive is suitable for your local power supply. See the label on the xture or

refer to the xture’s specications chart for more information. A xture’s listed current

rating is its average current draw under normal conditions. Check the xture or device

carefully to make sure that if a voltage selection switch exists that it is set to the correct

line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied does

not match the voltage indicated on the voltage selector switch. All xtures must

be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something is wrong, please just visit our website at www.blizzardlighting.com/

support and open a support ticket. We’ll be happy to help, honest.

Disclaimer: The information and specications contained in this document are subject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any

errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the

right to update the existing document or to create a new document to correct any errors

or omissions at any time. You can download the latest version of this document from www.

blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 10/2/2016 J. Thomas 3/3/2017

Page 4

SAFETY INSTRUCTIONS

• Please keep this User Guide for future use. If you sell the unit to someone

else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that

the line voltage you are connecting to is not higher than that stated on the de-

cal or rear panel of the xture.

• This product is intended for indoor use only.

• To prevent risk of re or shock, do not expose xture to rain or moisture.

• Make sure there are no ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse

and be sure to replace with same fuse size and type.

• ALWAYS secure xture using a safety chain. NEVER carry the xture by its

head. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately.

NEVER try to repair the unit by yourself. Repairs carried out by unskilled people

can lead to damage or malfunction. Please contact the nearest authorized tech-

nical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not

open the housing or attempt any repairs yourself. In the unlikely event

your unit may require service, please open a support ticket at www.

blizzardlighting.com/support.

Page 5

2. MEET THE KRYO.MIX™ CMY

MAIN FEATURES

• 350W Beam/Spot/Wash 3-in-1 Moving Head

• Light Source: YODN R17 350W, 8000K

• CMY Color Mixing and 15 Colors (+White)

• 1.5°- 35° Fast Linear Zoom

• 2* Gobo Wheels w/Bidirectional Rotation + Shake

• Rotating 12/36-Facet Prism

• Electronic Focus

• 1-18/second Strobe

• Pan: 540º/ Tilt: 280º (8-16 Bit Resolution)

• Variable Electronic Dimmer (0 – 100%)

• Color+Gobo+Prism+Strobe Automatic Operation

• 3/5-pin XLR Input/Output

CONTROL:

• Protocol: USITT DMX-512, Art-NET

• DMX Channels: 21/23/28

• 5-button LCD Control Panel Menu

• Operating Modes: Standalone, Master/Slave, Auto

DMX Quick Reference (21/23/28-Channel Modes)

CH. 21-Channel CH. 23-Channel CH. 28-Channel

1 Pan (0-540°) 1 Pan (0-540°) 1 Pan (0-540°)

2 Tilt (0-280°) 2 Fine Pan (16-bit) 2 Fine Pan (16-bit)

3 Pan/Tilt Speed 3 Tilt (0-280°) 3 Tilt (0-280°)

4 Reset + Power Functions 4 Fine Tilt (16-bit) 4 Fine Tilt (16-bit)

5 Cyan (0% <-> 100%) 5 Pan/Tilt Speed 5 Pan/Tilt Speed

6 Magenta (0% <-> 100%) 6 Reset + Power Functions 6 Reset + Power Functions

7 Yellow (0% <-> 100%) 7 Cyan (0% <-> 100%) 7 Cyan (0% <-> 100%)

8 Color Wheel 1 8 Magenta (0% <-> 100%) 8 Magenta (0% <-> 100%)

9 Color Wheel 2 9 Yellow (0% <-> 100%) 9 Yellow (0% <-> 100%)

10 Color Wheel 3 10 Color Wheel 1 10 Color Wheel 1

11 Gobo Rotation Speed 11 Color Wheel 2 11 Color Wheel 2

12 Gobo Wheel 1 12 Color Wheel 3 12 Color Wheel 3

13 Gobo Wheel 2 13 Gobo Rotation Speed 13 Gobo Rotation Speed

14 Gobo Indexing/Rotation 14 Gobo Wheel 1 14 Gobo Wheel 1

15 Prism 15 Gobo Wheel 2 15 Gobo Wheel 2

16 Prism Indexing/Rotation 16 Gobo Indexing/Rotation 16 Gobo Indexing/Rotation

17 Frost 17 Prism 17 Gobo Rotation (ne)

18 Zoom (min to max) 18 Prism Indexing/Rotation 18 Prism

19 Focus (far to near) 19 Frost 19 Prism Indexing/Rotation

20 Strobe 20 Zoom (min to max) 20 Frost

21 Dimmer 21 Focus (far to near) 21 Zoom (min to max)

22 -- 22 Strobe 22 Zoom (ne)

23 -- 23 Dimmer 23 Focus (far to near)

24 -- 24 -- 24 Focus (ne)

25 -- 25 -- 25 Reserved

26 -- 26 -- 26 Strobe

-- -- 27 -- 27 Dimmer

-- -- 28 -- 28 Reserved

Page 6

Figure 1: Kryo.Mix™ CMY Pin-Up Picture

Carry

Handle

Figure 2: The Rear Connections

Power

Input

5-Pin

DMX Out

Power

Switch

Fuse

Holder

3-Pin

DMX Out

5-Pin

DMX In

3-Pin

DMX In

Head/Arms

LCD

Display

YODN R17

350W Light

Source

Control

Buttons

Page 7

3. SETUP

Fuse Replacement

Remove the fuse holder from of its housing. Then take out the dam-

aged fuse from its holder and replace with exact same type of fuse.

Reattach the fuse holder, and then reconnect power.

Connecting A Bunch of Kryo.Mix™ CMY Fixtures

You will need a serial data link to run light shows using a DMX-512

controller or to run shows on two or more xtures set to sync in mas-

ter/slave operating mode. The combined number of channels required

by all the xtures on a serial data link determines the number of x-

tures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also, connecting more than 32 xtures on one serial data link without

the use of a DMX optically-isolated splitter may result in deterioration

of the digital DMX signal. The maximum recommended cable-run dis-

tance is 500 meters (1640 ft). The maximum recommended number

of xtures on a serial data link is 32 xtures.

Data/DMX Cabling

To link xtures together you’ll need data cables. You should use data-

grade cables that can carry a high quality signal and are less prone to

electromagnetic interference.

For instance, Belden© 9841 meets the specications for EIA RS-485

applications. Standard microphone cables will “probably” be OK, but

note that they cannot transmit DMX data as reliably over long distanc-

es. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft.

Maximum capacitance between conductor & shield – 55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100 – 140 ohms

Page 8

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connec-

tor on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the

xture’s chassis ground. Grounding the common can cause a ground

loop, and your xture may perform erratically. Test cables with an

ohm meter to verify correct polarity and to make sure the pins are not

grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5-pin DMX output connector, it’s no problem! you can simply use the in-

stalled 5-pin DMX input and/or output connections found on the back of your xture(s).

Conductor 3-Pin Female (Output) 5-Pin Male (Input)

Ground/Shield Pin 1 Pin 1

Data 1- (Primary Data Link) Pin 2 Pin 2

Data 1+ (Primary Data Link) Pin 3 Pin 3

Data 2- (Optional Secondary Data Link) Pin 4 Pin 4

Data 2+ (Optional Secondary Data Link) Pin 5 Pin 5

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the DMX cable to the female connector (output) on

the controller.

Step 2: Connect the female connector of the

DMX cable to the rst xture’s male connector

(input). Note: It doesn’t matter which

xture address is the rst one connected. We

recommend connecting the xtures in terms

of their proximity to the controller, rather than

connecting the lowest xture number rst, and

so on.

Step 3: Connect other xtures in the chain

from output to input as above. Place a DMX

terminator on the output of the nal xture to

ensure best communication.

Page 9

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3/5-pin connector side of the

DMX cable to the output (female) 3/5-pin connector

of the rst xture.

2. Connect the end of the cable coming from the

rst xture which will have a (female) 3/5-pin

connector to the input connector of the next xture

consisting of a (male) 3/5-pin connector. Then,

proceed to connect from the output as stated above

to the input of the following xture and so on.

A quick note: Often,

the setup for Master-

Slave and Standalone

operation requires that

the rst xture in the

chain be initialized for

this purpose via either

settings in the control

panel or DIP-switches.

Secondarily, the xtures

that follow may also

require a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conguration.

Mounting & Rigging

This xture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xture using a suitable “C” or “O” type clamp. The clamp should be

rated to hold at least 10x the xture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting xtures overhead.

Adjust the angle of the xture by loosening both knobs and tilting the

xture. After nding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp

replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

• Never mount in places where the xture will be exposed to rain,

high humidity, extreme temperature changes or restricted ventilation.

Page 10

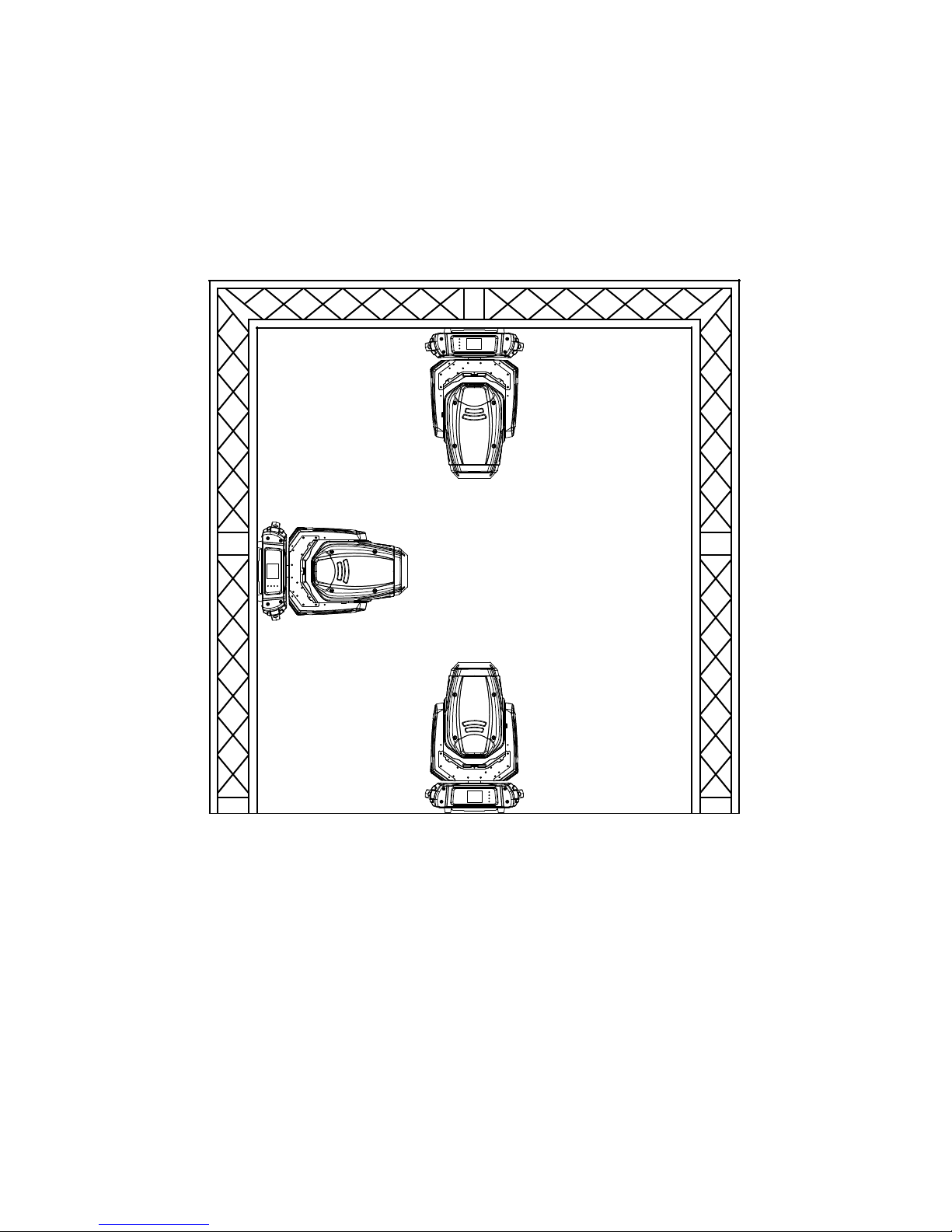

Mounting Points

Overhead mounting requires extensive experience, which includes

calculating working load limits, knowledge of the installation material

being used, and periodic safety inspection of all installation material

and the xture. If you lack these qualications, do not attempt the

installation yourself. Improper installation can result in bodily injury.

Caution!

Please be aware, you should have a qualied electrician performing all

of your electrical connection needs. Better safe than sorry!

Be sure to complete all rigging and installation procedures before

connecting the main power cord to the appropriate wall outlet.

Indice

Altri manuali Blizzard Lighting Attrezzatura di illuminazione

Blizzard Lighting

Blizzard Lighting Kontrol 5 Manuale utente

Blizzard Lighting

Blizzard Lighting Motif Sketch Manuale utente

Blizzard Lighting

Blizzard Lighting Northstar Spec-Z Manuale utente

Blizzard Lighting

Blizzard Lighting COLORSTORM Manuale utente

Blizzard Lighting

Blizzard Lighting SkyBox EXA Manuale utente

Blizzard Lighting

Blizzard Lighting The Puck 3NX Manuale utente

Blizzard Lighting

Blizzard Lighting the puck pro zoom Manuale utente

Blizzard Lighting

Blizzard Lighting infinipix cyclone Manuale utente

Blizzard Lighting

Blizzard Lighting PixelStorm COB Mini Manuale utente

Blizzard Lighting

Blizzard Lighting Mezmerizor 4FX Manuale utente

Blizzard Lighting

Blizzard Lighting Flurry EXA Manuale utente

Blizzard Lighting

Blizzard Lighting Tournado SKY W-DMX Manuale utente

Blizzard Lighting

Blizzard Lighting Motif Risplendi 150 Manuale utente

Blizzard Lighting

Blizzard Lighting MAX L Manuale utente

Blizzard Lighting

Blizzard Lighting the puck Manuale utente

Blizzard Lighting

Blizzard Lighting REANIMATOR Manuale utente

Blizzard Lighting

Blizzard Lighting the puck Manuale utente

Blizzard Lighting

Blizzard Lighting mikrokassette Manuale utente

Blizzard Lighting

Blizzard Lighting Torrent Xray Manuale utente

Blizzard Lighting

Blizzard Lighting Flurry Spot Manuale utente

Blizzard Lighting

Blizzard Lighting ToughPar V12 Manuale utente

Blizzard Lighting

Blizzard Lighting Flurry TRI Manuale utente

Blizzard Lighting

Blizzard Lighting THE PUCK RGBA LED PAR Can Manuale utente

Blizzard Lighting

Blizzard Lighting COLORISE Infiniwhite Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
