1. GETTING STARTED

What’s In The Box?

• 1 x Flurry™ TRI

• An Ever-So-Handy Power Cord

• A Sweet DMX Cable

• A Totally Useful Mounting Bracket

• This Lovely User Manual

Getting It Out Of The Box

Congratulations on purchasing one of the niftiest little moving lights

this side of anywhere! Now that you’ve got your Flurry (or hopefully,

Flurries), you should carefully unpack the box and check the contents

to ensure that all parts are present and in good condition. If anything

looks as if it has been damaged in transit, notify the shipper immedi-

ately and keep the packing material for inspection. Again, please save

the carton and all packing materials. If a ﬁxture must be returned to

the factory, it is important that the ﬁxture be returned in the original

factory box and packing.

Powering Up!

All ﬁxtures must be powered directly off a switched circuit and cannot

be run off a rheostat (variable resistor) or dimmer circuit, even

if the rheostat or dimmer channel is used solely for a 0% to

100% switch.

AC Voltage Switch - Not all ﬁxtures have a voltage select switch, so

please verify that the ﬁxture you receive is suitable for your local pow-

er supply. See the label on the ﬁxture or refer to the ﬁxture’s speciﬁ-

cations chart for more information. A ﬁxture’s listed current rating is

its average current draw under normal conditions. Check the ﬁxture or

device carefully to make sure that if a voltage selection switch exists

that it is set to the correct line voltage you will use.

Warning! Verify that the voltage select switch on your unit

matches the line voltage applied. Damage to your ﬁxture may

result if the line voltage applied does not match the voltage

indicated on the voltage selector switch. All ﬁxtures must be

connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something is wrong, just give us a call or send an email.

We’ll be happy to help, honest.

Blizzard Lighting

PO Box 1874., Brookﬁeld, WI 53008 USA

[email protected] | Phone: 414-395-8365

www.blizzardlighting.com

Page 4

SAFETY INSTRUCTIONS

• Please keep this User Guide for future use. If you sell the unit to someone

else, be sure that they also receive this User Guide.

• ALWAYS make sure that you are connecting to the proper voltage, and that

the line voltage you are connecting to is not higher than that stated on the de-

cal or rear panel of the ﬁxture.

• This product is intended for indoor use only.

• To prevent risk of ﬁre or shock, do not expose ﬁxture to rain or moisture.

• Make sure there are no ﬂammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least

20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are

blocked.

• ALWAYS disconnect from the power source before servicing or replacing fuse

and be sure to replace with same fuse size and type.

• ALWAYS secure ﬁxture using a safety chain. NEVER carry the ﬁxture by its

head. Use its carrying handles.

• DO NOT operate at ambient temperatures higher than 104°F (40°C).

• In the event of a serious operating problem, stop using the unit immediately.

NEVER try to repair the unit by yourself. Repairs carried out by unskilled people

can lead to damage or malfunction. Please contact the nearest authorized tech-

nical assistance center. Always use the same type spare parts.

• NEVER connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not

open the housing or attempt any repairs yourself. In the unlikely event

your unit may require service, please contact Blizzard Lighting at sup-

[email protected].

Page 5

2. MEET THE FLURRY™TRI

CONTROL FEATURES

• 5 or 13-channel DMX-512 LED moving head lumiere

• Pan: 540 degrees / Tilt: 270 degrees

• RGB color mixing

• Variable electronic strobe

• Variable electronic dimmer (0 – 100%)

• Vector speed channel for pan/tilt, RGB color mixing and color macros

• Built-in movement macros via master/slave or DMX

ADDITIONAL FEATURES

• User-selectable basic or advanced operating modes

• User-selectable pan/tilt ranges

Pan: 540°, 360°, 180°

Tilt: 270°, 180°, 90°

• Compact and lightweight (it kept its new year’s resolution!)

• LED display menu with invert

• Reset to factory settings option

• Display auto on/off

• Pan/tilt invert option

• Fan cooled

OPTIONAL CONTROLLERS

• Easy Controller (CA-9)

DMX Quick Reference (13-Channel Mode)

Channel What It Does

1Pan

2 Pan Fine (16-Bit)

3 Tilt

4 Tilt Fine (16-Bit)

5 Pan/Tilt Speed

6 Dimmer & Strobe

7 Red Intesity

8 Green Intensity

9 Blue Intensity

10 Color Macros

11 Color Speed

12 Movement Macros

13 Reserved

Page 6

DMX Quick Reference (5-Channel Mode)

Channel What It Does

1Pan

2 Tilt

3 Dimmer & Strobe

4 Color Macros

5 Reserved

Figure 1: The Flurry Pin-Up Picture

High Power

LED’s

Control Panel

LED

Readout

Head

Figure 2: The Rear Connections

AC Power

Fuse Cover

110V/220V Switch

DMX In DMX Out

Easy Controller (CA-9)

Page 7

3. SETUP

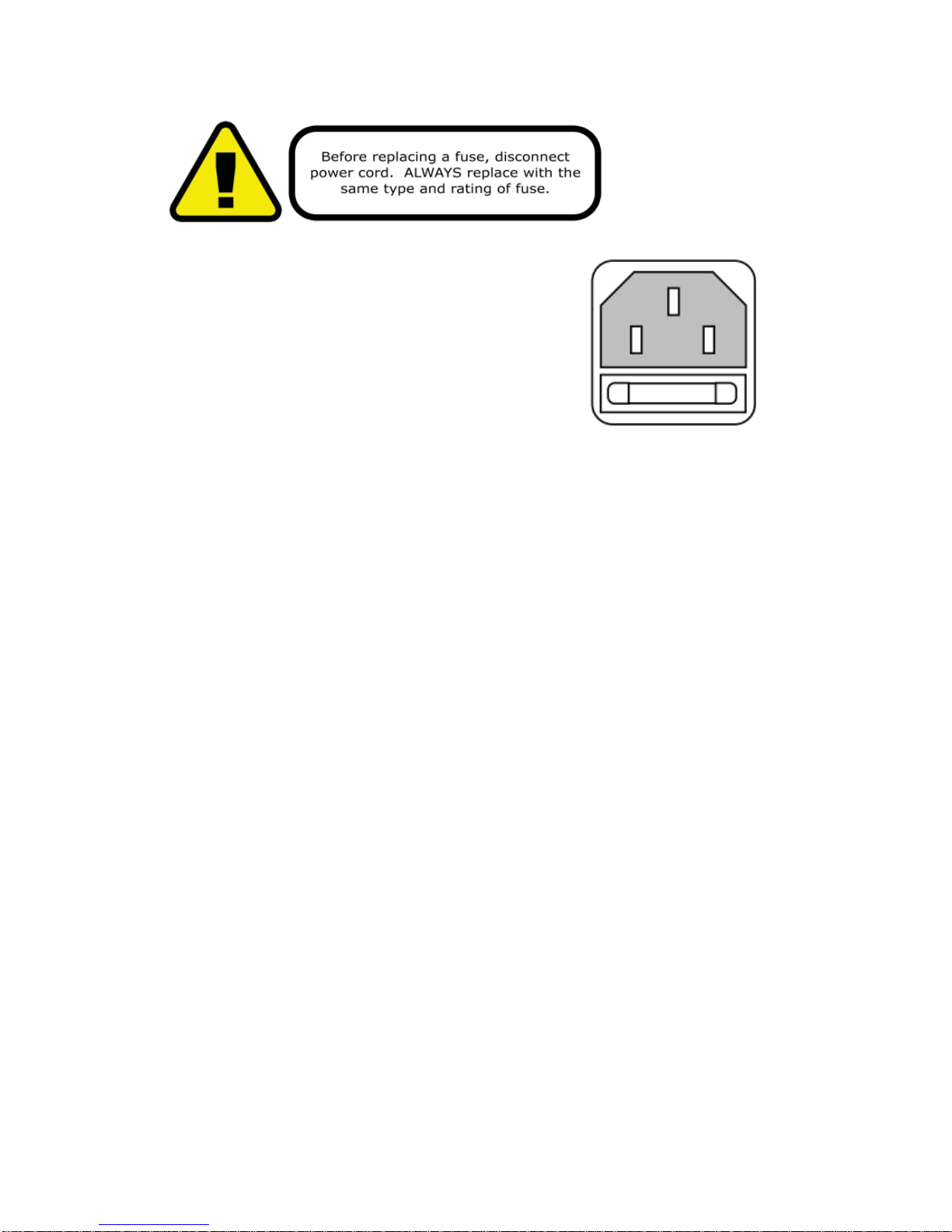

Fuse Replacement

With a ﬂat head screwdriver, wedge the

fuse holder out of its housing. Remove the

damaged fuse from its holder and replace

with exact same type fuse. Insert the fuse

holder back in its place and reconnect

power.

Connecting A Bunch of Flurry™ TRI Lumieres

You will need a serial data link to run light shows using a DMX-512

controller or to run shows on two or more ﬁxtures set to sync in mas-

ter/slave operating mode. The combined number of channels required

by all the ﬁxtures on a serial data link determines the number of ﬁx-

tures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also, connecting more than 32 ﬁxtures on one serial data link without

the use of a DMX optically-isolated splitter may result in deterioration

of the digital DMX signal.

The maximum recommended cable-run distance is 500 meters (1640

ft). The maximum recommended number of ﬁxtures on a serial data

link is 32 ﬁxtures.

Data/DMX Cabling

To link ﬁxtures together you’ll need data cables. You should use data-

grade cables that can carry a high quality signal and are less prone to

electromagnetic interference.

For instance, Belden© 9841 meets the speciﬁcations for EIA RS-485

applications. Standard microphone cables will “probably” be OK, but

note that they cannot transmit DMX data as reliably over long distanc-

es. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft.

Maximum capacitance between conductor & shield – 55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100 – 140 ohms

Page 8

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR

connector on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the ﬁx-

ture’s chassis ground. Grounding the common can cause a ground

loop, and your ﬁxture may perform erratically. Test cables with an

ohm meter to verify correct polarity and to make sure the pins are not

grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.

They are widely available over the internet and from specialty retailers If you’d like to build your own, the

chart below details a proper cable conversion:

Conductor 3-Pin Female

(Output) 5-Pin Male

(Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMX Data (+) Pin 3 Pin 3

Not Used. No Connection. No Connection.

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the

DMX cable to the female connector (output)

on the controller.

Step 2: Connect the female connector of the

DMX cable to the ﬁrst ﬁxture’s male connec-

tor (input). Note: It doesn’t matter which

ﬁxture address is the ﬁrst one connected.

We recommend connecting the ﬁxtures in

terms of their proximity to the controller,

rather than connecting the lowest ﬁxture

number ﬁrst, and so on.

Step 3: Connect other ﬁxtures in the chain

from output to input as above. Place a DMX

terminator on the output of the ﬁnal ﬁxture

to ensure best communication.

Page 9

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3 pin connector side of the

DMX cable to the output (female) 3 pin connector of

the ﬁrst ﬁxture.

2. Connect the end of the cable coming from the

ﬁrst ﬁxture which will have a (female) 3 pin connec-

tor to the input connector of the next ﬁxture con-

sisting of a (male) 3 pin connector. Then, proceed

to connect from the output as stated above to the

input of the following ﬁxture and so on.

A quick note: Often,

the setup for Master-

Slave and Standalone

operation requires that

the ﬁrst ﬁxture in the

chain be initialized for

this purpose via either

settings in the control

panel or DIP-switches.

Secondarily, the ﬁxtures

that follow may also re-

quire a slave setting.

Check the “Operating Adjustments” section in this manual for com-

plete instructions for this type of setup and conﬁguration.

Mounting & Rigging

This ﬁxture may be mounted in any SAFE position provided there is

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

ﬁxture using a suitable “C” or “O” type clamp. The clamp should be

rated to hold at least 10x the ﬁxture’s weight to ensure structural sta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly “rated” rigging is used when mounting ﬁxutres overhead.

Adjust the angle of the ﬁxture by loosening both knobs and tilting the

ﬁxture. After ﬁnding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp

replacement access (if applicable) and routine maintenance.

• Safety cables MUST ALWAYS be used.

• Never mount in places where the ﬁxture will be exposed to rain,

high humidity, extreme temperature changes or restricted ventilation.

Page 10

4. OPERATING ADJUSTMENTS

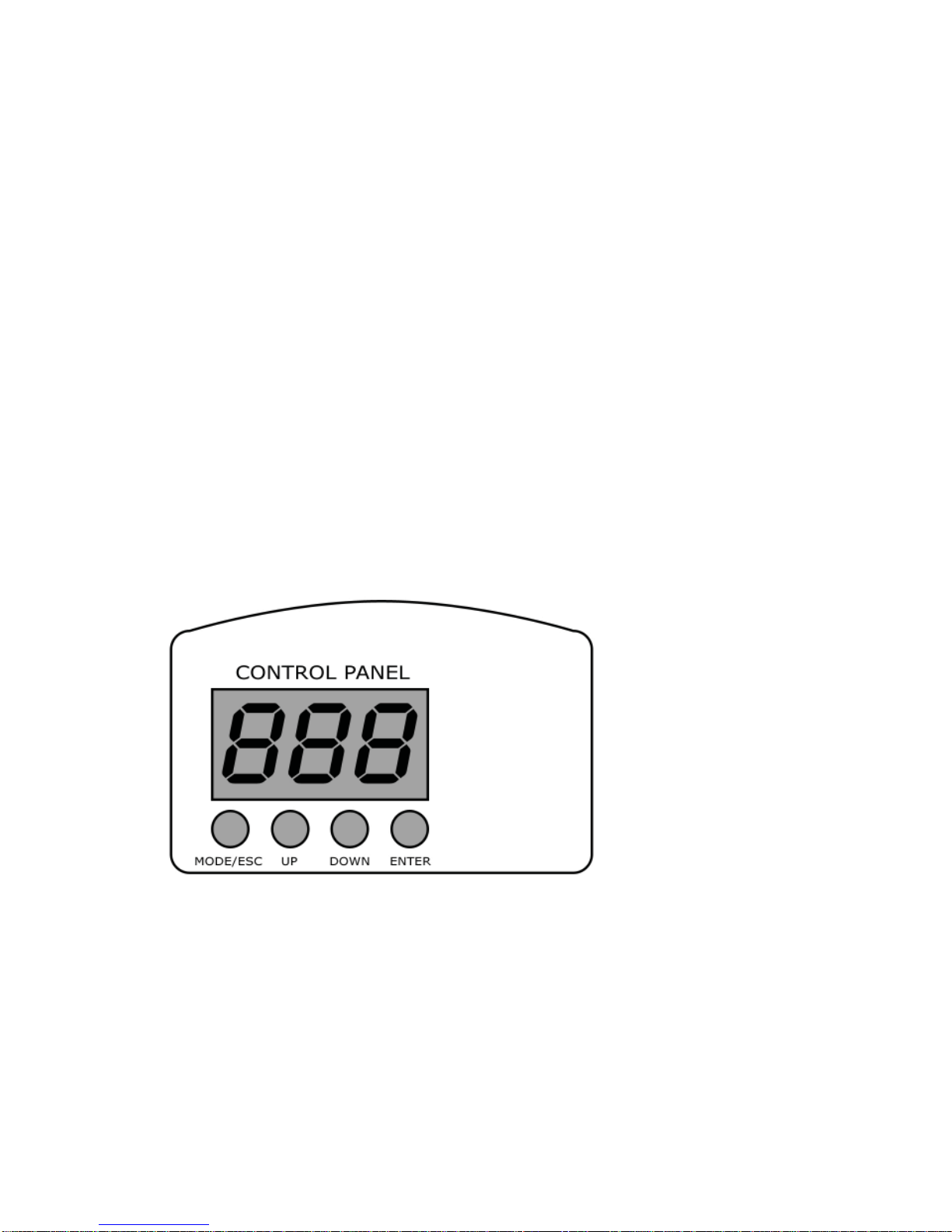

The Control Panel

All the goodies and different modes possible with the Flurry™ TRI are

accessed by using the control panel on the front of the ﬁxture. There

are 4 control buttons below the LED display which allow you to navi-

gate through the various control panel menus.

Is used to initially access the control panel system, and also navigate

to the previous higher-level menu item.

<UP>

Scrolls through menu items and numbers in ascending order.

<DOWN>

Scrolls through menu items and numbers in descending order.

<ENTER>

Is used to select and conﬁrm/store the current selection.

The Control Panel LED Display shows the menu items you select from

the menu map on page #11. When a menu function is selected, the

display will show immediately the ﬁrst available option for the selected

menu function. To select a menu item, press <ENTER>.

Press the <MODE/ESC> button repeatedly until you reach the desired

menu function. Use the <UP> and <DOWN> buttons to navigate the

menu options. Press the <ENTER> button to select the menu function

currently displayed, or to enable a menu option. To return to the previ-

ous option or menu without changing the value, press the

<MODE/ESC> button.

Indice

Altri manuali Blizzard Lighting Attrezzatura di illuminazione

Blizzard Lighting

Blizzard Lighting Pocket Rocket Manuale utente

Blizzard Lighting

Blizzard Lighting the puck Manuale utente

Blizzard Lighting

Blizzard Lighting ToughStick 5 Manuale utente

Blizzard Lighting

Blizzard Lighting Motif Metro Manuale utente

Blizzard Lighting

Blizzard Lighting Lo-Pro Flux Manuale utente

Blizzard Lighting

Blizzard Lighting Mezmerizor 4FX Manuale utente

Blizzard Lighting

Blizzard Lighting KAYO.MORPH Manuale utente

Blizzard Lighting

Blizzard Lighting the puck pro zoom Manuale utente

Blizzard Lighting

Blizzard Lighting ToughPAR Satellight Manuale utente

Blizzard Lighting

Blizzard Lighting SnowBlind Manuale utente

Blizzard Lighting

Blizzard Lighting ROCKER PANEL RGBAW Manuale utente

Blizzard Lighting

Blizzard Lighting Northstar Spec-Z Manuale utente

Blizzard Lighting

Blizzard Lighting Torrent 90 Beam Manuale utente

Blizzard Lighting

Blizzard Lighting The Puck RGB Unplugged Manuale utente

Blizzard Lighting

Blizzard Lighting BladeRunner RGBW Manuale utente

Blizzard Lighting

Blizzard Lighting the puck Manuale utente

Blizzard Lighting

Blizzard Lighting Puck Pro Zoom EXA Manuale utente

Blizzard Lighting

Blizzard Lighting Stiletto Z7 Manuale utente

Blizzard Lighting

Blizzard Lighting ICE 30 Manuale utente

Blizzard Lighting

Blizzard Lighting PixlStik Manuale utente

Blizzard Lighting

Blizzard Lighting mikrokassette Manuale utente

Blizzard Lighting

Blizzard Lighting COLORISE Infiniwhite Manuale utente

Blizzard Lighting

Blizzard Lighting MAX L Manuale utente

Blizzard Lighting

Blizzard Lighting ToughPar V12 Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
