Blizzard Lighting Puck CSI Xtreme Manuale utente

Blizzard Lighting, LLC

www.blizzardlighting.com

Waukesha, WI USA

Page 2

TABLE OF CONTENTS

The Puck CSI™ Xtreme LED PAR Can 1

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of The Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions (Don’t Stick Your Hand In The Toaster!) 4

2. Meet The Puck CSI™ Xtreme LED PAR Can 5

Features 5

DMX Quick Reference 5

The Puck CSI™Xtreme Pin-up Picture 6

3. Setup 7

Fuse Replacement 7

Connecting A Bunch Of Puck CSI™ Xtreme LED PAR Cans 7

Data/DMX Cables 7

Cable Connectors 8

3-Pin??? 5-Pin??? Huh? 8

Take It To The Next Level: Setting up DMX Control 8

Fixture Linking (Master/Slave Mode) 9

Mounting/Rigging 9

 UsingthisxturewiththewiCICLE®WirelessDMXSystem 10

4. Operating Adjustments 12

Control Panel 12

Control Panel Menu Structure 12

DMX Mode 13

Master/Slave Mode 13

Sound Active Mode 13

Fade Mode 13

Jump Mode 13

Set Custom Intensity Levels 13

5. Appendix 14

Keeping The Puck CSI™ Xtreme As Good As New 14

Returns (Gasp!) 14

Shipping Issues 14

Tech Specs 15

Troubleshooting 15

Page 3

1. GETTING STARTED

What’s In The Box?

 •1xPuckCSI™XtremeUVLEDPARFixture

 •1xIECPowerCord

 •ThisLovelyUserManual

Getting It Out Of The Box

Congratulations,aspiringcrimeghterand/orpsychedelicmusicacionado!Nowthat

you’ve got The Puck CSI™ Xtreme (or hopefully, Xtreme’s!), you should carefully unpack

the box and check the contents to ensure that all parts are present and in good condition.

If anything looks as if it has been damaged in transit, notify the shipper immediately and

keep the packing material for inspection. Again, please save the carton and all packing

materials.Ifaxturemustbereturnedtothefactory,itisimportantthatthexturebe

returned in the original factory box and packing.

Powering Up!

Allxturesmustbepowereddirectlyoffaswitchedcircuitandcannot be run off a

rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch.

AC Voltage Switch -Notallxtureshaveavoltageselectswitch,sopleaseverifythatthe

xtureyoureceiveissuitableforyourlocalpowersupply.Seethelabelonthextureor

refertothexture’sspecicationschartformoreinformation.Axture’slistedcurrent

ratingisitsaveragecurrentdrawundernormalconditions.Checkthextureordevice

carefully to make sure that if a voltage selection switch exists that it is set to the correct

line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line

voltage applied. Damage to your xture may result if the line voltage applied does

not match the voltage indicated on the voltage selector switch. All xtures must

be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something is wrong, just give us a call or send an email. We’ll be happy to

help, honest.

Blizzard Lighting

N16 W23390 Stoneridge Dr. Suite E

Waukesha, WI 53188 USA

www.blizzardlighting.com

414-395-8365

Email: [email protected]

Disclaimer:Theinformationandspecicationscontainedinthisdocumentaresubject

to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any

errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the

right to update the existing document or to create a new document to correct any errors

or omissions at any time. You can download the latest version of this document from www.

blizzardlighting.com.

Author: Date: Last Edited: Date:

J. Thomas 6/13/2013 J. Thomas 6/14/2013

Page 4

SAFETY INSTRUCTIONS

•PleasekeepthisUserGuideforfutureuse.Ifyouselltheunittosomeone

else, be sure that they also receive this User Guide.

•ALWAYSmakesurethatyouareconnectingtothepropervoltage,andthat

the line voltage you are connecting to is not higher than that stated on the de-

calorrearpanelofthexture.

•Thisproductisintendedforindooruseonly.

•Topreventriskofreorshock,donotexposexturetorainormoisture.

•Makesuretherearenoammablematerialsclosetotheunitwhileoperating.

•Theunitmustbeinstalledinalocationwithadequateventilation,atleast

20in(50cm)fromadjacentsurfaces.Besurethatnoventilationslotsare

blocked.

•ALWAYSdisconnectfromthepowersourcebeforeservicingorreplacingfuse

and be sure to replace with same fuse size and type.

•ALWAYSsecurextureusingasafetychain.NEVERcarrythexturebyits

cord. Use its carrying handles.

•DONOToperateatambienttemperatureshigherthan104°F(40°C).

•Intheeventofaseriousoperatingproblem,stopusingtheunitimmediately.

NEVERtrytorepairtheunitbyyourself.Repairscarriedoutbyunskilledpeople

can lead to damage or malfunction. Please contact the nearest authorized tech-

nical assistance center. Always use the same type spare parts.

•NEVERconnectthedevicetoadimmerpack.

•Makesurethepowercordisnevercrimpedordamaged.

•Neverdisconnectthepowercordbypullingortuggingonthecord.

•Avoiddirecteyeexposuretothelightsourcewhileitison.

Caution! There are no user serviceable parts inside the unit. Do not

open the housing or attempt any repairs yourself. In the unlikely event

yourunitmayrequireservice,pleasecontactBlizzardLightingatsup-

[email protected].

Page 5

2. MEET THE PUCK CSI™XTREME FLAT PAR CAN

CONTROL FEATURES

•HighoutputUVvia36x3w390-410nmUVLEDs

•FullonUVLEDintensity+4separateLEDpixelpatterns

•Variableelectronicstrobe

•Variableelectronicdimmer

•Built-inautomatedprogramsviaDMXandmaster/slave

•Built-insoundactiveprograms

ADDITIONAL FEATURES

•Lightweightandcompact(ItkeptitsNewYears’resolution!)

•4-ButtonLEDcontrolpanelforeasyprogramming

•Dualbracketforexibilityinmounting

•Poweroutletforxturelinking

DMX Quick Reference (8-Channel Mode)

Channel Channel Value What It Does

1000 <-> 255 Master Dimmer (0% <--> 100%)

2000 <-> 255 Pattern 1 Intensity (0% <--> 100%)

3000 <-> 255 Pattern 2 Intensity (0% <--> 100%)

4000 <-> 255 Pattern 3 Intensity (0% <--> 100%)

5000 <-> 255 Pattern 4 Intensity (0% <--> 100%)

6000 <-> 255 Strobe (slow <--> fast)

7000 <-> 255 Speed (slow <--> fast)

8000 <-> 002

003 <-> 049

050 <-> 100

101 <-> 150

151 <-> 200

201 <-> 250

251 <-> 255

Enable Auto (Ch. 7 controls speed)

Strobe

Auto Color

Fade Mode

Jump Mode

Built-in Programs

Sound Active Mode

DMX Quick Reference (4-Channel Mode)

Channel Channel Value What It Does

1000 <-> 255 Pattern 1 Intensity (0% <--> 100%)

2000 <-> 255 Pattern 2 Intensity (0% <--> 100%)

3000 <-> 255 Pattern 3 Intensity (0% <--> 100%)

4000 <-> 255 Pattern 4 Intensity (0% <--> 100%)

Page 6

Figure 1: The Puck CSI™ Pin-Up Picture

Ridiculously Thin!

Dual Mounting Yokes

Figure 2: The Rear Connections

AC Power In/Out

DMX In DMX Out

LED Control Panel Microphone

36x3-wattUVLEDs

Page 7

3. SETUP

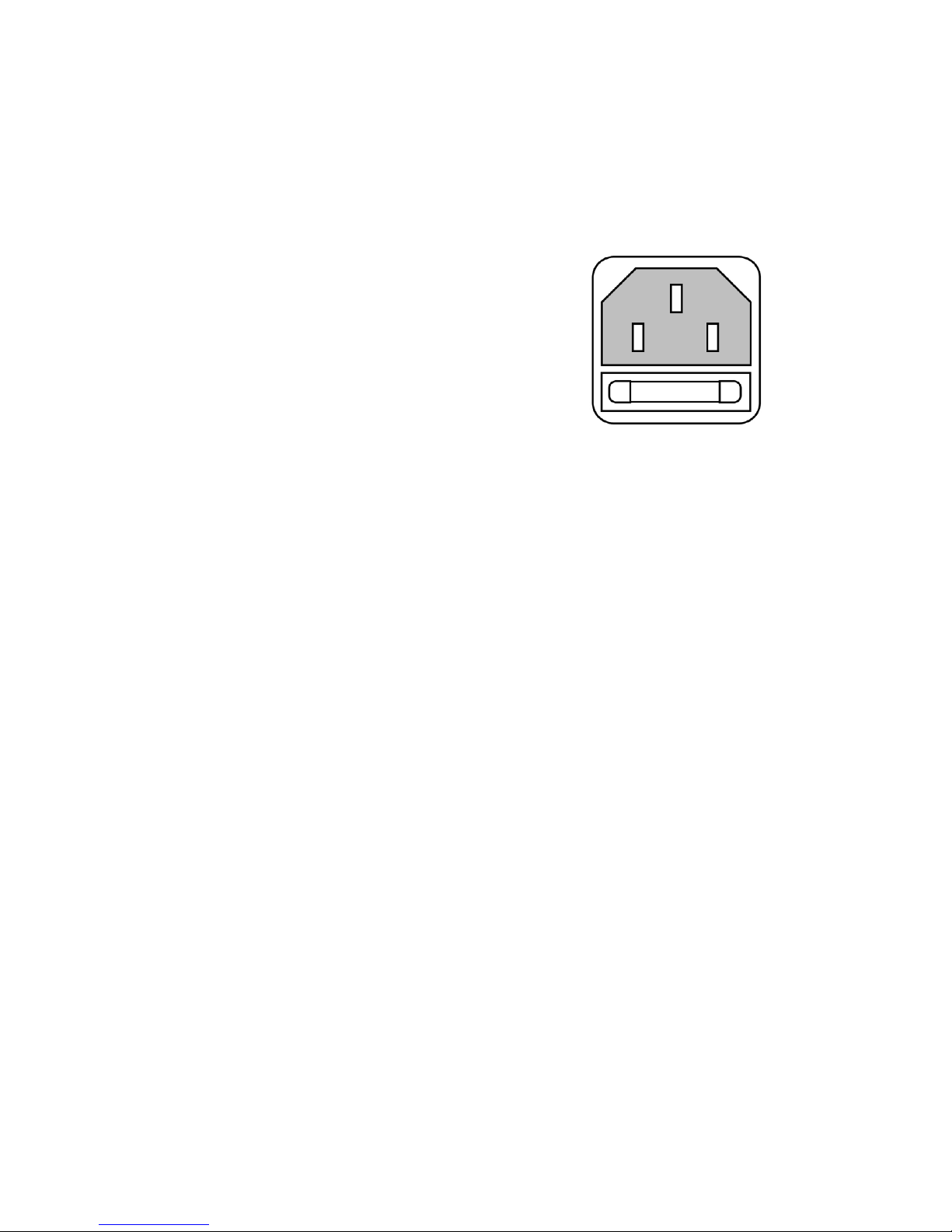

Fuse Replacement

Withaatheadscrewdriver,wedgethe

fuse holder out of its housing. Remove the

damaged fuse from its holder and replace

with exact same type fuse. Insert the fuse

holder back in its place and reconnect

power.

Connecting A Bunch of Puck CSI™ Xtreme Flat LED PAR Cans

You will need a serial data link to run light shows using a DMX-512

controllerortorunshowsontwoormorexturessettosyncinmas-

ter/slaveoperatingmode.Thecombinednumberofchannelsrequired

byallthexturesonaserialdatalinkdeterminesthenumberofx-

tures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line.

Also,connectingmorethan32xturesononeserialdatalinkwithout

the use of a DMX optically-isolated splitter may result in deterioration

of the digital DMX signal.

The maximum recommended cable-run distance is 500 meters (1640

ft).Themaximumrecommendednumberofxturesonaserialdata

linkis32xtures.

Data/DMX Cabling

Tolinkxturestogetheryou’llneeddatacables.Youshouldusedata-

gradecablesthatcancarryahighqualitysignalandarelessproneto

electromagnetic interference.

Forinstance,Belden©9841meetsthespecicationsforEIARS-485

applications. Standard microphone cables will “probably” be OK, but

note that they cannot transmit DMX data as reliably over long distanc-

es. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors – 30 pF/ft.

Maximum capacitance between conductor & shield – 55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100 – 140 ohms

Page 8

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR

connector on the other end. (Duh!)

CAUTION:Donotallowcontactbetweenthecommonandthex-

ture’s chassis ground. Grounding the common can cause a ground

loop,andyourxturemayperformerratically.Testcableswithan

ohm meter to verify correct polarity and to make sure the pins are not

grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.

They are widely available over the internet and from specialty retailers If you’d like to build your own, the

chart below details a proper cable conversion:

Conductor 3-Pin Female

(Output)

5-Pin Male

(Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMXData(+) Pin 3 Pin 3

Not Used. No Connection. No Connection.

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the

DMX cable to the female connector (output)

on the controller.

Step 2: Connect the female connector of the

DMXcabletotherstxture’smaleconnec-

tor (input). Note: It doesn’t matter which

xtureaddressistherstoneconnected.

Werecommendconnectingthexturesin

terms of their proximity to the controller,

ratherthanconnectingthelowestxture

numberrst,andsoon.

Step 3:Connectotherxturesinthechain

from output to input as above. Place a DMX

terminatorontheoutputofthenalxture

to ensure best communication.

Page 9

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3 pin connector side of the

DMX cable to the output (female) 3 pin connector of

therstxture.

2. Connect the end of the cable coming from the

rstxturewhichwillhavea(female)3pinconnec-

tortotheinputconnectorofthenextxturecon-

sisting of a (male) 3 pin connector. Then, proceed

to connect from the output as stated above to the

inputofthefollowingxtureandsoon.

A quick note: Often,

the setup for Master-

Slave and Standalone

operationrequiresthat

therstxtureinthe

chain be initialized for

this purpose via either

settings in the control

panel or DIP-switches.

Secondarily,thextures

that follow may also re-

quireaslavesetting.

Check the “Operating Adjustments” section in this manual for com-

pleteinstructionsforthistypeofsetupandconguration.

Mounting & Rigging

ThisxturemaybemountedinanySAFEpositionprovidedthereis

enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the

xtureusingasuitable“C”or“O”typeclamp.Theclampshouldbe

ratedtoholdatleast10xthexture’sweighttoensurestructuralsta-

bility. Do not mount to surfaces with unknown strength, and ensure

properly“rated”riggingisusedwhenmountingxutresoverhead.

Adjusttheangleofthexturebylooseningbothknobsandtiltingthe

xture.Afterndingthedesiredposition,retightenbothknobs.

•Whenselectinginstallationlocation,takeintoconsiderationlamp

replacement access (if applicable) and routine maintenance.

•SafetycablesMUSTALWAYSbeused.

•Nevermountinplaceswherethexturewillbeexposedtorain,

high humidity, extreme temperature changes or restricted ventilation.

Page 10

USING THIS FIXTURE WITH THE wiCICLE® WIRELESS

DMX SYSTEM

In addition to the unbridled thrill you already re-

ceivedthersttimeyoupluggedinyourxture,

you’llbedelightedtoknowthatThisxturealso

works seamlessly with our wiCICLE®Wireless

DMX system, without additional power.

•ONLYxturesbearingthislogoarecertiedforusewiththewiCICLE®without

external power.

• Unauthorized modication and/or using the wiCICLE®with unap-

proved xtures may cause damage to the wiCICLE® or xture. UNDER

NO CIRCUMSTANCES IS BLIZZARD LIGHTING RESPONSIBLE FOR ANY

DAMAGE FROM SUCH OPERATION.

•FixturesbearingtheabovelogoMUST only use cable and connectors which

separate chassis/case ground from cable shielding. Cabling with the shield con-

nected to the connector’s case/chassis may cause malfunction and damage to

the wiCICLE®orxture.

•wiCICLE®transmittershaveadditionalpowerrequirementsandthere-

forecannotbepowereddirectlyfromthexture.Youwillneedtoutilize

the supplied AC/DC adaptor to drive wiCICLE®transmitters in your

system.

WE HAD THIS SPACE, SO WE FIGURED WE’D DRAW

YOU A PICTURE:

Antenna Housing & 1/2-wave

Antenna

Antenna ferrule & articulation

joint

Stainless Steel Housing

Recessed Selector Button

Status LED

3-Pin XLR Connector

(Male on transmitter, Female

on receiver model)

Altri manuali per Puck CSI Xtreme

Indice

Altri manuali Blizzard Lighting Attrezzatura di illuminazione

Blizzard Lighting

Blizzard Lighting Pocket Nebula Manuale utente

Blizzard Lighting

Blizzard Lighting HUSH PAR Infiniwhite 500 Manuale utente

Blizzard Lighting

Blizzard Lighting Flurry EXA Manuale utente

Blizzard Lighting

Blizzard Lighting G-Max 150 Manuale utente

Blizzard Lighting

Blizzard Lighting SNAKE EYES Manuale utente

Blizzard Lighting

Blizzard Lighting Puck Pro Zoom EXA Manuale utente

Blizzard Lighting

Blizzard Lighting PixlStik Manuale utente

Blizzard Lighting

Blizzard Lighting G-Mix 200 Manuale utente

Blizzard Lighting

Blizzard Lighting Flurry TRI Manuale utente

Blizzard Lighting

Blizzard Lighting Torrent Xray Manuale utente

Blizzard Lighting

Blizzard Lighting ProPar V12 Manuale utente

Blizzard Lighting

Blizzard Lighting Stiletto Z7 Manuale utente

Blizzard Lighting

Blizzard Lighting Lo-Pro Flux Manuale utente

Blizzard Lighting

Blizzard Lighting Motif Risplendi 150 Manuale utente

Blizzard Lighting

Blizzard Lighting Kontrol 5 Manuale utente

Blizzard Lighting

Blizzard Lighting Switch Blade X3 Manuale utente

Blizzard Lighting

Blizzard Lighting REANIMATOR Manuale utente

Blizzard Lighting

Blizzard Lighting The Puck 3NX Manuale utente

Blizzard Lighting

Blizzard Lighting Tournado SKY W-DMX Manuale utente

Blizzard Lighting

Blizzard Lighting ToughPAR Satellight Manuale utente

Blizzard Lighting

Blizzard Lighting RokBox Manuale utente

Blizzard Lighting

Blizzard Lighting Pocket Rocket Manuale utente

Blizzard Lighting

Blizzard Lighting MAX L Manuale utente

Blizzard Lighting

Blizzard Lighting Lo-Pro CSI Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
