Blodgett Mark V XCEL Guida all'applicazione

MARCH 20, 2006 1MARK V XCEL

EFFECTIVE MARCH 20, 2006

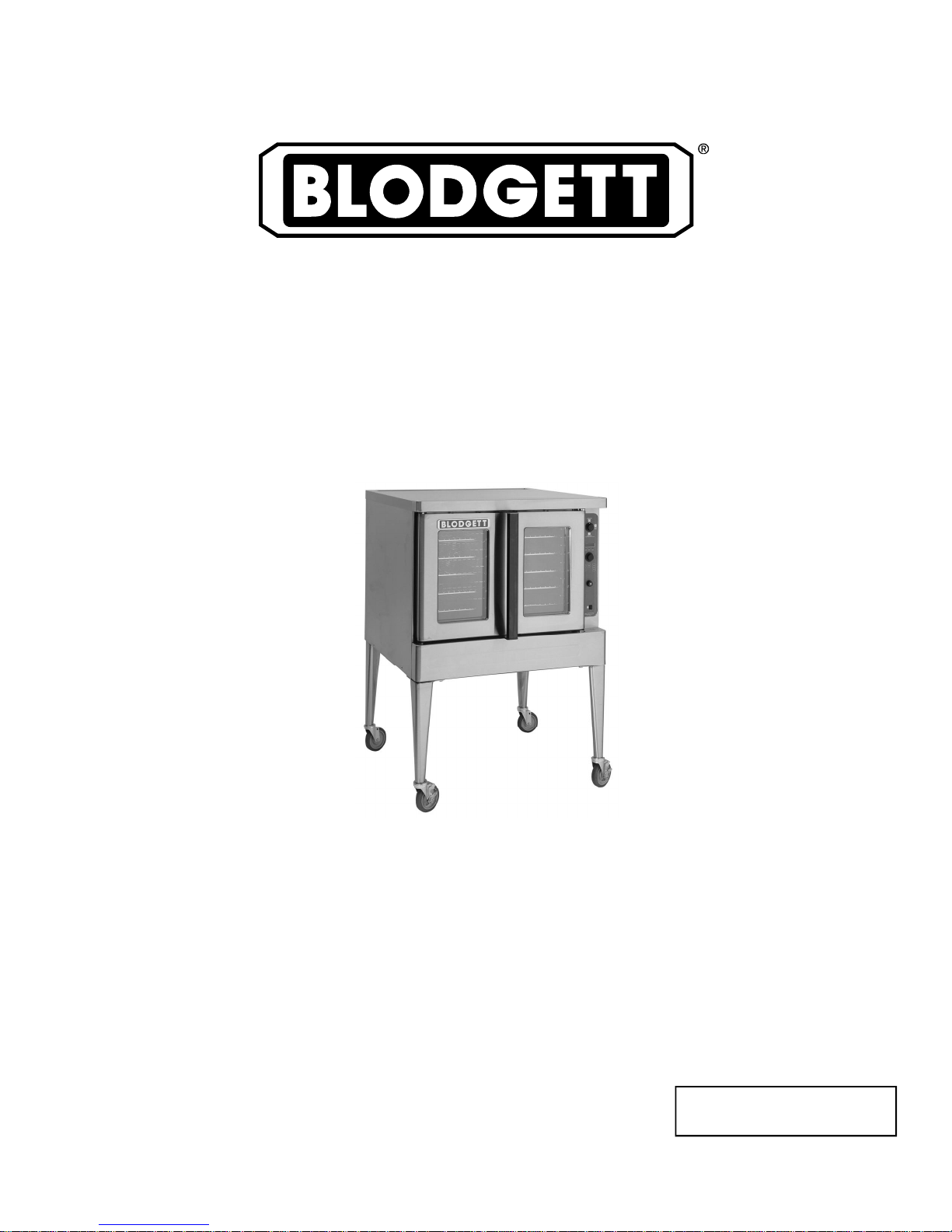

MARK V XCEL SERIES

ELECTRIC CONVECTION OVEN

REPLACEMENT PARTS LIST

SupersedingAllPreviousPartsLists.

TheCompany reserves theright to makesubstitution in theevent that itemsspecified are notavailable.

ERRORS: Descriptiveand/or typographic errors are subject to correction. www.blodgett.com

BLODGETT OVEN COMPANY, 44 LakesideAvenue, Burlington, Vermont 05401 USA

Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732

www.blodgett.com

MARCH 20, 2006 2MARK V XCEL

SERIAL NUMBER IDENTIFICATION CODE:

PF = MARK V XCEL

SERIAL NUMBER EXAMPLES

060103PF001T (NEW STYLE)

06/01/03 = DATE

PF = LETTER CODE FOR MARK V XCEL

001 = FACTORYSEQUENCE

T = TOP OVEN

IMPORTANT: When ordering parts, please provide the model,

voltage, phase and serial number of the oven. The identification

plate is located above the right hand door under the ledge.

SERIAL NUMBER LOCATION / KEY:

TO OBTAIN LITERATURE:

Blodgett Literature Department

800-331-5842, x6157

Fax: 802-860-3755

Email: [email protected]

www.blodgett.com

MARCH 20, 2006 3MARK V XCEL

tDoors Are Not Returnable

TABLE OF CONTENTS

SOLID STATE INFINITE CONTROLS ................................................... PAGE 4

SOLID STATE DIGITAL CONTROLS, 5 KEY ....................................... PAGE 5

SOLID STATE CHPRO3 CONTROLS, 14 KEY ..................................... PAGE 6

SOLID STATE IQ2 CONTROLS, 23 KEY .............................................. PAGE 7

SOLID STATE DIGITAL CONTROLS WITH HUMIDAIRE, 5 KEY........ PAGE 8

HUMIDAIRE COMPONENTS ................................................................ PAGE 9

EXPLODED INTERIOR VIEW................................................................ PAGE 10

INTERIOR COMPONENTS W/EXTERIOR VIEW .................................. PAGE 11

DOOR COMPONENTS .......................................................................... PAGE 12

LOWER DOOR SUPPORT COMPONENTS.......................................... PAGE 13

ACCESSORIES...................................................................................... PAGE 14

MARCH 20, 2006 4MARK V XCEL

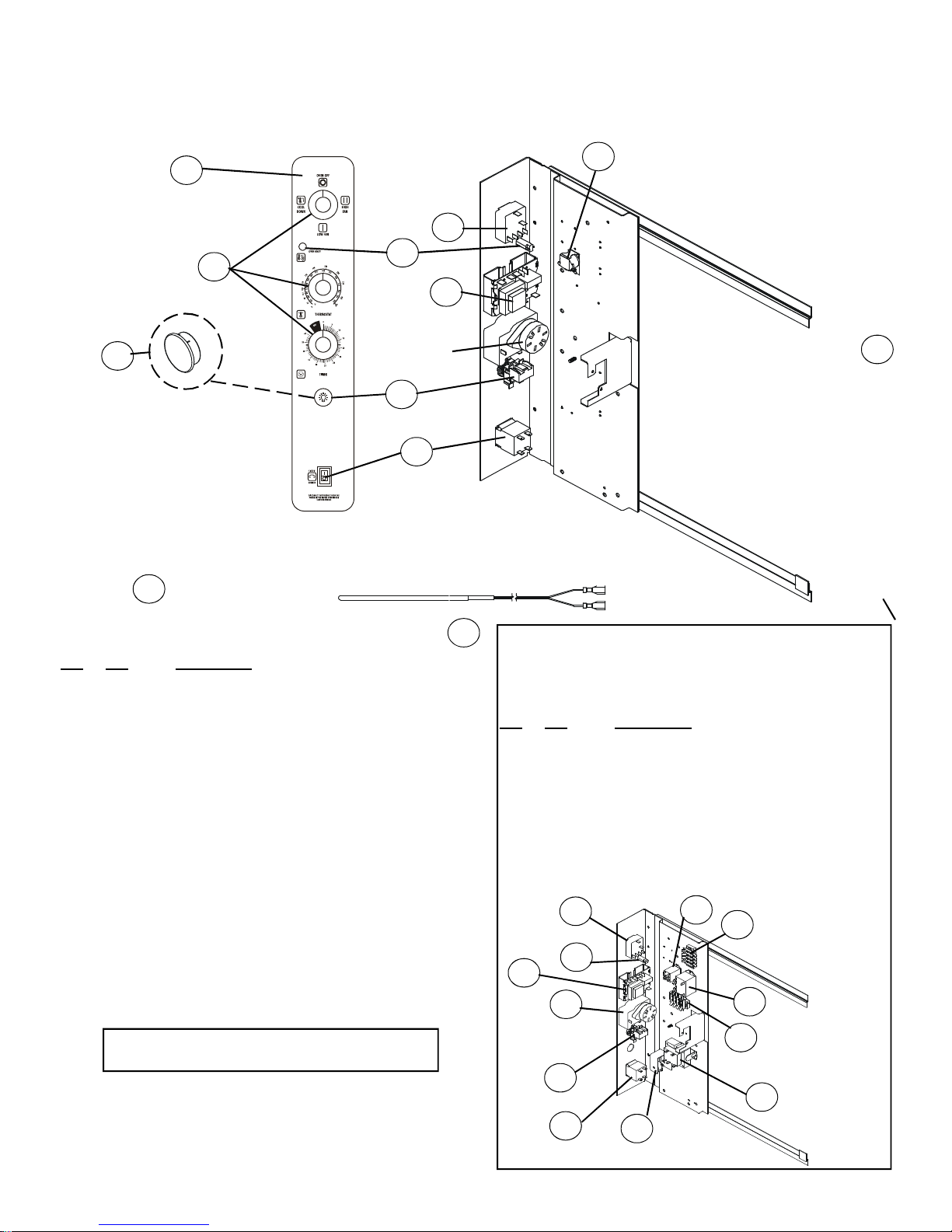

SOLID STATE INFINITE CONTROLS

Ref. Part

No. No. Description

136546 Controller,Temperature,Solid StateModular

236506 Probe,Temperature,SolidState

318226 Timer,60 Minute,240V, 60 HZ

421068 ModeSelector Switch, 4 pos

536616 Knob,Replacement,allfunctionsQty3

616037 IndicatorLight, Round,Red 28V

736124 Buzzer,120V

836429 Circuit Breaker

30503 TerminalBlock

930662 MomentaryLight SwitchKit

10 36651 Plug,forLightSwitch

NOTE: Forunits without lightsonly,usethisplugpiece

.36505 Harness,Wiring, Inf.

23034 AxialFan, LowVelocity, 230V, 60HZ

16326 Test Cord

11 37146 ControlPanel&DecalAssy,Infinite

12 36701 ModuleAssy,Infinite2 SP

36518 Harness,RearConnecting

NOTE: Modules includeEVERYTHINGpictured

above,exceptprobe.

38122 ContactorUpgrade Kit, 24V Mechanical,Qty2

38081 Contactor,40amp 24VMechanical

**FOROVENS BUILTAFTER10/22/03-THESE

PARTSWEREADDED/CHANGEDDUETOA

CHANGEINVOLTAGE.

Ref. Part

No. No. Description

13 M6899 Transformer,208/240 to 24V

14 37317 Timer,60 Min 24V60Hz

15 18265 Light,Indicator 28VRedRound

16 37315 Buzzer, 24V

17 37335 Harness,Module, Inf

18 37058 Relay,DPST 24V25A

19 R3984 Relay,DPST24V Coil

37334 Harness,Infinite, addin

37340 ModuleAssy, Infinite2SP- includeseverything

picturedbelow.

(SAME)

MARCH 20, 2006 5MARK V XCEL

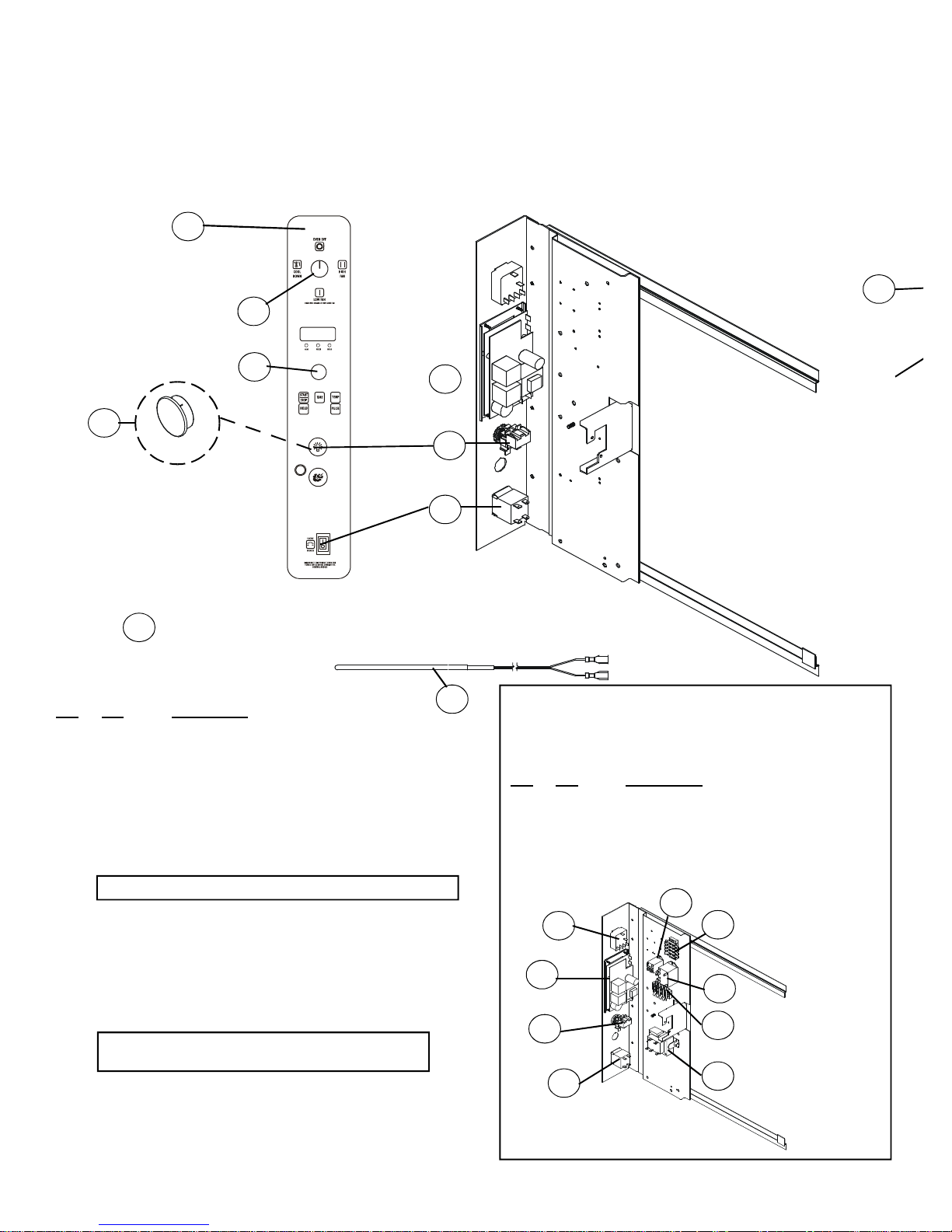

SOLID STATE DIGITAL CONTROLS

TIME & TEMPERATURE

5 KEY DIGITAL

Ref. Part

No. No. Description

130658 Controller,Temperature,Solid State Digital

236506 Probe,Temperature,SolidState

321068 ModeSelector Switch, 4 pos

436616 Knob,Replacement, Mode

536617 Knob,Replacement,AdjustTemperature

636429 Circuit Breaker

730662 MomentaryLight SwitchKit

836651 Plug,forLightSwitch

NOTE: Forunits without lights only,usethis plug piece.

30503 TerminalBlock, interconnecting, at rear of unit

36517 Harness, Wiring SSD

23034 AxialFan, LowVelocity, 230V, 60HZ

16326 Test Cord

937147 ControlPanel &Decal Assy, SSD

10 37337 ModuleAssy, SSD 2SP

36518 Harness,RearConnecting

NOTE: Modules includeEVERYTHINGpictured

above,exceptprobe.

38122 ContactorUpgrade Kit, 24V Mechanical,Qty2

38081 Contactor,40amp 24VMechanical

** FOR OVENS BUILTAFTER 10/22/03-

THESEPARTSWEREADDED/ CHANGED

DUETOA CHANGE IN VOLTAGE.

Ref. Part

No. No. Description

11 M6899 Transformer,208-240V/24V

12 37335 Harness,Control

13 37058 Relay24VAC

14 R3984 Relay, DPST 24V

37336 ModuleAssy, SSD- includeseverything

picturedbelow.

(SAME)

MARCH 20, 2006 6MARK V XCEL

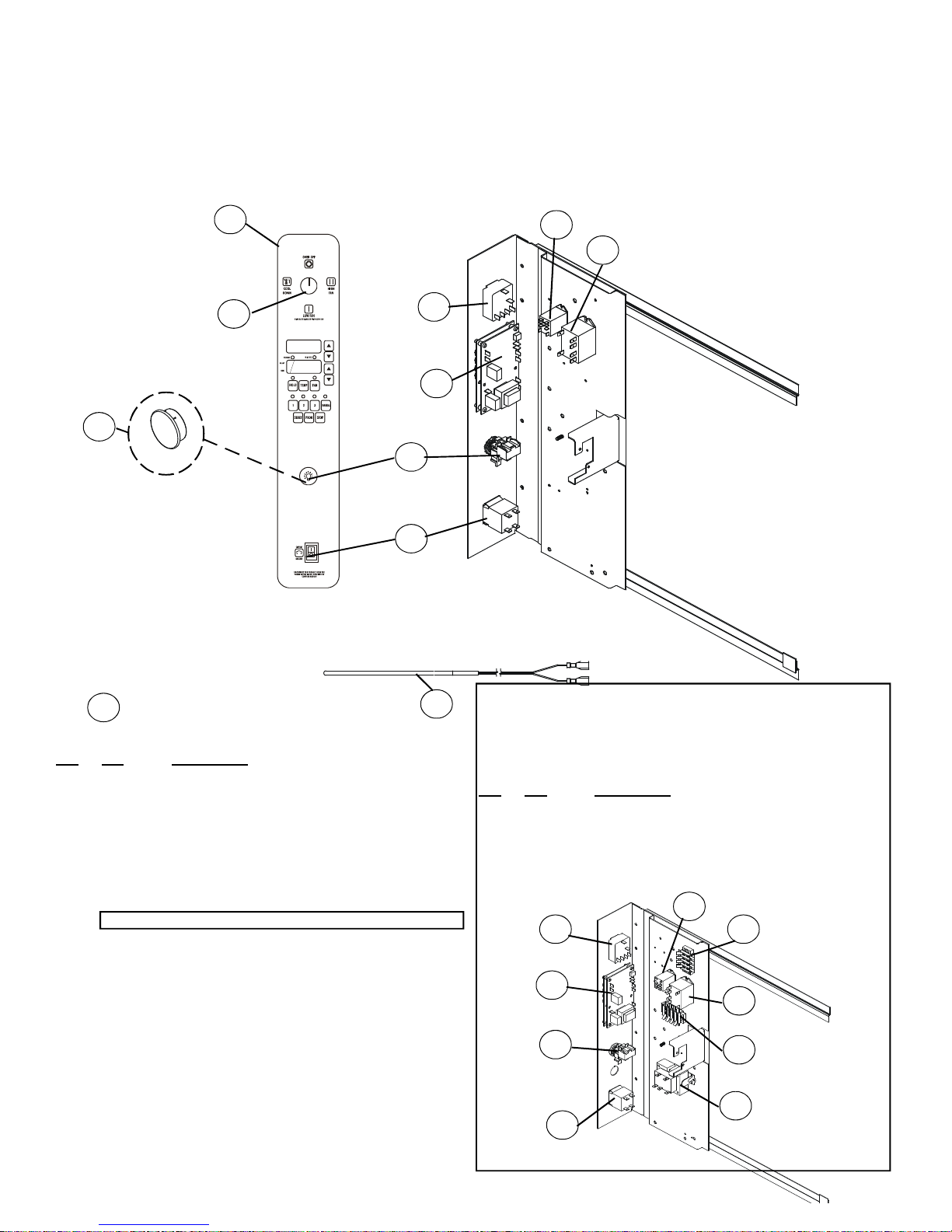

SOLID STATE CONTROLS

CH PRO 3 CONTROL

14 KEYS

Ref. Part

No. No. Description

137087 Controller,CHPro3

236720 Probe,Temperature, CHPro3

321068 ModeSelector Switch, 4 pos

436616 Knob,Replacement, Mode

5R10043 Relay,240V

631558 Relay,240V

730662 MomentaryLight SwitchKit

836651 Plug,forLightSwitch

NOTE: Forunits without lights only,usethis plug piece.

936429 Circuit Breaker

30503 TerminalBlock, interconnecting, at rear of unit

10 37148 ControlPanel&DecalAssy, CHPro

36517 Harness,Wiring

23034 AxialFan, LowVelocity, 230V, 60HZ

16326 Test Cord

11 36518 Harness,RearConnecting

38122 ContactorUpgrade Kit, 24V Mechanical,Qty2

38081 Contactor,40amp 24VMechanical

** FOR OVENS BUILTAFTER 10/22/03- THESE

PARTSWEREADDED/CHANGEDDUETOA

CHANGEINVOLTAGE.

Ref. Part

No. No. Description

12 M6899 Transformer, 208-240/24V

13 37058 Relay, 24VAC

14 R3984 Relay, DPST 24VAC

15 37335 Harness, Control

37338 ModuleAssy, CHPRO 3

14 15

(SAME)

MARCH 20, 2006 7MARK V XCEL

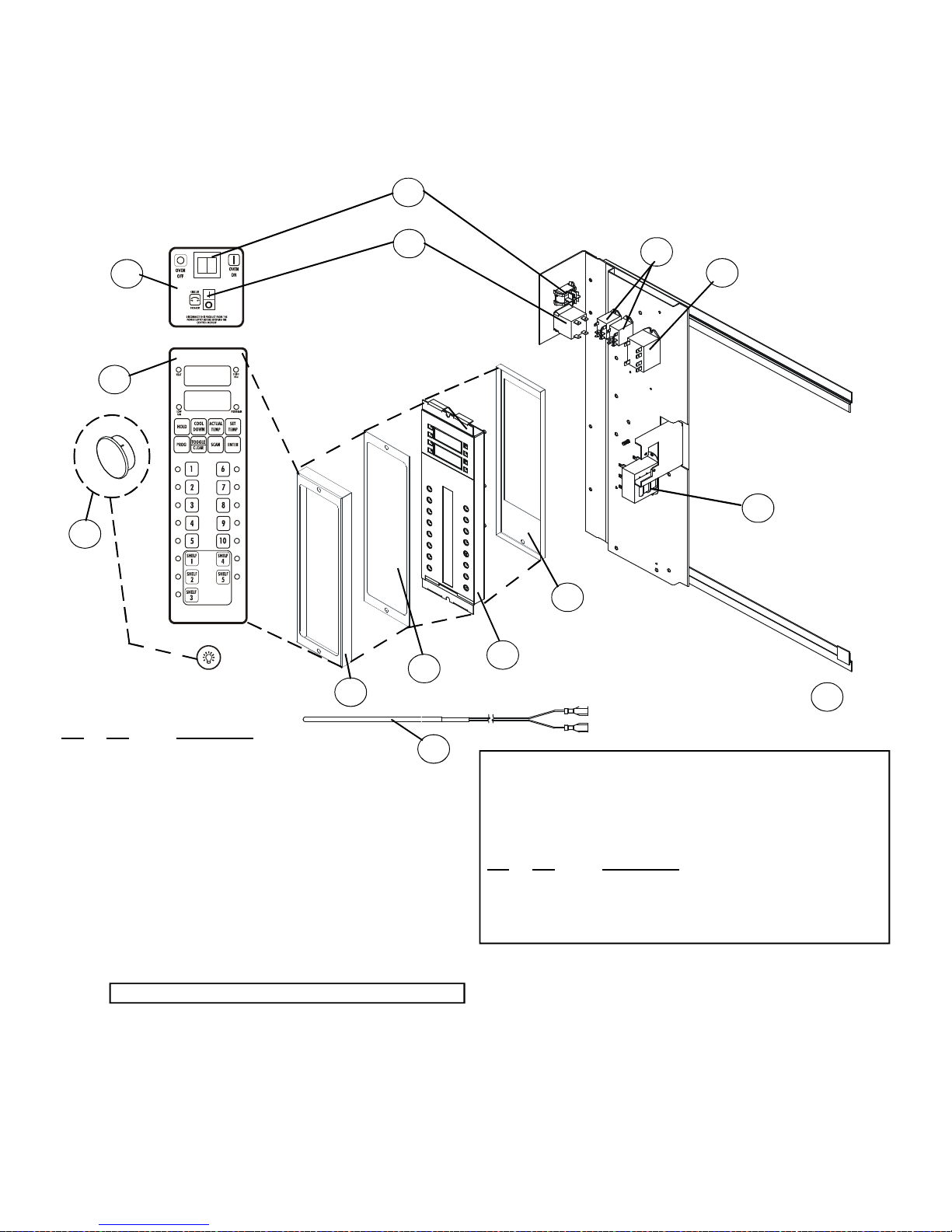

SOLID STATE CONTROLS

IQ2 CONTROL

Ref. Part

No. No. Description

137035 Controller w/DecalAssy, IQ2

232999 Control Retainer

333169 Gasket,Rubber

433151 Gasket,Controlback

536720 Probe,IQ2

619619 RockerSwitch,DPST, Black

736446 Relay,24V Qty2 per oven

836628 Relay,24V, Qty 1 per oven

30503 TerminalBlock

920356 Transformer,115/230V to 24V Step Down

10 36429 Circuit Breaker

11 XXXXX Panel & DecalAssy, Circuit Breaker On/Off

12 36651 Plug,forLightSwitch

NOTE: Forunits without lights only,usethis plug piece.

36986 Harness,Control

36978 HarnessKit,IQ2

23034 AxialFan, LowVelocity, 230V, 60HZ

16326 Test Cord

13 36518 Harness,RearConnecting

38122 ContactorUpgrade Kit, 24V Mechanical,Qty2

38081 Contactor,40amp24V

10 78

** FOR OVENS BUILTAFTER 10/22/03- THESE

PARTSWEREADDED/CHANGEDDUETOA

CHANGEINVOLTAGE.

Ref. Part

No. No. Description

9 M6899 Transformer,208-240/24V

37361 Harness,Control

37362 ModuleAssy,IQ2

23 KEYS

MARCH 20, 2006 8MARK V XCEL

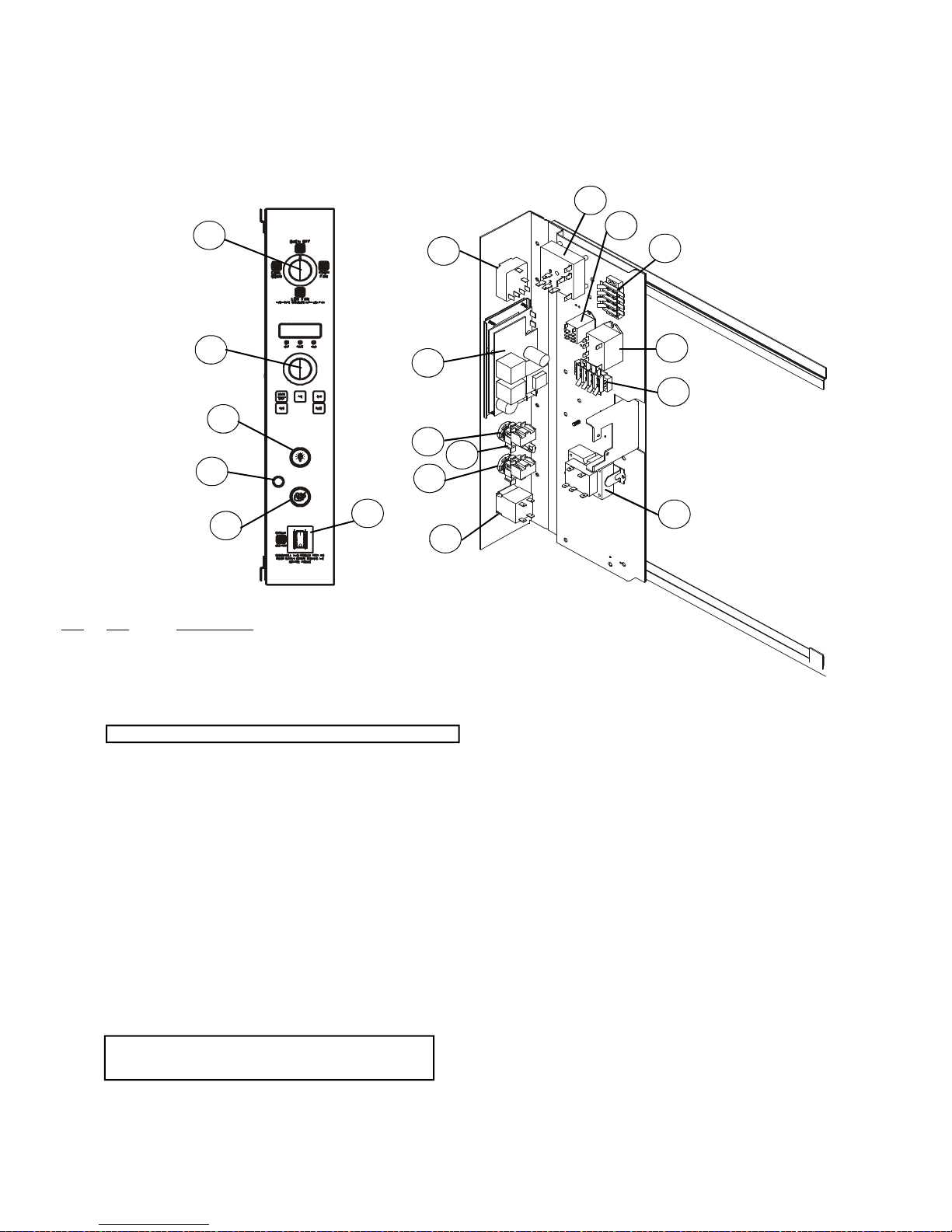

SOLID STATE DIGITAL CONTROLS WITH HUMIDAIRE

Ref. Part

No. No. Description

1 36616 Knob,Mode

2 36617 Knob,Adjust

3 30662 MomentaryLightSwitch Kit

3 36651 Plug, for LIght Switch

NOTE: Forunits without lights only,usethis plug piece.

4 19014 Light,Ind. 28VACAmber

5 37232 Push Button, Flush

6 36429 Circuit Breaker

7 30658 Controller,Temperature

36506 Probe,Temperature

8 21068 Switch, Rotary 4 Position

9 36854 Timer, PresetHumidaire

10 R3984 Relay, DPST 24VAC

11 37335 Harness,Control

36853 Harness,Humidaire

37098 Harness,Rear Humidaire

12 37058 Relay, 24 VAC

13 M6899 Transformer, 208-240/24

38122 ContactorUpgrade Kit,Mechanical24 V

36706 ModuleAssy,SSD w/ Humidaire

NOTE: Modules includeEVERYTHINGpictured

above,exceptprobe.

5 KEYS

1810

MARCH 20, 2006 9MARK V XCEL

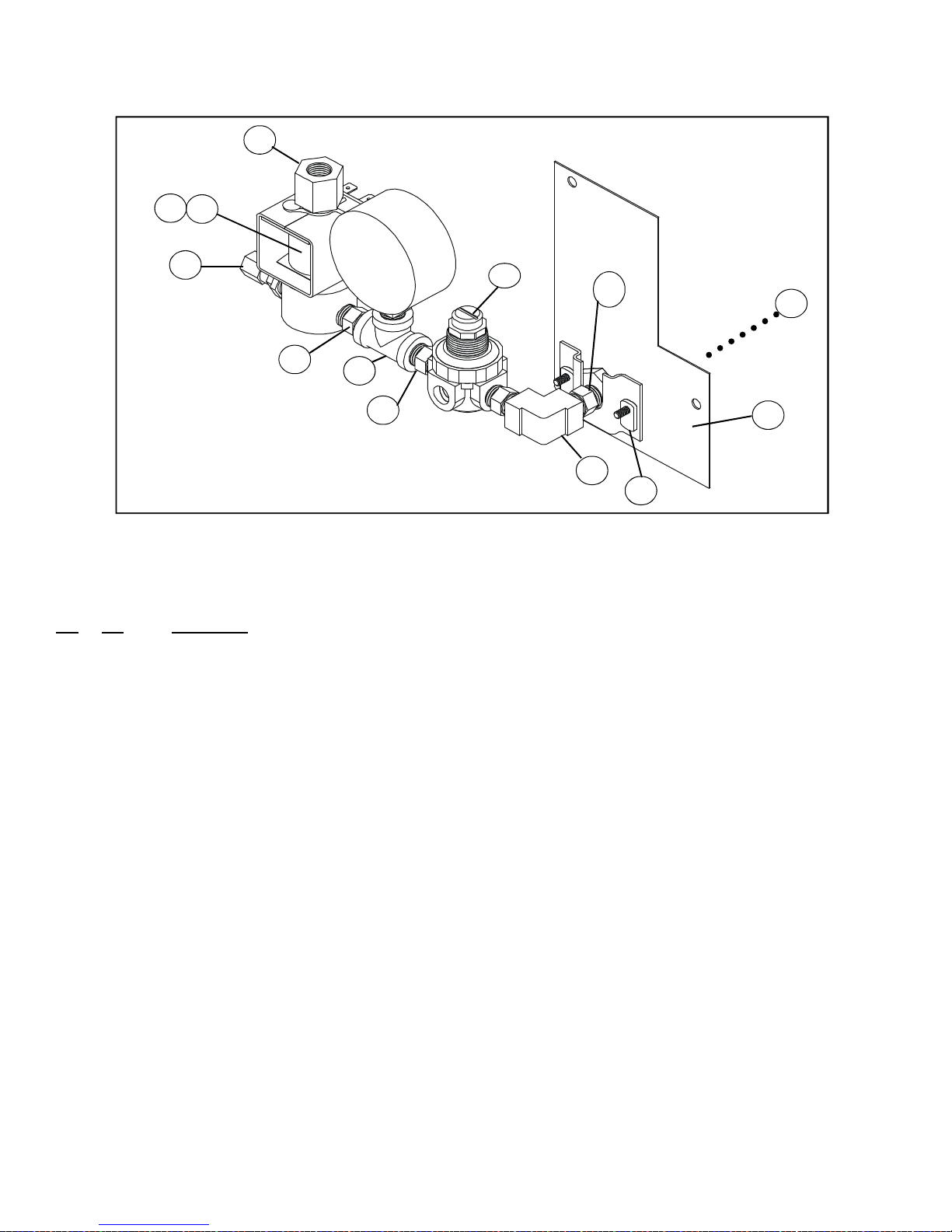

HUMIDAIRE COMPONENTS

Ref. Part

No. No. Description

36911 RegulatorandSolenoidAssy24VAC(includes everythingpicturedabove)

1 M0959 Fitting, Compression 1/4 x 1/8

2 R10837 Valve,Solenoid

3 R10838 Coil,Solenoid24VAC

4 18312 Nipple, Brass Hex 1/4 x 1.38

5 18410 Tee, Brass 11/16 x 1-9/16

6 36910 Regulator, Pressure

7 18309 Elbow, Brass 1/4 Pipe 90 DEG

8 R7329 Screw,8-32X.5 SSPANHEADPHIL

9 37231 Bracket, Regl& Solenoid

10 18473 Bushing, 3/4 x 1/4 Hex

18314 Thermal Switch, SPNO

32875 Tape,Gore-tex gasket

37215 Dam, Liner Bottom

18339 Cap,End

19086 Grommet,Rubber5/8

19087 Grommet,NylonSplit

21928 Terminal,Female .250 SPA

33488 Tube,Flex 1/4 x12"

36623 Cover, Element Opening

36909 Fitting,Compression

36931 Tube,Water Inject

4817 Clip,ThermostatBulb

MARCH 20, 2006 10 MARK V XCEL

Ref. Part

No. No. Description

15001 BlowerWheel

33147 WheelPuller

237875 MotorMount&PanelAssy

337023 Motor, 230V,1PH, 3/4HP, 2 SP

437223 ElementAssy,208V

437224 ElementAssy,240V

437225 ElementAssy,440V

437226 ElementAssy,480V

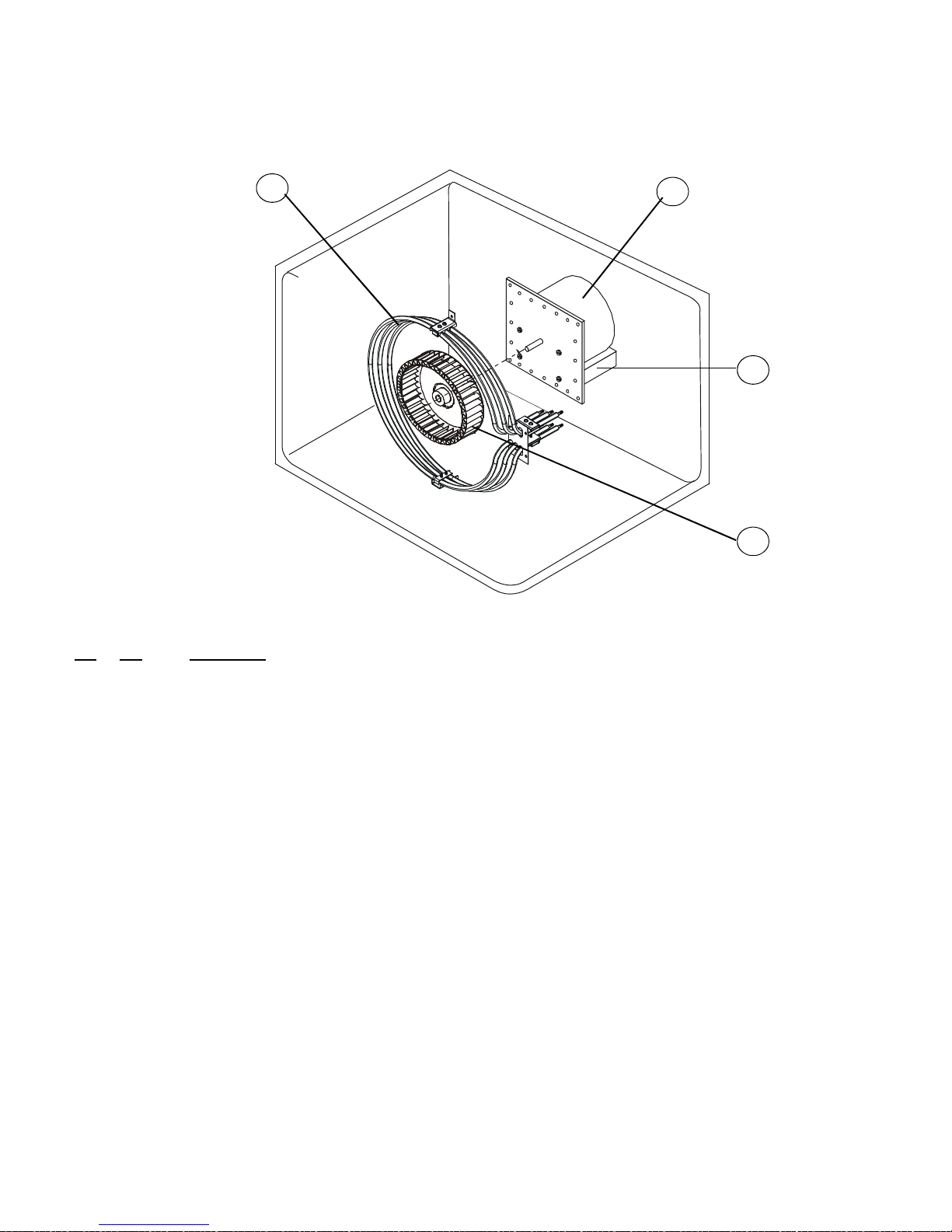

EXPLODED INTERIOR VIEW

LINER

NOTREPLACEABLE
