BM PRO MiniBoostPRO Manuale utente

TEAMBMPRO.COM

MiniBoostPRO

OWNER’S MANUAL

SAFETY PRECAUTIONS

Please read the Safety Precautions before installing or using the MiniBoostPRO.

Be sure to observe all precautions without fail. Failure to observe these

instructions properly may result in personal damage, or personal injury which

depending on the circumstances may be serious and cause loss of life.

WARNING

Correct installation is the most critical factor in ensuring the safe use of the

MiniBoostPRO. If every consideration of these instructions has been satisﬁed, the

MiniBoostPRO will be safe to operate.

This product is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning the use of the appliance by a person

responsible for their safety.

Children shall not play with this product.

Metal conducts electricity. Take care not to drop or touch metal objects onto the battery

terminals, which if contacts the battery terminals, could cause short circuits and may lead

to serious personal injury. Take care to remove unwanted metal objects from the vicinity

of the battery and MiniBoostPRO. Remove any personal metal adornment such as chain,

watch or ring before handling the battery and MiniBoostPRO.

Only charge battery types which are supported by this charger (see “Compatible Battery

Types”).

Batteries are always electrically live and must be treated with extreme caution. They can

supply high, short circuit currents, even if they appear damaged or undamaged.

WARNING

Electricity and water do not mix. Keep this product and your battery dry and do not expose

it to water or water vapour. Do not operate this product or battery near any sort of liquid.

Do not operate this product with wet hands.

Do not use this product in environments that are excessively hot, cold, dusty or humid or

where it will be exposed to magnetic ﬁelds or long periods of sunshine. Such exposure

may cause the product or your battery to fail, catch ﬁre or explode.

Clean the housing of this product lightly with a dry or moist cotton cloth. Do not

use alcohol, thinners, benzene or any other chemical cleaner. Do not immerse the

MiniBoostPRO in water.

The MiniBoostPRO is a high precision electronic product. It contains no user-serviceable

parts inside. Do not try to dismantle, modify or repair it yourself. Disassembly, service or

repair by an unauthorised person will void the warranty.

Before using this product, check that cable connections to the battery are of correct

polarity.

Product speciﬁcations are subject to change and improve without notice.

CONTENTS

SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . 2

ABOUT THE MINIBOOSTPRO . . . . . . . . . . . . . . . . . . . . 6

TERMINOLOGY . . . . . . . . . . . . . . . . . . . . . . . . . 6

ADDITIONAL ACCESSORIES REQUIRED FOR INSTALLATION . . . . . . . 6

COMPATIBLE BATTERY TYPES . . . . . . . . . . . . . . . . . . . 6

DESCRIPTION OF PARTS. . . . . . . . . . . . . . . . . . . . . . 7

INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . 8

VENTILATION AND THERMAL CONSIDERATIONS . . . . . . . . . . . 8

MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . 8

WIRING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . 9

CABLE SIZE . . . . . . . . . . . . . . . . . . . . . . . . . . 9

WIRING AND CONNECTIONS . . . . . . . . . . . . . . . . . . . 9

STANDARD INSTALLATION WIRING INSTRUCTIONS . . . . . . . . . . 10

INSTALLATION WITH BATTERYPLUS35-II WIRING INSTRUCTIONS . . . . 11

INSTALLATION WITH ASPOWER WIRING INSTRUCTIONS . . . . . . . . 12

FUSING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CHARGING DELAY. . . . . . . . . . . . . . . . . . . . . . . . 13

IGNITION DETECT . . . . . . . . . . . . . . . . . . . . . . . . 13

BATTERY CHEMISTRY SELECTION . . . . . . . . . . . . . . . . . 14

BATTERY CHARGING . . . . . . . . . . . . . . . . . . . . . . 16

CHARGING SEQUENCE LED INDICATORS . . . . . . . . . . . . . . 17

BYPASS MODE . . . . . . . . . . . . . . . . . . . . . . . . . 17

PROTECTIVE FEATURES . . . . . . . . . . . . . . . . . . . . . 18

FAULT CODES . . . . . . . . . . . . . . . . . . . . . . . . . 19

SERVICING AND CLEANING . . . . . . . . . . . . . . . . . . . 19

range is proudly designed and manufactured in Melbourne, Australia, and represent a high-

quality product that will provide years of service.

DISCLAIMER: BMPRO accepts no liability for any loss or damage which may occur from the

improper or unsafe use of its products. Warranty is only valid if the unit has not been modiﬁed

or misused by the customer.

MANUAL PART 039222

REV 7.0

FAQS AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . 20

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . 21

WARRANTY TERMS AND CONDITIONS (AUSTRALIA) . . . . . . . . . 22

LIMITED WARRANTY TERMS AND CONDITIONS (USA). . . . . . . . . 24

COMPLIANCE . . . . . . . . . . . . . . . . . . . . . . . . . 25

ABOUT THE MINIBOOSTPRO

BMPRO’s MiniBoostPRO is a multi-stage DC-to-DC battery charger, that enables

charging a secondary battery from solar panels and / or the towing vehicle’s 12V

electrical system.

Blending both the solar and auxiliary inputs, the MiniBoostPRO provides a

combined maximum charging current of 30A, with a preference to solar for

charging your secondary battery.

When charging, the MiniBoostPRO continually monitors primary, secondary

battery and solar voltage.

COMPATIBLE BATTERY TYPES

The MiniBoostPRO may be used to charge 12V batteries with capacities of 50-

300AH and of the following chemistries: AGM/Wet, Gel and LiFePO4 (lithium).

ADDITIONAL ACCESSORIES REQUIRED FOR INSTALLATION

The following accessories (not supplied) are required to complete installation of

the MiniBoostPRO:

92x 40A Automotive Fuse

92x 2A Automotive Fuse

TERMINOLOGY

Secondary battery refers to either an auxiliary battery installed in the motor

vehicle or a house battery installed in the RV.

Primary battery refers to a cranking battery in the motor vehicle. Connected to

the alternator, it is commonly referred to as an auxiliary input.

Bypass mode is the mode where the primary / input AUX source of power is at

the higher voltage than the secondary / output battery.

Boost mode is the mode where the voltage of the primary battery input source is

less than the secondary / output battery.

WARNING

Do not connect other types of Lithium batteries to the MiniBoostPRO.

Do not connect batteries with capacity less than 50Ah.

DESCRIPTION OF PARTS

1. Aux LED

Green LED indicates charging

from primary source.

2. Solar LED

Blue LED illuminates when the

MiniBoostPRO charges the

battery from its solar input.

3. Fault LED

Red LED is a warning / fault

indicator.

4. Aux In

Orange cable to connect to the

primary battery positive terminal.

5. Solar In

White cable to connect to the solar

panel positive terminal.

6. Batt Out

Red cable to connect to the

positive terminal of the battery to

be charged (secondary).

7. Common Negative

Black cable to connect to the

solar, primary and the battery’s

secondary negative terminals.

8. Ignition Detect

Blue cable to connect to the

towing vehicle’s ignition.

9. Batt Chemistry

Green cable to conﬁgure battery

chemistry and select charging

parameters.

uvw

INSTALLATION INSTRUCTIONS

Installation of the MiniBoostPRO should be carried out only by a certiﬁed

installer with caravan electrical experience.

MOUNTING

Securely mount the MiniBoostPRO to any suitably strong ﬂat surface. Install

the MiniBoostPRO inside your caravan or camper trailer, preferably close to the

house battery.

VENTILATION AND THERMAL CONSIDERATIONS

The MiniBoostPRO may be installed in any orientation. To prevent overheating

of the MiniBoostPRO, install the unit in a well-ventilated area that allows for

continuous airﬂow around the unit. Overheating of the MiniBoostPRO will aﬀect

the optimal operation of the unit.

WIRING INSTRUCTIONS

WIRING AND CONNECTIONS

To assist with wiring, cable colour codes are labelled on the back of the

MiniBoostPRO. To ensure safe and reliable wiring, wire connections should be

crimped or soldered. All wire connections must be protected by heat shrink to

prevent exposed wires.

The MiniBoostPRO may be used in conjunction with a BMPRO power

management system such as the BatteryPlus35-II or ASPower.

If using a power management system, connect the MiniBoostPRO’s Batt Out

and Common Negative cables to the positive and negative primary input. The

MiniBoostPRO may be wired direct to the secondary battery via a protective

fuse.

CABLE CABLE COLOUR MINIMUM CABLE SIZE

Solar In White 6.0mm or 10 AWG

Aux In Orange 6.0mm or 10 AWG

Batt Out Red 6.0mm or 10 AWG

Common Negative Black 6.0mm or 10 AWG

Ignition Blue 0.34mm or 22 AWG

Batt Chemistry Green 0.34mm or 22 AWG

CABLE SIZE

Cables should be sized to carry 30A. The following table demonstrates the

recommended cable size, ranging up to a total length of 15m from input to

output.

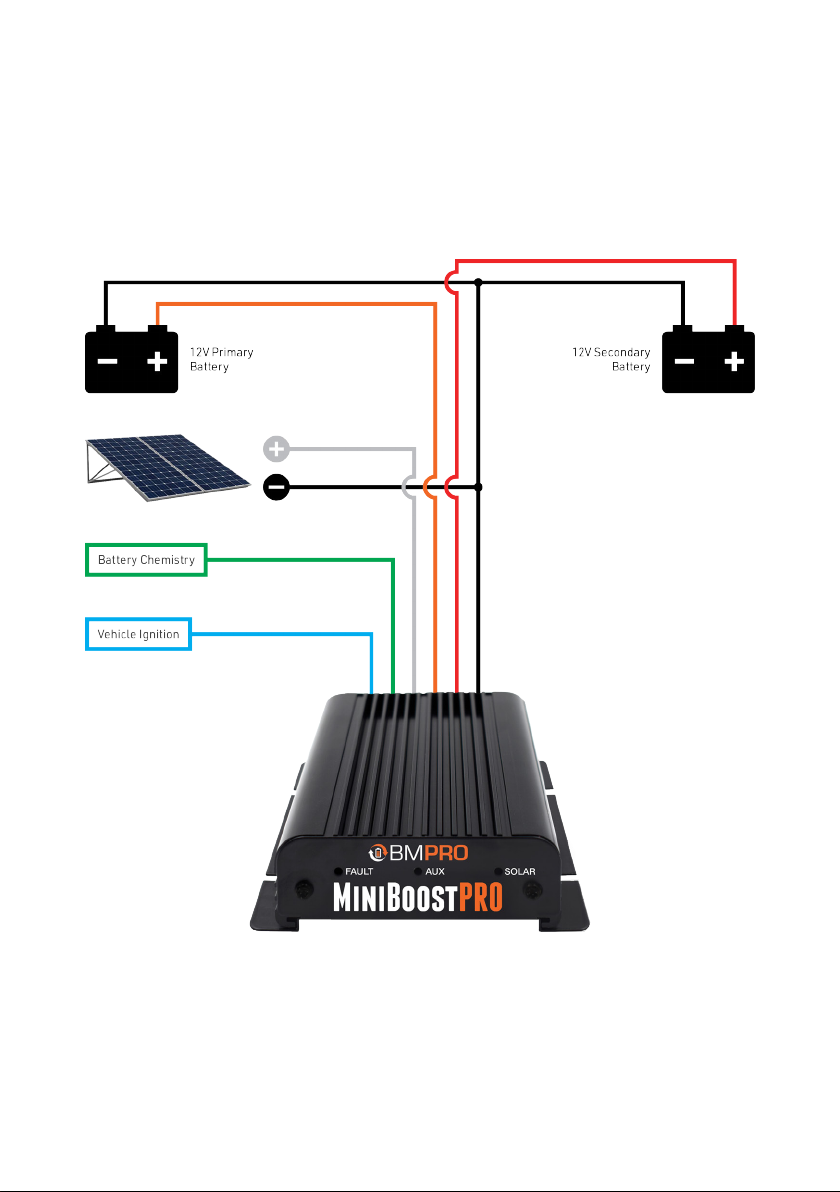

STANDARD INSTALLATION WIRING INSTRUCTIONS
