Bodet Style 7 Date Manuale utente

Style 5 – Style 5 Seconde – Style 7 – Style 7 Date – Style 7 Ellipse – Style 10

Style 10 Seconde - Style 10 Date - Style 10 Seconde Date

NTP

HORLOGES DIGITALES intérieures

DIGITAL CLOCKS indoor

Notice d’installation et de mise en service

Installation and operation manual

S’assurer à réception que le produit n’a pas été endommagé durant le transport pour réserve au transporteur.

When receiving goods, please check that the item is not broken. If the product is damaged, a claim

should be addressed to the shipping company.

BODET SA

BP30001

49340 TREMENTINES I France

Tél. support France: 02.41.71.72.99

Tel. support (intl): +33 241 71 72 00

Fax France: 02.41.71.72.01

Fax (intl): +33 241 71 72 02

Réf : 607794 H

www.bodet-time.com

Table of contents

I – Initial checks 4

1.1 Unpacking the clock 4

1.2 Cleaning 4

1.3 Pre-requisites 5

II – Installation 6

2.1 Wall mounting – Style 5-5S-7-7D-7E 6

2.2 Wall mounting – Style 10-10S-10D-10SD 7

2.3 Recess mounting – Style 5-5S-7-7D-10 8

2.4 Mounting - Style 7-7D-10 waterproof IP55 10

III – Location of "S" and "+" keys 11

IV – Styles 5S & 10S – Timer mode 11

V– Default configuration 12

VI – Basic configuration 13

6.1 Setting time/date/year – all models except Style 7D-10D-10SD 13

6.2 Configuration menu – all models except Style 7D-10D-10SD 13

6.3 Setting time/date/year – Style 7D 14

6.4 Configuration menu – Style 7D 15

6.5 Setting time/date/year – Style 10D-10SD 16

6.6 Configuration menu – Style 10D-10SD 17

VII – Web interface 18

7.1 Home page 18

7.2 Network configuration 19

7.3 Time and synchronisation configuration 20

7.4 Parameters 22

7.5 Alarm configuration 23

7.6 System 25

VIII – Adjusting the brightness 26

IX – Memory backup 26

X– Technical specifications 26

XI – Maintenance menu 29

11.1 Maintenance menu – all models except Style 7D-7E-10D-10SD 29

11.2 Maintenance menu – Style 7D-7E 30

11.3 Maintenance menu – Style 10D-10SD 31

XII – What to do if… 32

XIII – Appendix 33

Table des matières

I– Vérification initiale 34

1.1 Déballage de l’horloge 34

1.2 Nettoyage 34

1.3 Pré-requis 35

II – Installation mécanique 36

2.1 Montage mural Style 5-5S-7-7D-7E 36

2.2 Montage mural Style 10-10S-10D-10SD 37

2.3 Montage par encastrement Style 5-5S-7-7D-10 38

2.4 Montage Style 7-7D-10 étanches IP55 40

III – Emplacement des touches «S» et «+» 41

IV – Style 5S & Style 10S – Mode chronomètre 41

V– Configuration par défaut 42

VI – Configuration basique 43

6.1 Réglage Heure/Date/Année toutes versions sauf Style 7D-10D-10SD 43

6.2 Menu configuration toutes versions sauf Style 7D-10D-10SD 43

6.3 Réglage Heure/Date/Année Style 7D 44

6.4 Menu configuration Style 7D 45

6.5 Réglage Heure/Date/Année Style 10D-10SD 46

6.6 Menu configuration Style 10D-10SD 47

VII – Configuration avancée 48

7.1 Accueil 48

7.2 Configuration réseau 49

7.3 Configuration de l’heure et synchronisation 50

7.4 Paramétrage 52

7.5 Configuration des alarmes 53

7.6 Système et protection 55

VIII – Réglage de la luminosité 56

IX – Sauvegarde mémoire 56

X– Caractéristiques techniques 56

XI – Menu technicien 59

11.1 Menu technicien toutes versions sauf Style 7D-7E-10D-10SD 59

11.2 Menu technicien Style 7D-7E 60

11.3 Menu technicien Style 10D-10SD 61

XII – Que faire si...? ...Vérifier. 62

XIII – Annexe 63

I – Initial checks

Thank you for choosing a BODET clock.

This product has been carefully designed, adhering to ISO 9001 quality processes, to ensure your

satisfaction. We recommend that you read this manual and the general safety measures and

operating instructions carefully before handling the clock.

Retain this manual for reference for the lifespan of your clock.

The information supplied is non-binding; Bodet reserves the right to make changes to equipment,

including functional, technical and aesthetic changes or changes to colours, without notice.

Failure to observe these instructions may cause irreversible damage to the clock and

invalidate the warranty.

These instructions relate to NTP models. For other models, please refer to the corresponding

instructions.

These instructions relate to the following clocks:

Style 5: hours and minutes display. Height of digits: 5 cm.

Style 5S (seconds): hours, minutes and seconds display. Height of digits: 5 cm.

Style 7: hours and minutes display. Height of digits: 7 cm.

Style 7D (date): hours, minutes, date, day and week display. Height of digits: 7 cm; height of

letters: 5 cm.

Style 7E (ellipse): hours, minutes and revolving seconds display on ellipse design. Height of

digits: 7 cm; height of letters: 5 cm.

Style 10: hours and minutes display. Height of digits 10 cm.

Style 10S (seconds): hours, minutes and seconds display. Height of digits: 10 cm.

Style 10D (date): hours, minutes, date, day and week display. Height of digits: 10 cm; height of

letters: 7 cm.

Style 10SD (seconds - date): hours, minutes, seconds, date, day and week display. Height of

digits: 10 cm; height of letters: 7 cm.

1.1 Unpacking the clock

Carefully unpack the clock and check the contents of the package. This should include:

• Style clock

• 3 screws (Ø4mm)

• Anti-static cleaning kit

• Manual

• IMPORTANT: product identification label

An identification label is affixed to the back of the clock. Use the URL link shown to download these

instructions.

1.2 Cleaning

Use an anti-static product identical to that in the cleaning kit provided.

Never use alcohol, acetone or other solvents, which may damage the clock’s casing or glass.

1.3 Pre-requisites

To programme the clock you must install BODET Detect software (Cf. page 18). This software

is available to download for free on the BODET website www.bodet-time.com.

Note: the BODET clock must be connected to a PoE network socket via a PoE switch or a PoE

injector. (802.3af, class 3: multicast, class 0: unicast).

Bodet recommends the following devices:

• PoE injectors: Zyxel, Tp link, D-Link, HP, Cisco, Axis, ITE Power Supply, PhiHong,

Abus, Globtek

• PoE switches: D-Link, HP, Planet, Zyxel, Cisco, NetGear, PhiHong

Select a location to install the clock, preferably away from sources of electrical interference, such as

transformers.

II – Installation

2.1 Wall mounting – Style 5-5S-7-7D-7E

The visuals below refer to the Style 5 clock. However, the installation process shown also applies to

Styles 5S, 7, 7D and 7E. Refer to the Technical specifications on page 26 for clock dimensions.

1) Fix the wall bracket to the wall using the 3 Ø4 mm dowel screws supplied.

2) Insert the RJ45 network cable:

• From above: cut through the upper

part of the casing uand insert the

cable at the back. .

• From behind: dedicated area v.

3) Clip the electronic board into the wall

bracket. Insert the lower part of the electronic

board into the back of the wall bracket, then

push the upper part of the board into the

back of the bracket until it clicks w.

4) Connect the RJ45 network cable to the

electronic board connector x.

Power is supplied by the PoE Ethernet

network.

5) Connect the network cable to the electronic

board using a plastic tie (mounting hole

provided in the electronic board).

6) Connect the ribbon from the LED modules

(clock casing) to the electronic board y.

ATTENTION: To avoid damaging the

product, please, watch for the orientation

of the flat cable connector. For that

purpose the connector is keyed (A) and

marked (B).

7) Attach the clock to the wall bracket by

inserting the upper part of the clock into the

back of the bracket in the slots provided,

then press the clock in until it clicks.

Secure the clock to the bracket at the bottom,

using the mounting screw provided.

Ensure that the cables are not trapped

during this operation.

8) The clock may be subsequently detached from the bracket by lifting the lower part of the clock

outwards, then removing the upper part.

9) Remove the protective film from the front and clean the clock using an anti-static cloth.

Important : about double face installation on support bracket, refer to the manual supports,

ref.: 607847 (included with the bracket).

Back view

Wall bracket +

electronic board

Right side

cutaway view

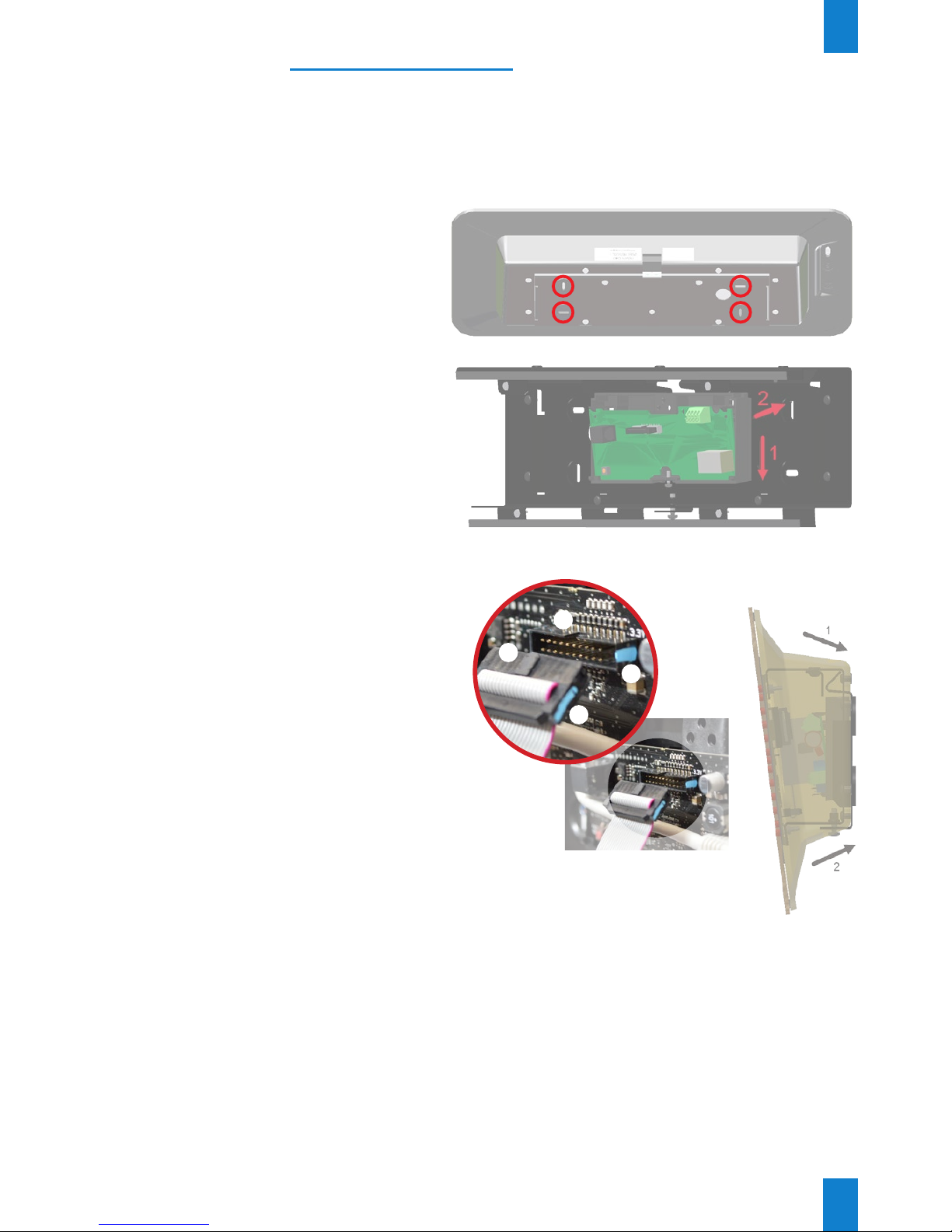

2.2 Wall mounting – Style 10-10S-10D-10SD

The visuals below refer to the Style 10 clock. However, the installation process shown also applies

to Styles 10S, 10D and10SD. Refer to the Technical specifications on page 26 for clock dimensions.

1) Fix the wall bracket to the wall using the four Ø4 mm dowel screws supplied.

Back view

Wall bracket +

electronic board

Right side

cutaway view

2) Insert the RJ45 network cable:

• From above: cut through the casing

at the top, between the two labels u.

• From behind: dedicated area v.

3) Clip the electronic board into the wall

bracket. Insert the lower part of the electronic

board into the back of the wall bracket , then

push the upper part of the board into the

back of the bracket until it clicks w.

4) Connect the RJ45 network cable to the

electronic board connector x.

Power is supplied by the PoE Ethernet

network.

5) Connect the network cable to the

electronic board using a plastic tie (mounting

hole provided in the electronic board).

6) Connect the ribbon from the LED modules

(clock casing) to the electronic board y.

ATTENTION: To avoid damaging the

product, please, watch for the orientation

of the flat cable connector. For that

purpose the connector is keyed (A) and

marked (B).

7) Attach the clock to the wall bracket by

inserting the upper part of the clock into the

back of the bracket in the slots provided,

then press the clock in until it clicks.

Secure the clock to the bracket at the bottom,

using the mounting screw provided.

Ensure that the cables are not trapped

during this operation.

8) The clock may be subsequently detached from the bracket by lifting the lower part of the clock

outwards, then removing the upper part.

9) Remove the protective film from the front and clean the clock using an anti-static cloth.

Important : about double face installation on support bracket, refer to the manual supports,

ref.: 607847 (included with the bracket).

2.3 Recess mounting Style 5-5S-7-7D-10

1) Make sure that the cut-out in the wall for the recess mounting is large enough, refer to the

following table for the proper dimensions:

A B C D E

Style 5

275 241 68 107

Style 5S 400 365 68 107

Style 7 325 291 85 117

Style 7 Date 365 331 200 308

Style 10 424 406 100 165

Dimensions in mm

2) Install the recess casing following the dimensions listed below:

A B C D E F G

Style 5

135 241

30 46

Style 5S 197.5 365 52

Style 7 160 291 43

Style 7 Date - 331 63

Style 10 229.5 429 97.5

H I J K L M N O P

Style 5

0.8 46

107

23.3

68 18.5 275 285 34

Style 5S 107 68 18.5 400 410 34

Style 7 153 85 15 325 335 42.5

Style 7 Date 308 200 53 365 375 100

Style 10 165 100 31.5 464 474 50

3) Connect the clock (refer to the next chapter) and set the time (see chapter VI-Configuration, page 13).

4) Attach the clock:

- to the wall by tightening the 4 screws into the inserted Ø4 mm dowels a

- to its recess mounting by tightening the 4 metric screws of the recess mounting b .

CAUTION: do not fit a DHF clock in a metal partition or equivalent.

Recess mounting attachment screwsa

a b

2.4 Mounting - Style 7-7D-10 waterproof IP55

1) The clock is supplied wired and assembled. Before fitting it to the wall, connect the clock to the

time distribution network in a dry environment.

2) Attach the clock to the wall using the 2 hexagon-head screws 1(used to tighten the bracket to

the wall) with a Ø4mm dowel:

Style 7

Style 10

Style 7 Date

137

140

7°

320

R3.5

68.5

375

517

R3.5 91.5

209

7°

187.5

137

320

68.5 R3.5 93

114

7°

Crimp the RJ45 socket after the cable passes through the bulkhead or in a casing waterproof (not supplied)

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Bodet Orologio

Bodet

Bodet NTP 947 17x W6 Manuale utente

Bodet

Bodet Profil 930 Manuale utente

Bodet

Bodet STYLE II 7 Manuale utente

Bodet

Bodet Profil 930 L Manuale utente

Bodet

Bodet Style Mondiale Manuale utente

Bodet

Bodet Profil 750 Manuale utente

Bodet

Bodet Style 5 Seconde Manuale utente

Bodet

Bodet DHF/DCF Interface Manuale utente

Bodet

Bodet 5 Seconde Manuale utente

Bodet

Bodet Style 5 Seconde Manuale utente

Bodet

Bodet Profil 730 Hospital Manuale utente

Bodet

Bodet BTX6015 Manuale utente

Bodet

Bodet Profil 730 Manuale utente

Bodet

Bodet Profil 750 Manuale utente

Bodet

Bodet Style 5S Manuale utente

Bodet

Bodet Profil 730 Manuale utente

Bodet

Bodet Profil 750 Manuale utente

Bodet

Bodet Cristalys Ellipse Manuale utente

Bodet

Bodet Opalys 14 Manuale utente

Bodet

Bodet Profil TGV 950 Manuale utente

Bodet

Bodet Profil 730 OP Manuale utente

Bodet

Bodet Profil 930 L Manuale utente

Bodet

Bodet HMS LED 10 Manuale utente

Bodet

Bodet Style 5 Seconde Manuale utente

Manuali Orologio popolari di altre marche

Silicon Laboratories

Silicon Laboratories SI5324 Manuale utente

Heathkit

Heathkit GC-1005 Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuale utente

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuale utente

ALGE-Timing

ALGE-Timing ASC3 Manuale utente

Nixie Clock

Nixie Clock Divergence Meter Manuale utente

La Crosse Technology

La Crosse Technology WS-8256-AL Manuale utente

Mini Gadgets

Mini Gadgets MCPro Manuale utente

Casio

Casio TMR-200 Manuale utente

Progetti

Progetti ILTEMPOSTRINGE Manuale

BVItech

BVItech BV-101 Manuale utente

Progetti

Progetti KALIMERO Manuale

La Crosse Technology

La Crosse Technology WT-3141b Manuale

La Crosse Technology

La Crosse Technology W86531 Manuale utente

Sharp

Sharp SPC900 Manuale utente

La Crosse Technology

La Crosse Technology 404-50447 Manuale utente

Datexx

Datexx DF0063 Manuale utente

LG LEC-005 Manuale utente
