BODY BIKE Basic Manuale utente
Instructions
for your
BODY BIKE Indoor Cycle
BODY
BIKE®
INDOOR CYCLE
BODY BIKE Basic
BODY BIKE Classic
BODY BIKE Classic Stainless Steel
B
R
A
K
E
S
Y
S
T
E
M
L
U
B
R
I
C
A
T
I
O
N
F
R
E
E
TABLE OF CONTENTS
Equipment required 2
Introduction 3
Specifications 4
General information 5
Warranty 5
Assembly
Unpacking 7
Handlebar 8
Bottom frame 8
Saddle 9
Pedals 9
Maintenance
Cleaning 11
Adjustment handle 12
Cleaning the posts 13
Poly-V belt 14
Replacing the brake block 15
Trouble-shooter 17
Index 17
EQUIPMENT REQUIRED
Unpacking
Drill bit
Drill
Bottom Frame
6 mm Allen wrench
13 mm wrench
Saddle
14 mm wrench
Pedals
15mm pedal wrench
Grease
Cleaning
Tissue paper or cloth
Spray bottle with water
Soap (only washing-up liquid)
Vaseline oil
Post Cleaning
Cloth
Vaseline oil
Adjustment Handle
5mm Allen Wrench
Screwdriver
Steel brush
Grease
Brush
Poly-V Belt
10 mm Allen wrench
19 mm wrench
Screwdriver
Measuring device
Brake block
8 mm wrench

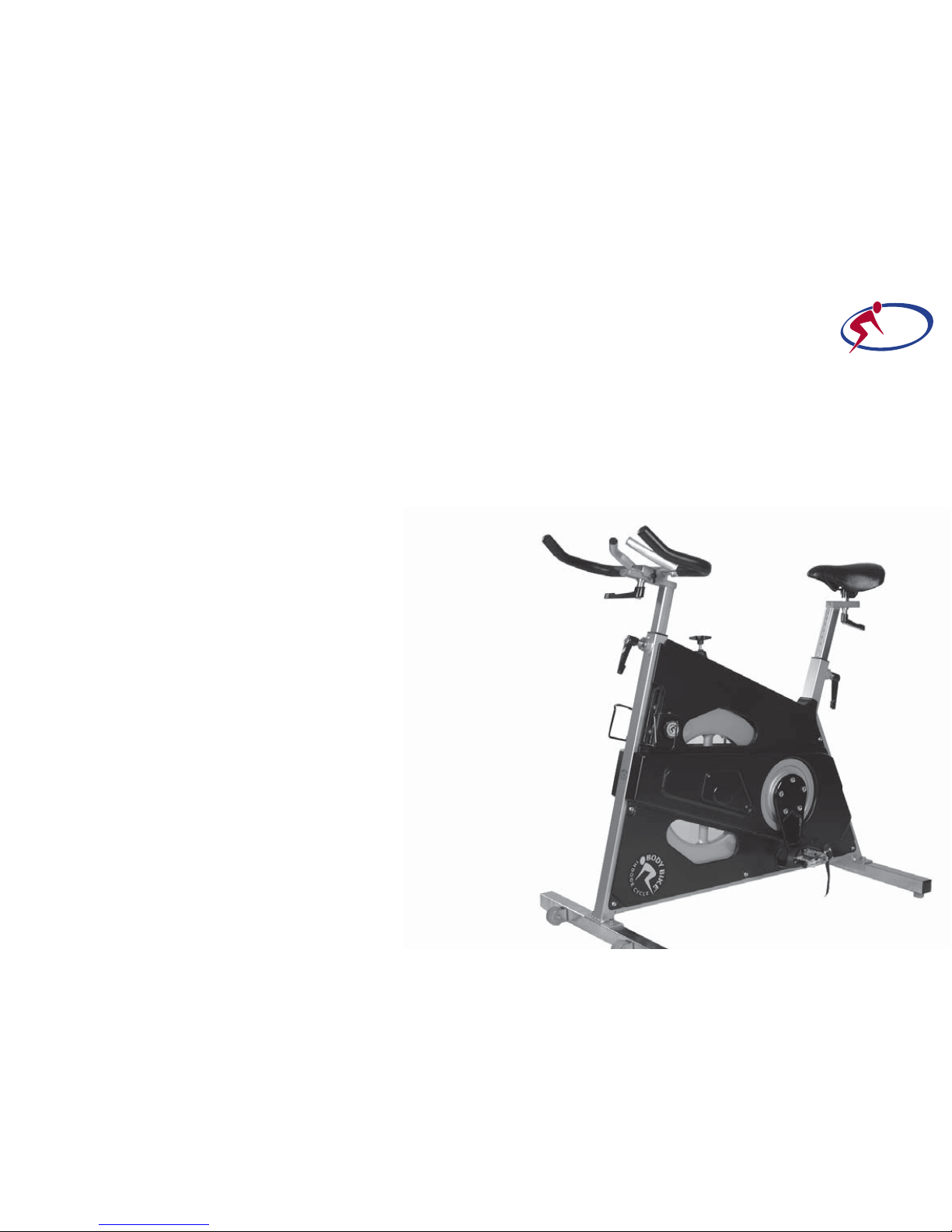

INTRODUCTION
This manual provides information on the assembly and
maintenance of the BODY BIKE indoor cycle.The manual is
intended for the owners and service people responsible for
cleaning and maintenance.
Before assembling the cycle, please read the manual and
prepare the correct tools, see equipment required page 2.
When assembling the cycle, we recommend that you follow the
manual step by step.
Maintaining the cycle is very important. In the manual you will
find clear instructions on how to maintain the cycle.
Over time it will be necessary to replace worn-out parts.You
will find a detailed description and exploded drawings of
BODY BIKE’s spare parts on our website www.body-bike.When
ordering spare parts from the local BODY BIKE distributor, please
refer to the item number (P/N no.) in order to make sure you will
receive the correct spare part.
We recommend that you order original parts, accessories
and materials necessary for the maintenance of the cycle at
your local BODY BIKE distributor. For further information on
accessories, please check our website www.body-bike.com.
3
We wish you the best of luck with your
BODY BIKE indoor cycle
BODY
BIKE®
INDOOR CYCLE
SPECIFICATIONS
Manufacturer:
BODY BIKE International A/S
Pier 6 Nord
DK-9900 Frederikshavn
Denmark
Tlf: +45 9843 9696
Fax: +45 9843 9688
www.body-bike.com
Product description:
Indoor cycle
Length,Width, Height:
Assembled size:
105cm, 60cm, 100cm
Packed size (5 cycles):
120cm, 80cm, 114cm
Weight:
Assembled: 65 kg
Packed weight(5 cycles): 350 kg
Patent held for:
Crank system
Maximum user weight
150 kg (Please note that the max.
pedal load may be lower)
Materials
Basic version:
Cast iron
Steel and chrome
Plastic (ABS) covers
Quality bearings
Frame: Robot-welded, powder
coated and hardened
Classic version:
Cast iron
Stainless steel
Plastic (ABS) covers
High quality bearings
Frame: Robot-welded, fully
galvanized, powder coated
and hardened
Classic Stainless Steel
version:
Cast iron
Stainless steel
Plastic (ABS) covers
High quality bearings
Frame: Robot-welded,
stainless steel, electro
galvanized.
BODY
BIKE®
INDOOR CYCLE
WARRANTY
A two-year warranty for the Danish
manufactured BODY BIKE Indoor Cycle:
A two-year warranty against manufacturing
defects, excluding normal wear and tear, is
given for the flywheel and pulley.A three-
year warranty is given on the crank and the
pedal arms, and a five year warranty is given
against frame breakage.
Consumable items (such as the poly V-belt,
brake pad, handlebar rubber, saddle and
pedals, etc.) which are subject to continuous
wear and tear, are not covered by a warranty.
There is currently no warranty applying to
the pedals.
The warranty only applies to cycles
equipped with original BODY BIKE spare
parts. All warranties are cancelled if the cycle
has been modified or in any way not used as
intended.
GENERAL INFORMATION
Wipe off the cycles after EVERY use
ALWAYS loosen all handles and release
tension after use
The rubber feet should always be adjusted
to ensure that the cycle is in level
Every other year the rubber feet should
be replaced as the rubber hardens and
becomes unable to absorb the impact
Tighten up the pedals every 14 days or
every month to avoid them getting loose
or breaking off.
Pedals should be changed once a year
DO NOT perform stretch exercises on the
cycle, pedals or up against the cycle, except
against the strech plate at the rear end of
the cycle
DO NOT switch the front or seat post from
one cycle to another
DO NOT lift the cycle by the saddle
5
ALWAYS RELEASE TENSION AFTER USE
Unpacking 7
Handlebar 8
Bottom frame 8
Saddle 9
Pedals 9
ASSEMBLY
BODY
BIKE®
INDOOR CYCLE
UNPACKING THE PALLET
1) Begin with opening the top of the box.
2) Remove all the unmounted parts.
3) Flatten the box on the floor next to the
pallet.
4) Loosen the two screws mounting the
first cycle to the pallet.
5) Lift the cycle off the pallet and place it
on the flattened box to spare your floor
from getting marks.
7
Please note
Do not over-
tighten the nuts.
They should only
be hand tight.
Figure 1
WASHER
LIFT
Figure 2

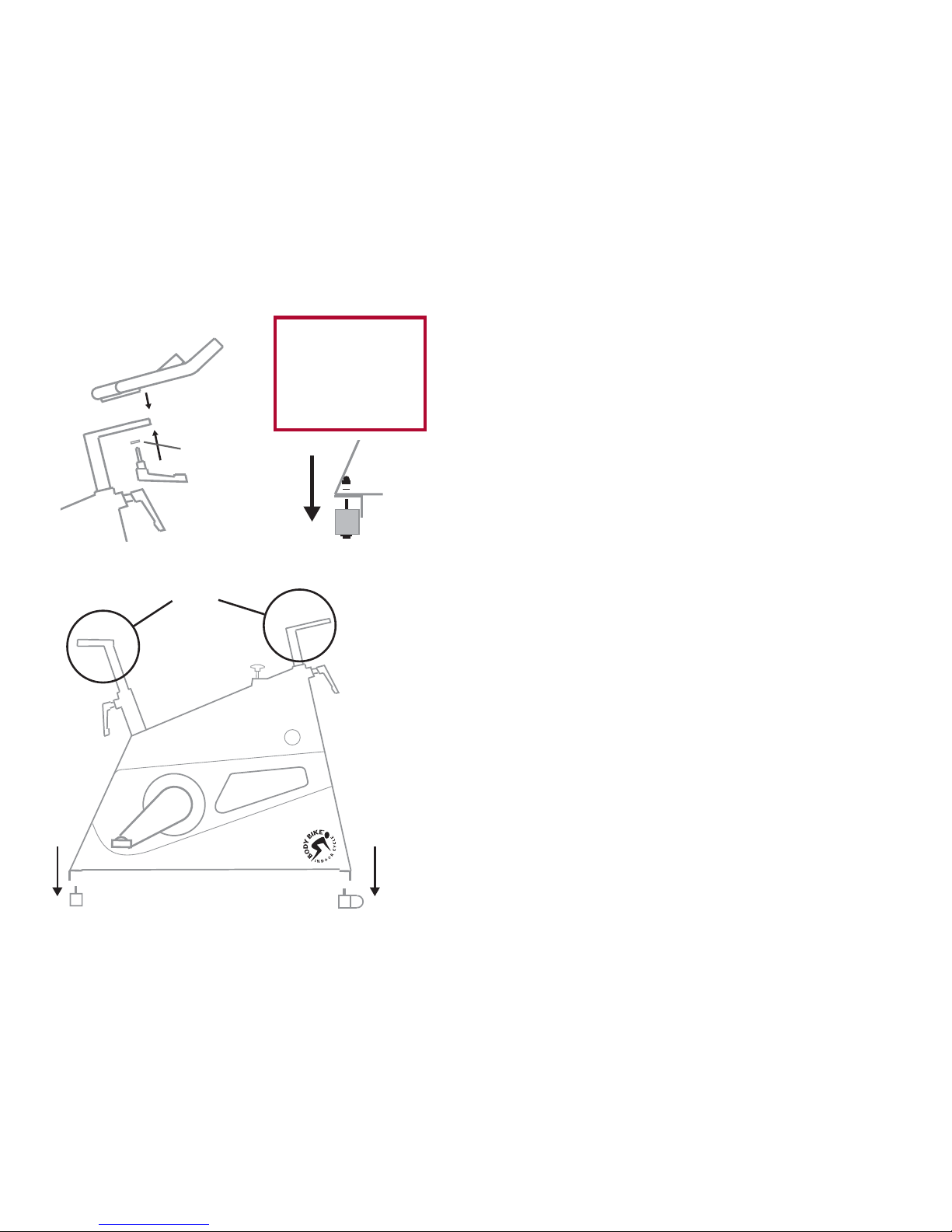

BOTTOM FRAME
A fixing tool can be bought at BODY BIKE International
A/S to ease the mounting of the bottom frame.
1. Arrange the bottom frames parallel on the floor next
to the cycle with the correct mounting distance between
them, see figure 2. On the front bottom frame, the
transport wheels should point forward.
2.Take hold of the front post and seat post and lift the
cycle onto the bottom frames, see figure 2. Ensure that the
holes in the frame match the holes in the bottom frames.
3: Put on the spring lock washer and the cap nut and
tighten by using a 13 mm wrench, see figure 3.
4: Unscrew the rubber feet a little. Place the cycle in the
correct position.Turn them up and down until the cycle
stands properly and it is in level.
HANDLEBAR
1: Place the handlebar on top of the front post.
2: Screw an adjustment handle (size 32mm) clockwise into
the socket from underneath the post, see figure 1. Fix the
handlebar completely to the front post by tightening the
adjustment screw on the side of the handlebar.
Figure 3
ASSEMBLY
BODY
BIKE®
INDOOR CYCLE

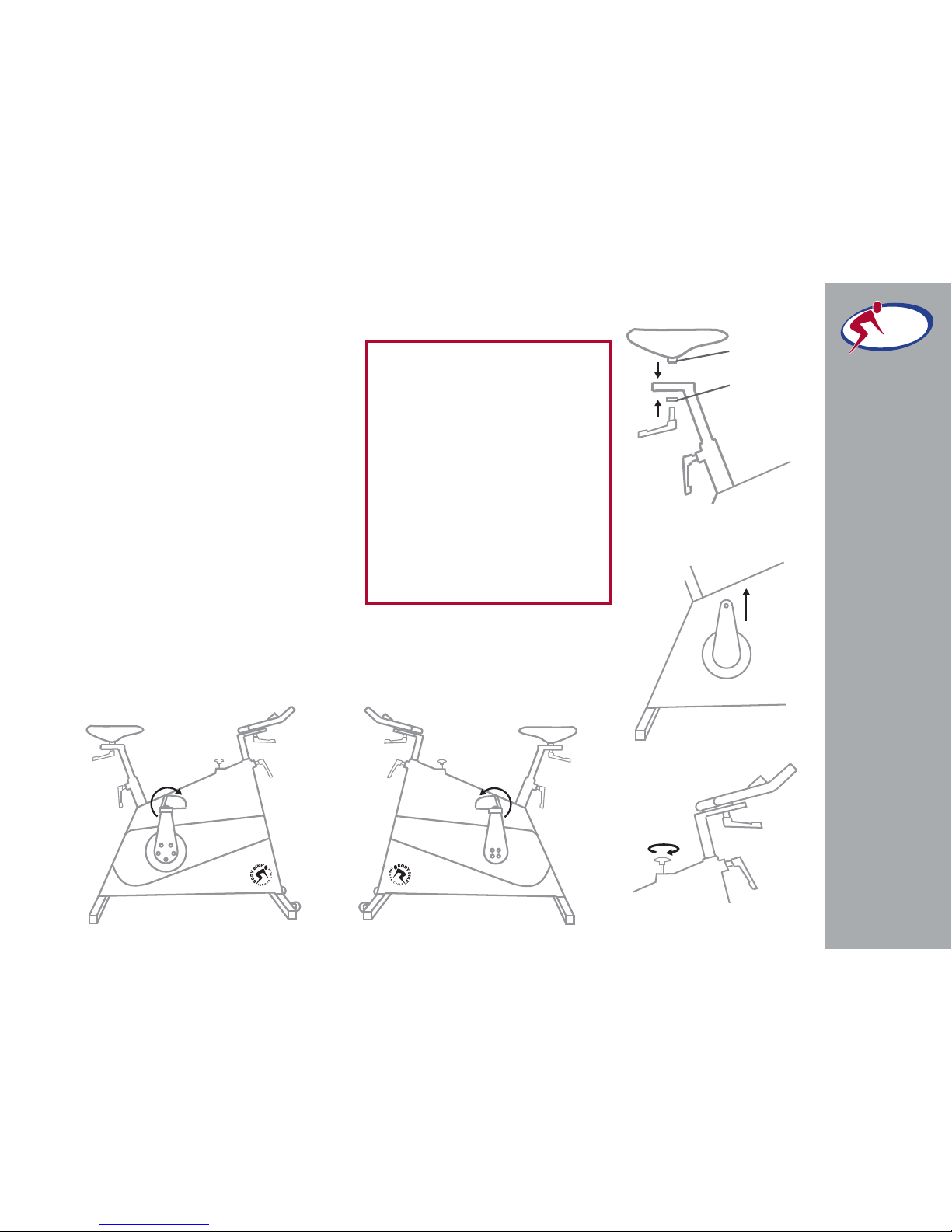

SADDLE
1: Place the saddle in the track on the
seat post.
2: Secure the saddle with the remain-
ing adjustment handle, see figure 4.
To fasten the saddle to the adaptor
and adjust the tilt of the saddle use
a 14 mm wrench on the bolt marked
with an A on figure 4.
PEDALS
1: Place the right pedal arm with the
socket pointing upwards, see figure 5.
2: Put maximum resistance on the
brake, so the pedalarm is unable to
rotate, see figure 6.
Figure 7 9
Please note
- the pedals are marked with
R for Right and L for Left side.
- the pedals should always be
screwed on in the direction
of the handlebar, see figure 7.
- make sure that the hole
in the pedal arm is greased
when mounting the pedal.
- start mounting the pedal by
hand as tools will tighten the
pedal at a wrong angle.
Figure 6
Figure 5
Figure 4
WASHER
A
3: After tightening by hand, use a
15mm pedal wrench to tighten
the pedal completely (45N/4,5kg).
Cleaning (After every use) 11
Adjustment handles (Every 3 months) 12
Cleaning the posts (Every other week) 13
Poly-V belt (When necessary) 14
Replacing the brake block (When necessary) 15
MAINTENANCE
