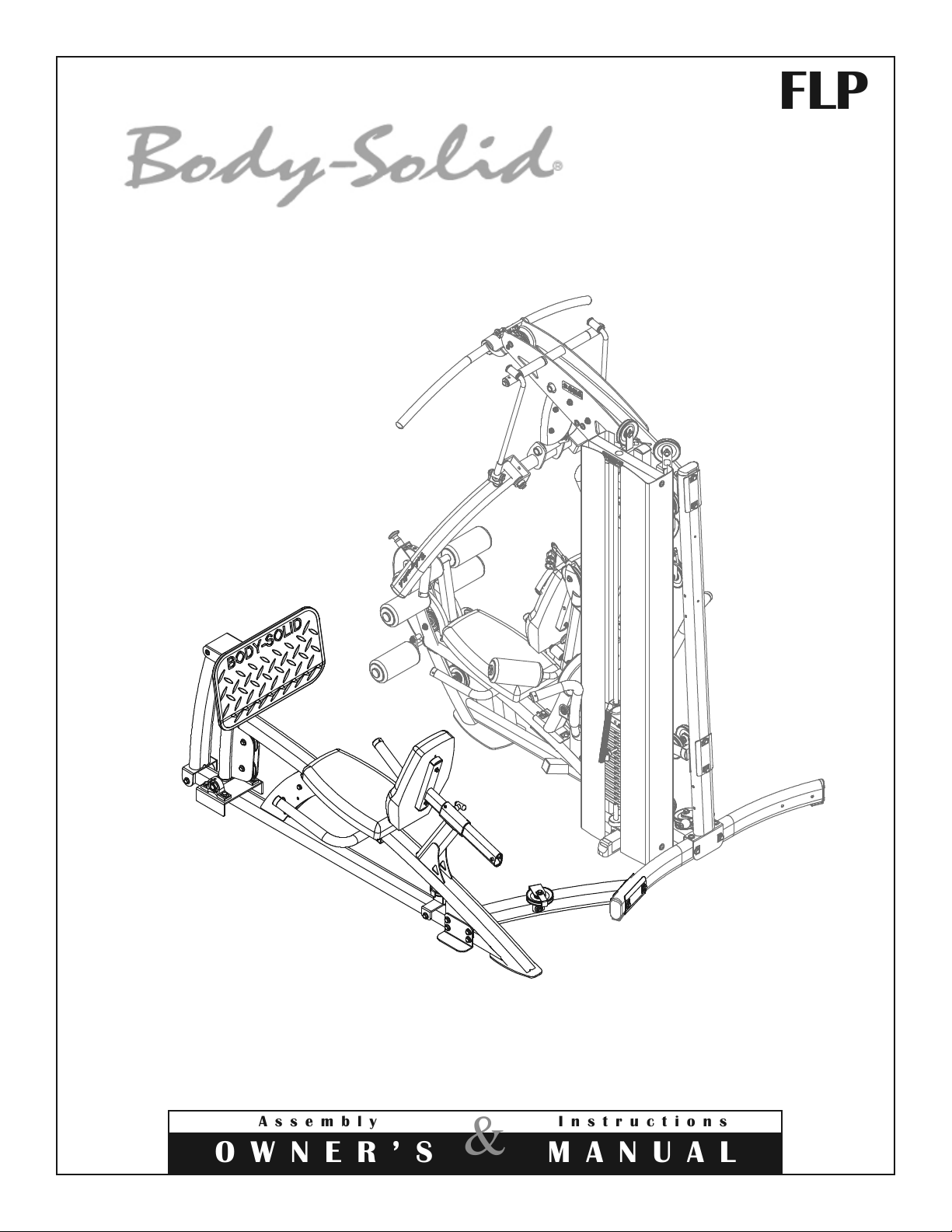

Body Solid FLP Guida rapida

O W N E R ’ S M A N U A L

A s s e m b l y I n s t r u c t i o n s

FLP

O W N E R ` S M A N U A L

A s s e m b l y I n s t r u c t i o n s

FLP

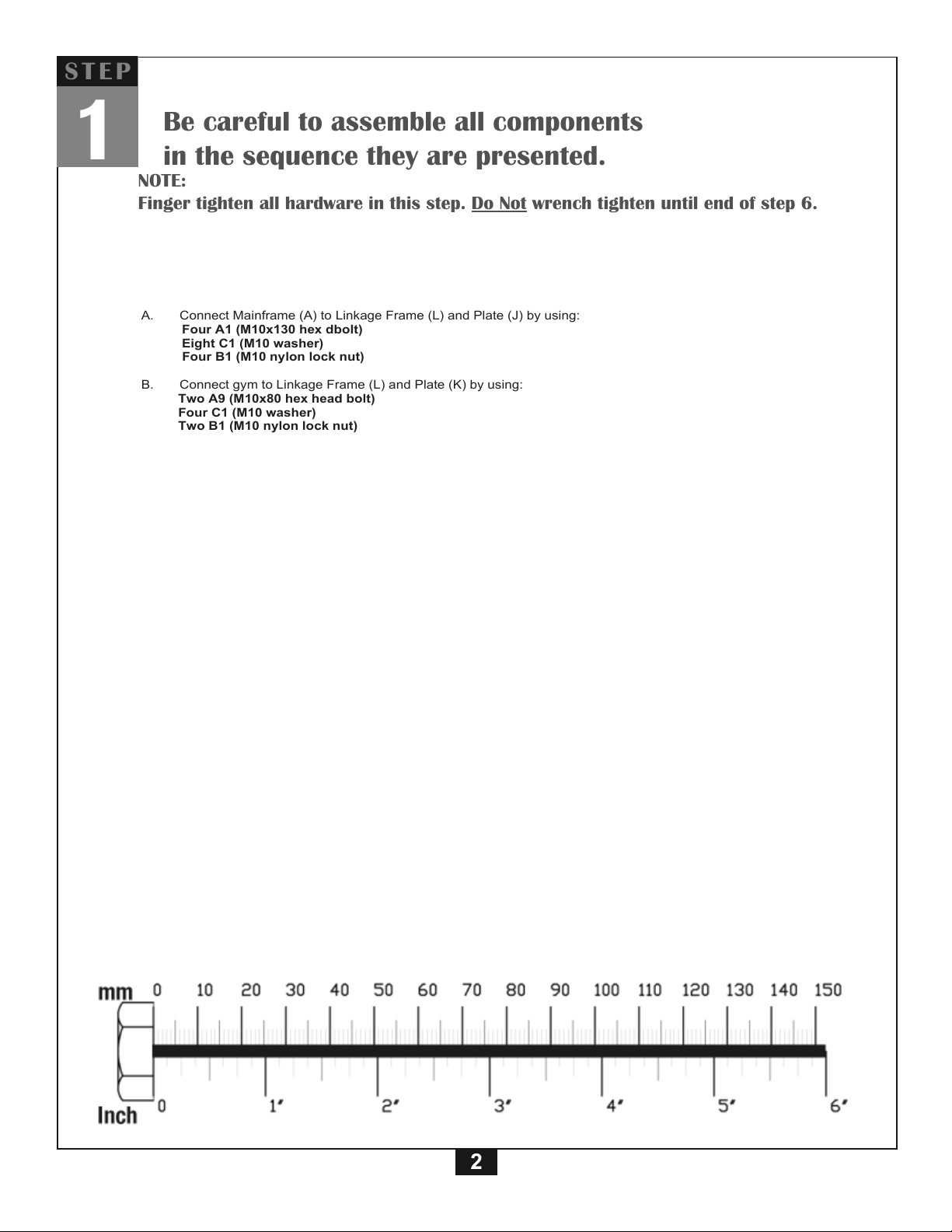

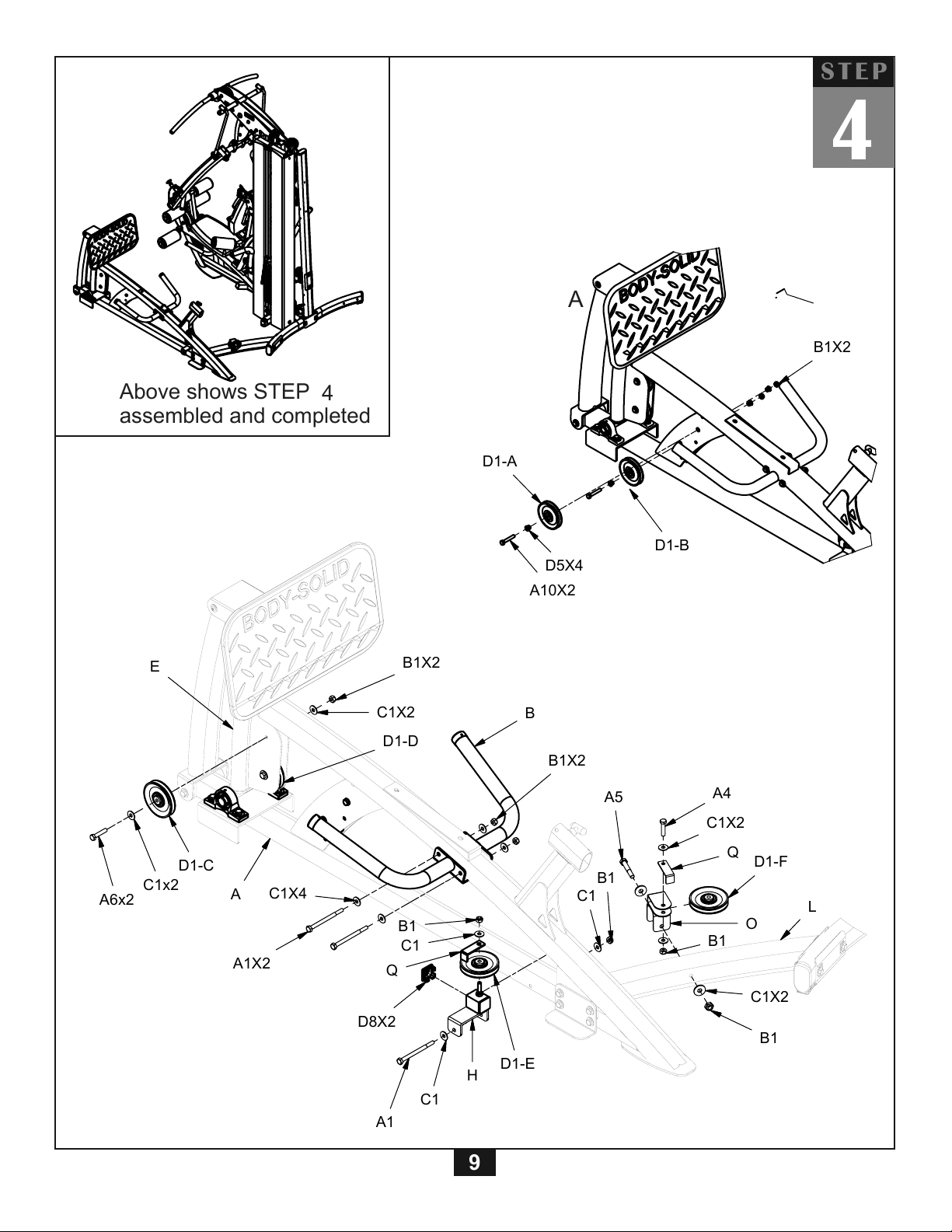

S T E P

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. Do Not wrench tighten until end of step 6.

A. Connect Mainframe (A) to Linkage Frame (L) and Plate (J) by using:

Four A1 (M10x130 hex dbolt)

Eight C1 (M10 washer)

Four B1 (M10 nylon lock nut)

B. Connect gym to Linkage Frame (L) and Plate (K) by using:

Two A9 (M10x80 hex head bolt)

Four C1 (M10 washer)

Two B1 (M10 nylon lock nut)

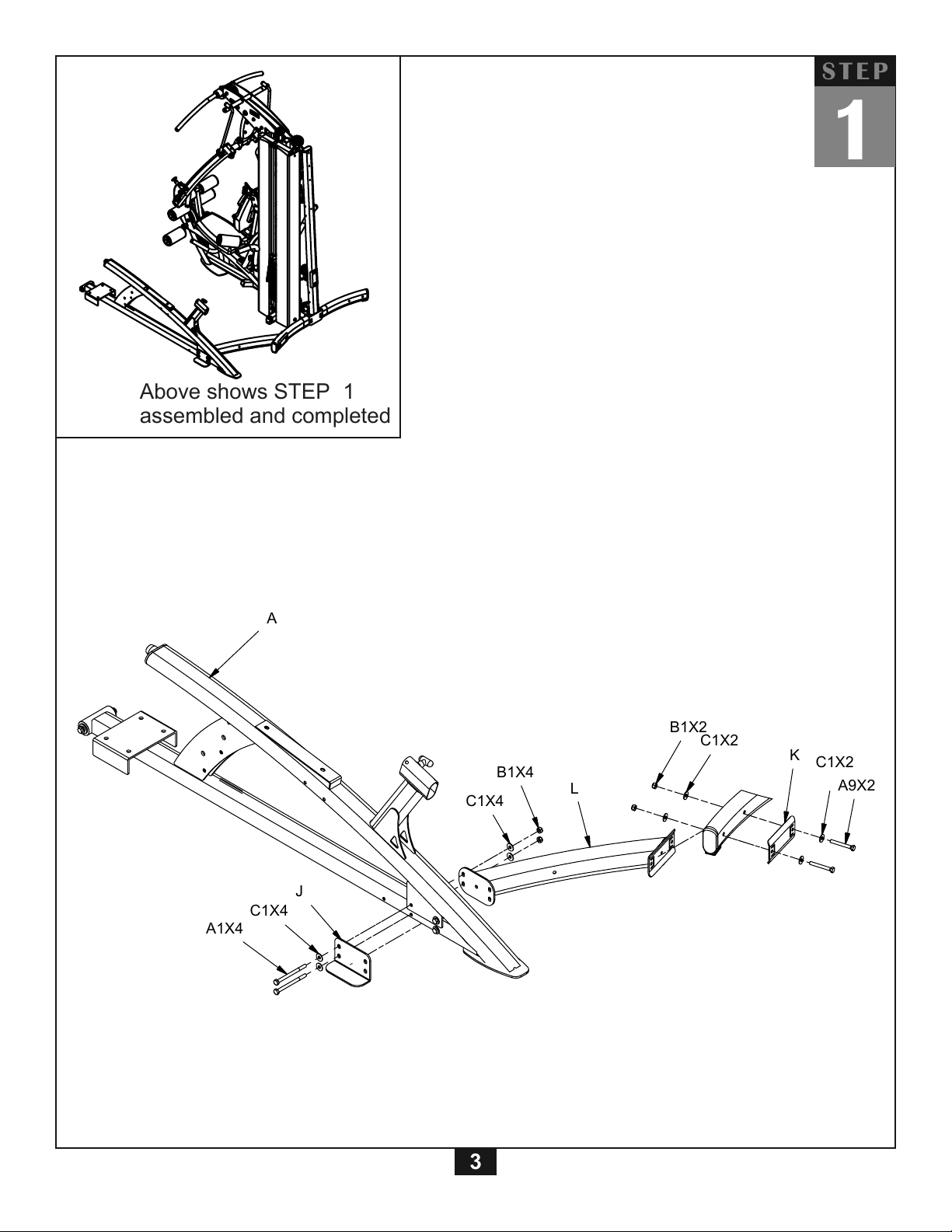

S T E P

Above shows STEP

assembled and completed

A1X4

C1X4

B1X4

C1X4

B1X2

C1X2 KC1X2

A9X2

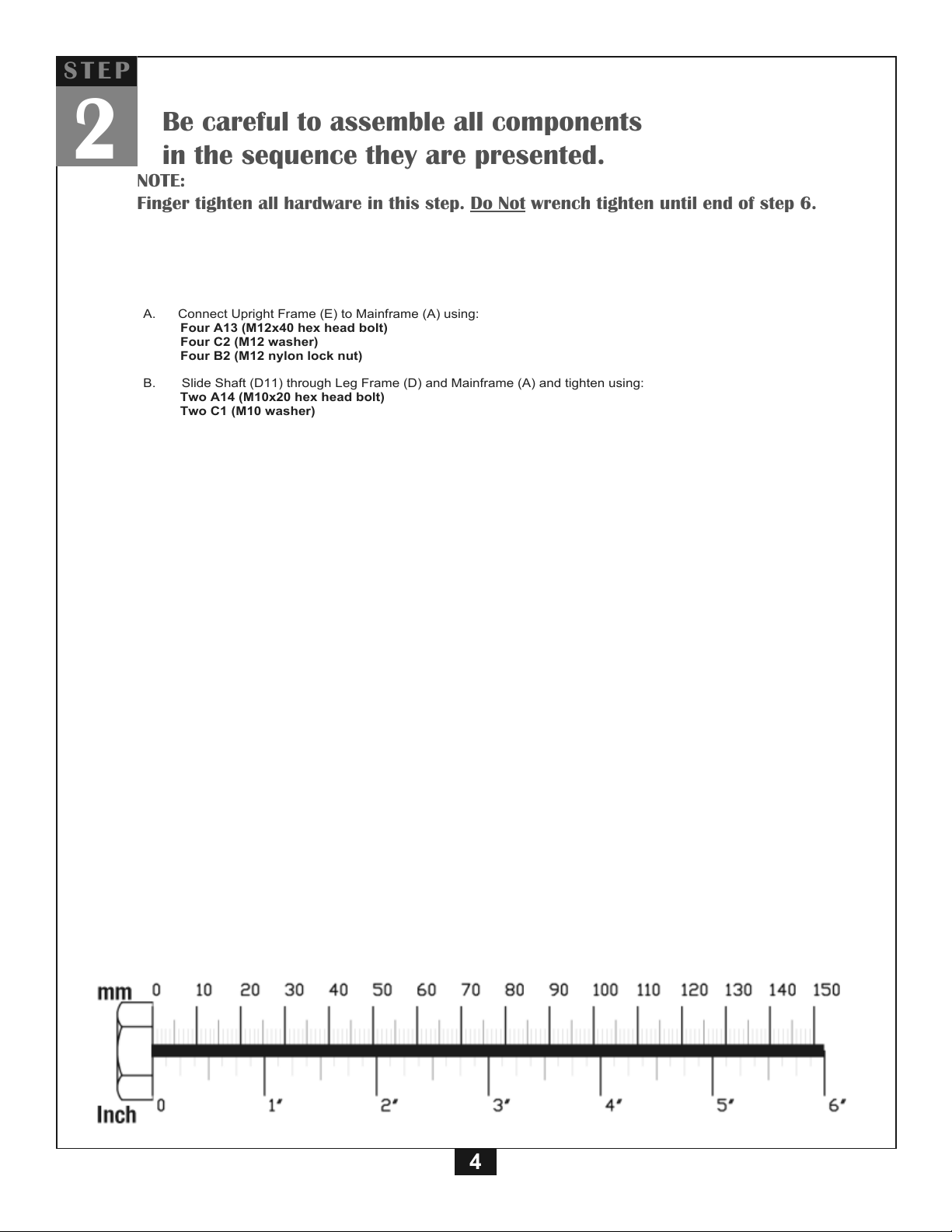

S T E P

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. Do Not wrench tighten until end of step 6.

A. Connect Upright Frame (E) to Mainframe (A) using:

Four A13 (M12x40 hex head bolt)

Four C2 (M12 washer)

Four B2 (M12 nylon lock nut)

B. Slide Shaft (D11) through Leg Frame (D) and Mainframe (A) and tighten using:

Two A14 (M10x20 hex head bolt)

Two C1 (M10 washer)

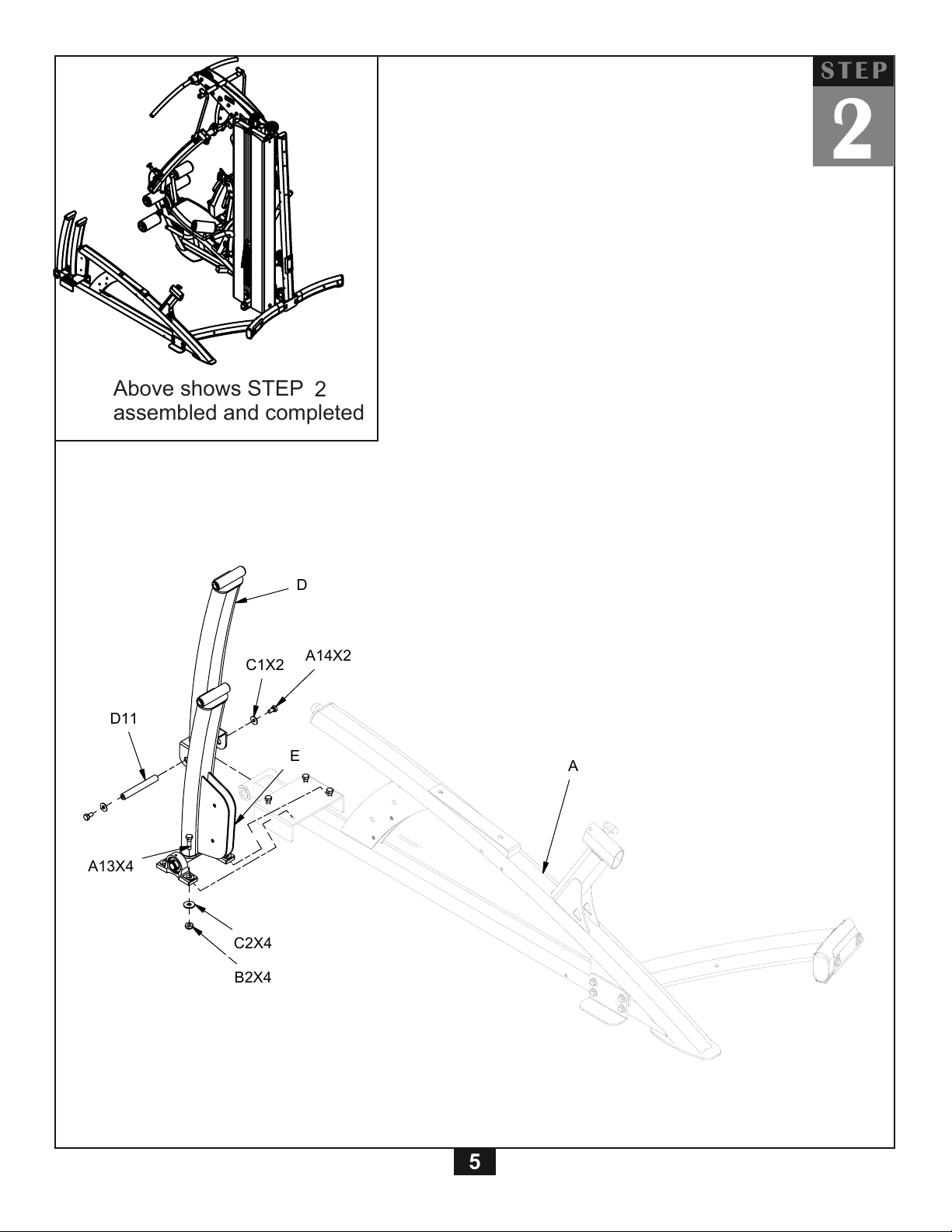

S T E P

Above shows STEP

assembled and completed

B2X4

C2X4

A13X4

A14X2

C1X2

D11

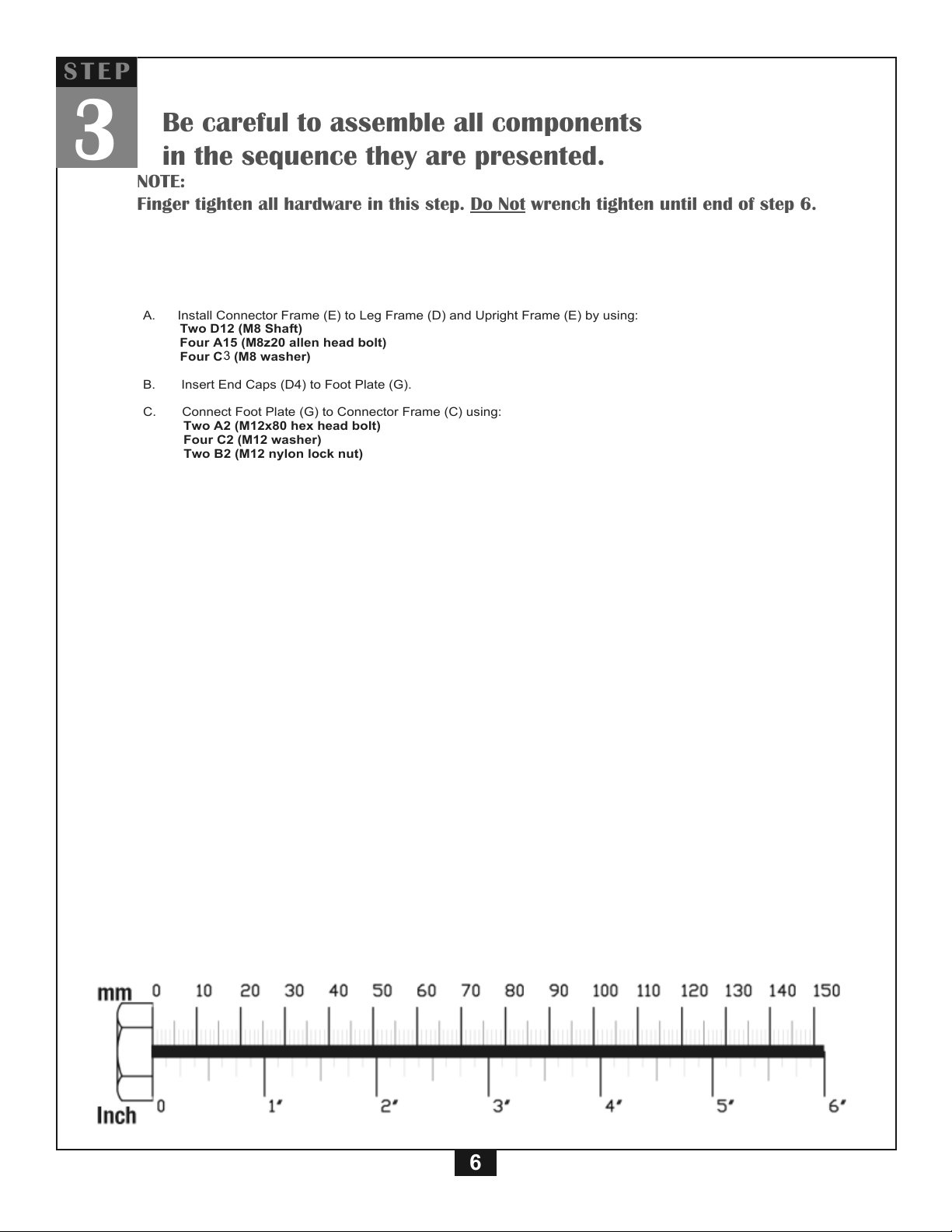

S T E P

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. Do Not wrench tighten until end of step 6.

A. Install Connector Frame (E) to Leg Frame (D) and Upright Frame (E) by using:

Two D12 (M8 Shaft)

Four A15 (M8z20 allen head bolt)

Four C5 (M8 washer)

B. Insert End Caps (D4) to Foot Plate (G).

C. Connect Foot Plate (G) to Connector Frame (C) using:

Two A2 (M12x80 hex head bolt)

Four C2 (M12 washer)

Two B2 (M12 nylon lock nut)

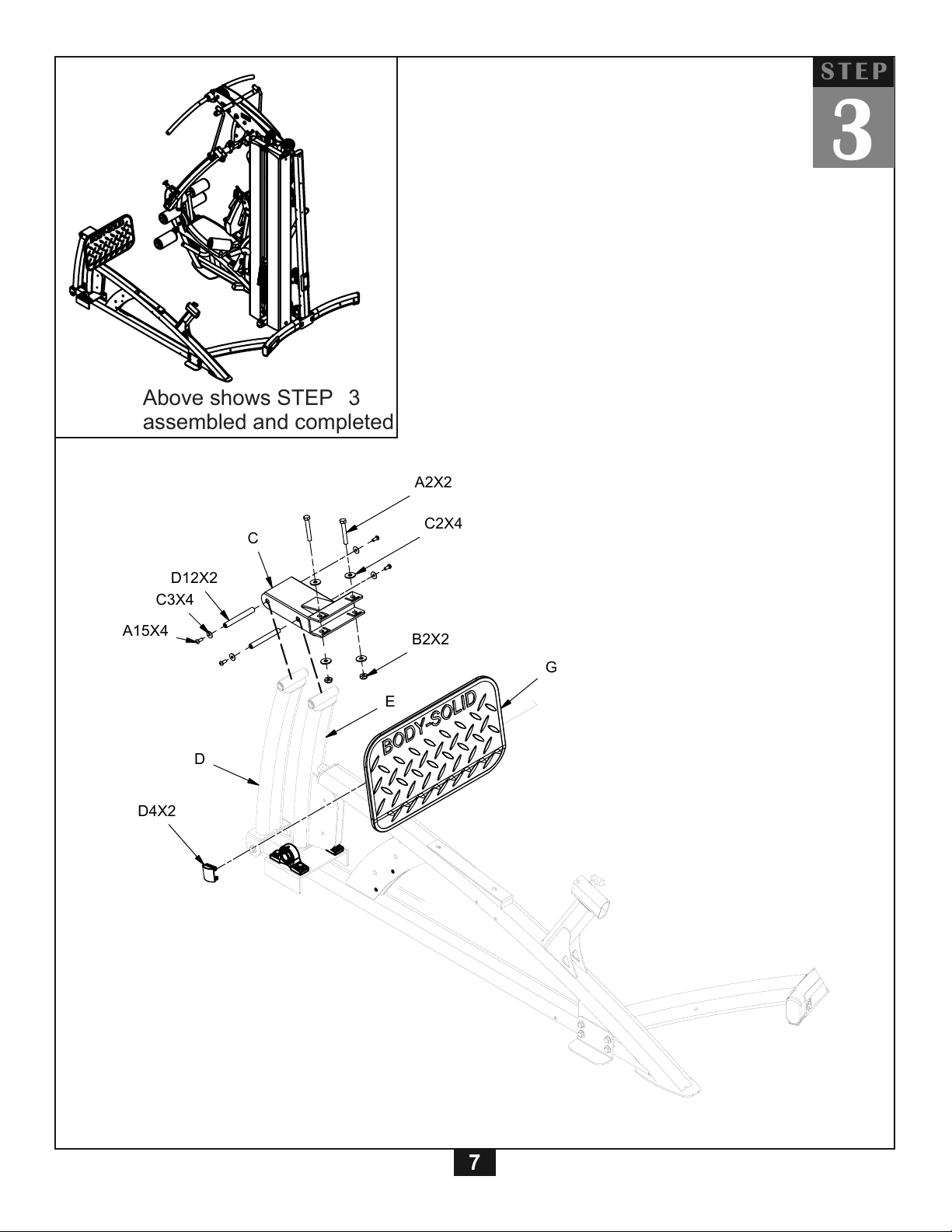

S T E P

Above shows STEP

assembled and completed

D4X2

C2X4

B2X2

A2X2

D12X2

C3X4

A15X4

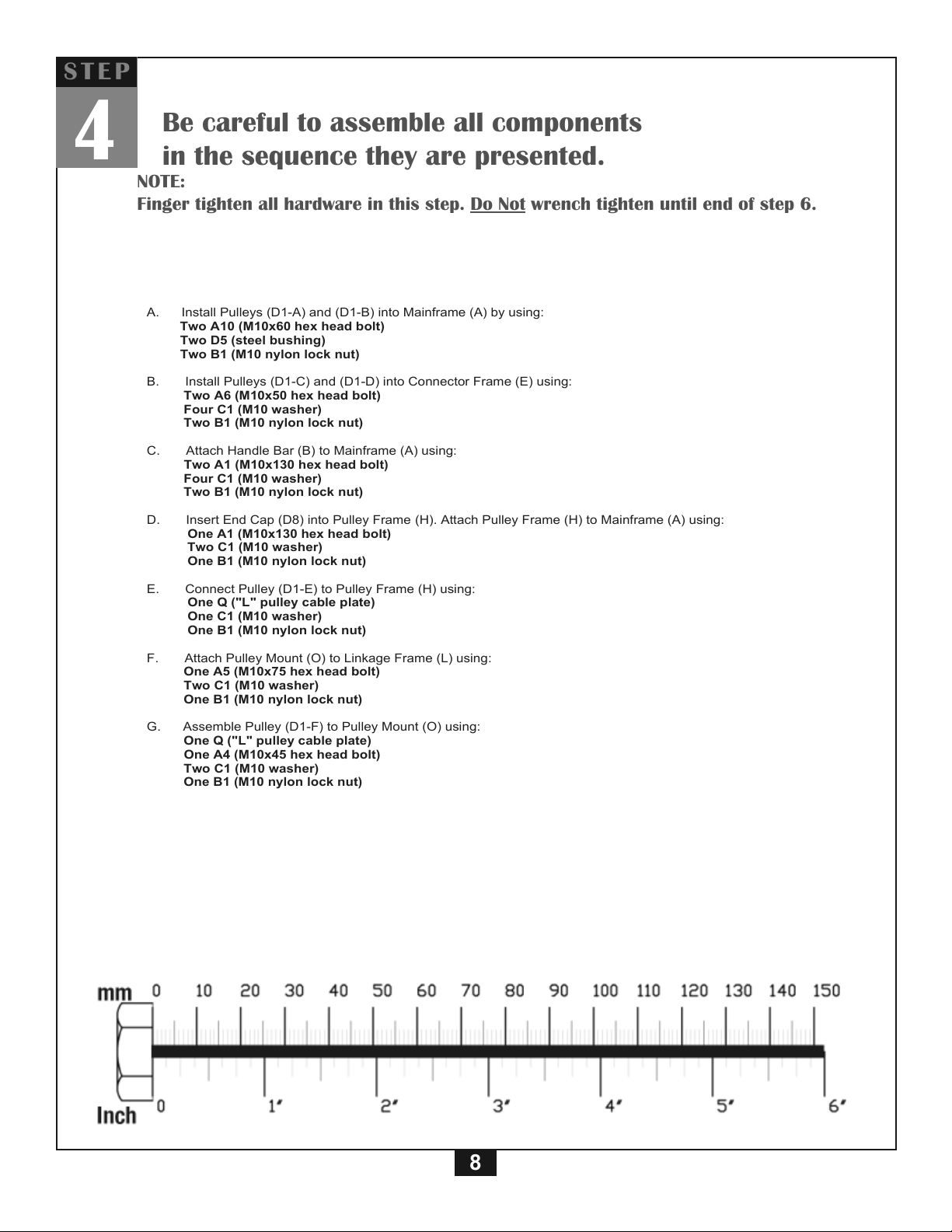

S T E P

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. Do Not wrench tighten until end of step 6.

A. Install Pulleys (D1-A) and (D1-B) into Mainframe (A) by using:

Two A10 (M10x60 hex head bolt)

Two D5 (steel bushing)

Two B1 (M10 nylon lock nut)

B. Install Pulleys (D1-C) and (D1-D) into Connector Frame (E) using:

Two A6 (M10x50 hex head bolt)

Four C1 (M10 washer)

Two B1 (M10 nylon lock nut)

C. Attach Handle Bar (B) to Mainframe (A) using:

Two A1 (M10x130 hex head bolt)

Four C1 (M10 washer)

Two B1 (M10 nylon lock nut)

D. Insert End Cap (D8) into Pulley Frame (H). Attach Pulley Frame (H) to Mainframe (A) using:

One A1 (M10x130 hex head bolt)

Two C1 (M10 washer)

One B1 (M10 nylon lock nut)

E. Connect Pulley (D1-E) to Pulley Frame (H) using:

One Q ("L" pulley cable plate)

One C1 (M10 washer)

One B1 (M10 nylon lock nut)

F. Attach Pulley Mount (O) to Linkage Frame (L) using:

One A5 (M10x75 hex head bolt)

Two C1 (M10 washer)

One B1 (M10 nylon lock nut)

G. Assemble Pulley (D1-F) to Pulley Mount (O) using:

One Q ("L" pulley cable plate)

One A4 (M10x45 hex head bolt)

Two C1 (M10 washer)

One B1 (M10 nylon lock nut)

S T E P

Above shows STEP

assembled and completed

B1X2

C1X2

A6x2 C1x2

D1-C

HD1-E

C1X2

QD1-F

C1X2

B1X2

A1X2

C1X4

A10X2

D5X4

D1-A

B1X2

D8X2

D1-B

D1-D

Above shows STEP

assembled and completed

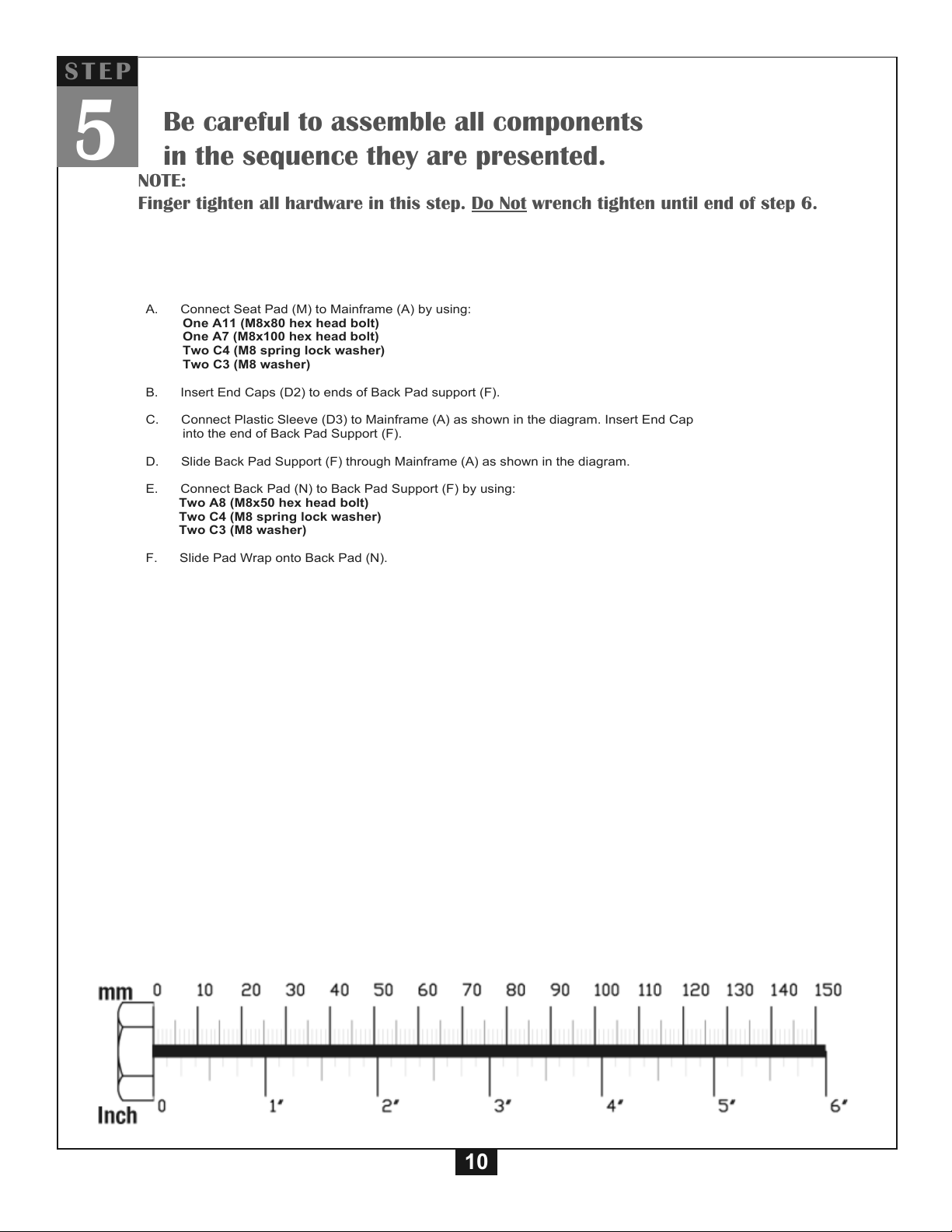

S T E P

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Finger tighten all hardware in this step. Do Not wrench tighten until end of step 6.

A. Connect Seat Pad (M) to Mainframe (A) by using:

One A11 (M8x80 hex head bolt)

One A7 (M8x100 hex head bolt)

Two C4 (M8 spring lock washer)

Two C3 (M8 washer)

B. Insert End Caps (D2) to ends of Back Pad support (F).

C. Connect Plastic Sleeve (D3) to Mainframe (A) as shown in the diagram. Insert End Cap

into the end of Back Pad Support (F).

D. Slide Back Pad Support (F) through Mainframe (A) as shown in the diagram.

E. Connect Back Pad (N) to Back Pad Support (F) by using:

Two A8 (M8x50 hex head bolt)

Two C4 (M8 spring lock washer)

Two C3 (M8 washer)

F. Slide Pad Wrap onto Back Pad (N).
