Body Solid DLEC.2 Manuale utente
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com
OWNER'S MANUAL
DLEC.2
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.1
DLEC.2-112007

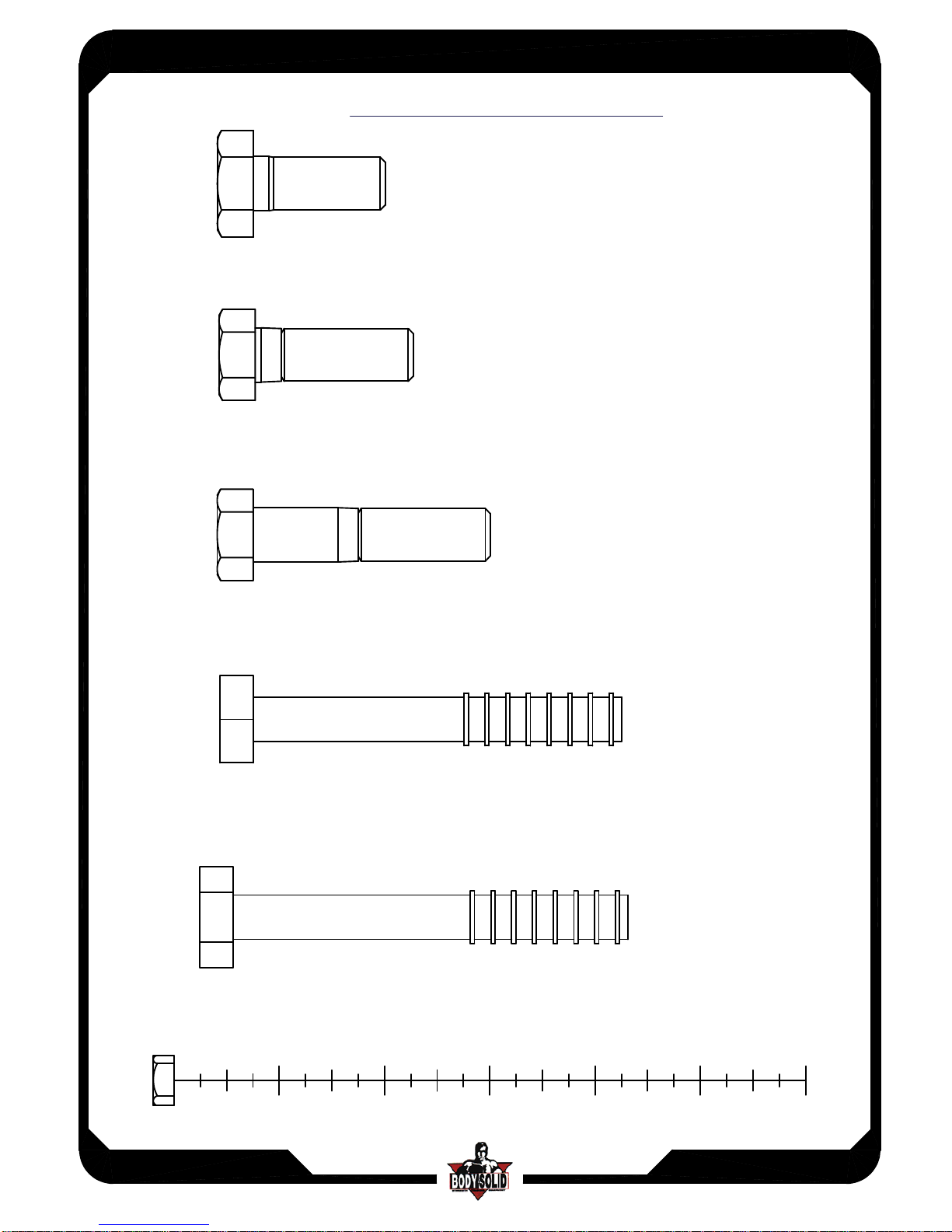

HARDWARW ILLUSTRATION
(A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.2
(A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1
(A5)HEX BOLT 1/2"X3-3/4"L PARTIAL QTY.1
(A2)HEX BOLT 1/2"X1-1/2"L PARTIAL QTY.3
(A4)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2
2
13456
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.2DLEC.2-112007

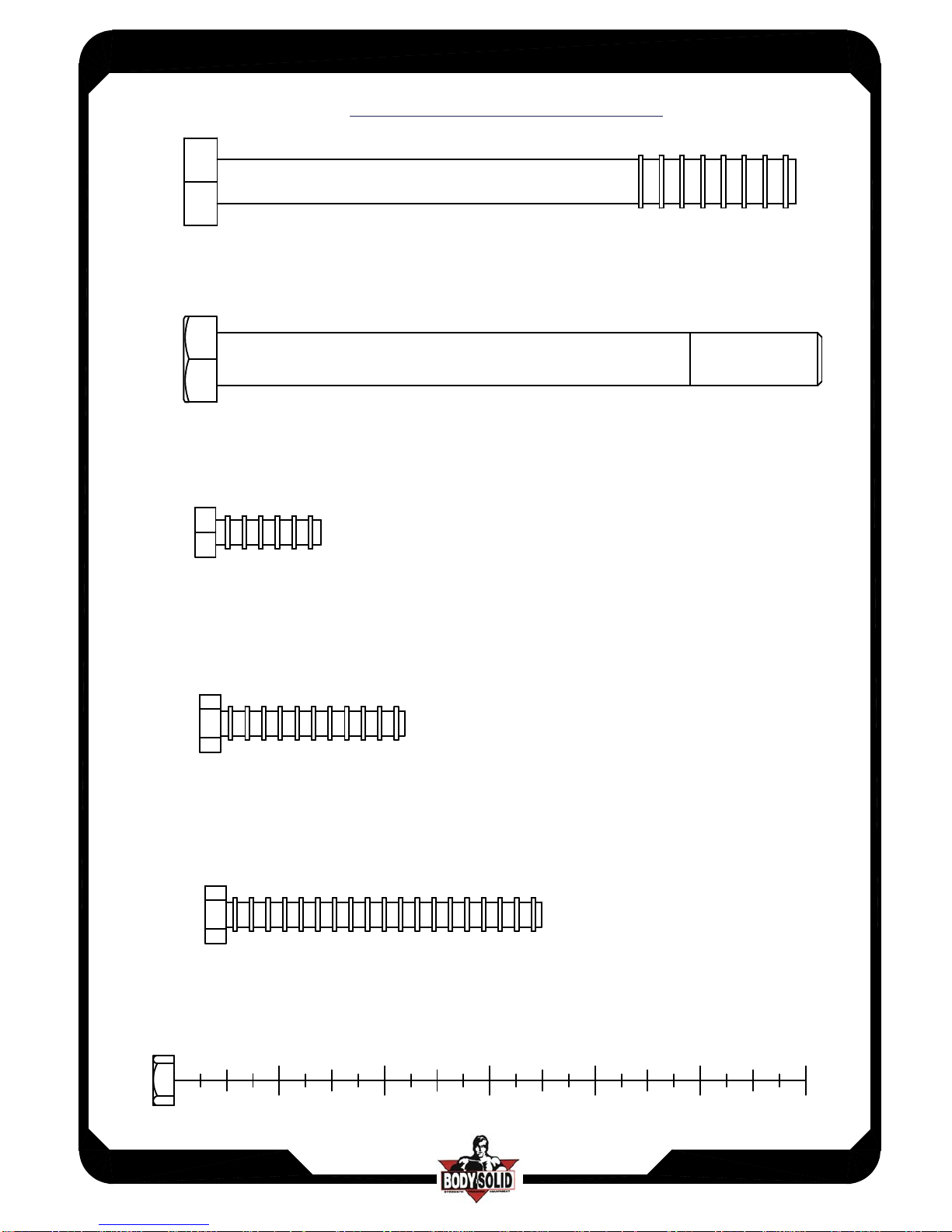

HARDWARW ILLUSTRATION
(A6)HEX BOLT 1/2"X5-1/2"L PARTIAL QTY.2
(A8)HEX BOLT 5/16"X1"L PARTIAL QTY.6
(A10)HEX BOLT 5/16"X3"L PARTIAL QTY.1
(A7)HEX BOLT 1/2"X5-3/4"L PARTIAL QTY.2
(A9)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1
2
13456
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.3
DLEC.2-112007

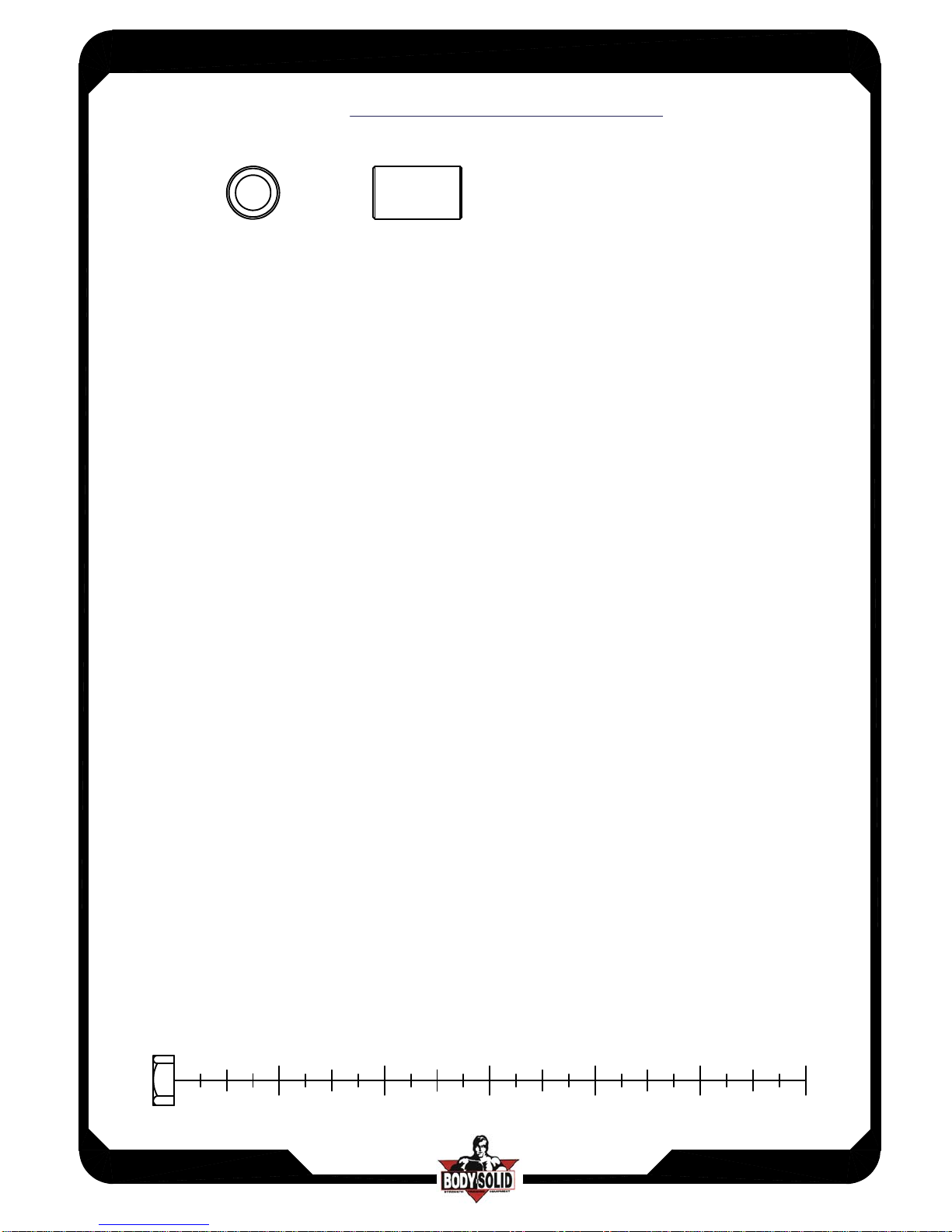

HARDWARW ILLUSTRATION
(A11)STEEL BUSHING n1/2"Xn8.5X21L QTY.1
2
13456
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.4
DLEC.2-112007

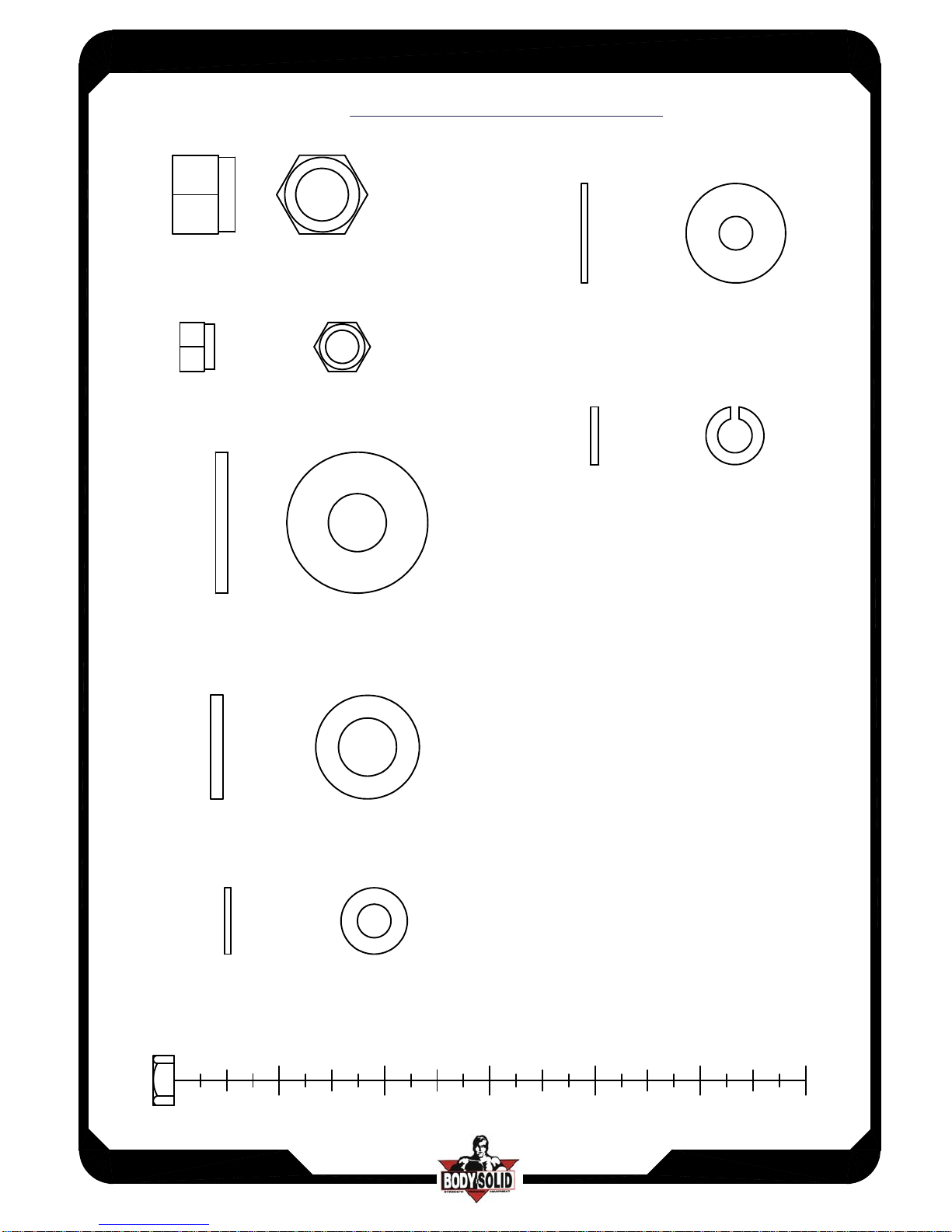

HARDWARW ILLUSTRATION
(B1)NYLON LOCK NUT1/2" QTY.13
(B2)NYLON LOCK NUT 5/16" QTY.1
(C1)1/2"(I.D.)FLAT WASHER n34 QTY.20
(C2)1/2"(I.D.)FLAT WASHER n25 QTY.6
(C3)5/16"(I.D.)FLAT WASHER n16 QTY.2
(C4)5/16"(I.D.)FLAT WASHER n24 QTY.7
(C5)SPRING WASHER 5/16" QTY.7
2
13456
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.5
DLEC.2-112007

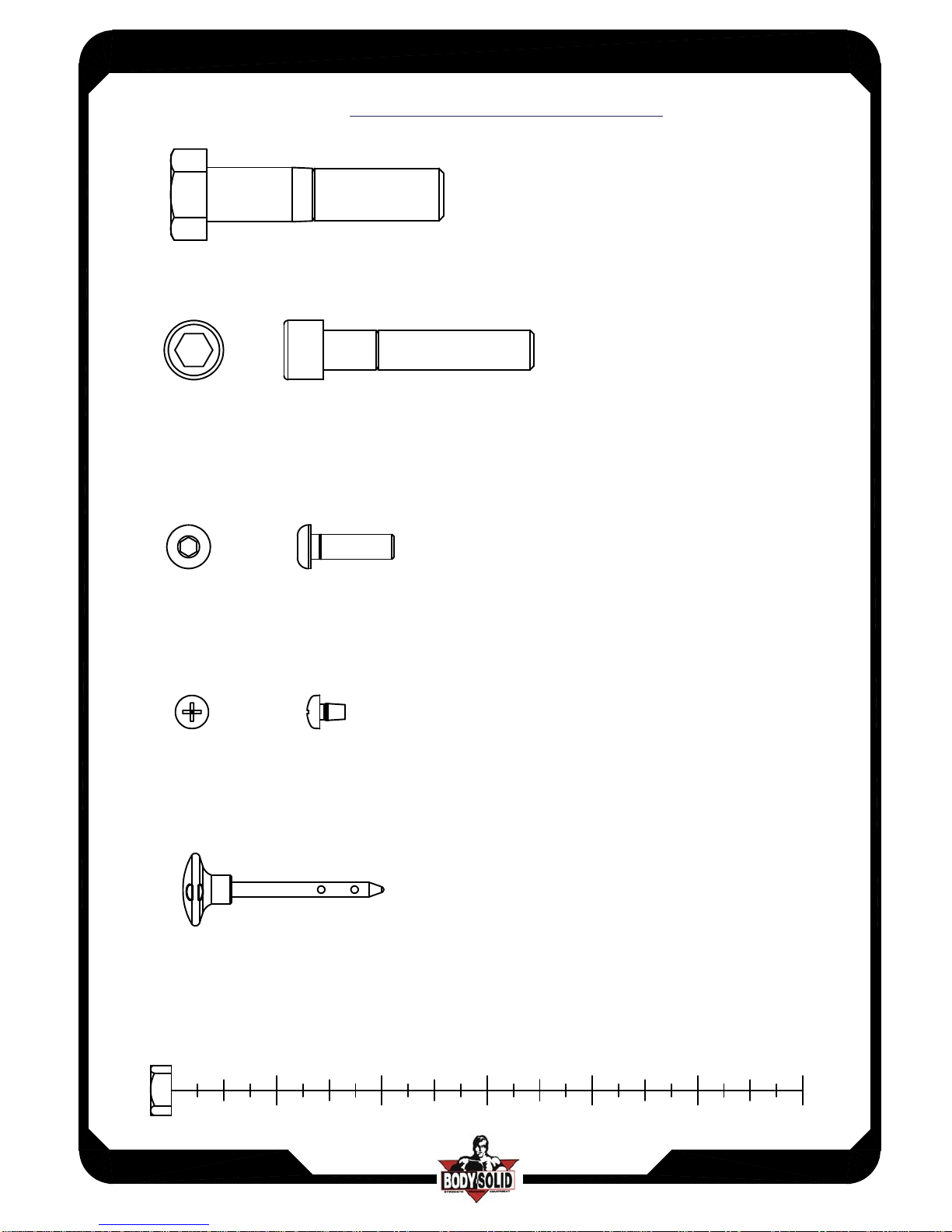

HARDWARW ILLUSTRATION
(AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1
(AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20
(AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3
(AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4
2
13456
(AA7)10LB PIN(8250-071) QTY.1
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.6
DLEC.2-112007

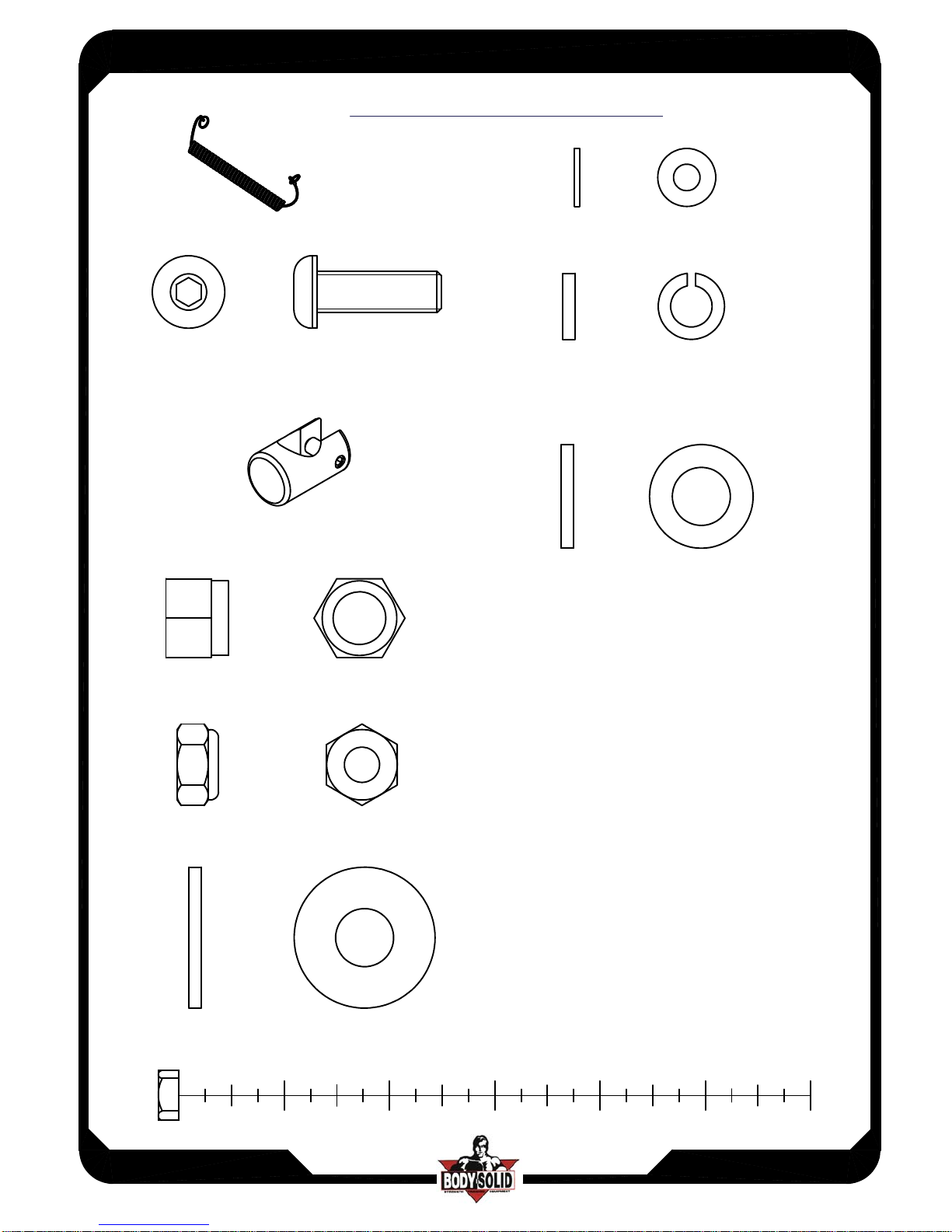

HARDWARW ILLUSTRATION
(AA8)ELASTIC BOLT QTY.1
(CC1)1/2"(I.D.)FLAT WASHER n34 QTY.4
(BB2)NYLON LOCK NUT1/2" QTY.3
(CC5)SPRING WASHER 3/8" QTY.1
(CC2)M6(I.D.)FLAT WASHER n13 QTY.20
(CC6)1/2"(I.D.)FLAT WASHER n25 QTY.2
2
13456
(AA10)ROUND INNER HEX SCREW
M10X30L PARTIAL QTY.1
(AA11)FIRM SHEATH(8890-046) QTY.1
(BB3)NYLON LOCK NUT M10 QTY.1
ASSEMBLY INSTRUCTIONS
Page
DLEC
2
DLEC.2-112007

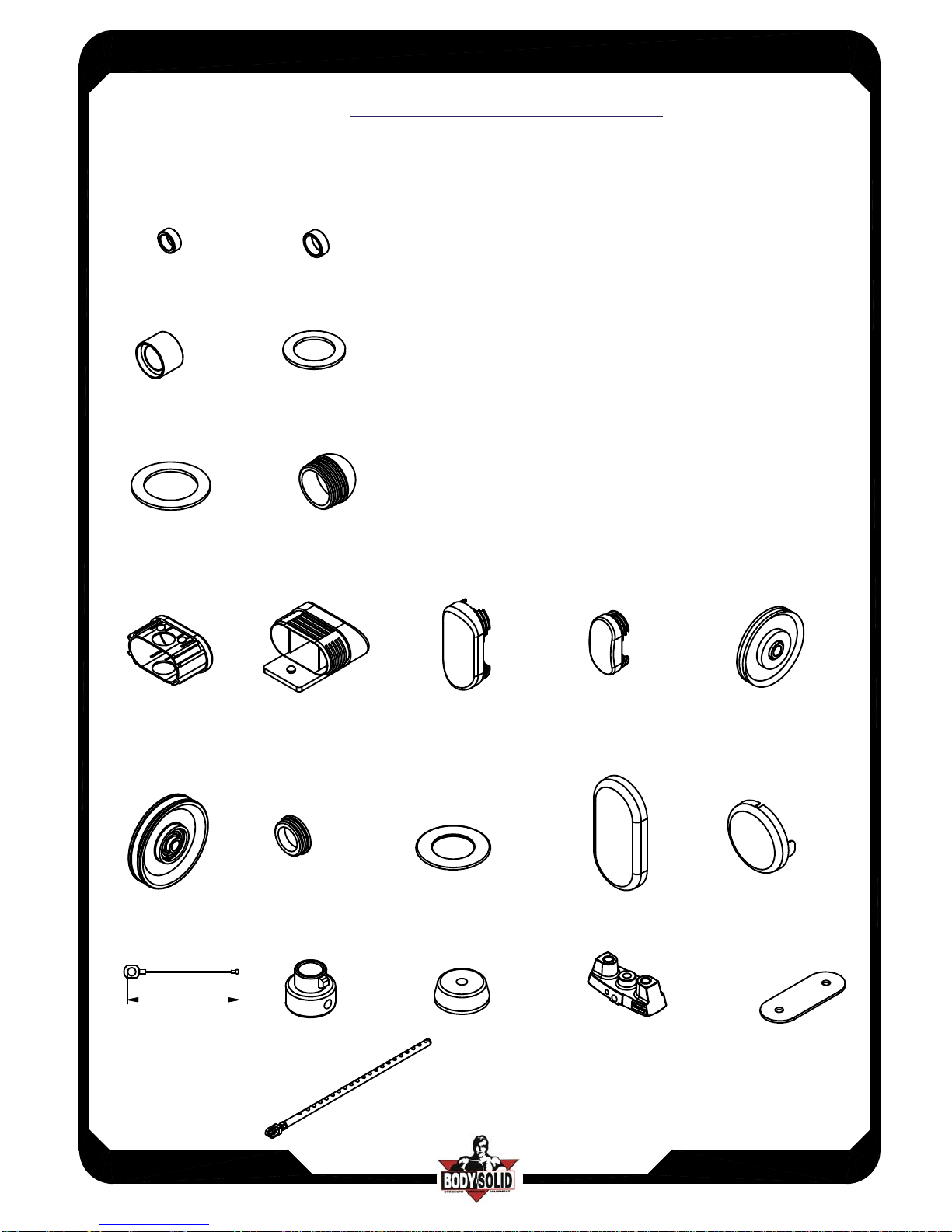

HARDWARW ILLUSTRATION
(D1)n3/4"X13.5X8L STEEL BUSHING(8110-014)
(D2)n25.4Xn20.4X10L STEEL BUSHING(8120-040)
(D3)n38"Xn25.2X27L STEEL BUSHING(8130-159)
(D4)n30"Xn20X1.5t CU WASHER(8520-007)
(D5)n38"Xn26X1.5t CU WASHER(8520-008)
(D6)n50 ROUND END CAP(9211-074)
(D7)50X100 NYLON BUSHING(9211-107)
(D8)58X116X2.5tX65H FOOT CAP(9211-109)
(D9)58X116X2.5t END CAP(9211-112)
(D10)40X80X2t END CAP(9211-113)
(D11)Ø4" PULLEY(9213-017A)
(D12)Ø4 1/2" PULLEY(9213-010B)
(D13)n50 END CAP(9211-020)
(D14)n90Xn51X3t NYLON WASHER(9214-022)
(D15) 207X105X23 END CAP(9211-115)
(D16)n131X30 END CAP(9211-116)
(D17)3580mm STEEL CABLE(FDLECA)
(D18)n3/4" SHAFT COLLAR(9211-046)
(D19)n4" RUBBER DOUNT(9310-017)
(D20)TOP PLATE(8400-006)
(D22)95X250 RUBBER PAD(9310-060)
(D23)DLEC FOR DGYM CABLE(FDLECB)
(D24)WEIGHT SELECTOR BAR(8210-042B)
--------------------------------[2PCS]
---------------------------[1PCS]
-----------------------------[1PCS]
----------------------------------[1PCS]
-------------------------------------[3PCS]
------------------------------------------ [2PCS]
----------------------------------------- [2PCS]
----------------------------------- [3PCS]
------------------------------------------- [4PCS]
-----------------------------------------------[1PCS]
-------------------------------------------------- [2PCS]
------------------------------------------------- [5PCS]
------------------------------------------------------- [2PCS]
-------------------------------- [4PCS]
------------------------------------------- [1PCS]
-----------------------------------------------[1PCS]
--------------------------------------------[1PCS]
-------------------------------------------[2PCS]
---------------------------------------------[2PCS]
--------------------------------------------------------[1PCS]
-------------------------------------------[2PCS]
-----------------------------------------[1PCS]
------------------------------------[1PCS]
D1 D2
D3 D4
D5 D6
D7 D8 D9 D11D10
D12 D13 D14 D15 D16
D18 D19D17
3580
D20
D24
D22
ASSEMBLY INSTRUCTIONS
Page
DLEC
3
DLEC.2-112007

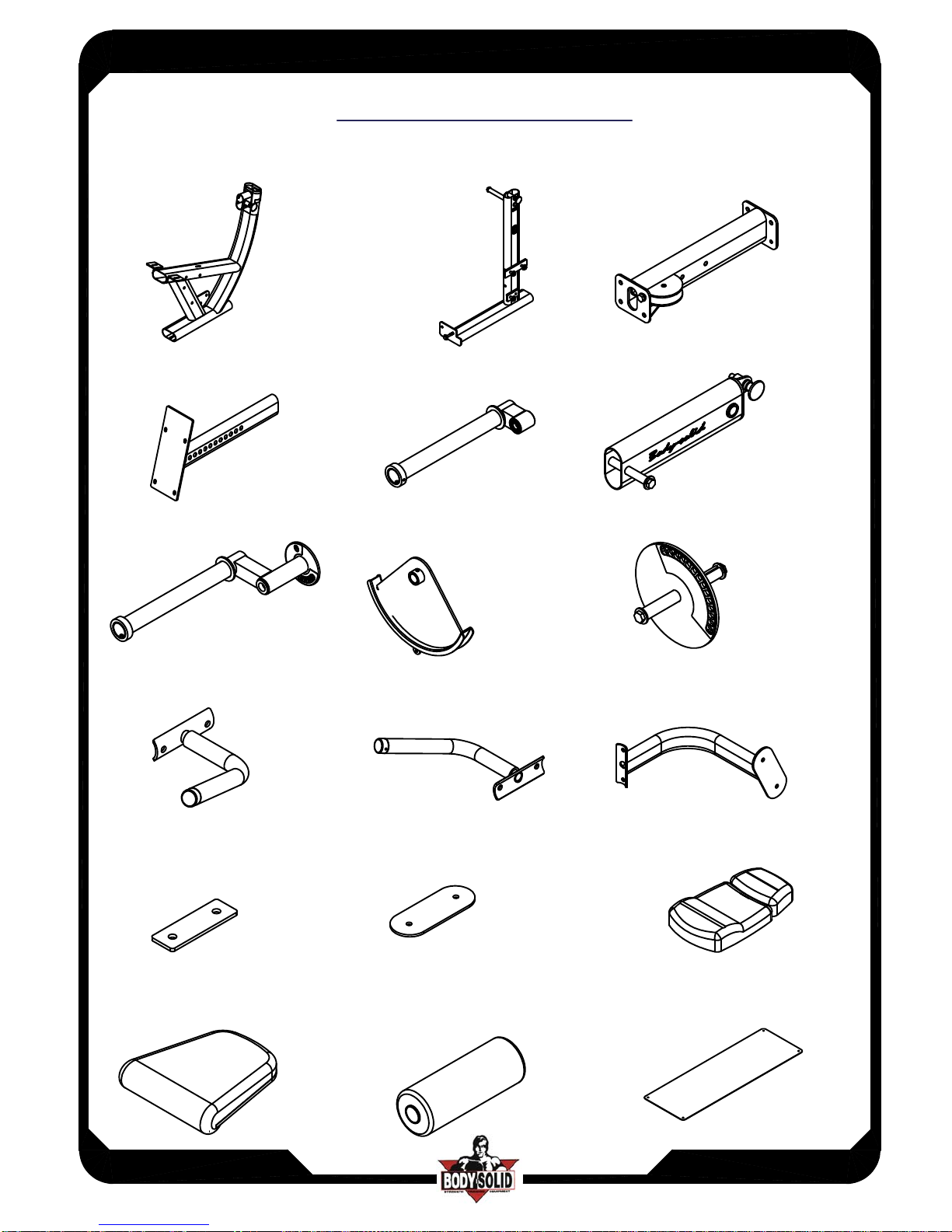

PARTS ILLUSTRATION
A2[1PCS] B [1PCS]
D [1PCS] E[1PCS] F [1PCS]
H [1PCS]
J [1PCS]
C [1PCS]
M [1PCS)
8321-062
P [2PCS]
9121-053
O[1PCS]
9111-055
N [1PCS]
8313-135
I [1PCS]
K [1PCS]
Q [2PCS]
9161-034
L [1PCS)
G1 [1PCS]
R [1PCS]
9440-161
ASSEMBLY INSTRUCTIONS
Page
DLEC
5
DLEC.2-112007

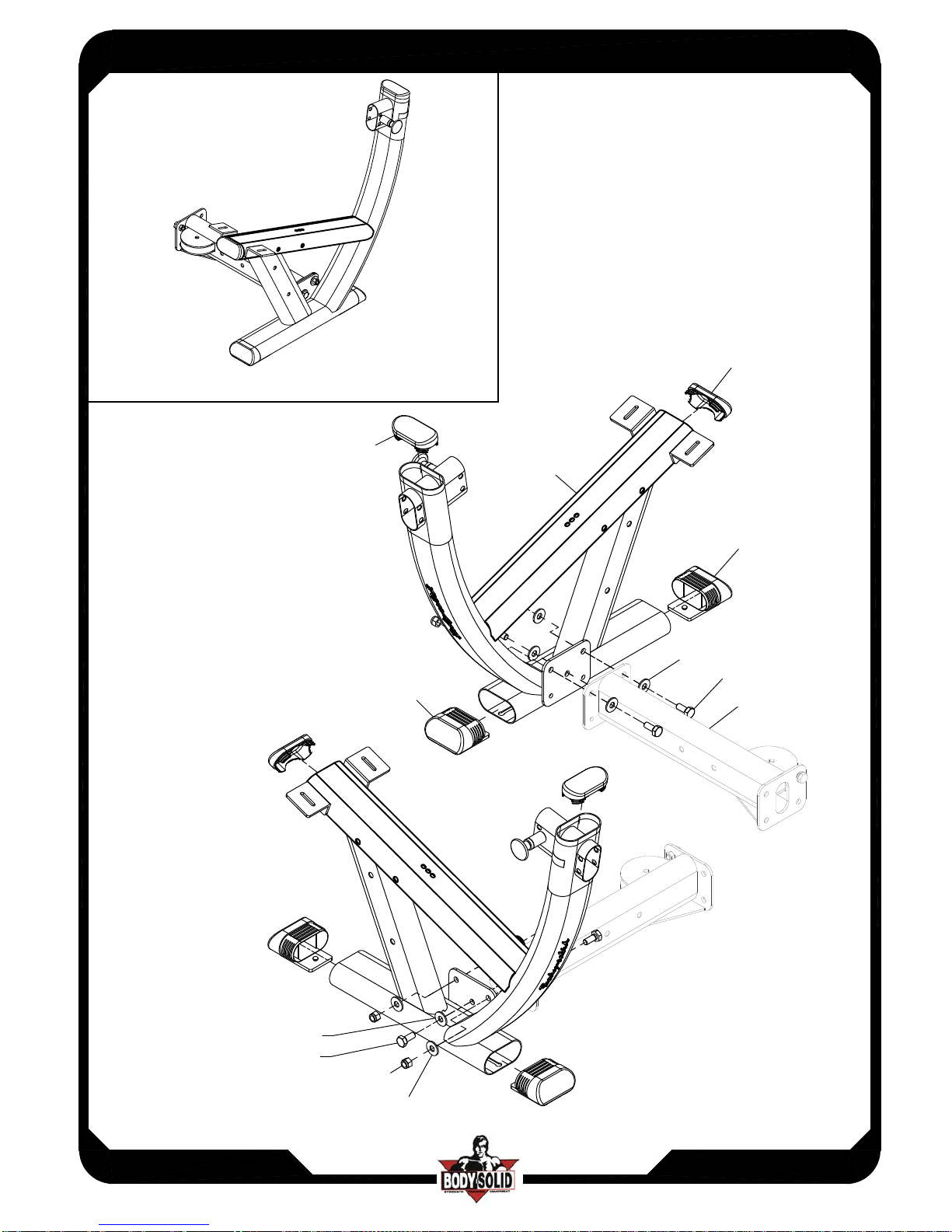

Above shows STEP 1
assembled and completed
A2
C
A1X2
D9
D8
D8
C1X2
D9
1/2"X1"L HEX Bolt
1/2" Washer
B1X2
C1X2
