Bosch GPLL5 Operating/s Istruzioni per il montaggio

IMPORTANT: IMPORTANT : IMPORTANTE:

Read Before Using Lire avant usage Leer antes de usar

Operating/Safety Instructions

Consignes de fonctionnement/sécurité

Instrucciones de funcionamiento y seguridad

For English Version Version française Versión en español

See page 6 Voir page 15 Ver la página 25

Call Toll Free for

Consumer

Information &

Service Locations

Pour obtenir des

informations et les adresses

de nos centresde service

après-vente, appelez ce

numéro gratuit

Llame gratis para

obtener información

para el consumidor

y ubicaciones

de servicio

1-877-BOSCH99 (1-877-267-2499) www.boschtools.com

GPLL5

-2-

-3-

-4-

-5-

Read all instructions. Failure to follow all

instructions listed below may result in

hazardous radiation exposure, electric

shock, fire and/or serious injury. The term “tool” in all of the

warnings listed below refers to your mains-operated (corded) tool

or battery-operated (cordless) tool.

The following labels are on your laser tool

for your convenience and safety. They

indicate where the laser light is emitted by the tool. ALWAYS

BE AWARE of their location when using the tool.

Do not direct the laser beam at persons or animals

and do not stare into the laser beam yourself. This

tool produces laser class 2 laser radiation and

complies with 21 CFR 1040.10 and 1040.11 except

for deviations pursuant to Laser Notice No. 50,

dated June 24, 2007. This can lead to persons being blinded.

Changes or modifications to this equipment not expressly

approved by the party responsible for compliance could void the

user's authority to operate the equipment.

CAUTION Use of controls or adjustments or performance of

procedures other than those specified herein may result in

hazardous radiation exposure.

DO NOT remove or deface any warning or caution labels.

Removing labels increases the risk of exposure to laser radiation.

ALWAYS make sure that any bystanders in the vicinity of use are

made aware of the dangers of looking directly into the laser tool.

DO NOT place the laser tool in a position that may cause anyone

to stare into the laser beam intentionally or unintentionally.

Serious eye injury could result.

ALWAYS position the laser tool securely. Damage to the laser

tool and/or serious injury to the user could result if the laser

tool fails.

ALWAYS use only the accessories that are recommended by the

manufacturer of your laser tool. Use of accessories that have

been designed for use with other laser tools could result in

serious injury.

DO NOT use this laser tool for any purpose other than those

outlined in this manual. This could result in serious injury.

DO NOT leave the laser tool “ON” unattended in any

operating mode.

-6-

General Safety Rules

WARNING

-7-

DO NOT disassemble the laser tool. There are no user

serviceable parts inside.

DO NOT modify the product in any way. Modifying the laser tool

may result in hazardous laser radiation exposure.

DO NOT use the laser viewing glasses as safety goggles. The

laser viewing glasses are used for improved visualization of the

laser beam, but they do not protect against laser radiation.

DO NOT use the laser viewing glasses as sun glasses or in

traffic. The laser viewing glasses do not afford complete UV

protection and reduce color perception.

DO NOT use any optical tools such as, but not limited to,

telescopes or transits to view the laser beam. Serious eye injury

could result.

DO NOT stare directly at the laser beam or project the laser

beam directly into the eyes of others. Serious eye injury

could result.

SAVE THESE INSTRUCTIONS

Work area safety

Keep work area clean and well lit. Cluttered or dark areas

invite accidents.

DO NOT operate the laser tool around children or allow

children to operate the laser tool. Serious eye injury

could result.

Electrical safety

Batteries can explode or leak, cause injury

or fire. To reduce this risk, always follow all

instructions and warnings on the battery label and package.

DO NOT short any battery terminals.

DO NOT charge alkaline batteries.

DO NOT mix old and new batteries. Replace all of them at the

same time with new batteries of the same brand and type.

DO NOT mix battery chemistries.Dispose of or recycle batteries

per local code.

DO NOT dispose of batteries in fire. Keep batteries out of reach

of children.

Remove batteries if the device will not be used for

several months.

Personal safety

Stay alert, watch what you are doing and use common sense

when operating a tool. Do not use a tool while you are tired

or under the influence of drugs, alcohol or medication. A

moment of inattention while operating a tool may result in serious

personal injury or incorrect measurement results.

WARNING

-8-

Use safety equipment. Always wear eye protection. Safety

equipment such as dust mask, non-skid safety shoes, hard hat,

or hearing protection used for appropriate conditions will reduce

personal injuries.

Mounting Magnets

Keep the tools mounting magnets away from

cardiac pacemakers. The magnets 14 generate a

field that can impair the function of cardiac

pacemakers.

• Keep the tools mounting magnets away from

magnetic data medium and magnetically-sensitive

equipment. The effect of the magnets 14 can lead to irreversible

data loss.

Use and care

Use the correct tool for your application. The correct tool will

do the job better and safer.

Do not use the tool if the switch does not turn it on and off.

Any tool that cannot be controlled with the switch is dangerous

and must be repaired.

Store idle tool out of the reach of children and do not allow

persons unfamiliar with the tool or these instructions to

operate the tool. Tools are dangerous in the hands of

untrained users.

Maintain tools. Check for misalignment or binding of moving

parts, breakage of parts and any other condition that may

affect the operation. If damaged, tool repaired before use.

Many accidents are caused by poorly maintained tools.

Use the tool, accessories, etc., in accordance with these

instructions and in the manner intended for the particular

type of tool, taking into account the working conditions and

the work to be performed. Use of the tool for operations different

from those intended could result in a hazardous situation.

Service

Have your tool serviced by a qualified repair person using

only identical replacement parts. This will ensure that the

safety of the tool is maintained.

Develop a periodic maintenance schedule for tool. When

cleaning a tool be careful not to disassemble any portion of

the tool since internal wires may be misplaced or pinched

or may be improperly mounted. Certain cleaning agents such

as gasoline, carbon tetrachloride, ammonia, etc. may damage

plastic parts.

SAVE THESE INSTRUCTIONS.

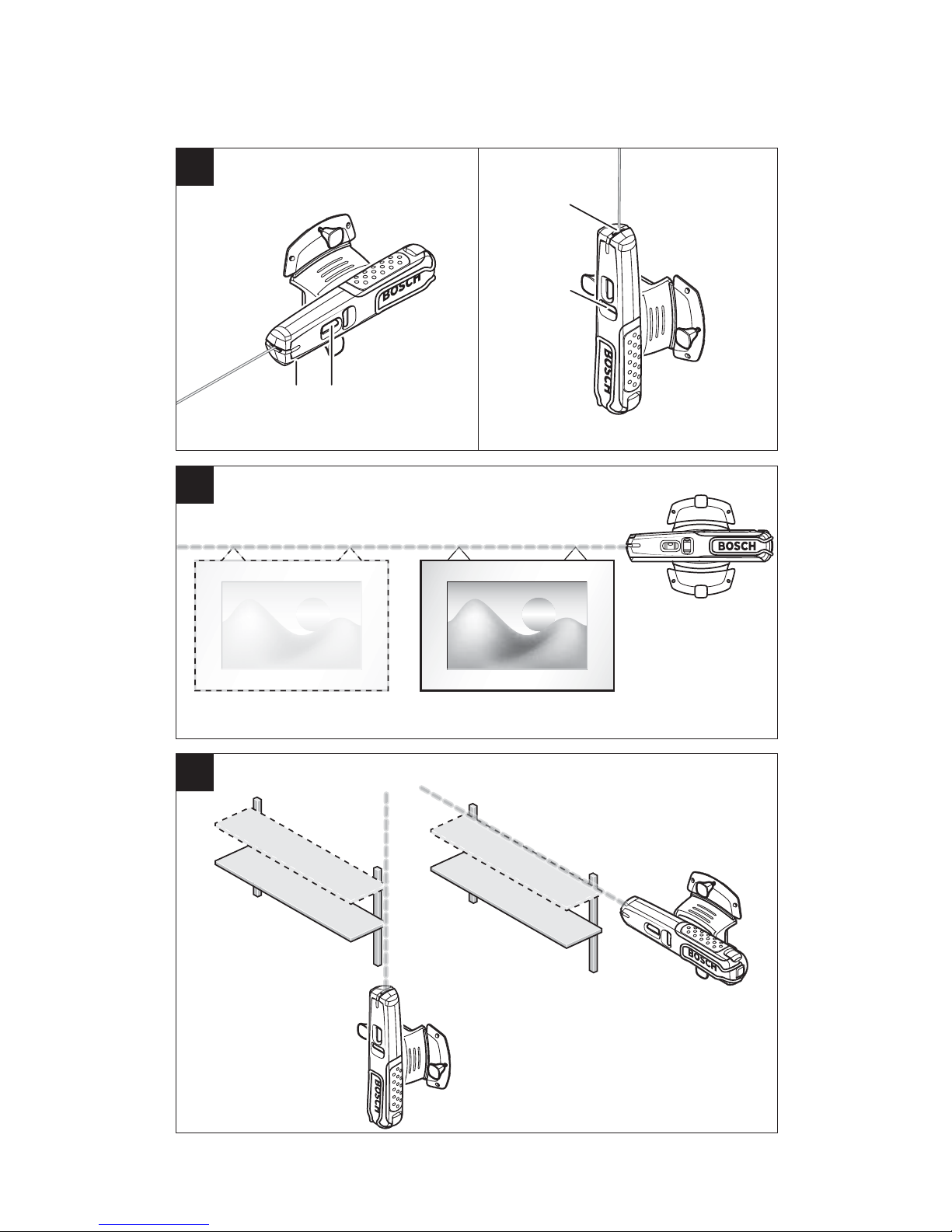

The tool is intended for determining and indicating exact

horizontal and vertical lines. It is also suitable for checking

plumb lines and horizontal partitions or surfaces.

The tool is suitable exclusively for operation in enclosed

working sites.

Inserting/Replacing the Battery

Use only alkali-manganese batteries.

To open the battery lid 11, press the latch 10 in the direction of

the arrow and remove the battery lid. Insert the batteries

provided. Pay attention to the correct polarity of the batteries

according to the representation in the battery compartment.

Always replace all batteries at the same time. Only use batteries

from one brand and with the identical capacity.

• Remove the batteries from the tool when not using

it for extended periods. When storing for extended periods,

the batteries can corrode and discharge themselves.

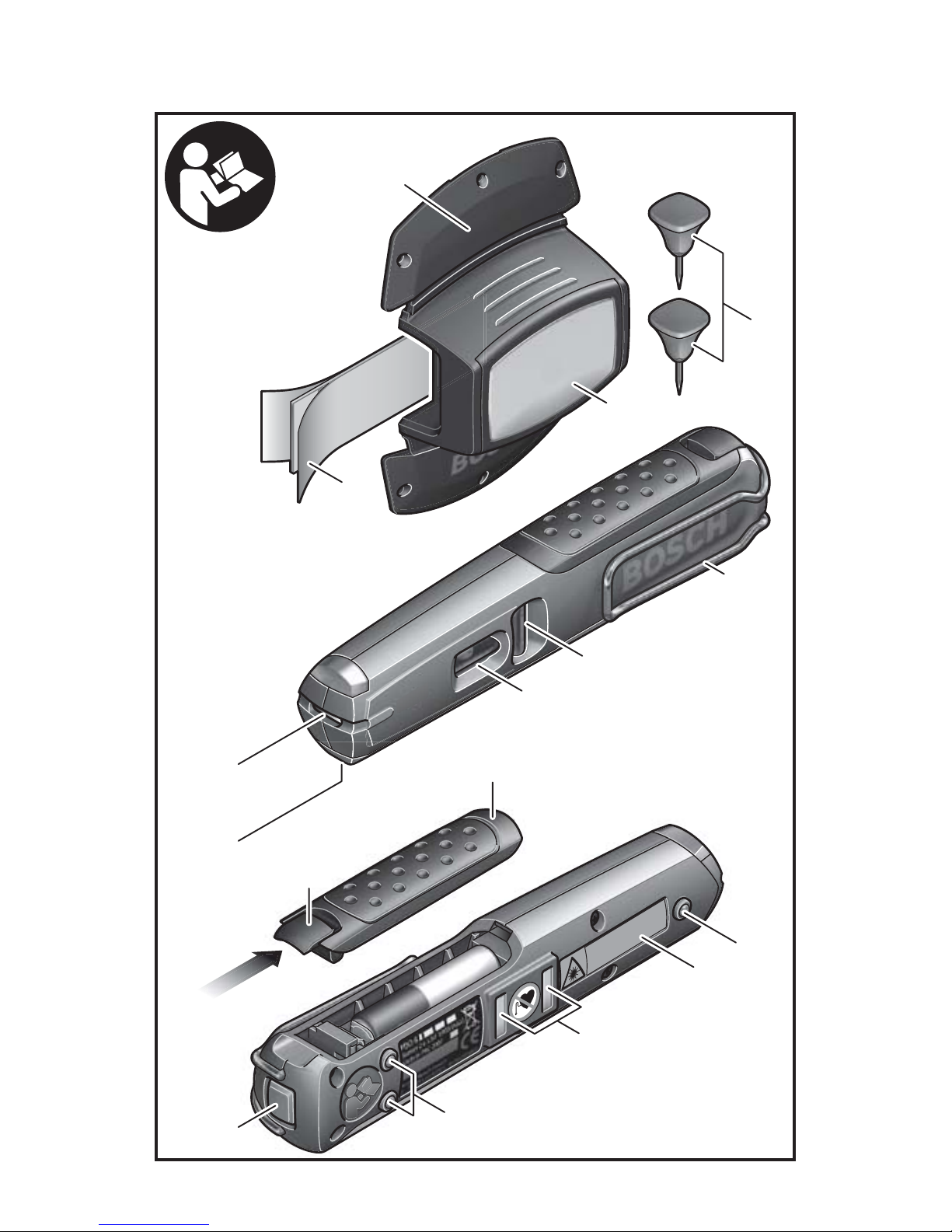

The numbering of the product features shown refers to the

illustration of the tool on the graphic page.

1Wall holder

2Pin

3Metal plate of the wall holder

4Adhesive tape strip*

5Belt clip

6Spirit level for vertical alignment

7Spirit level for horizontal alignment

8 Aluminium supporting surface

9Exit opening for laser beam

10 Latch of battery lid

11 Battery lid

12 Supporting points

13 Laser warning label

14 Magnets

15 On/Off switch

* Accessories shown or described are not part of the

standard delivery.

-9-

Features

Intended Use

Preparation

Working range (typical)*. . . . . . . . . . . . . . . . . . . . . . . . . 16ft (5m)

Leveling accuracy** . . . . . . . . . . . . . . . . . . . . . . ±3/64 in. at 3.3ft

(±1mm/m)

Operating temperature . . . . . . . . . . . . . . . . . . . . . . 41°F ~104°F

(5°C ~ +40°C)

Storage temperature . . . . . . . . . . . . . . . . . . . . . . . - 4°F ~158°F

(- 20°C ~ +70°C)

Relative air humidity, max. . . . . . . . . . . . . . . . . . . . . . . . . . . 90 %

Laser class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Laser type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 635 nm, < 2mW

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 x 1.5 V AAA

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.26lb (0.12 kg)

Dimensions . . . . . . . . . . . . . . . . . . . . . 5-5/8” x 1-1/16” x 1-3/16”

(142 x 27 x 30mm)

* when using the wall holder 1; under unfavourable conditions .

such as intense sun irradiation, the working range is smaller

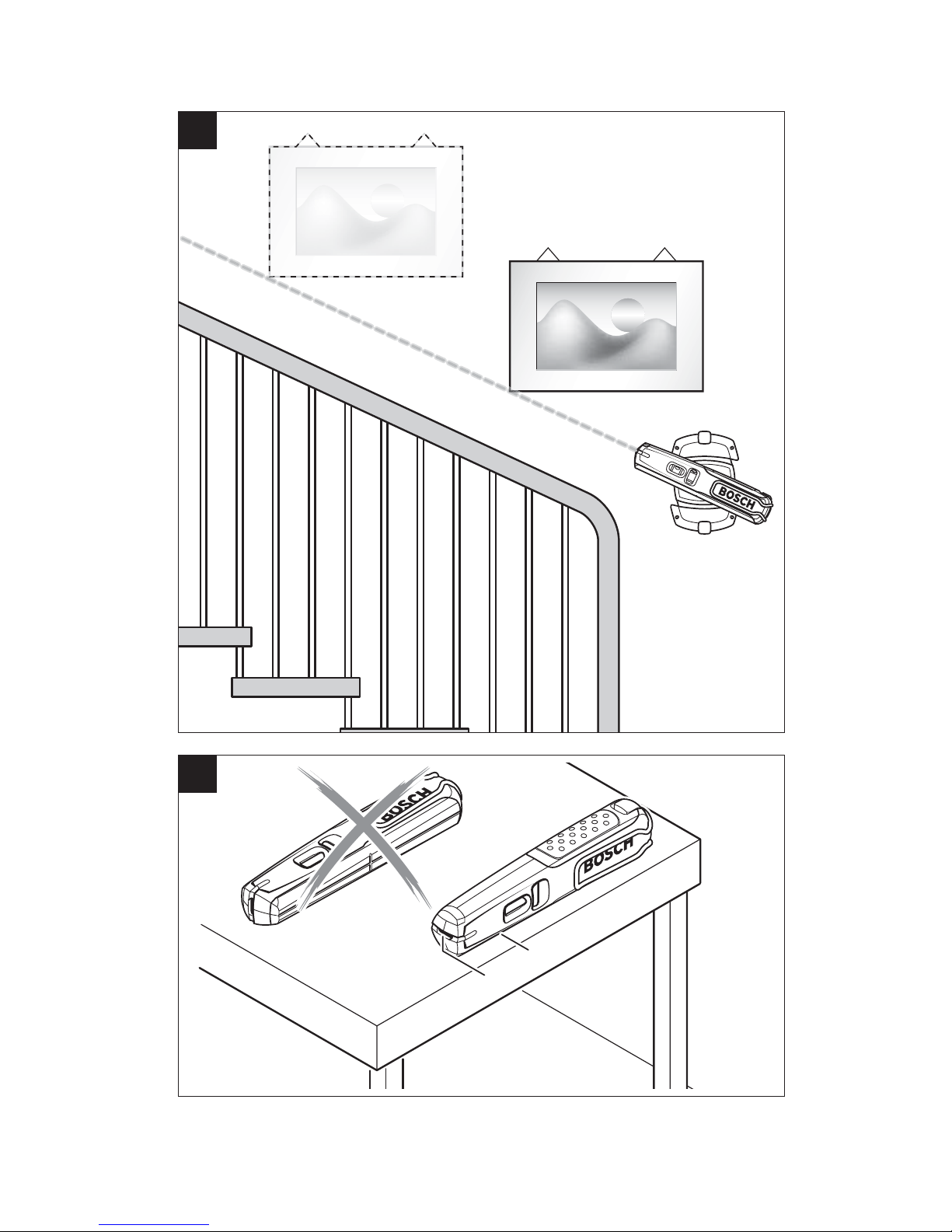

** when the tool is positioned correctly (see “Positioning the

Tool”, page 11)

Please observe the article number on the type plate of your tool.

The trade names of the individual tools may vary.

Initial Operation

• Protect the tool against moisture and direct

sun irradiation.

• Do not subject the tool to extreme temperatures or

variations in temperature.

As an example, do not leave it in vehicles for longer periods. I

in case of large variations in temperature, allow the tool to

adjust to the ambient temperature before putting it

into operation.

• Avoid heavy impact to or falling down of the tool.

Damage to the tool can impair its accuracy. After heavy

impact or shock, compare the laser line with a known

horizontal or vertical reference line.

-10-

Operation

Technical Data

Indice

Lingue:

Altri manuali Bosch Livello laser

Bosch

Bosch GOL 20 D Professional Manuale utente

Bosch

Bosch GLL25-10 Istruzioni per il montaggio

Bosch

Bosch 2-50 C Manuale utente

Bosch

Bosch Professional GSL 2 Set Manuale utente

Bosch

Bosch Professional GCL 2-50 Manuale utente

Bosch

Bosch GLL 30 Istruzioni per il montaggio

Bosch

Bosch GRL 245 HV Istruzioni per il montaggio

Bosch

Bosch PLL 360 Manuale utente

Bosch

Bosch GLL 5-50 X Professional Manuale utente

Bosch

Bosch 3 601 K63 1 Istruzioni operative

Bosch

Bosch GLL 2-20 Professional Manuale utente

Bosch

Bosch GLL 2 Professional Manuale utente

Bosch

Bosch 3 603 K63 V10 Istruzioni per il montaggio

Bosch

Bosch GLL50-20 Istruzioni per il montaggio

Bosch

Bosch GPL3T Istruzioni per il montaggio

Bosch

Bosch GRL 150 HV Professional Manuale utente

Bosch

Bosch Professional GCL 2-50 CG Manuale utente

Bosch

Bosch GRL800-20HV Istruzioni per il montaggio

Bosch

Bosch GLL 2-15 Manuale utente

Bosch

Bosch Professional GOL 20D Manuale utente

Bosch

Bosch GRL 500 HV Manuale utente

Bosch

Bosch GCL100-80C Istruzioni per il montaggio

Bosch

Bosch WEU Quigo Plus Manuale utente

Bosch

Bosch GPL2 Istruzioni per il montaggio

Manuali Livello laser popolari di altre marche

Nedo

Nedo ET-5 Manuale utente

geo-FENNEL

geo-FENNEL Maxi-Liner FL 65 HP Manuale utente

LaserLiner

LaserLiner X2-Laser Manuale utente

Spectra

Spectra LL300N Manuale utente

geo-FENNEL

geo-FENNEL Selection PRO FLG 40-PowerCross GREEN SP Manuale utente

Nedo

Nedo Crossliner 4 Manuale utente

Lasertec

Lasertec FX360G Manuale utente

Flex

Flex ALC 8 Manuale utente

Black & Decker

Black & Decker LZR5 Manuale utente

Johnson

Johnson 40-6692 Manuale utente

Cocraft

Cocraft HL 20-SG Manuale utente

Zircon

Zircon iLine Manuale utente

HWH

HWH 310 SERIES Manuale utente

Leica

Leica iCON robot 60 Manuale utente

LaserLiner

LaserLiner SuperCross-Laser SCL 2 Manuale utente

LaserLiner

LaserLiner ActiveFinder XP Manuale utente

DeWalt

DeWalt DW082 Manuale utente

imex

imex EL20 Manuale utente
