IP Matrix 9.60 for KBD Digital
VJD‑8000 | VJD‑7513
en Operation manual
IP Matrix 9.60 for KBD Digital Table of contents | en 3
Bosch Security Systems B.V. Operation manual 2019-12 | V1 | DOC
Table of contents
1Introduction 4
1.1 About the manual 4
1.2 Conventions in this manual 4
1.3 Additional documentation 4
2Requirements 5
3Restrictions 6
4Operation 7
4.1 Keyboard layout 7
4.2 Softkey description 8
4.2.1 Softkey mapping keypad section 8
4.2.2 Softkey mapping main menu 9
4.2.3 Softkey mapping extended functions 10
4.2.4 Softkey mapping playback menu 11
4.3 Keyboard operations 12
4.3.1 Connecting a camera to a monitor 12
4.3.2 Selecting a monitor 12
4.3.3 Controlling playback speed factor 12
4.3.4 Controlling PTZ cameras 13
4.3.5 Locking/unlocking the keyboard 13
5Troubleshooting 14
4en | Introduction IP Matrix 9.60 for KBD Digital
2019-12 | V1 | DOC Operation manual Bosch Security Systems B.V.
1 Introduction
1.1 About the manual
This manual describes how to use the keyboard with the IPMatrix application.
1.2 Conventions in this manual
The following symbols and notations are used to draw attention to special situations:
Notice!
This symbol indicates special features and provides tips and information for easier, more
convenient use of the software.
Terms that you can find in the program, such as menu options, commands or text in the user
interface, are written in bold.
1.3 Additional documentation
Notice!
Read and follow the instructions in the hardware documentation
While setting up the hardware for IPMatrix, read and follow the instructions of the hardware
documentation. The documentation contains important safety messages. It is mandatory to
read and understand the safety messages prior to installation of the hardware.
More information
Find more information, software downloads, and documentation at:
www.boschsecurity.com and the respective product page.
IP Matrix 9.60 for KBD Digital Requirements | en 5
Bosch Security Systems B.V. Operation manual 2019-12 | V1 | DOC
2 Requirements
A prerequisite for using the keyboard is that the required hardware for an IPMatrix system is
available and configured appropriately.
Requirements for installed software
The Configuration Manager 7.0 program or later is required.
Requirements for operational purpose
Make sure the following requirements are fulfilled:
– 1 to 4ready-to-use Bosch VIDEOJET decoder with firmware 9.60 or later connected to a
surveillance network (fully installed and ready for operation)
– 1 to 4KBD-UXF or KBD-Digital keyboards (fully installed and ready for operation)
– 1 to 8displays with appropriate interface connections or adapters
Note: Up to 2displays per decoder can be connected.
– Fixed or moving cameras connected to the surveillance network
– A PC with Bosch Configuration Manager program installed and connected to the
surveillance network (only for configuration purposes)
Notice!
Prior to operation, the IPMatrix application must be configured using the Configuration
Manager program.
IPMatrix configuration
The IPMatrix application can be configured using the Configuration Manager 7.0 program or
later.
For detailed configuration steps, refer to the IPMatrix configuration manual available on the
online product catalog.
6en | Restrictions IP Matrix 9.60 for KBD Digital
2019-12 | V1 | DOC Operation manual Bosch Security Systems B.V.
3 Restrictions
Observe the following restrictions when using a IPMatrix system:
– The decoder dynamically adapts its performance to high loads by skipping frames, which
can cause juddering in the video stream.
– Playback is only possible from local recordings, not from recordings managed by VRM.
– A long i-frame distance leads to less exact navigation in playback mode and lower
performance in playback backwards mode.
IP Matrix 9.60 for KBD Digital Operation | en 7
Bosch Security Systems B.V. Operation manual 2019-12 | V1 | DOC
4 Operation
After configuring the IPMatrix application using a PC with the Configuration Manager
program, the IPMatrix application operates as a stand-alone CCTV surveillance system. All
operations are carried out using the attached keyboard.

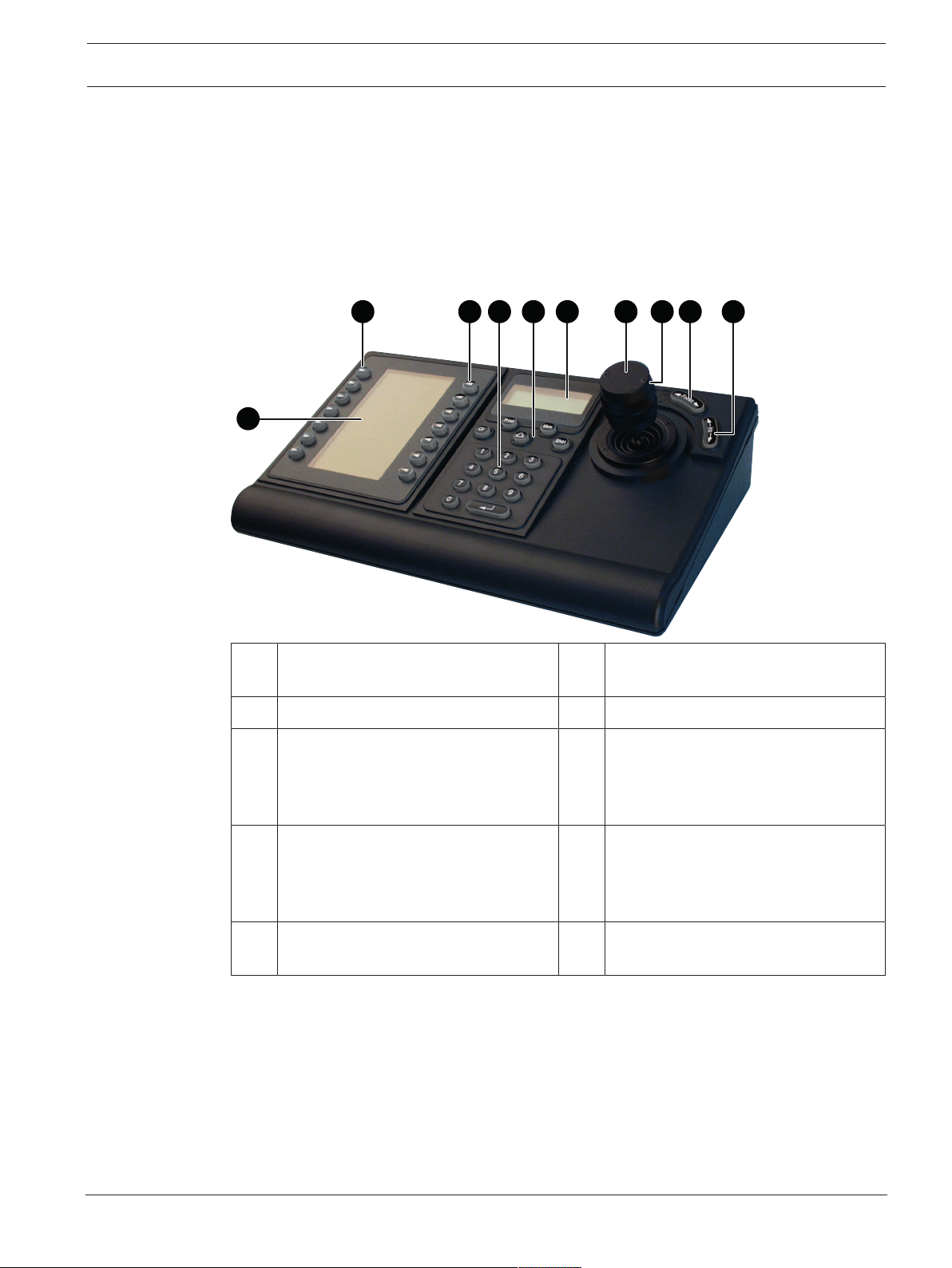

4.1 Keyboard layout
The following graphic illustrates the different groups of keys on the keyboard.
1
2 2 3 4 5 6 87 9
1Softkey display with soft key
description (mode dependent)
2Softkeys
3Keypad section: numeric keys 4Keypad section: function keys
5Keypad section: status display 6Joystick
Use to pan or tilt a PTZ device.
Use to move the field of view in a
digitally zoomed viewing pane
7Rotatable knob
Use to control the zoom function of a
device or the built-in digital zoom
factor.
8Focus
Press to adjust the Focus respectively.
9Iris
Press to adjust the Iris respectively.
8en | Operation IP Matrix 9.60 for KBD Digital
2019-12 | V1 | DOC Operation manual Bosch Security Systems B.V.
4.2 Softkey description
4.2.1 Softkey mapping keypad section
Function keys
Prod - Selects the keyboard operation mode
4Press the key to select the operation mode of the keyboard.
Mon - Connects a specific camera to a monitor
4Press the key to connect a specific camera to a specific monitor.
Clr - Clear - cancels a function
4Press the key to cancel a function.
Alarm
Not used
Shot
Not used
1 …. 0 Number keys
4Use to select favorite views, sequences or single devices.
IP Matrix 9.60 for KBD Digital Operation | en 9
Bosch Security Systems B.V. Operation manual 2019-12 | V1 | DOC

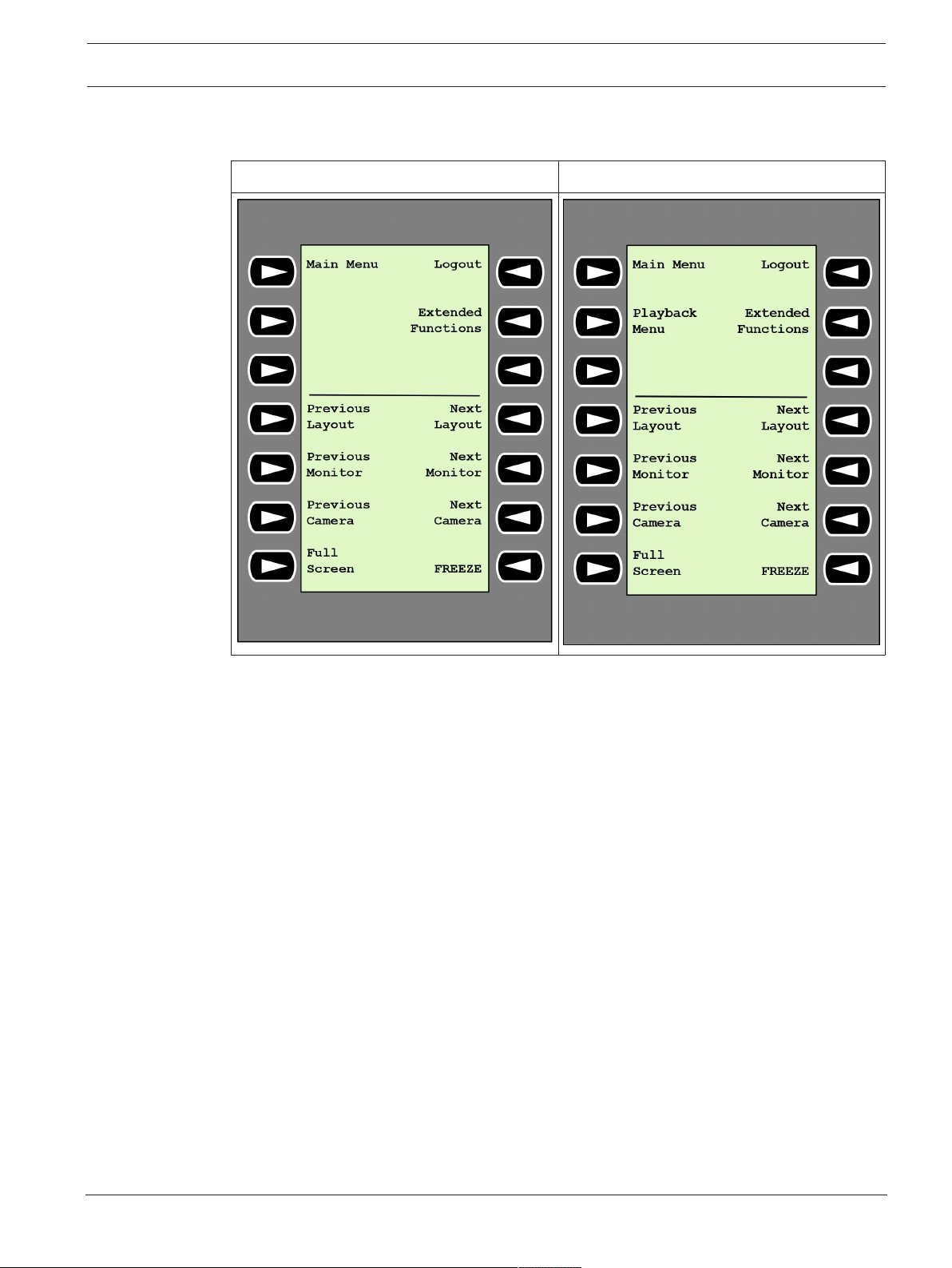

4.2.2 Softkey mapping main menu
Main menu without playback permission Main menu with playback permission
Logout - Locks/unlocks the keyboard
4Press the key to lock or unlock the keyboard.
Extended Functions - Displays the extended functions menu
4Press the key to display the extended functions menu.
Playback Menu - Displays the playback functions
4Press the key to display the playback functions.
Note: Only available with playback permission
Previous Layout - Switches to previous layout with less monitors
4Press the key to decrease the number of monitors on the current display.
Note: This key provides a round-trip function. The last layout starts again, if the first layout is
reached.
Next Layout - Switches to next layout with less monitors
4Press the key to increase the number of monitors on the current display.
Note: This key provides a round-trip function. The first layout starts again, if the last layout is
reached.
Previous Monitor - Selects the previous monitor
4Press the key to select the previous monitor.
10 en | Operation IP Matrix 9.60 for KBD Digital
2019-12 | V1 | DOC Operation manual Bosch Security Systems B.V.
Next Monitor - Selects the next monitor
4Press the key to select the previous monitor.
Previous Camera - Displays previous camera
4Press the key to display the previous camera on the selected monitor.
Next Camera - Displays next camera
4Press the key to display the next camera on the selected monitor.
Full Screen - Turns full-screen of currently selected monitor on/off
4Press the key to turn full-screen on or off.
Freeze - Freezes video on monitors on/off
In live mode:
4Press the key to freeze/unfreeze the video on all monitors.
Note: Selecting another layout, camera or monitor also unfreezes the video.

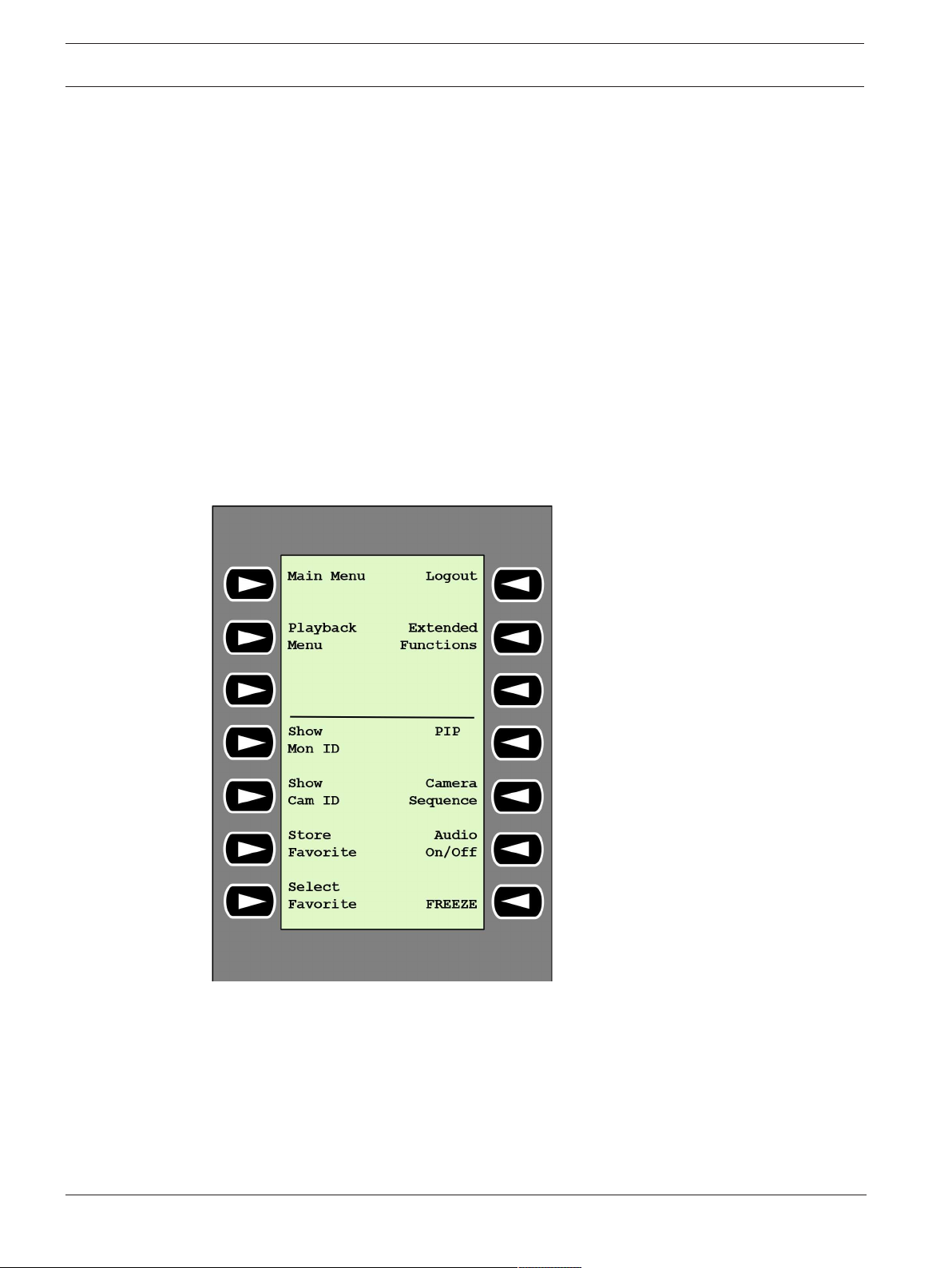

4.2.3 Softkey mapping extended functions
Show Mon ID - Displays the monitor numbers and decoder IP addresses
4Press the key to display the monitor numbers and decoder IP addresses as overlay on the
monitors.
PIP - Turns full-screen with picture-in-picture on/off
4Press the key to turn full-screen with picture-in-picture on or off.
Show Cam ID - Displays the camera numbers and camera IP addresses
