Bosch LTC0485/11 Manuale utente

DinionXF – LTC 0 610 & LT C 0 4 8 5 s e r i e s c a m e r a s

Installation Instructions

15-bit digital color camera

Manuel d’installation

Caméra numérique couleur

15 bits

Installationshandbuch

15-Bit digitale Farbkamera

Installatiehandleiding

15-bits digitale kleurencamera

Manual de instalación

Cámara digital en color de

15 bits

Manuale di installazione

Telecamera digitale a colori

15 bit

Manual de Instalação

Câmara digital policromática

de 15 bits

安装说明

15 位数码彩色摄像机

DinionXFFrontPage.fm Page 1 Friday, January 21, 2005 4:13 PM

DinionXF | Installation Manual

Bosch Security Systems | 2003-10 | V0.5

EN | 3

SAFETY PRECAUTIONS

Important Safeguards

1. Read these instructions.

2. Keep these instructions.

3. Comply with all warnings.

4. Follow all instructions.

5. Do not use this equipment near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other equipment (including amplifiers) that produce heat.

Danger

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product's enclosure

that may be of sufficient magnitude to constitute a risk to persons.

Warning

The exclamation mark within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

Caution

To reduce the risk of electric shock, do not remove cover (or

back). No user-serviceable parts inside. Refer servicing to

qualified service personnel.

DinionXF | Installation Manual

Bosch Security Systems | 2003-10 | V0.5

EN | 4

9. Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A

grounding type plug has two blades and a third grounding prong. Both

the wide blade and the third prong are provided for your safety. If the

supplied plug does not fit into your outlet, consult an electrician for

advice.

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

equipment.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this equipment during lightning storms or when unused for

long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required

when the equipment has been damaged in any way, such as when

power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the equipment, the equipment has been

exposed to rain or moisture, does not operate normally, or has been

dropped.

14. An all-pole mains switch with a contact separation of at least 3mm in

each pole shall be incorporated in the electrical installation of the

building.

Warning

To reduce the risk of fire or electric shock, this apparatus should

not be exposed to rain or moisture and objects filled with liquids,

such as vases, should not be placed on this apparatus.

DinionXF | Installation Manual

Bosch Security Systems | 2003-10 | V0.5

EN | 5

FCC Information

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

Note

Any change or modification of the equipment, not expressly approved by

Bosch authorization, could void the user's authority to operate the

equipment. For additional information or to speak to a representative,

please contact the Bosch Security Systems location nearest to you or visit

our web site at www.boschsecuritysystems.com

DinionXF | Installation Manual

Bosch Security Systems | 2003-10 | V0.5

EN | 6

Introduction

The DinionXF is a high-performance smart surveillance color camera. It

incorporates 15-bit digital signal processing for outstanding picture

performance under all lighting conditions. The DinionXF is easy to install

and ready to use, and offers the best solution for demanding scene

conditions. Features include:

• Three pre-programmed operation modes

• Noise elimination, true color reproduction

• Adaptive dynamic range optimization

• Bilinx™ bi-directional coaxial communications

• Genlock including sub-carrier locking

• Enhanced video motion detection

Type number overview

Type number LTC

0610/11

LTC

0610/21

LTC

0610/51

LTC

0610/61

Standard PAL NTSC PAL NTSC

Supply voltage 24 VAC or 12 VDC 230 VAC 50Hz 110 VAC 60Hz

CCD type 1/2"

Type number LTC

0485/11

LTC

0485/21

LTC

0485/51

LTC

0485/61

Standard PAL NTSC PAL NTSC

Supply voltage 24 VAC or 12 VDC 230 VAC 50Hz 110 VAC 60Hz

CCD type 1/3"

Caution

Ensure that your power supply matches the rated voltage of your

camera before installing.

DinionXF | Installation Manual

Bosch Security Systems | 2003-10 | V0.5

EN | 7

Unpacking

Unpack carefully and handle the equipment with care. The packaging

contains:

• DinionXF camera

• CCD protection cap

• Spare lens connector (male)

• These instructions

Note

If equipment appears to have been damaged during shipment, repack it in

the original packaging and notify the shipping agent or supplier.

DinionXF | Installation Manual

Bosch Security Systems | 2003-10 | V0.5

EN | 8

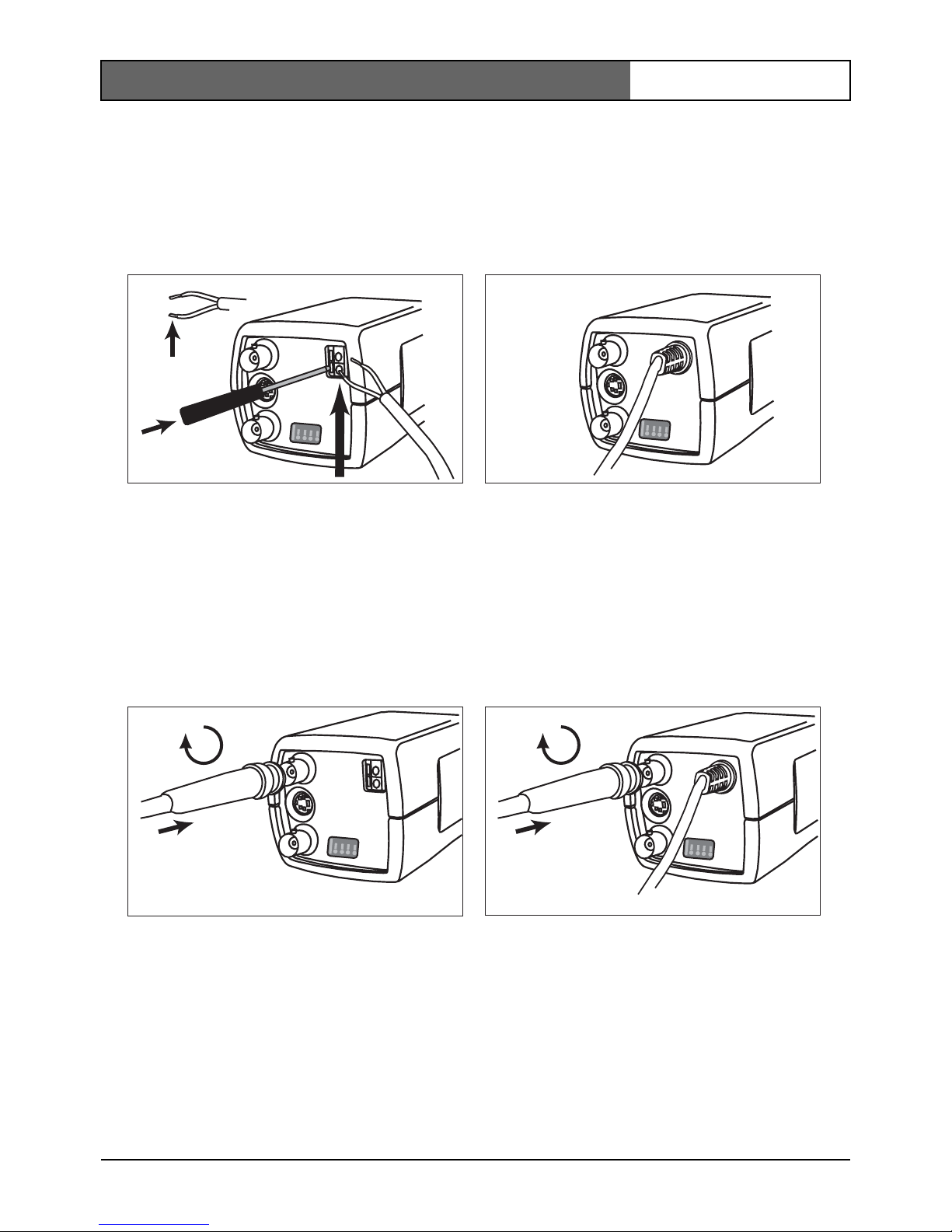

Connections

Power

Low voltage versions High voltage versions

For low voltage cameras:

• push in the tabs to open the quick-connectors (these connections are

not polarity sensitive).

• use AWG16 to 22 stranded wire or AWG16 to 26 solid wire; cut back

10mm (0.4") of insulation.

Composite video

VIDEO

SVHS

SYNC

DC 12V

AC 24V

ALARM

10mm

VIDEO

SVHS

SYNC ALARM

VIDEO

SVHS

SYNC

DC 12V

AC 24V

ALARM

VIDEO

SVHS

SYNC ALARM

DinionXF | Installation Manual

Bosch Security Systems | 2003-10 | V0.5

EN | 9

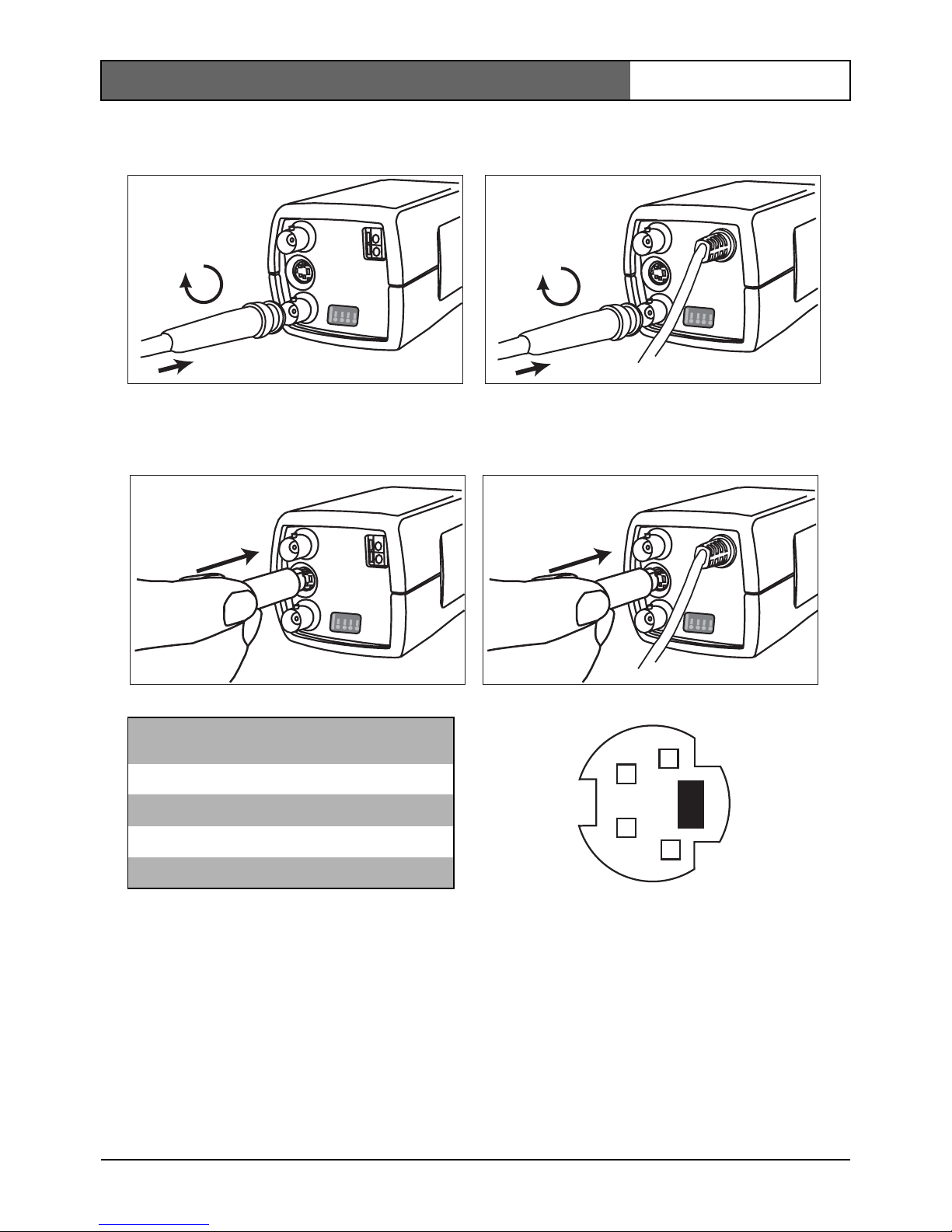

Sync

Y/C

VIDEO

SVHS

SYNC

DC 12V

AC 24V

ALARM

VIDEO

SVHS

SYNC ALARM

VIDEO

SVHS

SYNC

DC 12V

AC 24V

ALARM

VIDEO

SVHS

SYNC ALARM

Pin Y/C socket

1GNDY

2GND C

4 C

DinionXF | Installation Manual

Bosch Security Systems | 2003-10 | V0.5

EN | 10

Alarm connector

• Max. wire diameter AWG 22-28 for both stranded and solid

• Default relay position n.o. (normally open), no alarm

• Alarm output relay switching capability: Max voltage 30VAC or

+40VDC. Max 0.5 A continuous, 10VA.

• Alarm in: TTL logic, +5V nominal, +40VDC max, DC coupled with

22kΩpull-up to +3.3V

• Alarm in: configurable as active low or active high

• Max. 42V allowed between camera ground and each of the relay pins.

Lens mounting

The camera accepts both C and CS-mount lenses. DC-iris lenses are

recommended for the best picture performance. The camera automatically

detects the type of lens used and optimizes performance accordingly.

A spare male lens connector is provided.

Caution

To avoid damaging the CCD sensor when using a C-mount lens,

turn the red back focus ring counterclockwise until it stops (see

back focus adjustment) before mounting the lens.

Lenses weighing more than 0.5 kg (1.1lbs) must be separately

supported.

Alarm

Pin 1 Pin 4

Pin Alarm socket

1 Ground

2Alarm in

3 Relay out contact 1

4Relay out contact 2
