Bosch REG-D1-875XE-01 Manuale utente

INSTALLATION

INSTRUCTIONS

REG-D1

MAN-REG-D1-03

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep this instruction.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with manufacturer instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves or other

apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two

blades with one wider than the other. A

grounding type plug has two blades and a third

grounding prong. The wide blade or the third

prong is provided for your safety. If the provided

plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the power where they exit from

the apparatus.

11. Only use attachments/accessories specified by

the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in a way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

IMPORTANT

For best results, please read this Instruction Booklet prior

to installing the REG-D1 camera.

WARNING !

CSA Certified / UL Listed CLASS 2 power adaptors must

be used in order to comply with electrical safety standards.

This installation should be made by a qualified service

person and conform to all local codes.

Bosch Security Systems, Inc. will not be responsible for

injuries or damages resulting from the improper installation

or use of any camera sold by Bosch Security Systems,

Inc., their agents, distributors or dealers.

EU Directives covered by this declaration:

72/9/EC Low Voltage Directives

89/336/EEC Electromagnetic Compatibility Directive

NOTE: This equipment has been tested and found to

comply with the limits for a digital device, pursuant to part

15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. As part of its normal operation this

device can generate radio frequency energy and if not

installed and used in accordance with the installation

manual may cause interference to radio communications.

However, there is no guarantee that interference will not

occur on a particular installation. If the device does cause

interference to radio or television reception the user is

encouraged to try to correct the interference by one or

more of the following measures:

1) Fit Ferrite beads on all cable to and from the power

supply box, within the box walls.

2) Route the composite cable between the camera and the

power supply in steel conduit piping over the entire run of

the cable up to and including connection to a deep conduit

base fitted under the camera and a conduit fitting adaptor

in the wall of the PSU box.

3)Contact Bosch Service Center for further advice.

INDEX – REG - D1 Camera

Description………………………………………………...1

Unpacking………………………………………………....2

Parts List…………………………………………………..2

Items Required for Installation…………………………..2

Initial Preparations………………………………………..3

Guidelines………………………………………………....3

1. Mechanical Specification REG-D1………………....4

2. Input Power / Video Output Connections………….5

3. Mounting Specification………..……………………..6

4. Color Overview Camera Lens Setting…………… 10

5. Troubleshooting…………...…………………… …..14

6. General specifications…………..……………… … 18

- 1 -

DESCRIPTION

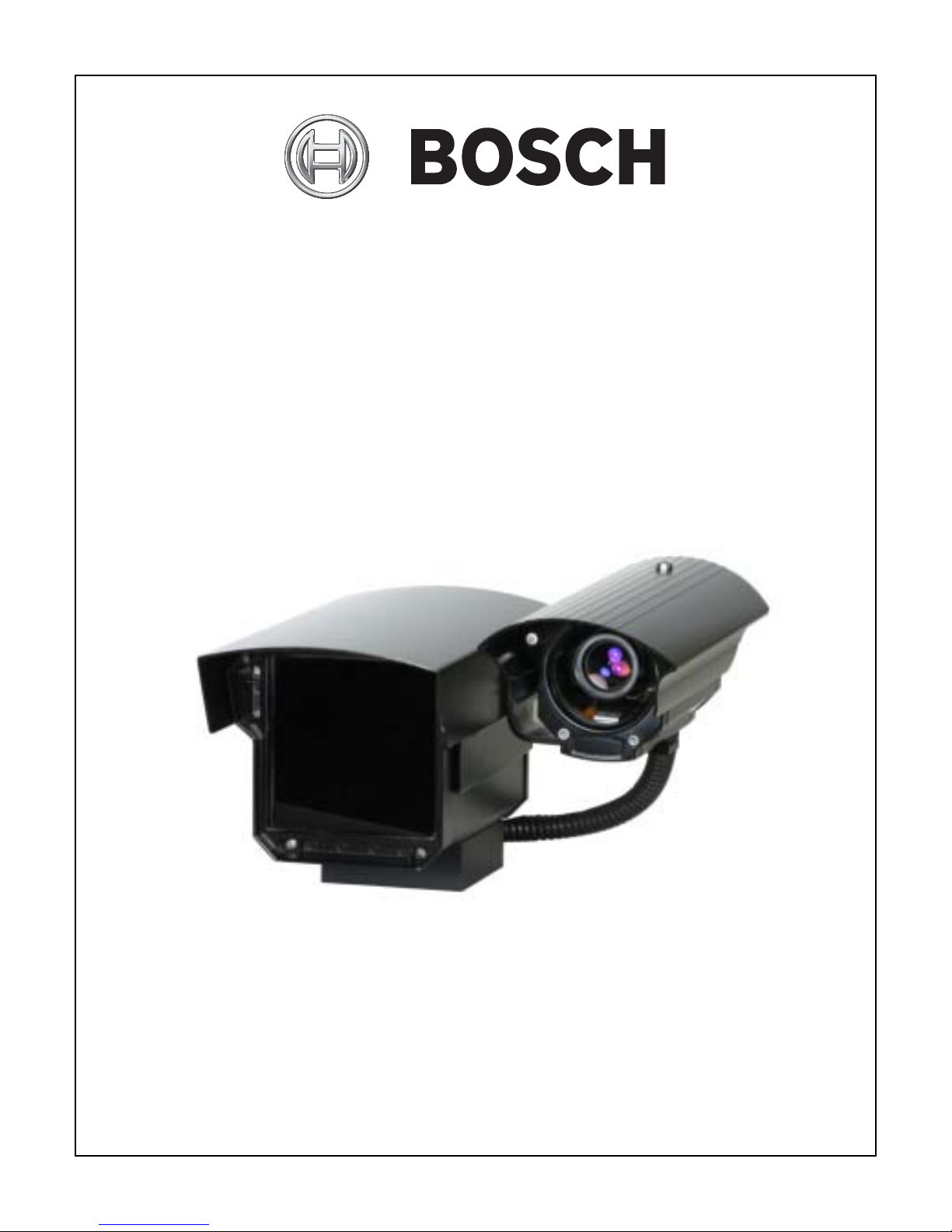

The REG-D1 license plate capture camera unit consists of

one IR-sensitive monochrome camera, one integrated panel

of Infrared LEDs, and one color overview camera. The

license plate capture camera produces optimum license plate

images during day and night settings in all-weather

conditions. The camera has optical filtering technology that

help block out unwanted ambient light such as headlamps or

sunlight, thus ensuring no bloomed-out or washed-out images

of the license plates.

The REG-D1 camera you have purchased is designed and

configured to capture images of license plates under a wide

range of ambient light to weather conditions.

The all-weather housing with a covert acrylic window contains

all the electronics. Low voltage operation, low power

consumption, LED illuminator, and solid-state CCD

technology make this camera very reliable and efficient.

A voltage regulator circuit allows for DC or AC operation

between 12 and 24 VAC/VDC. It also provides protection

from voltage surges, transient spikes, and reverse voltage.

- 2 -

UNPACKING

Care should be taken when unpacking the shipped unit.

Check the parts list and confirm all items have been

located. Inspect the equipment thoroughly to ensure

nothing was damaged in transit.

Contact Bosch Service Center if a problem is noted,

see the rear page of this booklet for contact numbers.

PARTS LIST (items supplied with unit)

-REG-D1 camera assembly

-Installation Instructions booklet

-One

3mm Allen key

ITEMS REQUIRED FOR INSTALLATION (not

supplied with units)

•Mounting hardware

•Mounting tools

•Proper Power Supply

- 3 -

INITIAL PREPARATIONS

•Determine the operating voltage at the

installation site. The camera‘s Voltage Regulator

Board accepts both 12-24VDC/VAC input

without change to internal connections.

See Section 2, Input Power Connections.

•Determine the optimum location for the camera.

See Section 3, Mounting Specification.

•All cameras have been tested prior to shipment.

After the wiring has been reconnected, it is

advisable to check the camera’s operation

before installation.

GUIDELINES

The installation of the REG-D1 camera is explained in

Sections 1 to 3.

It is important that these steps are followed and to

practice proper installation procedures with proper safety

equipment.

- 4 -

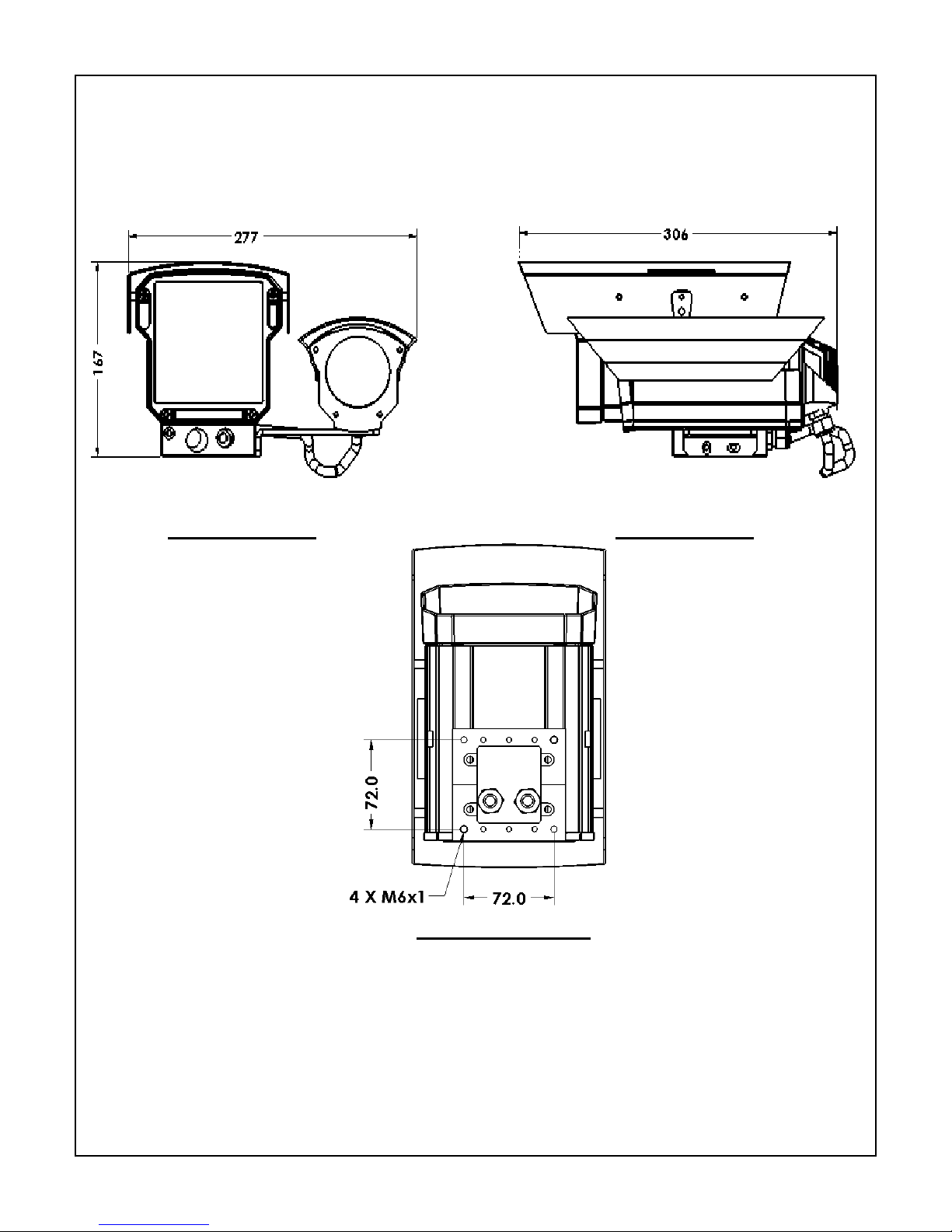

1. MECHANICAL SPECIFICATIONS–REG D1

(See Section 6 - General Specifications, for more information)

Front View SideView

Bottom View

*Optional mounting kits: EXMB028 or EXMB029

Figure 1 General Mechanical Specifications
