DIVAR IP 3000
DIP-3040-00N, DIP-3042-2HD, DIP-3042-4HD
en Installation Manual
Table of contents
1Safety precautions 4
1.1 General safety precautions 4
1.2 Electrical safety precautions 5
1.3 ESD precautions 6
1.4 Operating precautions 6
2System overview 7
2.1 Chassis features 7
2.2 Chassis components 7
2.2.1 Chassis 7
2.2.2 Backplane 7
2.2.3 Power supply 7
2.3 Device views 8
2.3.1 LED description - front panel 9
2.3.2 LAN port LED description - rear panel 10
3Chassis setup and maintenance 11
3.1 Removing hard drive trays 11
3.2 Installing a hard drive 11
4System setup - first steps 12
4.1 Introduction 12
4.2 Setup instruction 12
4.3 Starting the application 12
4.4 Using Bosch VMS Config Wizard 13
4.5 Using Bosch VMS Configuration Client 24
4.5.1 Assigning device IP addresses 24
4.5.2 Adding additional licenses 25
4.6 Using Bosch VMS Operator Client 25
5Connecting to the internet 27
5.1 Protecting the system from unauthorized access 27
5.2 Setting up port forwarding 27
5.2.1 Setting up port forwarding in DIVAR IP 27
5.2.2 Setting up port forwarding in the router 27
5.2.3 Example for port forwarding 27
5.3 Choosing an appropriate client 28
5.3.1 Remote connection with Operator Client 28
5.3.2 Remote connection with Video Security App 29
5.4 Installing an Enterprise Management Server 29
6Recovering the unit 30
7Additional Documentation and client software 31
DIVAR IP 3000 Table of Contents | en 3
Bosch Sicherheitssysteme GmbH Installation Manual 2014.03 | V4 | DOC
Safety precautions
Observe the safety precautions in this chapter.
General safety precautions
Follow these rules to ensure general safety:
– Keep the area around the system clean and free of clutter.
– Place the chassis top cover and any system components that have been removed away
from the system or on a table so that they won't accidentally be stepped on.
– While working on the system, do not wear loose clothing such as neckties and
unbuttoned shirt sleeves, which can come into contact with electrical circuits or be
pulled into a cooling fan.
– Remove any jewelry or metal objects from your body, which are excellent metal
conductors that can create short circuits and harm you if they come into contact with
printed circuit boards or areas where power is present.
!
Warning!
Interruption of mains supply:
Voltage is applied as soon as the mains plug is inserted into the mains socket.
However, for devices with a mains switch, the device is only ready for operation when the
mains switch (ON/OFF) is in the ON position. When the mains plug is pulled out of the
socket, the supply of power to the device is completely interrupted.
!
Warning!
Removing the housing:
To avoid electric shock, the housing must only be removed by qualified service personnel.
Before removing the housing, the plug must always be removed from the mains socket and
remain disconnected while the housing is removed. Servicing must only be carried out by
qualified service personnel. The user must not carry out any repairs.
!
Warning!
Power cable and AC adapter:
When installing the product, use the provided or designated connection cables, power cables
and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire.
Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables
(that have UL/CSA shown on the code) for any other electrical devices.
!
Warning!
Lithium battery:
Batteries that have been inserted wrongly can cause an explosion. Always replace empty
batteries with batteries of the same type or a similar type recommended by the manufacturer.
Handle used batteries carefully. Do not damage the battery in any way. A damaged battery
may release hazardous materials into the environment.
Dispose of empty batteries according to the manufacturer's instructions.
1
1.1
4en | Safety precautions DIVAR IP 3000
2014.03 | V4 | DOC Installation Manual Bosch Sicherheitssysteme GmbH
!
Warning!
Handling of lead solder materials used in this product may expose you to lead, a chemical
known to the State of California to cause birth defects and other reproductive harm.
Notice!
Electrostatically sensitive device:
To avoid electrostatic discharges, the CMOS/MOSFET protection measures must be carried
out correctly.
When handling electrostatically sensitive printed circuits, grounded anti-static wrist bands
must be worn and the ESD safety precautions observed.
Notice!
Installation should only be carried out by qualified customer service personnel in accordance
with the applicable electrical regulations.
Disposal
Your Bosch product has been developed and manufactured using high-
quality materials and components that can be reused.
This symbol means that electronic and electrical devices that have reached
the end of their working life must be disposed of separately from
household waste.
In the EU, separate collecting systems are already in place for used
electrical and electronic products. Please dispose of these devices at your
local communal waste collection point or at a recycling center.
Electrical safety precautions
Basic electrical safety precautions should be followed to protect you from harm and the
system from damage:
– Be aware of the locations of the power on/off switch on the chassis as well as the room's
emergency power-off switch, disconnection switch or electrical outlet. If an electrical
accident occurs, you can then quickly remove power from the system.
– Do not work alone when working with high voltage components.
– Power should always be disconnected from the system when removing or installing main
system components, such as the motherboard or memory modules. When disconnecting
power, you should first turn off the system and then unplug the power cords from all the
power supply modules in the system.
– When working around exposed electrical circuits, another person who is familiar with the
power-off controls should be nearby to switch off the power if necessary.
– Use only one hand when working with powered-on electrical equipment. This is to avoid
making a complete circuit, which will cause electrical shock. Use extreme caution when
using metal tools, which can easily damage any electrical components or circuit boards
they come into contact with.
– The power supply power cords must include a grounding plug and must be plugged into
grounded electrical outlets. The unit has more than one power supply cord. Disconnect
both power supply cords before servicing to avoid electrical shock.
1.2
DIVAR IP 3000 Safety precautions | en 5
Bosch Sicherheitssysteme GmbH Installation Manual 2014.03 | V4 | DOC
– Mainboard replaceable soldered-in fuses: Self-resetting PTC (Positive Temperature
Coefficient) fuses on the mainboard must be replaced by trained service technicians only.
The new fuse must be the same or equivalent as the one replaced. Contact technical
support for details and support.
!
Caution!
Mainboard Battery: There is a danger of explosion if the onboard battery is installed upside
down, which will reverse its polarities. This battery must be replaced only with the same or
an equivalent type recommended by the manufacturer (CR2032). Dispose of used batteries
according to the manufacturer's instructions.
ESD precautions
Electrostatic Discharge (ESD) is generated by two objects with different electrical charges
coming into contact with each other. An electrical discharge is created to neutralize this
difference, which can damage electronic components and printed circuit boards. The
following measures are generally sufficient to neutralize this difference before contact is made
to protect your equipment from ESD:
– Do not use mats designed to decrease electrostatic discharge as protection from
electrical shock. Instead, use rubber mats that have been specifically designed as
electrical insulators.
– Use a grounded wrist strap designed to prevent static discharge.
– Keep all components and printed circuit boards (PCBs) in their antistatic bags until ready
for use.
– Touch a grounded metal object before removing the board from the antistatic bag.
– Do not let components or printed circuit boards come into contact with your clothing,
which may retain a charge even if you are wearing a wrist strap.
– Handle a board by its edges only. Do not touch its components, peripheral chips, memory
modules or contacts.
– When handling chips or modules, avoid touching their pins.
– Put the mainboard and peripherals back into their antistatic bags when not in use.
– For grounding purposes, make sure your computer chassis provides excellent
conductivity between the power supply, the case, the mounting fasteners and the
mainboard.
Operating precautions
The chassis cover must be in place when the system is operating to assure proper cooling. Out
of warranty damage to the system can occur if this practice is not strictly followed.
Note:
Please handle used batteries carefully. Do not damage the battery in any way. A damaged
battery may release hazardous materials into the environment. Do not discard a used battery
in the garbage or a public landfill. Please comply with the regulations set up by your local
hazardous waste management agency to dispose of your used battery properly.
1.3
1.4
6en | Safety precautions DIVAR IP 3000
2014.03 | V4 | DOC Installation Manual Bosch Sicherheitssysteme GmbH
System overview
The DIVAR IP 3000 system is an affordable and easy to use all-in-one recording, viewing, and
management solution for network surveillance systems of up to 32 channels. All channels are
pre-licensed. Running the full Bosch VMS solution and powered by Bosch VRM (Video
Recording Manager) including the Video Streaming Gateway to integrate 3rd party cameras,
DIVAR IP 3000 is an intelligent IP storage device that eliminates the need for separate NVR
(Network Video Recorder) server and storage hardware.
DIVAR IP 3000 is a 4-bay mini tower unit that combines advanced management and state-of-
the-art recording management into a single cost-effective, plug and play IP recording appliance
for IT-minded customers which are seeking for a state-of-the-art “second generation” DVR and
NVR recording solution.
Easy to install and operate, DIVAR IP 3000 features wizard-based set-up and centralized
configuration to reduce installation times. All components are pre-installed and pre-
configured. Simply connect to the network and turn on the unit — DIVAR IP 3000 is ready to
begin recording straight out of the box.
Bosch Video Management System manages all IP and digital video and audio, plus all the
security data being transmitted across your IP network. It seamlessly combines IP cameras
and encoders, provides system-wide event and alarm management, system health monitoring,
user and priority management.
DIVAR IP 3000 features front-swappable SATA-II hard drives. All system software is pre-
installed and pre-activated — creating an out-of-the-box ready-to-use video management
appliance. DIVAR IP 3000 utilizes Windows Storage Server 2008 R2 operating system.
Chassis features
The chassis includes the following features:
– CPU (Intel i3 processor)
– 4 slots for SATA drives (front replaceable)
– 1x VGA output (onboard)
– 1x DVI graphics output
– 4x USB 2.0, 1x USB 3.0
– 1x internal USB Transcoder device
– 1x Gigabit Ethernet LAN port
Chassis components
This chapter describes the most common components included with your chassis.
Chassis
The chassis includes 4 slots for hard drives.
Backplane
The backplane accepts front-swappable SATA-II hard drives.
!
Warning!
Use caution when servicing and working around the backplane. Hazardous voltage or energy
is present on the backplane when the system is operating. Do not touch the backplane with
any metal objects and make sure no ribbon cables touch the backplane.
Power supply
The chassis features a highly energy-efficient power supplies.
2
2.1
2.2
2.2.1
2.2.2
2.2.3
DIVAR IP 3000 System overview | en 7
Bosch Sicherheitssysteme GmbH Installation Manual 2014.03 | V4 | DOC
Device views
There are several LEDs on the front and rear of the chassis. The LEDs show the over-all status
of the system and the activity and health of specific components.

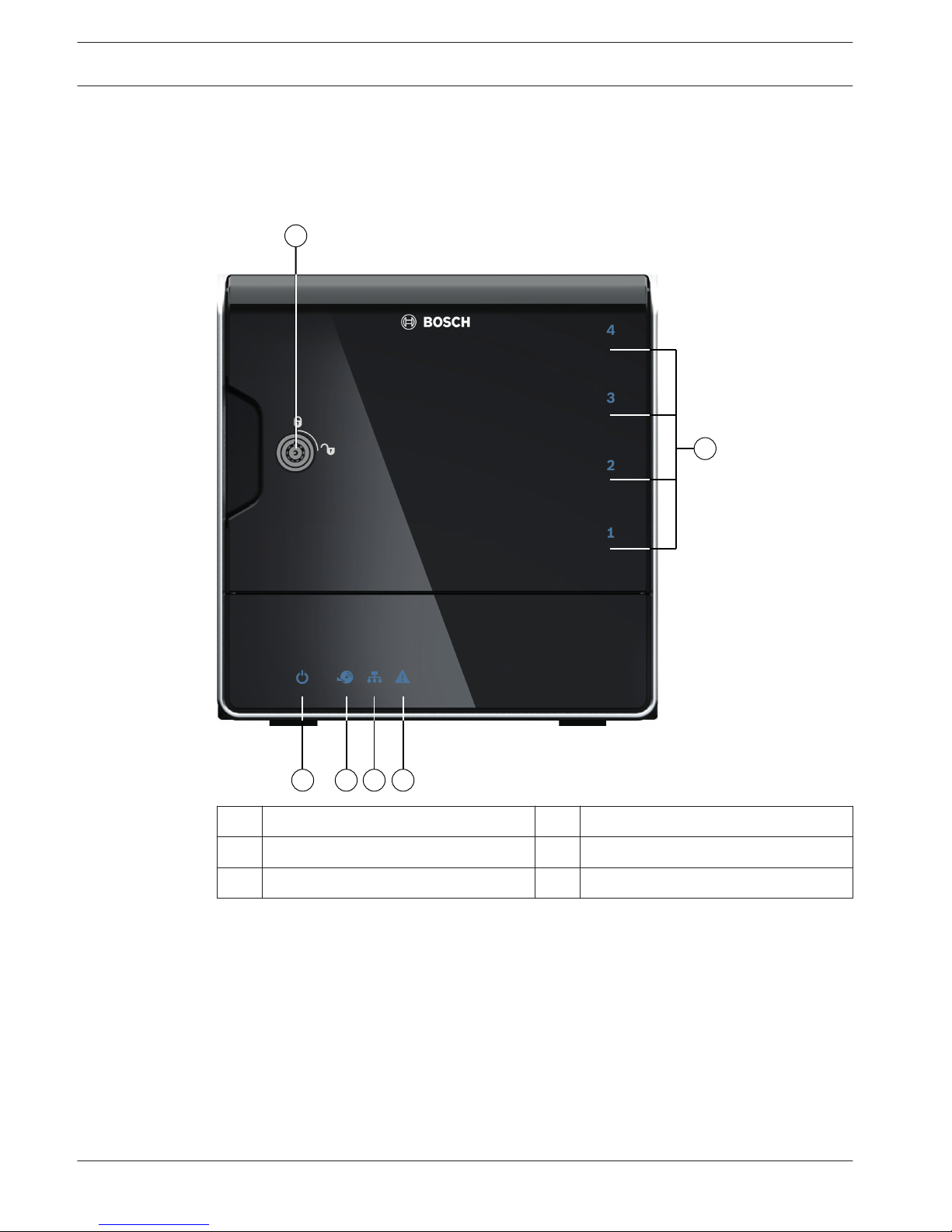

Front view:
1
52 3 4
6
1Lock for front cover 4LAN activity LED
2Power on/off LED 5System status LED
3Hard disk access LED 6Individual hard disk LED
2.3
8en | System overview DIVAR IP 3000
2014.03 | V4 | DOC Installation Manual Bosch Sicherheitssysteme GmbH

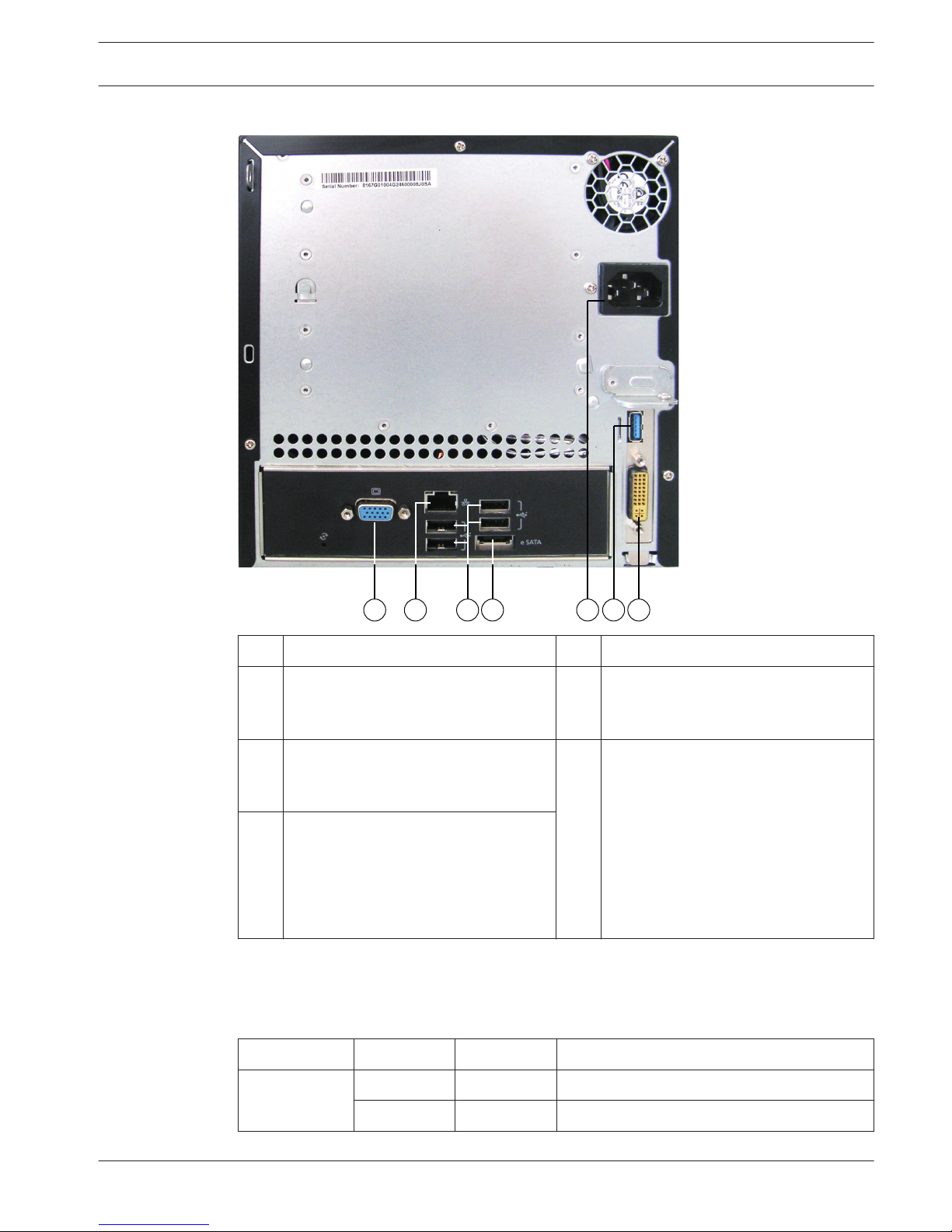

Rear view:
16
2 3 4 5 7
11x VGA (monitor) 5Mains connection 100 - 240 VAC
21x Ethernet (RJ45) 61x USB 3.0
Note: Do not use this port for
keyboard and mouse.
34x USB 2.0
Note: Use these ports for keyboard
and mouse connection.
71x DVI (monitor), for local viewing
Note:
If the system is only connected to the
DVI port, no video signal is displayed
until the system has started
completely. This can take 1 – 2
minutes. A video signal is always
displayed when the monitor is
connected to the VGA port.
41x eSATA for data export
Note: Do not connect hard disk drives
for recording.
LED description - front panel
This chapter describes the LED displays on the front of the chassis.
LED indicator LED color LED state Description
Power LED N/A Off Power off
Blue On (default) Working (S0 state)
2.3.1
DIVAR IP 3000 System overview | en 9
Bosch Sicherheitssysteme GmbH Installation Manual 2014.03 | V4 | DOC

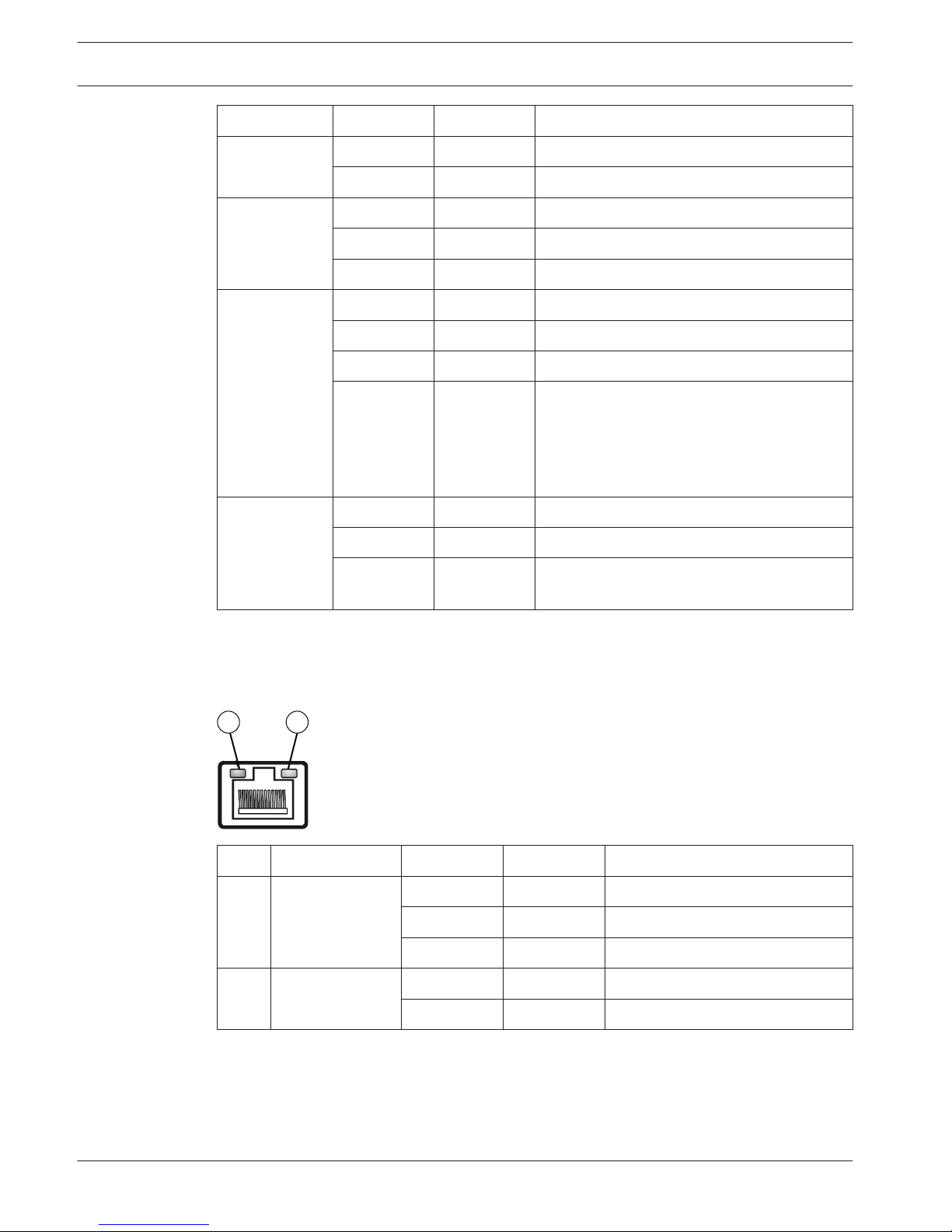

LED indicator LED color LED state Description
HDD LED N/A Off No disk access
Blue Blinking Disk access
LAN LED N/A Off Network disconnected
Blue On Network connected
Blue Blinking Network activity
System LED N/A Off Power off
Blue On (default) System has booted in normal operation.
Blue Blinking System is booting or shutting down
Red On Critical event occurred, such as degraded
RAID volume.
Bosch also provides the API and then
application program is able to control this
status.
Individual hard
disk LED
N/A Off (default) Hard drive not present.
Blue On Hard drive present.
Red On Bosch provides the API to let application
program to control this status.
LAN port LED description - rear panel
This chapter describes the LAN port LED on the rear of the chassis.
LAN connector:
12
Nr. LED indicator LED color LED state NIC state
1RJ45 LED
(left)
N/A Off No connection or 10 Mb/s
Green On 100 Mb/s
Yellow On 1000 Mb/s
2RJ45 LED
(right)
Yellow On Active connection
Yellow Blinking Transmit or receive activity
2.3.2
10 en | System overview DIVAR IP 3000
2014.03 | V4 | DOC Installation Manual Bosch Sicherheitssysteme GmbH
Altri manuali per DIP-3040-00N
1
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali Bosch Sistema di sicurezza
Bosch
Bosch Solution 16i Manuale utente
Bosch
Bosch DIVAR IP 3000 Manuale utente
Bosch
Bosch ISC-FPB1-W60QS Istruzioni operative
Bosch
Bosch ISC-BDL2-WP12 Manuale utente
Bosch
Bosch ISW-BKF1-H5X Manuale utente
Bosch
Bosch Plena Power Amplifier Manuale utente
Bosch
Bosch MAP 5000 Manuale utente
Bosch
Bosch ISW-BMC1-M82X Manuale utente
Bosch
Bosch Spexor Manuale utente
Bosch
Bosch Solution 2000 Series Istruzioni operative
Bosch
Bosch Solution 16plus Manuale utente
Bosch
Bosch LTC 8016/90 Manuale utente
Bosch
Bosch Security Systems Manuale utente
Bosch
Bosch ND 200 LSN Manuale utente
Bosch
Bosch LTC 5136/61 Manuale utente
Bosch
Bosch BE 300 LSN Manuale utente
Bosch
Bosch D220 Manuale utente
Bosch
Bosch Radion Specialty RFBT Manuale utente
Bosch
Bosch 2212 Manuale utente
Bosch
Bosch PVA-1EB Manuale utente
Manuali Sistema di sicurezza popolari di altre marche
EDM
EDM Solution 6+6 Wireless-AE Manuale utente
Highway Safety Group
Highway Safety Group EA401 Manuale utente
Siren
Siren LED GSM Manuale utente
Detection Systems
Detection Systems 7090i Istruzioni per il montaggio
Se-Kure Controls
Se-Kure Controls MicroMini SK-4841 Manuale utente
Siemens
Siemens FDM273 Manuale utente
