1. Introduction

This Eazeo Outdoor Video Intercom is designed for use with Bosch

Color Observation Systems only. This intercom incorporates a high

quality color camera for visual identification of visitors, a tri-color

status indicator and two-way voice communications.

2. Standard package includes

• Eazeo Outdoor Video Intercom unit

• Mounting box

• Frame plate (template)

• Raised-mounting surround

•Protectivedome

•Alarm/Actionbox

• Two dual twisted-pair cables - 15 metres / 45ft

• These installation instructions

• Accessory bag

•A tamper-resistant screw3x10mm

• Security screwdriver

• Metal grommet with lock nut

• Rubber grommet

•Four tamper-resistant screws 4 x50mm with clips

•Four 3.5x 25mm screws with plugs

• Four short screws

• A cable connector

• A name plate assembly

EazeoVideoIntercom.book Page 3 Thursday, December 18, 2003 5:57 PM

Bosch Security Systems | 2003-11

EN | 4

VSS7915/00T & VS79155T

| Installation Instructions

3. Installation

To obtain the best results from your new Eazeo Outdoor Video

Intercom, read these instructions carefully before use. Retain the

manual for future reference.

This manual describes the installation of the Eazeo Outdoor Video

Intercom. For more detailed information about the installation and

operation of the system monitor you should consult the monitor

manuals.

Remark: When the system configuration is altered, the system

monitor needs to check and memorise the cameras and accessories

connected to its inputs. This is done automatically when the mains

power is switched on (rear switch).

Position

First you need to determine where the intercom is to be installed. The

image sensors in modern CCD cameras are highly sensitive and

require special care for proper performance and extended lifetime.

Please follow the guidelines to get optimum results of your camera:

• Do not expose to direct sunlight or bright spotlights in operating

and non-operating conditions.

• Avoid bright lights in the field of view of the camera.

These bright lights cause a smearing effect, which is visible as white

lines above and below the highlight. Bright lights may cause

bleaching of the sensor's color filters. This will be visible as colored

spots in the picture and is irreversible.

Mounting the unit

Choose from the available mounting methods:

• Sunken mount

• Raised mount

EazeoVideoIntercom.book Page 4 Thursday, December 18, 2003 5:57 PM

Bosch Security Systems | 2003-11

EN | 5

VSS7915/00T & VS79155T

| Installation Instructions

Sunken mount

• Using the inside of the frame plate as a template, mark the

position of the hole required for the unit.

• Cut out the center hole.

•Use the four tamper-resistant screws (4 x50mm) and clips to attach

the frame plate to the surface (use the outer holes).

• If you want to mount the mounting box directly onto a wall

instead, break out the four tabs in the mounting box and drill

holes for the four 3.5x 25mm screws (use plugs if necessary).

Four tamper-resistant

screws 4 x50mm with clips

Four short screws

Frame plate

Tamper-resistant screw 3 x10mm

Mounting box

EazeoVideoIntercom.book Page 5 Thursday, December 18, 2003 5:57 PM

Bosch Security Systems | 2003-11

EN | 6

VSS7915/00T & VS79155T

| Installation Instructions

• Identify the top of the mounting box (the tamper-resistant screw

thread is at the bottom).

• Decide which rear entry hole (big or small) you will use for the

cable and break out the corresponding tab in the mounting box.

• Mount the metal grommet supplied (if you have chosen the

smaller rear entry point use the rubber grommet supplied).

• Run the connection cable through the grommet leaving about

15cm sticking out and tighten the metal grommet.

• Using the four short screws attach the mounting box to the frame

plate.

• Crimp the supplied connector onto the cable (see section System

Cable).

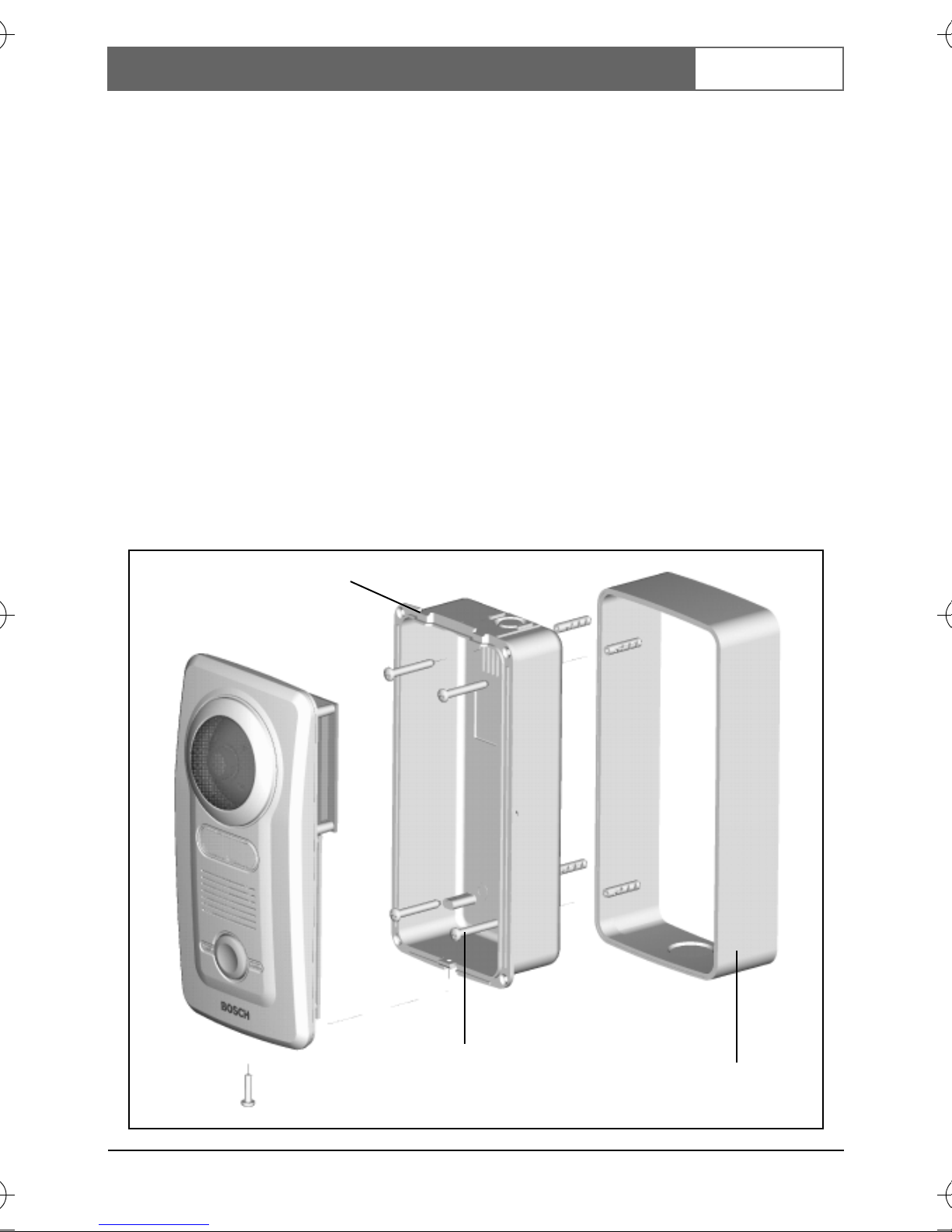

Raised mount

Raised-mounting

surround

Four 3.5 x 25mm

screws with plugs

Top recess

EazeoVideoIntercom.book Page 6 Thursday, December 18, 2003 5:57 PM

Bosch Security Systems | 2003-11

EN | 7

VSS7915/00T & VS79155T

| Installation Instructions

• Identify the top of the mounting box and the top of the raised-

mounting surround (the top cable entry hole is offset to the right).

• Decide the entry point (top, bottom or rear) for the cable and

break out the corresponding tabs in the mounting box and (if

required) the raised-mounting surround.

• Break out the four screw holes in the rear of the mounting box

and use these holes to mark the position for drilling the surface.

• Fit the mounting box into the raised-mounting surround.

• Mount the grommet.

• Run the connection cable through the grommet leaving about

15cm sticking out (if you enter from the top leave 20cm) and

tighten the grommet.

•Use the four 3.5x 25mm screws (with plugs if necessary) to attach

these two units to the surface.

• Crimp the supplied connector onto the cable (see section System

Cable).

Attaching the intercom unit

The intercom unit is now ready to be fitted to the mounting box.

• Connect the cable to the unit.

• Clip the top of the unit into the top recesses of the mounting box.

• Use a finger to fold the cable back along the side of its connector

to the center of the printed circuit board. (If the cable enters from

the top make sure that it is first firmly secured in the cable guide

of the mounting box.)

• Lower the unit into place and secure underneath with the

3x10mm tamper-resistant screw.

• If necessary (and without touching the lens), adjust the camera

position (check the picture on the screen).

• The protective dome cannot be removed afterwards, so ensure

that you are completely satisfied with the camera position before

you click the dome into place.

• Fill-in the name card and click into place with its transparent

cover.

EazeoVideoIntercom.book Page 7 Thursday, December 18, 2003 5:57 PM

Bosch Security Systems | 2003-11

EN | 8

VSS7915/00T & VS79155T

| Installation Instructions

System Cable

For the interconnections between the system monitor and the Eazeo

Outdoor Video Intercom, a 15m/45ft system cable is supplied. For

optimum picture quality, always use a 4-wire dual twisted-pair cable

when extending the connection. The maximum cable length allowed

is 200m/600ft. Ensure that the connectors are fixed to the cable as

shown in the figure.

CAUTION:

The plugs used for the observation system have the same

dimensions as standard telephone plugs. Never connect a

telephone to the Eazeo Outdoor Video Intercom or system

monitor.

4-5

2-3

4-5

2-3

EazeoVideoIntercom.book Page 8 Thursday, December 18, 2003 5:57 PM

Bosch Security Systems | 2003-11

EN | 9

VSS7915/00T & VS79155T

| Installation Instructions

Adjustments and switches

The printed circuit board has an loudspeaker level potentiometer,

two DIP switches and an anti-tamper alarm switch.

Anti-tamper switch override

When the unit is removed from the mounting box the anti-tamper

switch triggers an alarm on the monitor. To suppress this alarm while

servicing the system, set the tamper override DIP switch to the On

position. Don’t forget to reactivate the anti-tamper switch by

switching the override to the Off position.

DIP 2

Anti-tamper

override switch

(default Off)

Anti-tamper

switch

Loudspeaker

level

adjustment

DIP 1

default Off

EazeoVideoIntercom.book Page 9 Thursday, December 18, 2003 5:57 PM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Bosch Sistema di sicurezza

Bosch

Bosch Solution 16i Manuale utente

Bosch

Bosch CP156B Come usare

Bosch

Bosch Spexor Manuale utente

Bosch

Bosch LTC 8016/90 Manuale utente

Bosch

Bosch Security System Manuale utente

Bosch

Bosch CC610PB Manuale utente

Bosch

Bosch DS937 Manuale utente

Bosch

Bosch TC2073 Manuale utente

Bosch

Bosch PRAESENSA Come usare

Bosch

Bosch Security Systems Manuale utente

Bosch

Bosch PAVIRO Istruzioni per il montaggio

Bosch

Bosch SM120RW Manuale utente

Bosch

Bosch DIP-3040-00N Manuale utente

Bosch

Bosch BE 300 LSN Manuale utente

Bosch

Bosch MIC-WKT-IR Manuale utente

Bosch

Bosch FW5.50 Istruzioni per il montaggio

Bosch

Bosch Solution 2000 Manuale del proprietario

Bosch

Bosch FMC-210-DM-G-B Manuale utente

Bosch

Bosch SOLUTION ULTIMA Manuale utente

Bosch

Bosch Dinion LTC 0385 Manuale utente

Bosch

Bosch FMC-300RW-GSRRD Manuale utente

Bosch

Bosch OD850F1 Manuale operativo e di manutenzione

Bosch

Bosch BIS 2.3 Manuale utente

Bosch

Bosch ICP-VR8488 Manuale utente

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
