Introduction

EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands

Introd uction

Thank you for choosing the RC-18S remote

As the owner of a Bose®LIFESTYLE®RC-18S remote

control, you can enjoy a wide variety of new options

with your LIFESTYLE®Series II DVD home entertainment

system.

This remote is one of many Bose®link compatible prod-

ucts designed to work with the LIFESTYLE®18 Series II or

28 Series II systems. Built-in compatibility makes this

additional remote useful in any area of your home...

wherever you want to hear Bose-quality sound from your

system!

Where to use this expansion remote

Using the RC-18S remote in another room, you can turn

your LIFESTYLE®system on and tune in audio from the

the media center located in the main room. You can even

select a different sound source, changing from CD to FM

radio, for example.

The remote works with:

•Bose

®link compatible powered speakers

•Bose

®link amplifiers with passive speakers

• Other stereo amplifiers.

By using one of the expansion room solutions above, you

can enjoy LIFESTYLE®system sound in another area of

your house. Depending on which expansion product you

choose, it may allow you to connect a local sound source

in that expansion room to further extend your choice of

audio. Then use the RC-18S remote to control all of con-

nected sources, regardless of where they’re located.

Engineered to emit radio frequency signals that work

through walls and floors, the RC-18S can command

sound from different floors of your residence, too.

How it differs from your primary remote

The RC-18S remote works as a complement to the

primary remote that came with your LIFESTYLE®Series II

system. This additional remote provides the control you

need to listen to your system in other areas of your house.

Contents

English FrançaisEspañol

Contents

Where to find...

Setting up your expansion products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

To get an additional room of sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

With a Bose®SA-2 or SA-3 amplifier and speakers: . . . . . . . . . . . . . . . 4

With a Series II 3•2•1 or 3•2•1 GS system . . . . . . . . . . . . . . . . . . . . . . 5

With older Bose products for expansion . . . . . . . . . . . . . . . . . . . . . . . . 6

To add more rooms of sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Getting the remote ready to use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

To install batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

What each button does . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

System ON, OFF, silenced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Select the source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Select an audio program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Confirm and Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using the remote to control other audio . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Two streams, two choices for you . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Main room requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Other room and stream scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to make it happen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Some simple rules to keep it all straight . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Additional legacy product rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Make sure the house code settings match . . . . . . . . . . . . . . . . . . . . . . . 14

How to change the settings, as needed . . . . . . . . . . . . . . . . . . . . . . . . . 15

First check the house code setting (switches 1-4) . . . . . . . . . . . . . . . . 15

To receive the same audio stream as the main room . . . . . . . . . . . . . 15

To set your RC-18S remote for other room use (switches 6-9) . . . . . . 15

Keep the room codes consistent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Now for the rewards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Log for remote switch settings and products . . . . . . . . . . . . . . . . . . . . . . . 19

Note:

Unauthorized modification of the receiver or radio remote control could

void the user’s authority to operate this equipment.

Deciding Where and How

EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands

Deciding Where and How

Setting up your expansion products

If you have purchased other Bose®link compatible

products, you can pair them to work seamlessly with

your new remote. This allows you to command sound

from your LIFESTYLE®system in an entirely different

part of your home.

To get an additional room of sound

It takes only a few steps to set up one additional room of

sound with Bose products. With batteries installed in the

RC-18S remote, you can then use it for control in the

same area with those products.

With a Bose SA-2 or SA-3 amplifier and speakers:

1. Arrange and connect the speakers and amplifier as

instructed in the amplifier owner’s guide. (A Bose®link

A cable is supplied with the amplifier only.)

2. Check the room setting on the amplifier, as instructed

in the owner’s guide that came with it. This setting

must be different from the main room remote.

3. Check the switch settings inside the battery compart-

ment of the RC-18S remote. These include:

• House code (switches 1-4): Must match the main

room remote control house code setting.

• Audio stream (switch 5): May be set like that of the

main room remote or be set to receive a different

audio stream instead. Set switch 5 in the RC-18S

accordingly.

• Room setting (switches 6-9): These must be differ-

ent from the main room remote and identical to the

room settings in the amplifier.

Note:

Your RC-18S remote and the SA-2 or SA-3

amplifier switches are set at the factory with identical house

codes, with switch 5 set to command audio stream 2, and

with room switches set for use in Room B.

4. If your amplifier and remote switches do not match,

refer to “How to change the settings, as needed” on

page 15.

Deciding Where and How

English Deutsch FrançaisDansk Español Italiano SvenskaNederlands

With a Series II 3•2•1 or 3•2•1 GS system

The 3•2•1 Series II and 3•2•1 GS Series II DVD home

entertainment systems are also Bose®link compatible

products designed to work with your LIFESTYLE®system.

This gives you the choice of listening to any of the 3•2•1

system sound sources or to audio stream 1 or 2 of the

LIFESTYLE®system. All it requires is that the two

systems be connected.

This connection requires use of a Bose®link B cable. If

you do not yet own one, you can purchase this cable by

requesting Part Number 273619 from your authorized

Bose dealer. Or, to contact Bose directly, refer to the

address list included in the carton with your system.

This cable connects to the rear panel of both the 3•2•1

and LIFESTYLE®system media centers as shown

(Figure 1). Use the Bose®link jack for this connection.

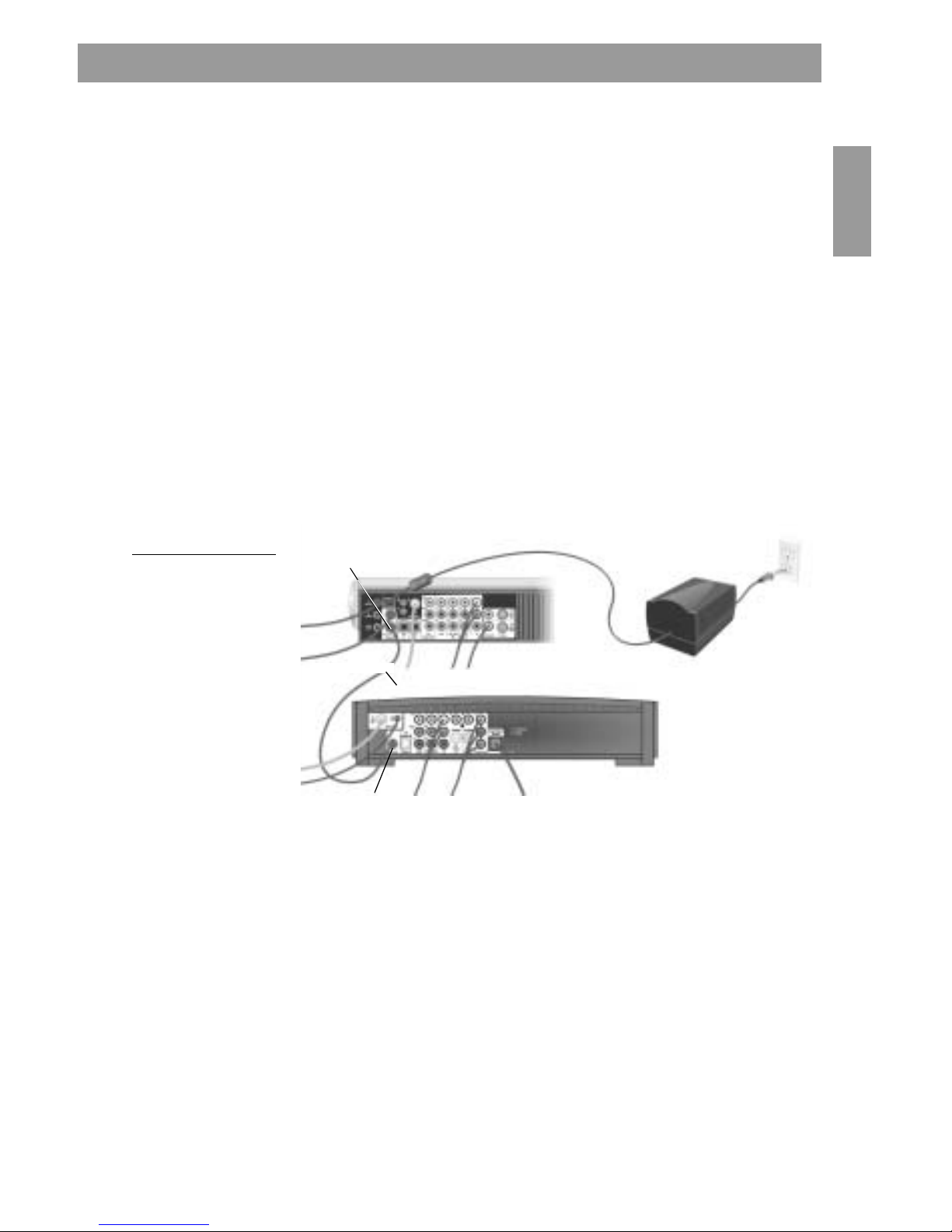

Figure 1

Connecting 3•2•1

(or 3•2•1 GS)

Series II and

LIFESTYLE®

Series II media

centers

When the connections are completed, you can operate

either system using the RC-18S remote.

By pressing the Local button, you tell the remote to

control your 3•2•1 system. For access to the more

advanced features of the 3•2•1 system, however, be sure

to use the remote that came with it.

LIFESTYLE®18 or 28 Series II media center

Bose®link

jack

3•2•1

(or 3•2•1 GS)

Series II

media center

Bose®link B cable

Bose®link

jack

Deciding Where and How

EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands

With older Bose products for expansion

Some other Bose products, which you may already own,

can also connect to your LIFESTYLE®system. However, if

the product you add is not Bose®link compatible, you are

limited to expanding your system to one additional room.

How you make this connection will depend on the type of

product you have. It could be:

• powered speakers, such as an Acoustimass®5 powered

speaker system

• an earlier system, such as a 3•2•1 Series I system, a

Wave®radio or Wave®radio/CD

• indoor or outdoor speakers connected to a Bose

SA-1 amplifier

For details, refer to “Some simple rules to keep it all

straight” on page 12.

For more information on compatibility and cables, please

contact Bose. Refer to the address list provided with your

LIFESTYLE®system.

To add more rooms of sound

To set up Bose®link products in multiple rooms, you

can connect Bose SA-2 and SA-3 amplifiers in a daisy-

chain arrangement. To include more than one non-ampli-

fier solution, such as a 3•2•1 or Wave®product, you need

the 50-foot extension/expansion cable from Bose. This

cable connects to the Bose®link jack on your system

media center, or to the pass through jack on the last con-

nected amplifier. Then, at the other end, its 4-jack con-

nector allows you to connect more products.

To purchase the extension/expansion cable from your

authorized Bose dealer, ask for part number 275475-050.

Or, to contact Bose directly, refer to the address list

provided with your LIFESTYLE®system.

Preparing the Remote

English Deutsch FrançaisDansk Español Italiano SvenskaNederlands

Prep aring t he Rem ote

Getting the remote ready to use

You can use your RC-18S remote control as soon as the

batteries are installed. It is pre-set at the factory for use

outside the main room where your LIFESTYLE®system is

located, in an area where another Bose®system or

speaker pair is set up.

Or, you can use it as a secondary remote in the same

room with the LIFESTYLE®system instead. To learn how

to set switches inside the battery compartment for that

purpose, refer to “How to change the settings, as needed”

on page 15.

To install batteries

1. Slide the battery cover off the back of the remote.

Note:

You may notice the small switches just above the

batteries inside the compartment. These are the house

code, stream selection, and room code switches,

explained on page 12.

2. As you install the four supplied batteries, match the

polarity markings (+ and –) on each one to markings

inside the battery compartment (Figure 2).

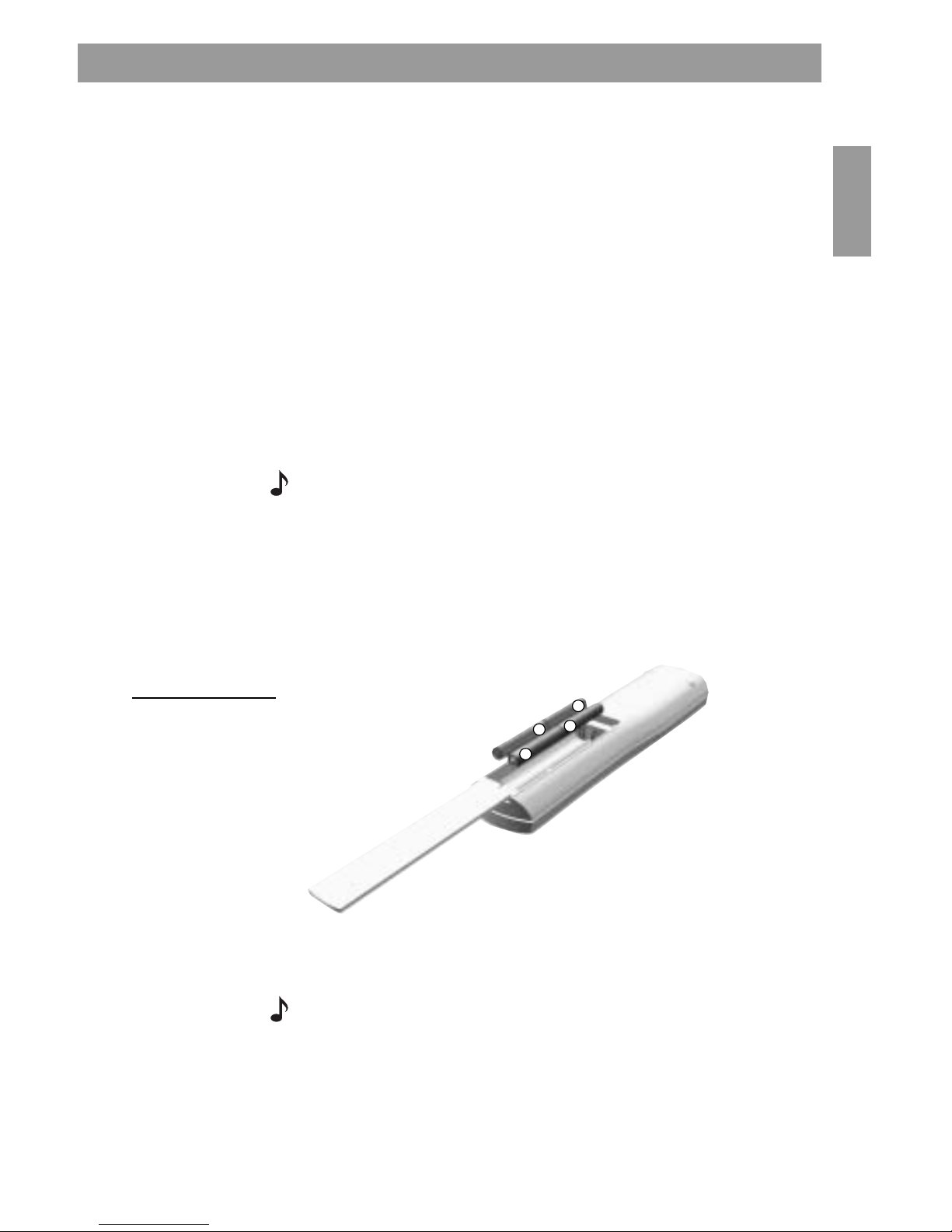

Figure 2

Polarity marked on

the batteries

3. Slide the battery cover back into place until it snaps

closed.

Note:

If you notice a decrease in the range or response of

the RC-18S remote control, the batteries may need to be

changed.

Preparing the Remote

EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands

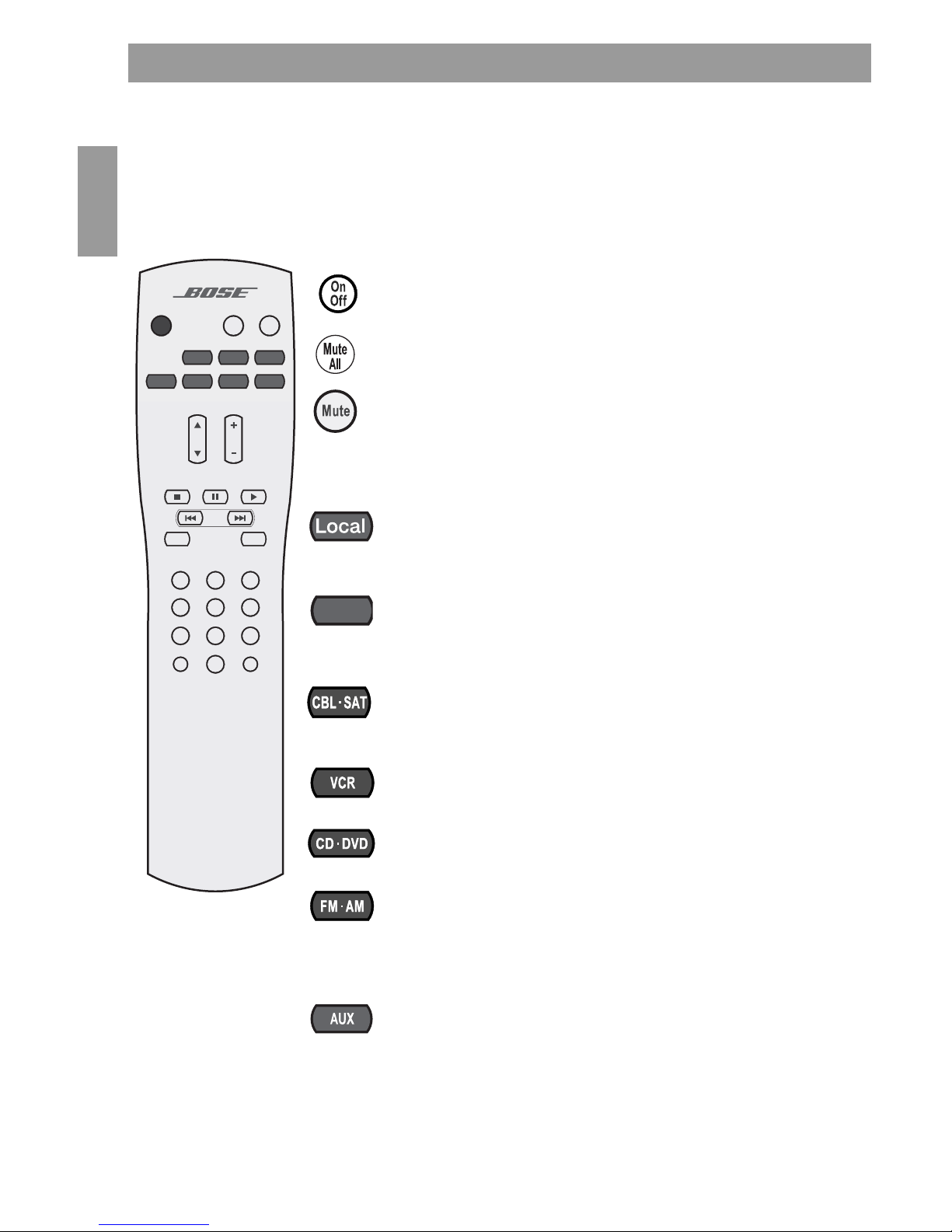

What each button does

Styled after the primary remote, which is packed with the

media center, the RC-18S remote has similar buttons.

System ON, OFF, silenced

Select the source

Turns the system on and off. Selects the

source last used.

Mutes the volume for all connected speakers

(main and in other rooms).

Mutes or unmutes the volume in the current

room.

Selects the audio source located in the room

where the remote is designated for use. Also

switches between the local source inputs.

Turns the system on and selects the source

connected to the TV input on the media center.

Turns the system on and selects the source

connected to the CBL/SAT input on the media

center.

Turns the system on and selects the source

connected to the VCR input on media center.

Turns the system on and selects the built-in

disc player as source.

Turns the system on and selects the built-in

FM/AM radio tuner set to the station last

selected. Switches between FM and AM when

the radio is on.

Turns the system on and selects an AUX

source connected to the media center.

Mute

All Mute

Shuffle Repeat

CD·DVDCD·DVD FM·AMFM·AM AUXAUX

CBL·SATCBL·SAT VCRVCRLocalLocal TVTV

Off

Seek

Volume

Track

Chapter

Preset

Channel

Enter

123

456

Last

Preparing the Remote

English Deutsch FrançaisDansk Español Italiano SvenskaNederlands

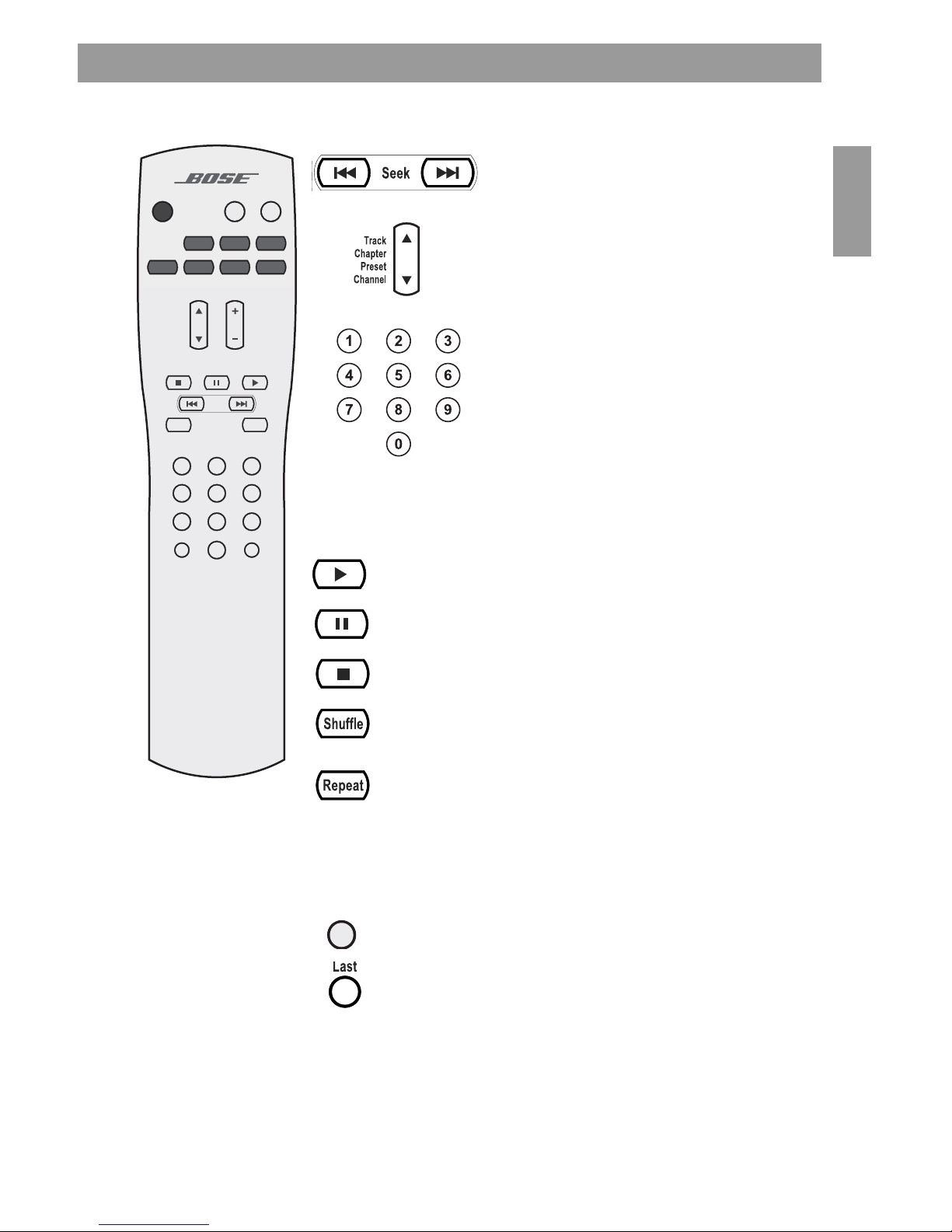

Select an audio program

Select a play mode

Confirm and return

Seek backward or forward to the

next strong radio station.

Skip backward or forward to the

next CD track, DVD chapter, radio

preset, or TV channel.

Select a CD track, DVD chapter,

radio station, or TV channel that

corresponds to the numbers

pressed.

Starts the disc player.

Pauses the disc player.

Stops the disc player.

Plays CD tracks out of order. Press Shuffle

again to cancel this mode.

Repeats a whole CD or track, DVD chapter, or

DVD title. Press Repeat again to cancel the

repeat mode.

Confirms the channel selection on certain TVs.

Returns to the previous TV channel (if the TV

supports this feature).

Mute

All Mute

Shuffle Repeat

CD·DVDCD·DVD FM·AMFM·AM AUXAUX

CBL·SATCBL·SAT VCRVCR

LocalLocal TVTV

Off

Seek

Volume

Track

Chapter

Preset

Channel

Enter

123

456

Last

Enter

Audio Possibilities

EnglishDeutschFrançais DanskEspañolItalianoSvenska Nederlands

Audi o Possib ilities

Using the remote to control other audio

Your RC-18S remote is capable of working with other

audio components connected to your LIFESTYLE®sys-

tem media center. While it cannot turn these components

on or off, it can change the volume, start or stop play, and

control other basic operation.

Try it and see.

Note:

With a CD changer connected to your LIFESTYLE

system, commands from the RC-18S remote will affect the

current CD, but cannot change to another CD.

Two streams, two choices for you

When you set up speakers in another room, you have

some choices for what those speakers will play.

Your LIFESTYLE®system provides an exciting

set of options for you by offering two independent audio

streams. So, even when you are in the other room, you

can choose to listen to whatever is playing in the main

room, or to another audio source that’s part of the system.

Two streams are simply the means to these added

choices. They can carry audio from the same source or

from two sources, like the CD player and the FM tuner at

the same time, to a multitude of rooms — up to 15 in all!

So before you use an RC-18S remote control in that other

room, you can plan how you want the audio assigned.

Main room requirements

To simplify your choices, some LIFESTYLE®system

assignments are fixed, and do not vary. These include:

• Stream 1 audio always goes to the main room

(Room A) where your LIFESTYLE®system is installed.

• Room switches in the primary remote control are always

set for use in Room A.

Other room and stream scenarios

It is possible for a total of 15 rooms (A - O) to have Bose®

link products installed.

Here are some other rooms where the Stream 1 audio

might be appreciated, if Room A is your living room:

Indice

Altri manuali Bose Telecomando

Bose

Bose WAVE RADIO III Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Bose

Bose Acoustic Wave music system II. Manuale utente

Bose

Bose Solo TV Sound Guida per l'amministratore

Bose

Bose SoundTouch Manuale utente

Bose

Bose RC-35S2 Manuale utente

Bose

Bose Acoustic Wave music system II. Manuale utente

Bose

Bose Wave Music System Premium Backlit Remote Manuale utente

Bose

Bose 714924-0020 Istruzioni operative

Bose

Bose LIFESTYLE RC-38S Manuale utente

Bose

Bose RC-35S2 Manuale utente

Bose

Bose CineMate GS Series II Guida per l'amministratore

Bose

Bose Lifestyle 38 Series III Manuale utente

Bose

Bose Cinemate Guida per l'amministratore

Bose

Bose 403155S Manuale utente

Bose

Bose PERSONAL Manuale utente

Bose

Bose Acoustic Wave music system II. Manuale utente

Bose

Bose SoundTouch Manuale utente

Bose

Bose SOUNDTOUCH 300 Manuale utente

Bose

Bose SOUNDTOUCH 300 Manuale utente

Manuali Telecomando popolari di altre marche

Panasonic

Panasonic EUR7622KB0 Manuale utente

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione
