USER’S MANUAL

BV7200 Multi-Media Disc Player

with 3.2-inch TFT LCD Display

Congratulations on your purchase of a

Multi-Media Disc Player.

It has been designed, engineered and

manufactured to bring you the high-

est level of performance and quality,

and will afford you years of listening

pleasure.

Thank you for making a your

choice for mobile video entertainment.

BV7200 User’s Manual - page 2

Safety Information

CAUTION:

This mobile DVD player is a Class 1 laser

product. However, this mobile DVD player

uses a visible/invisible laser beam which

could cause hazardous radiation exposure

if directed. Be sure to operate the mobile

DVD player correctly as described in this

manual.

Use of controls or adjustments or perfor-

mance of procedures other than those

speciﬁed herein may result in hazardous

radiation exposure.

Do not open covers and do not attempt to

repair this product yourself. Refer servicing

to qualiﬁed personnel.

WARNING:

- To reduce the risk of ﬁre or electric shock,

do not expose this equipment to rain or

moisture.

- To reduce the risk of ﬁre or electric shock,

and annoying interference, use only the

recommended accessories.

- This device is intended for continuous

operation.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this copyright

protection technology must be authorized

by Macrovision Corporation, and is

intended for home and other limited viewing

uses only unless otherwise authorized

by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

Region Management Information

This mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not corre-

spond to the Region number of this Mobile

DVD Player, this Mobile DVD Player cannot

play this disc.

DISC NOTES

You can playback the following discs:

DVD VIDEO/DVD AUDIO

VIDEO CD/AUDIO CD

MP3/WMA/JPEG/MPEG4

Handling and Cleaning

- Dirt, dust, scratches and warped discs will

prevent proper operation.

- Do not place stickers or make scratches

on discs.

- Do not bend discs.

- A disc should always be kept in its case

when not in use to prevent damage.

- Do not place discs in the following places:

1.Direct sunlight.

2.Dirty, dusty and damp areas.

3.Near car heaters.

4.On the seats or dashboard.

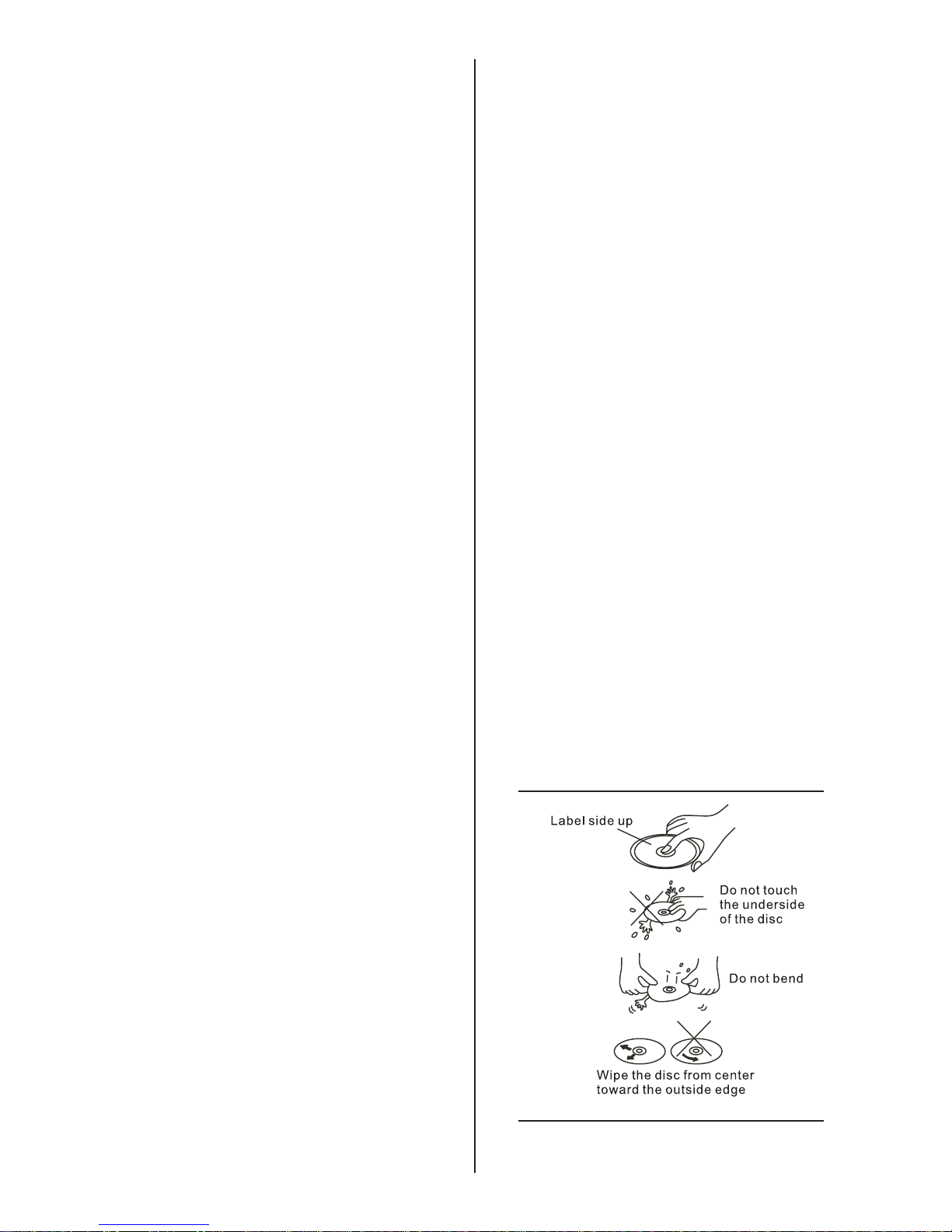

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistened with isopropyl (rubbing)

alcohol. Never use solvents such as

benzene, thinner or conventional record

cleaners as they may mar the surface of

the disc.

BV7200 User’s Manual - page 3

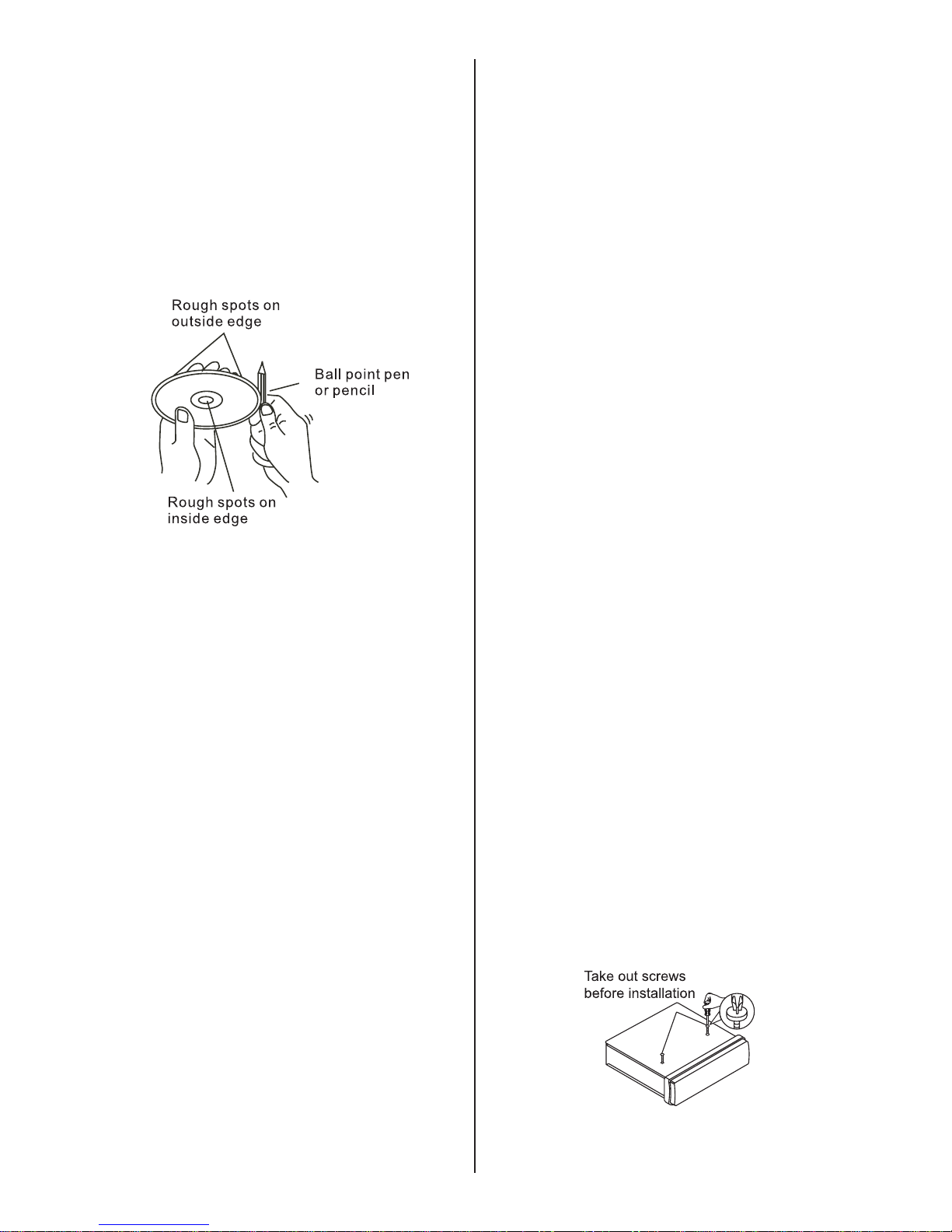

Preparing new discs with rough spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the disc will not be

properly seated and the player will not

play the disc. Therefore, remove the rough

edges in advance by using a ballpoint pen

or pencil as shown on the right. Press the

side of the pen or pencil against the inside

and outside edges of the disc.

Installation

Notes:

- Choose a mounting location where the unit

will not distract the driver.

- Before the installation of the unit, connect

the wiring temporarily and make sure it is

all connected properly and the unit and the

system works.

- Use only the parts included with the unit

to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

- Consult with your dealer if installation

requires the drilling of holes or other

modiﬁcations of the vehicle.

- Install the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop, like an

emergency stop.

- If installation angle exceeds 30° from

horizontal, the unit may not perform

properly.

- Avoid installing the unit where it will be

subject to high temperature, such as from

direct sunlight, or from hot air, from the

heater, or where it would be subject to dust,

dirt or excessive vibration.

DIN mounting options

This unit can be installed either from the

‘Front’ (conventional DIN Front-mount) or

the ‘Rear’ (DIN Rear-mount installation

using the threaded holes on the sides

of the chassis). For details, refer to the

following illustrated installation methods.

Remove transit screws before

installation

Before installing the unit, please remove

the two transit screws.

BV7200 User’s Manual - page 4

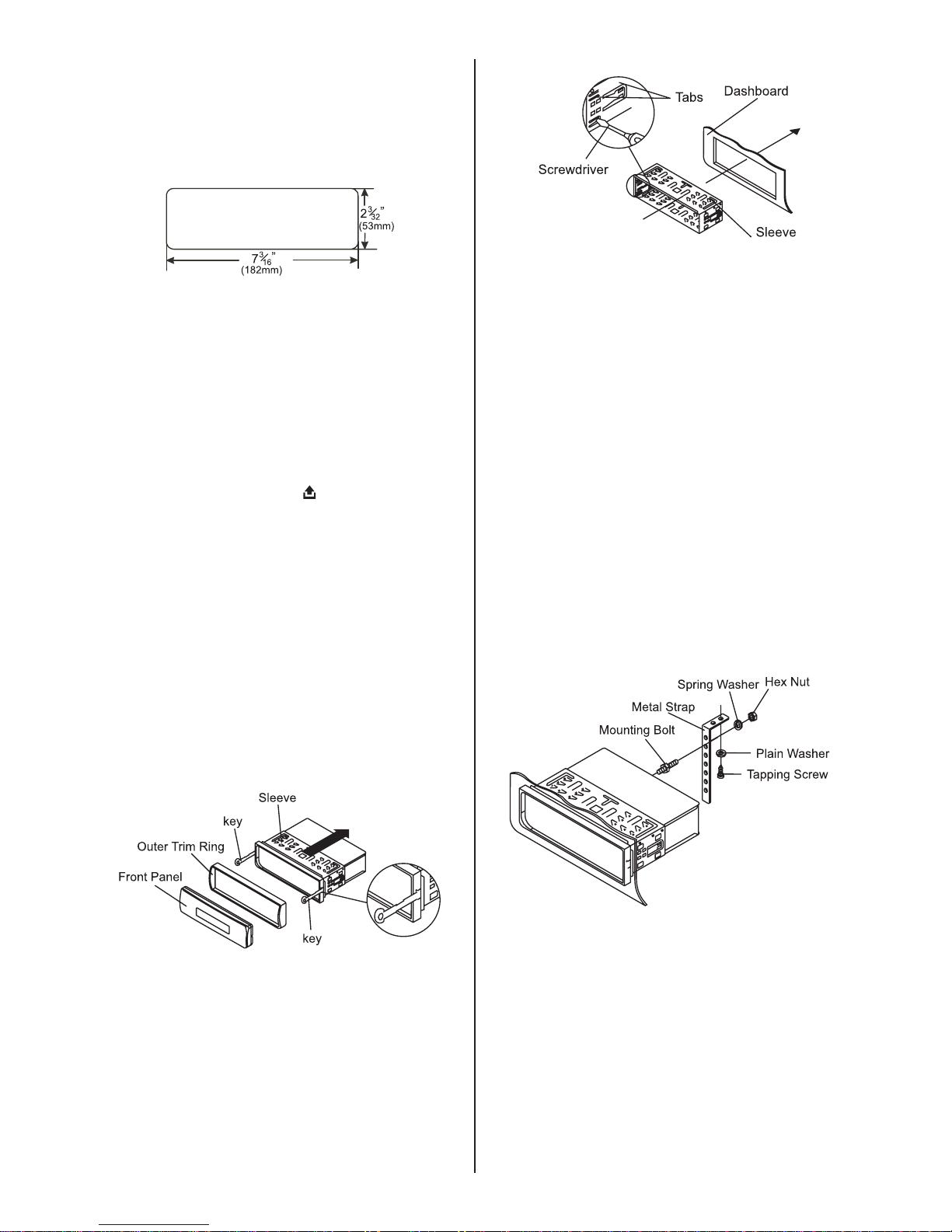

1. DIN front-mount (method A)

Installation opening

This unit can be installed in any dashboard

opening with dimensions as shown below:

Installing the unit

Be sure to test all connections ﬁrst, then

follow these steps to install the unit.

1. Make sure the ignition is turned off. Dis-

connect the cable from the vehicle battery

negative (-) terminal.

2. Disconnect the wire harness and the

antenna.

3. Press the RELEASE ( ) on the front

panel and remove the control panel (for

details, refer to ‘Using the Detachable Front

Panel’).

4. Lift the top of the outer trim ring. Then

pull it out to remove it.

5. The two supplied keys release tabs

inside the unit’s sleeve so you can remove

it. Insert the keys as far as they will go (with

the notches facing up) into the appropriate

slots at the center of the left and right sides

of the unit. Then slide the sleeve off the

back of the unit.

6. Mount the sleeve by inserting it into the

opening of the dashboard and bend open

the tabs located around the sleeve with

a screwdriver. Not all tabs will be able to

make contact, so examine the opening to

determine which tabs will be most effective.

Bend open the appropriate tabs behind the

dashboard to secure the sleeve in place.

7. Reconnect the wire harness and the an-

tenna, being careful not to pinch any wires

or cables.

8. Slide the unit into the sleeve until it locks

into place.

9. To further secure the unit, use the sup-

plied metal strap to secure the back of the

unit in place. Use the supplied hardware

(Hex Nut (M5mm) and Spring Washer) to

attach one end of the strap to the mounting

bolt on the back of the unit. If necessary,

bend the metal strap to ﬁt your vehicle’s

mounting surface. Then use the supplied

hardware (Tapping Screw (5x25mm) and

Plain Washer) to attach the other end of

the metal strap to a solid metal part of the

vehicle under the dashboard. This strap

also helps ensure proper electrical ground-

ing of the unit.

10. Reconnect the cable to the vehicle

battery’s negative (-) terminal. Then replace

the outer trim ring and install the unit’s front

panel (see the steps of ‘to install the front

panel’).

Removing the unit

1. Make sure the ignition is turned off, and

BV7200 User’s Manual - page 5

then disconnect the cable from the vehicle

battery negative (-) terminal.

2. Remove the metal strap attached to the

back of the unit (if present).

3. Press the release button to remove the

front panel.

4. Lift the top of the outer trim ring then pull

it out to remove it.

5. Insert both of the supplied keys into the

slots at the middle left and right sides of the

unit then pull the unit out of the dashboard.

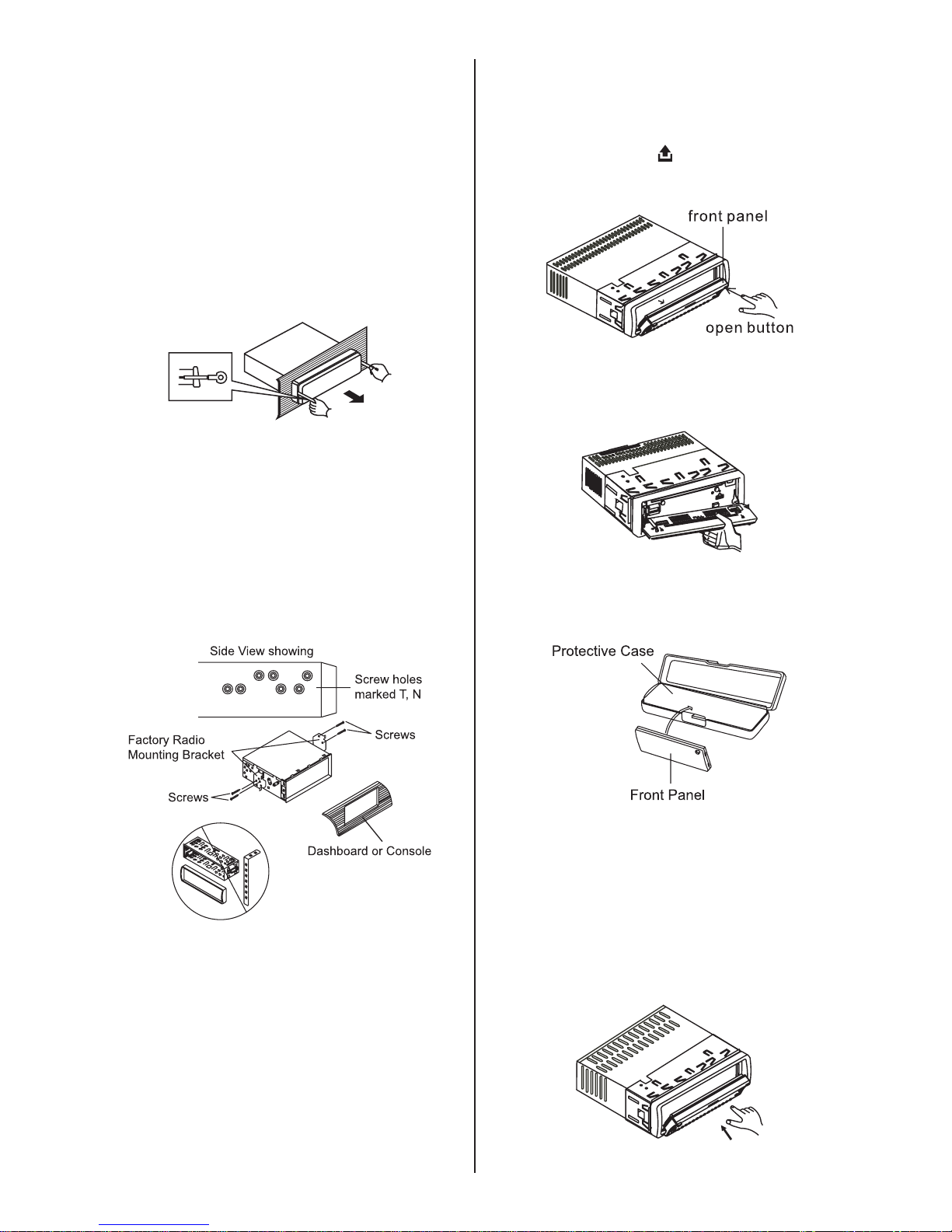

2. DIN rear-mount (method B)

If your vehicle is a Nissan or Toyota, follow

these mounting instructions: Use the screw

holes marked T (Toyota) or N (Nissan)

located on both sides of the unit to fasten

the unit to the factory radio mounting

brackets supplied with your car.

Fasten the unit to the factory radio

mounting brackets. Align the screw holes

on the bracket with the screw holes on the

unit, and then tighten the screws (5x5mm)

on each side.

Note: The outer trim ring, sleeve and the

metal strap are not used for method B

installation.

Using the Detachable Front Panel

Removing the front panel

1. Press the release button (7) to ﬂip

down the front panel.

2. Pull off the front panel.

3. Store the front panel in its protective

case.

Installing the front panel

To install the front panel, insert it as shown

in the drawing below. Be sure it is fully

inserted. If not, the display or some of the

keys may not function properly.

BV7200 User’s Manual - page 6

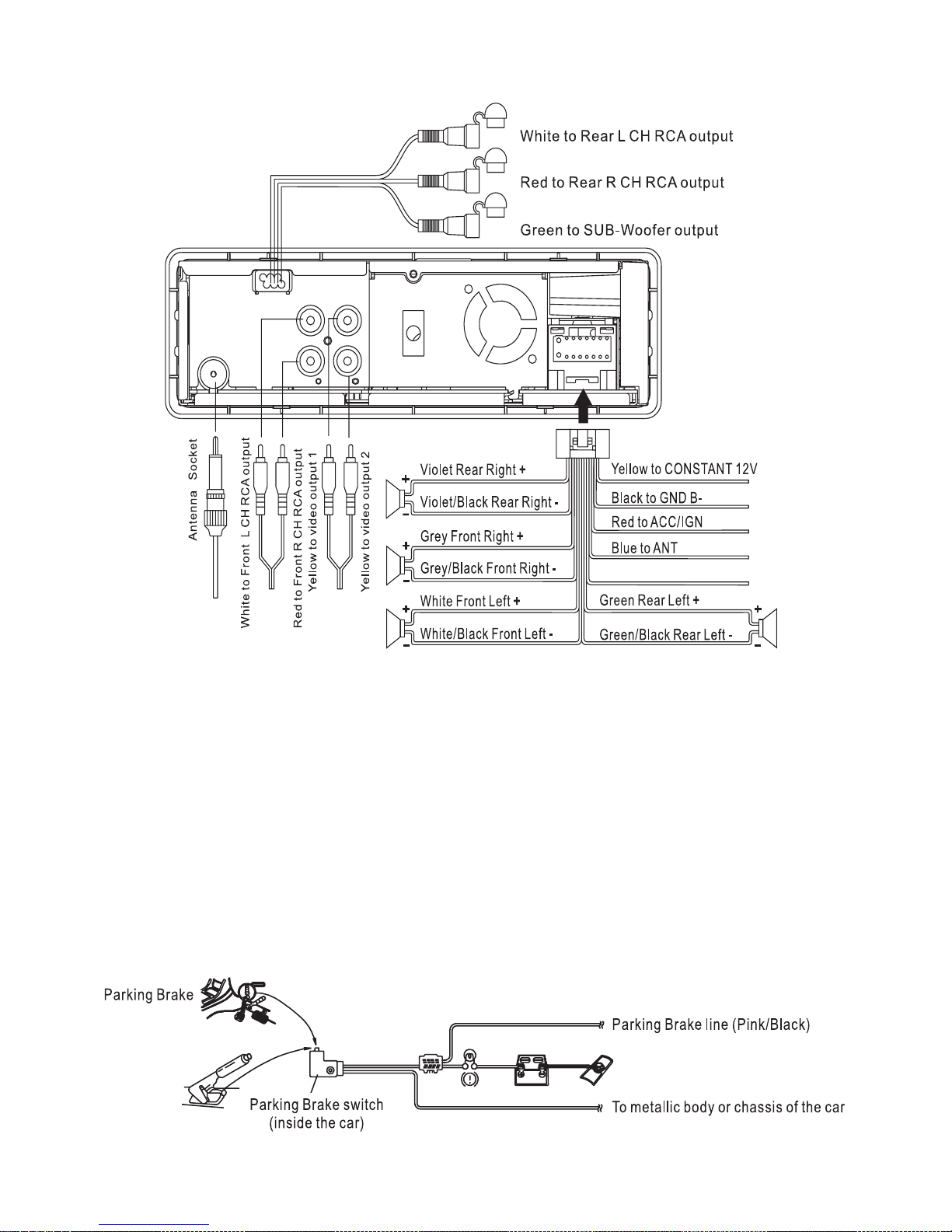

Wiring Diagram

Pink/Black to Parking Brake B-

WATCHING THE VIDEO MONITOR IS FORBIDDEN WHILE DRIVING:

The “PARKING BRAKE” wire must be connected to the parking brake system of your car.

The LCD screen will display video images ONLY when the parking brake is engaged.

If the parking brake is not engaged, the screen will display the message “DISABLED

WHILE DRIVING”. This is a safety feature designed to prevent the driver from watching a

video while driving. The video output of this unit is not affected by this.

Note: In Radio Mode or CD/MP3 Mode images will be displayed on the monitor whether or

not the parking brake is engaged.

Connecting the Parking Brake line to the parking brake system built in the car

BV7200 User’s Manual - page 7

Operation

Features and Controls

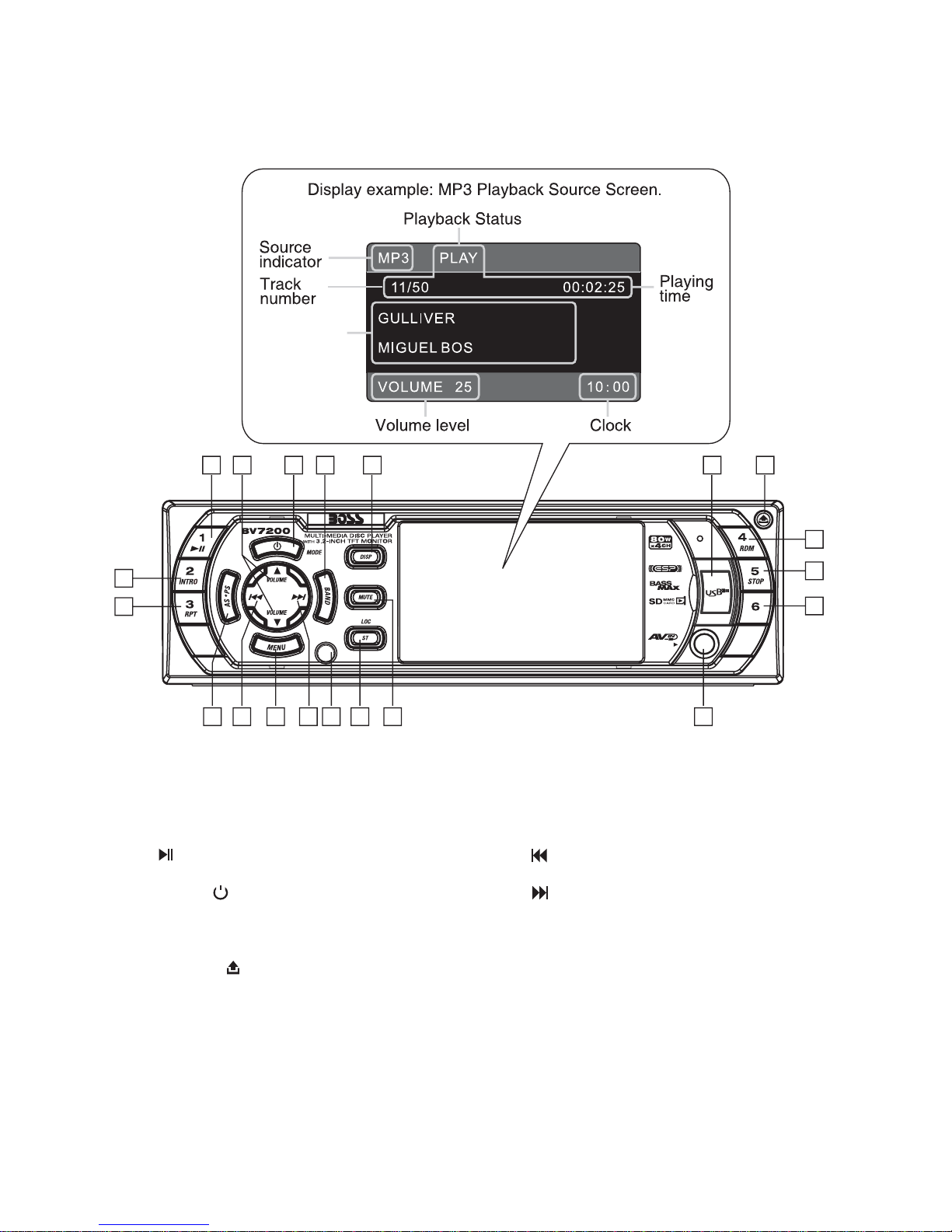

Front Panel

Disc

Information

10 11 12 13 14 15 16 17

2345 6 7

Front Panel Button Legend

1 1

2 VOL+/-

3 POWER ( )

4 BAND

5 DISP (Display)

6 USB Port

7 RELEASE ( )

8 2 INTRO (Intro Scan)

9 3 RPT (Repeat Mode select)

10 AS•PS (Automatic Search/Program

Search)

11 (Fast Reverse), TUNE/TRACK Down

12 MENU

13 (Fast Forward), TUNE/TRACK Up

14 IR Sensor

15 ST (Stereo/Mono select),

LOC (Local/Distance select)

16 MUTE (turns audio off)

17 A/V Input Connector

18 4 RDM (Random Playback Mode select)

19 5 STOP

20 6

BV7200 User’s Manual - page 8

Back of front panel

21 SD/MMC card slot

22 Disc slot

23 EJECT ( )

24 LED Warning light

25 RESET button

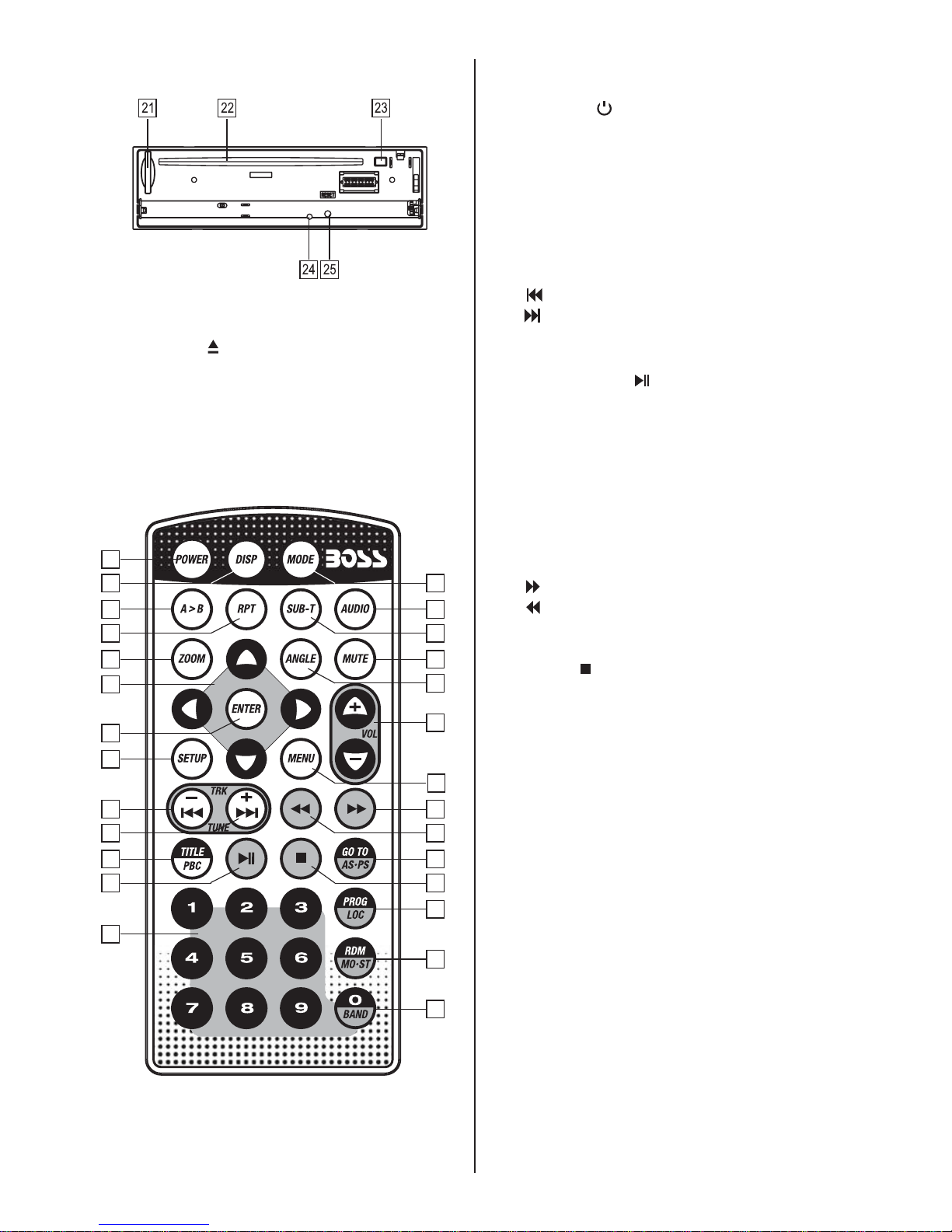

Remote Control

Remote Control Button Legend

1 POWER ( )

2 DISP (Display)

3 A > B (repeat section from A to B)

4 RPT (Repeat Mode select)

5 ZOOM

6 Cursor (arrow) keys:

UP/DOWN/RIGHT/LEFT

7 ENTER

8 SETUP

9 (TUNE/TRACK Down, Last Track)

10 (TUNE/TRACK Up, Next Track)

11 TITLE (DVD Title Menu),

PBC (Playback Control Mode)

12 PLAY/PAUSE ( )

13 Numeric buttons 1-9

14 MODE (Input Mode select)

15 AUDIO (Audio Setup select)

16 SUBT (Subtitle language select)

17 MUTE (turns audio off)

18 ANGLE (Camera angle selection for some

DVDs)

19 VOL +/-

20 MENU

21 (Fast Forward)

22 (Fast Reverse)

23 GO TO, AS•PS (Automatic Search /

Program Search)

24 STOP ( )

25 PROG (Programmed Play mode)

LOC (Local/Distance select)

26 RDM (Random Playback mode)

MO•ST (Stereo/Mono select)

27 BAND, (Numeric button) 0

Using the Remote Control

Preparing The Remote Control

* Before using the remote control for the ﬁrst

time, please remove the clear strip from the

bottom of the remote control.

* This remote control is designed to be used

within 6 feet of the remote sensor on the

head unit, and within a range from 30° left

to 30° right of the sensor.

* If direct sunlight is falling on the remote

sensor, it may interfere with the ability of

the remote to communicate with the head

unit.

* This remote control is a precision device.

Indice

Altri manuali Boss Audio Systems Ricevitore per auto

Boss Audio Systems

Boss Audio Systems 725CA Manuale utente

Boss Audio Systems

Boss Audio Systems BV7325B Manuale utente

Boss Audio Systems

Boss Audio Systems ELITE BECPA10W Manuale utente

Boss Audio Systems

Boss Audio Systems 638UA Manuale utente

Boss Audio Systems

Boss Audio Systems 640UI Manuale utente

Boss Audio Systems

Boss Audio Systems BV8967B Manuale utente

Boss Audio Systems

Boss Audio Systems BV8950 Manuale utente

Boss Audio Systems

Boss Audio Systems BV8975B Manuale utente

Boss Audio Systems

Boss Audio Systems DB8974B Manuale utente

Boss Audio Systems

Boss Audio Systems CD-3500R Manuale utente

Boss Audio Systems

Boss Audio Systems BV7942 Manuale utente

Boss Audio Systems

Boss Audio Systems 810DBI Manuale utente

Boss Audio Systems

Boss Audio Systems 611UAB Manuale utente

Boss Audio Systems

Boss Audio Systems 814CA Manuale utente

Boss Audio Systems

Boss Audio Systems BV7340 Manuale utente

Boss Audio Systems

Boss Audio Systems 630U Manuale utente

Boss Audio Systems

Boss Audio Systems BV9158B Manuale utente

Boss Audio Systems

Boss Audio Systems BV8974B Manuale utente

Boss Audio Systems

Boss Audio Systems BV7942 Manuale utente

Boss Audio Systems

Boss Audio Systems 640CA Manuale utente

Boss Audio Systems

Boss Audio Systems BVCP9800W Manuale utente

Boss Audio Systems

Boss Audio Systems BV500 Manuale utente

Boss Audio Systems

Boss Audio Systems BV7464B Manuale utente

Boss Audio Systems

Boss Audio Systems C-3040 Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
