Boss Audio Systems BV9973 Manuale utente

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

-1-

Content

Precaution......................................

Safety Information.........................

Disc Note.......................................

Installation ....................................

Electric Connection ......................

Remote Control ............................

Basic Operation ............................

Loading/Ejecting a DISC .................

Open/Close Monitor and Angle

Adjustment......................... ........

Main Menu Operation......................

Setting animation...........................

Setting disc....................................

Setting radio...................................

Setting wallpaper............ ................

Version about..................................

Setting time.......... .........................

Setting audio mode.........................

Setting video mode.........................

Setting OSD language....................

Setting illumination color.................

TFT display calibration. ..................

Rear View Camera ........................

Control Panel ................................

Unit keys ........................................

Radio Operation............................

Listening to the radio ......................

Storing and Listening to a memory

station ........................................

Automatic Memory Storing &

Program Scanning.......................

RDS function..................................

Media Operation.............................

Basic Operation ..............................

Selecting Play Mode ........................

On-Screen Display Function .............

Digital Video Special Function........

Multi-Subtitle Language function.......

Multi-audio language Function..........

Multi-angle Function........................

Title menu function ..........................

A-B Repeat function.........................

Program function.............................

Step function..................................

Slow speed function........................

AUX Operation ...............................

AV Operation..................................

USB Operation ...............................

Card Operation ..............................

SWC Operation..............................

Parental Control............................

Region Code..................................

Specification .................................

Troubleshooting.............................

-2-

Precaution

THANK YOU FOR PURCHASING PLAYER .

Before operating the unit, read this manual thoroughly and keep it handy

for future reference .

To avoid injury or accident , read the following precautions before

installing and operating the unit .

A BOSS AUDIO MULTIMEDIA

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the

picture or cause a malfunction . The picture may become unclear , or the

LCD panel may be damaged .

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available

cleaners or antistatic spray .

-Do not use alcohol to clean the screen .

If your car was parked in a cold or hot place, the picture may not be clear .

The monitor is not damaged . The picture will become clear the temper-

ature in your car becomes normal .

DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this

may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this

may result in a fatal accident.

- it may obstruct visibility.

DO NOT operate any receiver while manipulating the steering wheel, as

this may result in a traffic accident.

The driver must not watch the monitor while driving.

IF THE DRIVER watches the monitor while driving, it may lead to

carelessness and cause an accident.

IF YOU NEED to operate the receive while driving, be sure to look ahead

carefully or you may be involved in a traffic accident.

IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the

monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to

the parking brake system built in the car ( refer to the electric connection)

ON INSTALLATION

-3-

Safety Information

CAUTION:

THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER

THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE

THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT

REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners.Use of this

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This Digital Video Player is designed and manufactured to respond to the Region

Management Information that is recorded on a Digital Video disc. If the Region

number described on the Digital Video disc does not correspond to the Region

number of this Digital Video Player, this Digital Video Player cannot play this disc.

-4-

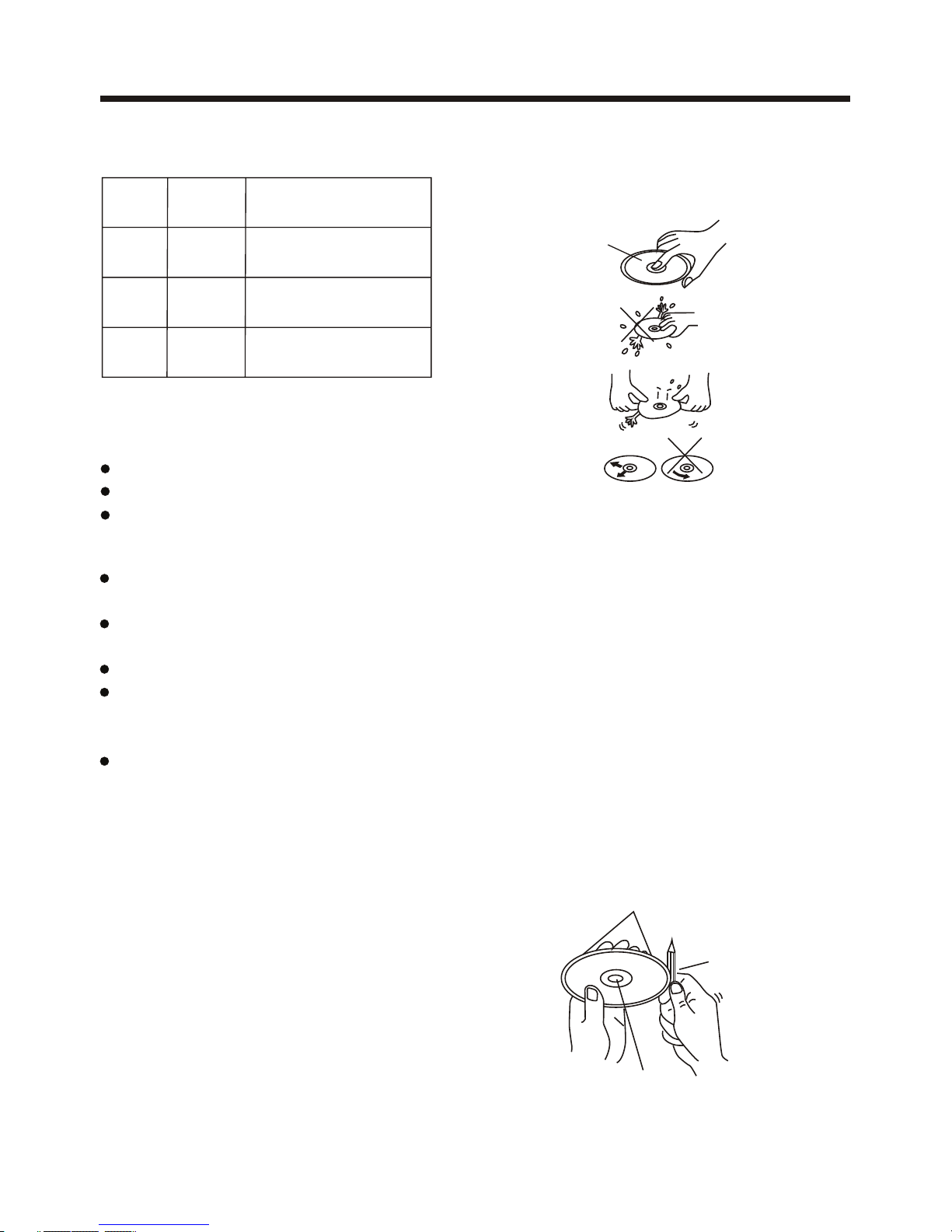

Disc Note

Preparing New Discs with Rough

Spots

A new disc may have rough edges on

its inside and outside edges. If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc. Therefore,

remove the rough edges in advance

by using a ball point pen or pencil as

shown on the right. To remove the

rough edges, press the side of the pen

or pencil against the inside and outside

edges of the disc.

Rough spots

outside edge

Ball point pen

or pencil

Rough spots

on inside

edge

Do not touch

the

underside

of the disc

Do not

bend

Wipe the disc from

center

toward the outside

edge

Label side

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation.

Do not place stickers or make

scratches on discs.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

damaging.

Do not place discs in the following

places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Discs which cannot be played

with this player

Digital Video-RAM

CDV

CDG

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Disc formats supported by this

player

Digital

Video

VCD

MP3

Audio and Video

Disc size 12 cm

Audio and Video

Disc size 12 cm

Audio

Disc size 12 cm

Audio

Disc size 12 cm

Digital

Video

VCD

MP3

NOTES:

Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure

it is all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use

of unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or

other modifications of the vehicle.

Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

If installation angle exceeds 30 from horizontal, the unit might not give its

optimum performance.

Avoid installing the unit where it would be subject to high temperature, such

as from direct sunlight, or from hot air, from the heater, or where it would be

subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN

Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded

screw holes at the sides of the unit chassis). For details, refer to the following

illustrated installation methods.

Installation

-5-

Installation

-6-

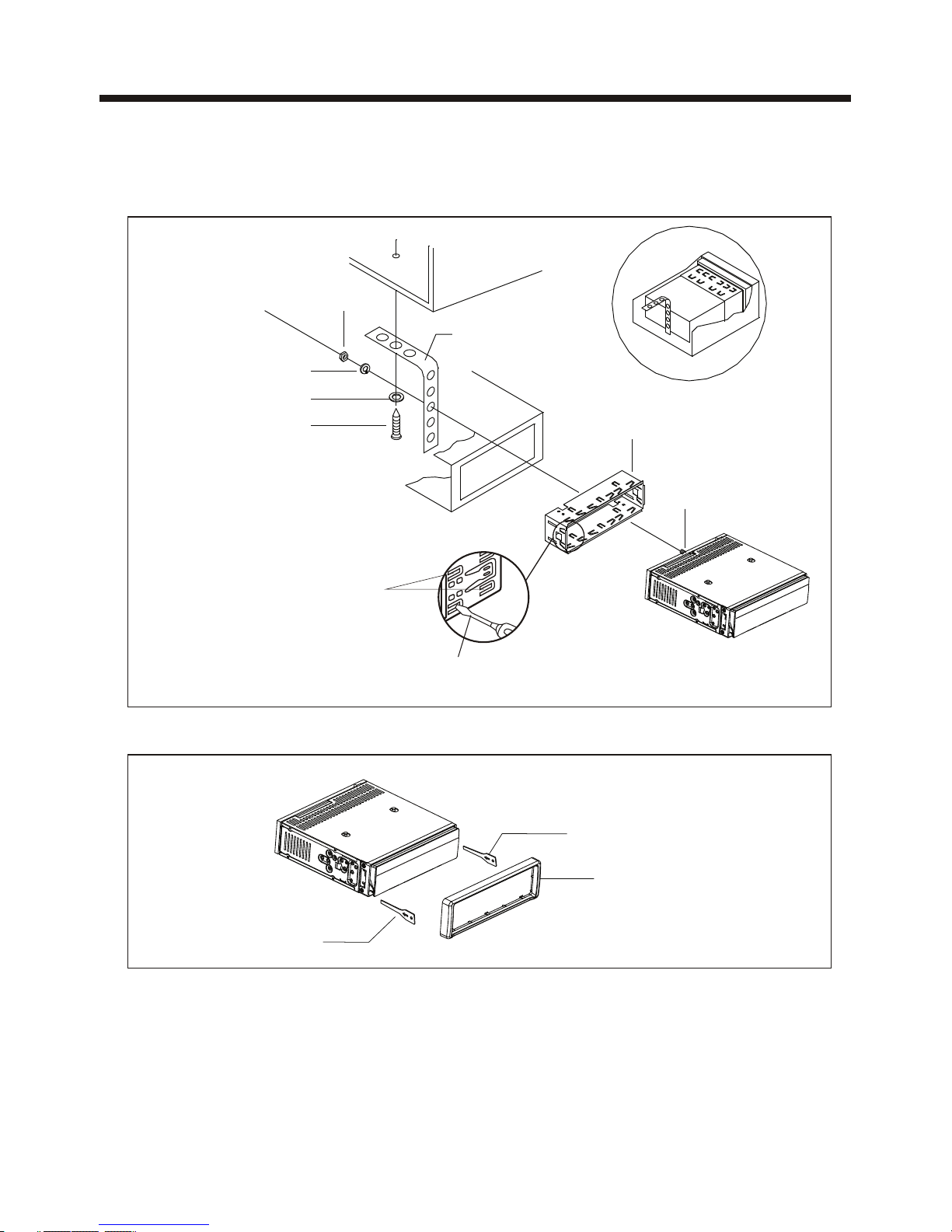

Installing the unit

If you want to take the CHASSIS out of the SLIDE BRACKET HOUSING, first

remove the PLASTIC COVER on both sides , then insert the two KEY PLATES

into the left and the right sides of the chassis as illustrated above.

KEY PLATE

PLASTIC TRIM OUT

KEY PLATE

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

SCREWDRIVER

TABS

Electric Connection

-7-

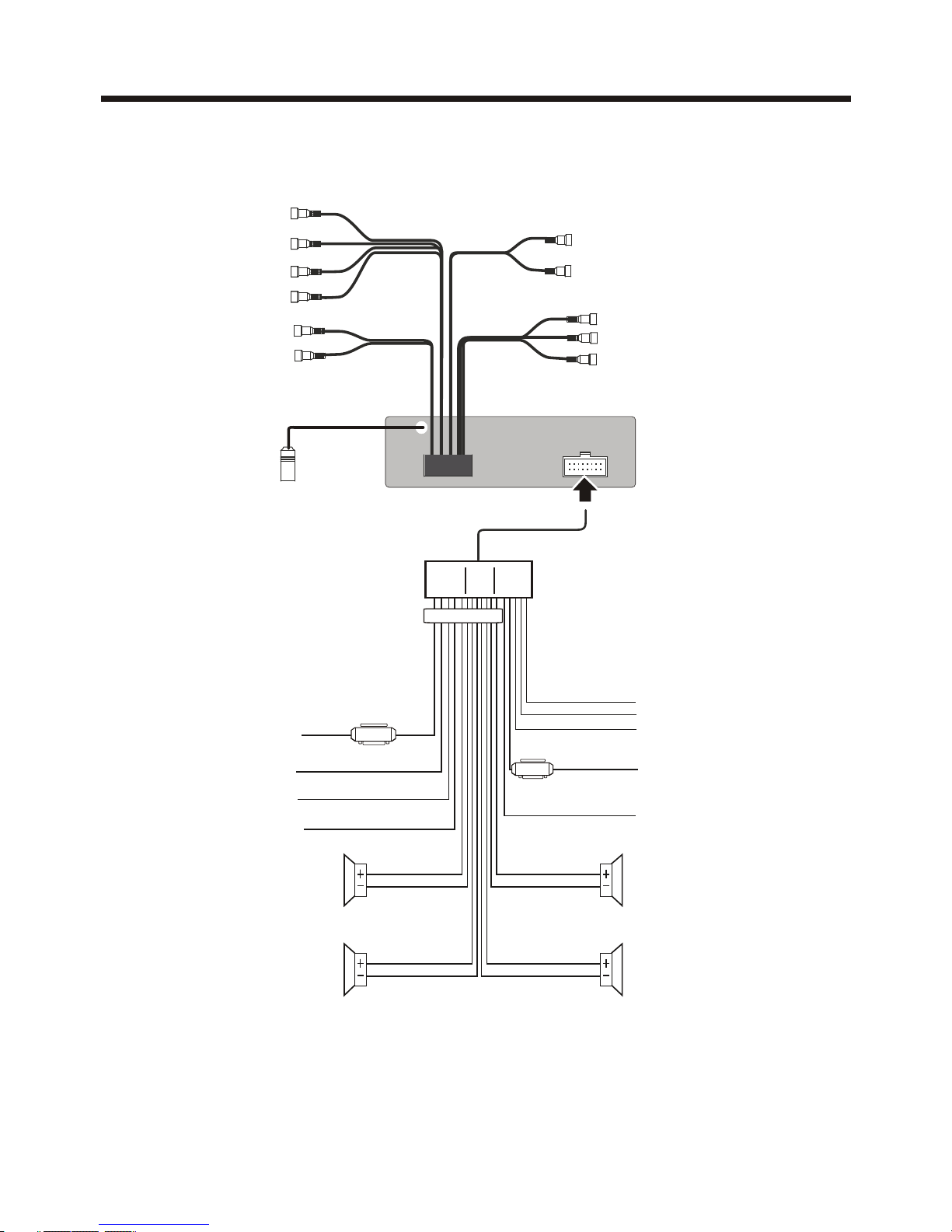

WIRING CONNECTION

Note:

the ground connection cable (parking brake B-) must be connected in order for

pictures to be played back to the monitor. If the cable has not been correctly

connected, appears on the monitor. warning message

VIOLET/WHITE

(B+)12V

REAR CAMERA SWITCH

(B-)PARKING BRAKE

GREY

GREY/BLACK

FRONT

RCH SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

LCH SPK.

AUTO ANTENNA BLUE

GROUND(B-)

MEMORY BACK-UP(B+)

IGNITION SWITCH(B+) RED

YELLOW

BLACK

REAR

RCH SPK.

FRONT

LCH SPK.

LIGHT GREEN

FUSE

KEY GROUND(BLACK)

KEY 1(BROWN)

KEY 2(WHITE)

ISO CONNECTOR

SUBWOOFER GREY

RCH RED

LCH WHITE

REAR OUTPUT CABLE

FRONT RCA WHITE L

FRONT RCA RED R

VIDEO OUT YELLOW

FRONT RCA OUTPUT

CABLE

REAR CAMERA INPUT YELLOW

RADIO ANTENNA JACK

RCH IN RED

LCH IN WHITE

VIDEO OUT(2) YELLOW

AUX 2 VIDEO IN YELLOW

AUX2

-8-

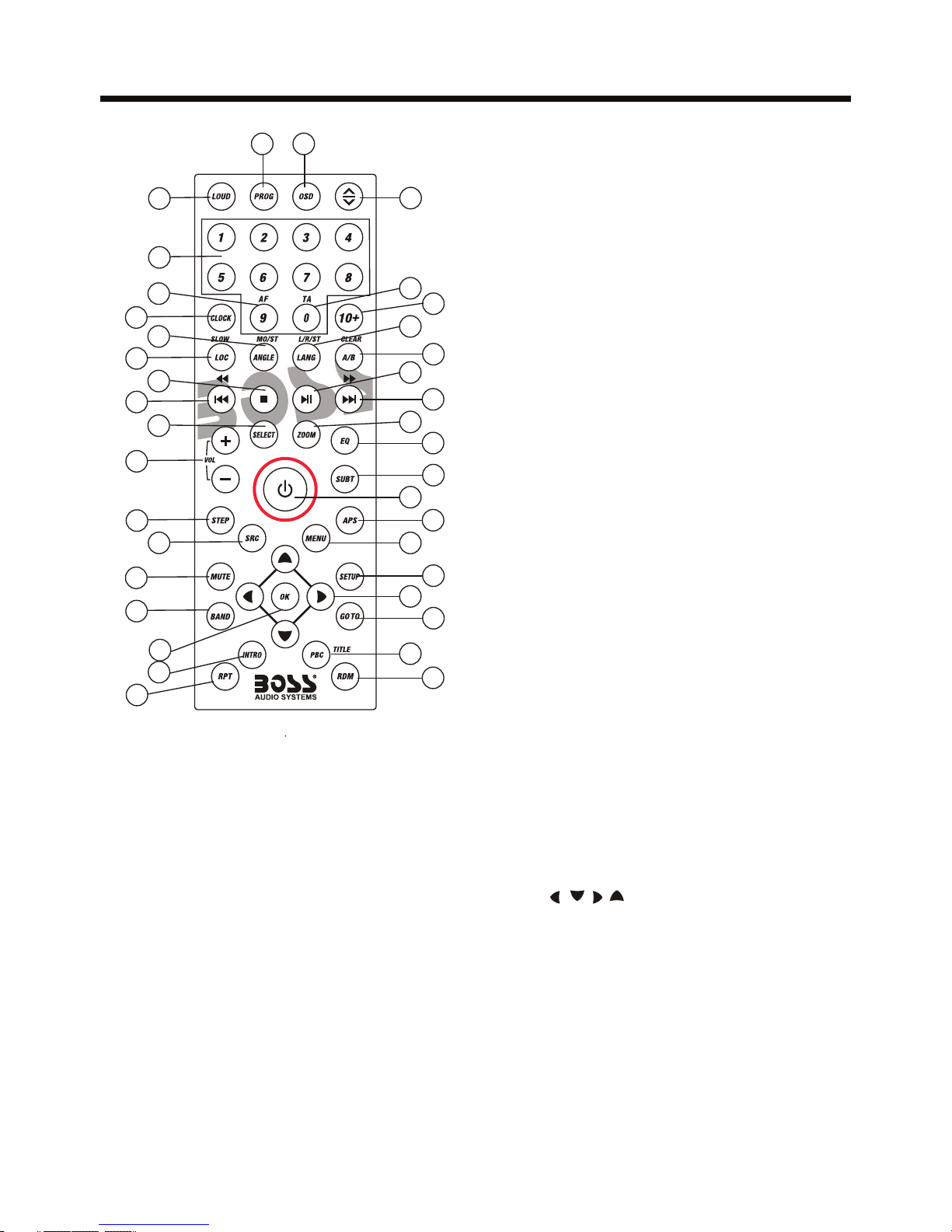

Remote Control

18. RPT BUTTON

19. ANG BUTTON

20. 10+ BUTTON

21. LANG/L/R/ST BUTTON

22. A-B/CLEAR BUTTON

23. >II BUTTON

24. >>I BUTTON

25. ZOOM BUTTON

26. EQ BUTTON

27. SUBT BUTTON

29. APS BUTTON

30. MENU BUTTON

31. SETUP BUTTON

32. / / / BUTTON

33. GOTO BUTTON

34. PBC/TITLE BUTTON

35. RDM BUTTON

36. AF BUTTON

37. TA BUTTON

28. POWER BUTTON

1. OSD BUTTON

2. PROG BUTTON

3. LOUD BUTTON

4. 9

5. LOCK BUTTON

6. ANGLE/MO/ST BUTTON

7. LOC/SLOW BUTTON

8. STOP BUTTON

9. I<< BUTTON

12. STEP BUTTON

13. SRC BUTTON

14. MUTE BUTTON

15. BAND BTTON

NUMBER(0~ )BUTTONS

10. SELECT BUTTON

11. VOLUME+/- BUTTONS

16. OK BUTTON

17. INT BUTTON

Altri manuali per BV9973

Indice

Altri manuali Boss Audio Systems Ricevitore per auto

Boss Audio Systems

Boss Audio Systems BV7200 Manuale utente

Boss Audio Systems

Boss Audio Systems 725CA Manuale utente

Boss Audio Systems

Boss Audio Systems 758DBI Manuale utente

Boss Audio Systems

Boss Audio Systems 637UA Manuale utente

Boss Audio Systems

Boss Audio Systems 610CA Manuale utente

Boss Audio Systems

Boss Audio Systems MR1400S Manuale utente

Boss Audio Systems

Boss Audio Systems BV9979B Manuale utente

Boss Audio Systems

Boss Audio Systems BV8728B Manuale utente

Boss Audio Systems

Boss Audio Systems 534UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV2950TU Manuale utente

Boss Audio Systems

Boss Audio Systems CD-3090R Manuale utente

Boss Audio Systems

Boss Audio Systems BV9354 Manuale utente

Boss Audio Systems

Boss Audio Systems MP3-3O6OR Manuale utente

Boss Audio Systems

Boss Audio Systems 658UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV6000 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9958B Manuale utente

Boss Audio Systems

Boss Audio Systems 740UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV9986BI Manuale utente

Boss Audio Systems

Boss Audio Systems 775DI Manuale utente

Boss Audio Systems

Boss Audio Systems MRC10 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9362BI Manuale utente

Boss Audio Systems

Boss Audio Systems BV9982I Manuale utente

Boss Audio Systems

Boss Audio Systems BV9979B Manuale utente

Boss Audio Systems

Boss Audio Systems 640CA Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
