10 R - 02 1011

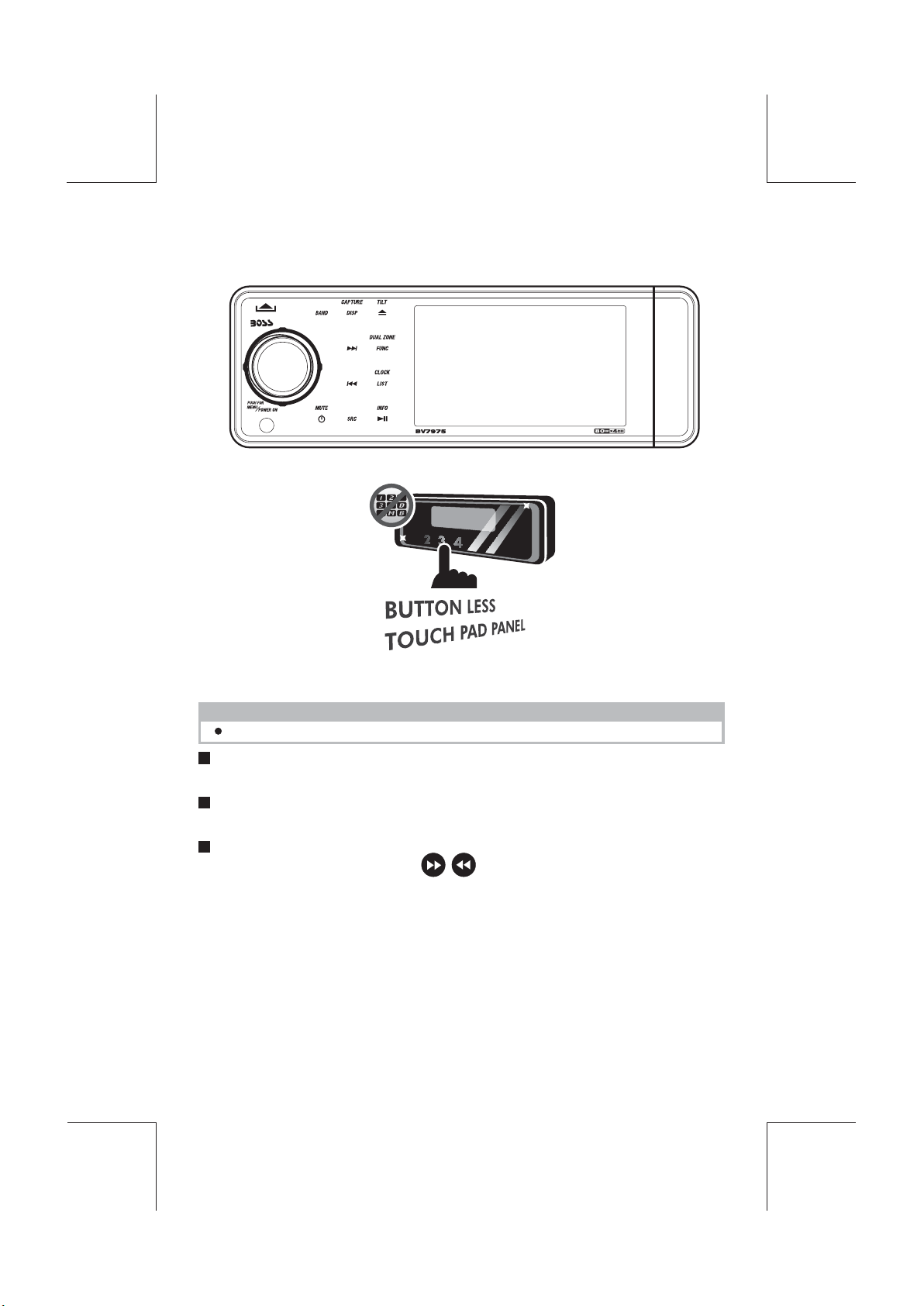

TIPS

Here are some tips to show you how easy it is to use this touch sense panel:

This radio is equipped with the most advanced "TOUCH SENSE PANEL", so that it is easy and

convenient to use while driving.

Using a very light touch on the radio panel will activate that feature. You will not need to

"PRESS" hard on the panel to make this radio change features.

Some of the buttons that have dual functions, will need to be "TOUCHED" from 2 to 3 seconds

to activate the second level function

The best area to "TOUCH" on the panel to make it activate is the illuminated or lighted area. For

example, just touch the illuminated to play the next track or return to the previous

track.

E - 2

Keep the volume level Iow enough to be aware

of the road and traffic conditions.

Do not expose the product to water or

excessive moisture. This could cause electrical

shorts, fire or other damage.

Parking in direct sunlight can produce very

high temperatures inside your vehicle. Give the

interior a chance to cool down before starting

playback.

This product is designed to operate with a 12

volt DC, negative ground battery system (the

regular system in a North American car).

Avoid inserting any foreign objects into the slot

of this player. Failure to follow this may cause

malfunction or permanent damage due to the

precise mechanism of this unit.

In some countries, it's unlawful to operate a

vehicle while video is displayed in the

driver's viewing area. Please always switch

the unit's display to "Font Type Display"

mode by pressing the DISP button while

driving.

For safety reason, the driver should only

enjoy / watch the video while the car is in

parking mode.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OR PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION

EXPOSURE.

DO NOT OPEN COVERS AND DO NOT

REPAIR BY YOURSELF PLEASE REFER

SERVICING TO A QUALIFIED

TECHNICIAN.

This product incorporates copyright protection

technology that is protected by method claims

of certain U.S. Patents and other intellectual

property rights owned by Macrovision

Corporation and other rights owners. Use of

this copyright protection technology must be

authorized by Macrovision Corporation, and is

intended for home and other limited viewing

uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

In order to avoid any accident, the driver

must not watch video while driving. This unit

is designed to not allow watching video

while driving. Park your car in a safe place

and engage the ‘PARKING BRAKE WIRE’

before watching video.

Warnings

When Driving

When Car Washing

When Parked

Use the Proper Power Supply

Protect the Disc Mechanism

CAUTION

THIS MOBILE MultiMedia PLAYER IS A

CLASS I LASER PRODUCT. THIS UNIT USES

A VISIBLE/INVISIBLE LASER BEAM WHICH

COULD CAUSE HAZARDOUS RADIATION IF

EXPOSED DIRECTLY. BE SURE TO

OPERATE THE MOBILE MultiMedia PLAYER

CORRECTLY AS INSTRUCTED.

CAUTION

NOTE:

1. TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

2. TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

3. THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

E - 3

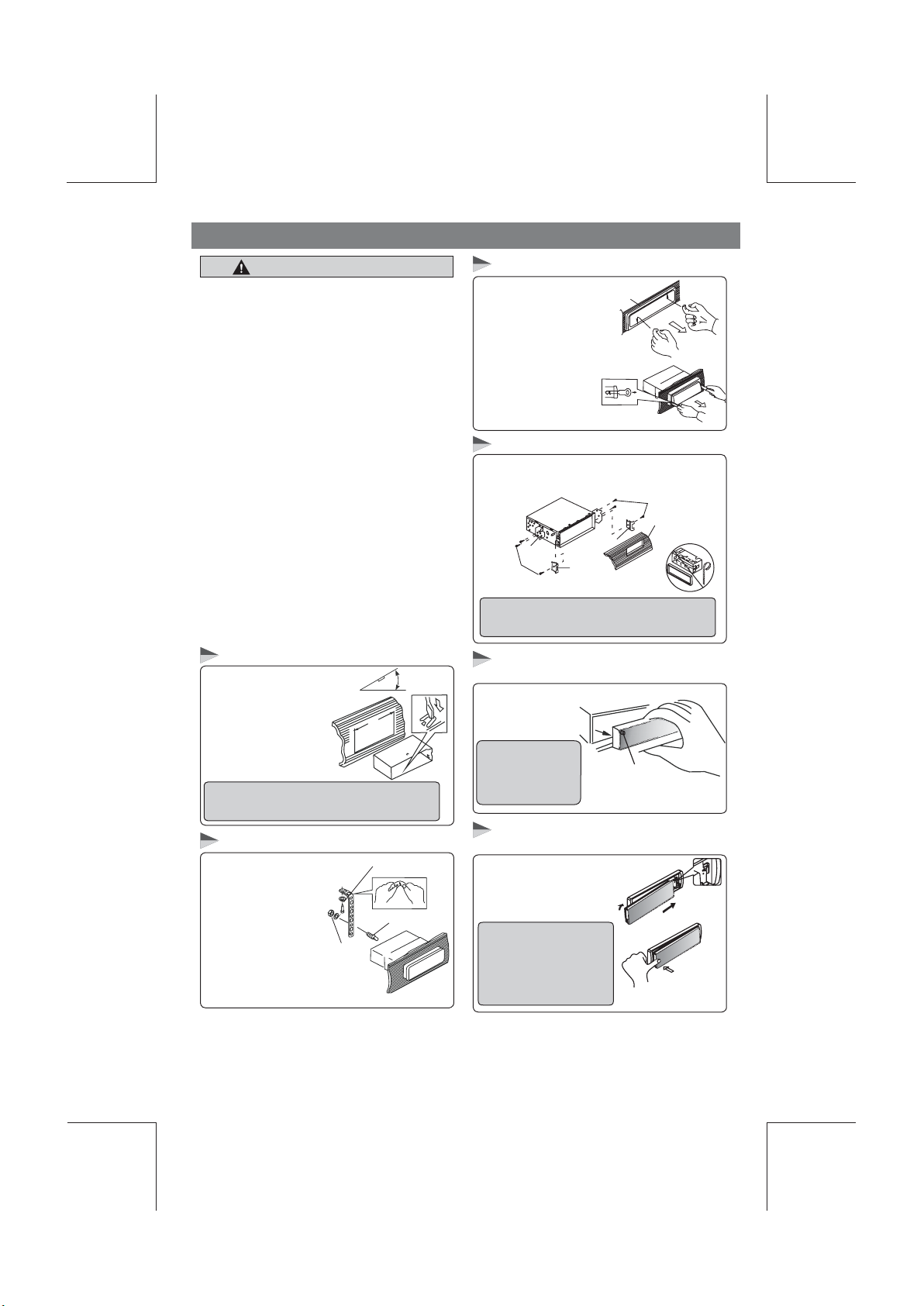

Installation

INSTALLATION CAUTION

1. Before finally installing the unit, connect the

wiring temporarily and make sure it is all

connected properly and the unit and works

properly.

2. Use only the parts included with the unit to

ensure proper installation. The use of un-

authorized parts can cause mal functions.

3. Consult with your nearest dealer if install-

ation requires the drilling of holes or other

modifications of the vehicle.

4. Install the unit where it does not get in the

driver's way and cannot injure the

passenger if there is a sudden stop.

5. If installation angle exceeds 30° from

horizontal, the unit might not give its

optimum performance.

6. Avoid installing the unit where it would be

subject to high temperature, such as from

direct sunlight, or from hot air, from heater,

or where it would be subject to dust dirt or

excessive vibration.

7. Be sure to remove the front panel before

installing the unit.

Fitting the outer sleeve

Fitting the support strap

Remove the transit screws

from the top of the car radio.

Connect the fixing screw to the

rear of the car radio.

Remove the outer sleeve

and place into the

dashboard.

Bend the support strap to

suit the dashboard

aperture and fix to the

underside of the dash

board using the screw

and washer.

Make sure that it is not

angled more than 30°.

Slide the car radio into the

outer sleeve and connect the

spring washer and nut to the

fixingscrew.

DON’T FORGET! Bend the metal tabs on the

outer sleeve outwards and downwards to stop

the sleeve from moving.

30°

Removing the detachable

front panel

Attaching the detachable

front panel

Press the panel release button

on the front panel.

Attach the front panel at the right

hand side first, and then push

the front panel forwards to

lock it securely into place.

DON’T FORGET!

Always turn off the

car radio before

removing the front

panel.

Fixing Screw

Spring Washer

and 5mm Nut

Screw and Washer

Removing the unit

Din Rear-mount

Insert fingers into the

groove in the front of frame

and pull out to remove

the frame.

Insert the levers supplied with

the unit into the grooves at

both sides of the unit as

shown in figure until

they click. Pulling the

levers makes it possible

to remove the unit from

the dashboard.

Frame

screw

dashboard

bracket

screw hook

hook

Installation using the screw holes on the sides of

the unit.Fastening the unit to the factory radio

mounting bracket.

NOTE: The mounting box, outer trim ring and

half-sleeve are not used for this method

installation.

Panel Release

button

NOTE: If the D.C.P is dirty,

wipe off the dirt with soft,

dry cloth only. And use a

cotton swab soaked in

isopropyl alcohol to clean

the socket on the back of

the D.C.P.

PSH

SUB

WOOFER

SUB-W OUT

SUB-WOOFER OUTPUT BLUE

VIDEO IN

CAMERA IN

YELLOW

AUDIO IN (1) R

AUDIO (1) INPUT (RIGHT)

AUDIO IN (1) L

AUDIO (1) INPUT (LEFT)

VIDEO OUT (1)

VIDEO (1) OUTPUT

RED

WHITE

YELLOW

VCR or MultiMedia

GAME CONSOLE

FUSE

E - 4

VIDEO INPUT

CAMERA INPUT

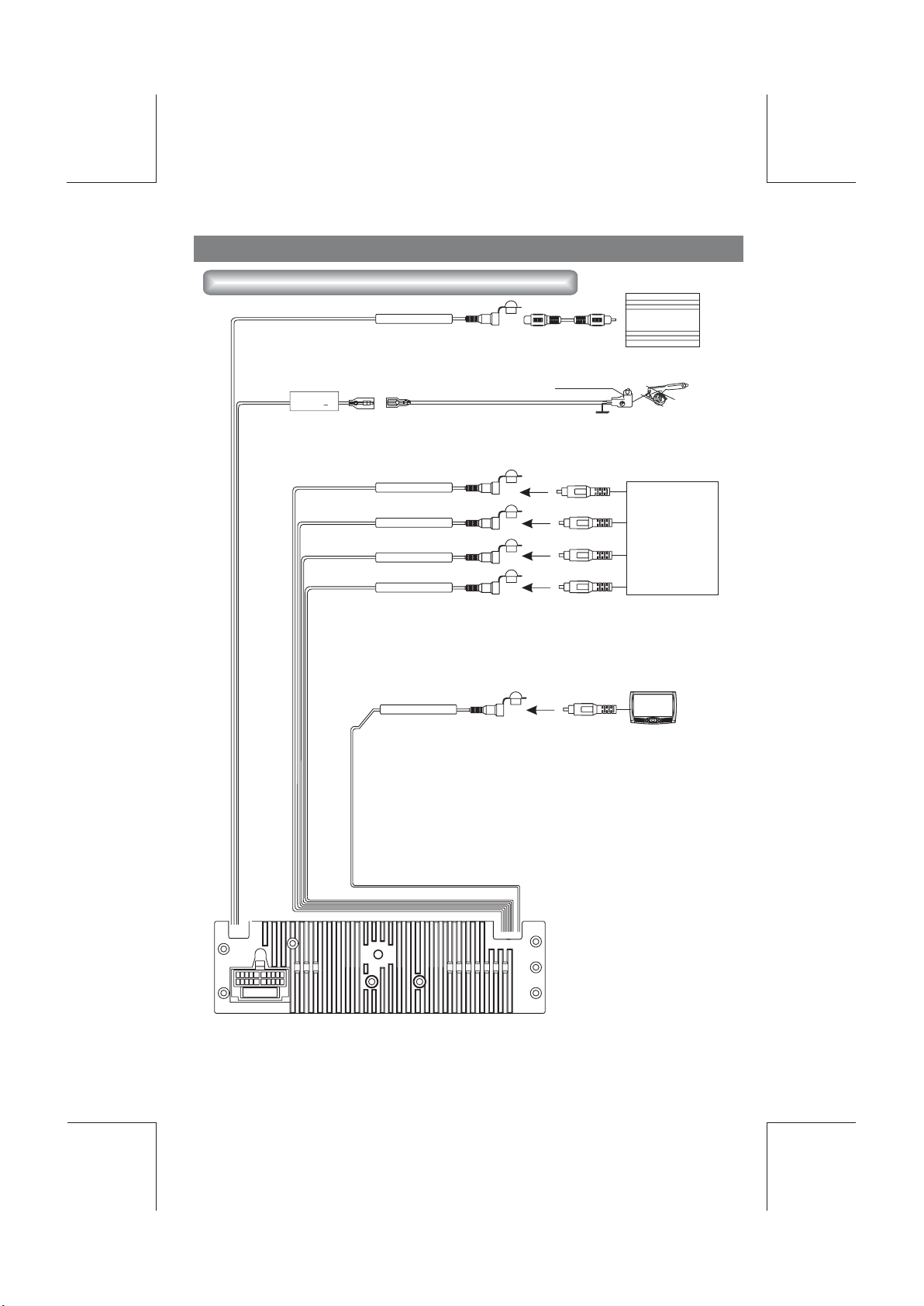

Connecting the System

Wiring Diagram-audio/video Connections

PARKING

BRAKE ( )

PINK

2.5m extension wire

Connect to Parking Brake.

Ground

Brake Switch

AMP

FUSE

L-CHL-CHR-CH R-CH

BATTERY(+)

POWER ANTENNA

IGNITION(ACC)

GROUND

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER ( )

RIGHT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER ( )

LEFT FRONT SPEAKER ( )

LEFT FRONT SPEAKER (+)

LEFT REAR SPEAKER ( )

LEFT REAR SPEAKER (+)

12345678910

11 12 13 14 15 16 17 18 19 20

Figure 1Pin View

20 PIN HARNESS PIN CHART

PIN WIRE COLOR FUNCTION / LABEL

GREY / BLACK

GREY

VIOLET

VIOLET/BLACK

ORANGE

GREEN

GREEN / BLACK

RED

BLACK

RED

WHITE

WHITE / BLACK

BLUE/WHITE

BLUE

YELLOW

BLACK

WHITE

RED

BLACK

WHITE

RIGHT FRONT SPEAKER ( )

LEFT REAR SPEAKER (+)

LEFT FRONT SPEAKER (+)

POWER AMPLIFIER REMOTE (+)

CHASSIS GROUND

LEFT FRONT PRE-AMPLIFIER LINE OUT

LEFT REAR PRE-AMPLIFIER LINE OUT

LEFT FRONT SPEAKER ( )

POWER ANTENNA

BATTERY (+)

RIGHT FRONT PRE-AMPLIFIER LINE OUT

FRONT PRE-AMPLIFIER LINE OUT COMMON

RIGHT FRONT SPEAKER (+)

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER ( )

LEFT REAR SPEAKER ( )

IGNITION (ACC)

REAR PRE-AMPLIFIER LINE OUT COMMON

RIGHT REAR PRE-AMPLIFIER LINE OUT

ISO CONNECTOR WIRING CHART

PIN WIRE COLOR FUNCTION / LABEL

YELLOW

BLUE

RED

BLACK

VIOLET

VIOLET / BLACK

GREY

GREY / BLACK

WHITE

WHITE / BLACK

GREEN

GREEN / BLACK

ISO CONNECTOR 4 PIN + 8 PIN

FEMALE WITH MALE TERMINAL

20-PIN

AUDIO/POWER

HARNESS

(See Figure 1 )

ISO

CONNECTOR

(See Figure 2)

GREY

FRONT

CHANNEL

REAR

CHANNEL

BLACK

Connect to power amplifier, If not used,

Tape bare end of wire.

POWER

AMPLIFIER

REMOTE

RCA-TO-RCA

CABLES

(Not supplied)

WHITE

RED

WHITE

RED

CONNECTOR B

CONNECTOR A

Figure 2

20 PIN AUDIO / POWER HARNESS

ANTENNA

JACK

ANTENNA

EXTENDER

CABLE

(Not supplied)

E - 5

BLUE/WHITE

STRIPE

REVERSE OVERRIDE WIRE (+)

ORANGE

Gearbox

Switch

Reverse gear signal

Connect to Back Lamp Lead +

REVERSE(+)

OVERRIDE

WIRE

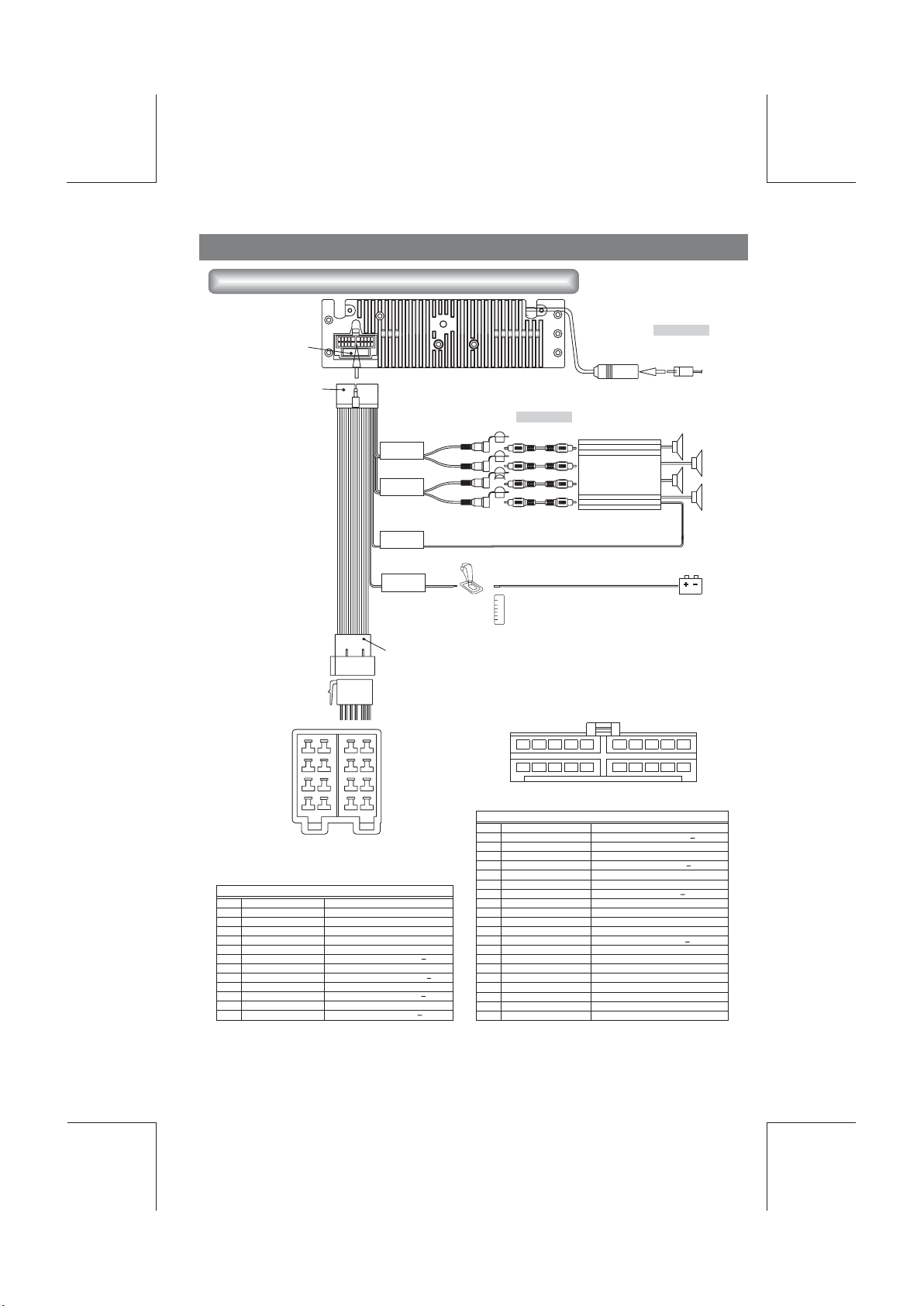

Connecting the System

Wiring Diagram - Power / Speakers (ISO)

This unit is equipped with the most advanced

full logic motorized slide down system. You can

enjoy this advance technology with just a

single press of the button. Please read

carefully the following operation instruction

before operating the unit.

Open / Close The Panel

Loading a CD

Press the button to slide down (EJECT

/TILT) closed panel or to slide up (close) an

opened panel.

In the slide down position, the disc slot become

accessible.Insert a CD through the disc slot,

the CD will be automatically loaded and the

panel will also close automatically & playback

will begin. If no CD is inserted, press Open

button again to slide up the panel.

E - 6

Panel Control Operation

WARNING

Always use the button to slide up/

down the front panel. Never try to slide

up or down the front panel manually,

this will cause serious & permanent

damage to the slide down mechanism,

and this will void the warranty.

Do not try to detach / remove the front

panel (by pressing the detach button) or

attach the front panel when the panel is in

the slide down position. This may cause

serious & permanent damage to the unit &

panel. Only attach or detach the front

panel when the panel is in the slide up

position.

Ejecting a CD

Press Open to slide down the panel, if a CD is

loaded, it will be ejected automatically. No

further key press is needed.

If the ejected CD is not being removed, after 10

seconds it will be reloaded automatically. And

the panel will automatically slide up after disc

has been reloaded.

End user can adjust the panel viewing angle of

the display to obtain the optimum viewing angle

inside the vehicle. Long press the button

to enter into the Angle options, then rotate the

Volume Konb to adjust the level “0” to “8”.

If the ejected disc remains in the slot, the

button will not function, so closing the panel

by using button is prevented unless the

disc is removed or reloaded.

CAUTION

Panel Open/Close Operation Panel Tilt Adjustment

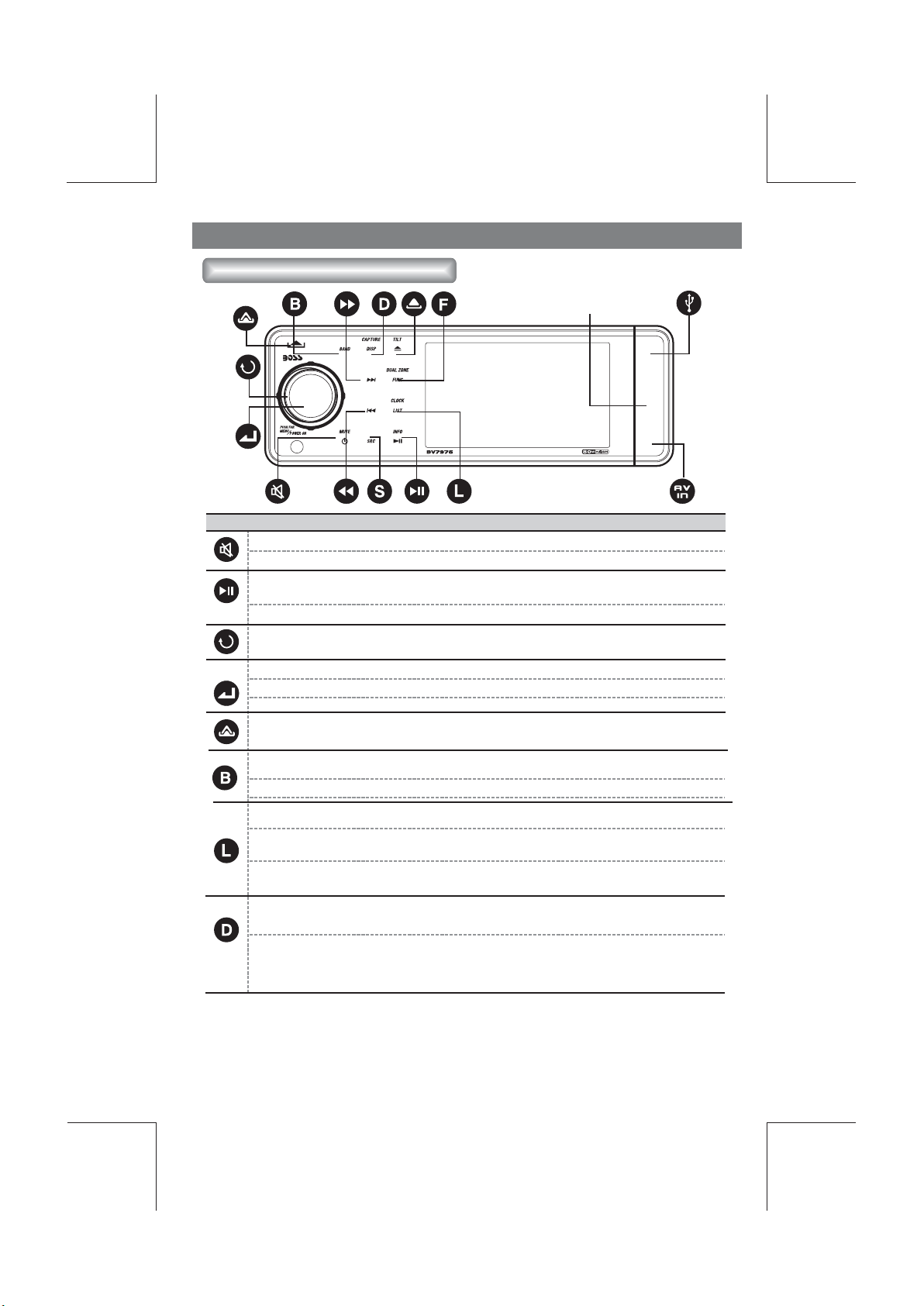

Name Of Buttons and Theirs Functions

USB / A/V IN JACK DOOR

E - 7

Source Unit

No. Item Decriptions

MUTE

POWER OFF

PLAY / PAUSE

VOLUME KNOB

PANEL RELEASE

POWER ON

ESC

PRESET LIST

DISPLAY

SYSTEM MENU

INFO

Press this button to turn the mute On / Off.

Long press this button to turn Off the unit.

Press this button to Pause / resume Play the music under Media

player mode.

Rotate the encoder volume knob to increase and decrease the

volume. ( The maximum volume level is “46”. )

Press this button to remove the control panel.

Press this center button to turn On the unit.

Press this button to quick return previous menu or mode.

Under tuner mode, press this button to list up stored station.

Press this button briefly will be enter the Motion picture display

mode and Clock / Date dispaly.

Long press this button to access into the Menu mode.

Long press this button to access the information functions.

BAND

MUSIC FILE LIST

MultiMedia/

MP4 LIST

CAPTURE

Under tuner mode, press this button to access the Band function.

Under the Media player mode, press this button to list searching

of Tracks or Files on the Media playback mode.

Under the MultiMedia/MP4 mode, press this button to list searching

of MultiMedia Root Menu or Files on the playback mode.

During video/image playback, press this button can capture

images and store them (up to 10 images) to set as wallpaper. You

can also capture an image from an auxiliary video device, if

connected.

Name Of Buttons and Theirs Functions

E - 8

Under the tuner mode, press and hold momentarily to enter into

the Auto Seek / Manual Seek mode..

Under the Disc mode, press these buttons to skip a chapter /

track / scene / image / file.

Under the Disc mode, press and hold momentarily to fast forward

/ backward the video disc.

Press this button to eject the Disc.

TUNE UP/DOWN

FILE UP/DOWN

FAST FORWARD/

BACKWARD

EJECT

PANEL TILT Long press this button to entering adjust the panel viewing angle.

Press this button to select different source playback mode, by

rotate the encoder knob to select the desire playback mode.

Once the desire playback appears, press Select button as

confirm the selection.

SOURCE

Press this button to enter into the function mode.

This unit can support playback MP3/WMA/JPEG/MPEG4/DIVX

format which are stored on the USB memory stick.

This unit is allowed to connect with external Audio/Video system

such like Digital Camera or Game Console. User can connect the

external A/V system thru the A/V in jack on front panel.

Long press this button to access the Dual zone operations.

( The USB slot behind the

USB/AV-IN jack door.)

(The AV-IN slot behind

the USB/AV-IN jack door.)

FUNCTION

USB SLOT

AV-IN JACK

2-ZONE

E - 9

Name Of Buttons and Theirs Functions

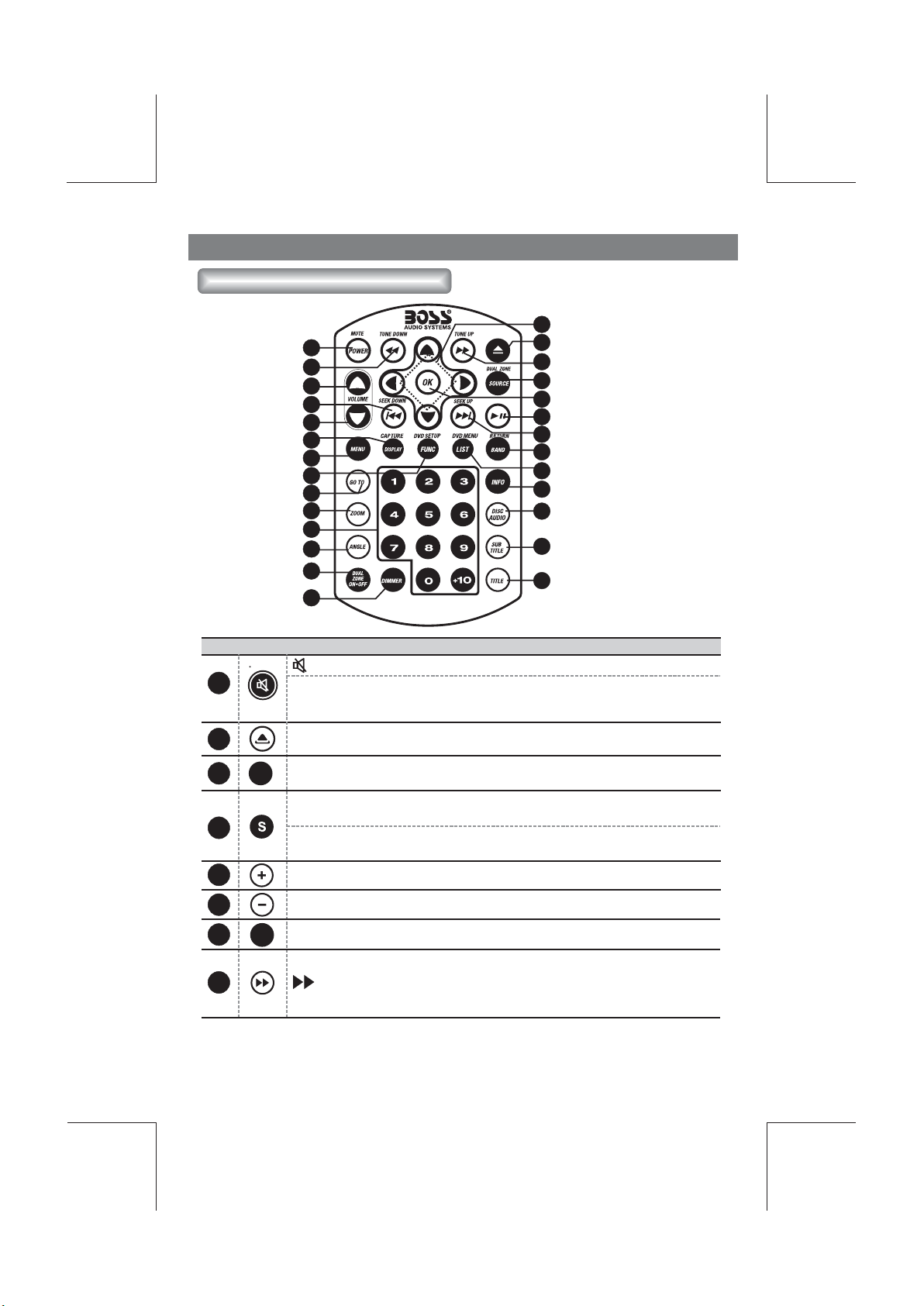

No. Button Item Decriptions

1POWER ON

OFF

EJECT

SOURCE

2 ZONE

MODE

VOLUME +

VOLUME -

2-ZONE

Press this button to turn the mute On / Off.

When the unit is power on, long press this button to turn Off

the unit. Once the unit power off, press this button to turn On

the unit.

Press the EJECT button to eject the disc or loading the disc.

Long press the MENU button to enter into the main menu mode.

Press the MENU button to enter into the Bluetooth dial opertions.

Press this button to enter into the SOURCE mode. Long press

this button to enter into the Bluetooth transfer mode.

Once the Daual zone turn on, press this button to change Front

zone or Rear zone.

Press this button to increase the volume.

Press this button to decrease the volume.

Press this button to access the Dual zone operations.

Under the tuner mode, press this button to access the Manual

Seek mode.

Under the media player mode, press this button fast forward

through the music under media player mode.

POWER

2ZONE

Remote Control

Indice

Altri manuali Boss Audio Systems Ricevitore per auto

Boss Audio Systems

Boss Audio Systems BV9968BI Manuale utente

Boss Audio Systems

Boss Audio Systems BV8975BT Manuale utente

Boss Audio Systems

Boss Audio Systems BV9982U Manuale utente

Boss Audio Systems

Boss Audio Systems BV4450T Manuale utente

Boss Audio Systems

Boss Audio Systems BV9348B Manuale utente

Boss Audio Systems

Boss Audio Systems BV760B Manuale utente

Boss Audio Systems

Boss Audio Systems MR1525UI Manuale utente

Boss Audio Systems

Boss Audio Systems BV6652 Manuale utente

Boss Audio Systems

Boss Audio Systems 648UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV9348B Manuale utente

Boss Audio Systems

Boss Audio Systems BV9969NY Manuale utente

Boss Audio Systems

Boss Audio Systems CD-4500R Manuale utente

Boss Audio Systems

Boss Audio Systems 750DI Manuale utente

Boss Audio Systems

Boss Audio Systems 758DBI Manuale utente

Boss Audio Systems

Boss Audio Systems Road RS Show RS5DVD Manuale utente

Boss Audio Systems

Boss Audio Systems MR1520UA Manuale utente

Boss Audio Systems

Boss Audio Systems 534UA Manuale utente

Boss Audio Systems

Boss Audio Systems 812UAB Manuale utente

Boss Audio Systems

Boss Audio Systems 726CA Manuale utente

Boss Audio Systems

Boss Audio Systems BV9370NV Manuale utente

Boss Audio Systems

Boss Audio Systems BV7348B Manuale utente

Boss Audio Systems

Boss Audio Systems 638UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV9982I Manuale utente

Boss Audio Systems

Boss Audio Systems 638BA Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
