Boss Audio Systems BV7280 Manuale utente

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

WARNING

BV7280

OWNER’S MANUAL

Mobile Audio/Video System

y PLL Synthesizer Stereo Radio

y Automatic Memory Storing

y RBDS Operation

y Full Detachable Panel

y Preset Equalization

y Memory Card Interface

y USB Interface

y AV IN interface on the front panel

y Remote Control

CONTENTS

INSTALLATION.................................................................................. 3

USING THE DETACHABLE FRONT PANEL.................................... 6

CONNECTIONS................................................................................. 7

LOCATIONS AND FUNCTION OF THE PLAYER............................. 8

LOCATIONS AND FUNCTION OF THE REMOTE CONTROL......... 9

OPERATION ...................................................................................... 11

BASIC OPERATION......................................................................................... 12

USB PLAY OPERATION.................................................................................. 13

MEMORY CARD OPERATION......................................................................... 16

RADIO OPERATION ........................................................................................ 17

AV IN OPERATION........................................................................................... 18

TROUBLE SHOOTING...................................................................... 19

SPECIFICATIONS ............................................................................. 20

INSTALLATION

Notes:

y Choose the mounting location where

the unit will not interfere with the normal

driving function of the driver.

y Before finally installing the unit, connect

the wiring temporarily and make sure it

is all connected up properly and the

unit and the system work properly.

y Use only the p arts included with the

unit to ensure proper inst allation. The

use of unauthorized p arts can cause

malfunctions.

y Consult with your nearest dealer if

installation requires the drilling of holes

or other modifications of the vehicle.

y Install the unit wher e it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop, like

an emergency stop.

y Avoid installing the unit where it would

be subject to high temperature, such as

from direct sunlight, or hot air, from the

heater, or where it would be subject to

dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit be can properly installed either

from “Front” (conventional DIN Front-mount)

or “Rear”(DIN Rear-mount installation,

utilizing threaded screw holes at the sides

of the unit chassis). For details, refer to the

following illustrated installation methods.

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be inst alled in any dashboard

having an opening as shown below:

Installing the unit

Be sure you test all connections first, and

then follow these steps to install the unit.

1. Make sure the ignition is turned of f, and

then disconnect the cable from the

vehicle battery’s negative (-) terminal.

2. Disconnect the wire harness and the

antenna.

3. Press the release button on the front

panel and remove the control p anel

(see the step s of “To detach the front

panel”).

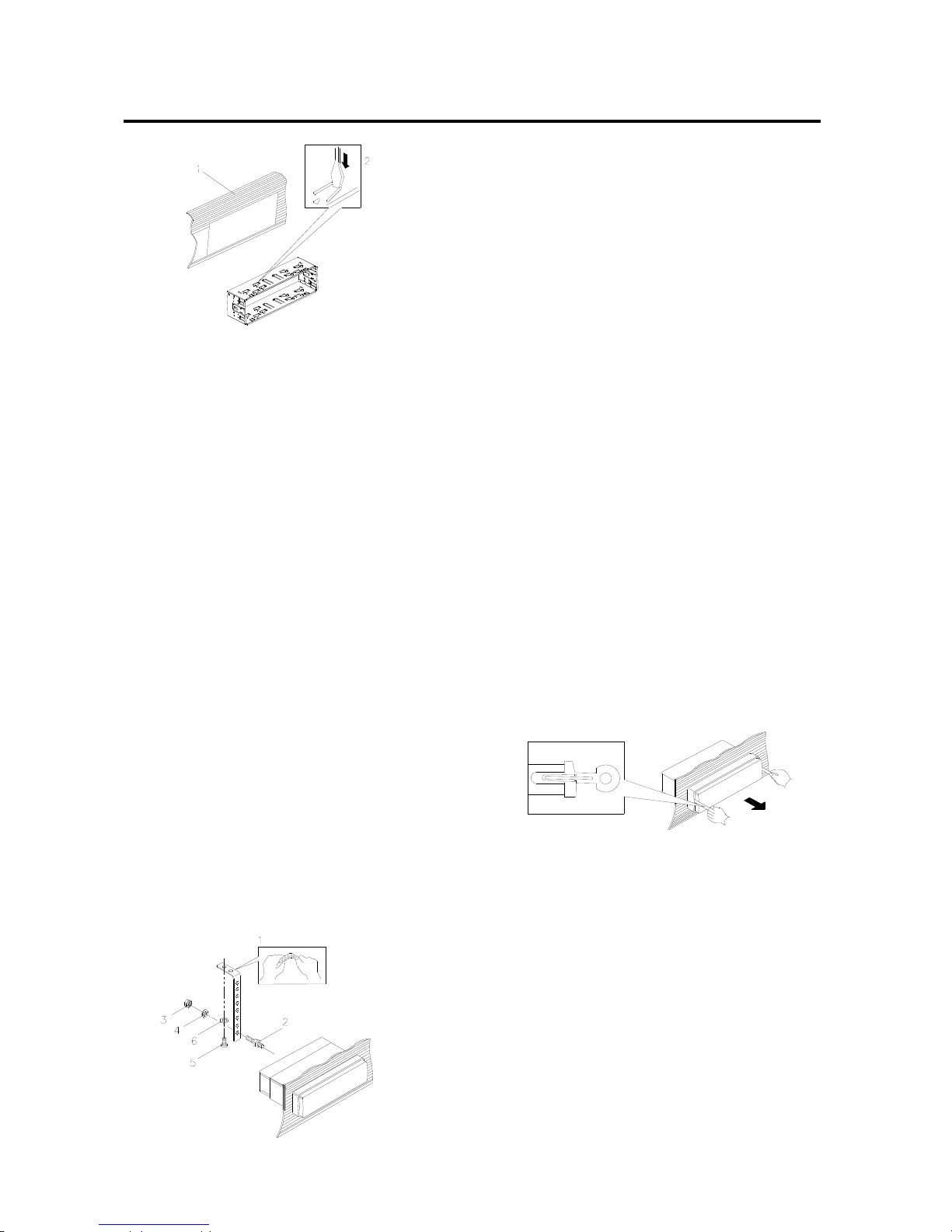

4. Lift the top of the outer trim ring then pull

it out to remove it.

5. The two supplied keys release t abs

inside the unit’ s sleeve so you can

remove it. Insert the keys as far as they

will go (with the notches facing up) into

the appropriate slot s at the middle lef t

and right sides of the unit. Then slide

the sleeve off the back of the unit.

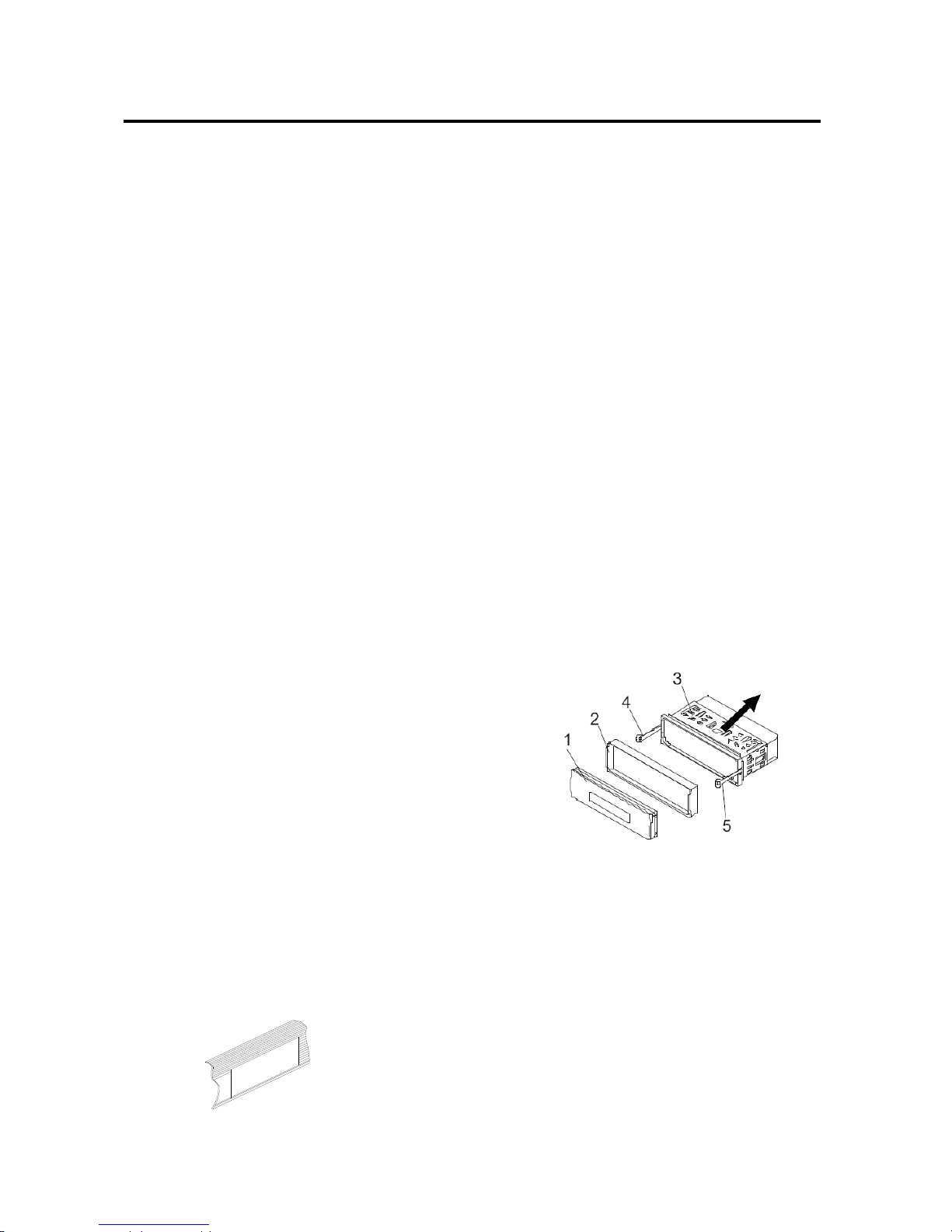

(1) Front panel; (2) Outer trim ring;

(3) Sleeve; (4) L key; (5) R key

6. Mount the sleeve by inserting it into the

opening of the dashboard and bend

open the tabs located around the sleeve

with a screwdriver . Not all t abs will be

able to make contact, so examine which

ones will be most ef fective. Bending

open the appropriate tabs behind the

dashboard to secure the sleeve in

place.

INSTALLATION

(1) Dashboard (2) Tabs

7. Reconnect the wire harness and the

antenna and be careful not to pinch any

wires or cables.

8. Slide the unit into the sleeve until it

locks into place.

9. To further secure the unit, use the

supplied metal strap to secure the back

of the unit in place. Use the supplied

hardware (Hex Nut (M5mm) and Spring

Washer) to attach one end of the strap

to the mounting bolt on the back of the

unit. If necessary, bend the metal strap

to fit your vehicle’s mounting area. Then

use the supplied hardware (Tapping

Screw and Plain Washer) to attach the

other end of metal strap to a solid metal

part of the vehicle under the dashboard.

This strap also helps ensure proper

electrical grounding of the unit.

Note to install the short threading

terminal of the mounting bolt to the back

of the unit and the other long threading

terminal to the dashboard.

(1) Metal Strap; (2) Mounting Bolt;

(3) Hex Nut; (4) Spring Washer;

(5) Tapping Screw; (6) Plain Washer

10. Reconnect the cable to the vehicle

battery’s negative (-) terminal. Then

replace the outer trim ring and install the

unit’s front panel (see the steps of “To

Install the front panel”).

Removing the unit

1. Make sure the ignition is turned of f, then

disconnect the cable from the vehicle

battery’s negative (-) terminal.

2. Remove the met al strap att ached the

back of the unit (if attached).

3. Press the release but ton to remove the

front panel.

4. Lift the top of the outer trim ring then pull

it out to remove it.

5. Insert both of the supplied keys into the

slots at the middle lef t and right sides of

the unit, then pull t he unit out of the

dashboard.

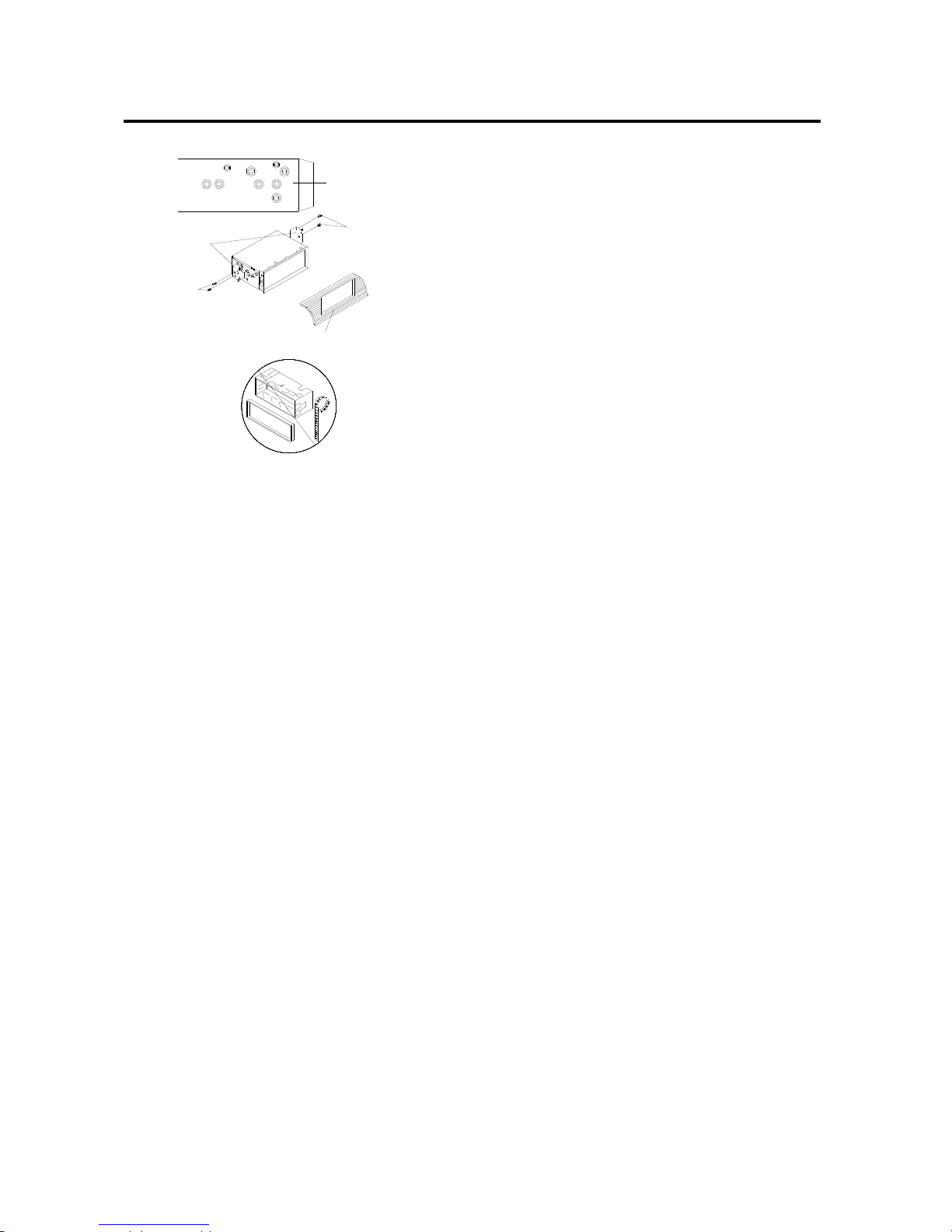

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, T oyota, follow

these mounting instructions.

Use the screw holes marked T (Toyota), N

(Nissan) located on both sides of the unit to

fasten the unit to the factory radio mounting

brackets supplied with your vehicle.

INSTALLATION

To fasten the unit to the factory radio

mounting brackets.

Align the screw holes on the bracket with

the screw holes on the unit, and then

tighten the screws (5x5mm) on each side.

Note: The outer trim ring, sleev e and the

metal strap are not used for method B

installation.

Factory Radio

Mounting Bracket

Dashboard or Console

Side View showing

Screw Holes marked

T, N or S

Screw

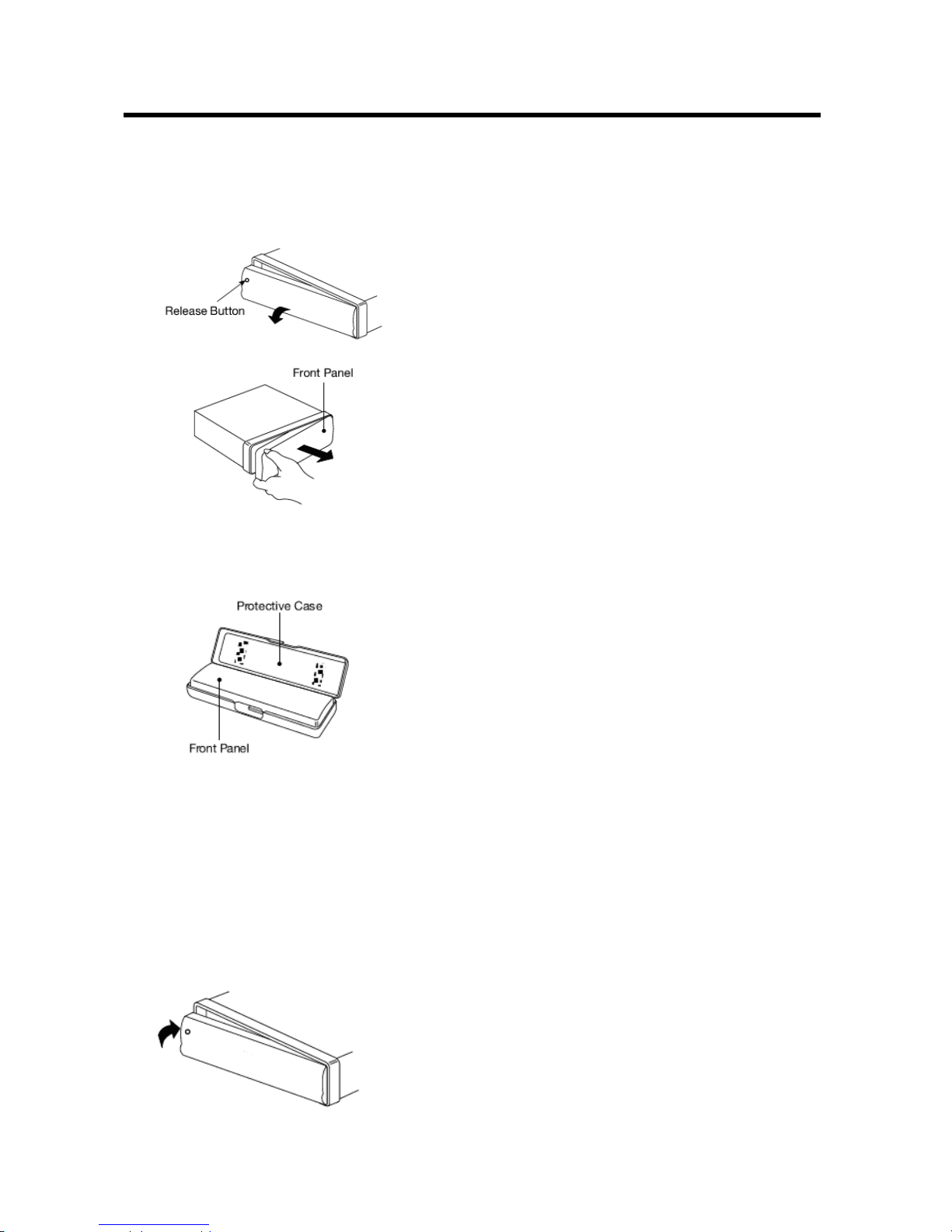

To Detach the Front panel

1. Press the release button on the left-top of

the panel and pull off the control panel.

2. Keep the control panel into the case.

To Install the Front Panel

To install the control panel, insert the panel

into the housing and make sure the panel

is properly inst alled. Otherwise,

abnormality occurs on the display or some

keys will not function properly.

Precautions when handling

1. Do not drop the control panel.

2. Do not put pressure on the display or

control buttons when detaching or

re-installing the control panel.

3. Do not touch the contacts on the

control panel or on the main unit body.

It may result in poor electrical contact.

4. If any dirt or foreign substances

adhered on the contacts, they can be

removed with a clean and dry cloth.

5. Do not expose the control panel to high

temperatures or direct sunlight in

anywhere.

6. Keep away any volatile agents (e.g.

benzene, thinner, or insecticides) from

touching the surface of the control

panel

7. Do not attempt to disassemble the

control panel.

USING THE DETACHABLE FRONT PANEL

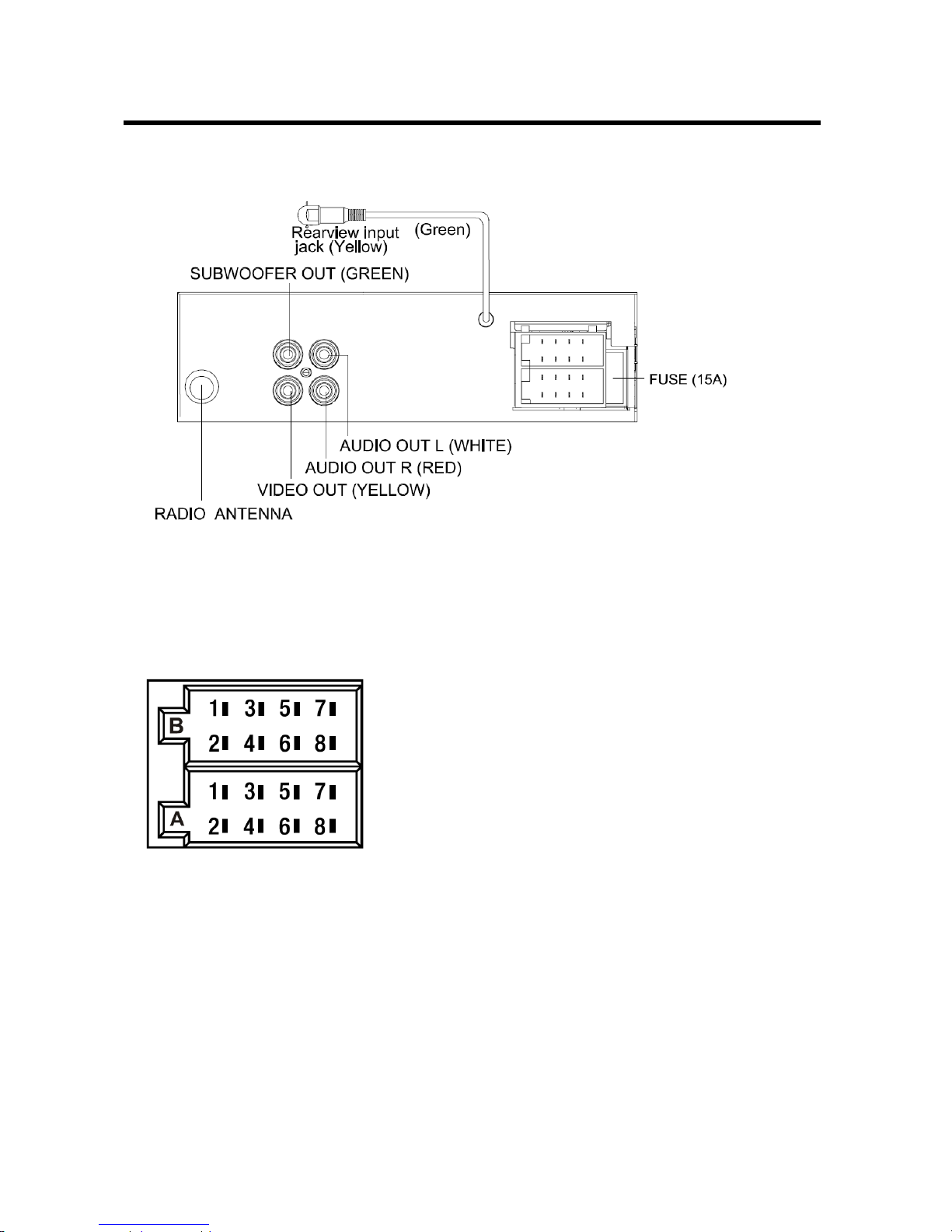

WIRING CONNECTION

Connector A

1. N.C.

2. BRAKE (PINK)

3. REAR VIEW (BROWN)

4. MEMORY +12V (YELLOW)

5. AUTO ANTENNA OUTPUT (BLUE)

6. N.C.

7. +12V (TO IGNITION KEY) (RED)

8. GROUND (BLACK)

Connector B

1. REAR RIGHT SPEAKER (+) (VIOLET)

2. REAR RIGHT SPEAKER (-) (VIOLET/BLACK)

3. FRONT RIGHT SPEAKER (+) (GRAY)

4. FRONT RIGHT SPEAKER (-) (GRAY/BLACK)

5. FRONT LEFT SPEAKER (+) (WHITE)

6. FRONT LEFT SPEAKER (-) (WHITE/BLACK)

7. REAR LEFT SPEAKER (+) (GREEN)

8. REAR LEFT SPEAKER (-) (GREEN/BLACK)

OPERATION

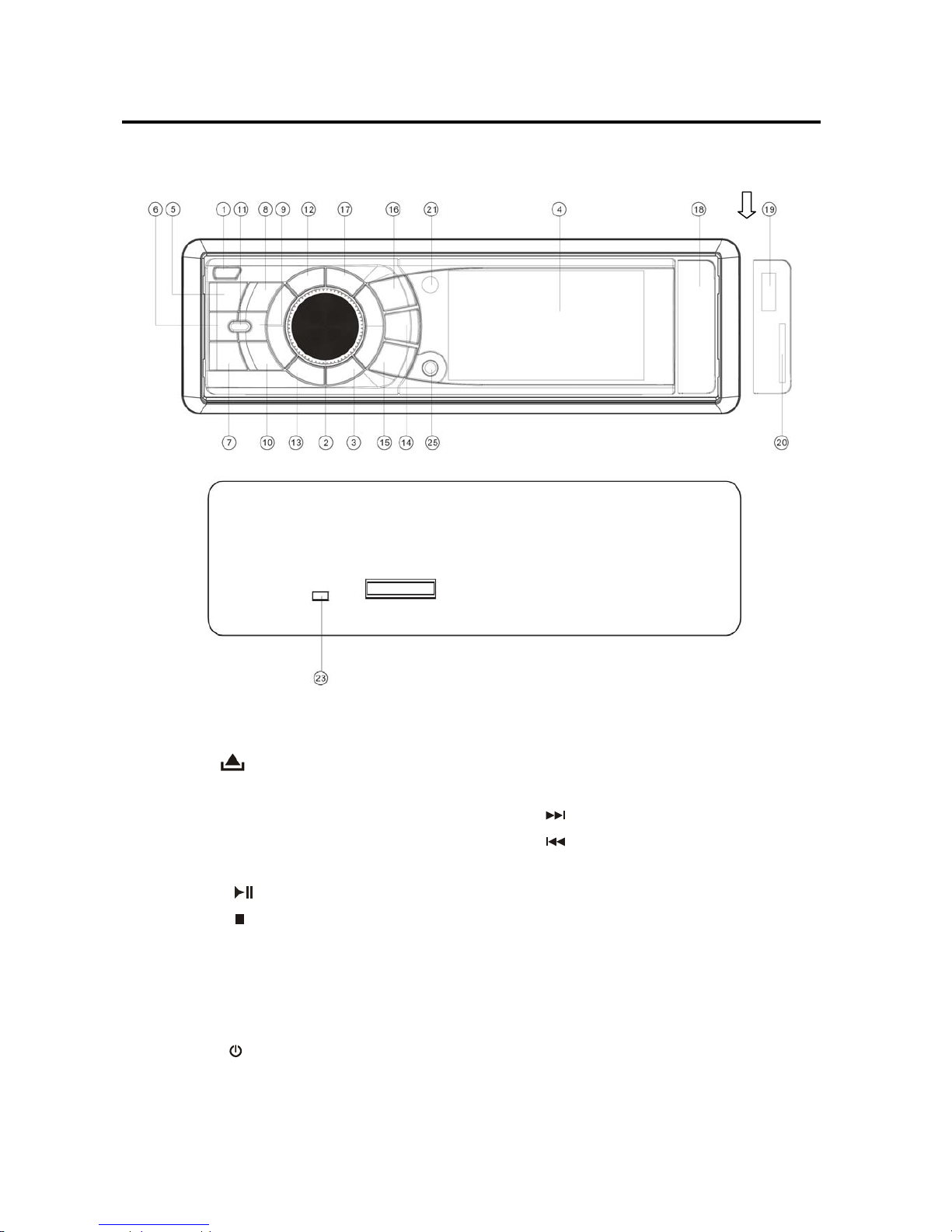

LOCATION OF KEYS

1. (Release button)

2. Volume knob (when rotated)

Push SEL (when pressed)

3. PTY/AF

4. 3.2 inch TFT display

5. 1

6. 2

7. 3 OSD

8. 4 RPT

9. 5 RDM

10. 6 SUB-T

11. /MUT

12. BND/AMS

13. EQ/TA

14.

15.

16. MODE

17. CLOCK

18. USB/SD cover

19. USB interface

20. Memory card interface

21. Remote Sensor

22. AV IN jack

23. Reset button

Open the cover
