Boss Audio Systems BV9355B Manuale utente

10 R - 02 1011

Keep the volume level Iow enough to where it

allows you to be aware of the road and traffic

conditions.

Do not expose the product to water or

excessive moisture. This could cause electrical

shorts, fire or other damage.

Parking in direct sunlight can produce very

high temperatures inside your vehicle. Give the

interior a chance to cool down before starting

playback.

This product is designed to operate with a 12

volt DC, negative ground battery system (the

regular system in a North American car).

Avoid inserting any foreign objects into the slot

of this player. Failure to follow this may cause

malfunction or permanent damage due to the

precise mechanism of this unit.

E - 2

In some countries, it's unlawful to operate a

vehicle while video is displayed in the driver's

viewing area. Please always switch the unit's

display to "Font Type Display" mode by

pressing the DISP button while driving.

For safety reason, the driver should only

enjoy / watch the video while the car is in

parking mode.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OR PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION

EXPOSURE.

DO NOT OPEN COVERS AND DO NOT

REPAIR BY YOURSELF PLEASE REFER

SERVICING TO A QUALIFIED

TECHNICIAN.

This product incorporates copyright protection

technology that is protected by method claims

of certain U.S. Patents and other intellectual

property rights owned by Macrovision

Corporation and other rights owners. Use of

this copyright protection technology must be

authorized by Macrovision Corporation, and is

intended for home and other limited viewing

uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

In order to avoid any accident, the driver

must not watch video while driving. This unit

is designed to not allow watching video

while driving. Park your car in a safe place

and engage the 'parking brake' before

watching video.

Warnings

When Driving

When Car Washing

When Parked

Use the Proper Power Supply

Protect the Disc Mechanism

CAUTION

THIS MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. THIS UNIT USES A

VISIBLE/INVISIBLE LASER BEAM WHICH

COULD CAUSE HAZARDOUS RADIATION IF

EXPOSED DIRECTLY. BE SURE TO

OPERATE THE MOBILE DVD PLAYER

CORRECTLY AS INSTRUCTED.

CAUTION

NOTE:

1. TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

2. TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

3. THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

E - 3

Installation

INSTALLATION CAUTION

1. Before finally installing the unit, connect the

wiring temporarily and make sure it is all

connected up properly and the unit and

system work properly.

2. Use only the parts included with the unit to

ensure proper installation. The use of un-

authorized parts can cause mal functions.

3. Consult with your nearest dealer if install-

ation requires the drilling of holes or other

modifications of the vehicle.

4. Install the unit where it does not get in the

driver's way and cannot injure the

passenger if there is a sudden stop, like an

emergency stop.

5. If installation angle exceeds 30° from

horizontal, the unit might not give its

optimum performance.

6. Avoid installing the unit where it would be

subject to high temperature, such as from

direct sunlight, or from hot air, from heater,

or where it would be subject to dust dirt or

excessive vibration.

7. Be sure to remove the front panel before

installing the unit.

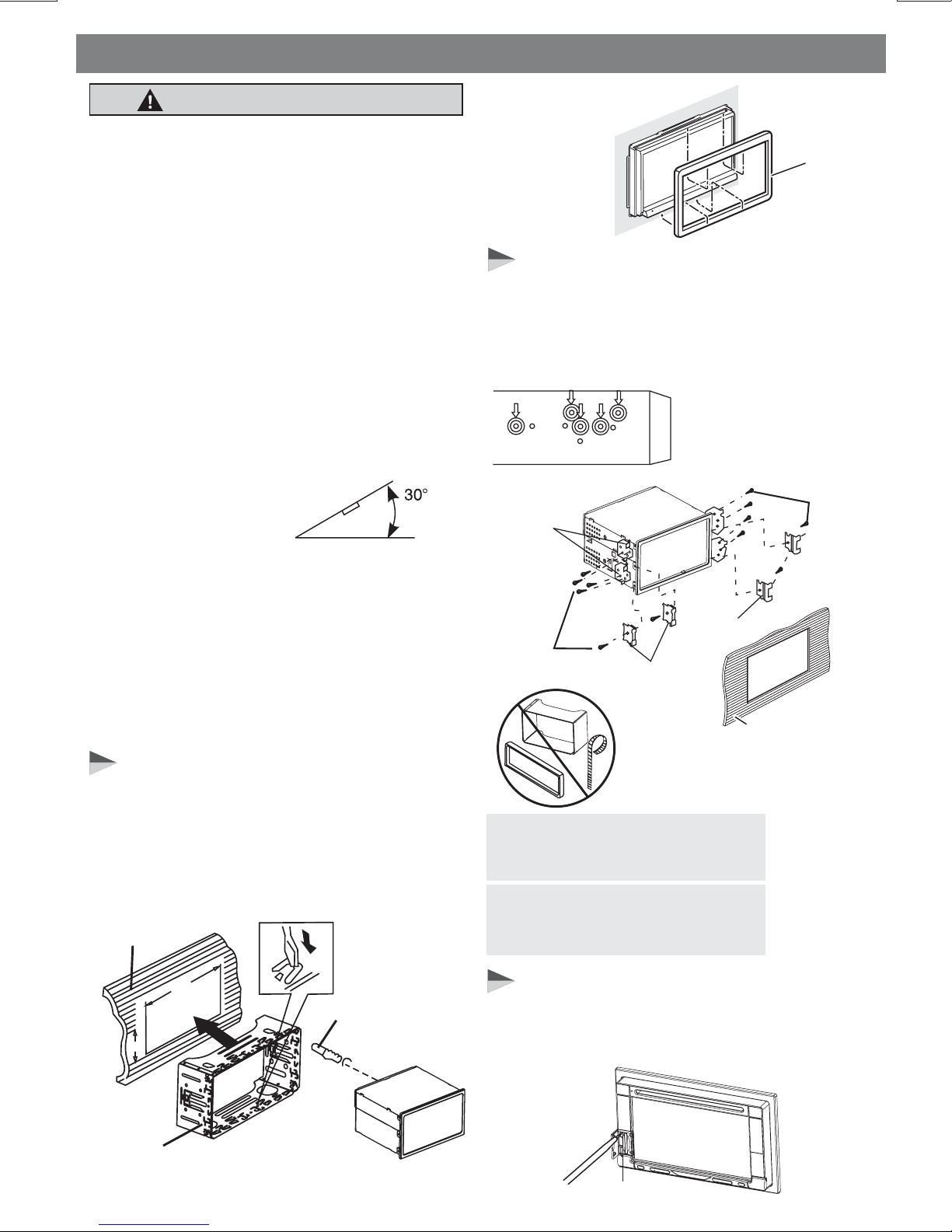

Installation with the half sleeve

After inserting the half sleeve into the

dashboard, select the appropriate tab

according to the thickness of the dashboard

mterial and bend them inwards to secure the

holder in place.

182

111

Dashboard

Half

Sleeve

Screw

Attach the trim ring

Trim ring

Installation using the screw

holes on the side of the unit

Select a position where the screw holes of the

bracket and the screw holes of the main unit

become aligned (are fitted) and tighten the

screws at 2 places on each side.

Note: The outer trim ring,and

half-sleeve are not used for this

installation.

Screw

Factory

radio

mounting

bracket

Dashboard or

console

Hook

Note: The mounting box, metal

half sleeve, hook & screws are

not included in the packnig.

RESETTING THE UNIT

After releasing the front panel, use a stick or any

non-metalic object to press & hold the reset

button for five seconds to reset the unit.

Reset Button

E - 4

Connecting the System

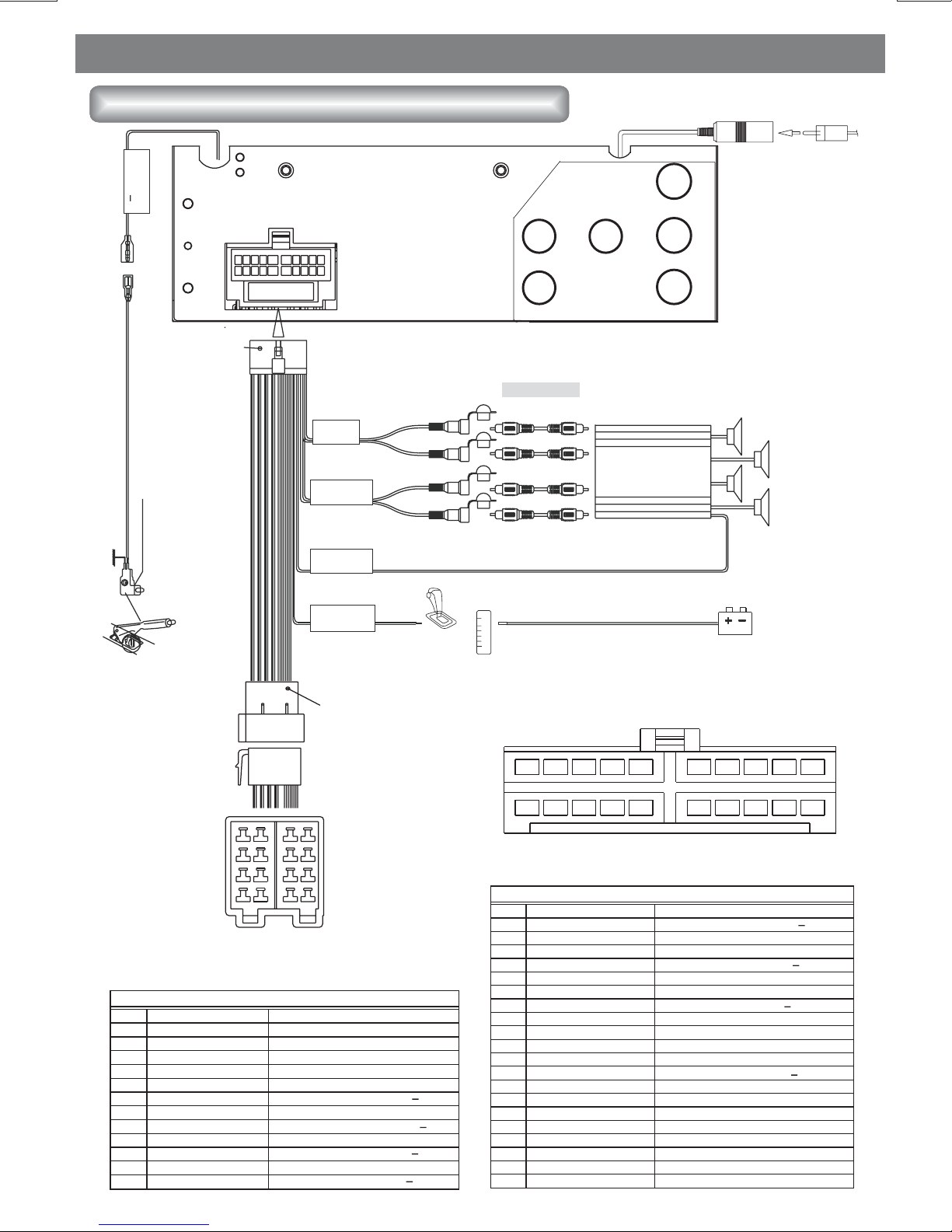

Wiring Diagram - Power / Speakers

L-C

-C

WHITE

AMP

-C

R-CH

GREY

FRONT

CHANNEL

POWER

AMPLIFIER

REMOTE

REAR

CHANNEL

BLUE/WHITE

STRIPE

RCA-TO-RCA

CABLES

(Not supplied)

RED

WHITE

RED

ISO

CONNECTOR

(See Figure 2)

BATTERY(+)

POWER ANTENNA

IGNITION(ACC)

GROUND

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER ( )

RIGHT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER ( )

LEFT FRONT SPEAKER ( )

LEFT FRONT SPEAKER (+)

LEFT REAR SPEAKER ( )

LEFT REAR SPEAKER (+)

12345678910

11 12 13 14 15 16 17 18 19 20

Figure 1Pin View

20 PIN HARNESS PIN CHART

PIN WIRE COLOR FUNCTION / LABEL

GREY / BLACK

GREY

VIOLET

VIOLET/BLACK

GREEN

GREEN / BLACK

RED

BLACK

RED

WHITE

WHITE / BLACK

BLUE/WHITE

BLUE

YELLOW

BLACK

WHITE

RED

BLACK

WHITE

RIGHT FRONT SPEAKER ( )

LEFT REAR SPEAKER (+)

LEFT FRONT SPEAKER (+)

POWER AMPLIFIER REMOTE (+)

CHASSIS GROUND

LEFT FRONT PRE-AMPLIFIER LINE OUT

LEFT REAR PRE-AMPLIFIER LINE OUT

LEFT FRONT SPEAKER ( )

POWER ANTENNA

BATTERY (+)

RIGHT FRONT PRE-AMPLIFIER LINE OUT

FRONT PRE-AMPLIFIER LINE OUT COMMON

RIGHT FRONT SPEAKER (+)

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER ( )

LEFT REAR SPEAKER ( )

IGNITION (ACC)

REAR PRE-AMPLIFIER LINE OUT COMMON

RIGHT REAR PRE-AMPLIFIER LINE OUT

ISO CONNECTOR WIRING CHART

PIN WIRE COLOR FUNCTION / LABEL

YELLOW

BLUE

RED

BLACK

VIOLET

VIOLET / BLACK

GREY

GREY / BLACK

WHITE

WHITE / BLACK

GREEN

GREEN / BLACK

ISO CONNECTOR 4 PIN + 8 PIN

FEMALE WITH MALE TERMINAL

CONNECTOR B

CONNECTOR A

Figure 2

20 PIN AUDIO / POWER HARNESS

ORANGE

Gearbox

Switch

Reverse gear signal

Connect to Back Lamp Lead +

REVERSE(+)

OVERRIDE

WIRE

ANTENNA

EXTENDER

CABLE

ANTENNA

JACK

PINK

PA R K I N G

BRAKE ( )

Ground

Brake Switch

2.5m extension wire (not included)

Connect to Parking Brake.

FUSE

CAMERA AUDIO IN R

AUDIO IN LVIDEO OUT 1SUB-W

VIDEO IN

20-PIN

AUDIO/POWER

HARNESS

(See Figure 1 )

Connect to power amplifier, if not used,

tape bare end of wire.

Name Of Buttons and Theirs Functions

E - 5

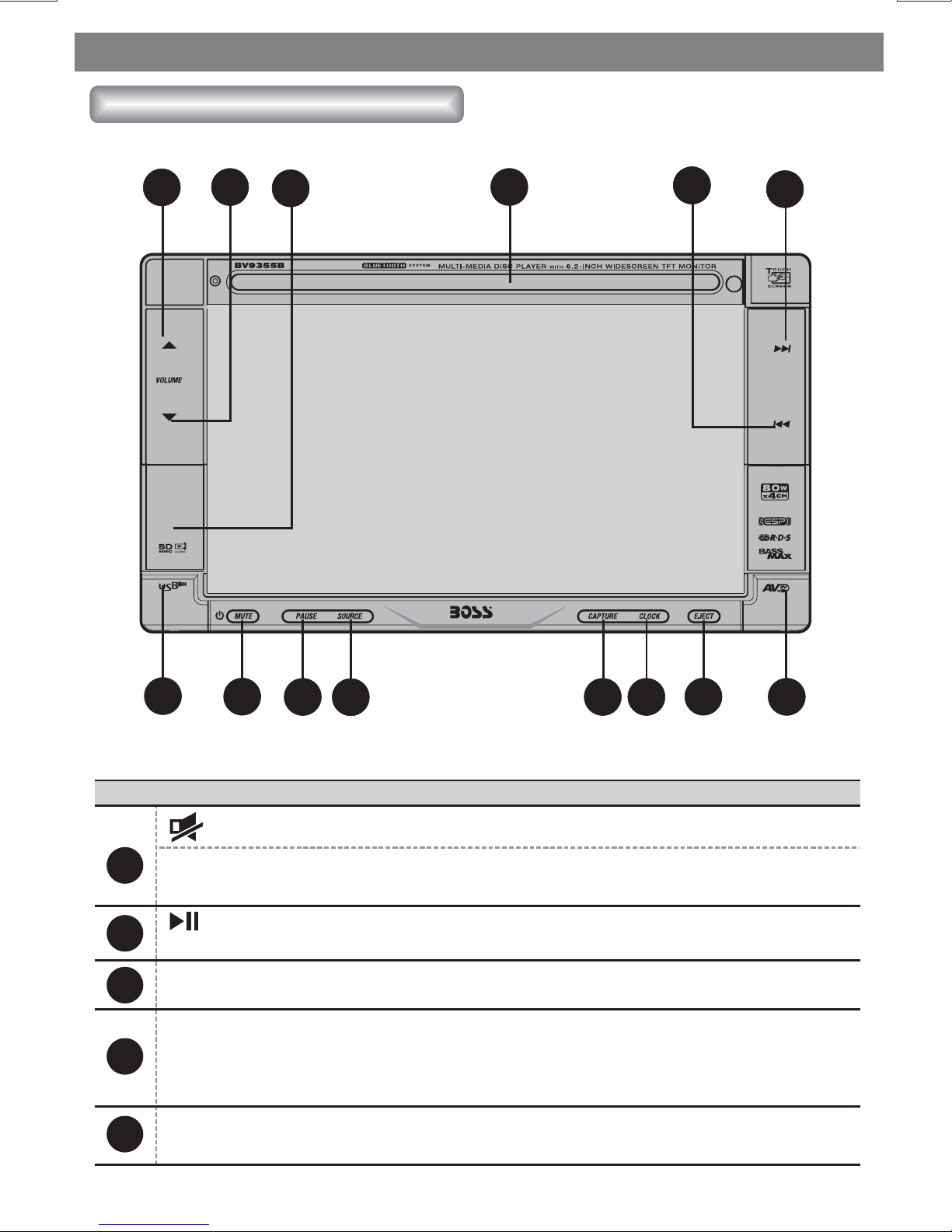

Source Unit

No. Item Decriptions

(MUTE)

PWR

(POWER)

(PLAY/PAUSE)

Press this button to turn the mute On / Off.

Press this button or any other button on the front panel to turn

the unit on. Hold & press this button again to turn the unit off.

Press this button to Pause / resume Play the music under Media

player mode.

Press this button to select different source playback mode:

TUNER/DISC/USB/SD CARD/BT AUDIO/AV IN MODE

SOURCE

CAPTURE

CLOCK

During video/image playback, press this button can capture

images and store them (up to 10 images) to set as wallpaper. You

can also capture an image from an auxiliary video device, if

connected.

Press this button to enter into the Clock mode, press this button

again then return previous mode.

123456

10 12 11

Name Of Buttons and Theirs Functions

E - 6

Press this button to eject the Disc.

(EJECT)

Under the tuner mode, press this button access Auto Seek mode.

Under the media player mode, press this button to skip backward

of the previous chapter.

Under the media player mode, press this button to skip forward

of the next chapter.

Press this button to increase the volume.

Press this button to decrease the volume.

Insert the disc into CD slot. The CD will begin to play.

This unit can support playback MP3/WMA/JPEG/MPEG4/DIVX

format which are stored on the SD Card.

VOLUME +

VOLUME

DISC SLOT

SD CRAD SLOT

USB SLOT

AUX IN JACK

( The SD Card slot behind

the SD Card door.)

( The USB slot behind

the USB door.)

( The AUX IN slot behind

the AUX IN door.)

This unit can support playback MP3/WMA/JPEG/MPEG4/DIVX

format which are stored on the USB memory stick.

This unit is allowed to connect with external Audio/Video system

such like Digital Camera or Game Console. User can connect the

external A/V system thru the A/V in jack on front panel.

E - 7

Name Of Buttons and Theirs Functions

No. Button Item Decriptions

POWER ON

OFF

SOURCE

2 ZONE

MODE

VOLUME +

VOLUME -

AUDIO

Press this button to turn the mute On / Off.

When the unit is power on, long press this button to turn Off

the unit. Once the unit power off, press this button to turn On

the unit.

Press this button to enter into the SOURCE mode. Long press

this button to enter into the Bluetooth transfer mode.

Once the Dual zone turns on, press this button to change Front

zone or Rear zone.

Press this button to increase the volume.

Press this button to decrease the volume.

Press this button to enter into the AUDIO mode.

Under the tuner mode, press this button to access the Manual

Seek mode.

Under the media player mode, press this button fast forward

through the music under media player mode.

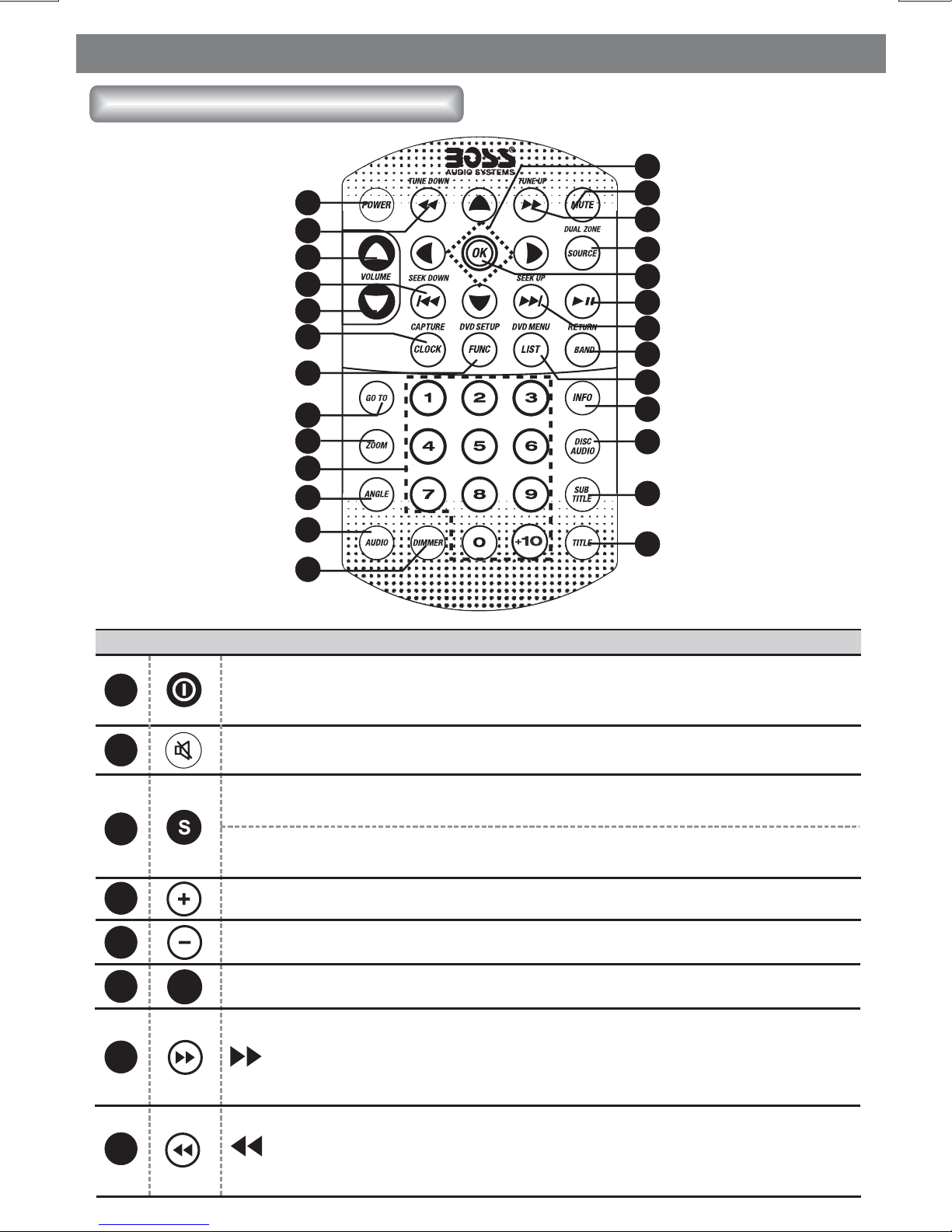

Remote Control

MUTE

AUDIO

Under the tuner mode, press this button to access the Manual

Seek mode.

Under the media player mode, press this button fast backward

through the music under media player mode.

E - 8

Name Of Buttons and Theirs Functions

BAND

ESC

NUMERIC

BUTTONS

Use these buttons to move cursor up/down/left/right.

Under the tuner mode, press this button access Auto Seek mode.

Under the media player mode, press this button to skip backward

of the previous chapter.

Under the media player mode, press this button to skip forward

of the next chapter.

Use this button to confirm the selection.

Press this button to Pause / resume Play the music under media

player mode.

Press this button to return previous menu. Under the tuner

mode, press this button to access the BAND mode.

Press this button to quick return previous menu or playback

mode.

When playback the media use for track or file number direct

access and use when function need numeric selection or input.

CLOCK Press this button to enter into the Clock mode.

CAPTURE During video/image playback, press this button can capture

images and store them to set as wallpaper.

FUNCTION

LIST

GOTO

ZOOM

ANGLE

DIMMER

INFO

DISC AUDIO

SUBTITLE

TITLE

Press this button to enter into the function mode.

Under the DVD mode, press this button to pop up the search Menu.

When playback the DVD, press this button repeatedly increases

the magnification level.

Under DVD mode, press this button while playing a scene

recorded with multiple angles to change the angle.

Press this button adjust the screen brightness.

Press this button to viewing the information.

Under DVD mode, press this button during playback to change

the audio language.

Under DVD mode, press this button during playback to turn on/off

subtitles and change the subtitles.

Under DVD mode, press this button to bring up the Title Menu.

201

UP/DOWN

LEFT/RIGHT

ENTER

PLAY/PAUSE

GOTO

ZOOM

ANGLE

DIMMER

TITLE

SUB

TITLE

DISC

AUDIO

INFO

Under tuner mode,press this button to Show The List of

stored station.

Under the Media playback mode, press this button to list the

searching of Tracks or Files on the Media playback mode.

Under the DVD/MP4 mode, press this button to list the

searching of DVD Root Menu or Files on the playback mode.

Under the VCD mode, press this button to turn On/Off thePCB

function.

General Operations

E - 9

1 2 3 4

94.70P3

5678

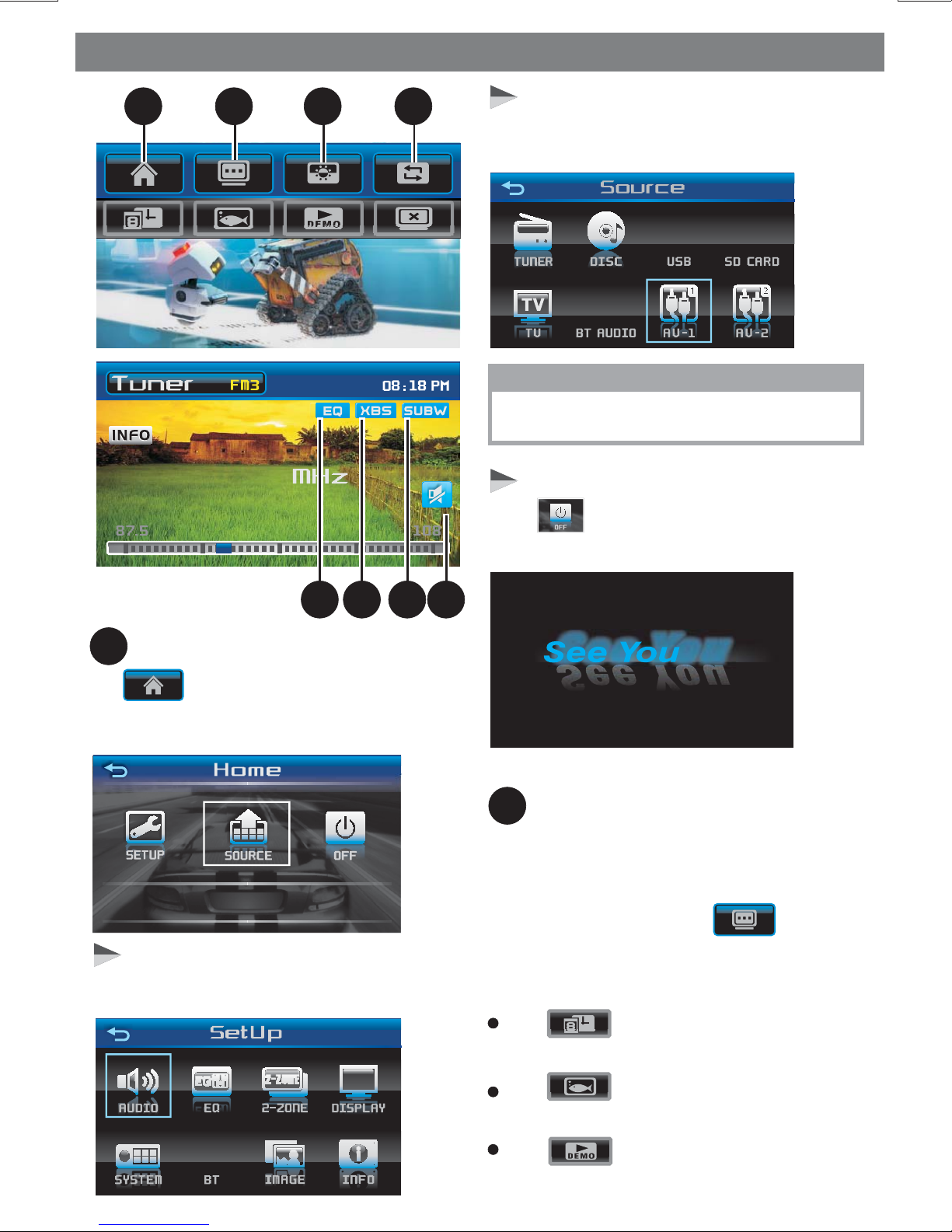

1HOME MENU

Tap button on the display enter into the

Home Menu, and there have SETUP,

SOURCE,OFF options for selection.

SETUP

Under the SETUP menu, the below options

are available for selection:

SETUP

SOURCE

NOTE

Please note not all the Optional Source /

feature is available with each unit.

Tap button to power off the unit, and

the below display will be shown on TFT:

Under the SOURCE menu, the below options

are available for selection:

POWER OFF

See You

The units have 4 different types of motion

pictures that can be displayed on TFT

under playback Mode. Tap button on

display to repeatedly can switch between the

4 difference modes.

2MOTION PICTURES DISPLAY

MODE

Tap button is Clock & Date diaplay

mode

Tap button is Virtual Aqua display

mode

Tap button is DEMO mode

E - 10

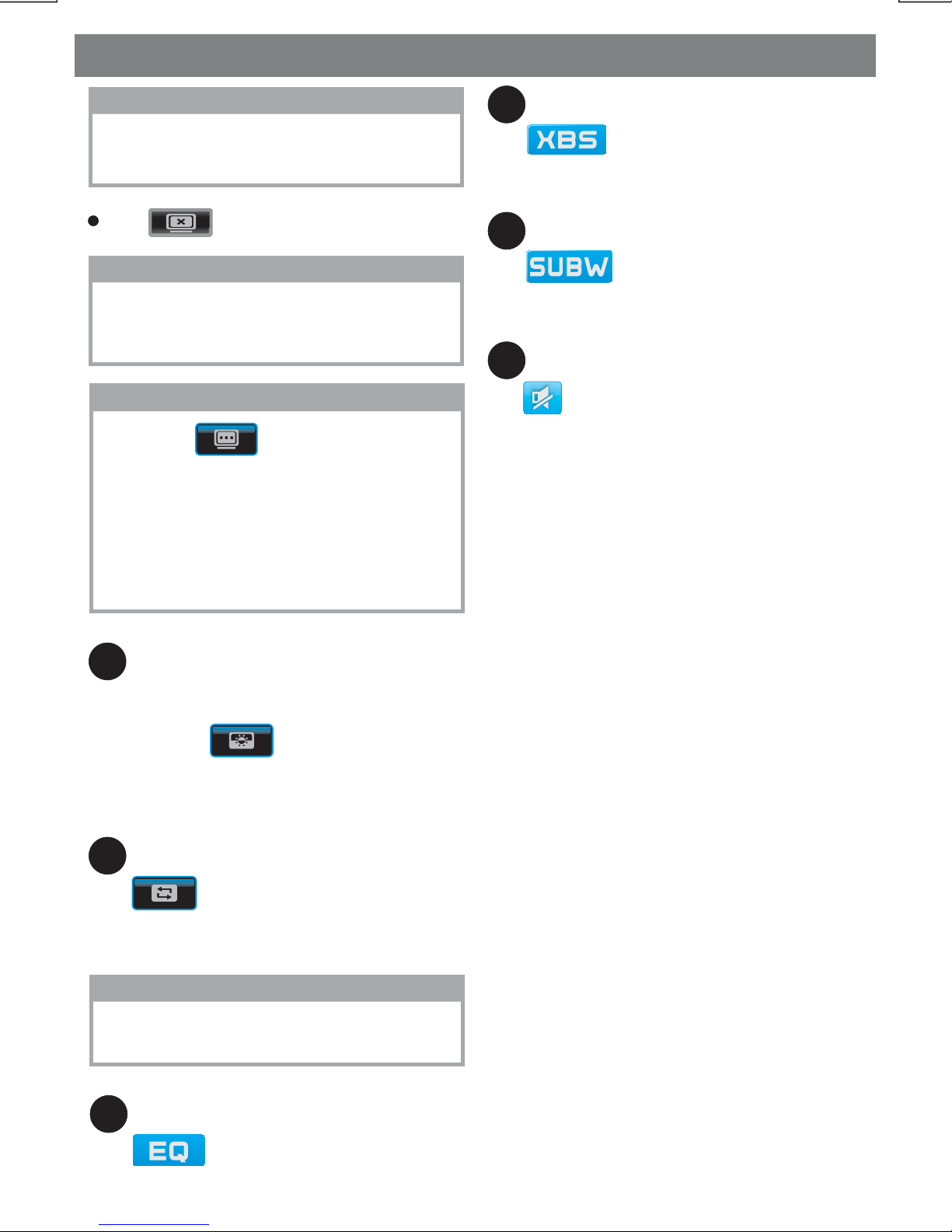

PRESET EQ MODE

iX-BASS

SUBWOOFER

MUTE BUTTON

Tap button to quickly enter into the

EQ menu select different types.

Tap button to quickly enter into the

iX-Bass function.

Tap button to quickly enter into the

Subwoofer function.

Tap button to mute on the audio volume,

Tap this button again to restore volume to the

previous setting.

TIPS

DEMO display mode demonstrates the

major highlight functions that are available

on this unit.

Tap button is Monitor Off mode

To turn back on, touch anywhere on the

display or press any button on the front

panel.

NOTE

Tapping button switches thru

each of the three different Motion Picture

modes. The TFT screen will have around

1-2 seconds ‘BLANK’ screen (dark screen).

This is normal because during these 1-2

seconds BLANK screen it is re-loading

the next motion pictures.

User can adjust the TFT backlight on the

screen. Tap button on display to

adjust the Dimmer level between High / Mid /

Low.

TFT BACKLIGHT DIMMER

CONTROL

GALLERY DISPLAY MODE

Tap button to preview the captured

images which stored in My Image, and set it to

wallpaper.

TIPS

For details operation of My Gallery, please

refer to page of Wallpaper Setting.

General Operations

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Boss Audio Systems Ricevitore per auto

Boss Audio Systems

Boss Audio Systems BV7464B Manuale utente

Boss Audio Systems

Boss Audio Systems BV9986BI Manuale utente

Boss Audio Systems

Boss Audio Systems BV9561B Manuale utente

Boss Audio Systems

Boss Audio Systems 648UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV9955 Manuale utente

Boss Audio Systems

Boss Audio Systems 812UAB Manuale utente

Boss Audio Systems

Boss Audio Systems 514CA Manuale utente

Boss Audio Systems

Boss Audio Systems 758DBI Manuale utente

Boss Audio Systems

Boss Audio Systems BV9358B Manuale utente

Boss Audio Systems

Boss Audio Systems BV9986BI Guida utente

Boss Audio Systems

Boss Audio Systems MP3-3O6OR Manuale utente

Boss Audio Systems

Boss Audio Systems 560BRGB Manuale utente

Boss Audio Systems

Boss Audio Systems BV9557 Manuale utente

Boss Audio Systems

Boss Audio Systems AVA-916B Manuale utente

Boss Audio Systems

Boss Audio Systems 812UAB Manuale utente

Boss Audio Systems

Boss Audio Systems AVA-2695R Manuale utente

Boss Audio Systems

Boss Audio Systems BVML9384 Manuale utente

Boss Audio Systems

Boss Audio Systems 738UA Manuale utente

Boss Audio Systems

Boss Audio Systems 622UA Manuale utente

Boss Audio Systems

Boss Audio Systems BV9982U Manuale utente

Boss Audio Systems

Boss Audio Systems BV7320 Guida utente

Boss Audio Systems

Boss Audio Systems BV8974B Manuale utente

Boss Audio Systems

Boss Audio Systems MR1315WUA Manuale utente

Boss Audio Systems

Boss Audio Systems BV2950TU Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
