Boss Audio Systems BV9358B Manuale utente

USER’S MANUAL

BV9358B

BLUETOOTH® | DVD/MP3/CD AM/FM RECEIVER

0518

iPod® / iPhone® are trademarks of Apple, Inc. registered in the U.S. and other countries.

BOSS Audio Systems is not affiliated with Apple, Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BOSS Audio Systems is under license.

Other trademarks and trade names are those of their respective owners.

USER’S MANUAL

BV9358B

BLUETOOTH®

DVD/MP3/CD AM/FM RECEIVER

FEATURING 6.2" (157 mm) WIDESCREEN TOUCHSCREEN

DIGITAL TFT LED MONITOR

BOSS Audio Systems

3451 Lunar Court • Oxnard, CA 93030

www.bossaudio.com

800-999-1236 US Toll-free

805-751-4853 Customer Service

Tech Support: www.bossaudio.com/support/technical-support

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

Congratulations on your purchase of a Boss Audio Systems Multimedia

Receiver. It has been designed, engineered and manufactured to

bring you the highest level of performance and quality, and will offer

you years of entertainment pleasure.

Content

ccessories………………………………………………………………………………………………………………………………………...02

Unit Installation………………………………………………………………………………………………………………………………..03

Wire Connection………………………………………………………………………………………………………………………………03

Parking Brake Connection ………………………………………………………………………………………………………04

Speaker connection……………………………………………………………………………………………………………………….05

Button Description………………………………………………………………………………………………………………………….06

Remote Control………………………………………………………………………………………………………………………………..07

Main Menu…………………………………………………………………………………………………………………………………………...10

Radio Operation……………………………………………………………………………………………………………………………….10

DVD Operation………………………………………………………………………………………………………………………………..11

USB /SD Operation………………………………………………………………………………………………………………………..12

Settings Operation………………………………………………………………………………………………………………………..12

Bluetooth Operation……………………………………………………………………………………………………………………..15

ux-In Operation ……………………………………………………………………………………………………………………………17

Notes of Disc……………………………………………………………………………………………………………………………………...18

roubleshooting……………………………………………………………………………………………………………………………..19

General Speci

ication…………………………………………………………………………………………………………………..21

Power Cable Trim Ring User Manual

Accessories

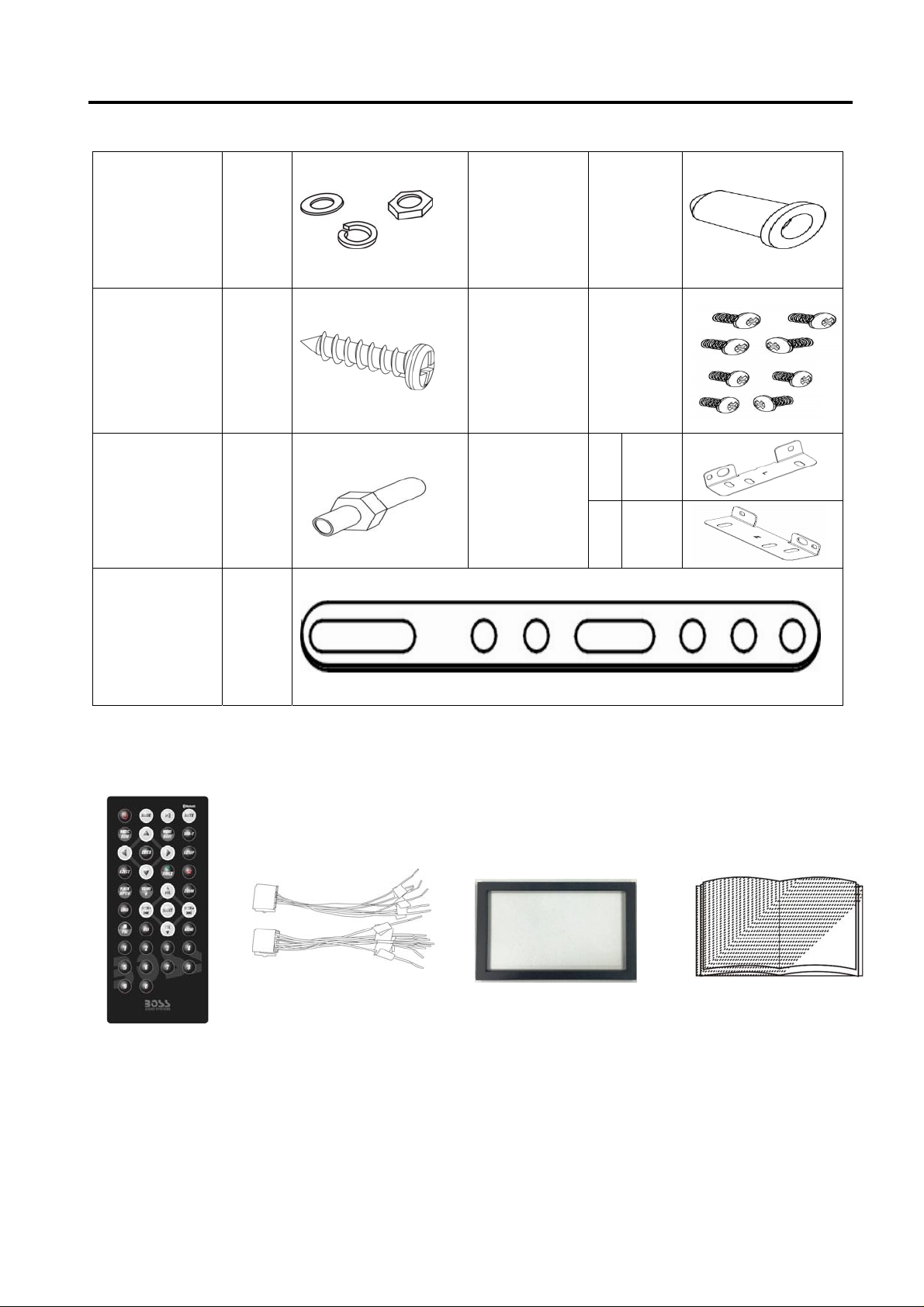

Package contains the following accessories for installation and operation of the unit.

(1) Washer,

Spring

(2) Washer,

M5 Nut

(5) Rubber

Cushion 1

(3) Screw

(6) Screw

(4) Bolt 1

(7)installation

bracket

1 Left

1 Right

(5) Mounting

Strap

Remote Control

Unit Installation

1. Put the 2 brackets to the left and right side of the unit;

2. Use screws to fix the brackets to the unit.

Wire Connection

The Description of the Input/output Interface of the Rear Chassis

Bracket

Screw

Parking Brake Connection

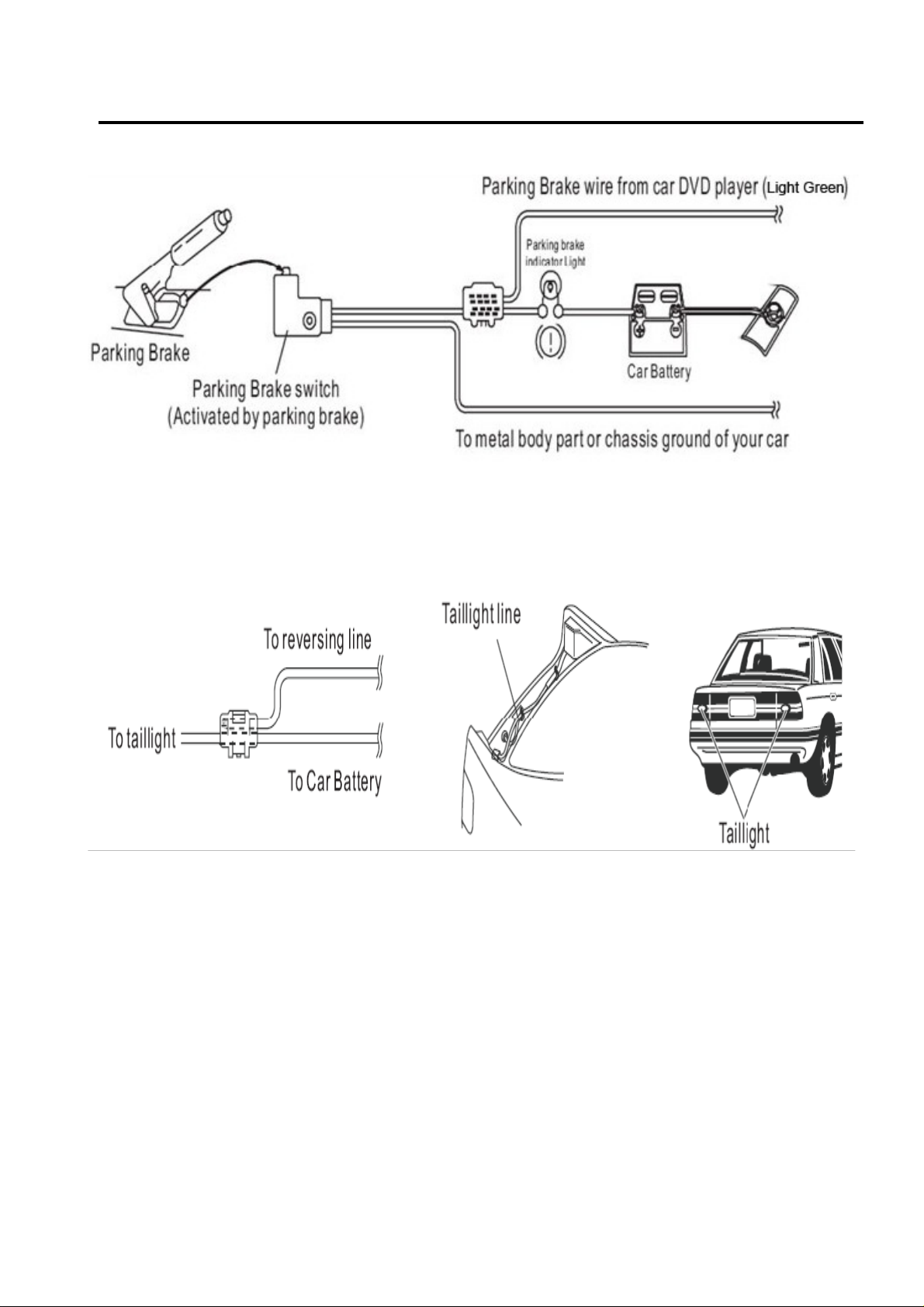

In order to view videos, the parking brake wire must be connected, and the vehicle is parked

Connecting the reversing line to tail light on the car

Speaker Connection

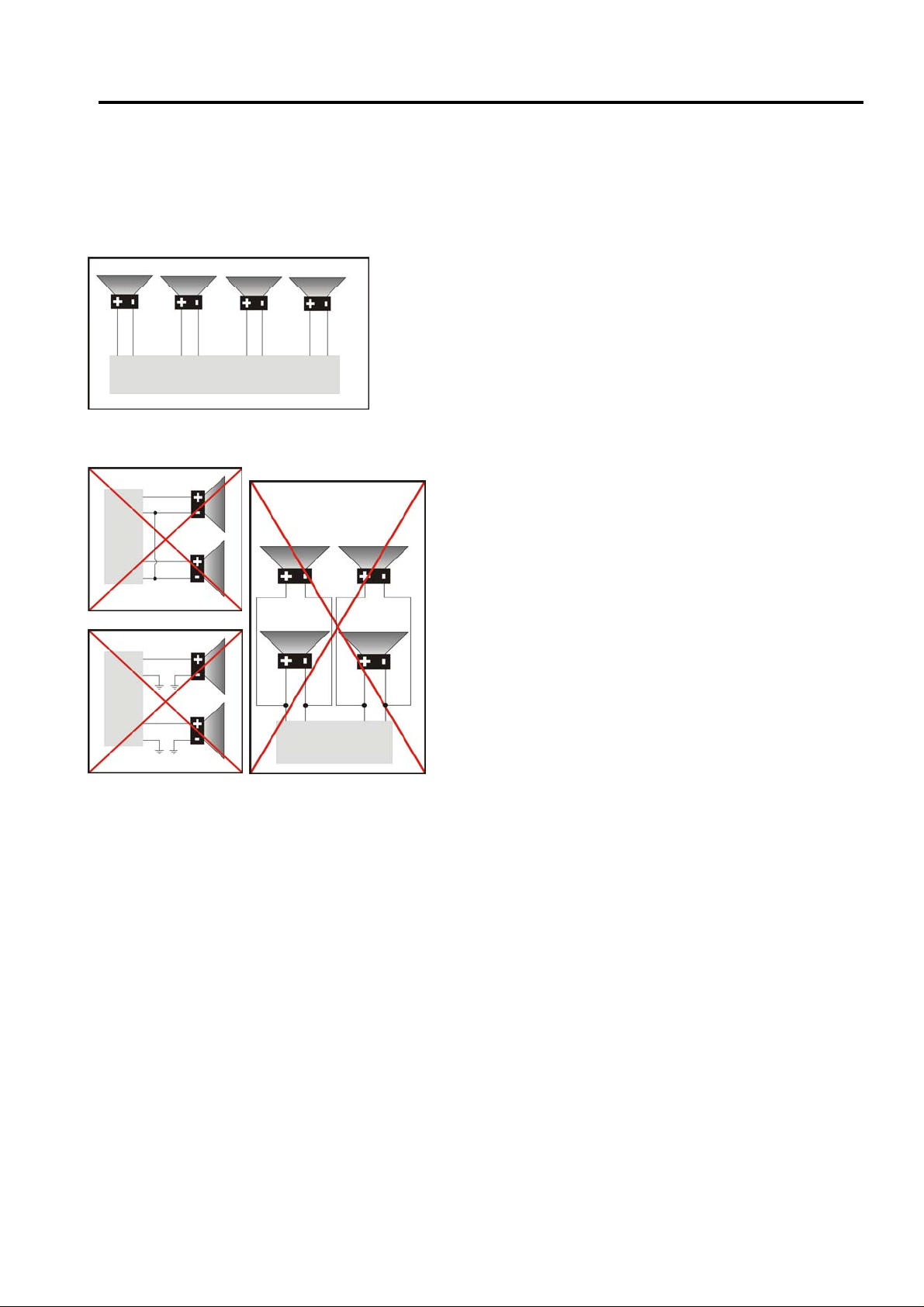

Connect the speakers according to the following diagram, incorrect connections may damage the unit

or your speakers. Do not chassis ground the speakers. Always observe correct polarity.

Correct connection

Left front - Right front | Left rear - Right rear

Incorrect connections

1 789

Button Description

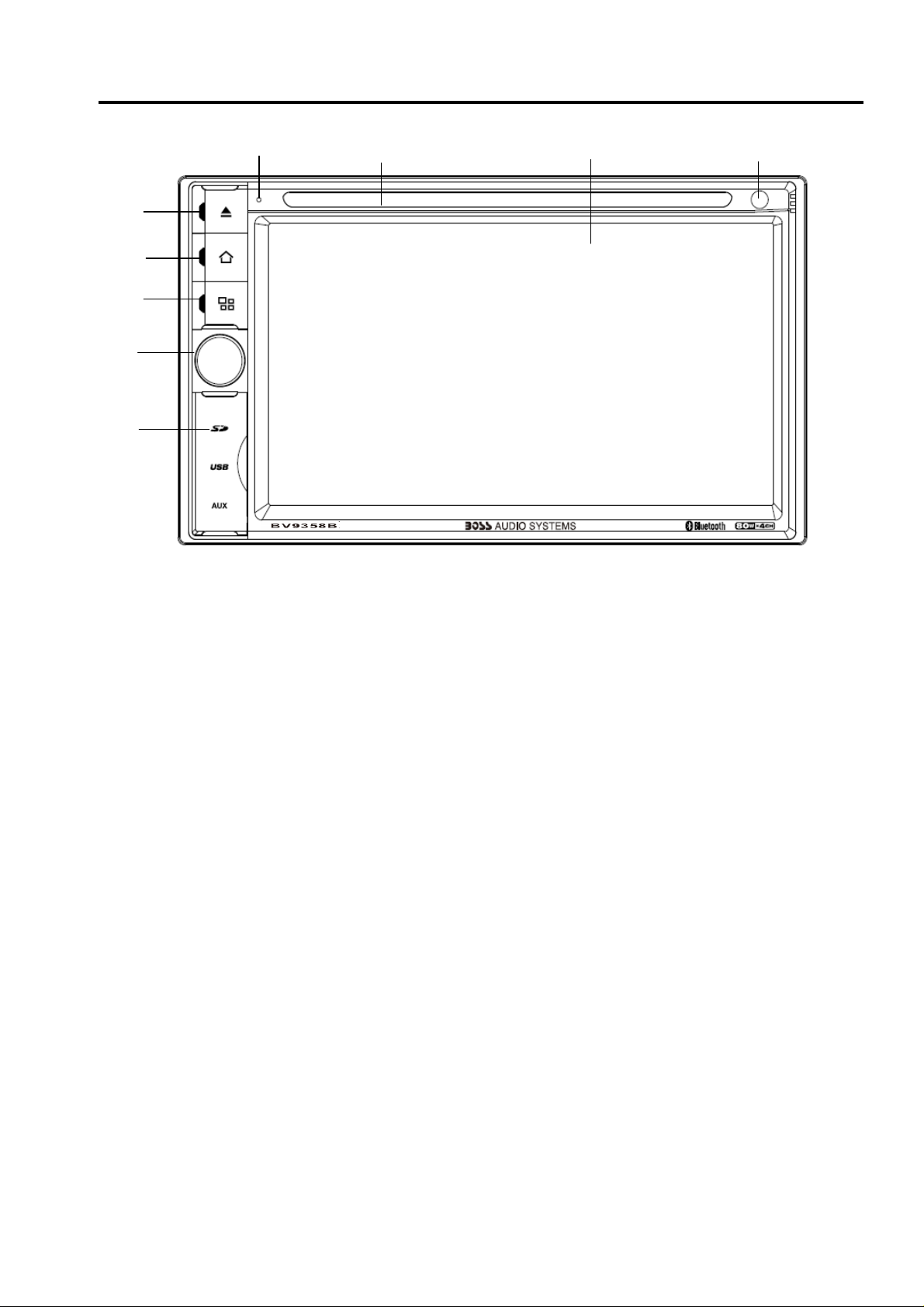

1. MIC

2. EJECT Button

Press to eject a disc. If the disc is not removed for about 10 seconds after eject, the disc is reinserted

automatically.

3. HOME BUTTON

Press home button to return back to main menu.

4. SOURCE BUTTON

Press source button to change mode.

5. POWER / MUTE Button /VOL

Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off .Press the button.

briefly to mute .Please notes that the volume will be muted on all audio output connector.

Press VOL knob to power on unit and Press and hold for 2 seconds to turn the unit off

Rotate VOL knob to increase or reduce the volume.

6. USB/SD/AUX

USB for Multimedia playback files only. insert a USB into this slot and the unit will automatically start

reading and playback. * Supported Music File Format: MP3, WMA files.

SD card slot, for Multimedia playback files only. Insert a SD CARD into this slot and the unit will

automatically start reading and playback. * Supported Music File Format: MP3, WMA files

Put the Aux plug into the Aux-In jack which was marked on front panel.

7. DISC Slot

8. Display

LCD display Information when operation the unit.

9. Remote Sensor

Remote control signal receiving window. Max distance is 20 ft (6m), 45 deg.

Remote Control

1. MODE button

Press it to select the mode: Radio, Disc (if there is a disc in unit), USB (if there is a USB device in the

unit), SD (if there is a SD/MMC card in the unit), Bluetooth, Aux-In

2. POWER button

Power on or power off.

3. UP button

Press it to move the cursor up.

4. BAND/RDM/CLEAR button

In radio mode, press to change radio band in sequence of FM1 →FM2 →FM3 →AM1 →AM2; In DVD

mode, press to play randomly; In Bluetooth mode, short press it to clear the single phone number; long

press it to clear all the phone number.

5: ENTER

Press it to confirm your selection

6. LEFT button

Press it to move the cursor left

7. DOWN button

Press it to move the cursor down.

8. EJECT button

Press it to eject the disc.

9. STEREO/MONO/* button

Press to switch the radio in stereo and mono sound. In Bluetooth mode, press it to make a symbol.

1: MODE

2: POWER

3: UP

4: BAND/RANDOM/CLEAR

5: ENTER

6: LEFT

7: DOWN

8: EJECT

9: STEREO/MONO/*

10:P.SCAN/REPEAT/#

11: SEEK-/BACKWARD

12: LOUD

13: STOP/PBC

14: OSD

15: PLAY/PAUSE

16: MUTE/BLUETOOTH

17: MENU/ROOT

18: SUB TITLE

19: RIGHT

20: SETUP

21: DIAL/ANGLE

22: HANG UP

23: VOLUME UP

24: ZOOM

25: SELECT

26: SEEK+/FORWARD

27: VOLUME DOWN

28: AUDIO

29: NUMERIC KEY

Remote Control

10. P.SCN/ RPT /# button

In DVD mode, press to repeat REP 1 => REP Title => REP ALL.

In SD /USB mode ，press to repeat REP 1 => REP Dir => REP ALL.

In Radio mode, PS (preset scan): Press to scan all preset stations in the memory of the current band

and stay on each memory stations for about 5 seconds.

AS (Auto Save), long press to save the stations with good reception automatically.

In Bluetooth mode, press it to make a # symbol.

11. / SEEK- button

In DVD/CD mode, press button to skip to the previous track, press and hold button for two

seconds to activate fast reverse (REW) search in a track.

In Radio mode, press and hold button to select station backward automatically, touch again will stop

select station. button frequency down.

12. LOUD

Press to select loudness on or off.

13. STOP/PBC button

Press to stop playback from the current position, press again to final stop from the beginning. Press

play/pause button to play.

14. OSD button

In DVD mode press to show disc playing information.

15. PLAY/PAUSE button

In DVD/USB/SD mode, press it to break playback, press again to resume playback.

16. Mute button/Bluetooth button

: Short press to mute the volume output, press again to resume volume.

Long press this button to enter into Bluetooth mode (Hands free).

17. MENU/ROOT button

Press it to show main menu, in DVD mode, long press it to enter title menu (Available only if the DVD

disc with title menu).

18. SUBTITLE button

Press it to select the subtitle language (Available only if the disc with subtitle function).

19. RIGHT button

Press it to move cursor right.

20. SETUP button

In DVD mode press it to enter the setup menu, press again to resume playback.

21. Dial button/ANGLE Button

In DVD mode, press it repeatedly to change the viewing angle (Available only with a recorded DVD file

or DVD disc has this function).

In Bluetooth mode, press to make a call after inputted a phone number or accept an incoming call.

22. HANG UP button

In Bluetooth mode, press to reject a coming call or hang up while calling.

23. VOLUME UP button

Press to increase volume level.

24. ZOOM button

In DVD mode Press to zoom the image in or out in the sequence of zoom 2-> zoom 3-> zoom4-> zoom

5-> zoom 1/2-> zoom 1/3-> zoom 1/4-> zoom off.

25. SELECT button

Press it to enter the EQ setting menu, and press cursor up/down button to choose an item and press

cursor left/right buttons to set the item, press select button again to exit the menu.
