Boss Audio Systems BV9955 Manuale utente

e13

0310180

DVD Receiver.

performance and quality, and will provide you with

years of listening pleasure.

BV9955

AM/FM DVD Receiver with 7” TFT Display

USER’S MANUAL

CONTENTS

Installation

To support the unit

Detaching and attaching the front panel

Moving the screen forward

Cleaning the connector

Wire Connection

Location of parts and controls (Main unit and Remote control)

General operations

Listening to radio

Using the RDS function

Operations common for audio/video

Listening to MP3/WMA

Playing DVD/video CD/MP4

Customizing audio/video settings

Setting up the DVD player

Troubleshooting

Speciﬁcations

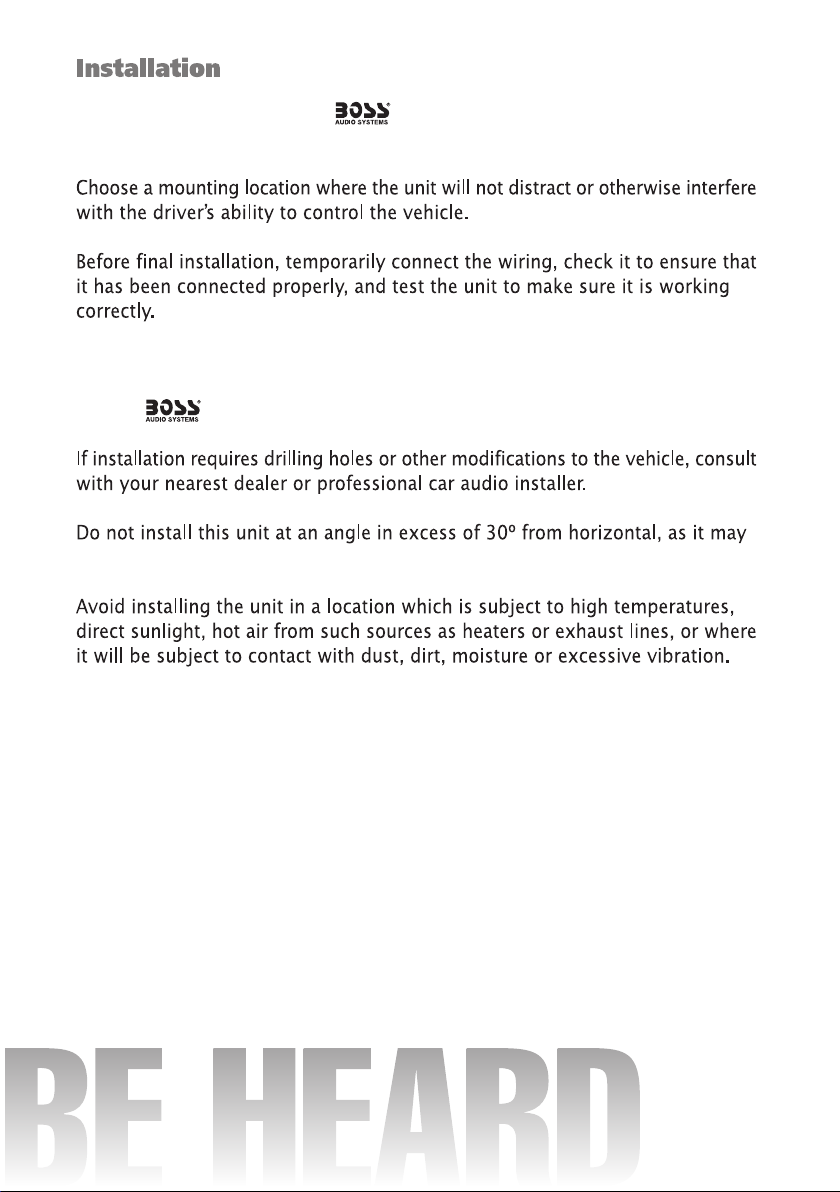

Before installing your new DVD Receiver, please review the items

below carefully.

Use only the installation parts and hardware provided with the unit to ensure

proper installation. Using other parts can cause malfunction and possible damage

to your DVD receiver.

affect performance.

INSTALLATION

PRECAUTIONS

• Choose the mounting location carefully so that the unit will not interfere with the normal driving

functions of the driver.

• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight

or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.

• Use only the supplied mounting hardware for a safe and secure installation.

• Be sure to remove the front panel before installing the unit.

NOTE:Inclination angle for car radio installation must not exceed 30° otherwise the front panel will not open.

NOTE: Keep the release key in the safe place as you may need it in future to remove the unit from the car.

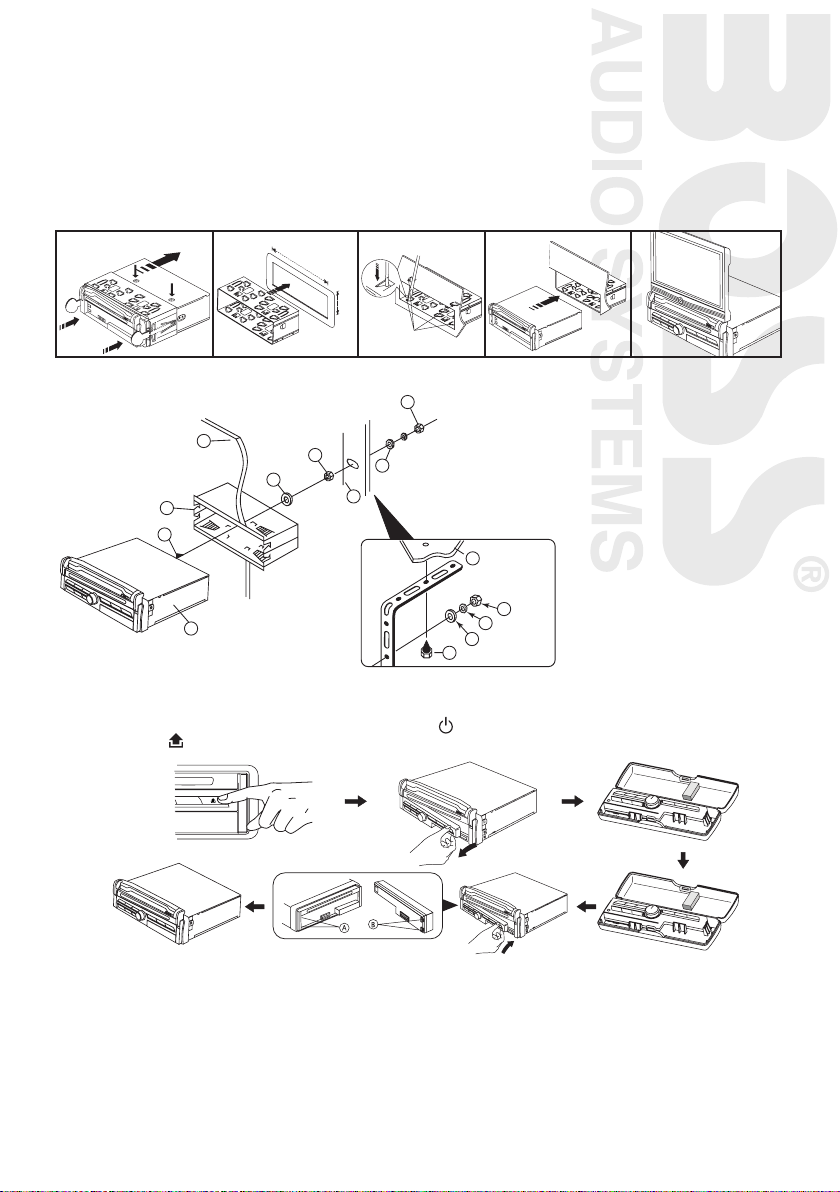

TO SUPPORT THE UNIT

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

Before detaching the front panel, be sure to press the button (1) OFF ﬁrst.

Then press the button and detach the panel by pulling it towards you as illustrated.

Notes:

• Do not press the front panel hard against the unit when attaching it. It can be easily attached by

pressing it lightly against the unit.

• When you carry the front panel with you, put it in the supplied front panel case.

• Do not press hard or give excessive pressure to the display window of the front panel when attaching

it to the unit.

Detaching and attaching the display screen

• When the lower part of the front panel (control board) is detached, the unit can be power oﬀ.

• Do not press hard or give excessive pressure to the display window of the front panel when attaching

it to the unit.

• Pay attention not to put any pressure on the display or control buttons.

182mm

53mm

345

Bend these

claws, if necessay

Release screw and

bracket

1. UNIT

2. RELEASE CASE

3. DASH BOARD

4. HEX NUT

5. LOCK WASHER

6. PLAIN WASHER

7. CAR BODY

8. REAR SUPPORT STRAP

9. TAPPING SCREW

10. M5 X 15 HEX BOLT

Dashboard

When the 7” panel is detached from the unit, the unit stays on and you can change between diﬀerent

modes and change radio stations, tracks on CD but the volume knob does not operate on the unit. You

have to use the remote to adjust the volume level. Also, when the 7” panel is detached and you switch

the unit oﬀ, it does not power on unless the 7” panel is reattached to the unit.

Notes :

• Do not press the front panel hard against the unit when attaching it. It can be

easily attached by pressing it lightly against the unit.

• When you carry the front panel with you, put it in the supplied front panel

case.

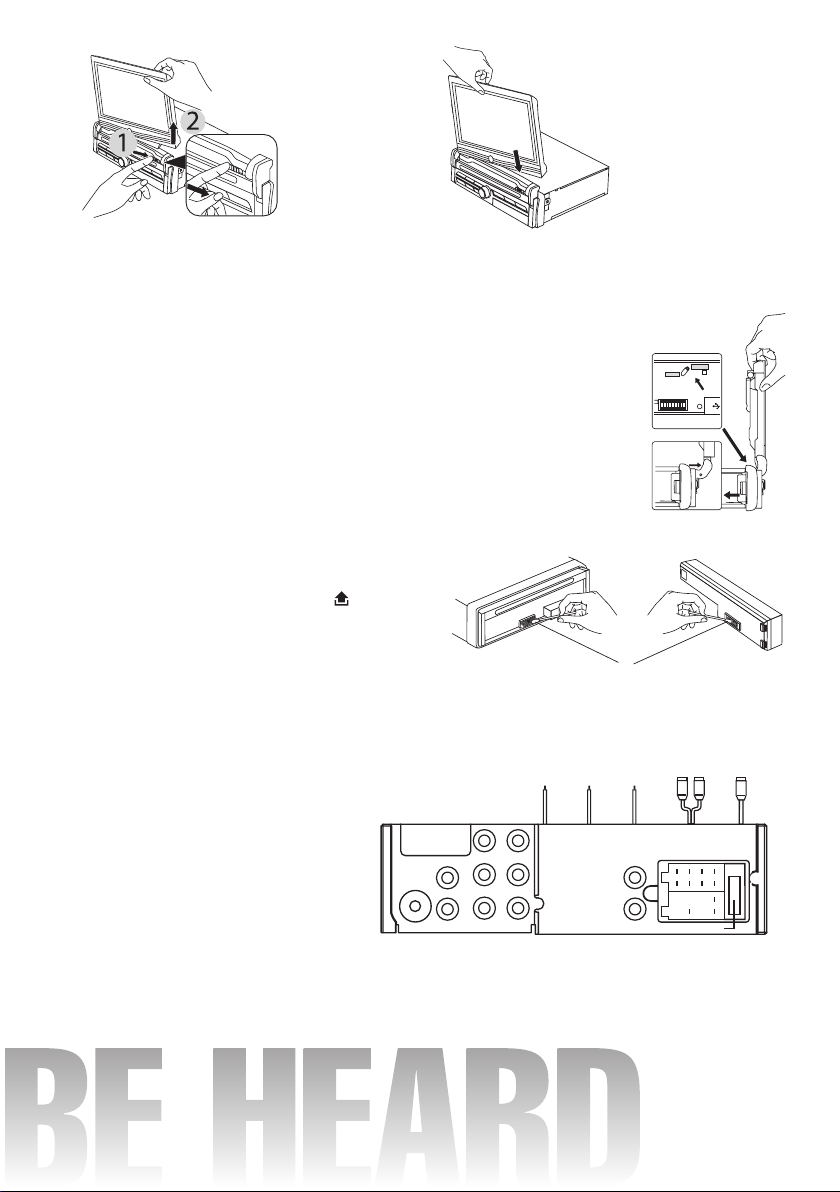

Moving the screen forward

Depending on vehicles dashboard design, there might be instances where the display

screen might collide or bump into the dashboard’s control knobs.

Follow the steps below to move the screen forward.

1. Slide the switch to UNLOCK position.

2. Hold it in UNLOCK position then move the screen forward. The unlock switch

will move to LOCK position automatically when in place.

Cleaning the connector

The unit may not function properly if the connectors

between the unit and the front panel are contaminated

with dirt. In order to prevent this from happening,

detach the front panel by pressing the button and

clean the connector from time to time.

Clean the connector with a cotton swab together with

contact cleaner as illustrated. Be sure to clean them

carefully pin by pin and make sure not to damage the

connecting points.

WIRE CONNECTION

IN / OUT CONNECTOR

DVD Audio Out: White (L) Red (R)

Connect this wire to rear seat A/V monitor sys-

tem to enjoy

DVD movie

Audio Out (Front): White (L) Red (R)

Audio Out (Rear): White (L) Red (R)

Video Out: Yellow

Connect to external A/V system to display

Video In: Yellow

Connect to external Video equipment

Rear Camera In: Blue

Connect to rear camera output

RCA Audio Input (Black):

Left (White) Right (Red)

Subwoofer Output (Green): Plug (Yellow)

LOCK

UNLOCK

Cotton Swab

Rear of

front panel

Main unit

To detach

1. Slide the screen release button

to the right side.

2. Hold the display by the trim

(not screen). Gently lift the

display right and upwards.

To attach

Push and insert the screen all

the way down until you heard 2

click sounds indicating both hole

connector is attached properly.

GRAY

PARKING

SUBWOOFERAUDIO IN

BLUE

AUTO

ANTENNA

RED GREEN

BLACK

WHITERED YELLOW

BACK GEAR

CONTROL

LINE OUT

AUDIO OUT

ANTENNA

CONNECTOR

FRONT

REAR

CAMERA IN VIDEO IN

VIDEO OUT 1

VIDEO OUT 2

FUSE 10A

L R

ISO CONNECTOR

ANTENNA

CONNECTOR

FRONT

REAR

AUDIO OUT CAMERA IN VIDEO IN

VIDEO OUT 1

VIDEO OUT 2

L R

ISO CONNECTOR

5 7

REAR

UT CAMERA IN VIDEO IN

L R

RED

OPEN

FRONT

SIDE

TOP VIEW

To rear camera video out

To reverse gear control switch

Steps:

1. Connect the Rear Camera IN plug to the rear camera’s video out plug.

2. Connect the RED wire to “REVERSE” gear control switch.

3. Check your gear control switch and make sure it is connected to +12V.

ANTENNA

CONNECTOR

FRONT

REAR

AUDIO OUT CAMERA IN VIDEO IN

VIDEO OUT 1

VIDEO OUT 2

L R

ISO CONNECTOR

5 7

REAR

UT CAMERA IN VIDEO IN

L R

GRAY

BLUE

RED

OPEN

FRONT

SIDE

TOP VIEW

To Hand brake switch

Steps:

1. Connect the gray wire to the hand brake system.

2. Check your hand brake switch and make sure it is connected to car body chassis

and properly grounded.

CONTROL WIRE

Parking (Gray) : Connect this wire to car hand brake system

Auto Antenna/Remote Control (Blue) :

Rear Camera (Red) : Connect to back rear camera

During back gear condition, this wire should be connected to hight voltage.

ISO CONNECTOR A

4. MEMORY +12V

7. +12V (TO IGNITION KEY)

8. GROUND

NOTE: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery

becomes weak when the car will be not used for long period.

CONNECTOR B

1. REAR RIGHT SPEAKER (+)

2. REAR RIGHT SPEAKER (-)

3. FRONT RIGHT SPEAKER (+)

4. FRONT RIGHT SPEAKER (-)

5. FRONT LEFT SPEAKER (+)

6. FRONT LEFT SPEAKER (-)

7. REAR LEFT SPEAKER (+)

8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the

replacement, there may be an internal malfunction. In this case, consult your nearest repairing center.

Warning

Use the speciﬁed amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage

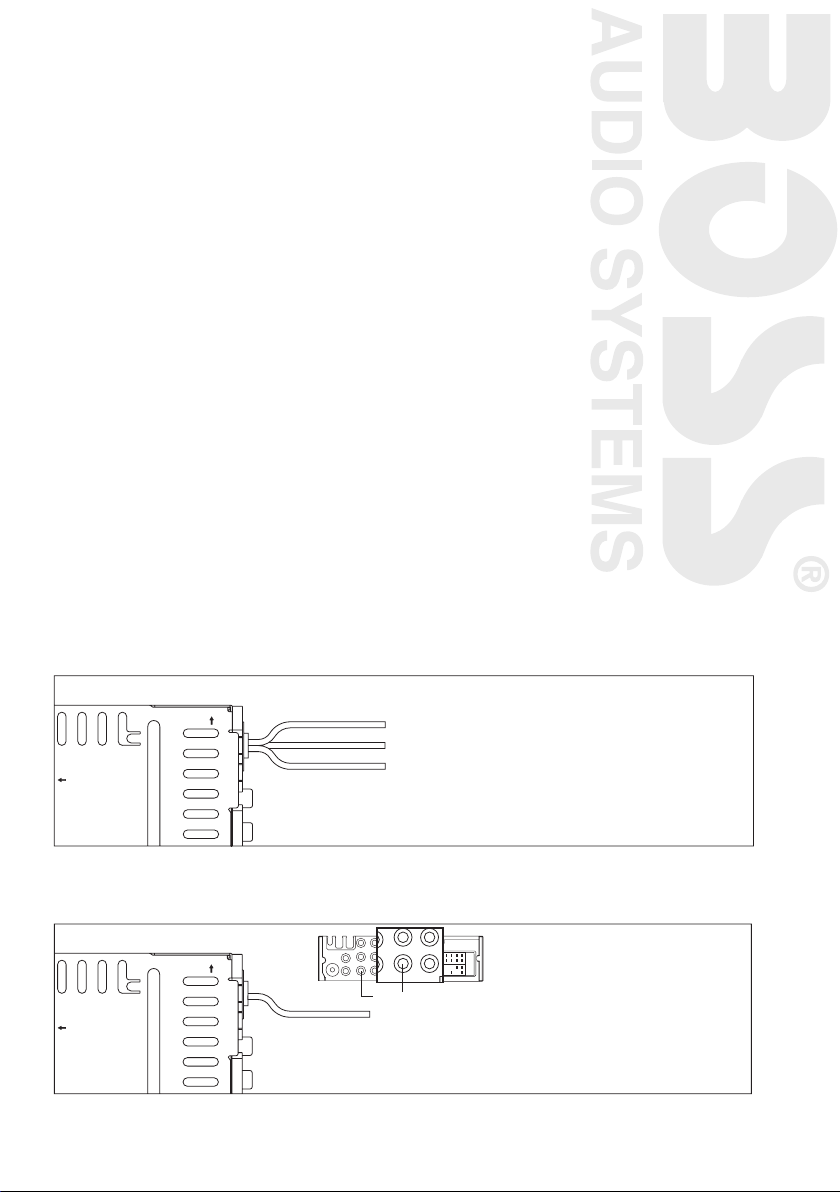

DRIVING WITHOUT VIDEO DISPLAY

Follow the installation below so when the car is in motion, no video will come out from the LCD screen.

Only sound can be heard from speaker.

Note:

- Only sound can be heard when car is in motion.

- Refer and follow your country’s law regarding driving with video.

Caution:

- Do not attempt to install it by yourself if the instruction is not clear to you. Consult you dealer con-

cerning the installation procedures.

INSTALLING REAR CAMERA FOR PARKING OR REVERSE MOTION

You can install a separate camera at the rear of the car so when doing parking or reverse motion, the

unit will automatically switch the video to the rear camera to guide the driver.

RESET

19 46 5 3 2 17 78 15 1011 16

RESET

19 46 5 3 2 17 78 15 1011 16

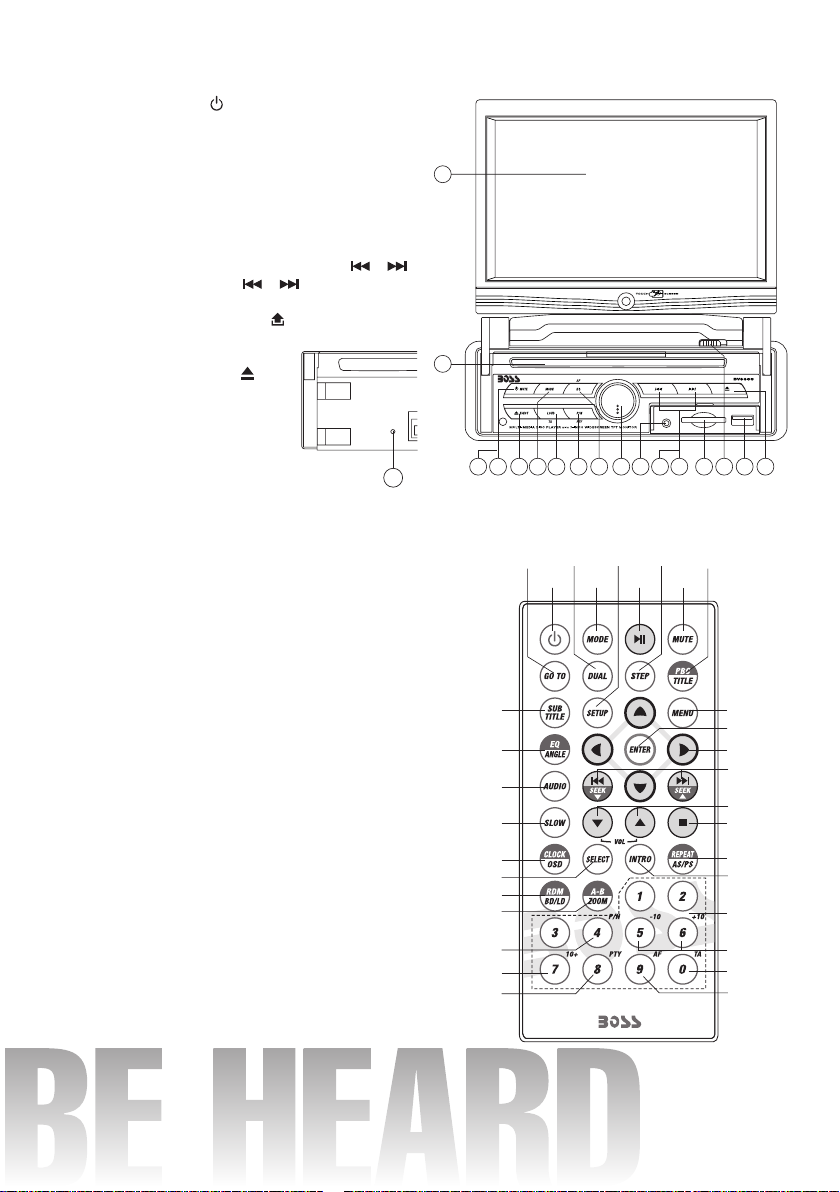

Locations of parts and controls (Main unit)

1. POWER ON/OFF ( )

2. SELECT FUNCTION BUTTON

3. EQUALIZER / ‘AF’ function BUTTON

(ALTERNATIVE FREQUENCIES)

4. LOUDNESS / ‘TA’ function BUTTON

(TRAFFIC ANNOUNCEMENT)

5. PAL / NTSC SYSTEM /

‘PTY’ function (PROGRAM TYPE)

6. MODE BUTTON (MODE)

7. DVD/CD TRACK / SEARCH BUTTON ( / )

8. AUTO SEEK TUNING ( / )

9. MUTE BUTTON (MUTE)

10. PANEL RELEASE BUTTON ( )

11. TFT DISPLAY PANEL RELEASE BUTTON

12. TFT-LCD DISPLAY

13. DISC EJECT BUTTON ( )

14. DISC SLOT

15. SD/MMC CARD SLOT

16. USB PORT

17. FRONT AUX IN

18. RESET BUTTON

8 14 2517 4

2 3 23

1118

Locations of parts and controls (Remote Control)

1. POWER ON/OFF

2. MODE

3. PLAY/PAUSE

4. TITLE / PLAYBACK CONTROL

5. SELECT

6. SEEK+/SEEK- / CD TRACK/SEARCH

7. VOL +/VOL-

8. GOTO

9. AUDIO

10. ENTER

11. NAVIGATION

12. AUTO SEEK / PRESET SCAN / REPEAT

13. RANDOM / BAND / LOUDNESS

14. DUAL

15. INTRO

16. SUBTITLE

17. SETUP

18. EQUALIZER / ANGLE

19. SLOW MOTION

20. ZOOM / A-B REPEAT

21. STOP

22. CLOCK / ON SCREEN DISPLAY

23. MUTE

24. MAIN MENU

25. STEP (FRAME BY FRAME PLAYBACK)

26. PAL / NTSC SYSTEM

27. PROGRAM TYPE

28. ALTERNATIVE FREQUENCIES

29. TRAFFIC ANNOUNCEMENT

30. 10 TRACK SEARCH DOWN/UP

31. TWO DIGIT TRACKS SEARCHS

32. KEYPAD

Use and care of the remote control

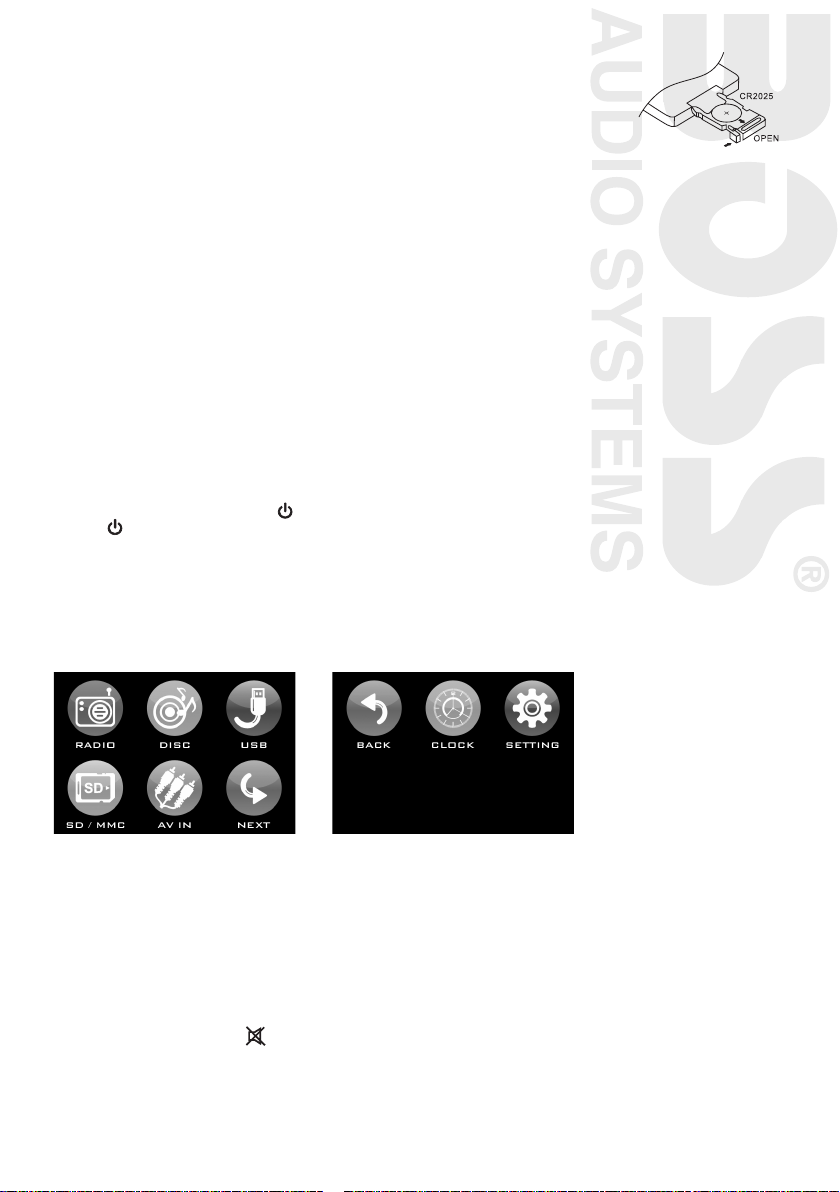

Installing the battery

Slide the tray out on back of the remote control and insert battery with the (+)

and minus (-) poles pointing in the proper direction.

• When use for the ﬁrst time, pull out the ﬁlm protruding the tray.

CAUTIONS

• Remove battery if the remote control is not used for a month or longer.

• Do not recharge, disassemble, heat or dispose the battery on ﬁre.

• Do not store battery with metallic materials.

• In the event of battery leakage, wipe the remote control completely clean and install a new

battery

• When disposing of used batteries, please comply with government regulations or environmental

public institution’s rule that apply in your country/area.

• Always check carefully that you are loading the battery with plus (+) and minus (-) poles facing the

proper directions.

Using the remote control

Point the remote control in the direction of the front panel to operate.

IMPORTANT

• Do not store the remote control in high temperatures or direct sunlight.

• Do not let the remote control fall onto the ﬂoor, where it may become jammed under the brake or

accelerator pedal.

GENERAL OPERATIONS

Turning the unit ON/OFF ( )

Press “ ” button to turn on unit. To turn oﬀ, press and hold the button again.

Calibrate Touch Screen

To start operation, Calibrate ﬁrst the touch screen monitor. On the main menu, touch SETTING ->

Calibrate Touch Screen will appear, then follow the instruction on the screen.

Main Menu

This is root of the screen hierarchy and you can simply access all features by tapping on the touch

screen buttons.

Selecting a source (MODE)

Press MODE repeatedly to switch between TUNER, DISC, USB, SD/MMC, AUX IN mode.

Adjusting Volume

• Head Unit: Rotate VOL knob right or left to increase or decrease volume.

• Remote Control: Press VOL+ or VOL- to increase or decrease volume.

Mute Button

• Head Unit: Press MUTE button to mute the sound at once. Press again to return to previous volume

level.

• Remote Control: Press button.

Loud Button (LOUDNESS)

• Head Unit: Press LOUD button to turn on/oﬀ LOUD feature.

• Remote Control: Press and hold LD button on remote control to turn on/oﬀ LOUD feature.

Equalizer (EQ)

Main Unit: On main menu, touch SETTINGS > EQ SETTINGS. Under Dsp-preset, select by touching

the desired EQ setting. On main unit, press the EQ button.

Remote: Press EQ button. Under Dsp-preset, select the desired EQ by pressing ( / ).

Subwoofer

Press EQ button to EQ setting, select SUBWOOFER On/Oﬀ by pressing ( / ).

CLOCK

To show clock, switch to

RADIO

mode and press CLK on remote control.

Tips: You can also touch the frequency no. on the screen to show the clock.

How to Set Clock

1. Press CLOCK on main menu

2. Press ( / ) to set the time.

3. Press X to save and exit.

DUAL SETTINGS

DUAL is a feature that lets user listen to radio while the passenger at the back can watch video.

This unit supports connection of external AV device such as portable TV through the AUDIO OUT

and VIDEO OUT port.

1. Connect the AUDIO OUT and VIDEO OUT port at the back of head unit to the LINE IN of external

AV device.

2. Press and hold MODE. Select DISC, USB or SD/MMC source.

3. Press DUAL key on remote control to select which mode you want to control.

T = TUNER, C = CARD, U = USB, D=DISC

Note: You will need to connect an external portable TV or monitor when using this feature.

VIEWING PHOTO

1. Insert disc, USB memory stick or SD/MMC card containing picture ﬁle format.

2. Using remote ( / ), select PHOTO function and press ENTER.

3. Using remote ( / ), select a ﬁle to view and press ENTER.

Note:

Press MENU on remote control to exit photo playback.

Press MENU on remote control will also go back one level or return to previous menu.

RESET

Reset button is placed on the housing. To reset, use a sharp point object and press and hold the

RESET button for 2 seconds.

The reset button is to be activated for the following reason:

• Initial installation of the unit when all wiring is completed.

• All the function buttons does not operate.

• Error symbol on the display.

LISTENING TO RADIO

Band (BD)

Pressing this key repeatedly will toggle cyclically between each band. FM1---FM2---FM3---MW(AM)1-

--MW(AM)2.

Automatic or Manual tuning (SEEK + / SEEK - )

When pressed short, these keys are operated as MANUAL tuning mode.

When pressed longer than 1 sec., they are operated as AUTOMATIC tuning mode.

Auto Seek/Preset scan (AS/PS)

Preset Scan (PS) - By pressing shortly, the radio plays each preset station for 5 seconds.

Auto Seek (AS) - By pressing longer than 1 sec, auto seek is activated. The 6 strongest stations are

preset and stored in the corresponding preset number. When Auto Seek operation is ﬁnished, the

radio executes the preset scan.

Indice

Altri manuali Boss Audio Systems Ricevitore per auto

Boss Audio Systems

Boss Audio Systems C-3040 Manuale utente

Boss Audio Systems

Boss Audio Systems 810DBI Guida utente

Boss Audio Systems

Boss Audio Systems BV7945B Manuale utente

Boss Audio Systems

Boss Audio Systems BV9348B Manuale utente

Boss Audio Systems

Boss Audio Systems BV9564BI Manuale utente

Boss Audio Systems

Boss Audio Systems BV9557 Manuale utente

Boss Audio Systems

Boss Audio Systems 840UBI Manuale utente

Boss Audio Systems

Boss Audio Systems BV7320 Manuale utente

Boss Audio Systems

Boss Audio Systems BV8967B Manuale utente

Boss Audio Systems

Boss Audio Systems BV9967B Manuale utente

Boss Audio Systems

Boss Audio Systems 812UAB Manuale utente

Boss Audio Systems

Boss Audio Systems BV9364B Manuale utente

Boss Audio Systems

Boss Audio Systems BVI9994 Manuale utente

Boss Audio Systems

Boss Audio Systems MR1315WUA Manuale utente

Boss Audio Systems

Boss Audio Systems CD-3190R Manuale utente

Boss Audio Systems

Boss Audio Systems 722CA Manuale utente

Boss Audio Systems

Boss Audio Systems 748UAI Manuale utente

Boss Audio Systems

Boss Audio Systems BV9980BT Manuale utente

Boss Audio Systems

Boss Audio Systems BV9358B Manuale utente

Boss Audio Systems

Boss Audio Systems BV9996B Manuale utente

Boss Audio Systems

Boss Audio Systems CD-3090R Manuale utente

Boss Audio Systems

Boss Audio Systems BV7200 Manuale utente

Boss Audio Systems

Boss Audio Systems BV9360B Manuale utente

Boss Audio Systems

Boss Audio Systems 870DBI Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
