Boss Audio Systems BV10.4FB Manuale utente
10
DC 12V
9W
10.4 TFT-LCD
4:3
1152*234
2 A/V RCA Inputs
(L)12.5 (W)12.3 (H)2.2inch
DC 12V
3W
Right 2.8MHz Left 2.3MHz
Active Matrix TFT
Power Requirements
Power Consumption
Screen Size
Screen Format
Resolution Pixel
A/V Inputs
Dimensions
IR Power Requirements
IR Power Consumption
IR Transmitter Frequency
LCD Panel Type
Compatible video standard
NTSC/PAL auto select
SPECIFICATIONS
Note : This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
2
9
USER S MANUALMONITOR OPERATION
Releasing the Monitor
Push the open button (located on the front edge of the screen housing)
and lower the monitor to the desired angle. You can also adjust the
swivel angle.
How to watch the monitor
POWER
POWER
UNIT
REMOTE CONTROLLER
1.Connect the monitor to the external devices.
2.Press the POWER button on either the remote control or the unit once to turn
the power on.
Press the same POWER button to turn the power off.
3.Turn on the external devices and view.
PUSH BUTTON
PRECAUTIONS 4
6
9
9
9
INSTALLATION 5
FEATURES AND CONTROLS
A/V AND POWER CONNECTIONS 8
MONITOR OPERATION
Releasing the Monitor
How to watch the Monitor
SPECIFICATIONS 10
,
3
8

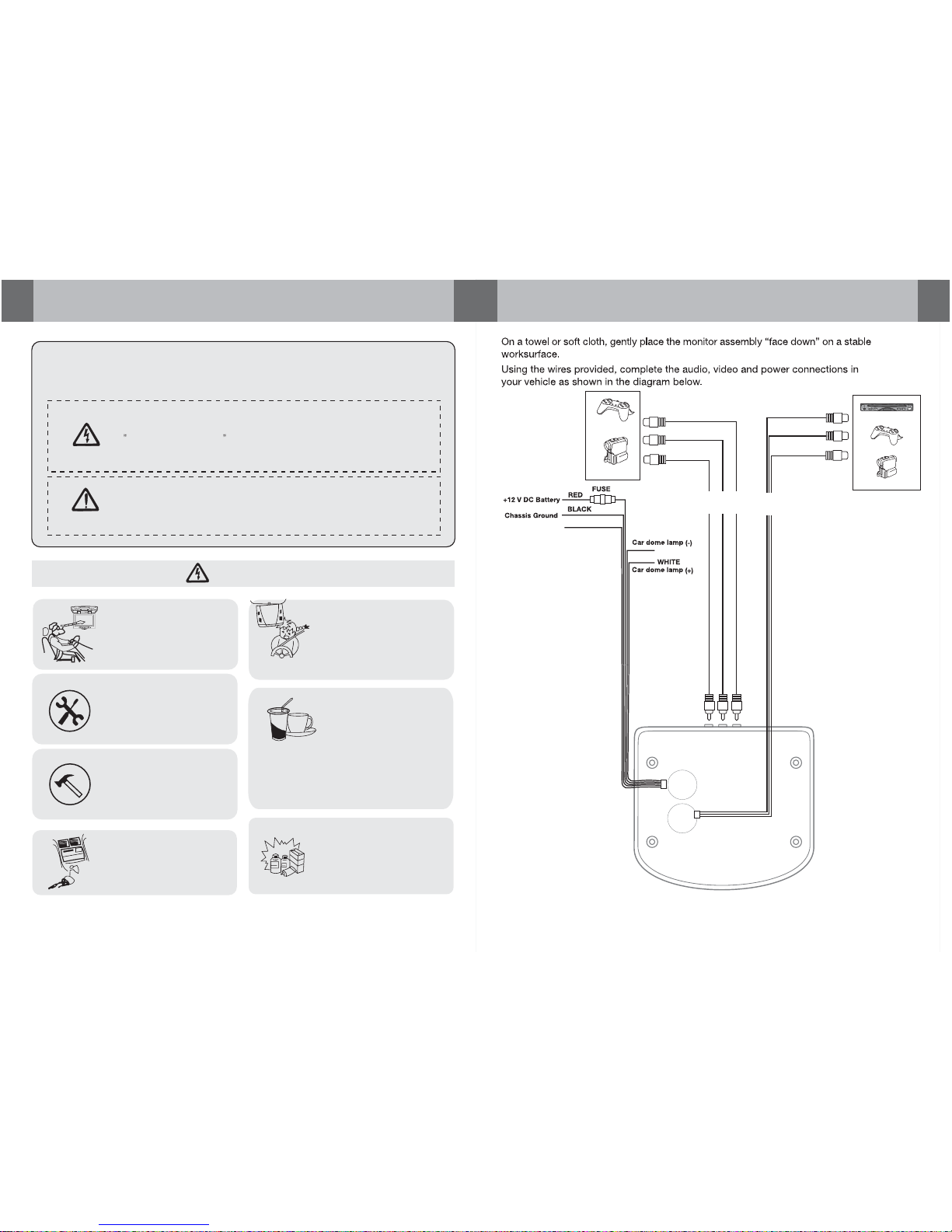

A/V AND POWER CONNECTIONS
PRECAUTIONS
Please read and observe all warnings and instructions in this owner s manual
and those marked on the unit. Retain this booklet for future reference.
There are two kinds of alarm symbols as follows:
WARNING
WARNING
CAUTION
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of
dangerous voltage within the product s enclosure that may be
of sufficient magnitude to constitute a risk of electric shock to
people.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the product.
Installation of all TV monitors
must be out of the drivers
field of vision.
Do not try and service these
products yourself. Seek only
a qualified service center or
factory service center.
Be careful not to drop or apply
pressure to the front panel of
your video monitor. If the screen
cracks due to misuse, your warranty
will be void!
Do not mount the product where
it will obstruct the deployment of
the airbag or in an area where it
would affect the vehicular control.
Also be careful to avoid mounting
the product where it can become
hazardous during sudden stops or
in the event of an accident.
Be careful not to overload your
cigarette lighter plug by adding
more than one device at a time.
Use extra caution with any liquids
in your car. If you or your child
spills any liquid on these products,
pull your vehicle to the roadside
and turn the key off to disconnect
or wipe the products with a towel. Do not
operate the equipment until all liquids have
either evaporated or you have had the monitor
inspected at a service center by a qualified
technician, Severe harm or danger can occur.
Use only a damp cloth to clean
the screen and use only purified
water on the cloth. Wring out all
excess water prior to wiping the
screen. Do not use any cleaners
or chemicals to clean the screen.
In most cases a dry cloth will do!
P
OWER
A
V
MEN
U
,
,
CAMCORDER
GAME
White AUDIO(L)
Red AUDIO(R)
Yellow VIDEO
CAMCORDER
GAME
White AUDIO(L)
Red AUDIO(R)
Yellow VIDEO
YELLOW
ACC
AV Input
(AV 2) (AV 1)
AV Input
DVD PLAYER
R
MENU
VIDEO
GREEN
7
FEATURES AND CONTROLS
PRECAUTIONS
Quality installations are best
performed by qualified and
certifled installers.
Don t touch the unit if there is
a flash of lightning. It may
receive an electric shock.
Do not cover heater ducts or vents.
This may cause a fire or an electric
shock.
Watching the monitor for an
extended period of time
with the engine turned off
may deplete the vehicle s
battery.
This product is designed for
operation with a 12 Volt DC,
negative ground vehicle. It
is not suitable for operation
under other conditions or
voltages.
1. The operating temperature of this product is limited to 14 F~140 F
(-10 C~60 C).
Your vehicle can reach temperatures up to 100 C in the summertime.
2. When your vehicle is extremely hot or cold you must allow time for your air
conditioner or heater to cool or heat the vehicle and for operating temperatures
to return to normal operating ranges. Your monitor will return to its normal
functions when these operating ranges are achieved.
3.Optimum picture quality is achieved when you are directly in front of the monitor
(+/-45 degrees).
CAUTION
Check Point

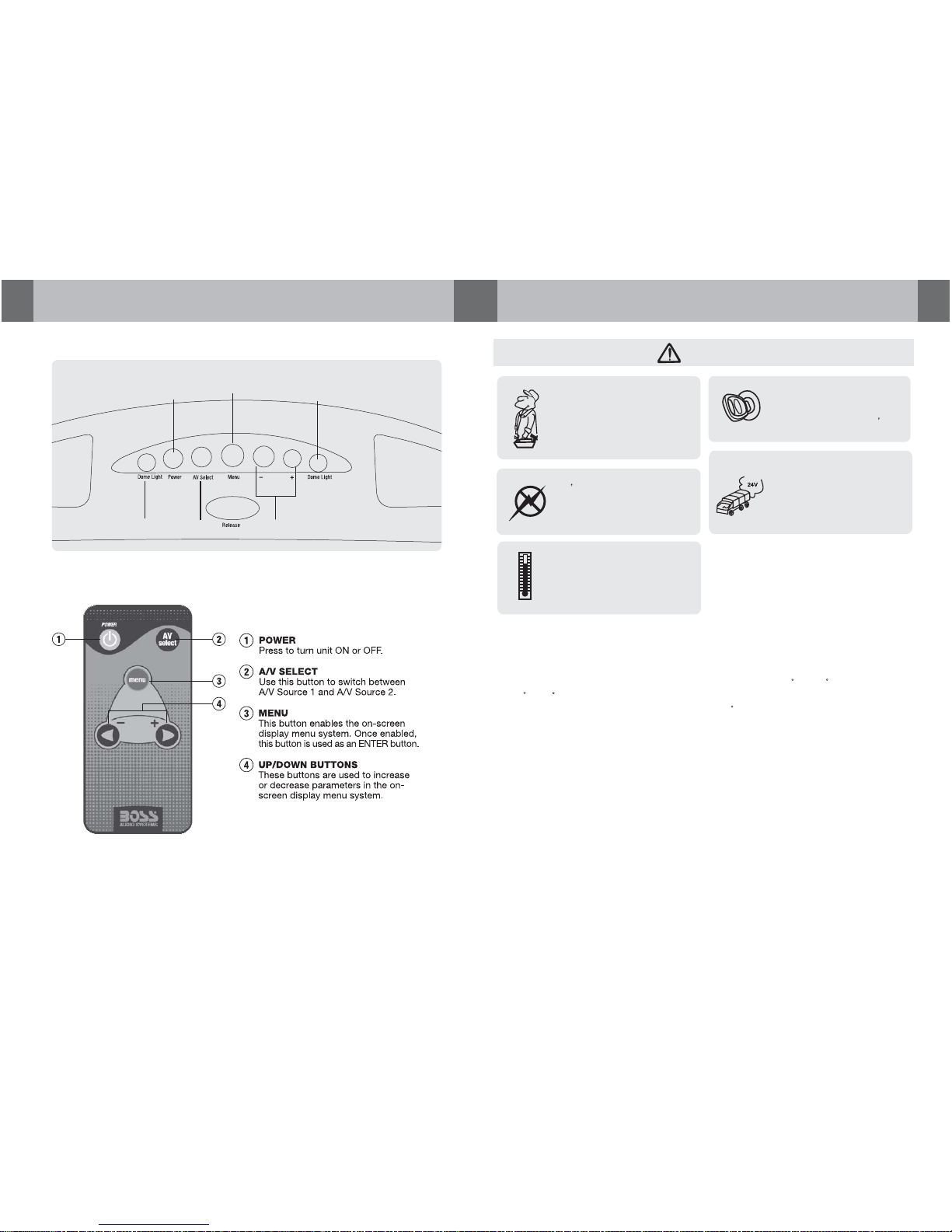

4
Left Dome Light Button
POWER Button
A/V select
Button
MENU Button
Up/Down button
Right Dome Light Button
56

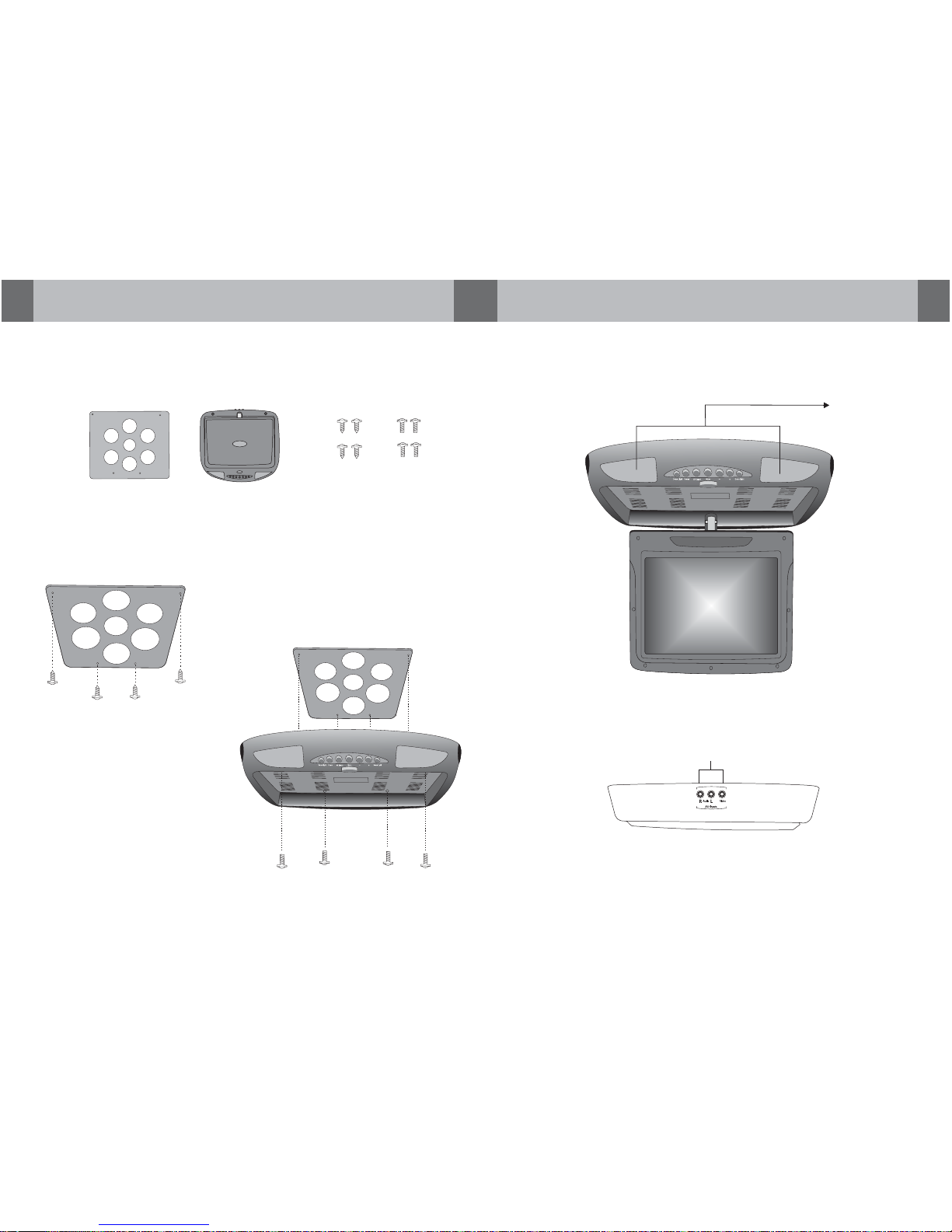

INSTALLATION FEATURES AND CONTROLS
1.Open the packaging and check that these parts are present.
INSTALLATION PLATE UNIT SCREW A SCREW B
2.Connect the external devices RCA cable or AV output as reguired. Refer to the
connection diagram on page 8 for details.
3.Match the position of installation bracket and
installation plate with screw A.
4.Secure the unit in place with the supplied
screw B.
AUX Input Jack
Dome light
Monitor
(Front)
Monitor
(Rear)
