Boss Audio Systems BV9370B Manuale utente

0519

System setting 8

Audio Setting 9

Media Setting 9

BT Setting 10

Time Setting 11

display Setting 11

Touch Setting 12

Version setting 13

Remote Control Operation

Specifications

Safty notice

Unit Installation

Wires Connection Description

Bluetooth Dialing

Bluetooth Call

Bluetooth Phone Call Log

Bluetooth Phonebook

Bluetooth Music

Bluetooth Device

Phone-Bluetooth Operation Menu 5

Congratulations on your purchase of a Boss Audio Systems

Multimedia Receiver.

It has been designed, engineered and manufactured to bring you

the highest level of performance and quality, and will offer you

years of entertainment pleasure.

Tuner

Camera/Aux in

USB/SD Playback-Audio/Video/Photo

BV9370B

6.5

Front,

100*178*132mm

871.5g/1.92Ibs

JPG

Format Video code Audio code

Please read and understand the following safety information before operating this unit.

The device is suitable for 12V power supply (requires grounding).Do not connect

it to 24V power supply in trucks or buses, or else it will be damaged.

Please use genuine discs instead of incompatible discs, or it will damage the

device and/or shorten the service life.

Without the guide of qualified personnel, do not replace the fuse, or else it may

damage the device or cause fire.

Please follow the traffic laws and regulations and do not watch programs or

operate the device when you are driving, to avoid accidents(excluding passengers

watching through rear monitor).

To ensure safety and operate the device normally, please ask qualified personnel

to install the device. Do not disassemble or repair the device without authorization,

to avoid damage and accidents. please contact a local car audio distributor

for details.

Do not put the device in a moist environment or water, to avoid electric shock,

damage and/or fire due to a short circuit.

The mechanicl drive part of the monitor uses an automatic precision transmission

component.Do not pull,push or rotate the device by force or impact the TFT

screen to avoid damaging the device.

Do not insert the audio plug of the vehicle into the master unit directly. Please

convert with the dedicated end cable provided by our company.

When installing the unit, prevent metal objects from falling into the master unit

from the vents to avoid a short circuit and damaging the device.

Safety Statement

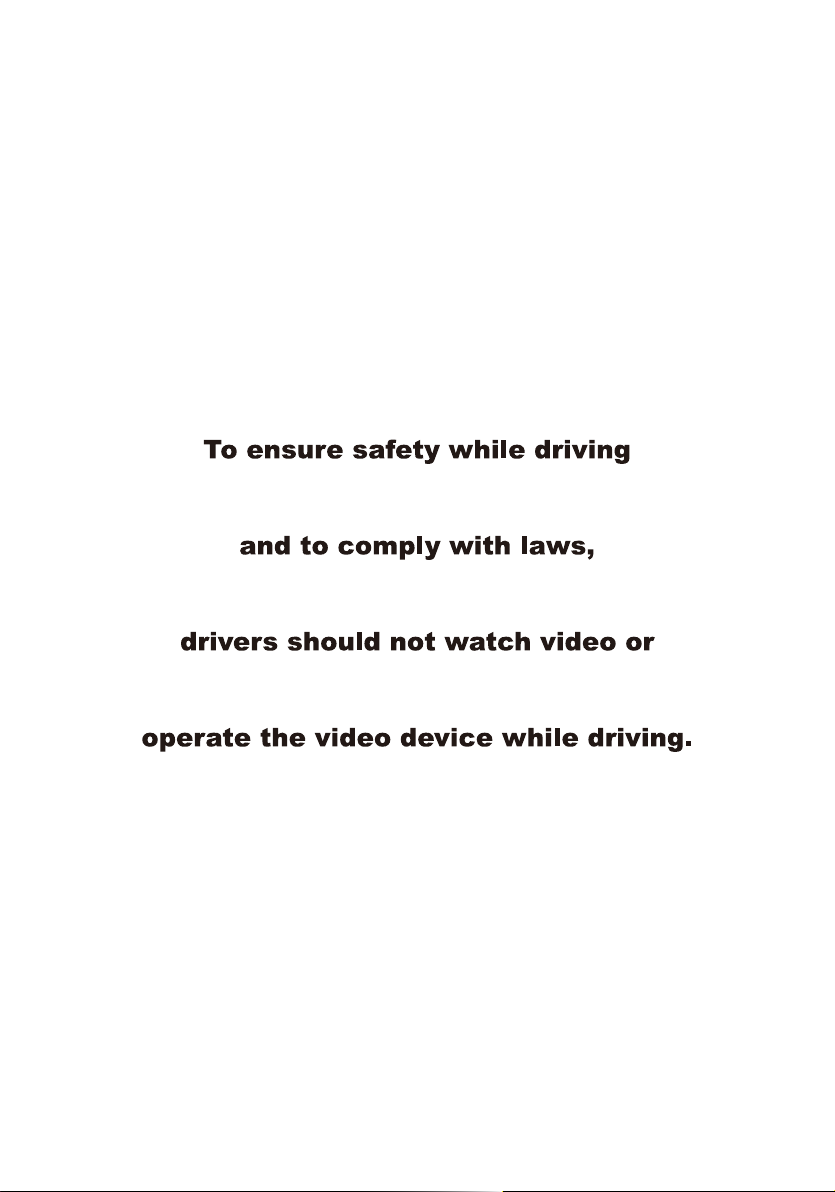

For the safety of yourself and others, do not watch programs or operate the device

when you are driving. It is prohibited by law.

The back up monitor function should be used as an auxiliary view only. We are not

responsible for any accidents occurred during backing.

Qty 1 Remote control

Qty 1 Mounting Hardware Set

- Brackets (2)

- M5 x 6mm screws (8)

Qty 1 Trim ring

Qty 1 Power cable

1.Put the 2 brackets to the left and right side of the unit;

2.Use screws to fix the brackets to the unit.

3. Once the screws are attached, the brackets can be adjusted

forward or aft depending on the installation requirements.

Bracket

Screw

UNIT INSTALLATION

ACCESSORIES

1.TURN ON/OFF

Press to turn on or turn off the unit.

2.MUTE

Press to mute the unit ,press

again to restore the volume.

3.MENU

Press to return to the home menu.

4.MODE

Press to change mode.

5.Direction and OK

Press to select previous/next

one under Video, Audio, Picture list

menu, press ok to confirm.

6.SEARCH

Press to automatic search under

Tuner mode.

Tuner mode: long press to search backward, short press to auto

search backward

when bluetooth is calling in ,long press to receive call.

bluetooth mode: called out ,then hang up ,long press again to

call out.

Tuner mode: long press to search forward, short press to auto

search forward

when bluetooth is calling in ,long press to hang up.

9.VOLUME UP/DOWN

Press to adjust the volume up and down.

WIRES CONNECTION DESCRIPTION

The Description of the Input/Output Interface

Pre-Amp Outputs

AM/FM

Antenna

SUB

RL RR

F-CAM R-CAM V-OUT

RADIO

A/V Input

Main

Harness

Power

Yellow................................... Constant (+12v)

Red..................................... Accessory (+12v)

Black.............................................. Ground (-)

Orange..................... Illumination Input (+12v)

Violet/Wht..................... Reverse Input (+12v)

Blue.................... Ant. Output (+12v, 500 mA)

Blue/Wht........... Rem. Output (+12v, 500 mA)

Lt.Green......................... Parking Brake Input

Control

3.5mm........................................... SWC Input

Speaker Outputs

White......................................... Left Front (+)

White/Blk.................................... Left Front (-)

Gray......................................... Right Front (+)

Gray/Blk................................... Right Front (-)

Green......................................... Left Rear (+)

Green/Blk.................................... Left Rear (-)

Purple...................................... Right Rear (+)

Purple/Blk................................. Right Rear (-)

Camera Power

Red/Violet......... (+12v, 500 mA)

Red/White......... (+12v, 500 mA)

1. BACK :

Back to previous source

2. MENU:

Press to return to the home menu

3. MODE:

Press to change mode.

5.Open to see SD lot,USB port ,AUX IN jack and reset key .

1.Press to go into main menu 2.

2.Tuner Interface

3.Streaming Interface

4.Phone Interface

5.USB Interface

6.Front Camera Interface

7.Rear Camera Interface

8.Aux In Interface

9.SD Interface

10.Setting

8 9

MAIN MENU OPERATION INSTRODUCTION
