Owner’s Manual

Panel DescriptionsMain Features

1 2 3 4 65

7 8

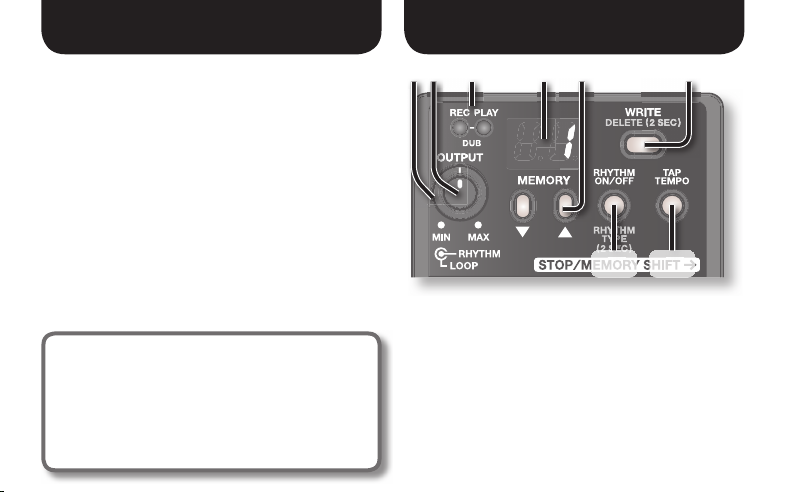

1. [OUTPUT LOOP] knob

This adjusts the volume level of the loop phrase being played back.

* This knob does not adjust the input level of the INPUT and

AUX IN jacks.

2. [OUTPUT RHYTHM] knob

This adjusts the volume level of the rhythm sound (p. 12).

Welcome to the Loop Station!

The RC-3 is a pedal-type recorder that lets you record audio phrases

from your guitar or bass, and play them back by operating the

pedal. You can create a wide variety of performances by layering

sound while you record and carry out play back in real time.

• It’s easy to create loop phrases.

• Up to 99 di erent loop phrases can be saved in phrase memory,

for a total of approximately 3 hours (* total for all phrases).

• You can input audio in stereo.

• Sound from a digital audio player connected to the AUX IN jack

can easily be recorded.

• Recorded phrases can be copied via USB to your computer, or

WAV  les from your computer can be loaded into the RC-3 and

played back as loops (p. 14).

Before using this unit, carefully read the sections entitled:

“USING THE UNIT SAFELY” and “IMPORTANT NOTES” (supplied

on a separate sheet). These sections provide important

information concerning the proper operation of the unit.

Additionally, in order to feel assured that you have gained a

good grasp of every feature provided by your new unit, this

manual should be read in its entirety. The manual should be

saved and kept on hand as a convenient reference.

Panel Descriptions

English Deutsch Français Italiano Español Português Nederlands

3. REC, PLAY (DUB) indicator

This lights during recording, playback, and overdubbing.

Indicator Explanation

REC (red) During recording

PLAY (green)

During playback (while loading phrase memory,

or during an internal memory operation: blinks

rapidly)

Both During overdubbing

4. Display

This indicates the current phrase memory number, or various other

information (p. 20).

5. [ ] (DOWN) / [ ] (UP) buttons

These decrement or increment the number shown in the display.

6. [WRITE] button

Press this to save the recorded phrase to internal memory (p. 8).

7. [RHYTHM ON/OFF] button

This button turns the rhythm sound on/o (p. 12).

8. [TAP TEMPO] button

Press this button at the desired timing to set the tempo (p. 12).

9. Pedal Switch

This pedal switches you between phrase recording, overdubbing,

and playback. Press the pedal twice in succession to stop playback

(p. 6).

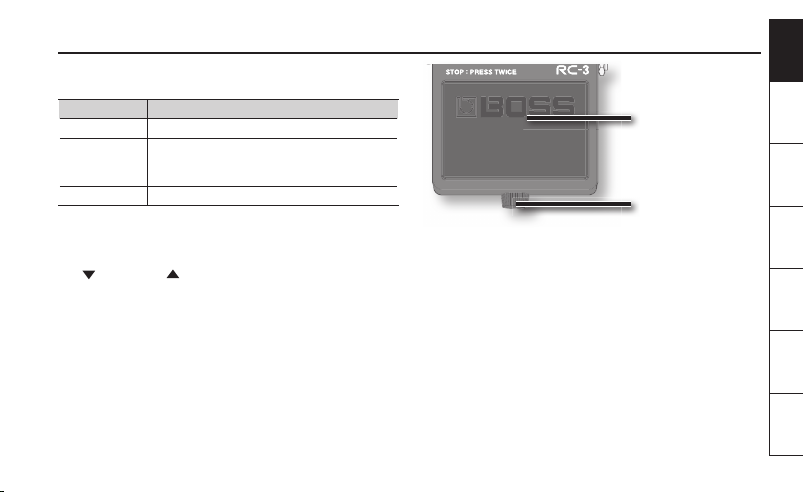

10. Thumbscrew

When this screw is loosened, the pedal will open, allowing you to

change the battery.

* If you’re using the RC-3 only on a battery, the display will

indicate “bt” when the battery runs low. Replace the battery

as described on p. 22.

* A battery was installed in the unit before it left the factory.

The life of this battery may be limited, however, since its

primary purpose was to enable testing.

USB connector

You can use a commercially available

USB cable to connect the RC-3 to your

computer, and use the computer to read/

write RC-3 phrases (WAV  les) (p. 14).

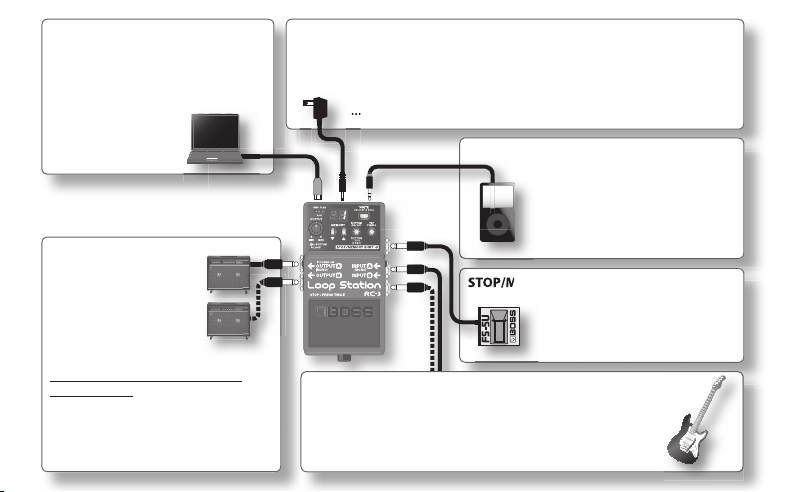

DC IN jack

Accepts connection of an AC Adaptor (PSA series; optional). By using an AC Adaptor, you

can play without being concerned about how much battery power you have left.

* Use only the speci ed AC adaptor (PSA series), and connect it to an AC

outlet of the correct voltage. Do not use any other AC adaptor, since this

may cause malfunction.

AUX IN jack

Use a stereo mini-plug cable to

connect your audio player here.

By using the Auto recording function

(p. 11), you can start recording the

moment your audio player begins

playback.

OUTPUT A/B jacks

Connect these jacks to your

amp or monitor speakers.

If your system is monaural,

use only the OUTPUT A jack.

Sound that was input in

stereo will also be output

monaurally.

The OUTPUT A jack also operates as

a power switch. The power will be on if

a plug is inserted in the OUTPUT A jack.

Remove the plug when you’re not using

the RC-3.

may cause malfunction.

AUX IN jack

STOP/MEMORY SHIFT jack

You can connect a separately available

foot switch (FS-5U, FS-6) here, and

use it to stop playback or to switch

phrases (p. 16).

INPUT A/B jacks

Connect your guitar, bass, or e ects unit to these jacks.

Use the INPUT A jack and INPUT B jack when connecting a

stereo-output e ects unit. Use only the INPUT A jack if you’re using

a monaural source.

STOP/MEMORY SHIFT jack

English Deutsch Français Italiano Español Português Nederlands

NOTE

* To prevent malfunction and/or damage to speakers

or other devices, always turn down the volume, and

turn o the power on all devices before making any

connections.

* Before connecting or disconnecting any connection

cables, be sure all the volume controls in your system

are set to minimum.

* Use connection cables that do not contain a built-in

resistor. If you use cables that contain a resistor,

there might be insuﬃ cient volume from the device

connected to the AUX IN jacks, or it might be inaudible.

* Do not connect headphones to the OUTPUT jack.

Doing so may damage the headphones.

Turning On the Power

Inserting a connecting plug into the OUTPUT A jack turns on the

power to the unit.

Once the connections have been completed, turn on power to

your various devices in the order speci ed. By turning on devices

in the wrong order, you risk causing malfunction and/or damage to

speakers and other devices.

When powering up

Turn on the power to your guitar amp last.

When powering down

Turn oﬀ the power to your guitar amp  rst.

* This unit is equipped with a protection circuit. A brief interval

(a few seconds) after power up is required before the unit will

operate normally.

Español

Português

Caution when turning oﬀ the power

While the RC-3 is in the following states, you must never

turn oﬀ the power (i.e., disconnect the plug from the

OUTPUT A jack).

Doing so may cause all the saved data to be lost.

• While the REC or PLAY indicator is lit

(during recording/playback/overdubbing)

• While the PLAY indicator is blinking rapidly

(while phrase memory is being read, or an internal

memory operation is occurring)

Basic Operation

Selecting a Phrase Memory

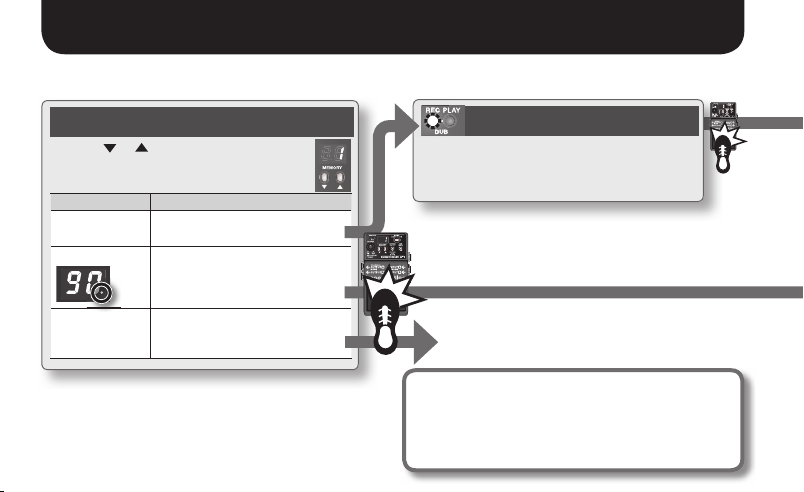

Use the [ ] / [ ] buttons to select a

phrase memory (1–99).

Display Explanation

Only number

displayed

Empty phrase

Press pedal to start recording

Dot in lower right Phrase containing data

Press pedal to start loop playback

Number and

“oS” displayed

alternately

One-shot phrase

Press pedal to play phrase only once

(not loop)

To perform recording, overdubbing, and playback, press the pedal as shown in the diagram.

Refer to”Saving a Phrase for One-Shot Playback” (p. 10).

Recording

Record your guitar or bass performance, or

the sound from an audio player connected

to the AUX IN jack.

• Auto recording (p. 11) lets you start recording the

moment you begin performing.

• You can also record along with rhythm sounds (p. 12).

• When shipped from the factory, phrases 90–99 contain

demo phrases.

“Recording” versus “Overdubbing”

In this manual, we refer to the act of recording to an empty

phrase for the  rst time as “recording.” Any subsequent

recordings that are made, which are added on top of the

existing recording, we refer to as “overdubbing.”

Basic Operation

English Deutsch Français Italiano Español Português Nederlands

Deutsch

Français

Italiano

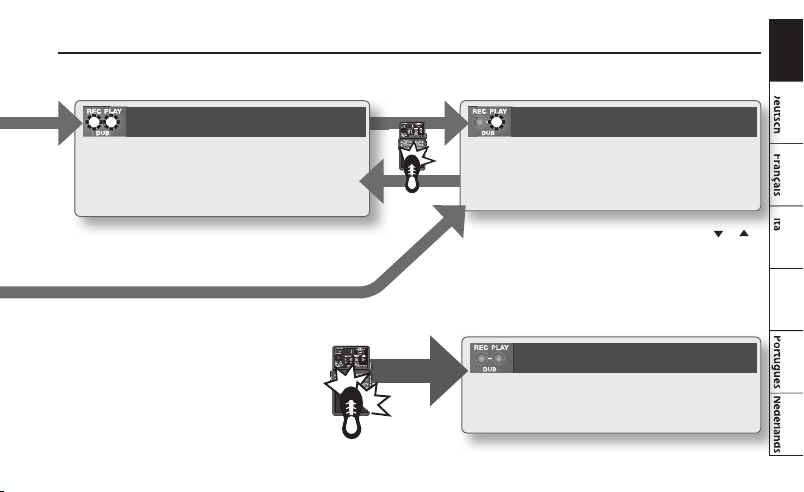

Loop Playback

Play back phrases as loops.

Pressing the pedal switches the unit to

overdubbing.

Português

Nederlands

Stop

During overdubbing or loop playback, you

can stop by pressing the pedal twice in

succession.

Overdubbing

Layer your performances while the phrase

plays as a loop.

Pressing the pedal switches the unit to

playback.

Press twice

• You can Undo and Redo (p. 10). • To use the Memory Shift function, press the [ ] / [ ]

buttons while a phrase is playing; the phrase memory

number will blink, allowing you to select the next

phrase (p. 17).

• Press the pedal twice within one second.

Basic Operation

NOTE

* While phrase memory is being read, the

PLAY (green) indicator will blink rapidly.

Never turn o the power while the PLAY

indicator is blinking rapidly.

* The minimum recording time for a loop phrase is

approximately 1.5 seconds. If you press the pedal

within approximately 1.5 seconds after you start

recording, recording will continue until the phrase is at

least approximately 1.5 seconds long.

* The maximum recording time for a loop phrase is

approximately 3 hours (total for all phrases). When

the maximum recording time is exceeded, the display

will show “FL” to indicate that internal memory is full,

and recording or overdubbing may end before you

intended. If this occurs, delete unneeded phrases (p. 9)

and then try the operation again.

* If you use the Memory Shift function before saving a

phrase, that phrase will be erased. For details on how

to save a phrase, refer to p. 8.

Saving a Phrase

If you select a di erent phrase memory or turn o the power after

recording or overdubbing, the phrase you recorded will be lost. If

you want to keep the phrase, you must save it.

1. While playback is stopped, press the [WRITE] button.

The display will indicate “ ” (wr).

2. Use the [ ] / [ ] buttons to specify the save-

destination phrase memory.

You can skip this step if you want to save to the currently

selected phrase.

You can’t select a phrase memory in which a phrase has already

been saved.

The maximum recording time is a total of approximately 3 hours

for all phrases (including the phrase that has not been saved).

If the phrase cannot be saved because there is insuﬃ cient

free memory, the display will indicate “FL” alternately with the

phrase memory number. In this case, delete unneeded phrases

(p. 9) and then try the operation again.

3. Press the [WRITE] button once again; the phrase will

be saved.

If you decide not to save the phrase, press the [TAP TEMPO]

button, the [RHYTHM ON/OFF] button, or the pedal.

Basic Operation

English Deutsch Français Italiano Español Português Nederlands

While the phrase is being saved, the number in the display and

the PLAY indicator will blink rapidly.

NOTE

* Never turn o the power while the PLAY indicator is

blinking rapidly. This may cause all saved data to be

lost.

* Please be aware that the contents of memory can

be irretrievably lost as a result of a malfunction or

improper operation of the unit. You should back up

important data as described in “Backing up to your

computer” (p. 14).

* All due care is taken during repairs to avoid the loss

of data. However, in certain cases, such as when there

is damage to the memory, it may not be possible to

restore the data.

* Unfortunately, it may be impossible to restore the

contents of data that was stored in the unit’s memory

once it has been lost. Roland Corporation assumes no

liability concerning such loss of data.

Deleting a Phrase

* This device contains demo phrases (90–99). Once you delete

these, they cannot be recovered. Please back them up as

described in “Backing up to your computer” (p. 14).

1. Use the [ ] / [ ] buttons to select the phrase

memory that you want to delete.

2. While playback is stopped, hold down the [WRITE]

button for at least two seconds.

The display will indicate “dL.”

* At this point, you can’t change the phrase memory number

that will be deleted.

3. Press the [WRITE] button to delete the phrase.

If you decide not to delete the phrase, press the [TAP TEMPO]

button, the [RHYTHM ON/OFF] button, or the pedal.

While the phrase is being deleted, the number in the display

and the PLAY indicator will blink rapidly.

* Never turn o the power while the PLAY indicator is blinking

rapidly. This may cause all saved data to be lost.

Basic Operation

Saving a Phrase for One-Shot Playback

One-shot playback will play the phrase once from the beginning to

the end, and then stop automatically.

1. Hold down the [TAP TEMPO] button and press the

[WRITE] button.

The display will indicate “oS.”

2. Use the [ ] / [ ] buttons to specify the save-

destination phrase memory.

3. Press the [WRITE] button once again; the phrase will

be saved as a one-shot phrase.

If you decide not to save the phrase, press the [TAP TEMPO]

button, the [RHYTHM ON/OFF] button, or the pedal.

* Overdubbing is disabled when one-shot playback is in eect.

If the pedal is pressed during playback of the phrase, the

phrase starts playing from the beginning again (retrigger

playback).

* You need to save the phrase over again in order to cancel

one-shot playback (return to loop playback). (p. 8)

* If you want to stop a One-Shot phrase while it is playing back,

press the pedal twice within a period of 0.5 seconds.

Cancelling an Overdub (Undo/Redo/Clear)

You can undo/redo/clear by holding down the pedal for at least

two seconds.

Operation

Display

Explanation

Undo Un

Hold down the pedal for at least two

seconds during playback or overdubbing;

the recording or the most recent

overdubbing will be cancelled.

Redo rE

If you want to restore the cancelled sound,

hold down the pedal for at least two seconds

while playback once again.

* Redo is only available for overdubbing.

Clear CL

Hold down the pedal for at least two

seconds while stopped; the current phrase

will be cleared. (Clear is temporary; phrases

saved in phrase memory will not be deleted.)

During Undo/Redo, the PLAY and REC indicators will blink rapidly.

During Clear, the PLAY indicator will blink rapidly.

Altri manuali per RC-3 Loop Station

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali BOSSCO Pedale musicale

BOSSCO

BOSSCO Drive Zone OD-20 Manuale utente

BOSSCO

BOSSCO ME-50 Manuale operativo e di manutenzione

BOSSCO

BOSSCO Chromatic Tuner TU-15 Manuale utente

BOSSCO

BOSSCO PSM-5 Power Supply & master switch Manuale utente

BOSSCO

BOSSCO ME-8 Manuale operativo e di manutenzione

BOSSCO

BOSSCO Foot Volume FV-500H Manuale utente

BOSSCO

BOSSCO CEB-3 Bass Chorus Manuale utente

BOSSCO

BOSSCO BCB-60 Manuale utente

BOSSCO

BOSSCO BD-2 Blues Driver Manuale utente

BOSSCO

BOSSCO GX-700 Manuale utente

BOSSCO

BOSSCO FV-50L Manuale utente

BOSSCO

BOSSCO LS-2 Manuale utente

BOSSCO

BOSSCO Acoustic Simulator AC-2 Manuale utente

BOSSCO

BOSSCO DD-8 Manuale utente

BOSSCO

BOSSCO FDR-1 Manuale utente

BOSSCO

BOSSCO ME-70 Guida all'installazione

BOSSCO

BOSSCO AW-3 Dynamic Wah Manuale operativo e di manutenzione

BOSSCO

BOSSCO DD-3 Digital Delay Manuale utente

BOSSCO

BOSSCO AW-3 Dynamic Wah Manuale utente

BOSSCO

BOSSCO Fuzz FZ-3 Manuale utente

BOSSCO

BOSSCO PN-2 Tremolo/Pan Manuale utente

BOSSCO

BOSSCO NS-1X Manuale utente

BOSSCO

BOSSCO FV-50L Manuale utente

BOSSCO

BOSSCO MD500 Manuale utente

Manuali Pedale musicale popolari di altre marche

Behringer

Behringer ULTRA WAH UW300 Manuale utente

Whirlwind

Whirlwind oc-bass Manuale utente

Strymon

Strymon Lex-rotary Manuale utente

Behringer

Behringer PB600 Manuale utente

Lexicon

Lexicon MX200 Manuale utente

Dunlop

Dunlop Hendrix 68 Shrine Octavio Fuzz Series Manuale utente

Matthews Effects

Matthews Effects Whaler V2 Manuale utente

Grid 1

Grid 1 Pedal Jeanie Manuale utente

Amptweaker

Amptweaker tightboost Manuale utente

Ibanez

Ibanez TS-808 Tube Screamer Overdrive Pro Manuale utente

PuzzleSounds

PuzzleSounds DR. Q ENVELOPE FILTER Manuale utente

BYOC

BYOC Analog Chorus Manuale

Dimavery

Dimavery EPVP-50 Manuale utente

Tefi Vintage Lab

Tefi Vintage Lab GEGÈ Manuale utente

Pro-MIDI

Pro-MIDI G25 Manuale utente

DW 7000 Manuale utente

FAMC

FAMC Liquid-Foot Jr. Series Manuale utente

Dimavery

Dimavery EPOD-50 Overdrive Manuale utente
