USER GUIDE
ProColor Series 3
interactive flat panel
Note
:
The pictures in this manual are for reference only and subject to our available products.
Contents
Safety Warning ................................................................................................................... 1
FCC Statement ................................................................................................................... 3
FCC Warning ...................................................................................................................... 3
Control Panel ...................................................................................................................... 4
Connection and Setting ...................................................................................................... 9
Menu Operation ............................................................................................................... 12
Simple Troubleshooting ................................................................................................... 18
Maintenance .................................................................................................................... 20
Safety Warning
BOXLIGHT.COM
1
Safety Warning
Before operating, please read this manual thoroughly and keep it for future reference.
Images shown in this manual are indicative only. There may be differences between the
pictures and the actual product, so please prevail in kind.
Placement
Do not put heavy objects on top of the unit.
Do not put the unit near appliances that generate magnetic fields.
Do not expose the unit to direct sunlight and other sources of heat.
Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf.
Do not put any liquid near or on the unit, and make sure to not spill any liquid inside the
unit.
Power Supply
Please keep the power cable from physical or mechanical damage.
Please check and ensure AC source is connected with the ground.
The power cable comes with the device and is exclusively for this device.
Please unplug power supply when there is thunder or lightning outside.
Check that the unit’s operating voltage is identical with your local power supply.
Please use the original power cable from the accessory bag—don't modify or lengthen
this cable.
Please unplug the power supply when there is nobody home or if the unit will be idle for
a long time.
LED Screen
Unplug the power cable before cleaning.
Clean the screen with a soft, dustless, and dry cloth.
For a deep clean, please contact an authorized service center.
Never use water or spray detergent to clean the unit.
Never use any other hard or sharp object to replace the touch pen.
For optimal panel lifetime and display performance, do not display high brightness
images for lengthy periods of time.
Temperature
Normal operating temperature is 0 ~ 40°C.
Do not place the unit near or over a radiator or a heater.
If your unit is suddenly moved from a cold place to a warm place, please unplug the power
cable and do not turn it on at least two hours, making sure any moisture inside the unit
has completely evaporated.
Humidity
Do not expose the unit to rain or place in an area of high humidity.
Please make sure the indoor environment is dry and cool. Normal operating
humidity is 10%~90%RH.
Safety Warning
BOXLIGHT.COM
2
Ventilation
Please put the unit in a well-ventilated place so the heating can be released easily.
Ensure that the unit has enough space for ventilation. Space requirement: left, right,
and back >10cm, top> 20cm.
Earphone
Before using earphones, please turn down the volume.
Using the earphones to listen to loud sounds for a long time may affect hearing.
Standby
It will enter standby mode, but not turn off the unit, after pressing the standby key.
Battery
Please make sure the battery is properly disposed of or recycled after
using.
Please keep the battery away from kids and don't throw the battery into fire.
Notes for Cleaning
There are vents on back cover—please do not use any liquid or spray directly during
cleaning.
Power Switch Status Signs
I means power on, O means power off.
Notes for Maintenance
This machine can only be maintained by a certified engineer.
FCC Statement
BOXLIGHT.COM
3
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC Statement
BOXLIGHT.COM
4
Control Panel
1. Prepare to Install
Number
Items
Function description
1
Magnetic zone
Area for placing the absorptive magnetic pen
2
Tap to enter energy-saving mode. Press for at least 2 seconds to
enter standby mode.
3
Remote control
signal receiver
Receive the remote signal
4
USB
USB interface of Android system
5
Bottom loudspeaker
Amplify audio
2. Terminal Interface
Control Panel
BOXLIGHT.COM
5
Number
Items
Function description
1
VGA
External computer image input
2
AUDIO IN
External computer audio input
3
SPDIF
Carry multichannel sound via optical signals
4
RS232
Serial interface (used for mutual transfer of data between devices)
5
AUDIO OUT
Audio output to the external speaker
6
LAN
Connect RJ45 terminals
7
2.0
USB 2.0 to connect USB devices such as mobile hard disk, U disk,
USB keyboard and mouse, USB drives, etc.
8
HDMI OUT
Connect to the devices with HDMI input function
9
3.0
USB 3.0 to connect USB devices such as mobile hard disk, U disk,
USB keyboard and mouse, USB drives, etc.
10
TOUCH
Touch signal output to the external computer
11
HDMI IN
High-definition multimedia interface signal input to connect to
devices with HDMI output interface (personal computer with HDMI
output, set-top box, or another video device)
12
AC IN
AC power input to connect AC power supply
13
AC SWITCH
Open or shut down AC power supply. I means power on, O
means power off
Control Panel
BOXLIGHT.COM
6
3. Remote Control
1)
Remote Control Button Instruction
Control Panel
BOXLIGHT.COM
7
2)
Detailed Function Description
Number
Items
Function description
1
Power on/off
2
Enter or exit mute mode
3
Start
PC's Windows key
4
Space
PC's Space key
5
Alt+Tab
PC's Alt+Tab key
6
Alt+F4
PC's Alt+F4 key
7
Numeric keys
Numeric input keys
8
Display
Display channel information
9
/
10
Input
Pop-up touch menu (general setting)
11
Home
Return to Android system main screen key
12
Menu
Pop-up touch menu (audio)
13
Red
Enable or disable front keyboard and touch
14
Green
Enable or disable front keyboard
15
Yellow
Enable or disable touch
16
Blue
Pop out or close the screen-freezing tools
17
Turn off or turn on the screen backlight
18
PC's Backspace key
19
Press to scroll up
20
Press to scroll left
21
Press to scroll right
22
Press to scroll down
23
Enter
Confirmation key, press to confirm selection state
24
Quickly start writing software
25
Back
Return to the last operating interface
26
PgUp
Page up
27
PgDn
Page down
28
CH.+/CH.-
Change the channel up/down
29
VOL+/VOL-
Increase/reduce the volume
30
F1-F12
PC's F1 through F12 function keys
NOTE: Computer-related function keys are not available without a built-in computer.
Control Panel
BOXLIGHT.COM
8
3)
Remote Control Instruction
Install Batteries
1)
Open back cover of battery component on the back of the remote control.
2)
Install AAA type batteries according to the corresponding electrode—make sure the
battery’s positive and negative poles are correct ("+"to"+", "-" to "-"). Please do not
mix old and new batteries.
3)
After batteries are installed, close the back cover of the battery component and
make sure the clip is buckled to the bottom.

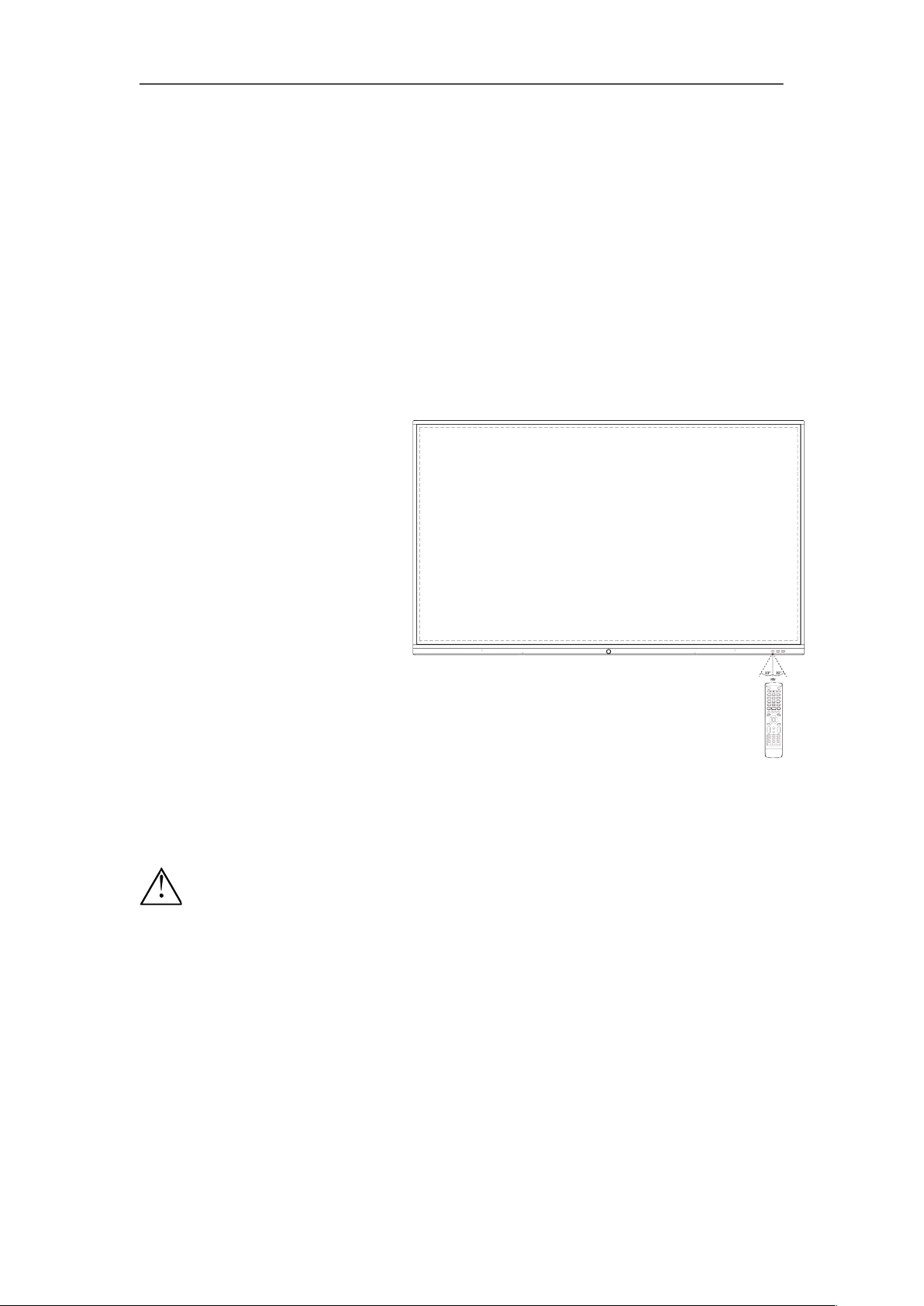

Range of remote control
Remote control can work normally within the
range of eight meters distance and 30
degrees left and right from the remote-
control receiver. In order to protect the
environment, please dispose used batteries
into a recycling box.
If the battery is replaced with an incorrect type, it may cause an explosion.
