Boya BY-BM6060 Manuale utente

BY-BM6060

User Manual • Uživatelský manuál •

Užívateľský manuál • Használati utasítás •

Benutzerhandbuch

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention

to the safety instructions. If you have any questions or comments about the device,

please contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Introduction

Thanks for purchasing BOYA!

The BY-BM6060 focuses on super-cardioid characteristics and resistance to low-noise

circuitry noise, it’s well-suited to a variety of applications from independent films, TV

programs to documentaries.

Initiate switchable high-pass filter control to roll of the low-frequency noise at 150Hz

such as rumbles and traffic.

Its 3-pin XLR output follows 24-48V phantom power supply. When your devices are not

phantom powered, the BY-BM6060 can be powered by one AA battery.

In addition, the BY-BM6060 includes a fur windshield and foam windscreen for an

intelligible sound effect and secure protection.

Package Contents:

•BY-BM6060 Microphone

•Shock mount

•Foam windscreen

•Fur windshield

•Zipper bag

•User Manual

•Warranty card

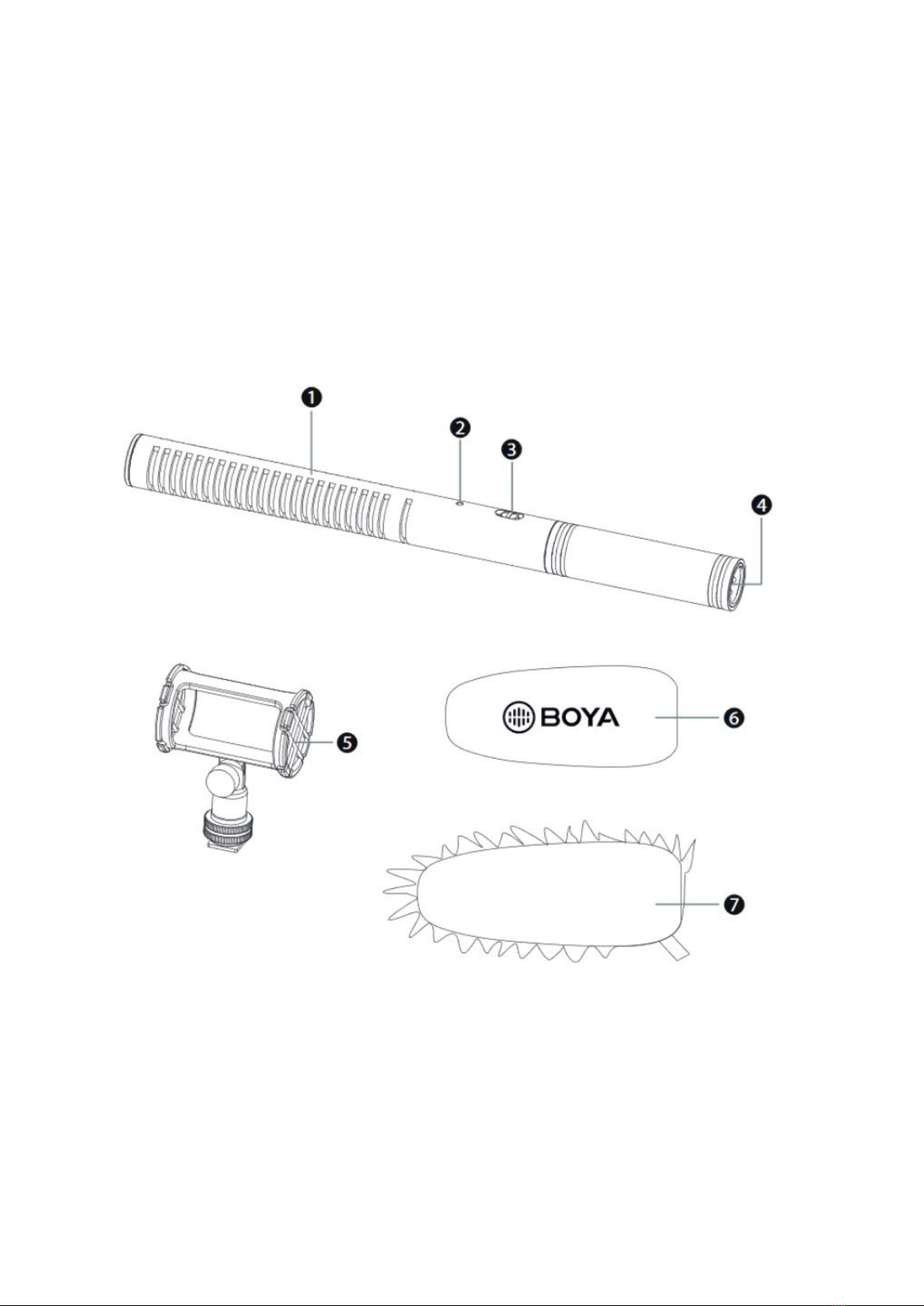

Product Structure:

1. Microphone boom

2. Power indicator

3. High-pass filter switch

4. 3-pin XLR output

5. Shock mount

6. Foam windscreen

7. Fur windshield

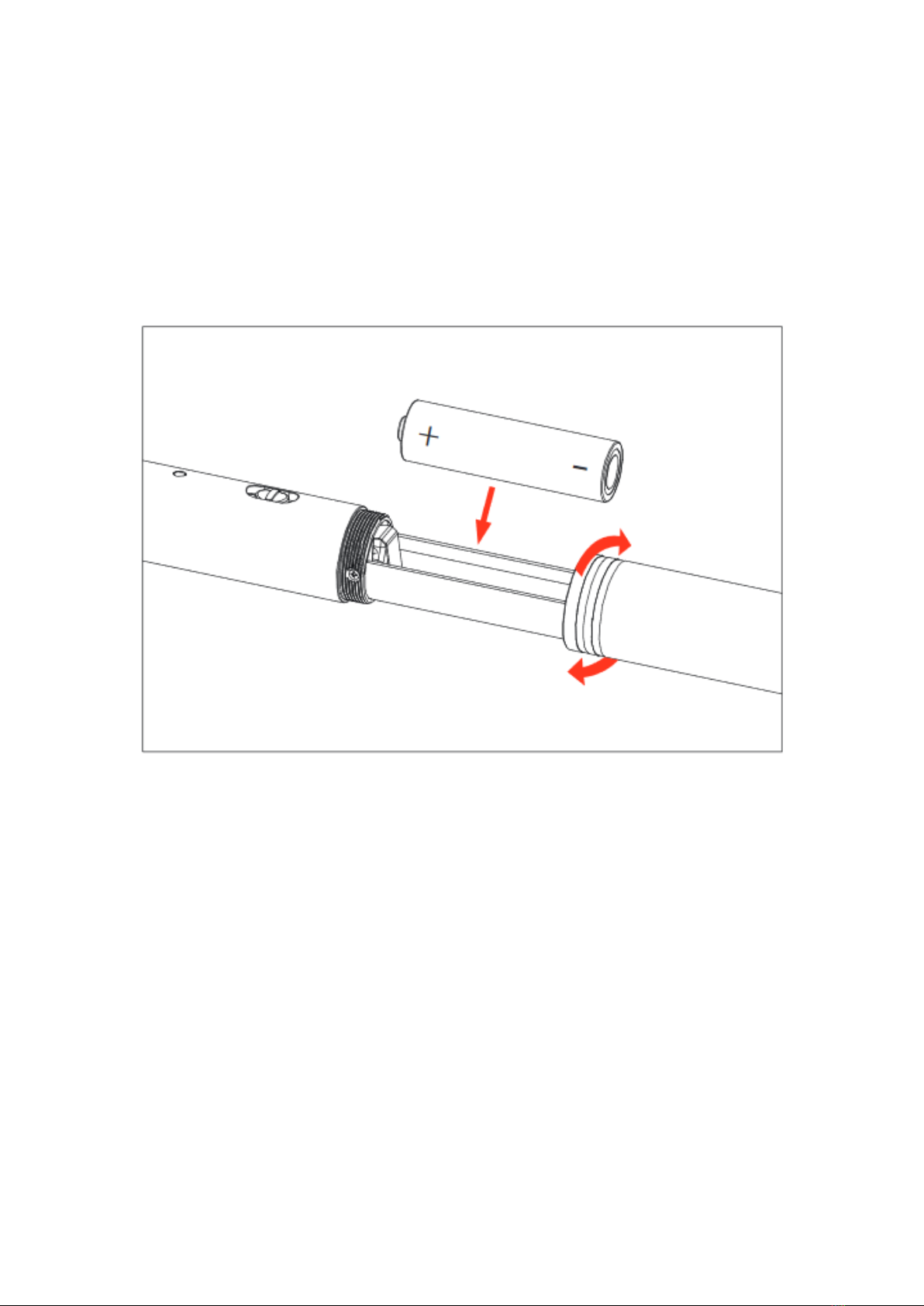

Installing the battery

1. Unscrew the microphone by rotating the base clockwise and pull out the cover

properly to reveal the battery compartment.

2. Insert one AA battery into the compartment aligning as the right polarity

3. Close the compartment and rotate it anticlockwise to tighten it.

Features:

•Ideal for independent films, TV programs, documentaries and more

•Delivers clear and intelligible sound

•Alloy-aluminium construction

•Low-noise circuitry

•Switchable high pass filter control (150Hz)

•Powered by 24-48 V phantom power or 1.5 V AA battery

•Includes fur windshield, foam windscreen, carry pouch, shock mount adapter

Specifications:

Type:

Condenser

Polar Pattern

Super-Cardioid

Frequency Response:

60 Hz – 20000 Hz

Sensitivity:

-36±3dB(0dB=1V/Pa@1KHz)

Signal-to-Noise Ratio:

80 dB

Output Impedance:

200Ω

Power Requirements:

24-48 V phantom power or 1.5 V AA battery

Output:

3-pin XLR

High Pass Filter:

150 Hz

Weight:

129 g (4.6 oz)

FREQUENCY RESPONSE

Frequency:

Warranty Conditions

A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you

need repair or other services during the warranty period, contact the product seller

directly, you must provide the original proof of purchase with the date of purchase.

The following are considered to be a conflict with the warranty conditions, for

which the claimed claim may not be recognized:

•Using the product for any purpose other than that for which the product is intended

or failing to follow the instructions for maintenance, operation and service of the

product.

•Damage to the product by a natural disaster, the intervention of an unauthorized

person or mechanically through the fault of the buyer (e.g. during transport, cleaning

by inappropriate means, etc.).

•Natural wear and aging of consumables or components during use (such as

batteries, etc.).

•Exposure to adverse external influences, such as sunlight and other radiation or

electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,

electrostatic discharge voltage (including lightning), faulty supply or input voltage and

inappropriate polarity of this voltage, chemical processes such as used power

supplies, etc.

•If anyone has made modifications, modifications, alterations to the design or

adaptation to change or extend the functions of the product compared to the

purchased design or use of non-original components.

EU Declaration of Conformity

Identification data of the manufacturer's / importer's authorized representative:

Importer: Alza.cz a.s.

Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7

IČO: 27082440

Subject of the declaration:

Title: Microphone

Model / Type: BY-BM6060

The above product has been tested in accordance with the standard(s) used to

demonstrate compliance with the essential requirements laid down in the

Directive(s):

Directive No. (EU) 2014/30/EU

Directive No. 2011/65/EU as amended 2015/863/EU

Prague, 23.11.2020

WEEE

This product must not be disposed of as normal household waste in accordance with

the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).

Instead, it shall be returned to the place of purchase or handed over to a public

collection point for the recyclable waste. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the environment

and human health, which could otherwise be caused by inappropriate waste handling of

this product. Contact your local authority or the nearest collection point for further

details. Improper disposal of this type of waste may result in fines in accordance with

national regulations.

Vážený zákazníku,

Děkujeme vám za zakoupení našeho produktu. Před prvním použitím si prosím pečlivě

přečtěte následující pokyny a tento manuál si uschovejte pro budoucí použití. Věnujte

zvláštní pozornost bezpečnostním pokynům. Pokud máte jakékoliv dotazy nebo

připomínky k produktu, kontaktujte zákaznickou linku.

✉www.alza.cz/kontakt

✆+420 255 340 111

Dovozce: Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
